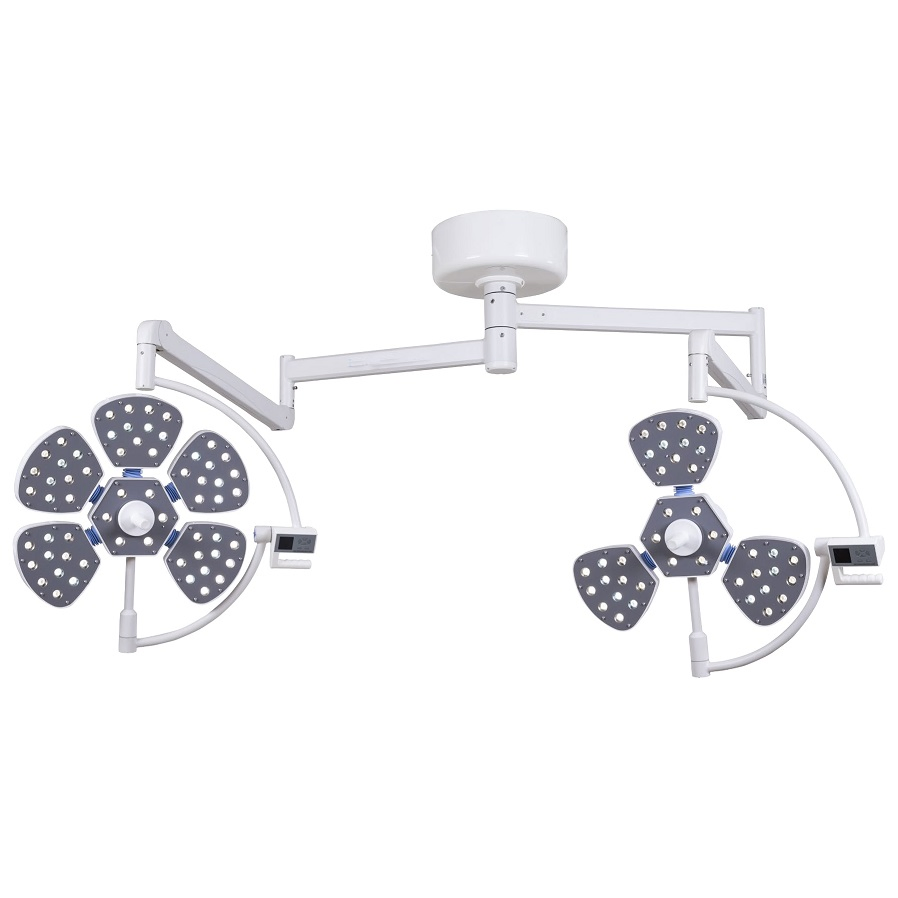

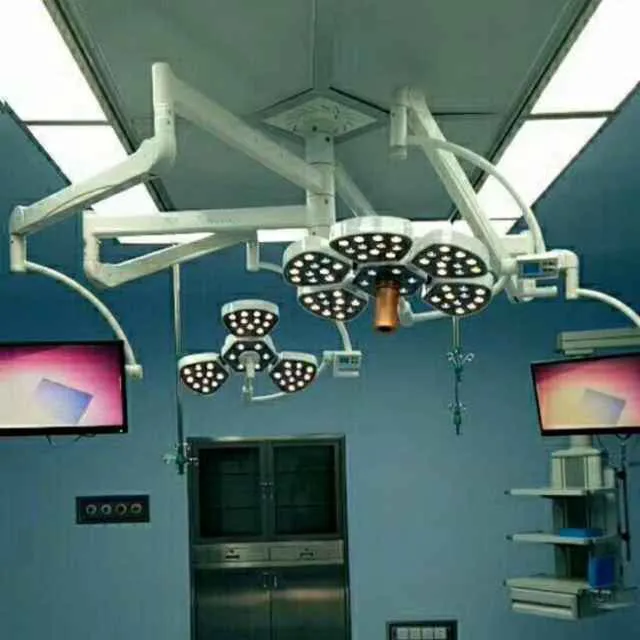

Modern Petal LED Surgical Light KS-F0305
Dual Head with Inner Camera System and Monitor
⚙️
Premium Components
Germany imported original square balance arm and French lenses.
💡
Advanced Lighting
German OSRAM LED bulbs with over 80,000 hours of lifespan.
🛡️
Durable Design
Mould Die-casting with an eight-edge type revolving arm.
💰
Economic Maintenance
Each LED can be replaced individually for maximum economy.
Basic Specifications
Certification
CE, ISO13485, ISO9001, MDD, MSDS
Illuminancy
40,000-180,000 Lux (Adjustable)
Color Temperature
3500K - 5000K
Color Rendering (Ra)
85 - 98
Input Power
AC100-240V 50/60Hz
Technical Comparison (KS-F03 vs KS-F05)
| Technical Parameters |
KS-F03 |
KS-F05 |
| Illuminancy (Adjustable) | 40,000-160,000 Lux | 40,000-160,000 Lux |
| Bulb Quantity | 39 | 61 |
| Bulb Life (h) | ≥80,000h | ≥80,000h |
| Color Temp (Kelvin) | 3500K ~ 5000K | 3500K ~ 5000K |
| Color Rendering Index (Ra) | 85 ~ 98 | 85 ~ 98 |
| Illumination Depth | 50-180cm | 80cm |
| Spot Diameter (mm) | 120-280mm | 120-260mm |
| Consumed Power | 40W | 65W |
| Temp Rise (Doctor Head) | <1ºC | <1ºC |
Camera Technical Specifications
| HD Movement System (10x 4.35 million 1/2.8" CMOS) |
| Camera Details |
| Sensor Type | 1/2.8" Progressive Scan CMOS |
| Video Output | SDI Output |
| Resolution | 1920x1080 (50/60fps) |
| Signal Noise Ratio | >52dB |
| Lens & Zoom |
| Focal Length | 4.7-47mm, 10x Optical Zoom |
| Digital Zoom | 10x |
| Focus Mode | Auto / Semi-auto / Manual |
| General |
| Power | DC12V±25% |
| Power Dissipation | 5W |
| Size / Weight | 43.5*45.4*68.8mm / 190g |
Frequently Asked Questions
1. What is the expected lifespan of the LED bulbs?
The KS-F0305 uses German OSRAM LED bulbs designed to last for more than 80,000 hours, ensuring long-term reliability and reduced maintenance costs.
2. Can the light intensity and color temperature be adjusted?
Yes, the illuminancy is adjustable from 40,000 to 180,000 Lux, and the color temperature can be adjusted between 3500K and 5000K to suit different surgical needs.
3. How does the camera system integrate with the surgical light?
This model features an inner high-definition camera system with 10x optical zoom and 10x digital zoom, providing clear SDI video output for monitoring and recording procedures.
4. Is the heat emission significant during long operations?
No, the design is highly efficient. The temperature rise at the doctor's head level is less than one degree Celsius, ensuring a comfortable working environment.
5. Is it possible to replace individual LEDs?
Yes, each LED can be replaced individually. This design is highly economical as you do not need to replace the entire light head if a single bulb fails.
6. What certifications does this medical lighting equipment hold?
The product is fully certified with CE, ISO13485, and ISO9001 standards, meeting international requirements for medical surgical environments.
