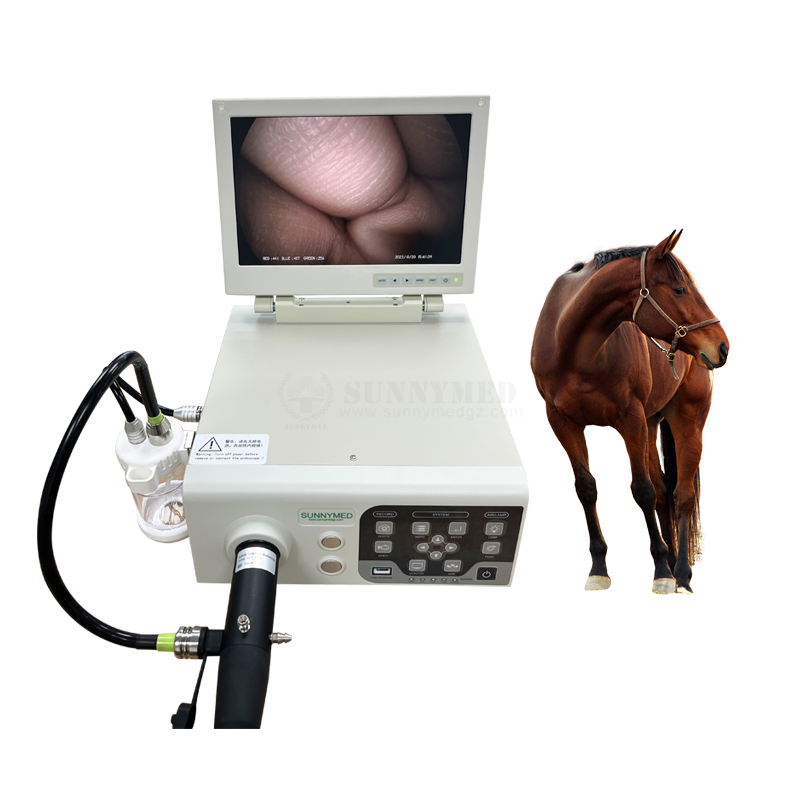

Sy-P033-1 Flexible Veterinary Gastroscope System Flexible Endoscopy for The Veterinarian

Customization: Available
Customized: Non-Customized
Certification: ISO13485

Product Description

📋

Technical Overview

Model NO.
SY-P033-1
White Balance
Automatic
RGB Adjustment
-50~+50
Cold Light
LED 40W
Luminance
>800lm
Air/Flow
0.05MPa, 0.75m³/N
Snap/Record
1080P/30fps
Voltage
~100V-240, 50Hz/60Hz
Field of View
120 degree
Depth of Field
3-100mm
Image Definition
1080P
Product Name
Vet Gastroscope
Companion Animal
Diameter 6.3 mm
Large Animal
Diameter 8.3mm / 12.9mm
Production Capacity
100 Sets/Month
Origin
China
🔍

Flexible Veterinary Gastroscope System

Professional Endoscopy for Veterinarians

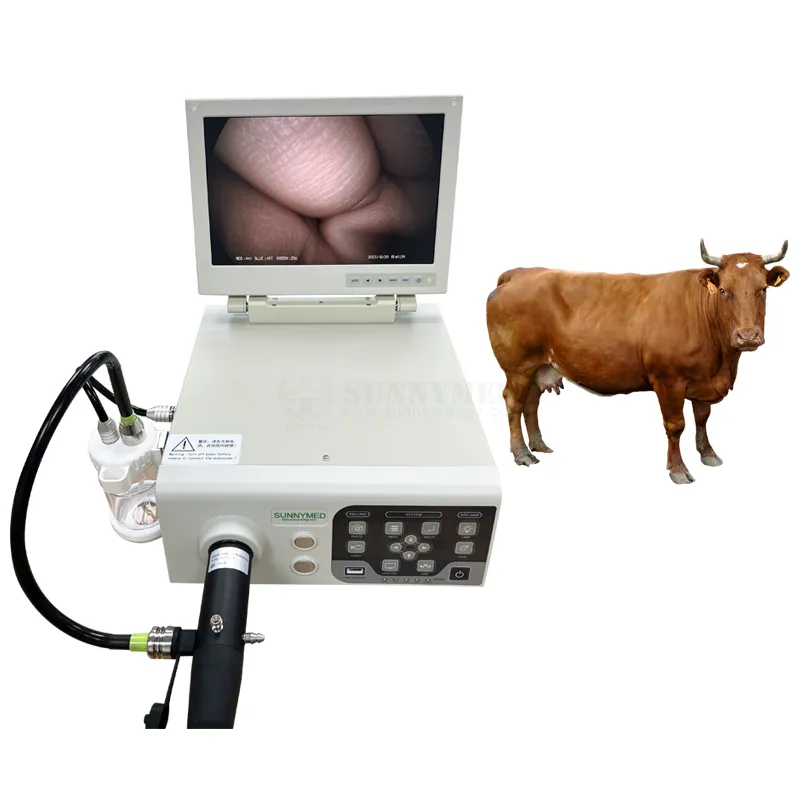

Gastroscope System

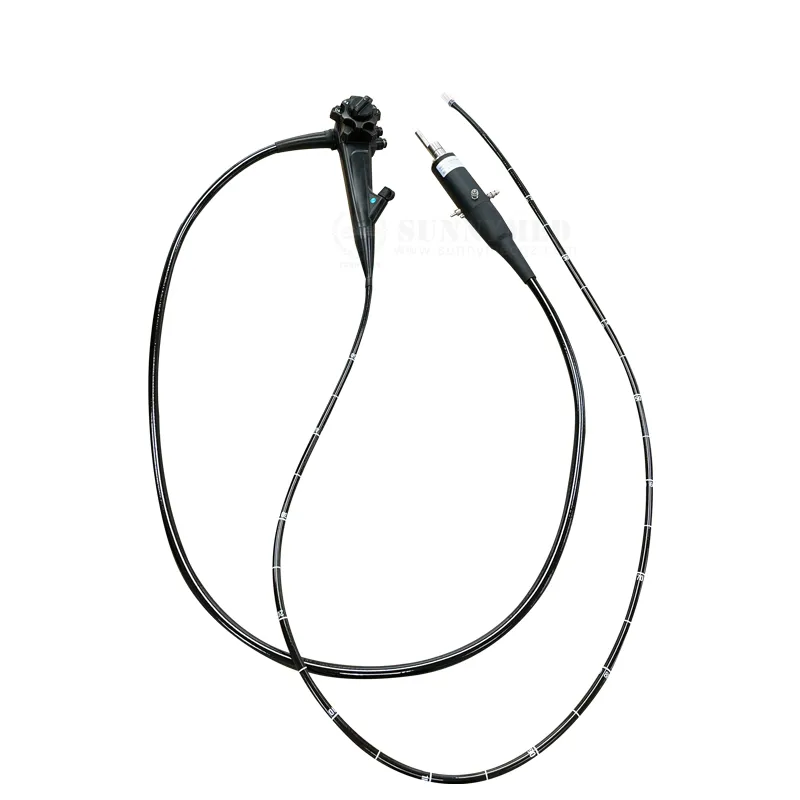

Video Gastroscope Standard (VET-1508) Optional (VET-1206) Optional (VET-3313)
Insertion tube diameter Φ8.3mm Φ6.3mm Φ12.9mm
Working channel Φ2.8mm Φ2.0mm Φ3.7mm
Working length 1500mm 1200mm 3300mm
Tip Deflection U210° D90° L100° R100° U180° D180° L160° R160°
Field of view 120°
Image definition 1080P

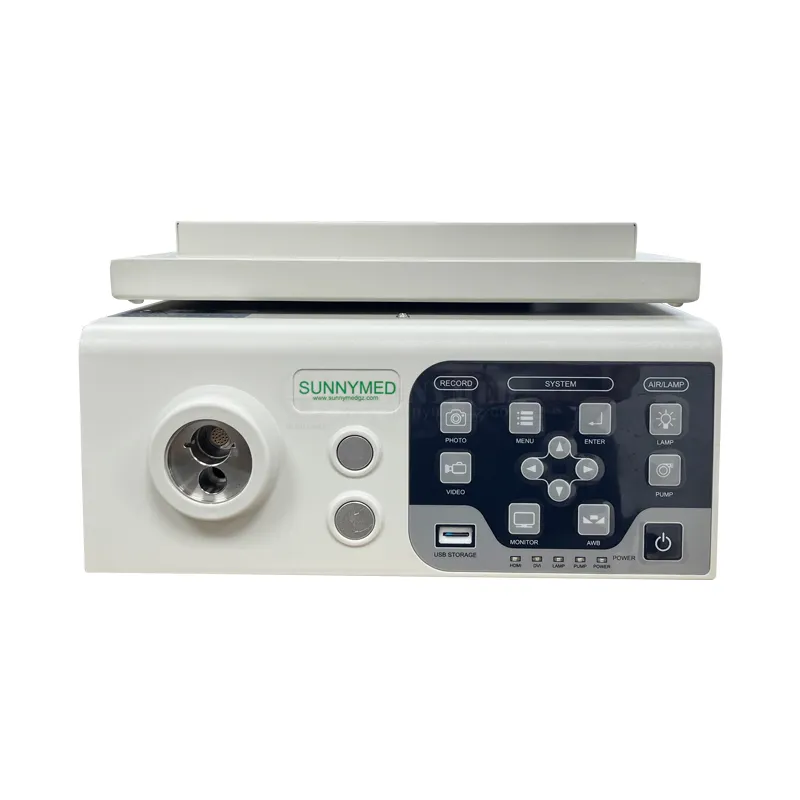

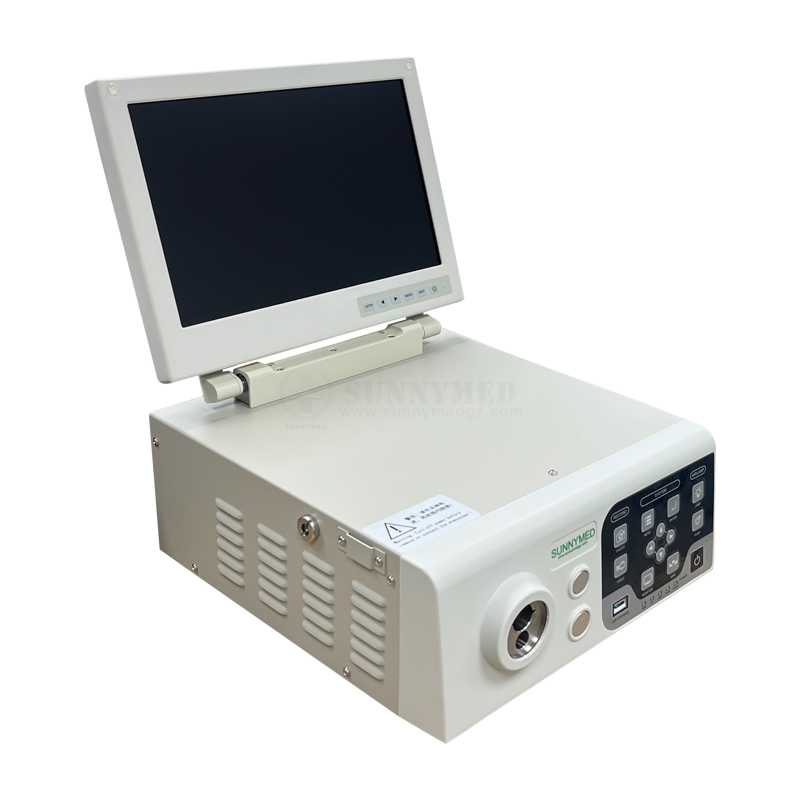

Endoscope Processor (VET-300F) Specifications
White balance Automatic
RGB adjustment -50~+50
Cold light LED 40W
Luminance >800Lm
Air/Flow 0.05MPa, 0.75m³/n
Snap/Record 1080P/30Fps
📸

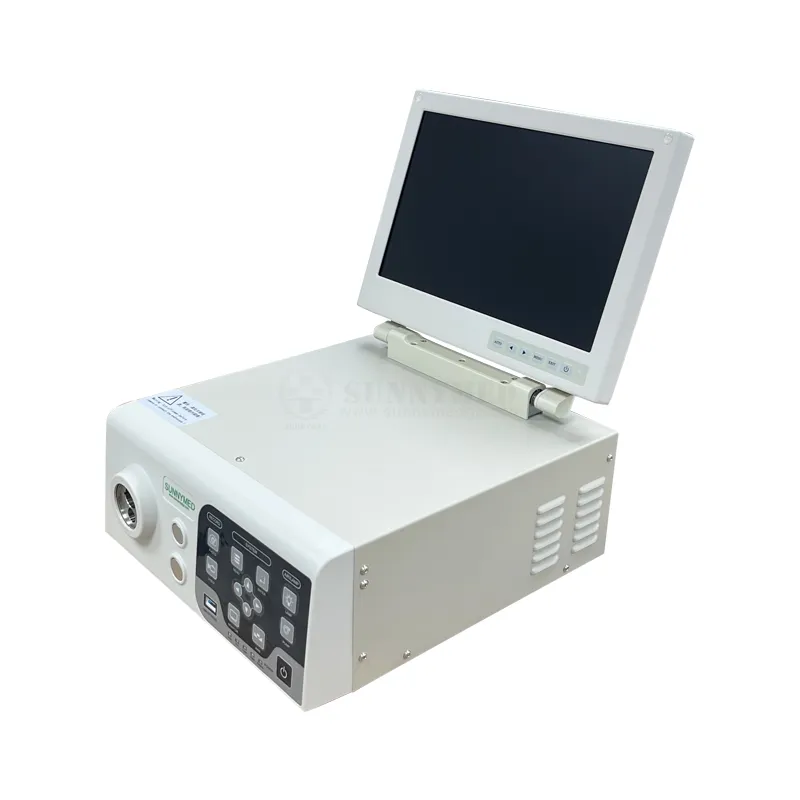

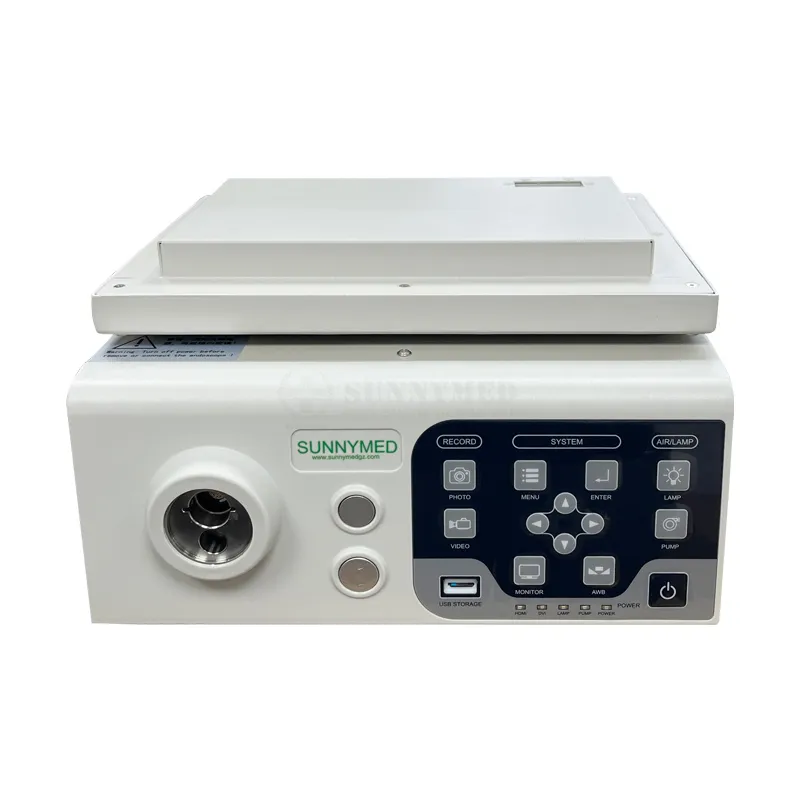

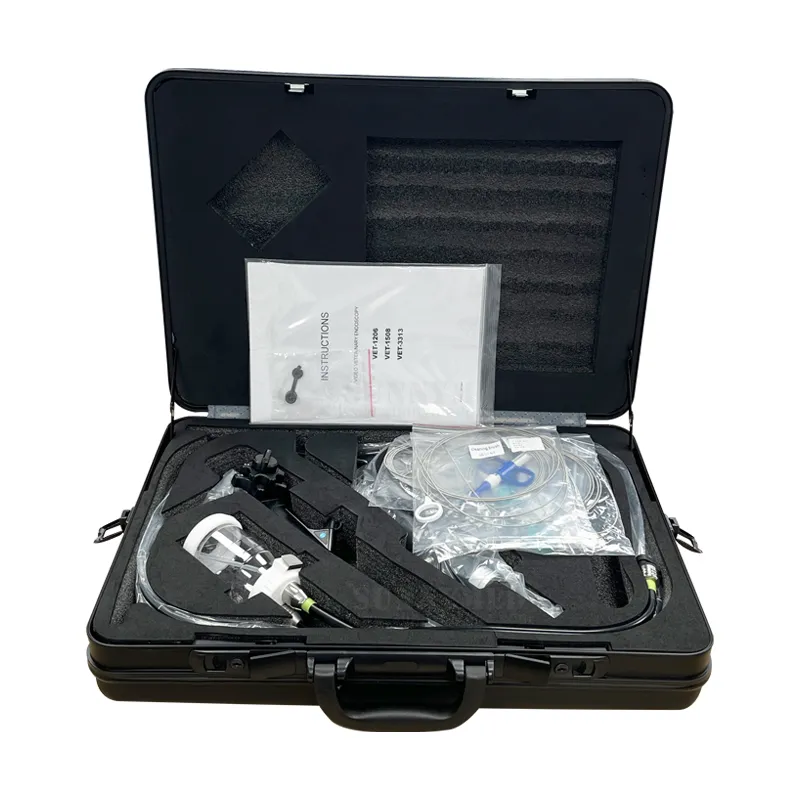

Product Display

Service & Advantages

How to Order & Payment

  • Multiple procurement options including online ordering.
  • Payment methods: Trade Assurance, Credit Card, PayPal, T/T (Bank Transfer), Western Union, and L/C.

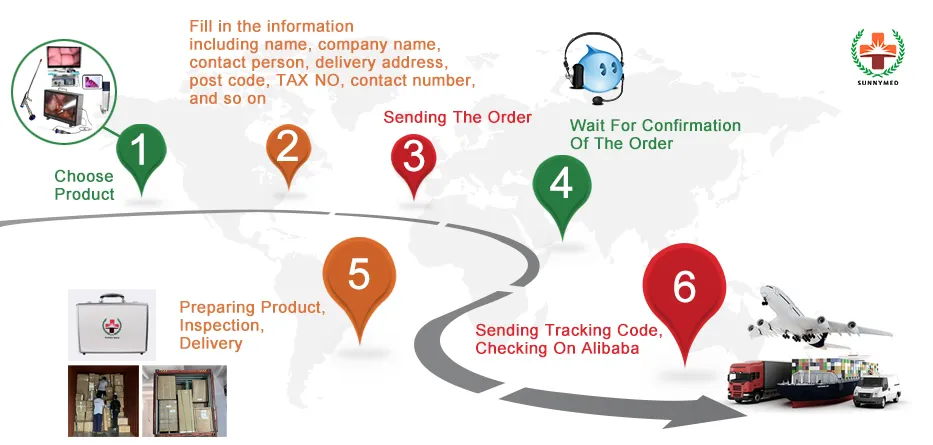

Shipping Process

Delivery & Support

  • Fast Dispatch: Ready stock shipped within 24 hours.
  • Quality Assurance: Special one-to-one inspection before delivery.
  • Full Training: Video tutorials for installation, operation, and maintenance.
  • Warranty: 12-60 months with support response within 8 hours.
Support

Why Partner with Us?

1. Top Quality: Strict quality control system with a strong market reputation.

2. Excellent Service: Focusing on long-term business relationships.

3. OEM Support: Custom branding and logo printing available.

4. High Performance: Competitive pricing to maximize customer benefit.

5. Timely Delivery: Efficient shipping processing once orders are finalized.

Why Choose Us

Frequently Asked Questions

What animals can this gastroscope be used for?
It is designed for both companion animals (using the 6.3mm diameter tube) and large animals (using the 8.3mm or 12.9mm tubes).
What is the image resolution of the system?
The system provides high-definition 1080P image definition for both live viewing and recording.
Does the system support video recording?
Yes, it features a snap and record function at 1080P resolution at 30fps.
What is the warranty period for this equipment?
We provide a comprehensive warranty ranging from 12 to 60 months, depending on the specific configuration and agreement.
How can I learn to operate the gastroscope?
We offer comprehensive video tutorials covering installation and operation, as well as real-time online video training at your convenience.
How long does shipping usually take?
Ready stock items are typically dispatched within 24 hours. Custom OEM orders generally require 2-7 working days.
