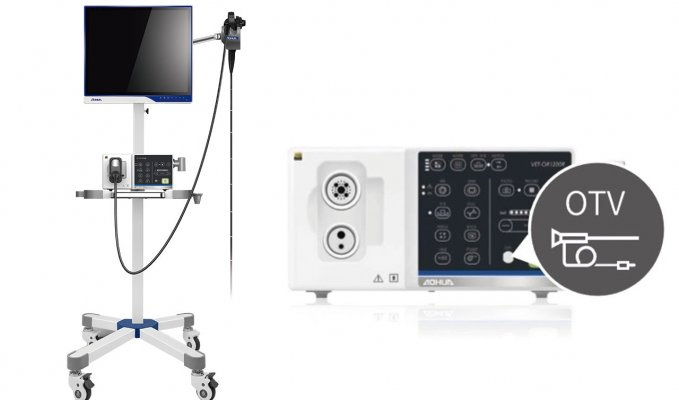

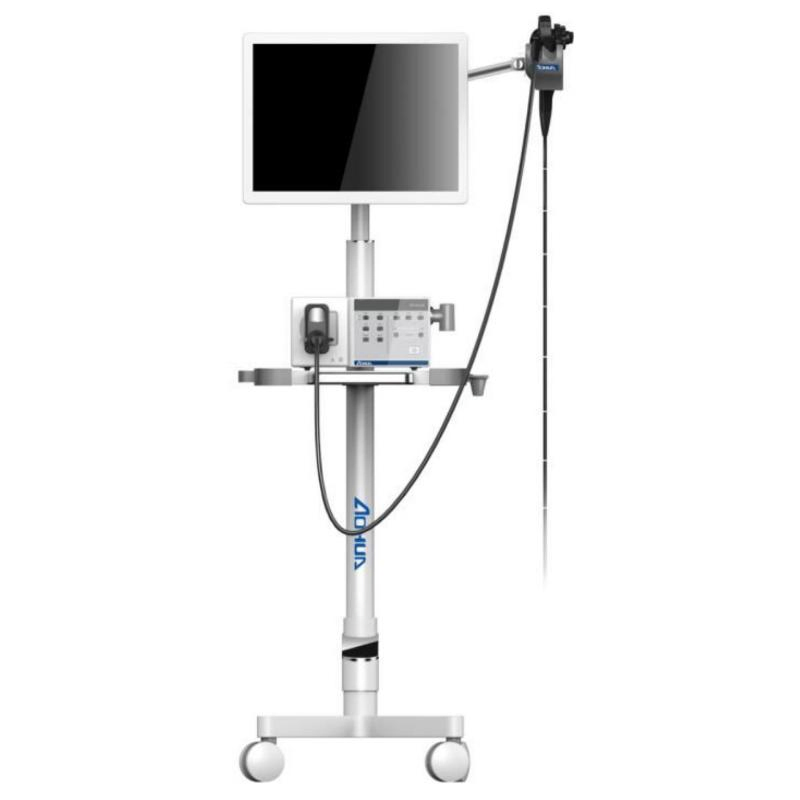

Top Quality Pet High Definition Veterinary Video Endoscope System Aohua Vet-Or1200

1 / 5

Top Quality Pet High Definition Veterinary Video Endoscope System Aohua Vet-Or1200

Type:	Operation Apparatus
Working Length:	1000mm/1500mm/3000mm
Channel:	2.2mm/2.0mm/2.8mm

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

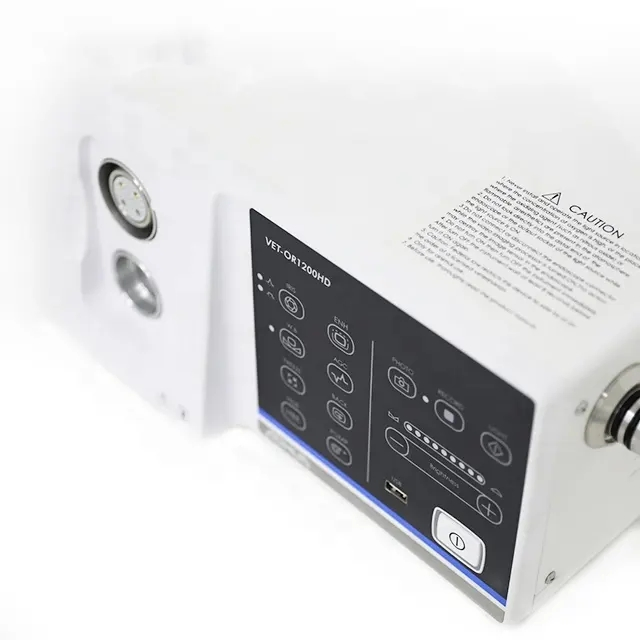

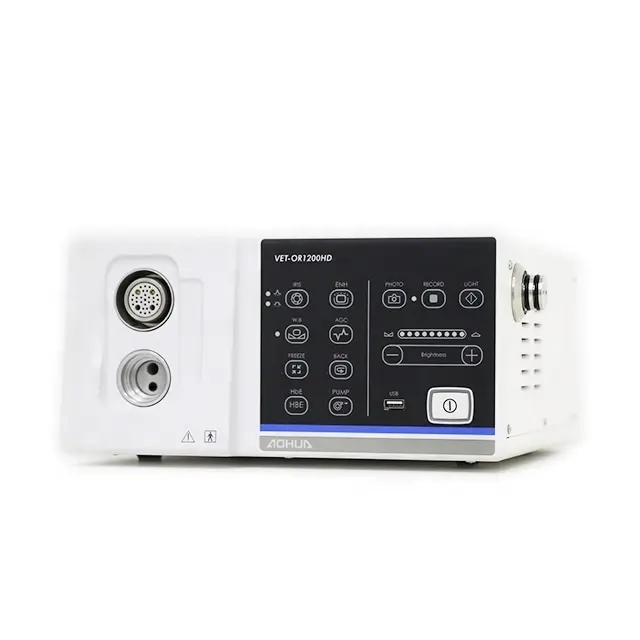

VET-OR1200HD / VET-OR1200R

Origin

China

Production Capacity

500 units / Month

Package

Standard Export Package

🔬

Product Description

Top quality Pet High Definition Veterinary Video Endoscope System AOHUA VET-OR1200

Veterinary Video Endoscope System View 1

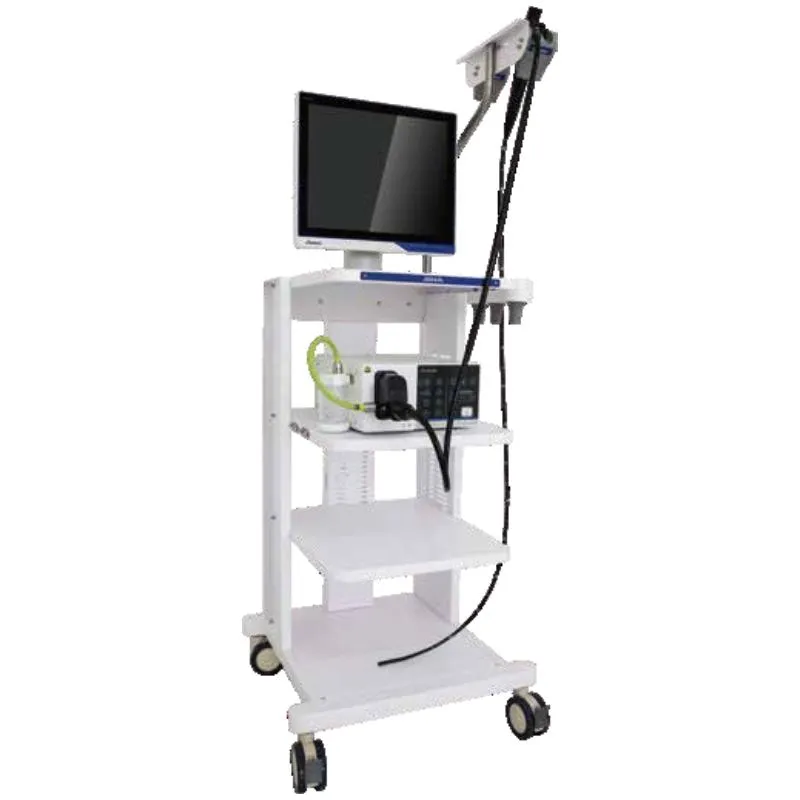

Veterinary Video Endoscope System View 2

Companion Animal Endoscopy: With an extended length and sleek design, these multipurpose veterinary endoscopes are ideal for companion animal applications, including upper and lower gastrointestinal endoscopy. Indications include regurgitation, dysphagia, nausea, vomiting, weight loss, and more.

Large Animal Video Endoscopes: Designed for Gastroscopy, Esophagoscopy, Tracheoscopy, and Rhinoscopy. The large working channel facilitates bigger biopsies for accurate diagnosis and uniform image brightness under difficult lighting conditions.

✨

Key Technical Features

💻

High Data Processing

Features Motus 3.0 platform with 10x computing power and 8x memory capacity for seamless real-time high-resolution image processing.

📸

Full Digital Processing

Enhanced SNR and reliability by deleting the A/D process. Brand-new image sensor provides better photo-sensibility and lower power consumption.

🩸

HbE Hemoglobin Enhancement

Highlights hemoglobin in the blood to invigorate the visualization of blood-flow direction in diseased tissue.

🔌

Versatile Interfaces

Equipped with USB, DVI, and AV interfaces. Easy to store HD images and videos directly to a USB stick or PC.

💡

LED Light Source

Powerful built-in LED lamp with daylight spectrum. Long lifespan and low power consumption reduce overall usage costs.

🎯

CMOS Image Sensors

High-resolution CMOS sensors protect endoscopic color and present high-quality images for subtle clinical changes.

📊

Observation Parameters

Category	Parameter	Specification
Image Control	Video Signal Outputs	Y/C, DVI, AV
	Image Enhancement	Profile enhance, 0-3 steps
	Iris	Average, Peak
	White Balance	Manual adjustment via W.B. switch
Air Pump	Air Flow	≥ 5L/min
Air Pump	Air Pressure	30-80kPa
Lighting	Color Temperature	≥5500k (LED)

📐

Available Video Endoscope Models

Model	Specifications (Diameter * Length, Channel, Bending)
VET-8015	8.0*1500mm, 2.0mm channel, 4-way, HD
VET-8028	8.0*1500mm, 2.8mm channel, 4-way, HD
VET-3512	3.5*600mm, 1.2mm channel, 2-way, HD
VET-6010	5.8*1000mm, 2.2mm channel, 4-way, HD
VET-9215	9.0*1500mm, 2.8mm channel, 4-way, HD
VET-9833	9.6*3000mm, 2.8mm channel, 4-way, HD
VET-1335	12.8*3500mm, 3.7mm channel, 4-way, HD

❓

Frequently Asked Questions

What types of animals can this endoscope system be used for?

The system is versatile and suitable for both companion animals (dogs, cats) and large animals (horses, etc.), with specific models designed for gastroscopy, rhinoscopy, and more.

How does the HbE function assist in diagnosis?

The Hemoglobin Enhancement (HbE) function highlights hemoglobin in the blood, making it easier for clinicians to observe blood-flow patterns and identify diseased tissue.

Can I record and save high-definition videos?

Yes, the processor includes a USB interface for saving still images and SD videos. For HD recording, it can be connected to a PC or laptop via an HD converter.

What are the advantages of the built-in LED light source?

The LED light provides a daylight spectrum for clear clinical examination, features a long lifespan, and consumes less power compared to traditional bulbs, reducing maintenance costs.

What video output formats are supported?

The system supports multiple video signal outputs including DVI, Y/C, and AV, ensuring compatibility with various medical monitors.

Does the system allow for biopsy sampling?

Yes, the endoscopes feature working channels (ranging from 1.2mm to 3.7mm depending on the model) designed to facilitate biopsies for accurate pathological diagnosis.
