Medical Endoscope 4K USB Recording Endoscopic Surgery Disaplay System

Customization:	Available
Certification:	CE, ISO13485, FCC
Output Interface:	HDMI/SDI/CVBS

Send Inquiry

Product Description

Basic Information

Model NO.	TV-D101A
Power	AC110V~240V
U Disk	U Disk USB2.0/USB3.0 (up to 32GB) to Record and Take Photos
SNR(Signal Noise Ratio)	<45dB
Freeze / AWB	Support
D-Zoom	0-8X
Brightness	1-30 Steps

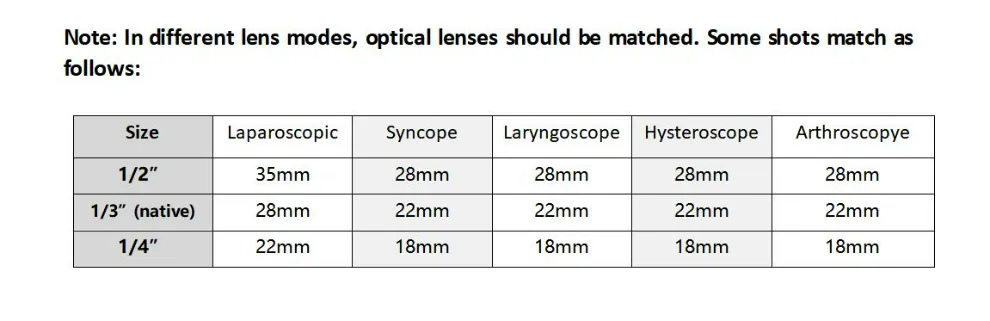

Lens Mode	Pted/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope
Language	Chinese, English, Japanese, Korean and Others
Specification	L336W330H116mm
Origin	China

System Parameters

Input Interface	4K

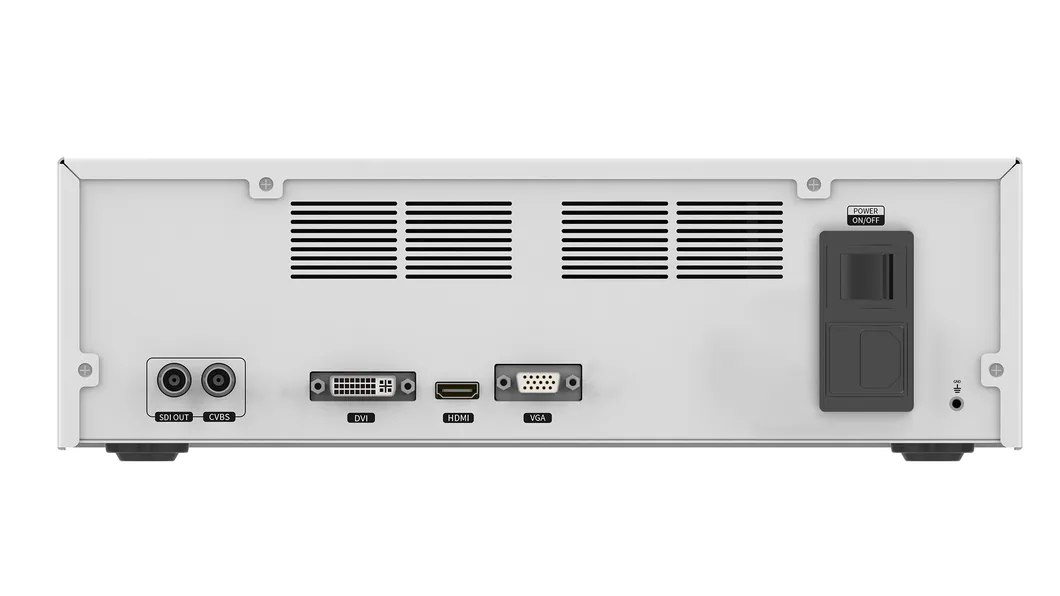

Output Interface	HDMI/SDI/CVBS
Keypad Control	Control the motherboard menu and shortcut keys through RX/TX
Working Environment	-10ºC~60ºC
Net Weight	3.9KG

Camera Parameters

Image Sensor	1/1.8" SONY CMOS
Effective Pixels	3864(H) × 2192(V) Approx. 8.46M pixels
Resolution	SDI 4K
Power Supply	DC12V ±10% < 1.7W
Working Current	250mA±10mA

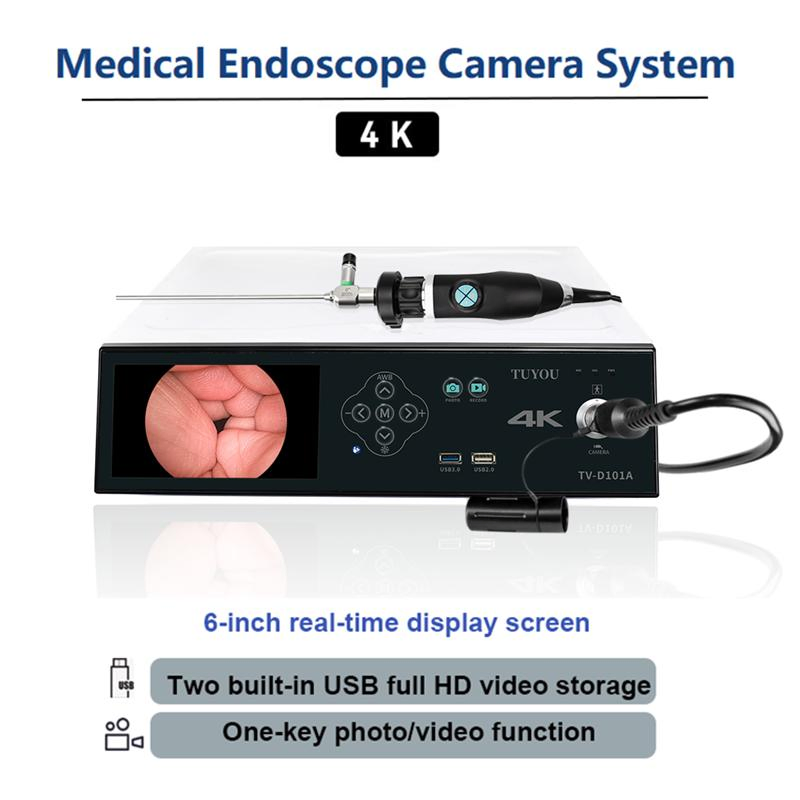

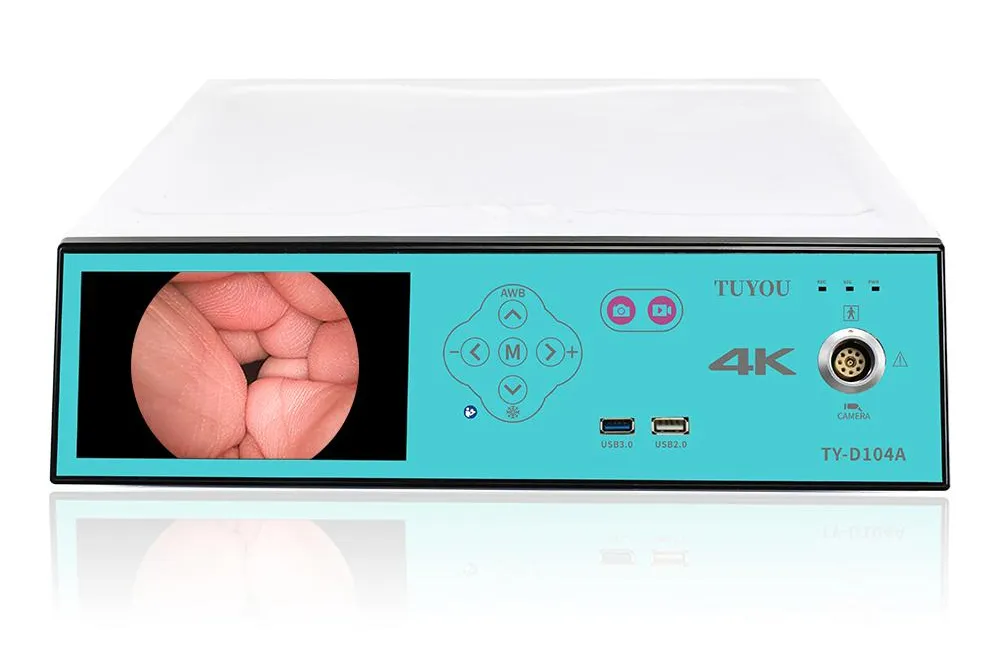

Product Features

Self-contained video recording system.

6-inch display screen for real-time viewing and playback.

Two built-in USB full HD video storage, connectable to external monitor.

One-key freeze, white balance, and digital zoom (0-8x).

One-key photo and video function.

Multi-language support: Chinese, English, Japanese, Korean.

Product Composition

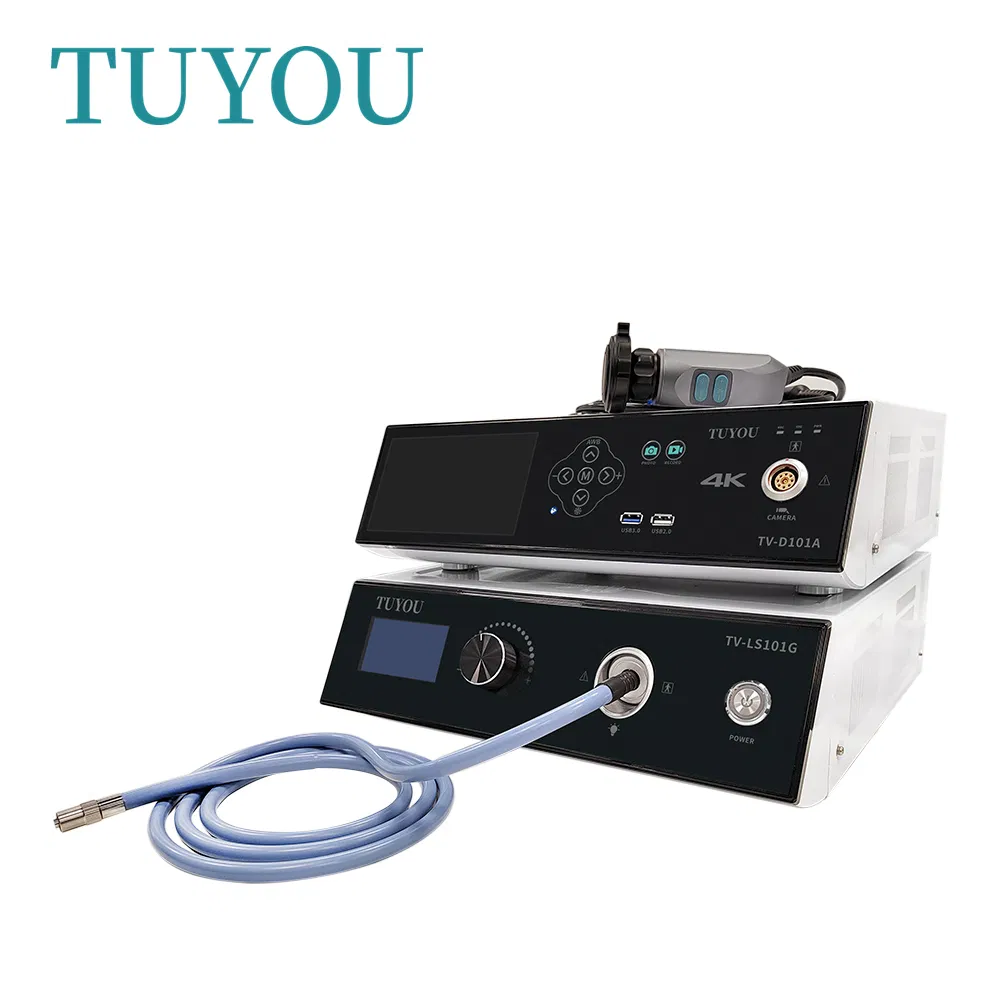

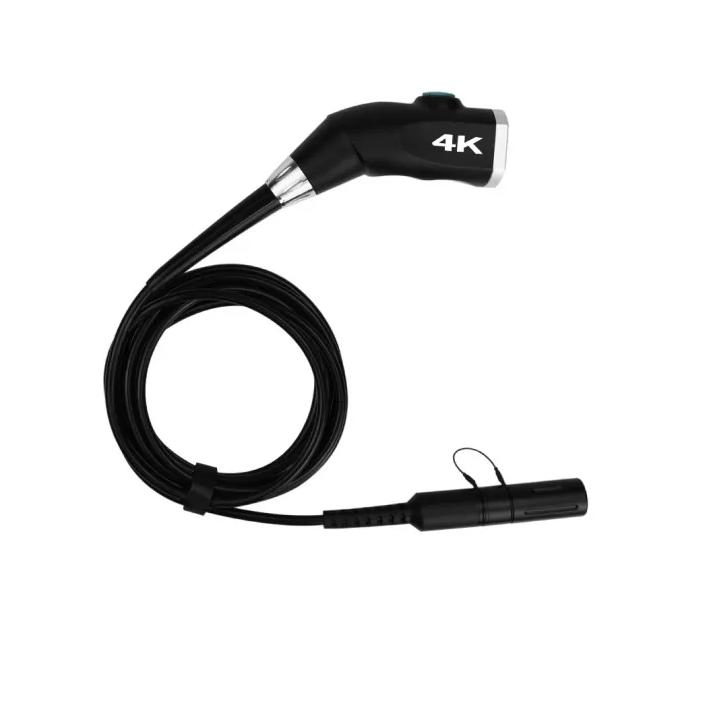

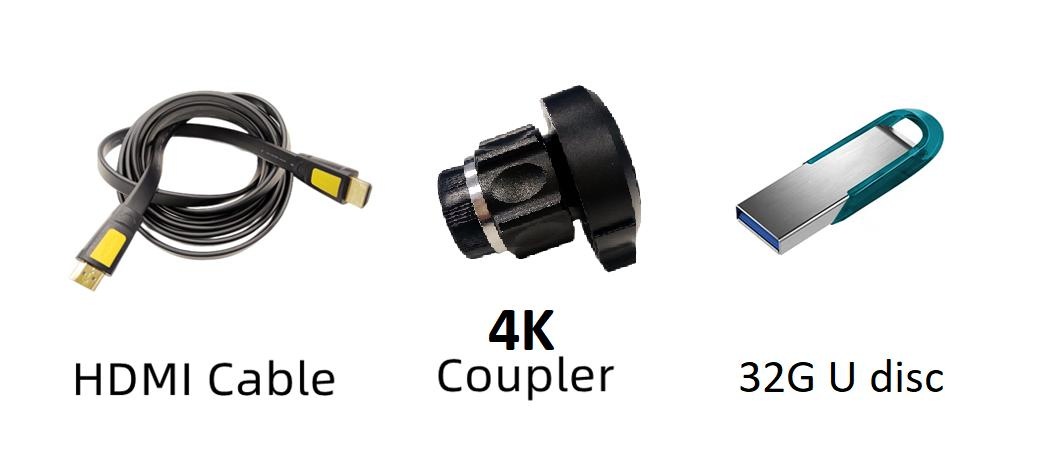

Endoscope imaging system consists of camera control system, handle camera and optical adapter (Adapter is OPTIONAL parts.)

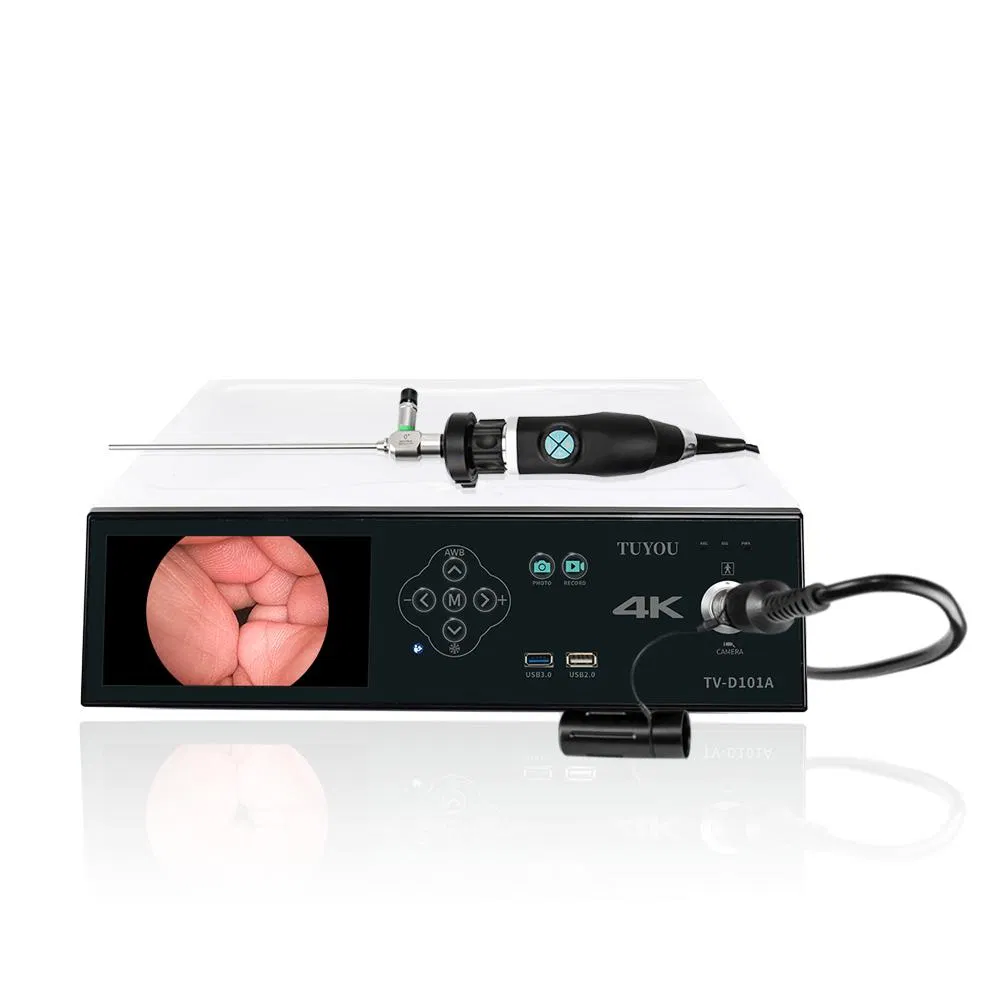

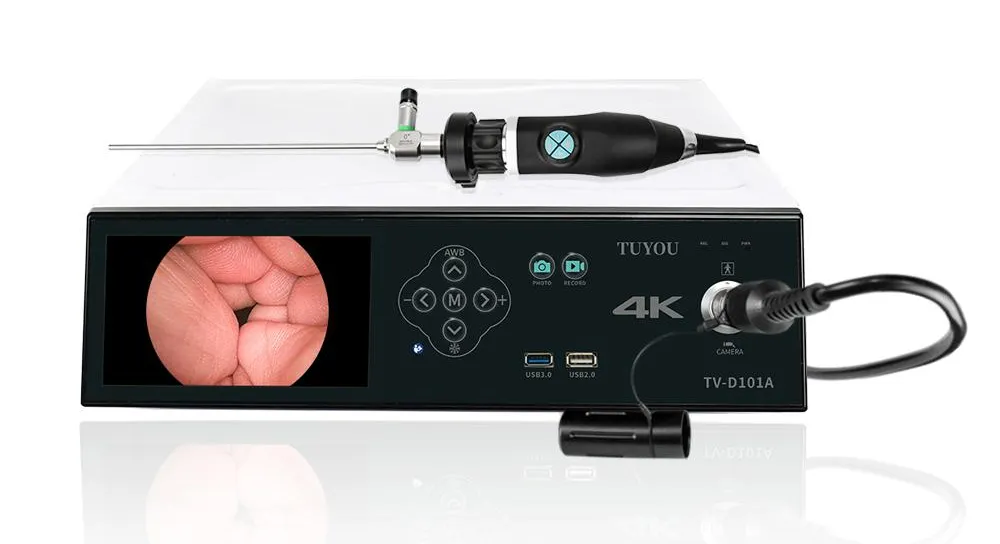

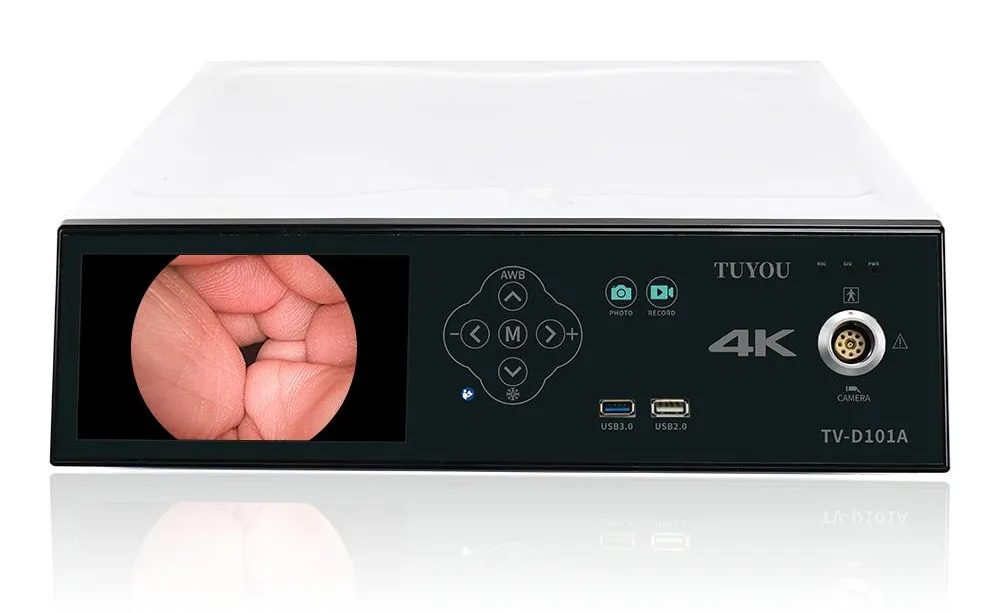

Product Showcase

Customer Feedback

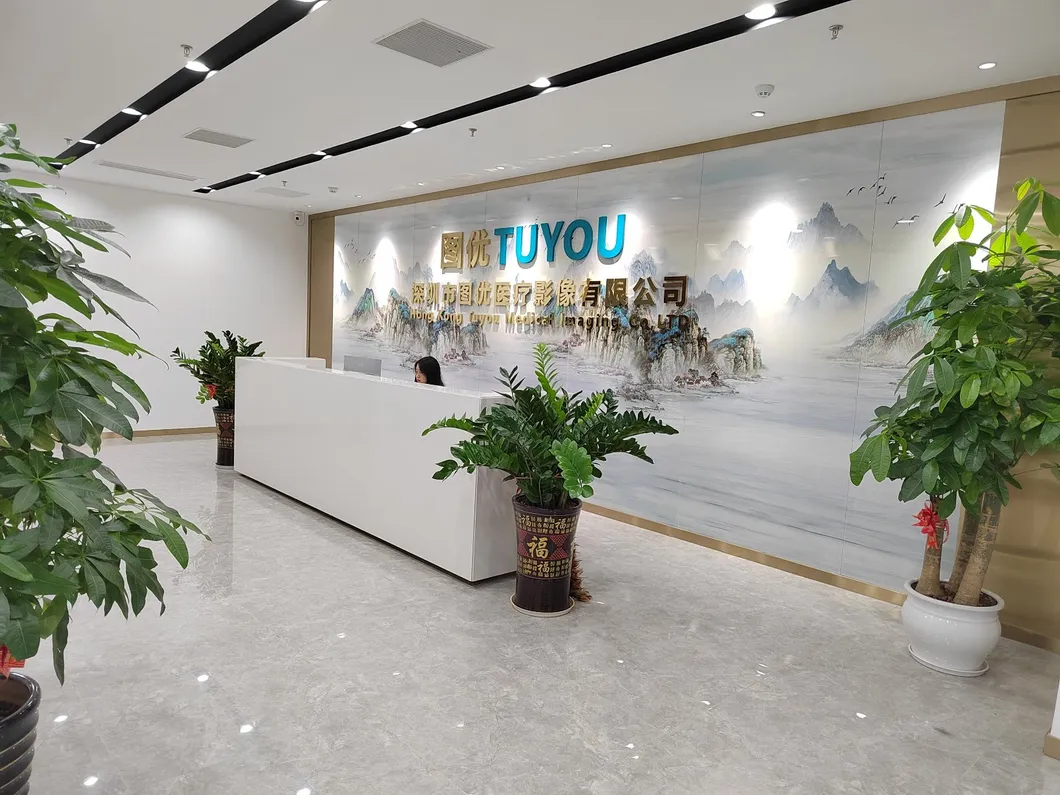

Production Excellence

A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. With more than 20 years of experience in independent production and R&D, the enterprise has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems.

The facility features an advanced medical-grade environmental protection plant, winning a number of national product R&D patents. It has passed international quality systems including CE, FCC, and RoHS, providing OEM/ODM services for numerous well-known enterprises.

Packing & Delivery

Frequently Asked Questions

Q: Are you a factory or a trading company? A: We are a professional medical imaging instruments manufacturer. All products are manufactured by our dedicated team.

Q: Can you accept OEM/ODM orders? A: Yes, we offer professional OEM and ODM services to meet your specific branding and technical requirements.

Q: What is the estimated delivery time? A: Standard orders are typically delivered within 7 working days upon payment. Samples are usually ready-made and available for immediate dispatch.

Q: What are the warranty terms? A: We provide a free two-year warranty. During this period, we will repair or replace any faulty assemblies free of charge.

Q: What payment methods do you accept? A: We accept T/T Bank Transfer, Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, and Cash.

Q: Is it possible to visit your manufacturing facility? A: You are highly welcomed to visit our factory to see our production process and quality control measures firsthand.
