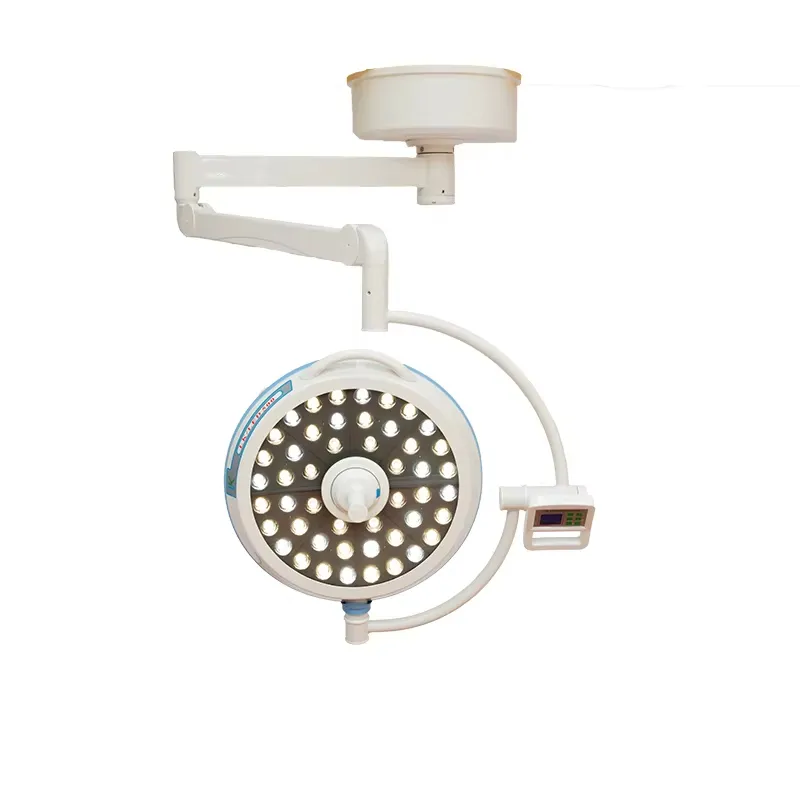

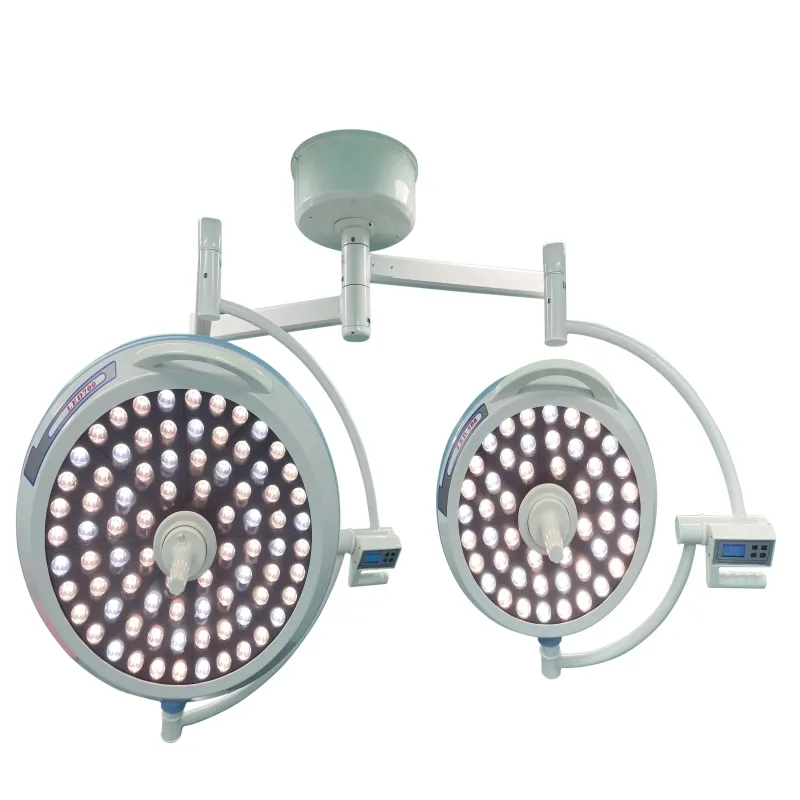

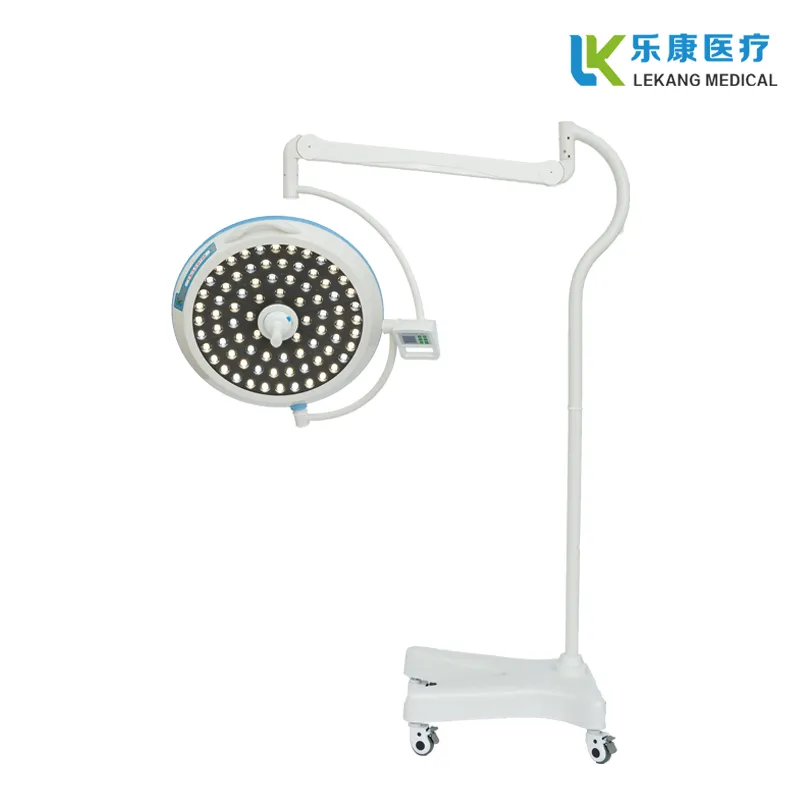

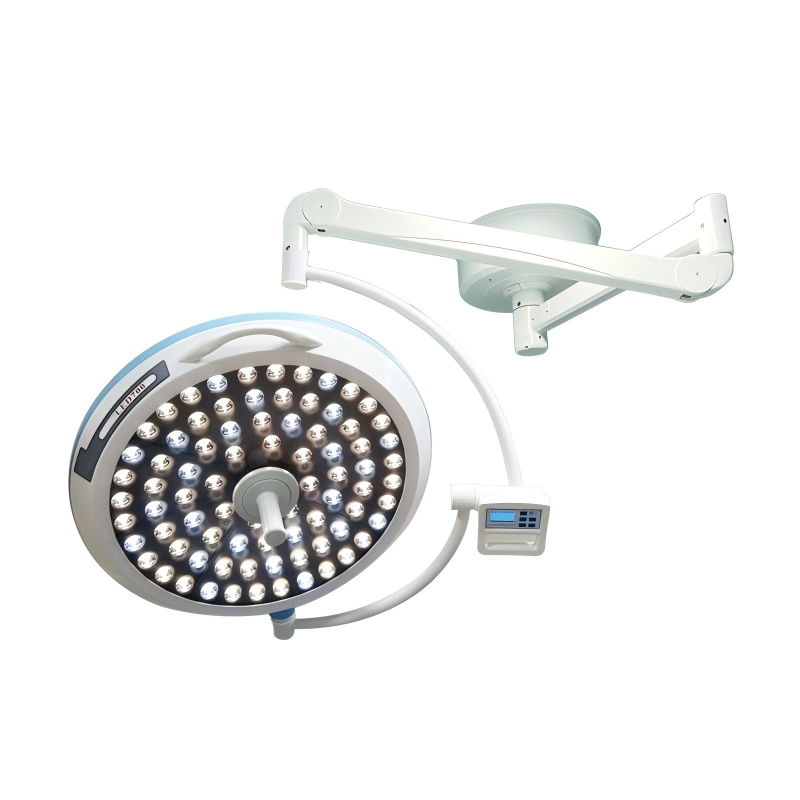

| Model NO. | LK/700500 |
| IP Rating | IP33 |
| Power | ＞100W |
| Application | Hospital |
| LED Chips Brand | Osram |
| Voltage | 220V AC |
| Certification | CE, ISO9001 |
| No. of LED Beads | 80/48 |
| Illuminance (Lux) | 40,000-160,000 / 80,000 |
| Color Temperature (K) | 3000-6700 |
| Diameter of Light Spot | 160-280 mm |

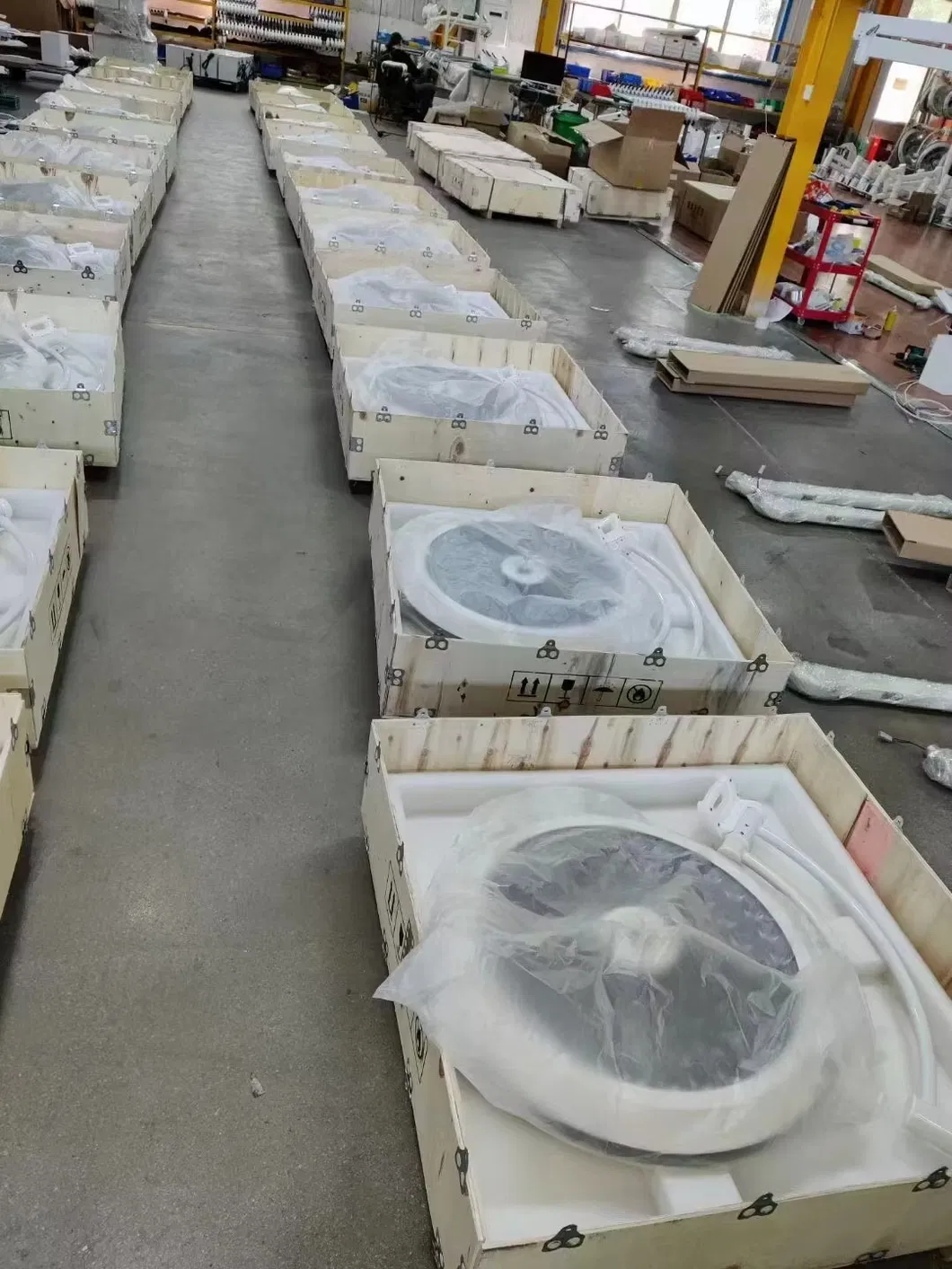

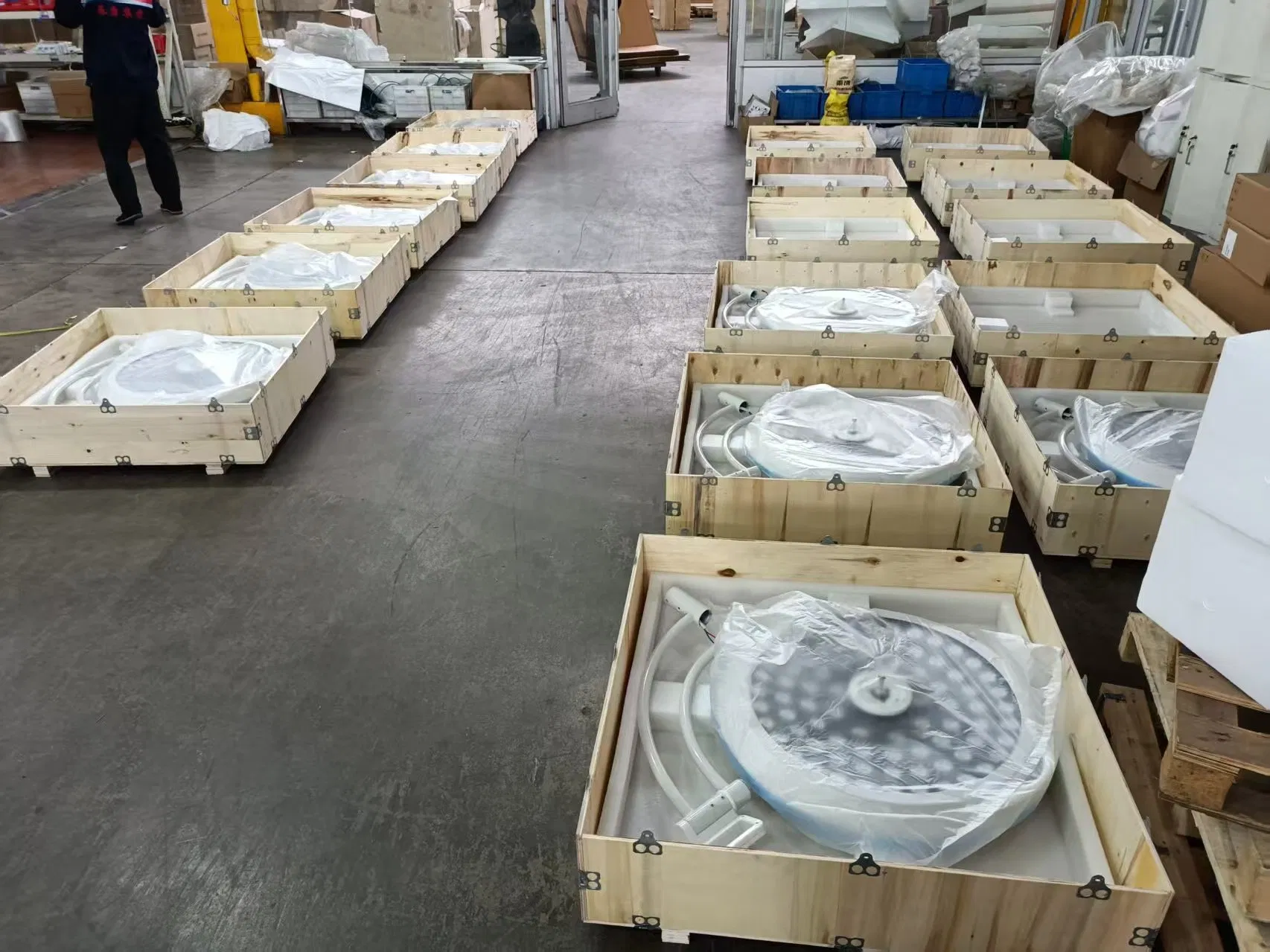

| Transport Package | Standard Marine Wooden Cases |
| HS Code | 8539391000 |
| Production Capacity | 20,000 PCS/Year |
| Feature | Specifications (LKLED700/500) |
|---|---|
| Color rendering index (CRI) | ≥96 |
| Lighting depth (mm) | 500-1800 |
| Dimming system | Continuous dimming system |
| Temperature rise at operator's head | ≤1°C |
| Temperature rise at operating field | ≤2°C |
| Mains voltage | 220V / 50Hz |
| Input power (VA) | 400 |

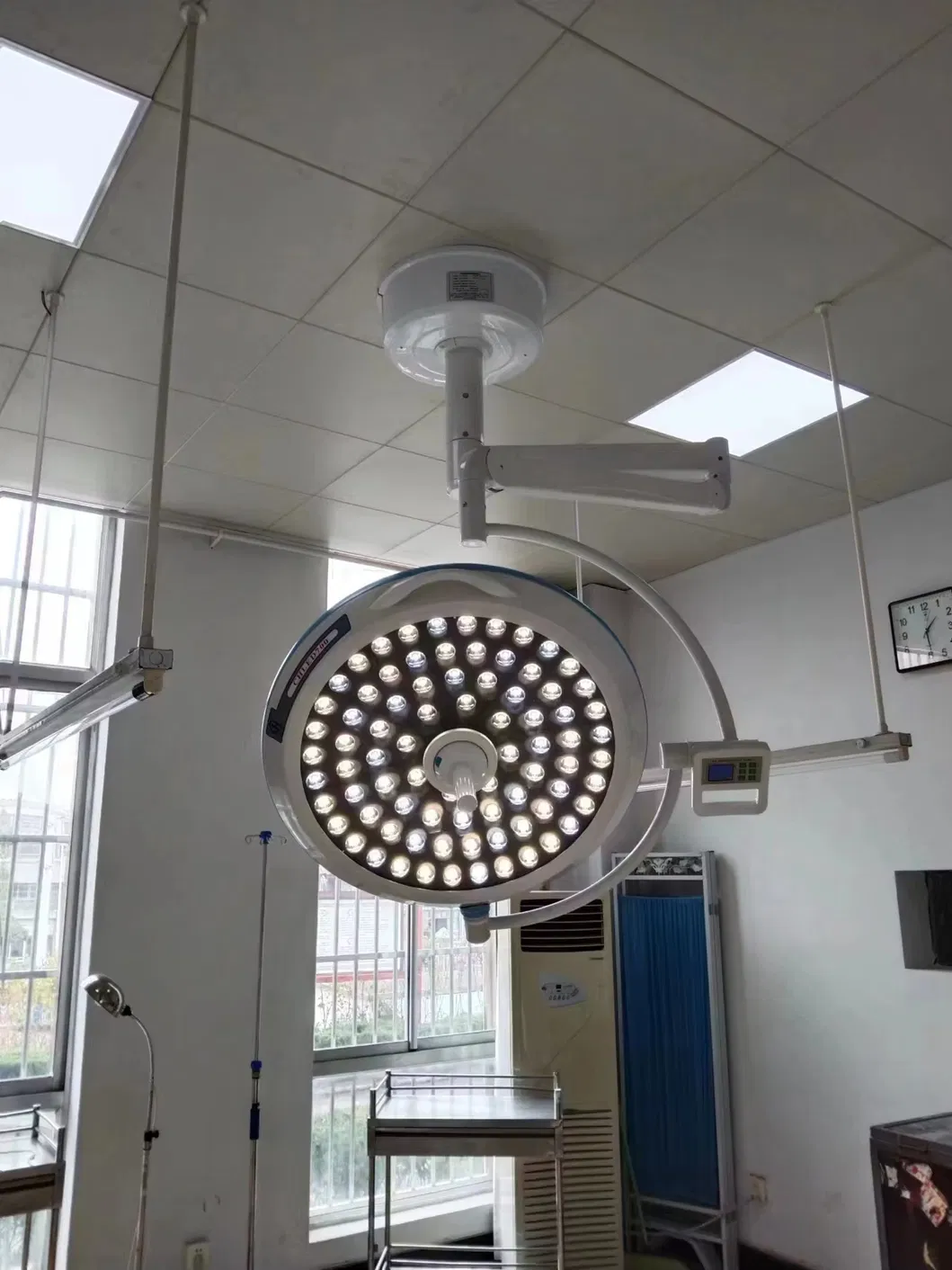

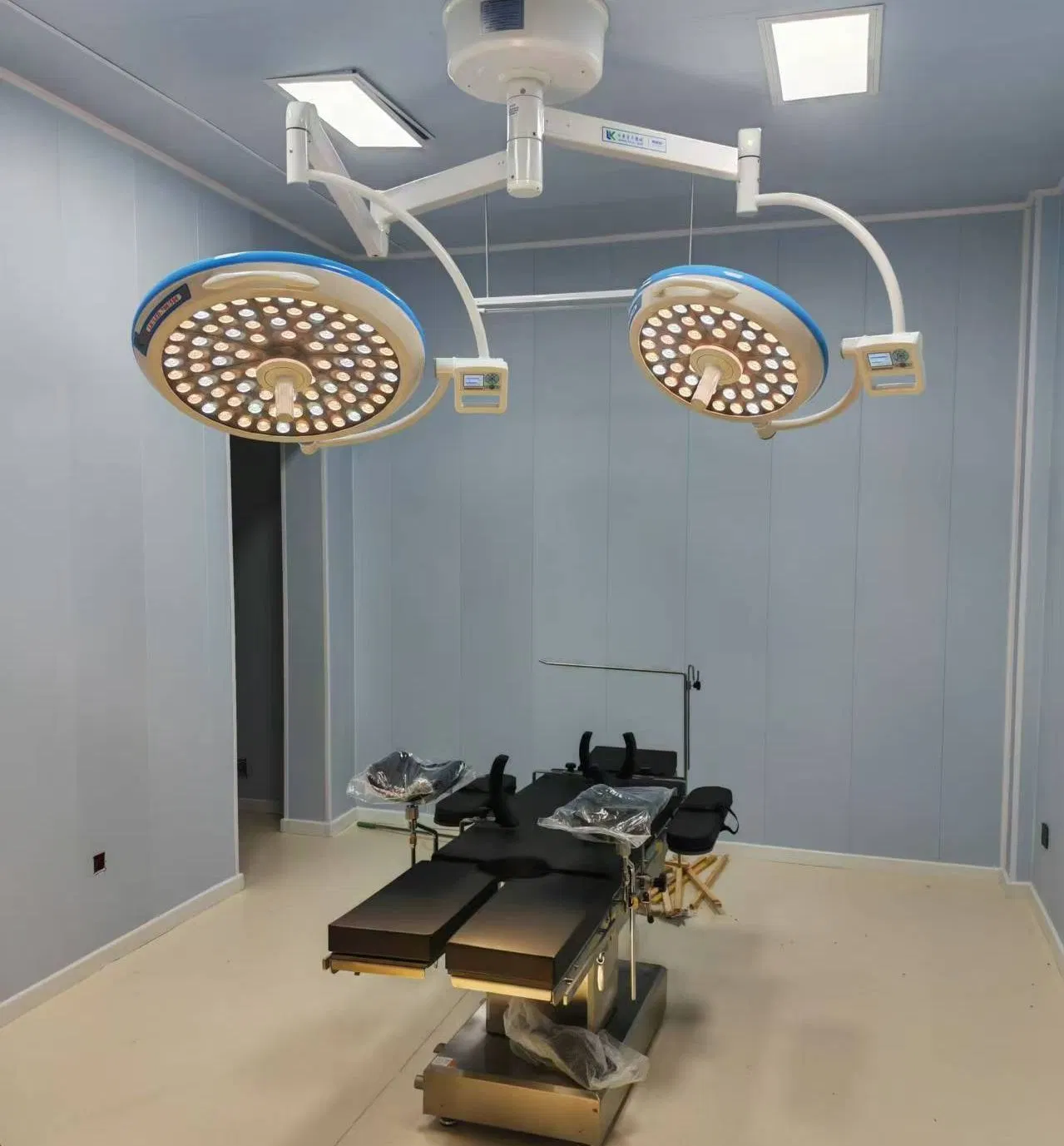

| Installation height | 2.8 m (Lowest) / 3.2 m (Optimum) |

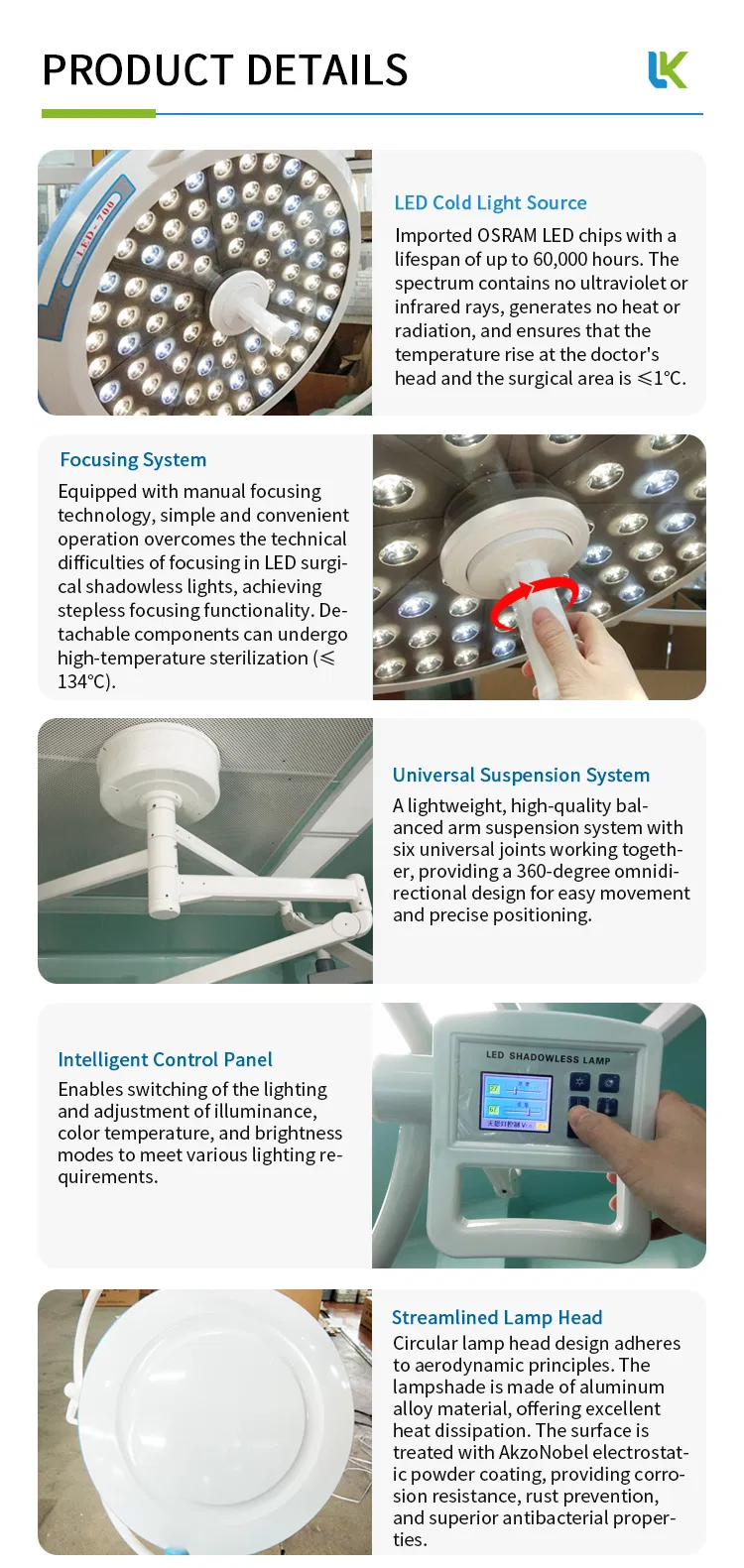

1Extra-long service life: Novel LED cold light source extends service life up to 60,000 hours without changing beads. Superior to halogen lamps for energy saving.
2Perfect cold light effect: Spectrum contains no UV or infrared lights. No heat or radiation; temperature rise at physician's head ≤1ºC.

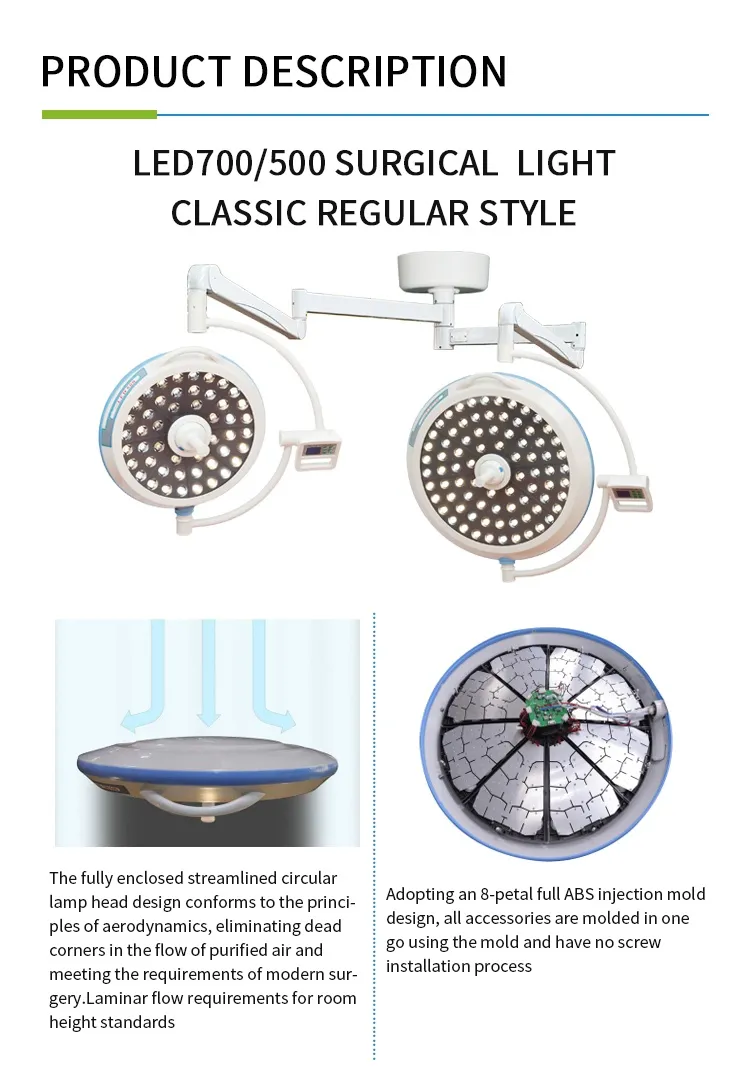

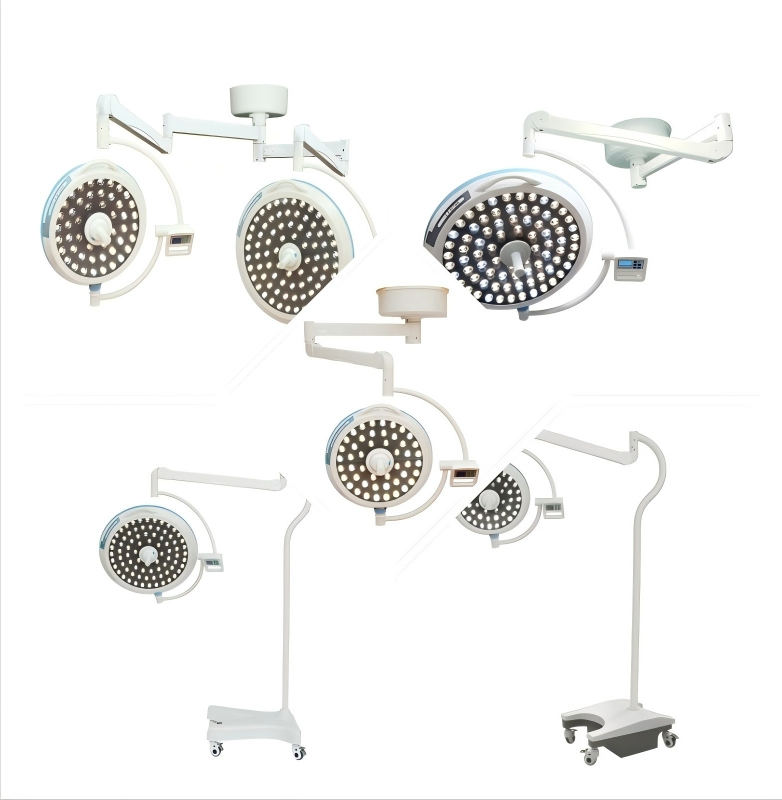

3Aerodynamic Design: Fully enclosed, streamlined lamp head conforms to aerodynamics principles, eliminating dead corners in purified air flow for aseptic requirements.
4Humanized Interface: Lighting brightness adjustable via touch-screen LCD control panel for illuminance and color temperature.
5Shadowless Effect: Integrated LED lamp head design converges light into a high-brightness uniform column for deep beam-converging effect.
6Color Temp Adjustment: Adjustable from 3500K to 5000K in six levels to ensure accurate diagnosis and reduce eye fatigue.
