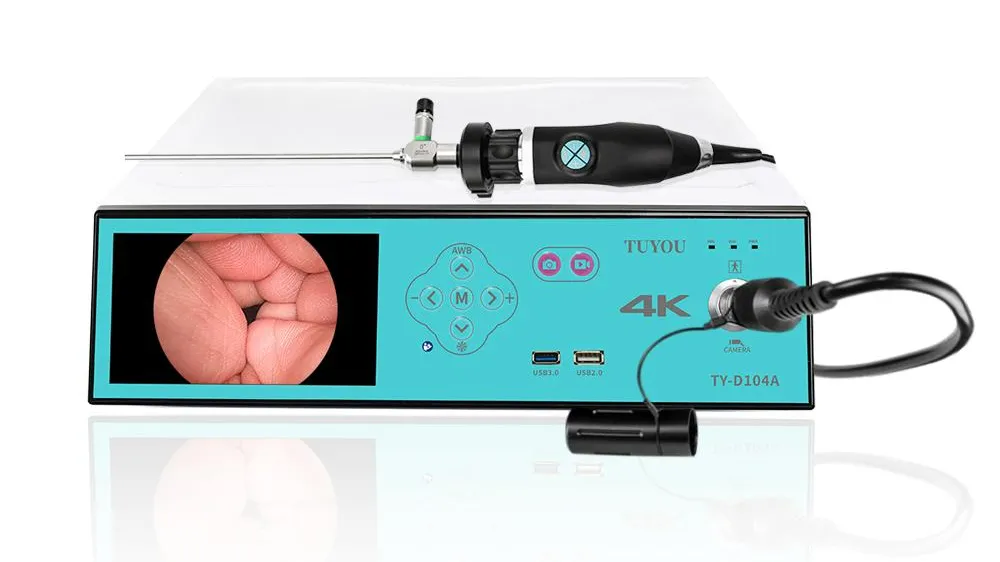

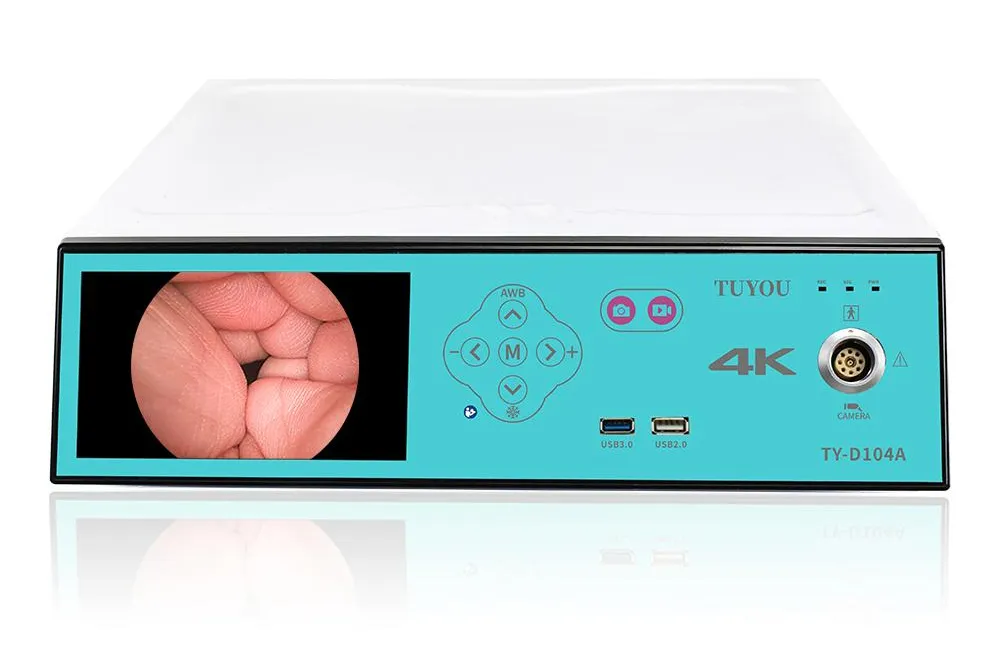

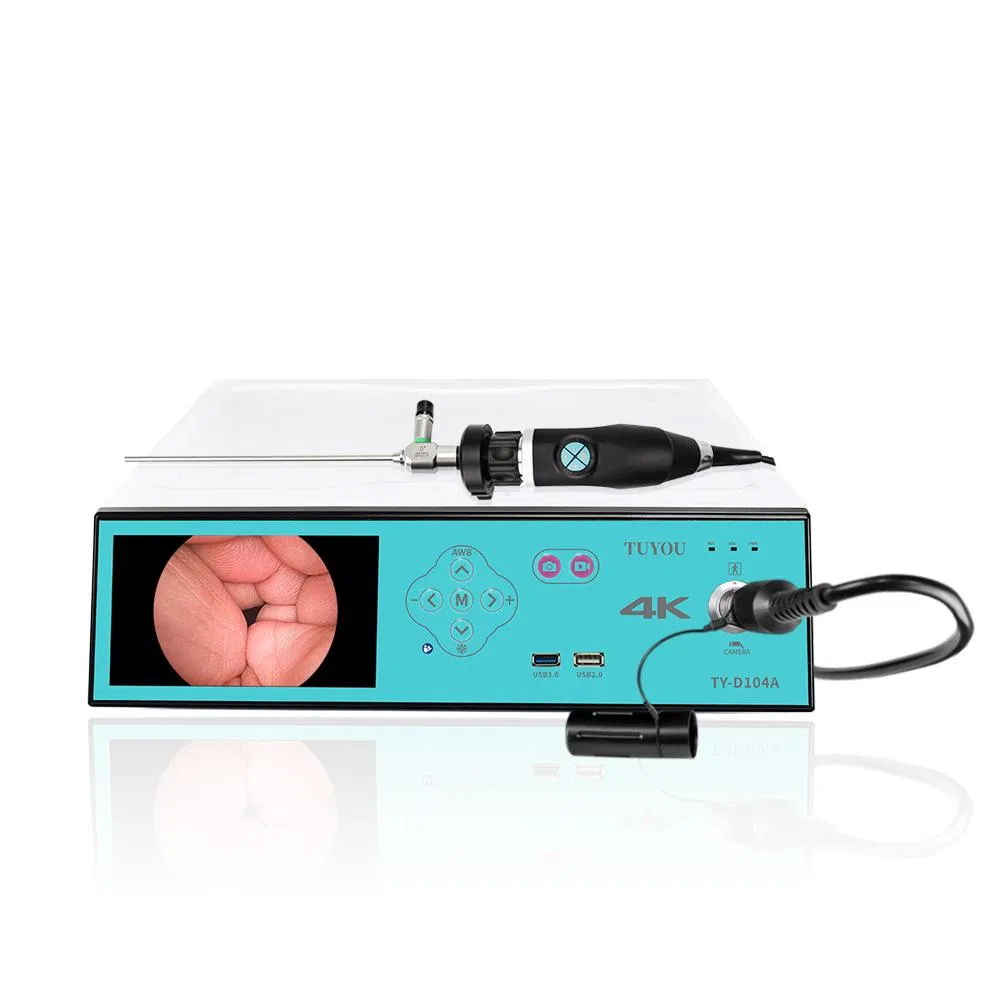

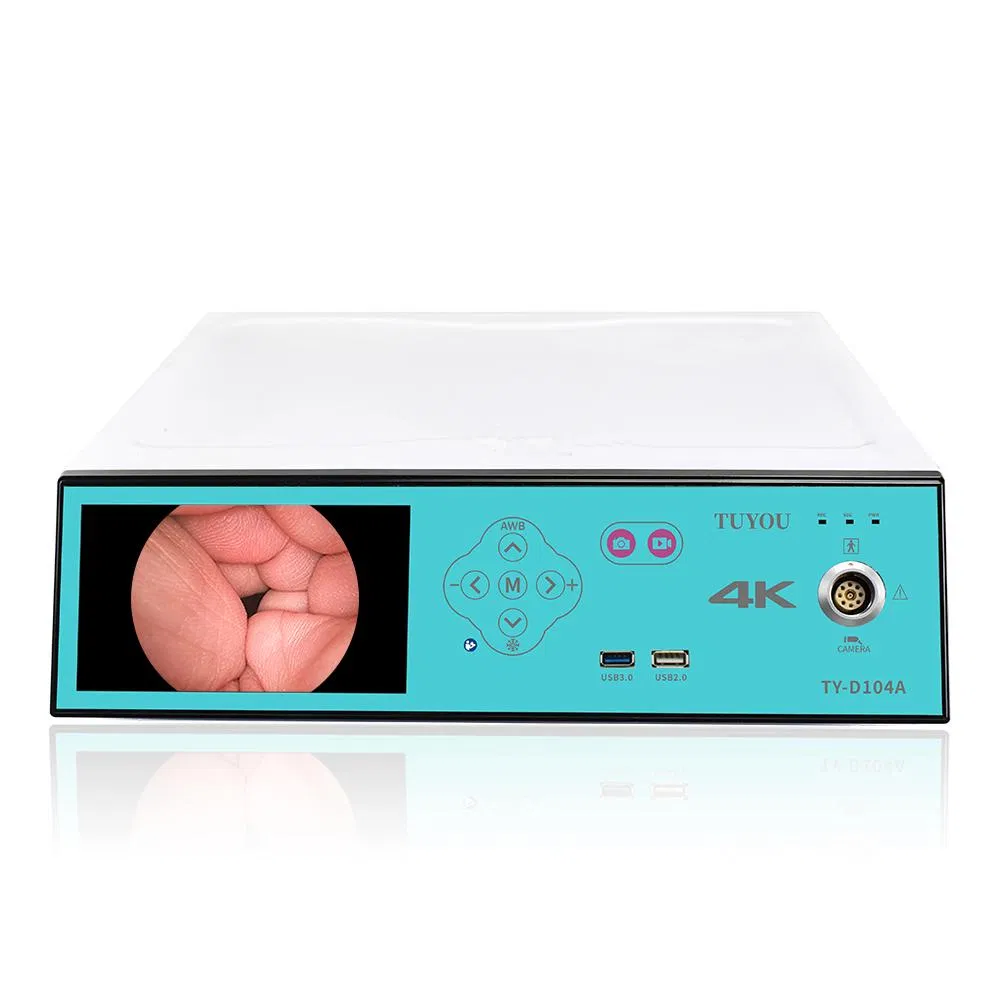

| Model NO. | TY-D104A |
| Power | AC110V~240V |

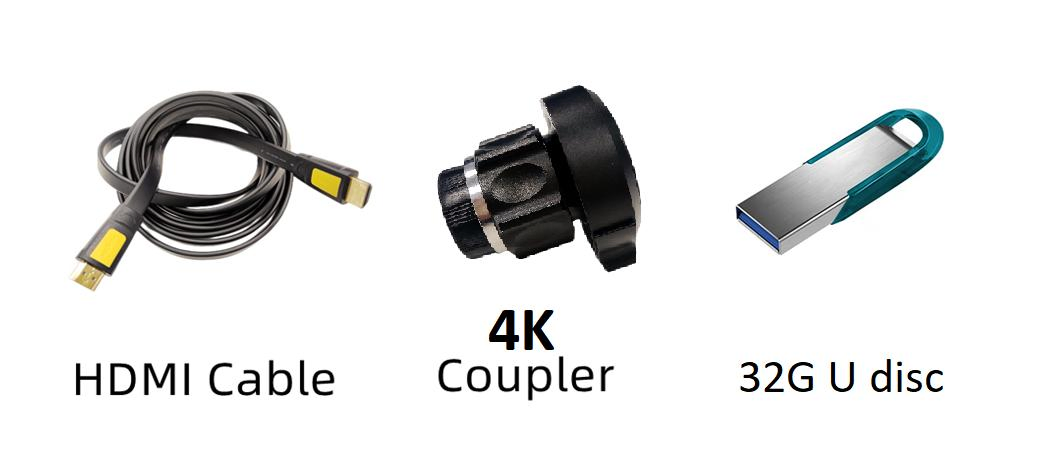

| U Disk | USB2.0/USB3.0 (up to 32GB) to Record and Take Photos |
| Snr(Signal Noise Ratio) | <45dB |
| Freeze | Support |
| Awb | Support |
| D-Zoom | 0-8X |
| Brightness | 1-30 Steps |

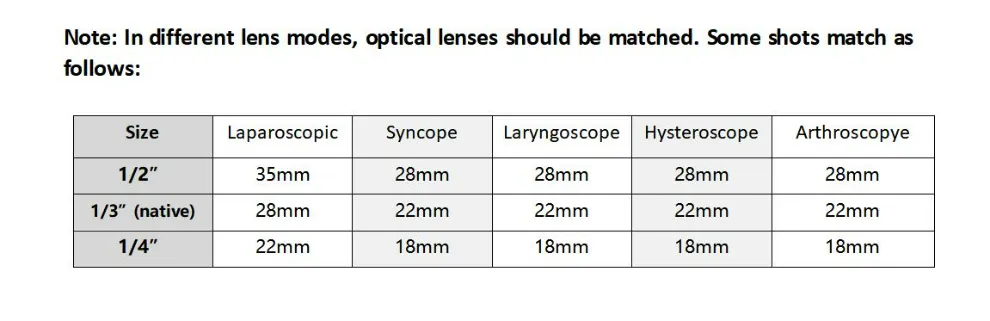

| Lens Mode | Pted/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope |
| Language | Chinese, English, Japanese, Korean and Other Languages |
| Transport Package | Standard Carton with Foam 1set/Carton Box |
| Specification | L336*W330*H116mm |
| Origin | China |
| Production Capacity | 500 Unit/Units Per Month |
| Input Interface | 4K |

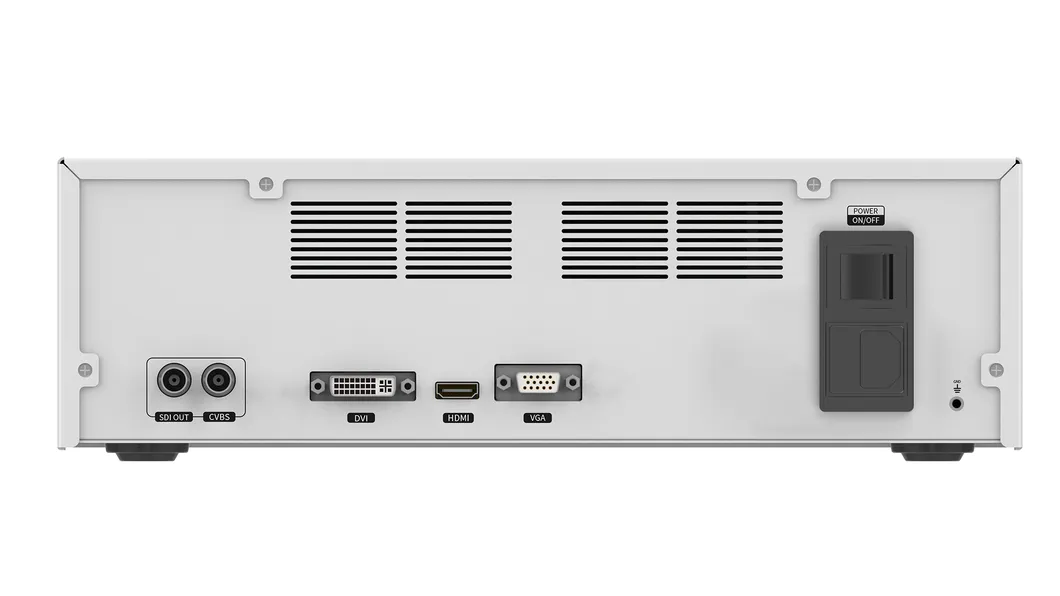

| Output Interface | HDMI/SDI/CVBS |
| Keypad Control | Control the motherboard menu and shortcut keys through RX/TX |
| Shortcut Key Function | Freeze/white balance/video/photograph/digital zoom |
| Working Environment | -10ºC~60ºC |
| Net Weight | 3.9KG |

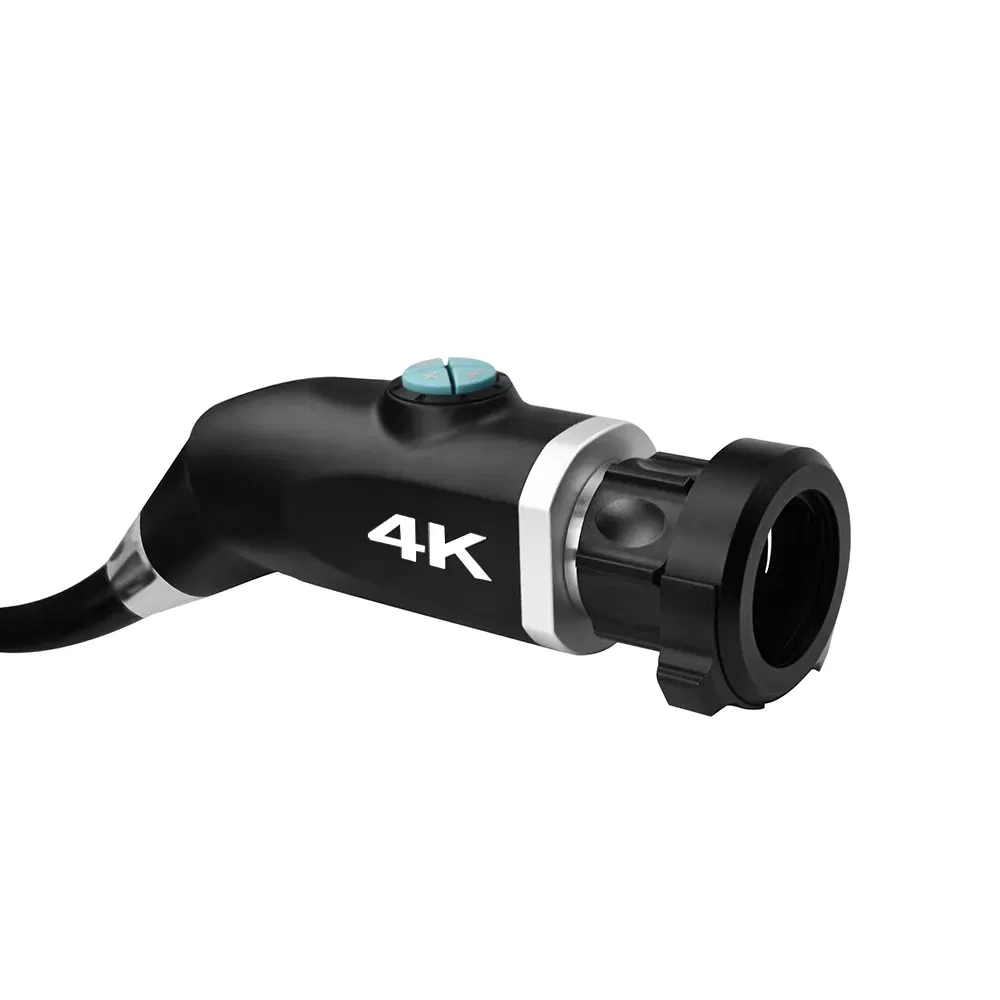

| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | 3864(H) × 2192(V) Approx. 8.46M pixels |
| Resolution | SDI 4K |
| Power Supply | DC12V ±10% <1.7W |
| Working Current | 250mA±10mA |
A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. With more than 20 years of experience in independent production and R&D of video products, the enterprise has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.
Featuring an advanced medical-grade environmental protection plant of more than 2,000 square meters, the facility has won a number of national product R&D patents. The products have passed international quality systems including CE, FCC, and ROHS certifications, providing OEM/ODM services for numerous well-known enterprises.
