1.5-Meter Veterinary Endoscopy Tower System

Customization:	Available
Type:	Veterinary Endoscope
Syringe:	**

Basic Information

Model NO.

VE-8015 Tower

Working Length

1500mm

Outer Diameter

8.3mm

Working Channel

2.8mm

Bending Range

U210°, D90°, R100°, L100°

Origin

China

HS Code

9018903010

Package Gross Weight

11.000kg

Product Description

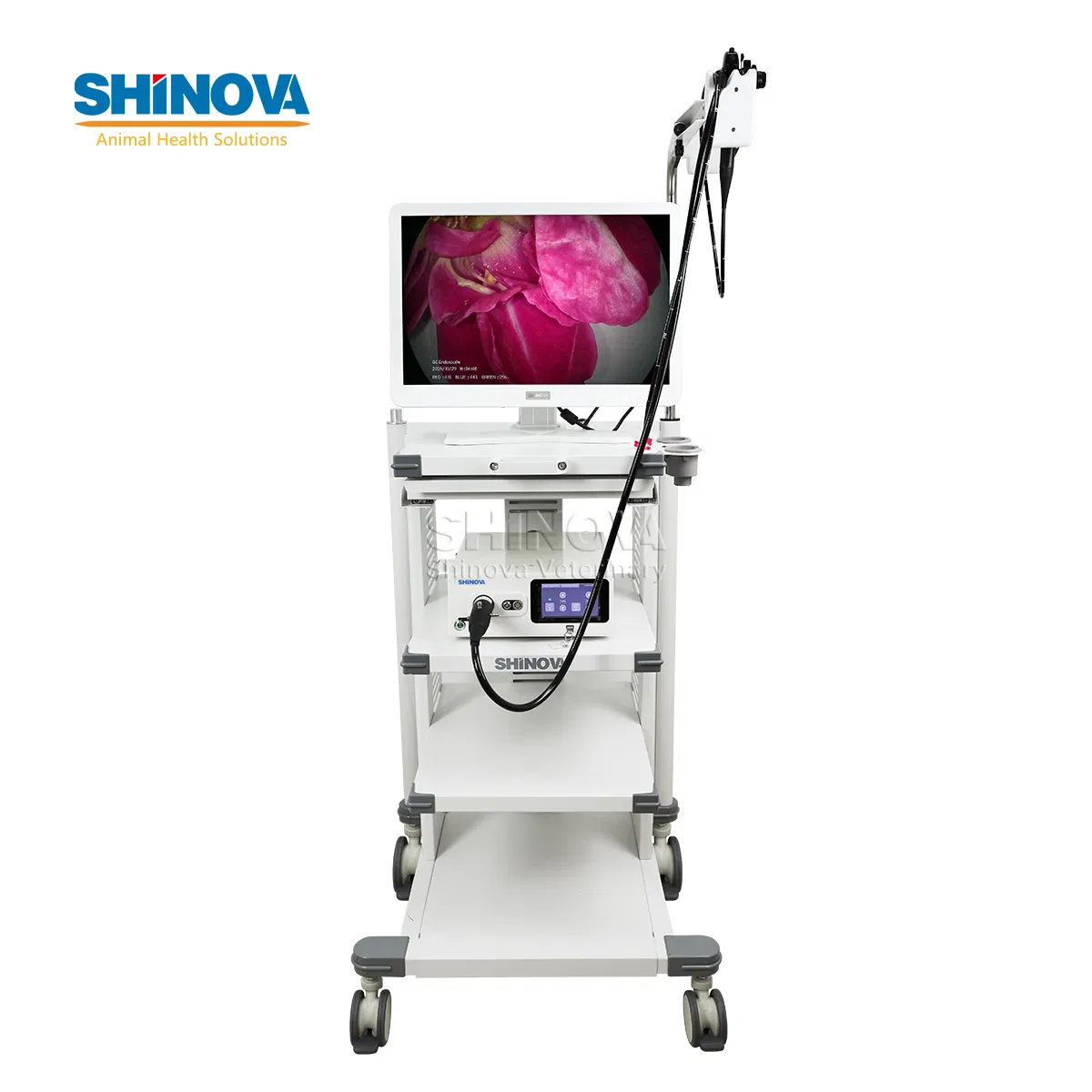

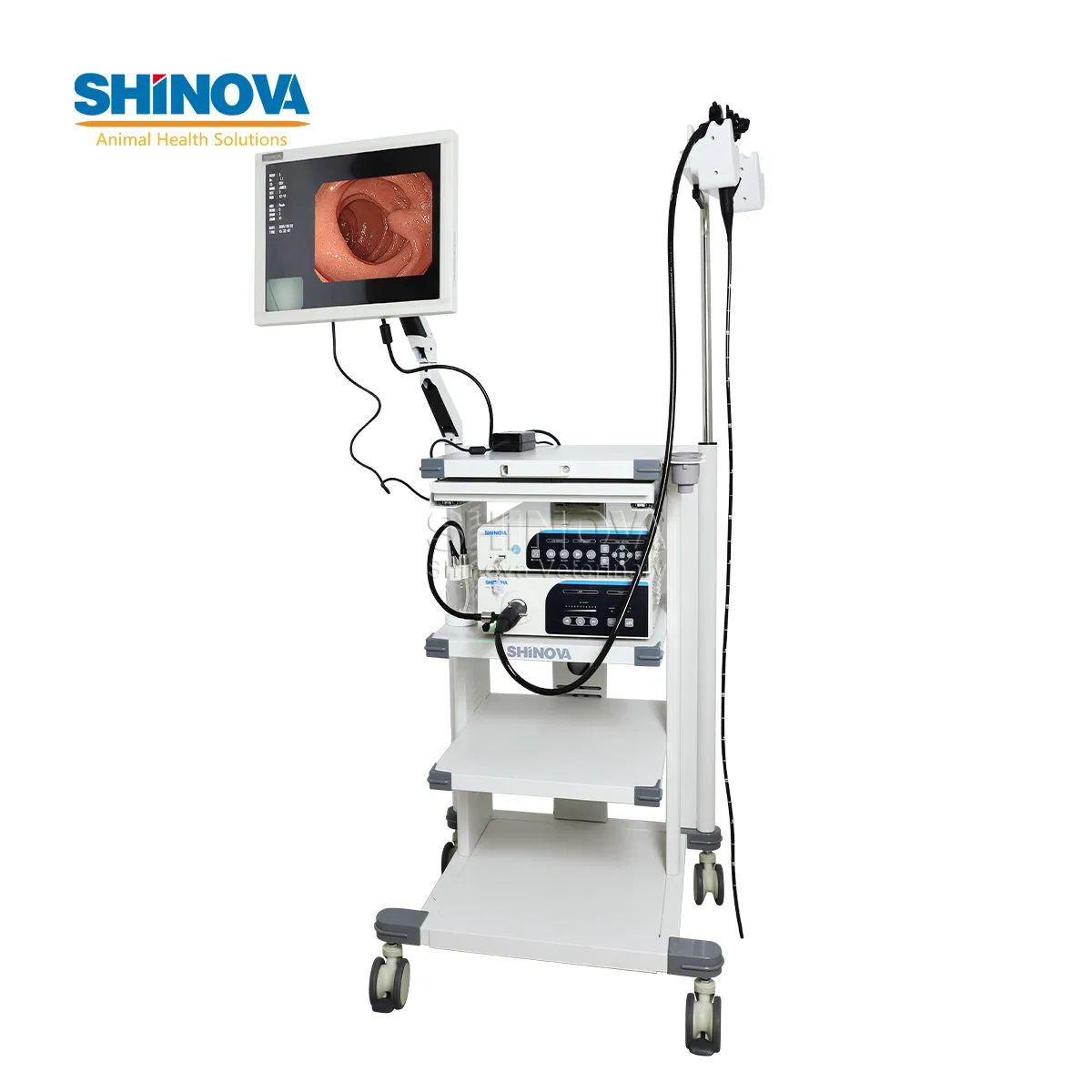

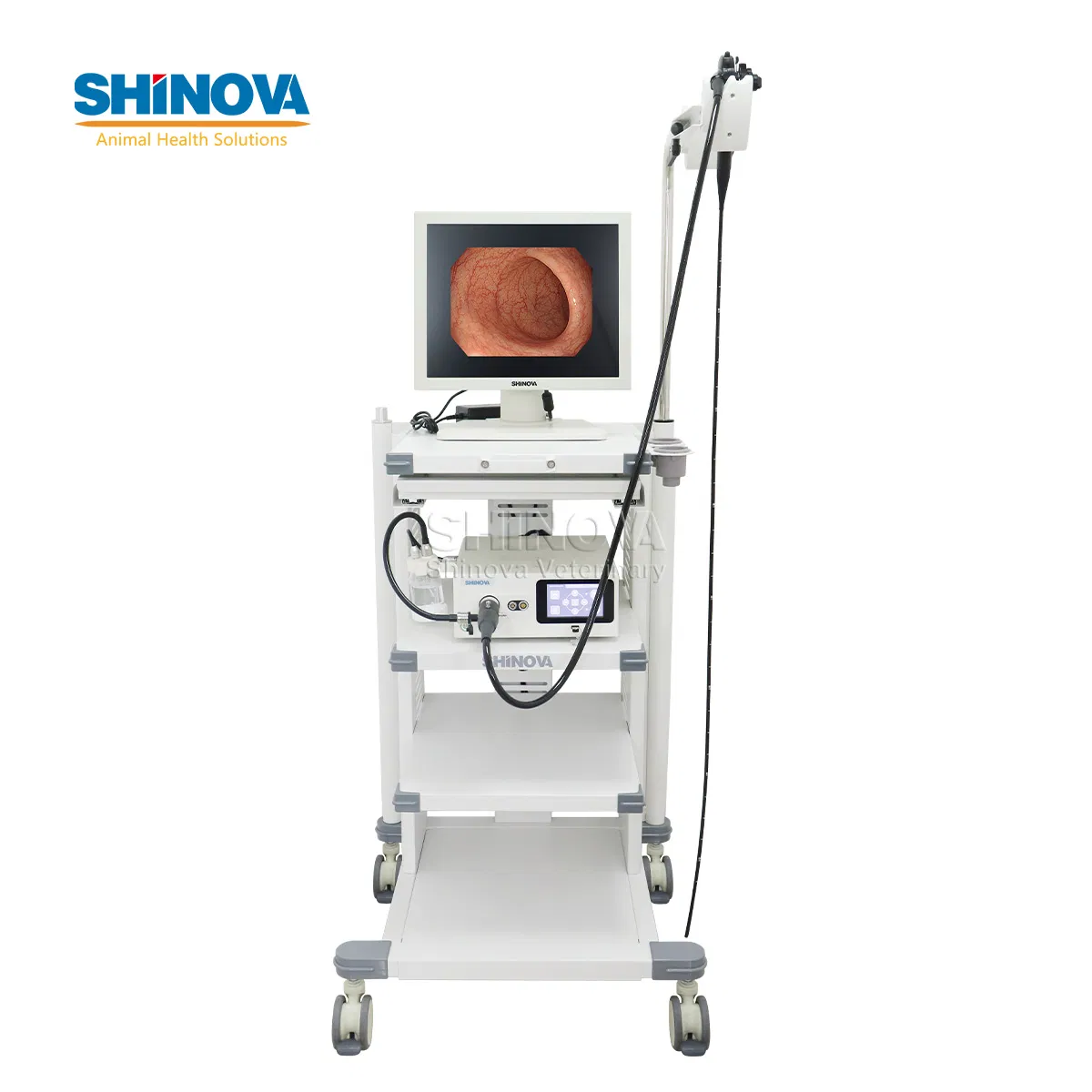

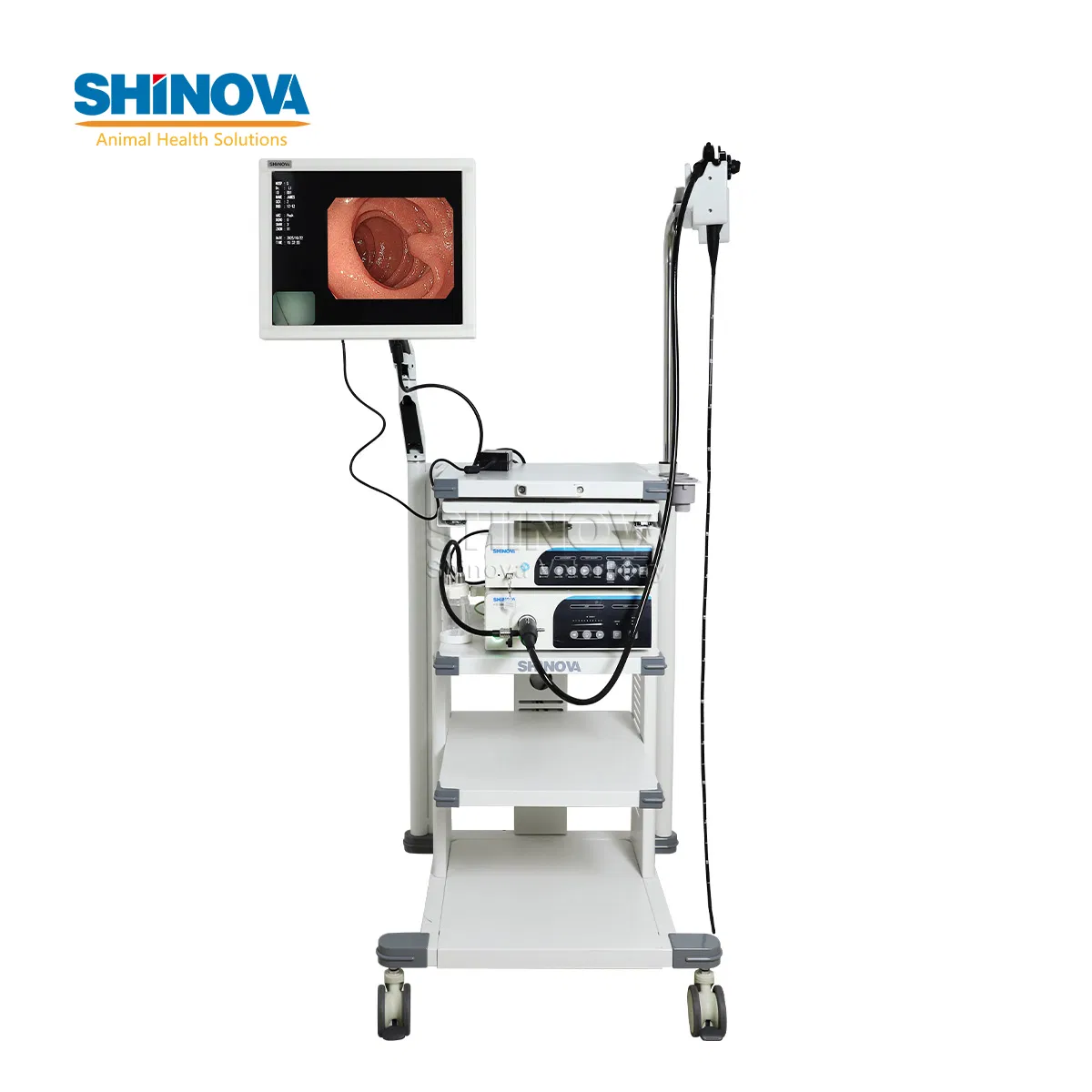

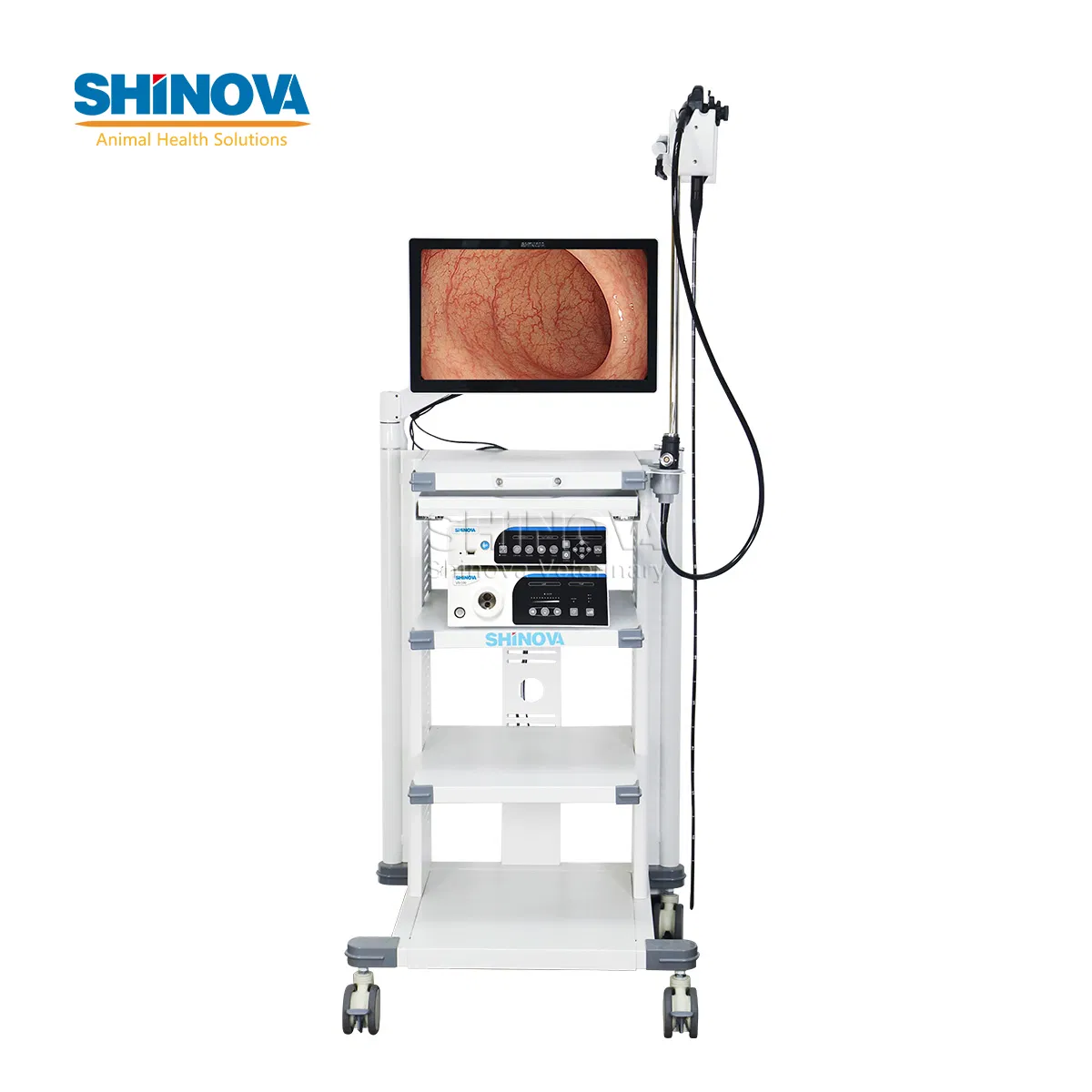

1.5-Meter Veterinary Endoscopy Tower System

This professional-grade endoscopy system is designed specifically for veterinary applications, featuring a high-definition CMOS camera and a wide-angle field of view technology to provide excellent diagnostic imaging.

High-definition CMOS camera captures high quality endoscopy images.

Field of view technology provides excellent and detailed images.

Large range angulations make it easier to observation.

3-100mm depth of view provides precise observation ability for both close and far objects.

Various working channel makes it easier to pass through all kind of instruments for animal treatment.

12-inch LCD monitor provides a level of mobility for indoor or outdoor operation (optional).

Updateable video processor for gastroscopy, bronchoscopy, laparoscopy, etc.

Endoscope Specifications

Model	Tube Diameter	Working Length	Channel Diameter	Field of View	Tip Bending	Application
VE-8015	8.3mm	1500mm	2.8mm	120°	210°(U), 90°(D)	2kg-80kg animal gastroscopy
VE-6012	6.3mm	1200mm	2.0mm	120°	210°(U), 90°(D)	Small animal (0.6kg-30kg)
VE-9030	9.8mm	3000mm	2.8mm	120°	210°(U), 90°(D)	Large animal (≥80kg)

*Note: Additional models available including VE-1233, VE-1235W, and VE-3006 for specialized ENT or bronchoscopy examinations.

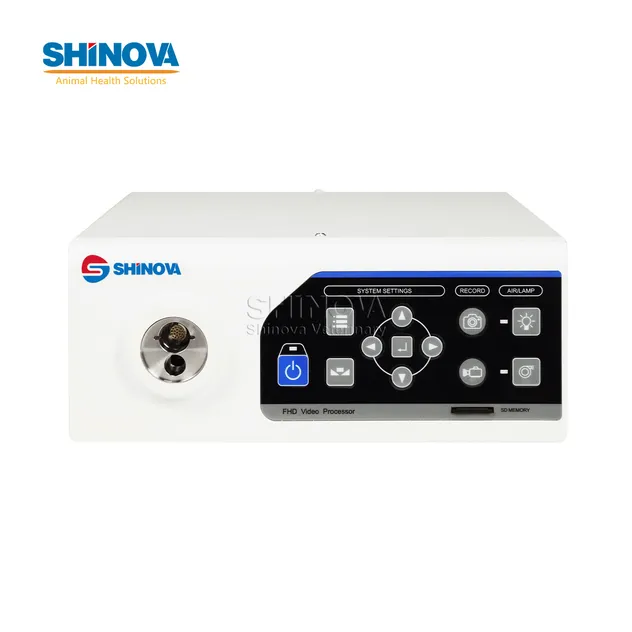

Video Processor Options

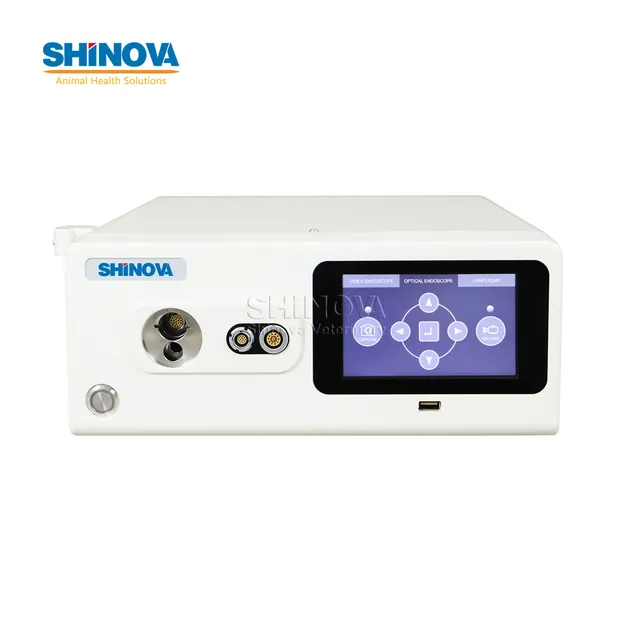

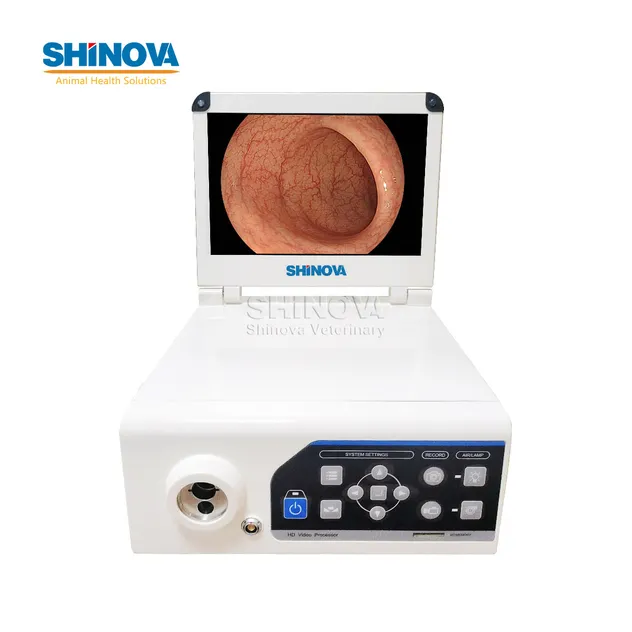

Model	VIS-300G	VIS-300M	VIS-310
Application	2-in-1	3-in-1	3-in-1
Light Source	80W LED	40W LED	80W LED
Recording	64G TF card	64G TF card	64G U-disk
Imaging Output	HDMI/DVI, 1080P

After Sales Service

Designed for international veterinary hospitals and distributors:

Standard warranty: 12 months
Lifetime technical support available
Remote troubleshooting and online technical guidance
User manual and operation training provided
Long-term spare parts supply guaranteed

Company Profile

Founded in 2005, our company is an ISO and CE certified animal health specialist providing integrated veterinary solutions. With nearly two decades of international experience, we serve veterinary hospitals, equine practices, and research institutions across Europe, the United States, Australia, and major global markets.

Certifications

Frequently Asked Questions

What is the primary application of the VE-8015 Tower?

It is designed for gastroscopy in animals weighing 2kg to 80kg, such as adult cats, dogs, pigs, and sheep, as well as bronchoscopy in horses.

Can the video processor be used for different procedures?

Yes, the video processor is updatable and supports multifunctional endoscopy examinations including gastroscopy, bronchoscopy, and laparoscopy.

What is included in the standard configuration?

The standard set includes the veterinary endoscope, video processor with light source, biopsy forceps, foreign body forceps, cleaning brush, leakage tester, water bottle, and necessary cables with a carrying case.

How long is the warranty and what support is provided?

We provide a 12-month standard warranty along with lifetime technical support, including remote troubleshooting and online guidance.

What are the recording capabilities of the system?

Depending on the model, it supports recording to a 64G TF card (VIS-300 series) or a 64G U-disk (VIS-310).
