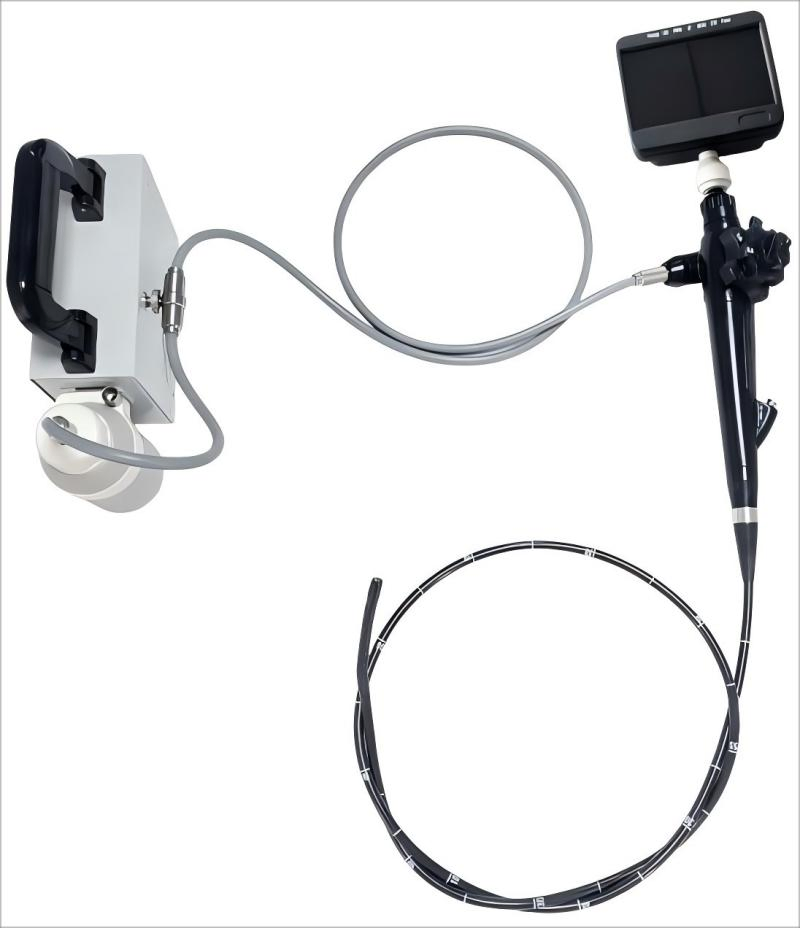

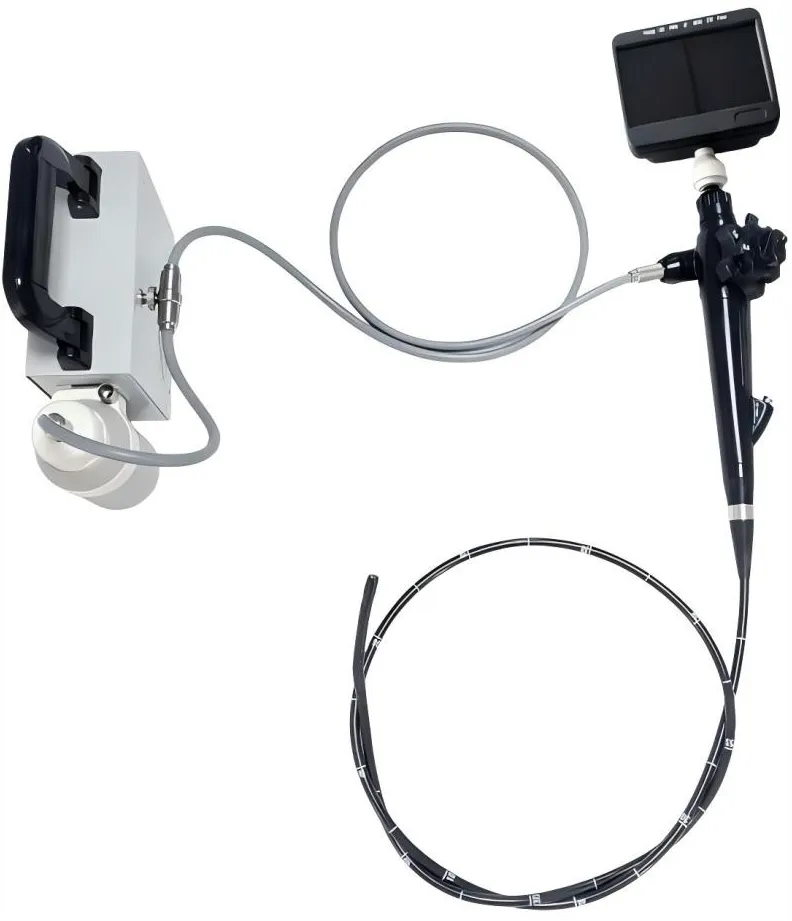

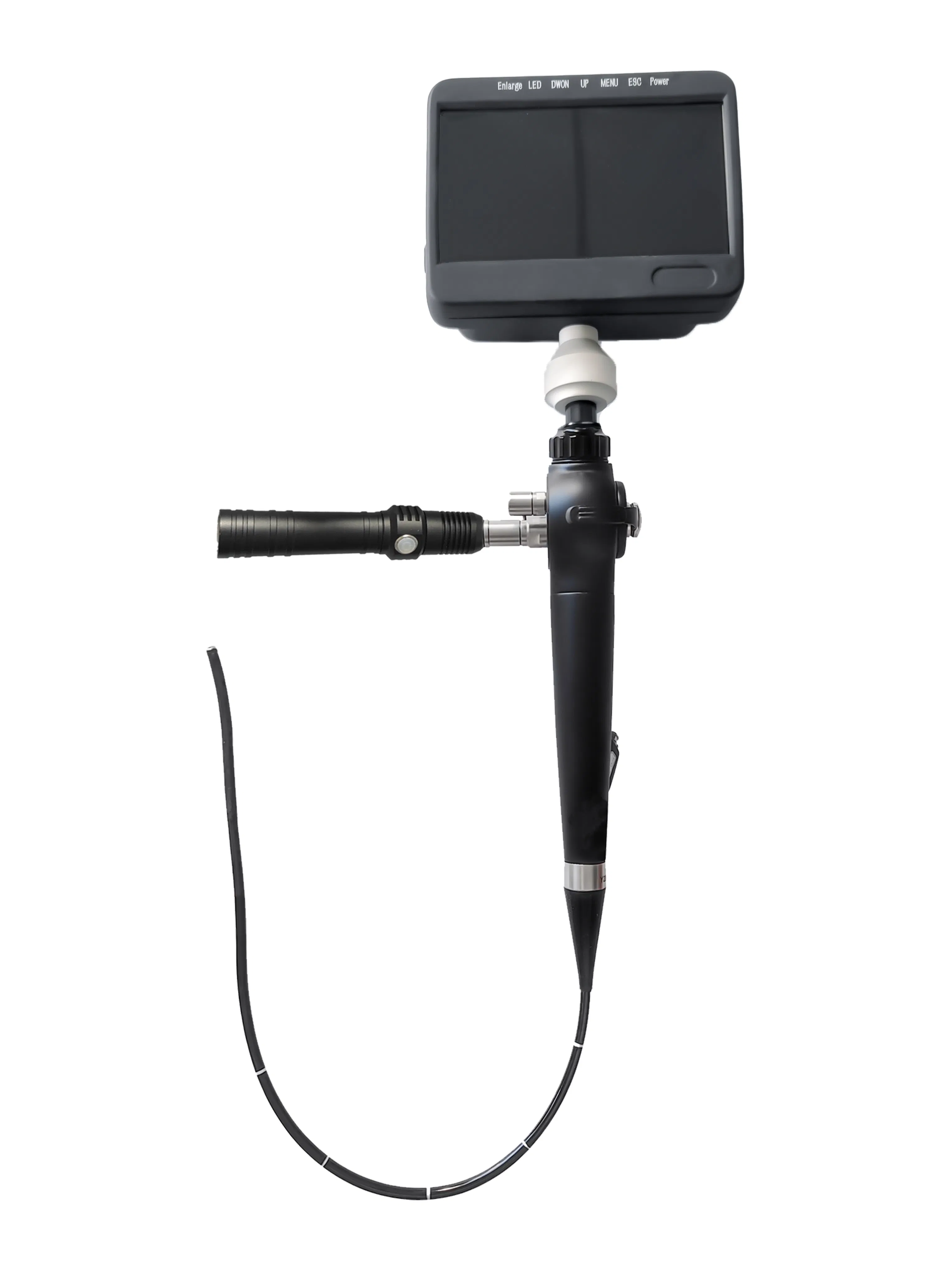

Veterinary Multifunctional HD Portable Gastroscope Excellent Pet Handheld Endoscope System

1 / 5

Veterinary Multifunctional HD Portable Gastroscope Excellent Pet Handheld Endoscope System

Type:	Veterinary Endoscope System
Working Length:	1200mm/1500mm
Diameter of Distal-End:	6.5mm/8.0mm/8.5mm

Send Inquiry

Product Description

Basic Specifications

Model NO. CCV-E800

Instrument Channel 2.2 mm / 2.8 mm

Bending Range Up 180°, Down 90°; L/R 100°

LCD Display 5-Inch HD

Trademark Veterinary Professional

Origin China

Capacity 500 units/Month

Veterinary Multifunctional HD Portable Gastroscope

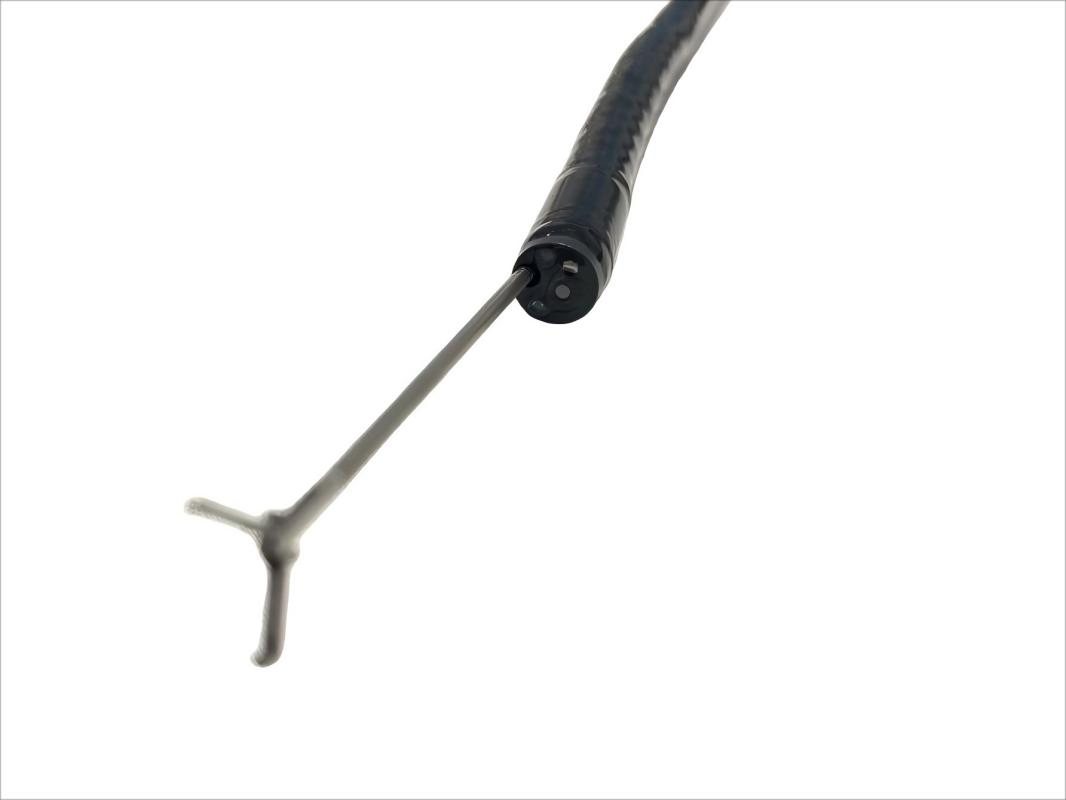

This high-definition handheld endoscope system utilizes a new polycarbonate composite handle designed with ergonomic clamp hole positioning. The integrated washable pipe system ensures unobstructed lotion flow, preventing pipeline blockage. It features a dedicated biopsy forceps hole to facilitate the smooth passage of diagnostic devices. During surgery, the removable suction valve provides a safe and reliable experience, significantly reducing user fatigue.

💡

Advanced Traction Device: Easily transfer and adjust bending parts upward or downward to reach the target site quickly for accurate diseased tissue detection.

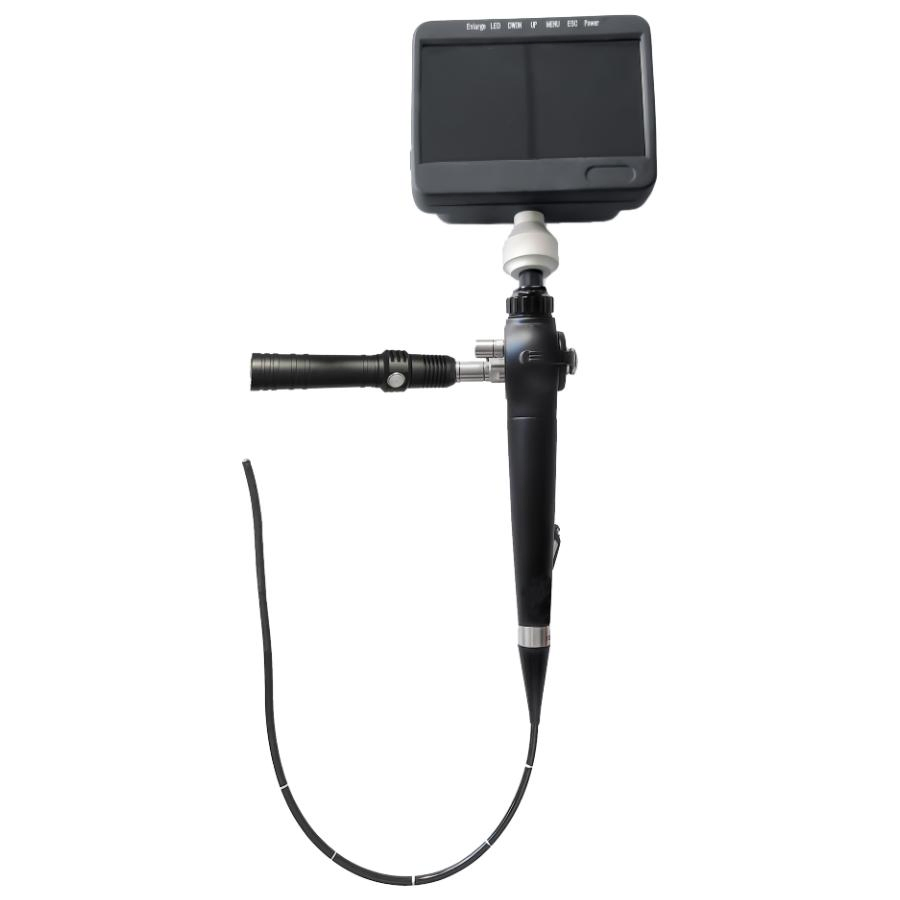

Equipped with a 5-inch high-resolution display and TF card support, the system allows for real-time picture and video recording. Features include electronic zoom, brightness adjustment, and easy disassembly for thorough cleaning and disinfection. The multi-coated high-transmittance imaging system provides a wide 120° field of view with a 3-100mm depth of field, ensuring superior diagnostic correctness.

Technical Parameters

Field of View	Distal-end Φ	Insert Tube Φ	Depth of View	Bending Range	Working Channel	Working Length	Resolution
120°	6.5mm	6.5mm	3-100mm	Up 180°, Dn 90°, L/R 100°	2.2mm	1200mm	CMOS 1M pixels
120°	8.0mm	8.0mm	3-100mm	Up 180°, Dn 90°, L/R 100°	2.2mm	1500mm	CMOS 1M pixels
120°	8.5mm	8.5mm	3-100mm	Up 180°, Dn 90°, L/R 100°	2.8mm	1500mm	CMOS 1M pixels

Product Gallery

Comprehensive Veterinary Solutions

One-Stop Veterinary Clinic Equipment:

X-Ray Room:

X-Ray Machine & Processor
X-Ray Film & Cassette
Lead Clothing (Gloves, Aprons, Collars)

Laboratory & Ultrasound:

2D/4D Color Ultrasound
Chemistry & Hematology Analyzers
Centrifuge & Pipettes

Operation Room:

Patient Monitor & ECG
Anesthesia Machine & Ventilator
Operating Tables & Lamps

Frequently Asked Questions

1. What are the available working channel sizes for the CCV-E800? The system offers two options for the working channel: 2.2mm or 2.8mm, depending on the specific model selected.

2. Can the gastroscope record clinical procedures? Yes, the device features a 5-inch high-resolution display with a TF card slot for recording both photos and videos of the procedure.

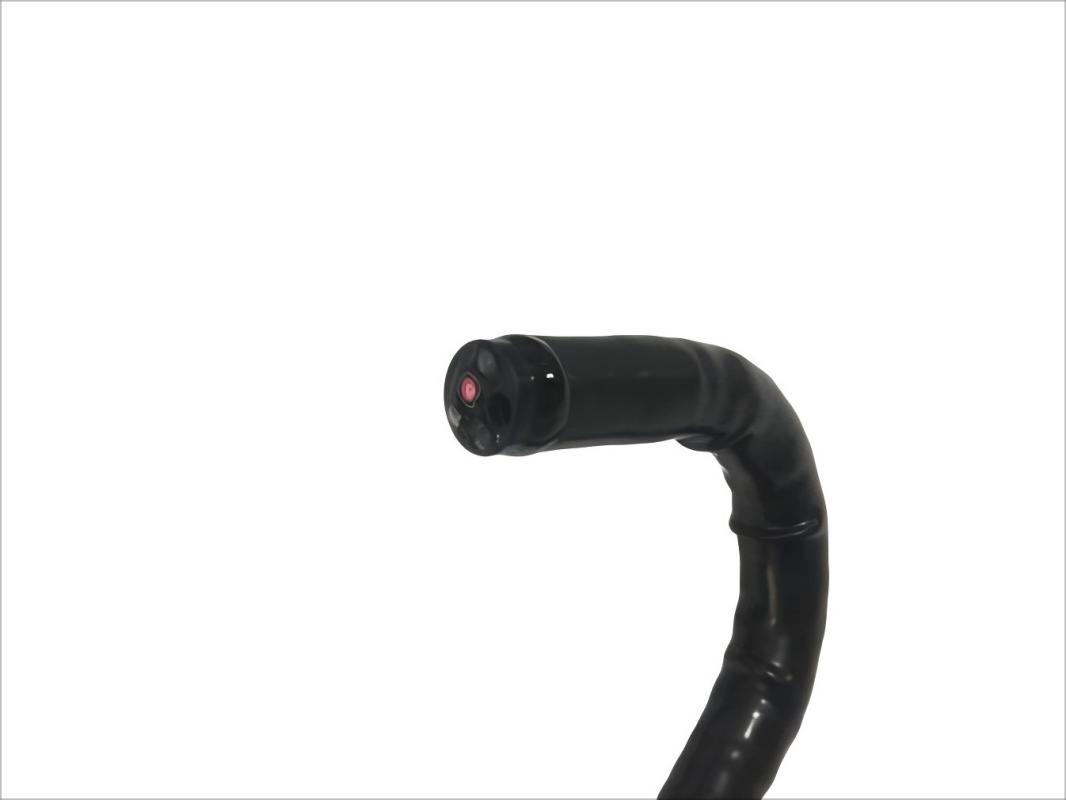

3. What is the bending range of the distal tip? The distal tip has a wide bending range: Up 180°, Down 90°, and Left/Right 100°, allowing for comprehensive site observation.

4. Is the equipment easy to clean and disinfect? Absolutely. The system is designed for easy removal and disassembly to ensure thorough cleaning and medical-grade disinfection.

5. What type of imaging sensor does the CCV-E800 use? It uses a high-definition CMOS camera with 1,000,000 pixels to provide clear, wide, and bright images for accurate diagnosis.

6. What is the standard working length for veterinary use? Depending on the configuration, the working length is available in 1200mm or 1500mm options to suit different sizes of animals.
