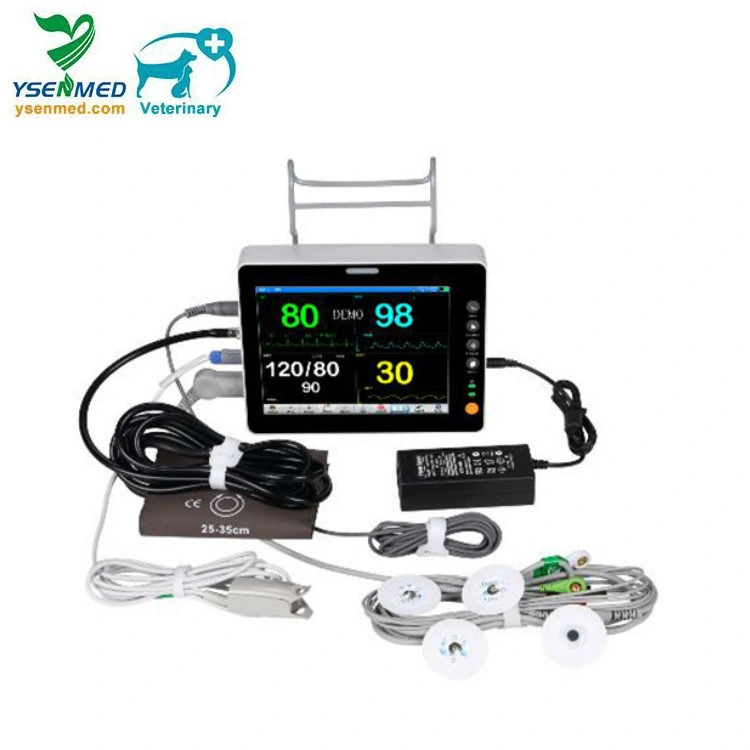

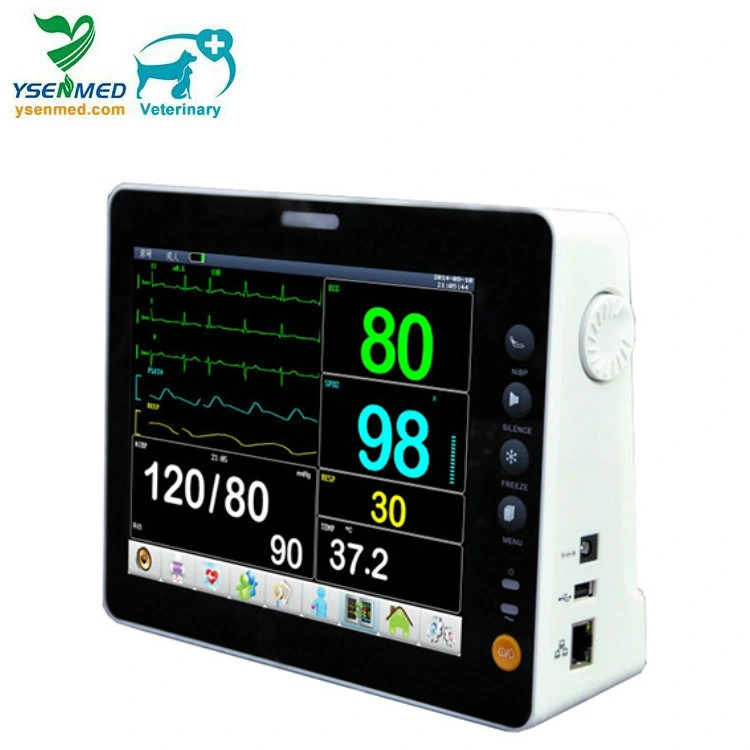

Body & Display
· 8.0 inch high-brightness TFT LED
· Support display maximum 8 waveforms
· Support 6 channel ECG waveform display
· Optional touch screen support
Data Storage
· 168 hours trend table and graph review
· 100 minutes waveform review
· 500 groups NIBP review
· 100 hours of parameter alarm events
Advanced Printing
· Built-in high-speed 50 mm thermal printer
· (Brand: SEIKO, Japan)
· Real-time and Alarm recording modes
Smart Alarm System
· Three-level acousto-optic alarm
· Sensor-off and Paper out alerts
· Support alarm review and pause
Operating System
· Multi-display mode (Big font, OxyCRG, etc.)
· NIBP self-test mode
· 15 types of Arrhythmia analysis
· Drug calculation and titration table
Interfaces
· Transducer sockets: ECG, SPO2, NIBP, TEMP
· Optional EtCO2 (Mainstream/Sidestream)
· LAN port for central monitoring
| Power & Dimension |
| Dimension & Weight | 175mm*210mm*80mm | 1.35kg (excluding accessories) |
| Power Supply | AC100~240V, 50/60HZ | Adapter Output 13-20V DC, 5A |
| Battery | Rechargeable lithium battery 14.8V/2200mAh (5.5 hours working time) |
| Monitoring Parameters |
| ECG Lead Mode | 3/5 Leads (I, II, III, AVR, AVL, AVF, V) |
| Heart Rate Range | Big animal: 15 ~ 300 bpm | Small/Middle: 15 ~ 450 bpm |
| NIBP Method | Oscillometric (Manual, Auto, STAT) |
| SpO2 Range | 0 ~ 100 % (Accuracy ±2% for 70%~100%) |
| Respiration | 0 ~ 150 BrPM (Impedance method) |
| Temperature | Dual-channel, 0.0 ºC~ 50 ºC (32ºF~ 122ºF) |
Frequently Asked Questions
What animals is this monitor suitable for?
The monitor features specific measuring and alarm ranges for big, middle, and small animals, with heart rate detection reaching up to 450 bpm for smaller species.
How long does the battery last for mobile use?
It includes a high-capacity rechargeable lithium battery (14.8V/2200mAh) providing approximately 5.5 hours of continuous working time.
Does it support CO2 monitoring?
Yes, the device offers optional EtCO2 monitoring in both Mainstream, Sidestream, and Micro-stream configurations to suit different clinical needs.
Can I connect this monitor to a central station?
Yes, it features a standard RJ45 Ethernet port and supports both wired or wireless connections to a central monitoring system.
What data can be reviewed from past sessions?
The system stores up to 168 hours of trend data, 500 groups of NIBP measurements, and 100 minutes of waveform reviews for comprehensive patient analysis.
Is the screen visible in bright clinical environments?
The monitor uses an 8.0 inch high-brightness TFT LED screen with an 800*600 pixel resolution, designed for clarity in various lighting conditions.
