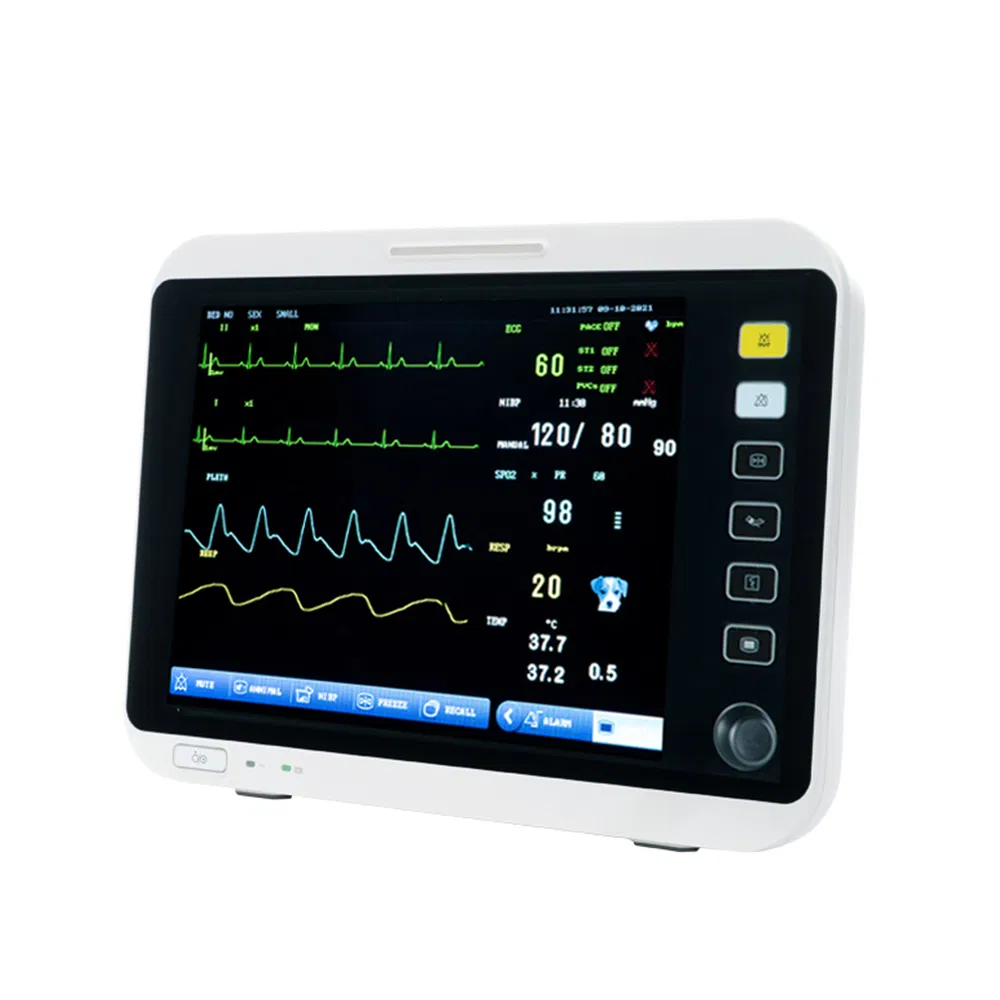

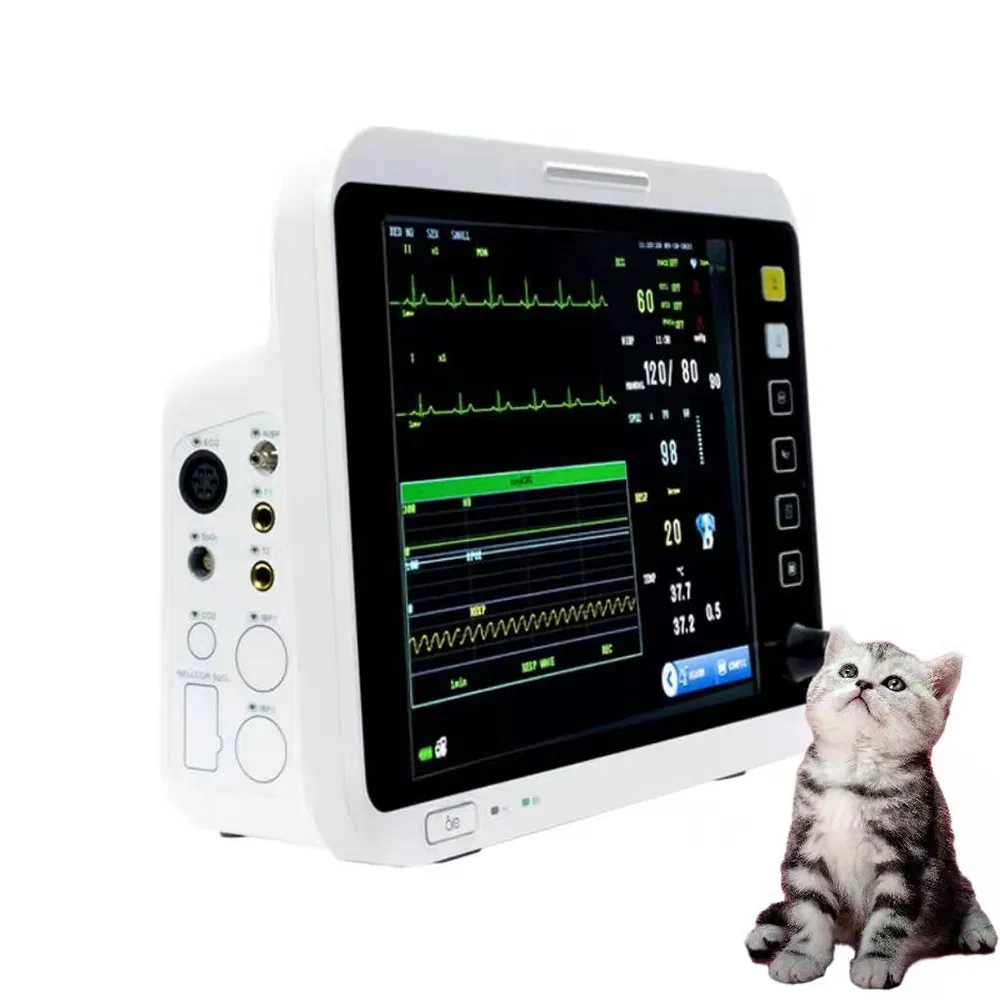

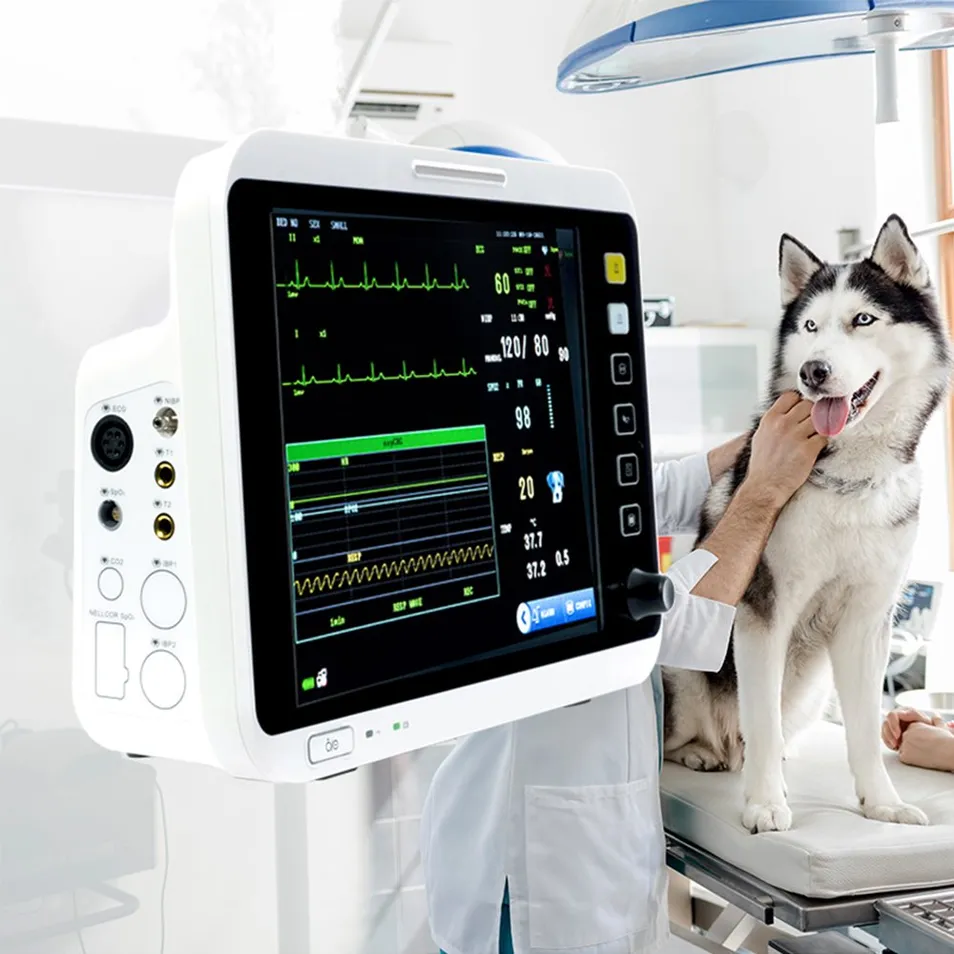

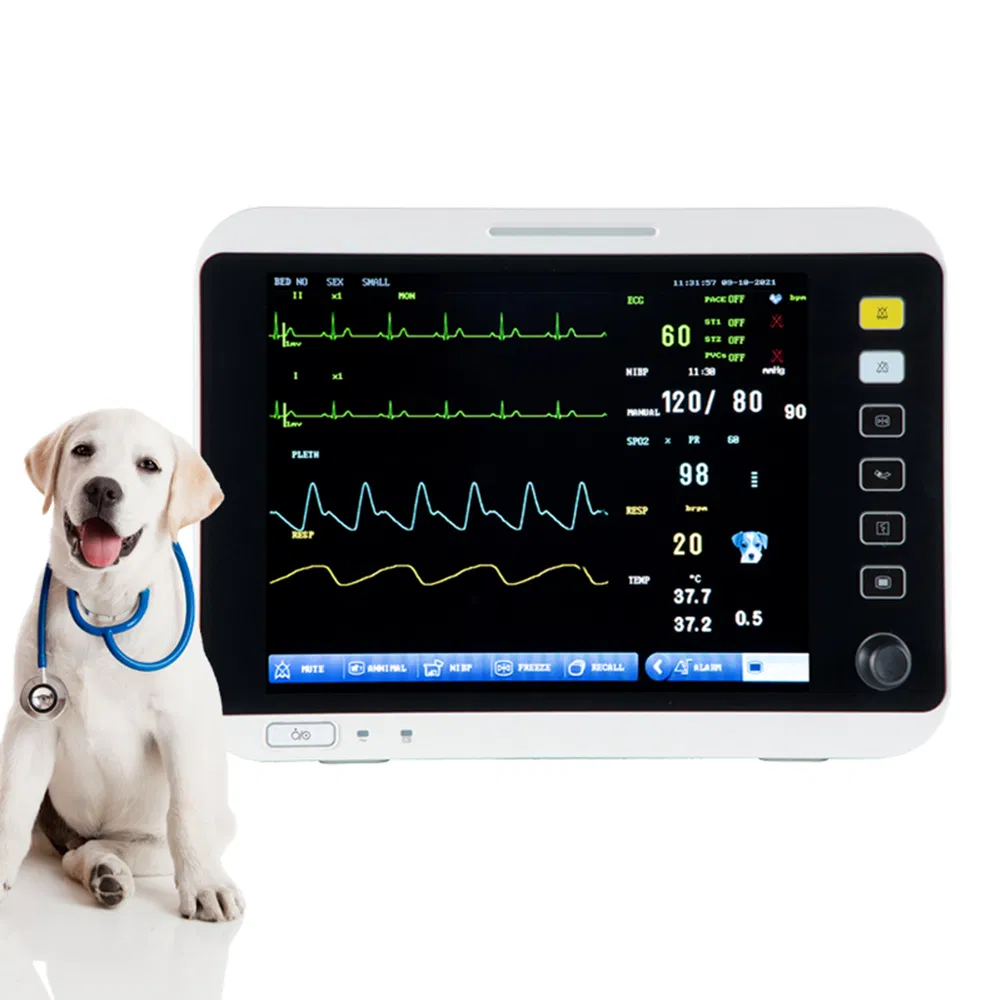

Veterinary Monitor with Multiparameter

Model: VM 12

• 12.1 inch high brightness LCD monitor
• Mirror display with new visual effect and intimate protection
• Multiple working modes: diagnostic, monitoring, surgery
• Suitable for different pets with various sizes
• Multiple display modes: standard, large font, trend graph, BP list
• Multi-lead display of ECG waveforms on the same screen
• Special algorithm for fast & accurate NIBP measurement
• SPO2 with advanced anti-interference and weak perfusion
• Low power design for power saving and long duration

Standard configuration: ECG, NIBP, SpO2, RESP., TEMP., HR

Optional configuration: IBP, side stream EtCo2, printer, trolley

ECG

Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
Waveform: 3 channel
HR Range: Adult: 15 ~ 300 bpm, Neo/Ped: 15 ~ 350 bpm
Accuracy: ± 1% or ± 1 bpm

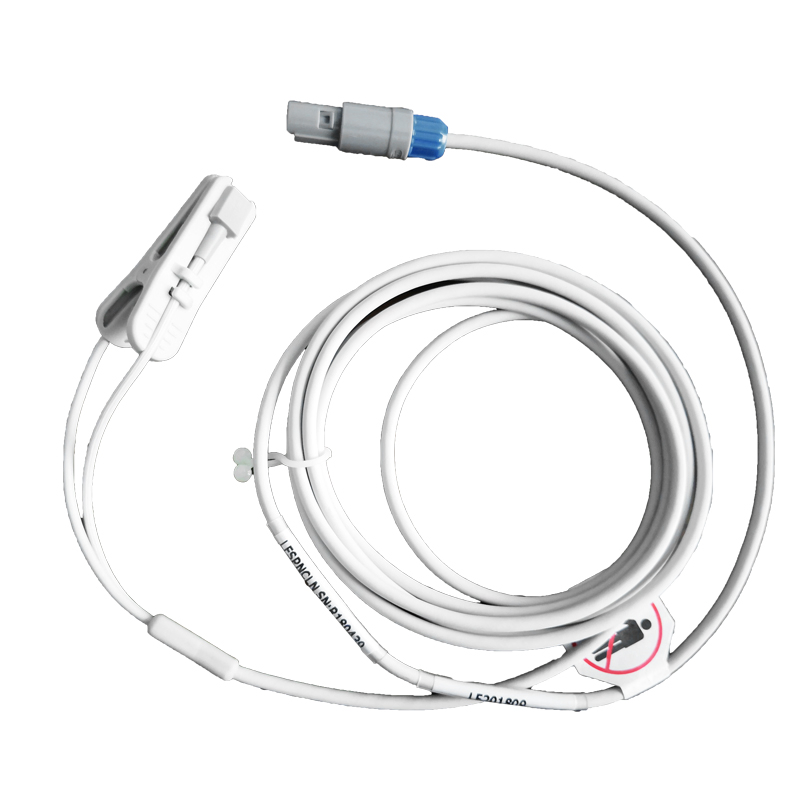

SpO2 & Temperature

SpO2 Range: 0 ~ 100 %
Pulse Rate Range: 20 ~ 250 bpm
Temp Range: 0 ~ 50 °C
Temp Accuracy: ± 0.1 °C

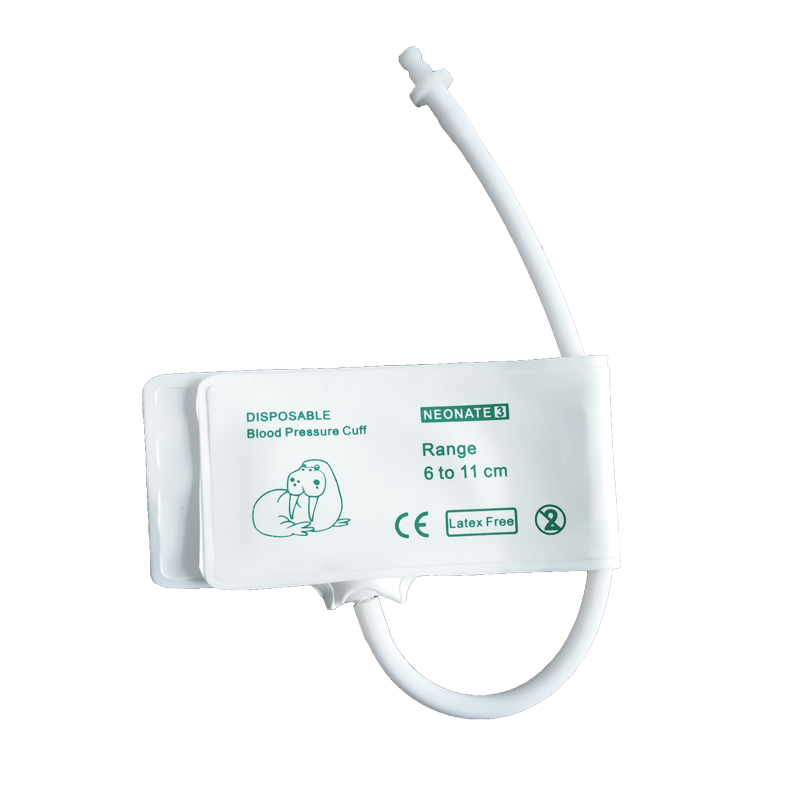

NIBP

Method: Oscillometric (Manual, Auto, STAT)
Intervals: 1 to 480 minutes selectable
Range: SYS: 40 ~ 280 mmHg (Adult Mode)
Protection: Overpressure protection included

RESP

Method: Impedance between R-F (RA-LL)
Rate Range: Adult: 0 ~ 120 rpm, Neo/Ped: 0 ~ 150 rpm
Apnea Alarm: 10 ~ 40 Seconds
