Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
1 / 5
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)
Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)

Veterinary Medical Equipment Wall-Mounted Veterinary Dental X-ray (DX10B)

Customization: Available
Type: Dental X-ray
Exposuration: 0.2-4sec
Send Inquiry

Product Description

Basic Information

Model NO.
DX10B
Total Filtration
2.5mmal
Transport Package
by Air or by Sea
Specification
98*34*40 0.133
Origin
China
Package Size
1.00cm * 1.00cm * 1.00cm
Gross Weight
11.000kg

Product Description

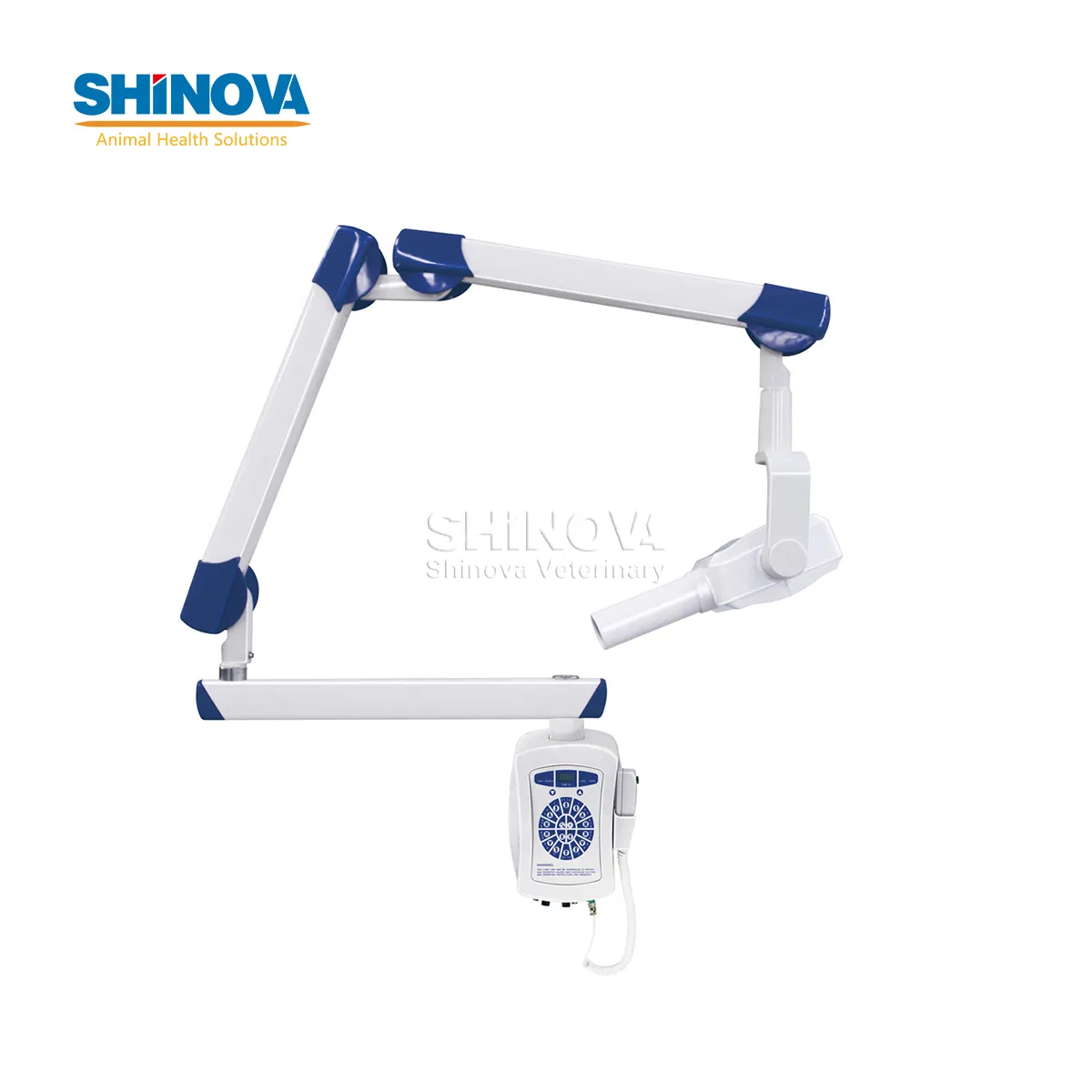

Veterinary Dental X-ray DX10B

Veterinary Dental X-Ray Machine
Model: DX10B

Descriptions:

  • ✔ Advanced x-ray technology, microprocessor-controlled;
  • ✔ Touched button, wall mount, clear imaging, low radiation;
  • ✔ High efficiency, easy operation and space-saving design.
Power Supply
AC 220V±10%, 50Hz, 1KVA
Tube Voltage
60KV
Tube Current
8mA (Optional: 0.5mA)
Focus Size
1.5mm (Optional: 0.8mm)
Total Filtration
2.5mmAL
Exposuration
0.2 - 4 sec
Leak Radiation
Outside one meter ≤ 0.002Gy/h (National standard: 0.25mGy/h)

Product Gallery

X-ray detail 1
X-ray detail 2
X-ray detail 3
X-ray detail 4
X-ray detail 5
X-ray detail 6
X-ray detail 7

Frequently Asked Questions

Q: What type of installation does the DX10B X-ray machine use? A: The DX10B is a wall-mounted veterinary dental X-ray machine, which helps save valuable floor space in animal clinics.
Q: Is the radiation level safe for veterinary environments? A: Yes, it features advanced technology with low radiation. The leak radiation at one meter is ≤ 0.002Gy/h, which is much lower than the national standard of 0.25mGy/h.
Q: What are the key technical specifications for imaging? A: It operates at a tube voltage of 60KV and a tube current of 8mA, providing clear dental imaging with a focus size of 1.5mm.
Q: How do you control the exposure time? A: The machine is microprocessor-controlled with touched buttons, allowing for precise exposure settings between 0.2 and 4 seconds.
Q: What are the power requirements for this machine? A: It requires a power supply of AC 220V±10% at 50Hz, with a power consumption of 1KVA.
Q: What is the total filtration of the DX10B? A: The machine has a total filtration of 2.5mmAL to ensure quality and safety.
