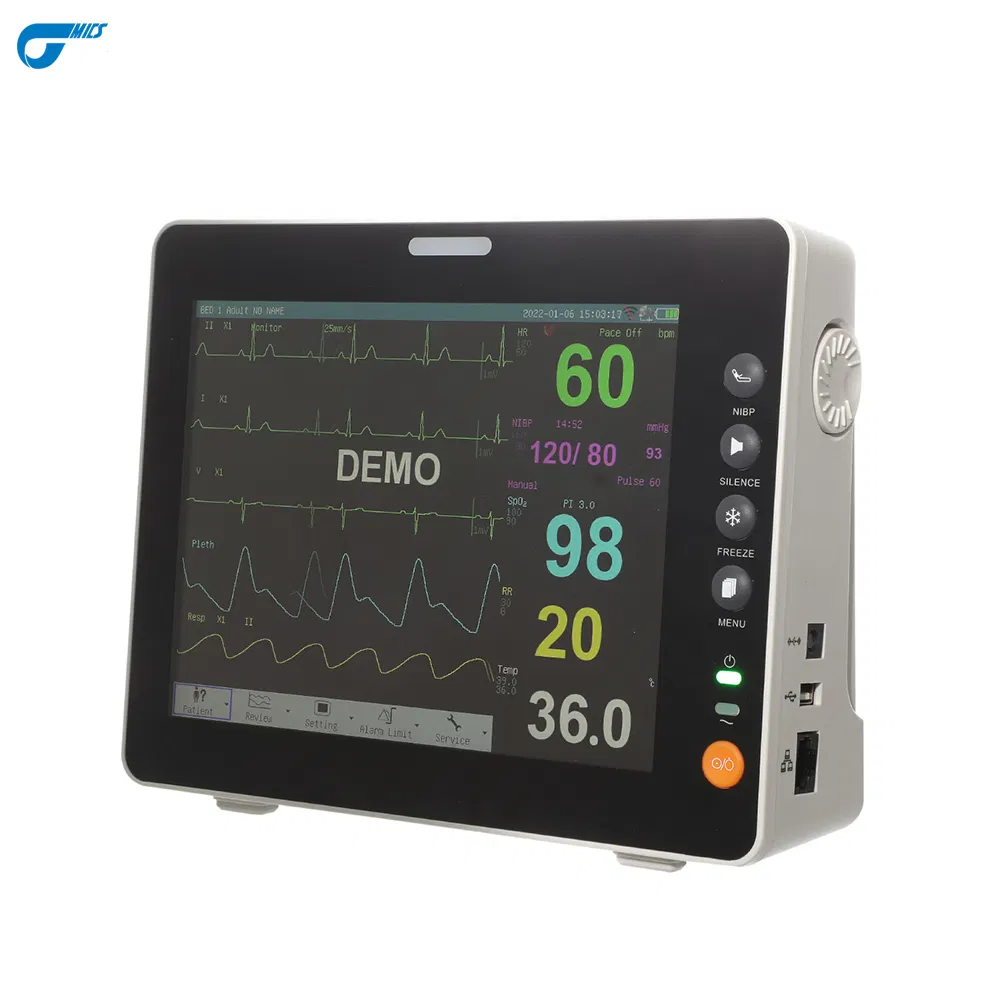

Veterinary Equipment Veterinary Patient Monitor Clinic Animal Monitor

1 / 5

Veterinary Equipment Veterinary Patient Monitor Clinic Animal Monitor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ

Basic Information

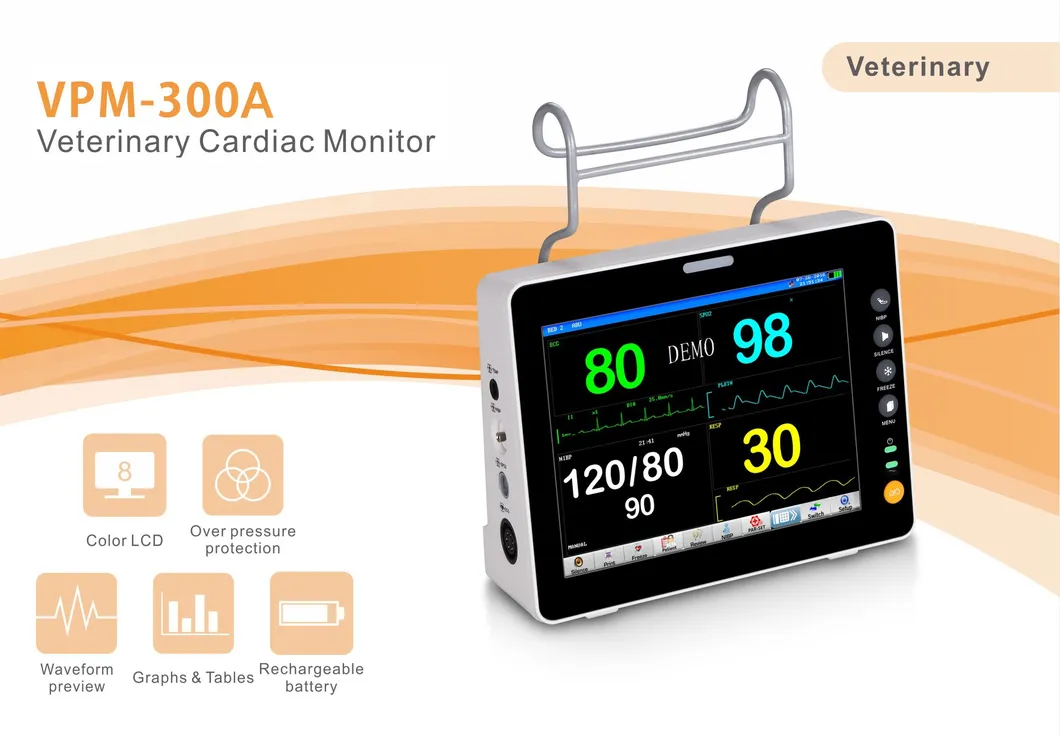

Model NO.VPM-300A

CertificationISO13485

GroupAll Animals

ProductVeterinary Patient Monitor

Screen8 Inch TFT LCD

Warranty1 Year

Power SupplyBuilt-in Battery

Transport PackageCarton

Specification25*27*20cm

📋

Product Description

Main Features

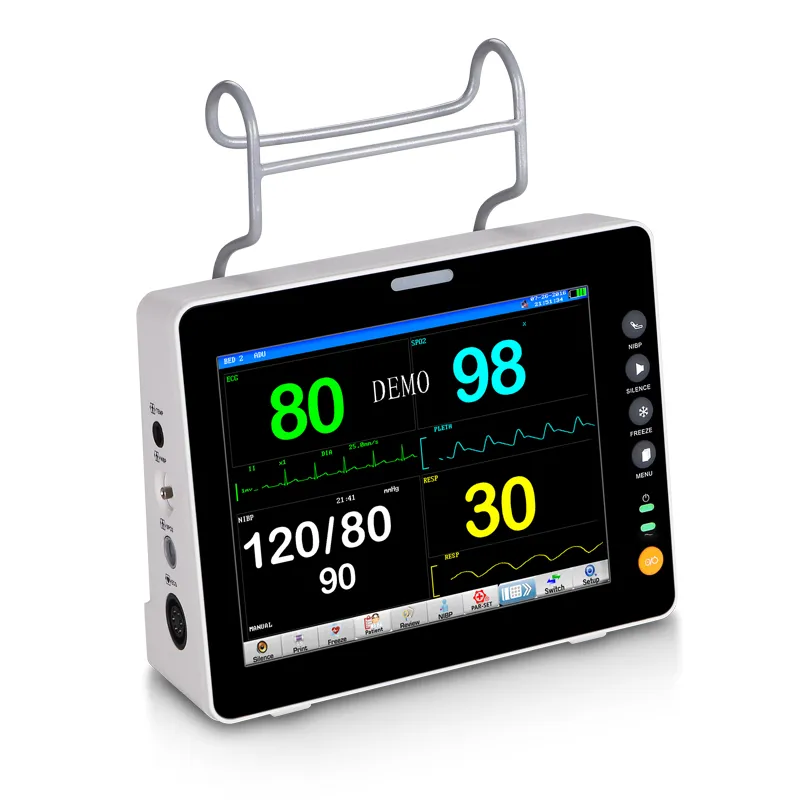

8 inch high brightness (800x600) colorful TFT LCD
Simultaneous display of 7 lead ECG waveform
Intented menu layout to maximize display space
Protection against defibrillation and ESU interference
New SPO2 technology to assure precise measurement
Precise SPO2 measurement for low perfusion & finger motion
Analysis of real-time ST segment arrhythmia
168 hour graphic and tabular trend with data storage
High efficient power management without electric fan to avoid cross contamination
Up to 66 beds networking capacity to connect with HIS
750 group NIBP data for recall and display

Standard configuration: ECG, NIBP, SpO2, PR, RESP., TEMP., HR.
Optional configuration: 1/2/4 IBP, EtCO2, multi gas, CO, 12 lead ECG, thermal recorder, touch screen, WiFi, HDMI, USB, VGA.

📊

Product Parameters

ECG Monitoring

Lead Mode: 5 Leads (R, L, F, N, C)
Lead selection: I, II, III, avR, avL, avF, V
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, auto
HR Range: Adult: 15 ~ 300 bpm / Neo/Ped: 15 ~ 350 bpm
Accuracy: ± 1% or ± 1 bpm
Bandwidth: Surgery: 1-20Hz, Monitor: 0.5-40Hz, Diagnostic: 0.05-130Hz
ST Segment Range: -2.0 ~ +2.0 mV

SpO2 & Pulse Rate

Measurement Range: 0 ~ 100 %
Accuracy: 70% ~ 100%: ±2 %
Pulse Rate Range: 20 ~ 250 bpm
PR Accuracy: ± 3 bpm
Alarm Delay: 10 seconds

NIBP (Non-invasive Blood Pressure)

Method: Oscillometric
Mode: Manual, Auto, STAT
Auto Interval: 1 - 480 minutes adjustable
Pulse Rate Range: 40 ~ 240 bpm
Adult Mode: SYS: 40~280 mmHg / DIA: 10~220 mmHg
Neonatal Mode: SYS: 40~135 mmHg / DIA: 10~100 mmHg
Static Pressure Accuracy: ±3 mmHg

Respiration & Temperature

RESP Method: Impedance between RA-LL
RESP Range: Adult: 0~120 rpm / Neo/Ped: 0~150 rpm
TEMP Channel: 1 Channel
TEMP Range: 0 ~ 50 °C
TEMP Accuracy: ± 0.1 °C

📦

Packaging & Shipping

Product Dimensions: 212mm × 172mm × 80mm
Weight: 2 Kg

Standard Package List:

1* VPM-300A Patient Monitor

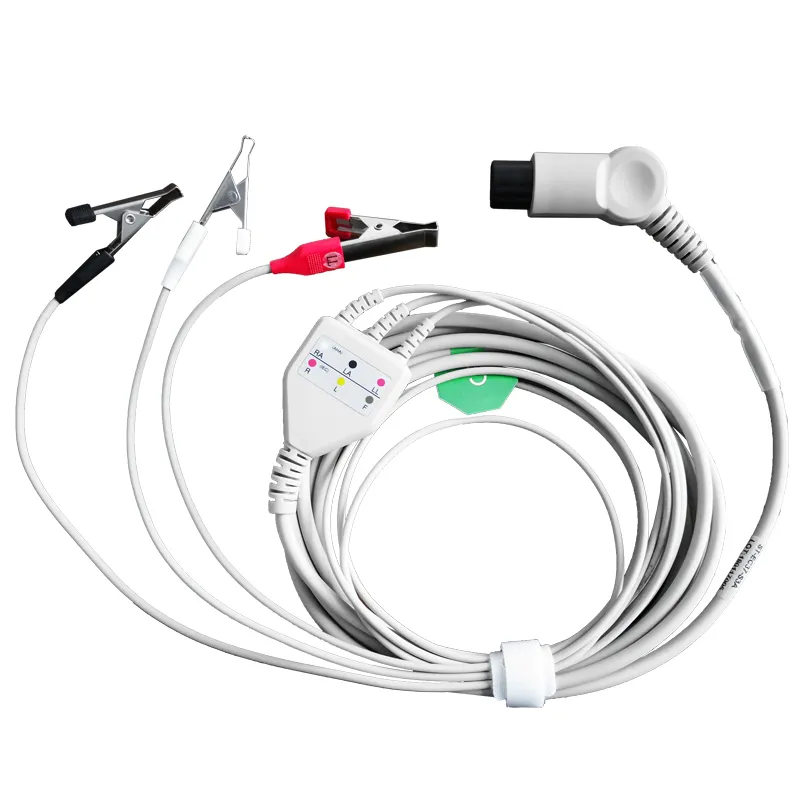

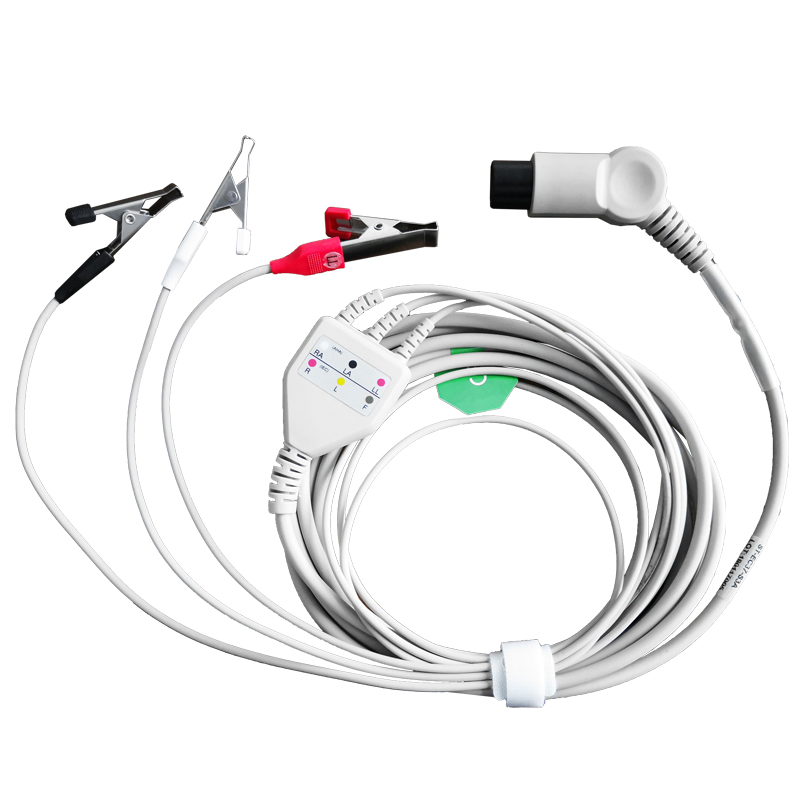

1* ECG Cable (3 Lead) & Electrodes
1* SPO2 Sensor

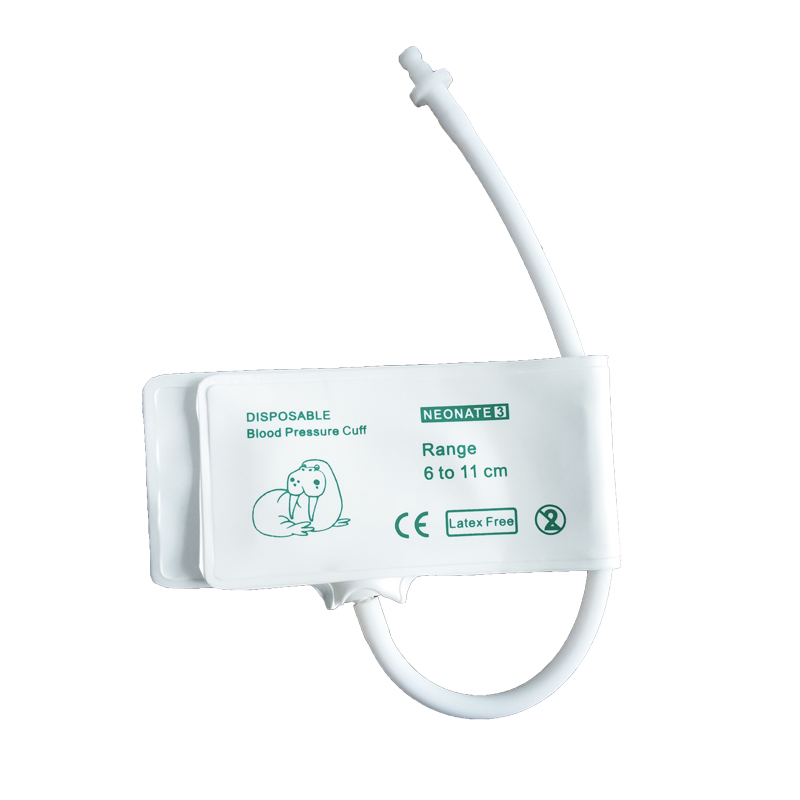

1* NIBP Cuff & Extension tube
1* Power Wire & Grounding cable
1* User manual, Warranty & Certificate

Packing: 1pc/carton, Size: 25*27*20cm

🏢

Visual Overview

❓

Frequently Asked Questions

What is the display size and resolution?

The VPM-300A features an 8-inch high-brightness colorful TFT LCD with a resolution of 800x600.

What vital signs does it monitor as standard?

The standard configuration monitors ECG, NIBP (Non-invasive Blood Pressure), SpO2, Pulse Rate (PR), Respiration (RESP), and Temperature (TEMP).

How much historical data can the device store?

The monitor supports 168 hours of graphic and tabular trend data storage, and can recall up to 750 groups of NIBP data.

Does it support connection to a central hospital system?

Yes, it has a networking capacity of up to 66 beds for connection with Hospital Information Systems (HIS).

Is the device suitable for different animal sizes?

Yes, it includes specialized modes for Adult, Pediatric, and Neonatal animals to ensure accurate measurement across all groups.

What is the power source for the VPM-300A?

The device is equipped with a built-in battery for portable use and also comes with a standard power wire for continuous operation.
