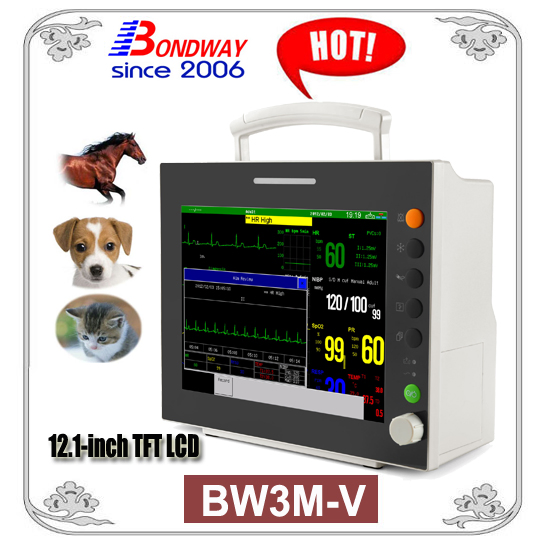

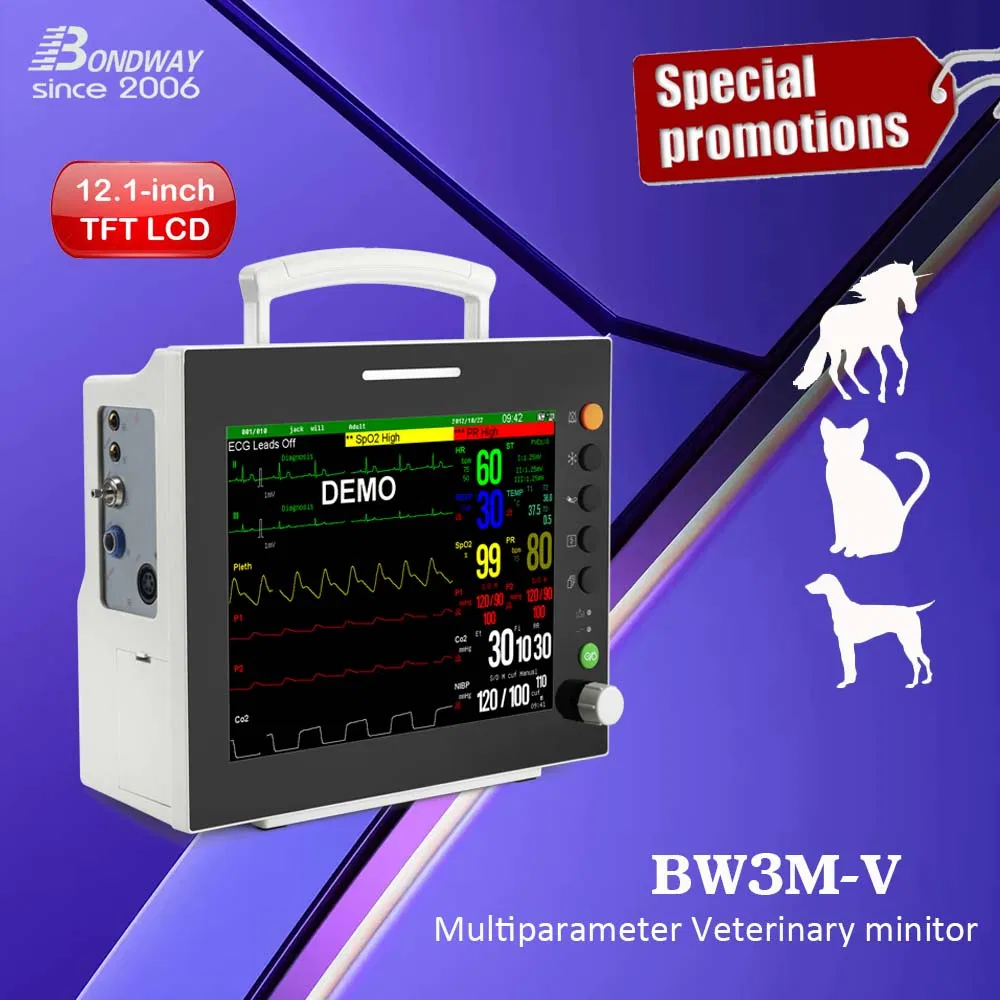

Suitable for Horses, Cats, Dogs and similar sized animals
Technical Specifications
ECG Monitoring
Input
5 lead ECG cable (Leads I, II, III)
Heart Rate Range
0-350 BPM (Accuracy: ± 1%)
Sweep Speed
12.5, 25, 50 mm/sec
Protection
Against electrosurgical interference and defibrillation
NIBP & SpO2
NIBP Method
Automatic Oscillometric (Manual/Auto/Continuous)
NIBP Range
10-285mmHg
SpO2 Range
0 - 100%
Pulse Rate Range
25~400BPM
SpO2 Accuracy
70~100%: ± 2% (Horse/Dog), ± 3% (Cat)
Temperature & Respiration
Temp Range
25~45°C (77~113°F) | Accuracy: ± 0.2°C
RESP Method
Impedance
RESP Range
0 - 120 BPM
Power Input
98~260 V AC, 50/60Hz (Consumption ≤ 80VA)
Safety Standards
GB9706.1 IEC 60601-1 UL 544
Frequently Asked Questions
Which animals can be monitored with the BW3M-V?
It is specifically designed for veterinary use, suitable for horses, dogs, cats, or other similar-sized animals.
What are the standard monitoring parameters?

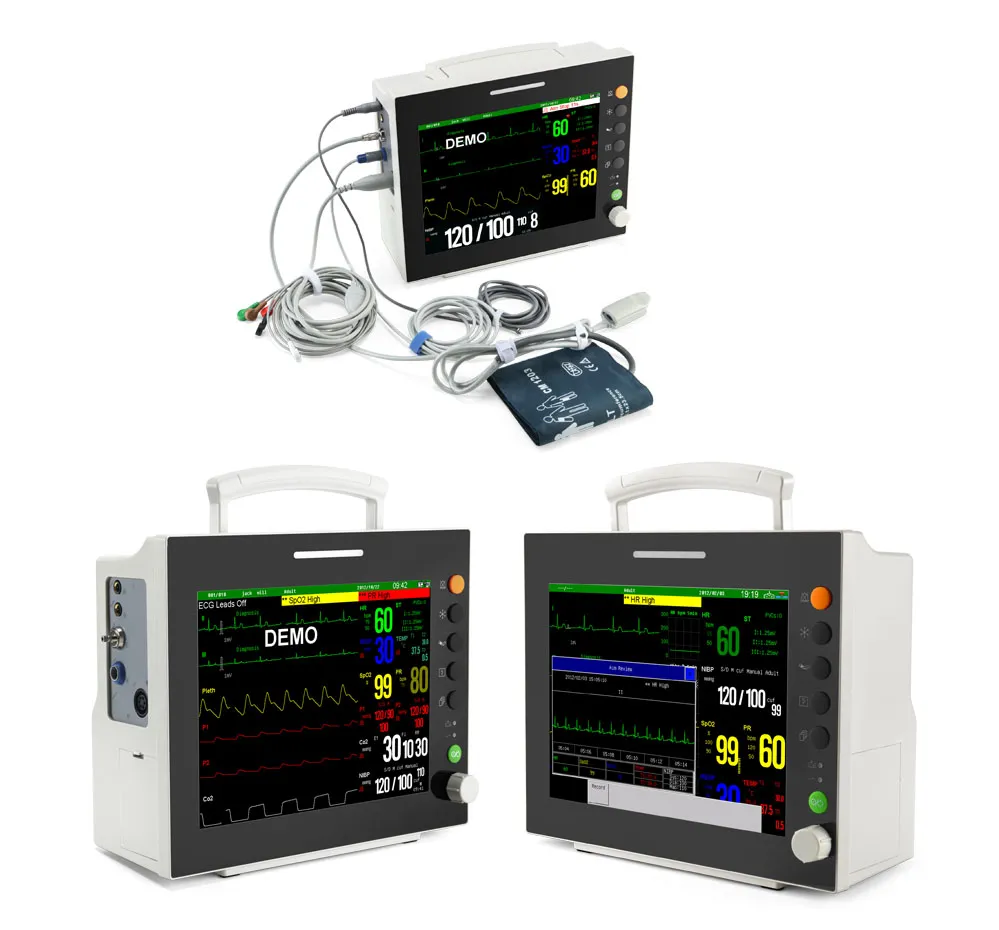

The standard parameters include ECG, NIBP (Non-invasive Blood Pressure), SpO2 (Oxygen Saturation), Temperature, and Pulse Rate.
How long does the device store trend data?
The monitor provides 72-hour tabular and graphic trend storage, allowing for comprehensive clinical review.
Does the monitor support networking?
Yes, it features WAN communication capabilities, allowing it to network with a central monitoring system for long-distance diagnosis and software upgrades.
Is the device suitable for portable use or transport?
Yes, it features a portable, compact design and includes a high-energy Li-ion battery for short-term transport and temporary power-down situations.
Can an external monitor be connected?
Yes, the device has a VGA interface that allows for the connection of an external display.
