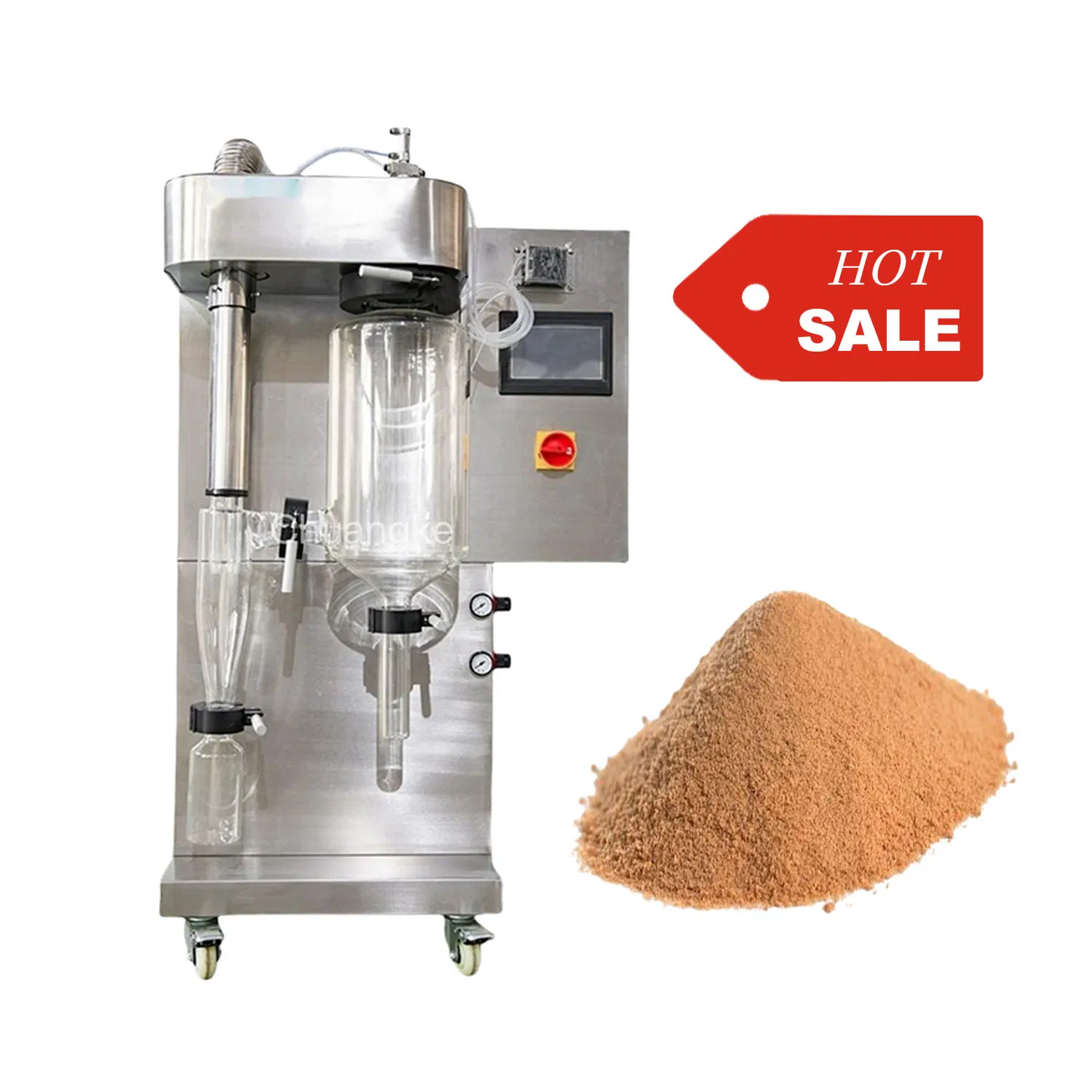

Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
1 / 5
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment
Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment

Lab Small Scale 2000ml/H Animal Blood Gum Arabic Whey Protein Egg Milk Powder Spray Dryer Machine Small Liquid Drying Equipment

Customization: Available
After-sales Service: Technical Communication
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model NO.HF
Heating ModeTransmission
AtomizationPressure Atomization
Material StatusSolution, Cream
Heat SourceElectricity
NameMini Spray Dryer
UseLaboratory
Drying MethodSpray Drying
ConstructionStainless Steel & Glass
Package Size145cm * 65cm * 55cm

Product Description

⚙️
Spray Drying Machine
A spray dryer is an efficient drying equipment that atomizes liquid materials into tiny droplets and quickly dehydrates them into powders when in contact with hot air. The core components include an atomizer (centrifugal/pressure/airflow type), hot air system, and separation device. It excels in retaining heat-sensitive components and enabling continuous energy-saving production.

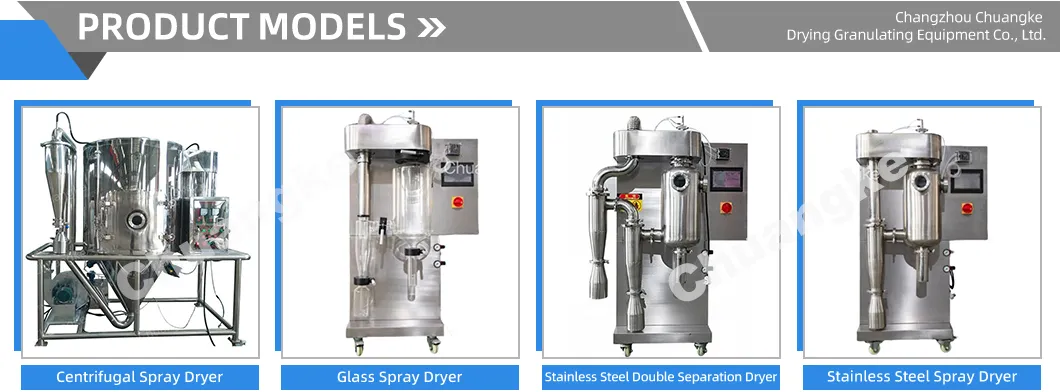

Small Scale Spray Dryer

Key Features

  • Constant Temperature Control: Real-time technology ensures heating accuracy within ± 1 ℃.
  • Adjustable Feeding: Peristaltic pump allows feeding amounts starting from as low as 50ml.
  • Uniform Particle Size: Over 98% of the dry powder stays within the same particle range.
  • Nozzle Protection: Automatic cleaner for viscous materials ensures no blockages.
  • Wall Blowing Device: Innovative tower design leads to a higher material recovery rate.
  • Safety Systems: Built-in protection for fan and heating synchronization.
Spray Dryer Technical Details

Technical Specifications

Inlet Air Temp 30-300 ℃ Outlet Air Temp 30-150 ℃
Evaporation Volume 1500mL/H - 2000mL/H Max Feed Rate 2000mL/H
Min Feed Rate 50mL Nozzle Diameter 1.00mm
Avg Drying Time 1.0~1.5S Air Compressor 0.2KW
Working Pressure 2-3 Bar Gas Production 4.2 m3/h

Component Details

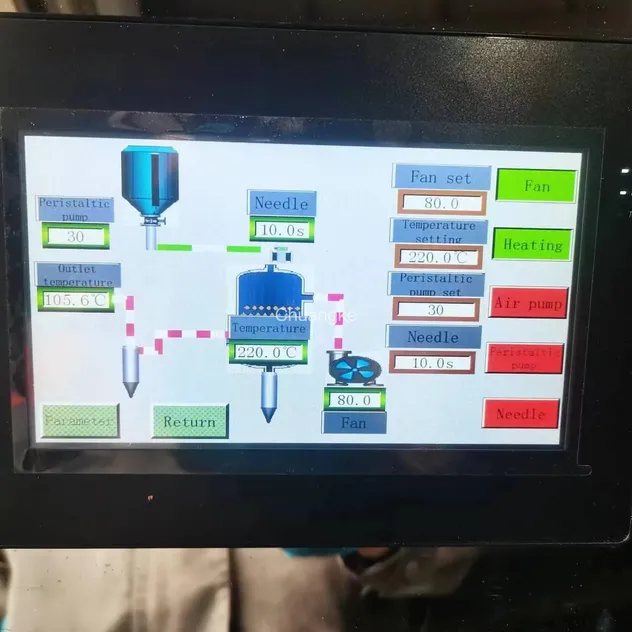

LCD Touch Screen

LCD Touch Screen
Real-time PID constant temperature control technology.

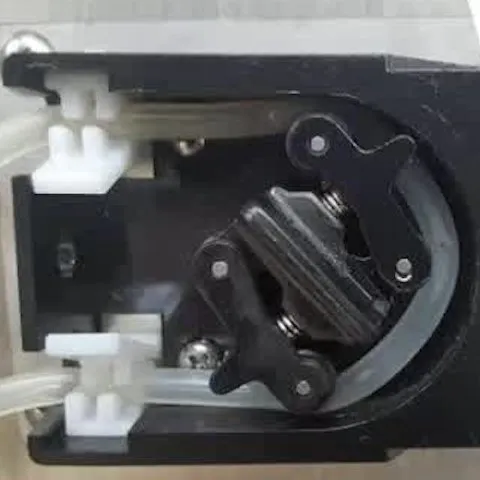

Peristaltic Pump

Peristaltic Pump
Adjustable flow rate for minimum processing of 50ml.

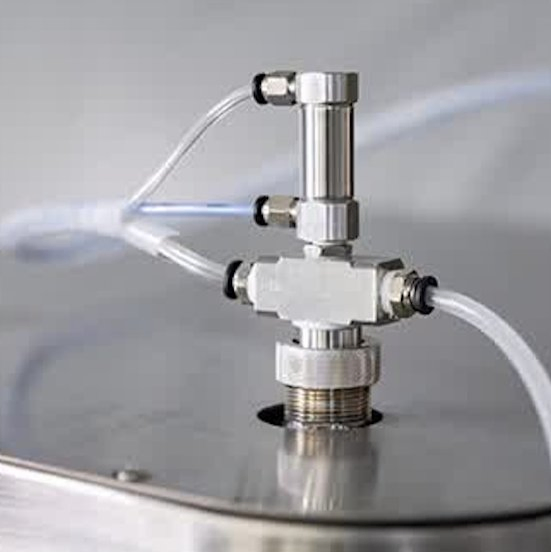

Atomizer

Two Fluid Atomizer
Concentric coaxial airflow system in SS304/316L.

Wide Applications

🧪
Food & Organic Chemistry: Milk powder, egg yolk, coffee, starch, spices, and extracts.

Inorganic Chemistry: Wax, dyes, detergents, synthetic resins, and pigments.

Advanced Materials: Ceramics, magnetic materials, metal powders, and fuel cell development components.

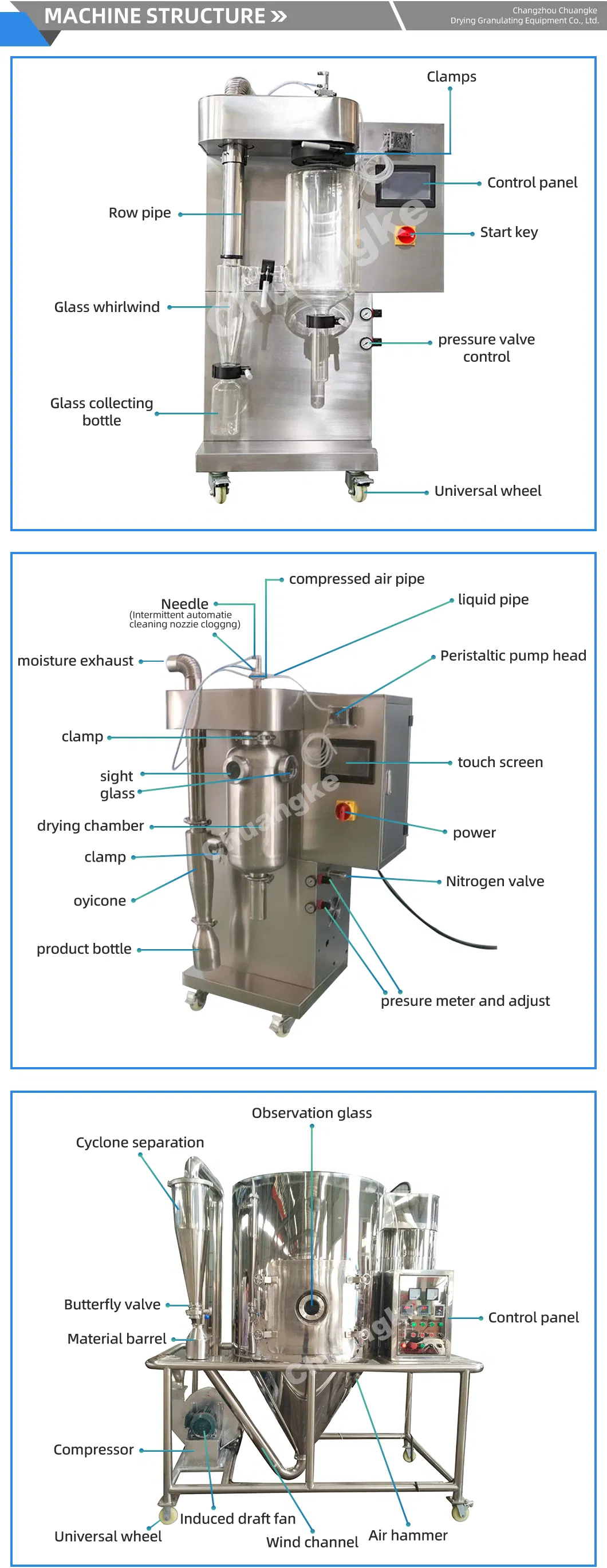

Application Range

Production & Certification

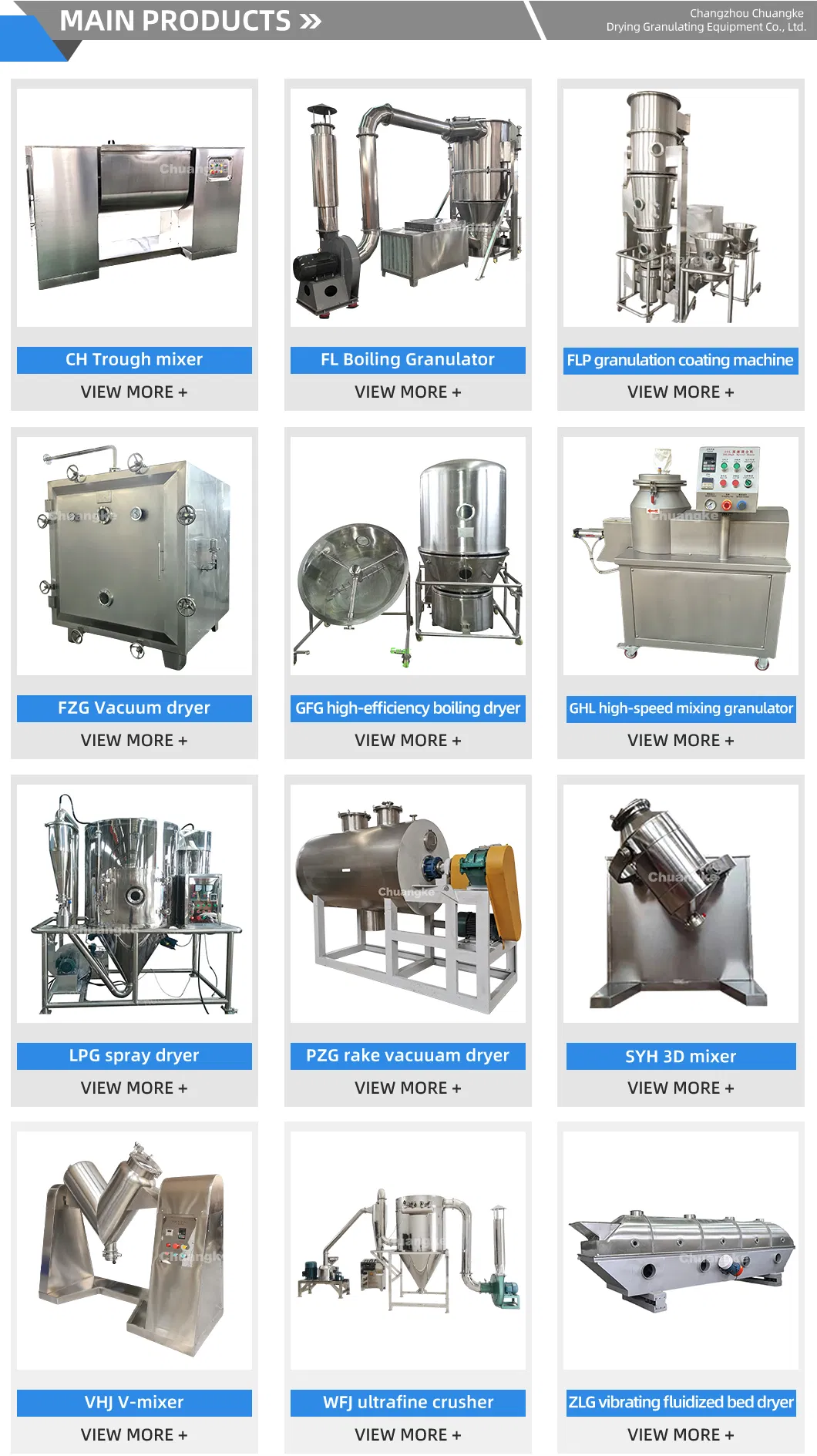

Main Products Gallery
Factory Overview
Certifications
Packaging

Frequently Asked Questions

How do I choose the right spray drying equipment?
Contact our technical team with your specific material properties and target output; we will recommend the most suitable configuration for your laboratory or production needs.
What is the minimum sample volume required?
Our mini spray dryer is designed for laboratory efficiency, requiring a minimum sample volume of only 50ml.
How long does the drying process take?
The average drying time is extremely rapid, typically between 1.0 to 1.5 seconds, which helps protect heat-sensitive materials.
Is the equipment safe for transport?
Yes, all machines are packed in standard export wooden cases filled with foam. We also provide insurance for all shipments to ensure peace of mind.
Can the control panel language be customized?
Yes, we can adjust the digital control panel language according to your requirements before delivery.
What happens if glass parts are damaged during use?
We maintain a full stock of replacement parts, including glass assemblies and nozzles, which can be dispatched immediately via courier.
