Product Description

Basic Information
Usage
Laboratory Animal Rearing
Application
Rodent
Power Source
Electric
HVAC Type
Steam or Hot Water Heating
Prevention Equipment
Medicated Bath Equipment
Blade Type
Straight Teeth
Computerized
Computerized
Condition
New
Warranty
2 Year
Customization
Accept Customization
Material
Stainless Steel + PSU
Capacity
500 Sets/Month
Laboratory Animal Equipment Divider
Product Description

Project: Individually ventilated cage system for keeping laboratory mice or rats, including cage, shelf, air handling device, water bottle, filter top, cage holder and other accessories.

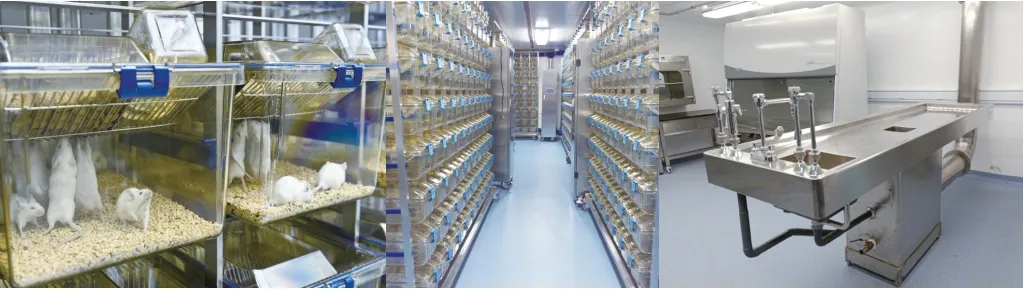

System Drawing

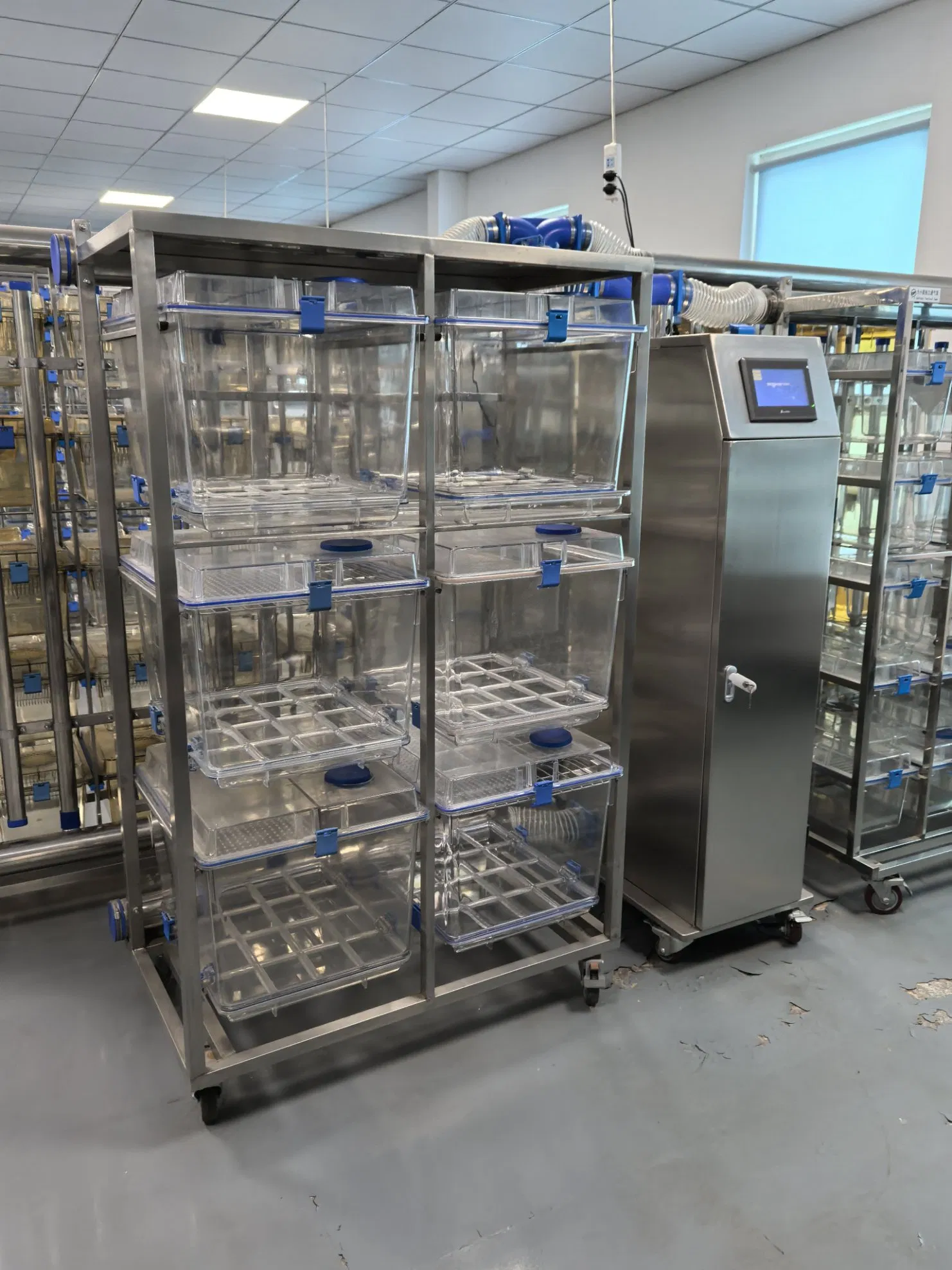

  • System Composition: Composed of three parts: main engine, ventilation cage frame and sealed cage box. It provides SPF animals with uniform, low-flow clean air.
  • Air Filtration: Indoor air passes through the filtration system into individual sealed boxes. Exhaust gas is filtered and discharged to keep low ammonia concentration and humidity.
  • Health & Safety: Effectively prevents cross-infection and guarantees the health and safety of laboratory workers. Suitable for breeding, preservation, and short-term experiments.
  • High Efficiency Filter: Filtration efficiency ≥99.995% (particle size 0.3μm). Features 36v/48v lithium battery providing 8+ hours of emergency power.

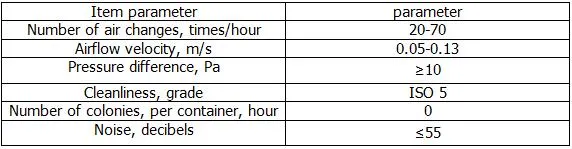

Parameter Table
Technical Specifications & Features
  • Cage Material: Polystyrene sulfone (PPSU) plastic, high temperature resistance up to 180ºC. Can withstand 135ºC high-pressure steam sterilization over 500 times. Polycarbonate (PC) option available.
  • Hardware: Frame, wire cap, and bottle cap made of stainless steel SUS304 with polished or matt treatment.
  • External Water Bottle: 250ml-500ml PSU material bottle. Can be replaced without removing the cage, reducing disturbance.
  • Ergonomic Design: Easy to operate and move; includes a secure cage locking system and foot-operated braking system.
  • Smart Monitoring: Display unit shows supply/exhaust speed, temperature, humidity, and air pressure. Includes an alarm system for filter blockage or parameter deviations.

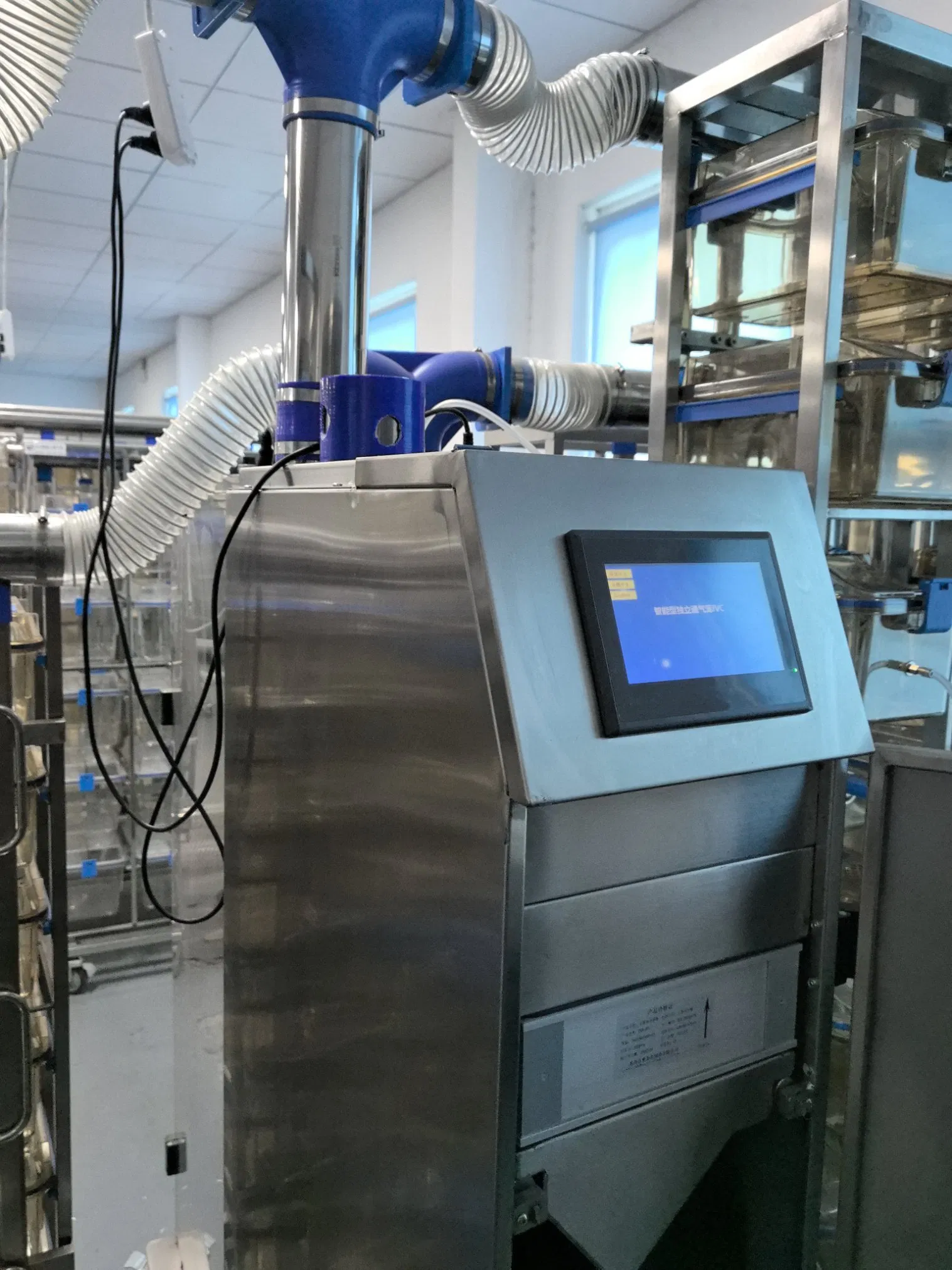

  • Quiet Operation: Independent tower-type air handling unit prevents vibration transfer. Noise levels kept below 50 decibels for animal welfare.

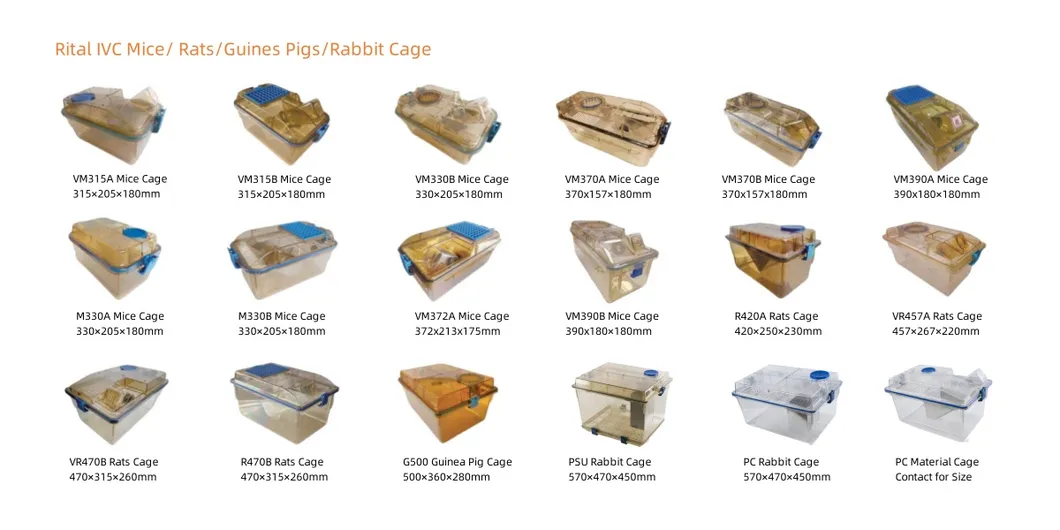

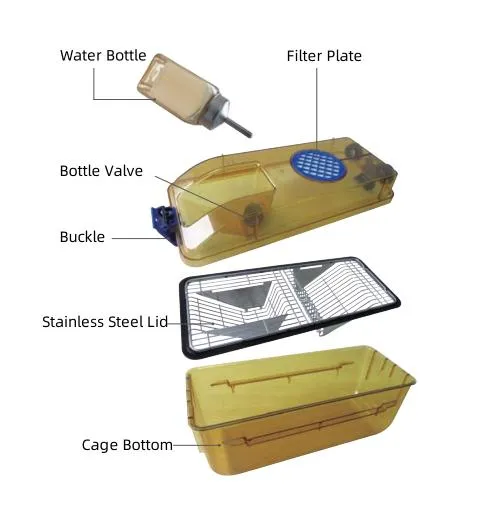

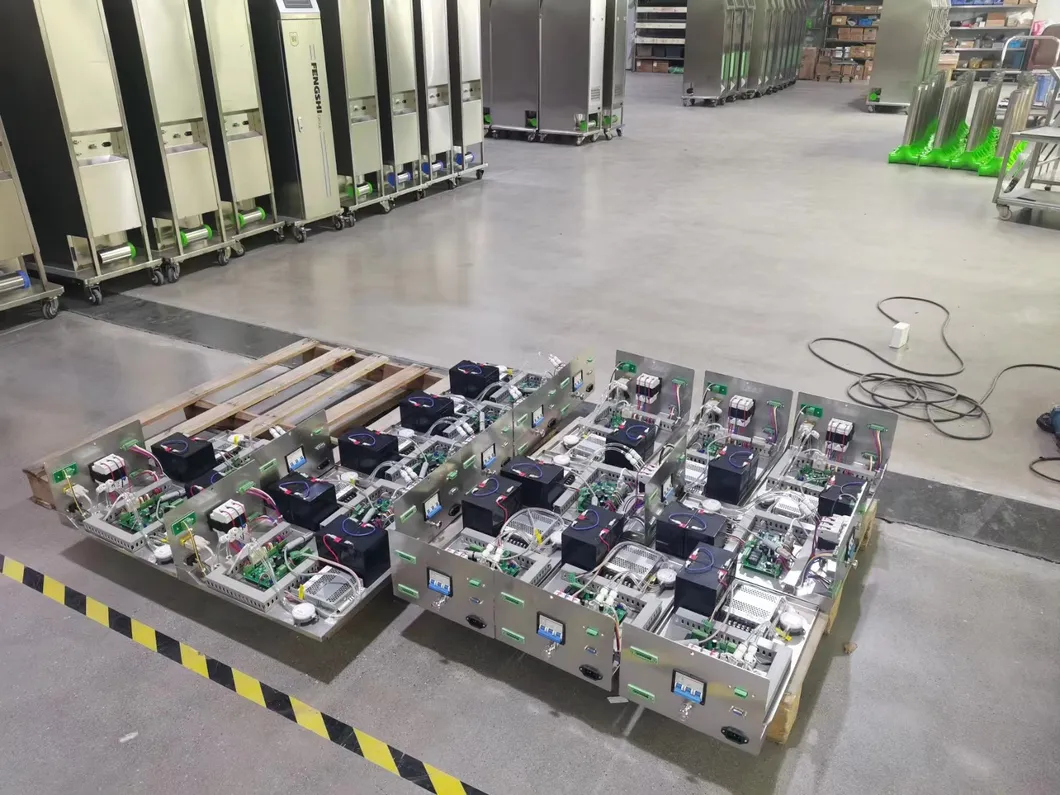

Cage Detail Cage System View Production Process

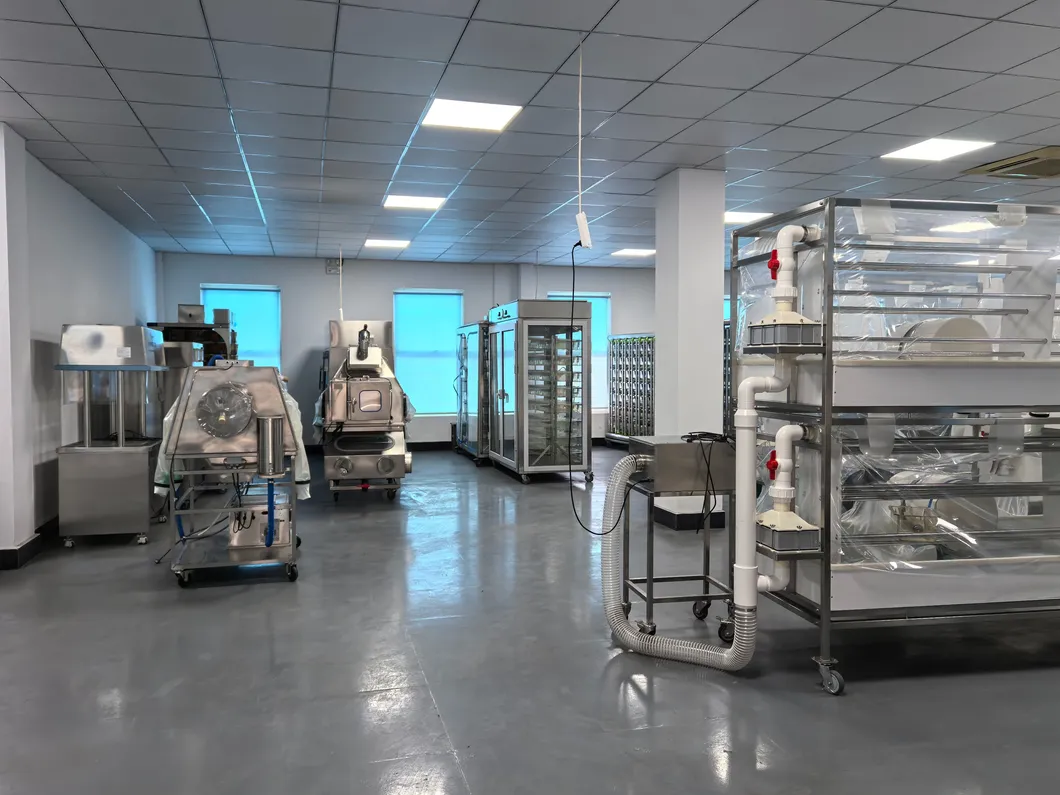

Factory Overview
Frequently Asked Questions
How do you ensure quality control?
We have a very strict quality control system. Each piece of our goods is checked several times before shipping. We welcome third-party inspections and offer full refunds for quality issues.
Is on-time delivery guaranteed?
With 8 production lines and hundreds of skilled workers, our delay rate over the past years has been less than 0.3%. Your schedule is our priority.
Do you offer OEM services?
Yes, we accept OEM orders and provide confidentiality agreements (business secret contracts) to ensure your design remains safe.
Can I place a small initial order?
Small orders are welcomed for first-time quality testing. We also offer free stock samples for your evaluation.
Can you help with the import process?
If this is your first time buying from China, we supply a professional, complete import solution. You place the order, and we handle the rest.
Is it possible to visit the manufacturing facility?
We would be more than happy to host you. We will arrange everything for your visit to ensure a productive trip.
