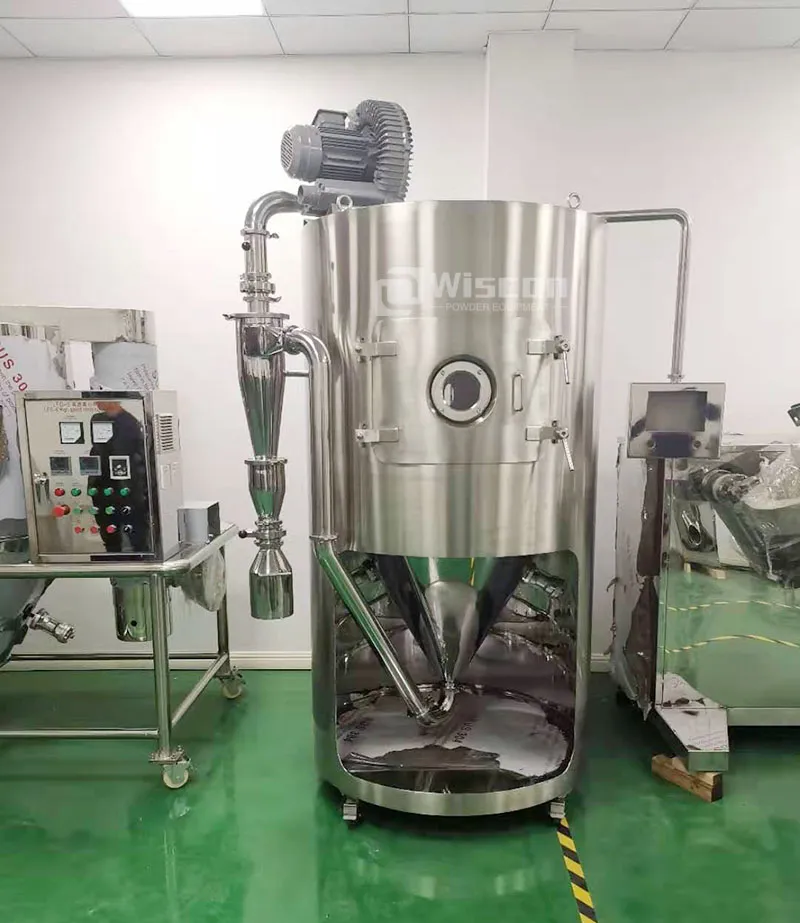

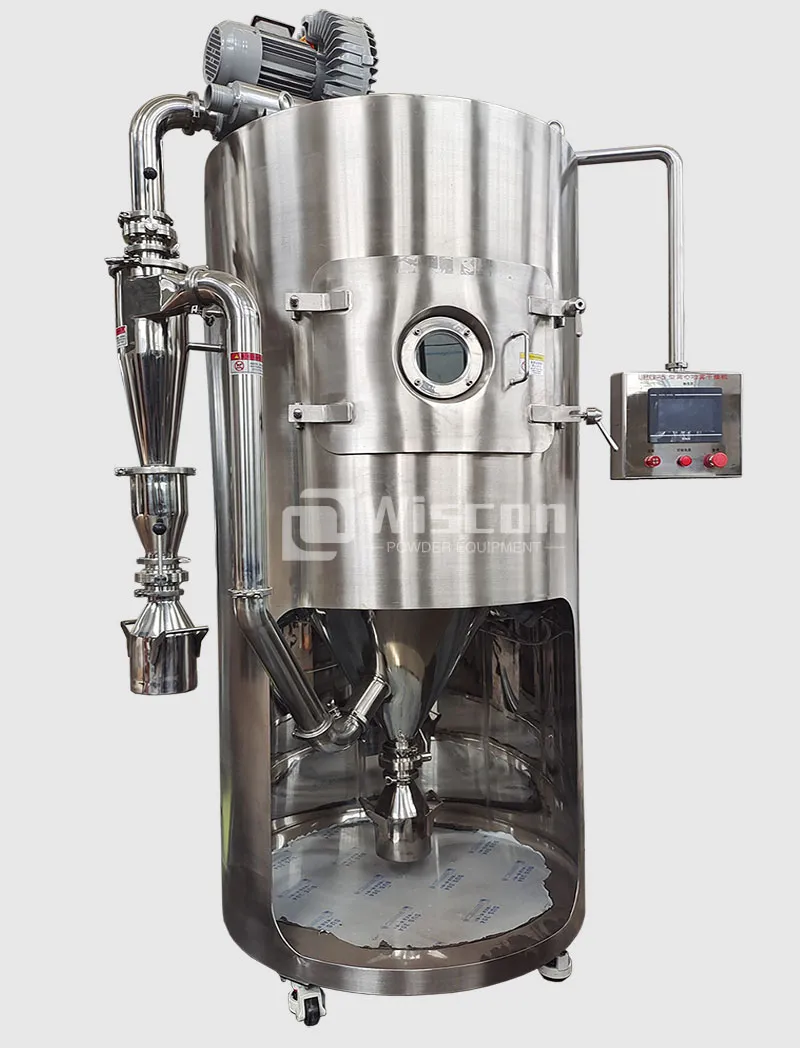

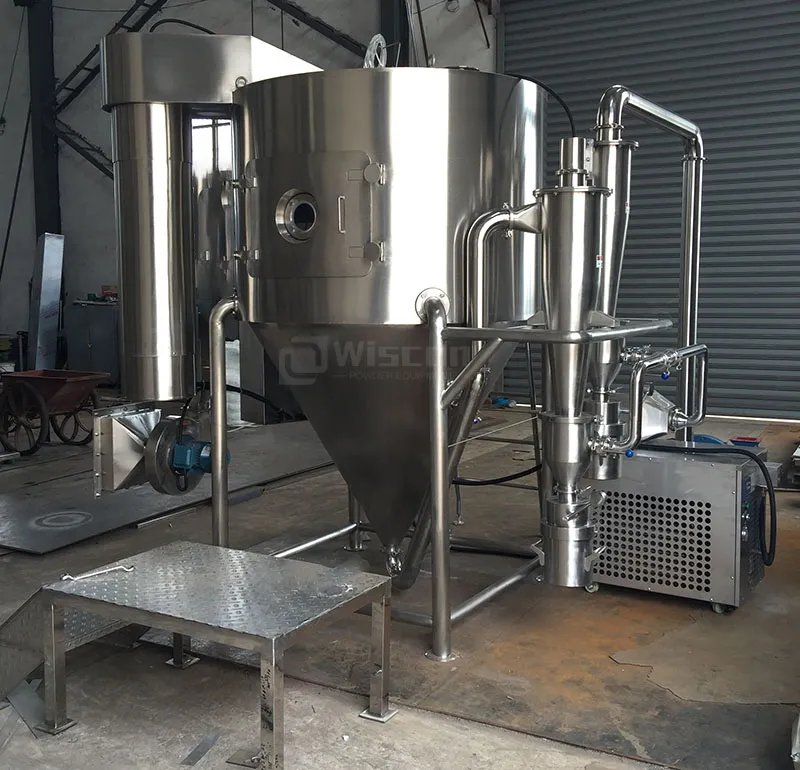

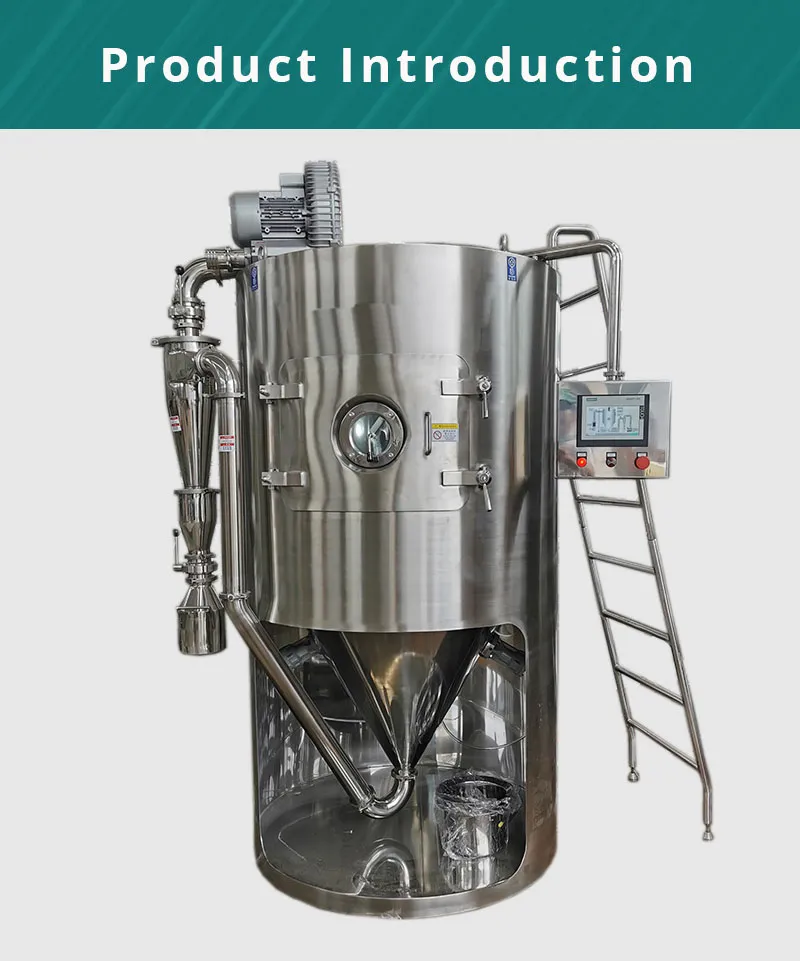

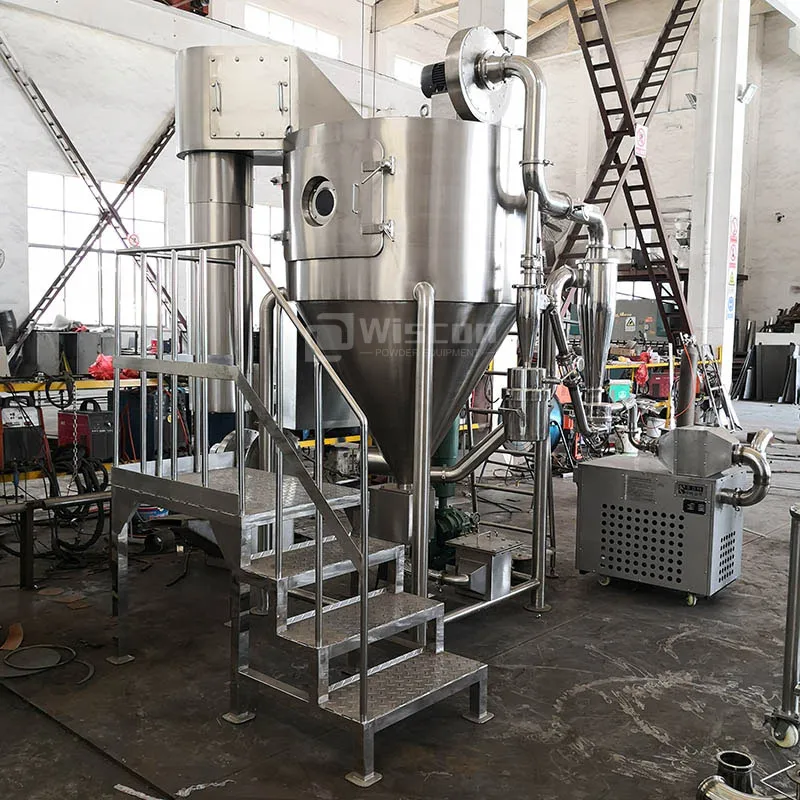

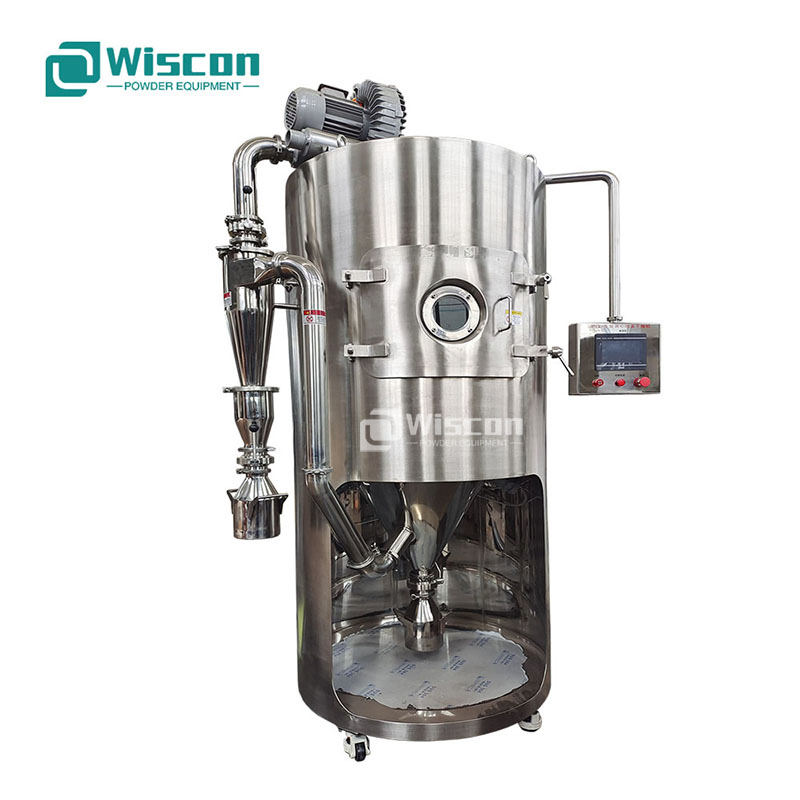

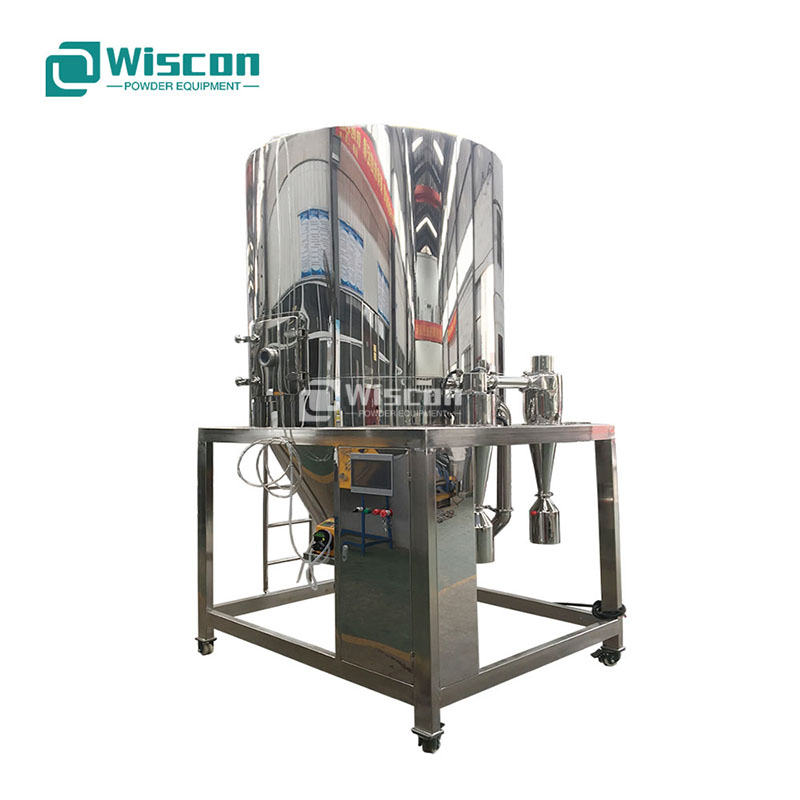

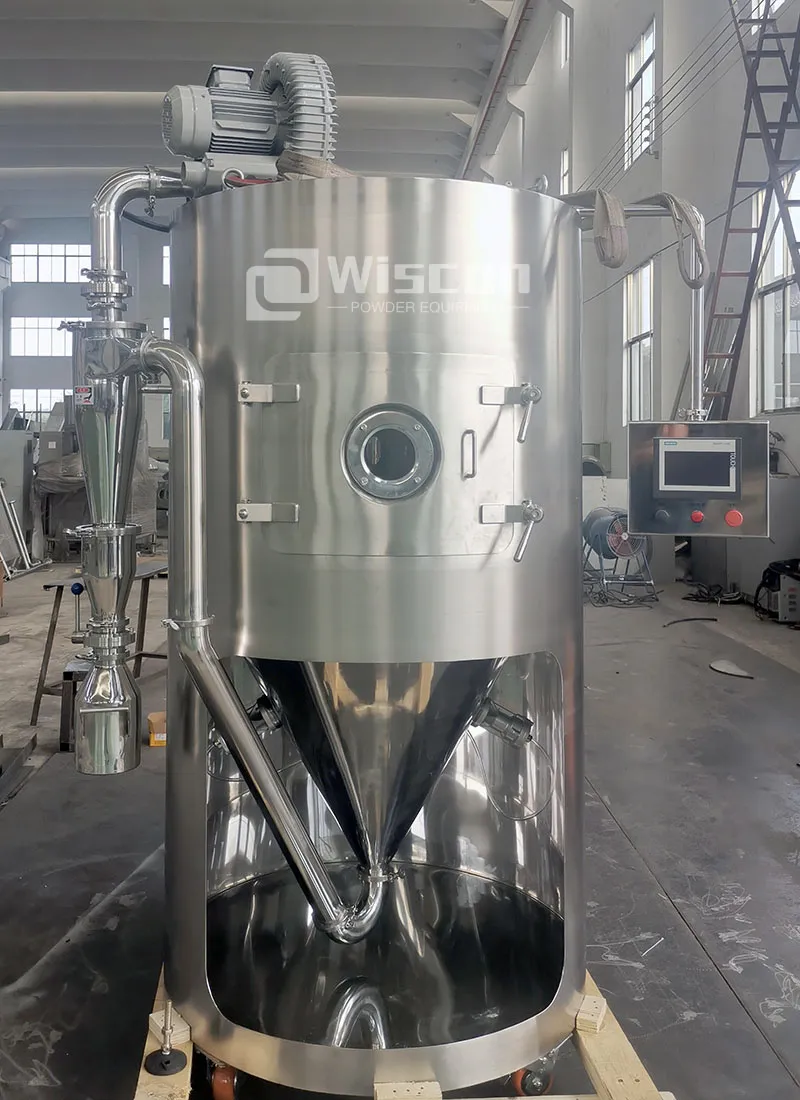

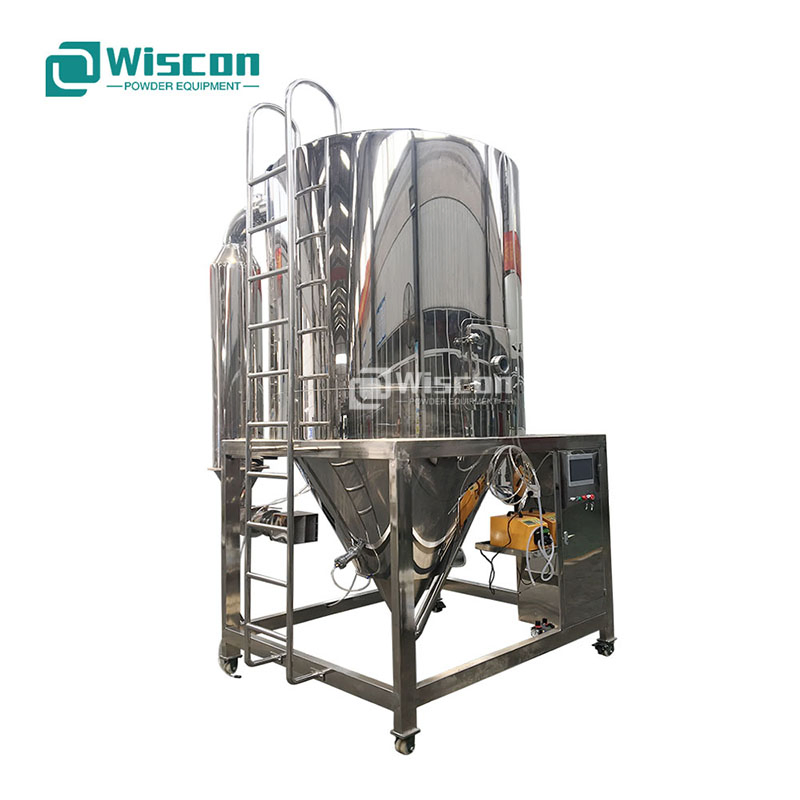

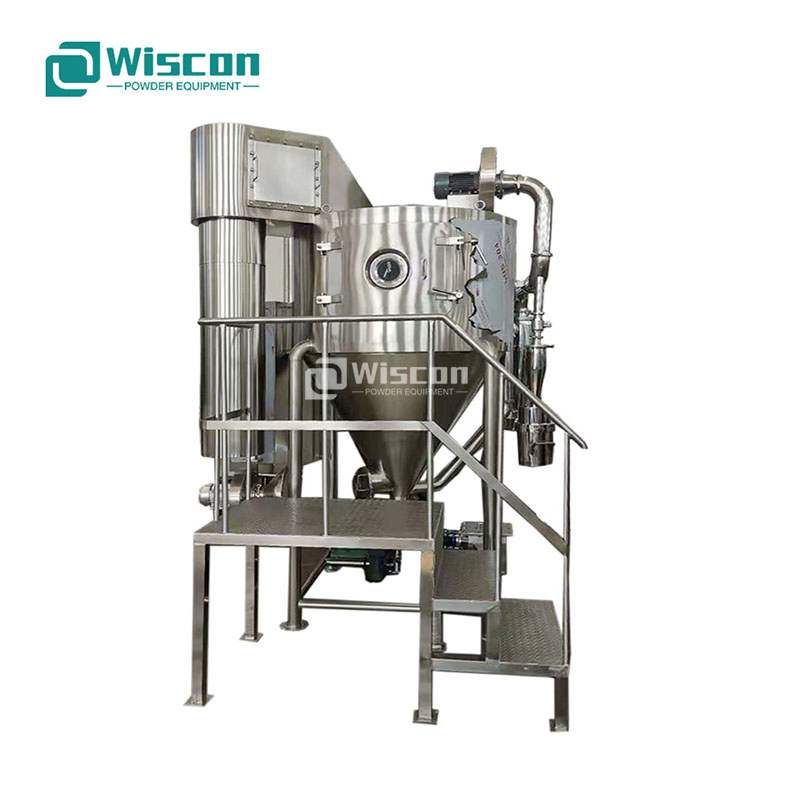

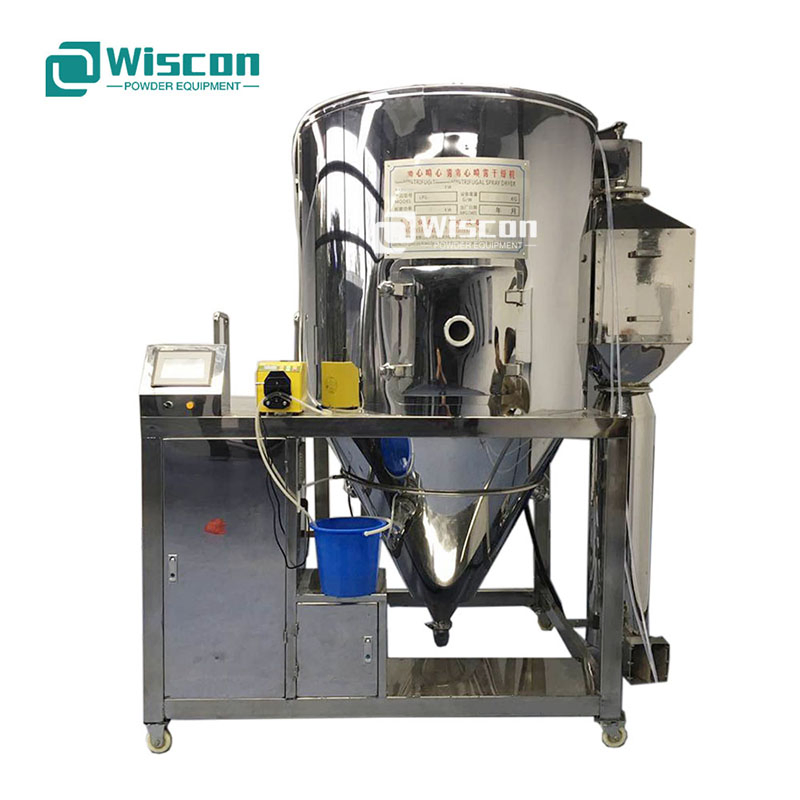

Our small-scale spray dryers are designed especially for carrying out test work and exploring the possibilities of spray drying as well as small-scale and trial production. It meets the demand for a sanitary, flexible, and easy-to-handle lab spray dryer. Small quantities of solutions, suspensions, or emulsions can be dried into representative powder samples, and the process data required for scale-up to industrial production can be retrieved. The typical product applications for the spray dryers are free-flowing powders, agglomerated powders, and fine powders.
Typical Application:
Pharmaceuticals and biology, food, Biocides, Ceramics, Catalysts, Detergents, Minerals, Fungicides, Dyes, Metallic Powders, Agricultural Products
| Model | LPG-5 | LPG-10 | LPG-15 | LPG-25 |
|---|---|---|---|---|
| Max water Evaporation (kg/h) | 5 | 10 | 15 | 25 |
| Temp of Air Inlet (ºC) | 140~350ºC | |||
| Temp of Out Inlet (ºC) | 60~130ºC | |||

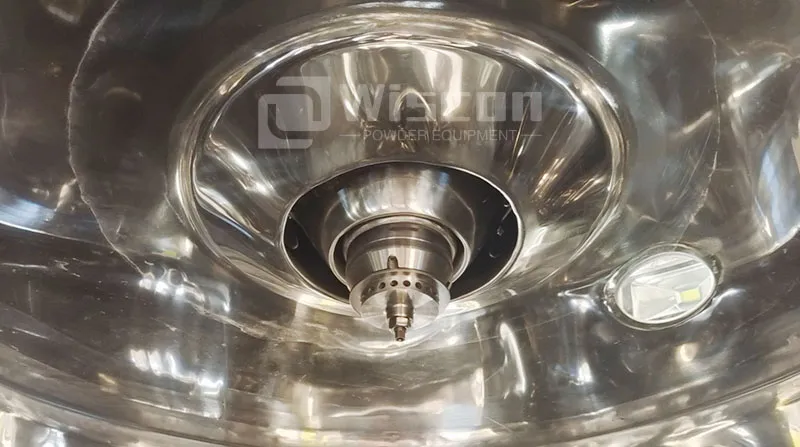

| Atomization Type | Rotary atomizers | |||
| Atomizer Speed (rpm) | 24000~30000 | 24000~30000 | 18000~24000 | 18000~24000 |
| Air Heating | Electricity | Steam plus electricity | ||
| Dimension (L*W*H m) | 1.6×1.1×2.2 | 2.7×1.5×2.8 | 3.0×1.8×3.4 | 4.0×2.7×4.5 |
Specializing in powder production solutions for the food, pharmaceutical, chemical, and biological industries. Main equipment categories include:
