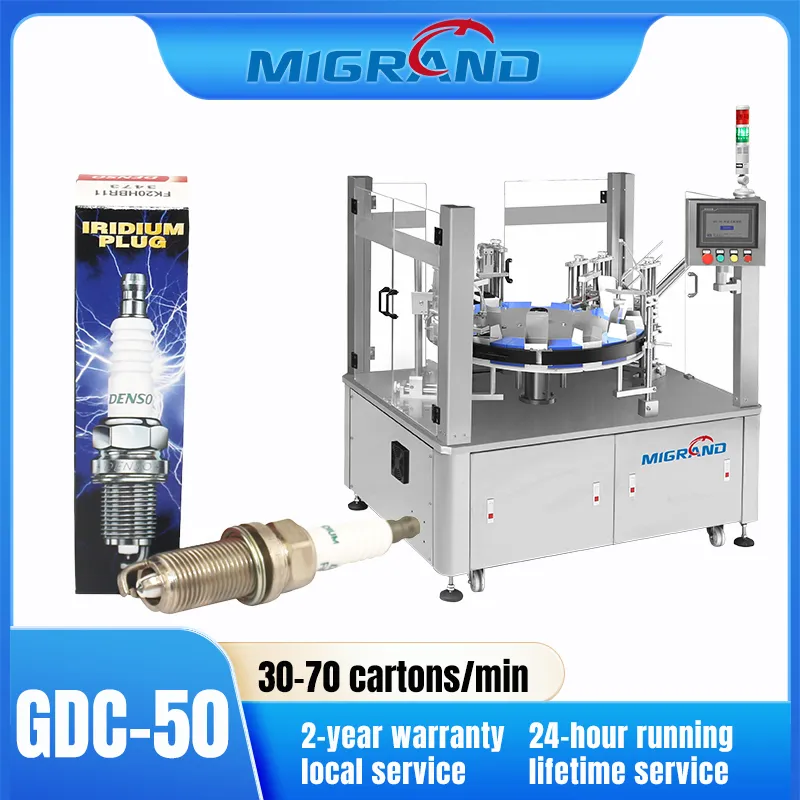

Semi-Auto Cartoning Machine

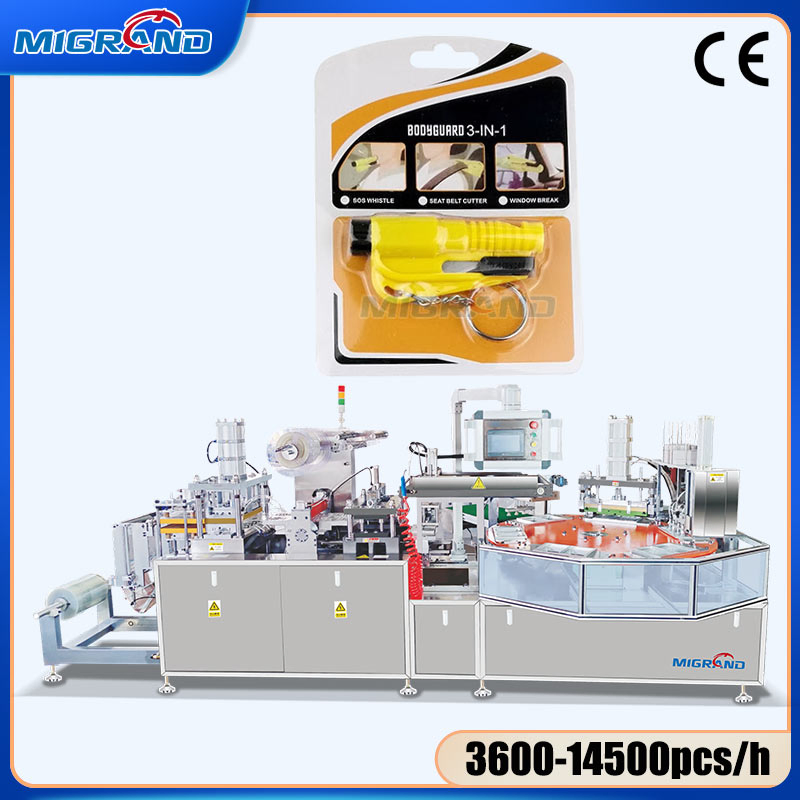

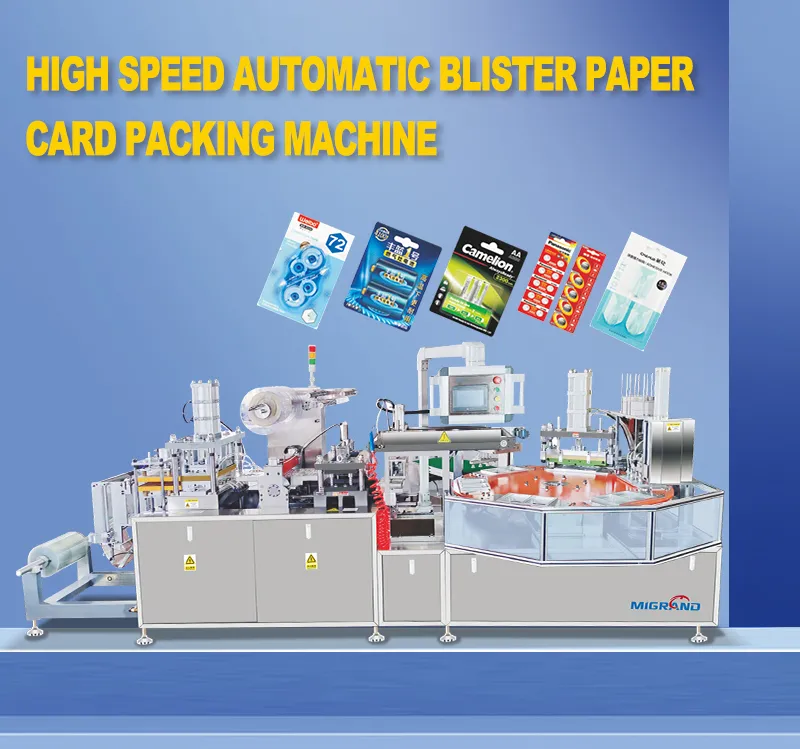

Full Automatic Paper Plastic Blister Packing Machine

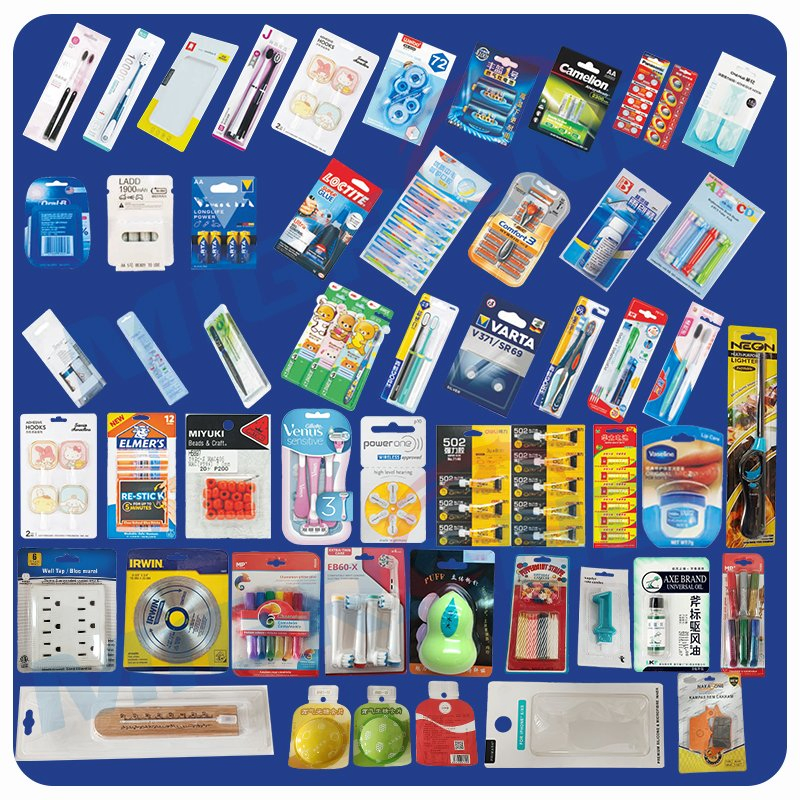

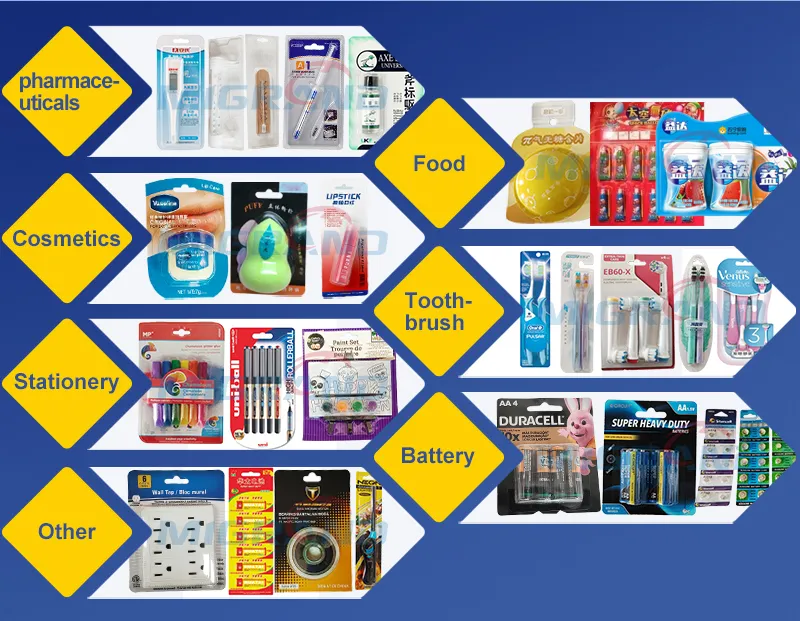

GAC series machine is suitable for blister paper card package (half face sealing or full sealing), such as daily commodity (razor, rubber, nipple, sticky hook, toothbrush), small hardware (battery, electronics, glue), stationery (pencil, eraser, correction fluid, solid glue) and so on.
🌟 Working Principle:

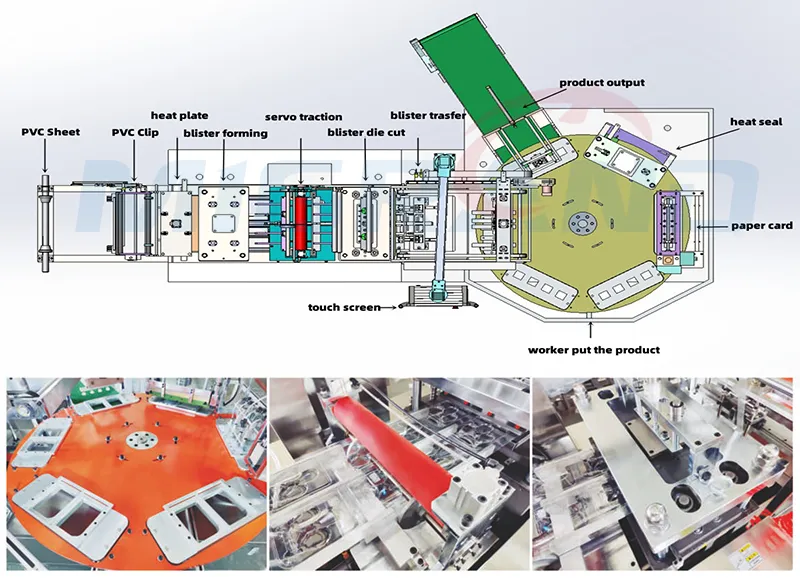

The production process is PVC heating — Blister forming — servo motor traction — blister cutting — scrap collection — blister grab to the rotary plate by manipulator — manual/automatic place the product — paper card lay down — blister and paper card sealing — product output.
(Optional device: euro-hole machine, labelling machine, ink-jet printer)

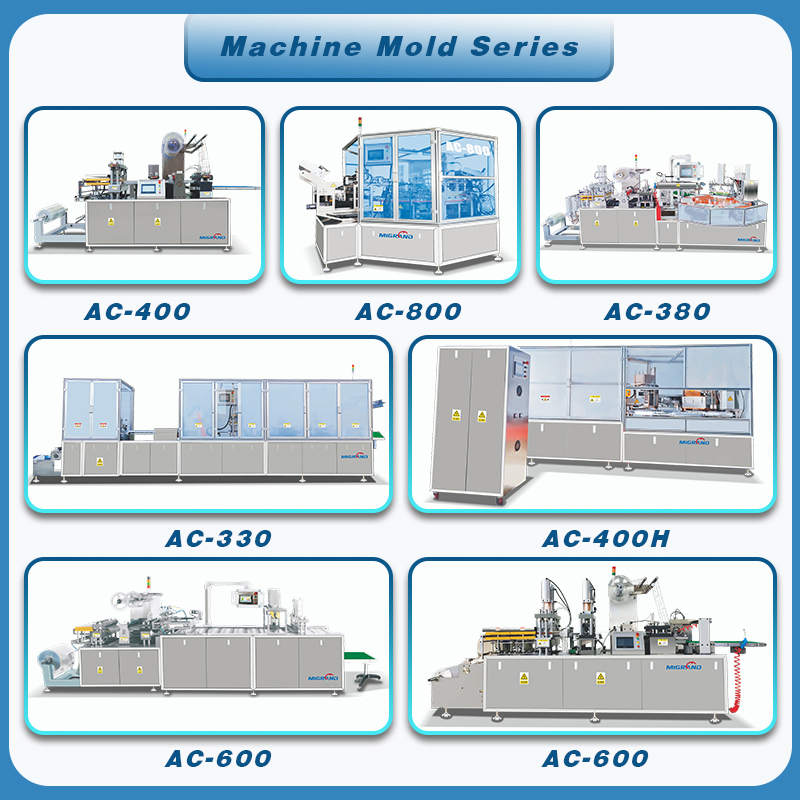

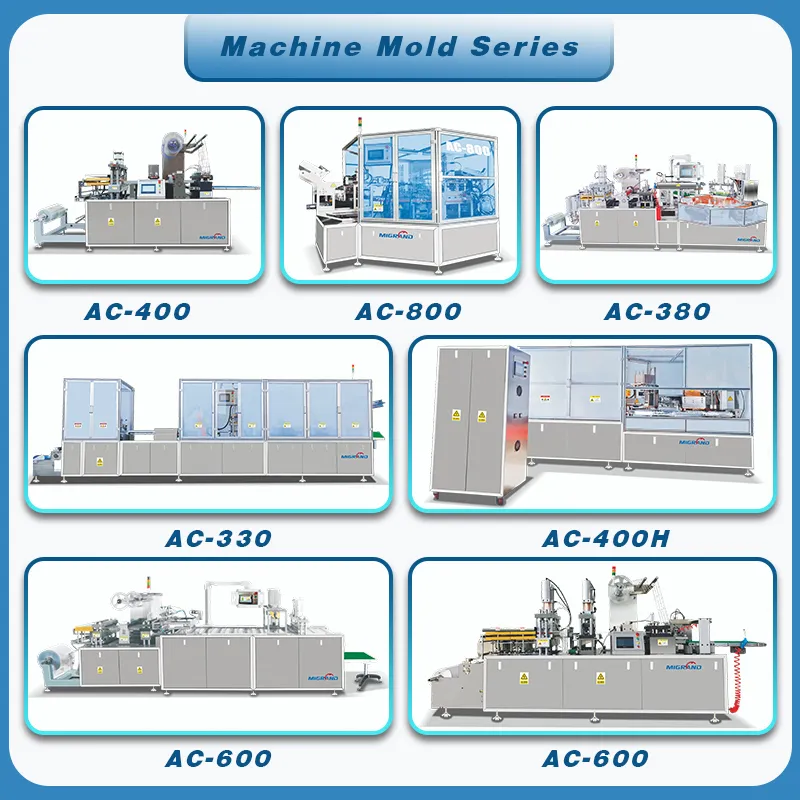

| Mode | GAC-380 | GAC-400 | GAC-330 | GAC-600 | GAC-800 |
|---|---|---|---|---|---|
| Production speed | 15-20 cycles/min | 15-20 cycles/min | 8-14 cycles/min | 15-18 cycles/min | 10-15 cycles/min |
| Stroke range | 30mm-200mm | 30mm-220mm | 30mm-300mm | 30mm-260mm | 30mm-200mm |
| Max forming area | 370x170mm | 370x230mm | 315x250mm | 550x230mm | 180x400mm |
| Total power | 13.5kw | 13.5kw | 13kw | 13kw | 12kw |
| Air Pressure | 0.5-0.8mpa | ||||
Initial Evaluation Requirements:
Specialized in packing machinery for more than 10 years, providing solutions for pharmaceutical packing, plastic ampoule forming, capsule filling, and cartoning. Our machines are exported globally, including Thailand, Malaysia, USA, Brazil, Russia, and many others, gaining a high reputation for quality and after-sales service.
