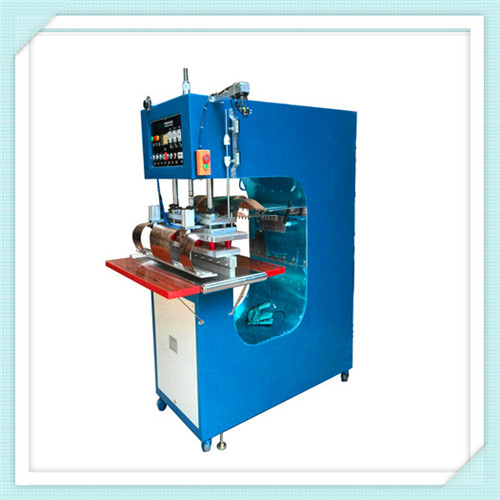

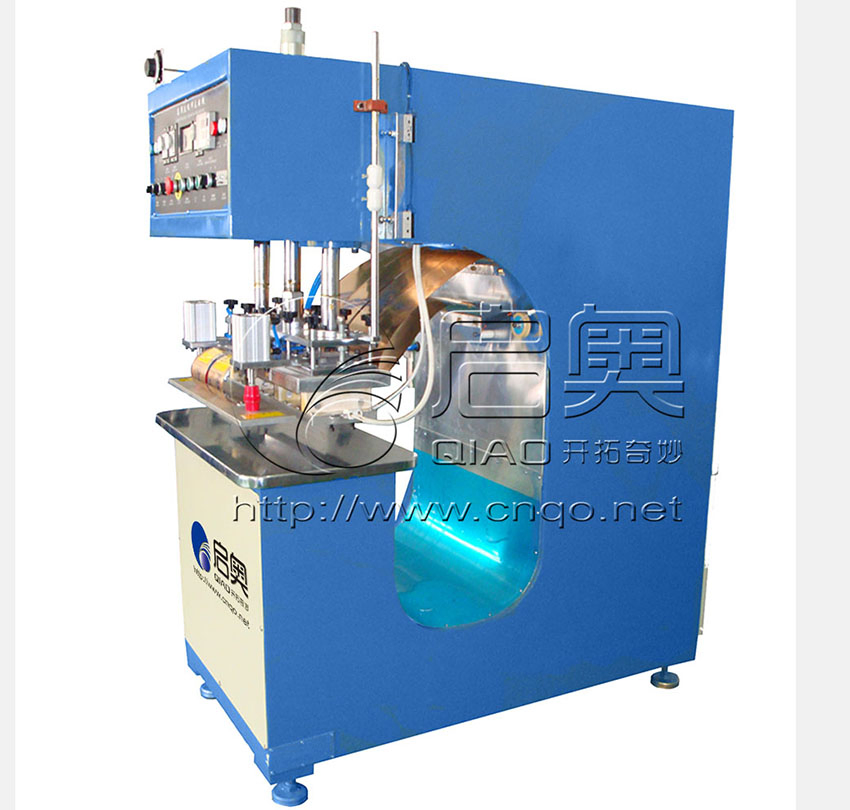

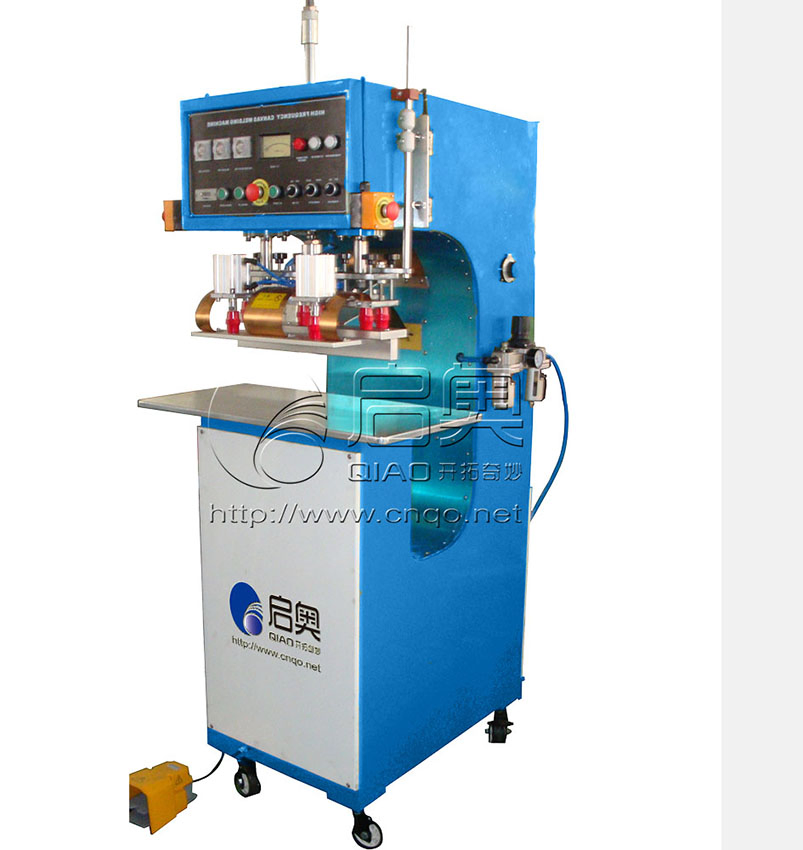

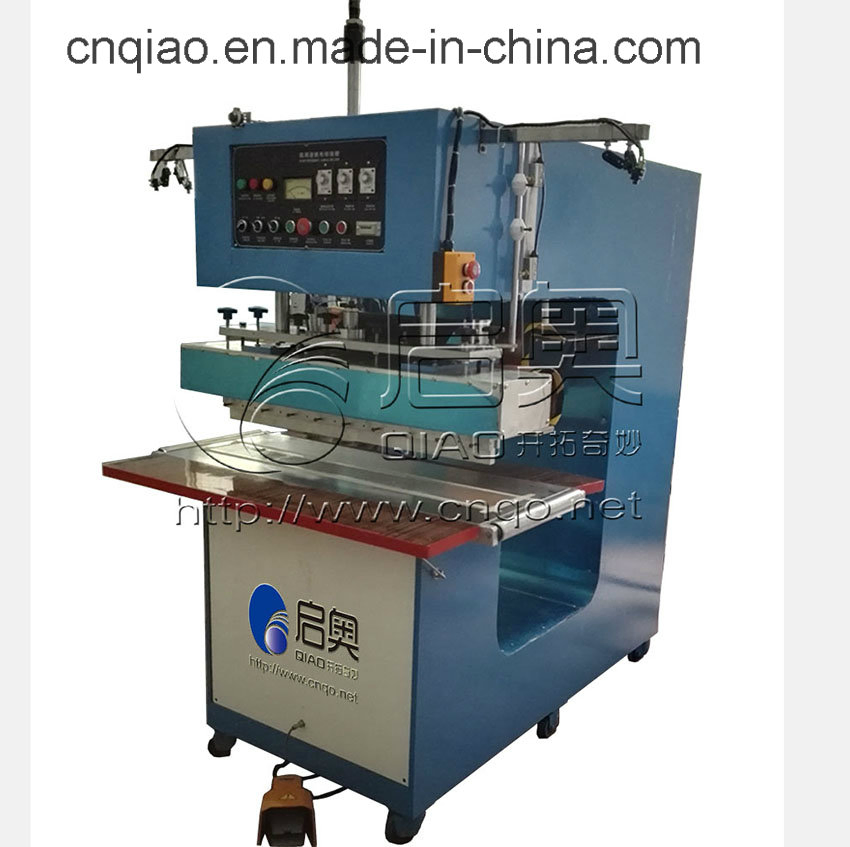

High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
1 / 5
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades
High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades

High Frequency PVC Welding Machine for Structural Membrane Shades Break Camp Pet Emergency Rescue Air Support Tent Covers Awning Sunshades

Customization: Available
Application: Decoration, Commodity
Cooling Way: Air Cooling
Send Inquiry

Product Description

Basic Specifications

Model NO.
10KW-F1
Control
Semi-Automatic
Frequency Range
High Frequency
Electric Current
AC
Power
Pneumatic
Voltage
220V/380V or Customized
Frequency
27.12MHz
Transport Package
Wood Case
Specification
8000W
HS Code
8515809090
Production Capacity
500piece/Year
Package Size
150.00cm * 120.00cm * 200.00cm
Gross Weight
800.000kg

Product Description

High frequency welding machine for PVC Fabric, Swimming Pool Cover, Liner Tent, Pool-Liners, PP Fabric, and Pocket Air Filters.

The PVC membrane structure fabric welding machine is specially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulins, tents, tensile structures, advertising billboards, spark protection cloth, truck tents, agricultural canvas, canopies, swimming pool covers, and other PVC/PU technical textiles.

Technical Parameters

Model QO-5KWFB QO-8KWFB QO-12KWFB QO-15KWFB QO-25KWFB
Output Power5000W8000W12000W15000W25000W
Anti-Spark SystemNL-5557 High sensitive anti-spark system
Voltage3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency27.12MHz +/- 0.6%
Input power10KVA15KVA20KVA25KVA35KVA
RectifierSILICON DIODE
Oscillation tube7T85RB7T69RBE31308T85RB8T25RB
Max pressure350kg500kg800kg1000kg1000kg
Operation modePneumatic Operated (Hydraulic pressure upon request)
Max gap of electrodes100mm
Electrode Size (W*H*L)50*50*60050*50*80050*50*90050*50*100050*50*1200
Work Table Size (L*W)350*700450*1050450*1050400*1150400*1250
Welding time0.01~9.99s adjustable
Net weight400kg800kg900kg1200kg1500kg

Detailed Images

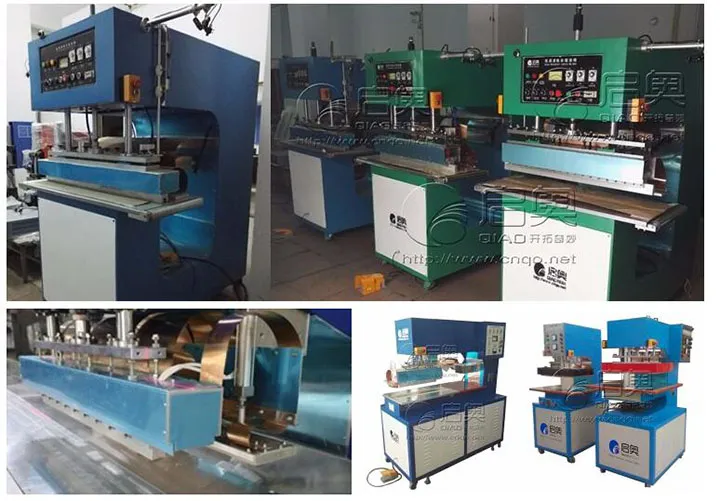

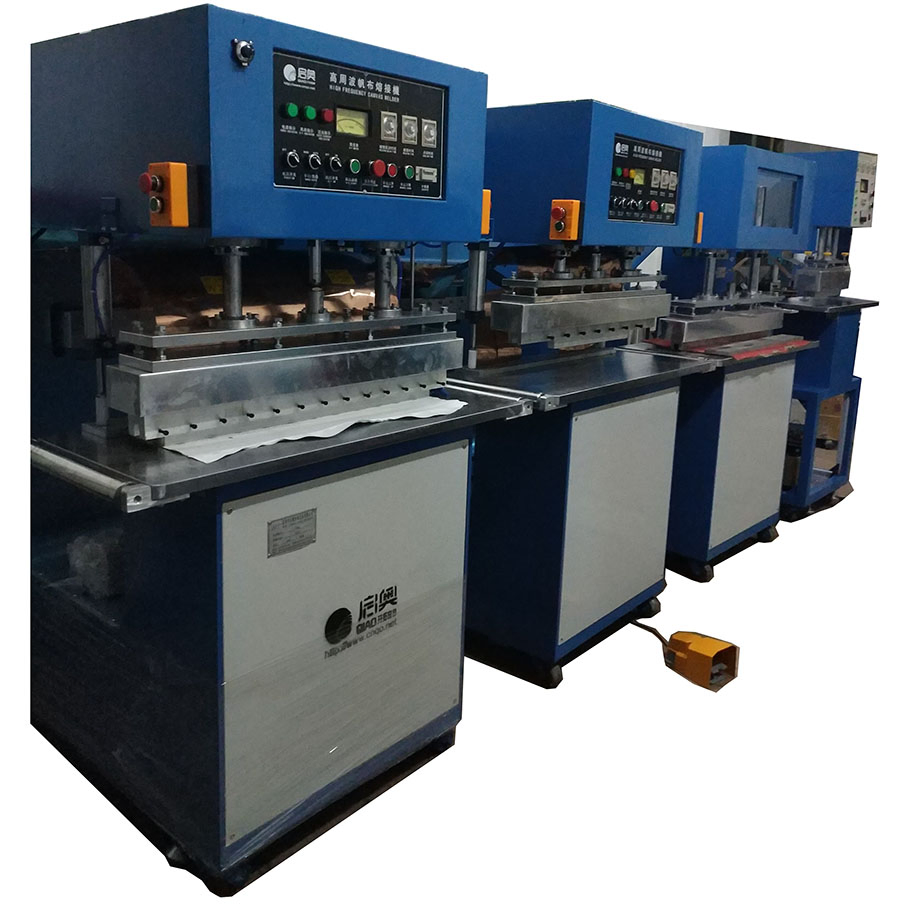

High Frequency PVC Welding Machine Detail
HF Machine Structure

Main Features

  • Equipped with two moving rolls on both sides, convenient for continuous large-area welding.
  • Length span is 600 mm, internal occupation can reach 1150 mm.
  • Optional welding length with a maximum welding area of 50*1000mm.
  • Dual-line welding option available.
  • Firm welding suitable for both thick and thin materials.
  • Laser scan system for high-precision positioning.
  • Customizable distance between the body and the horn.
  • High-sensitivity NL5557 anti-spark device to protect welding moulds.
  • European standard high-frequency oscillatory square box for stable output.

Packing & Delivery

Packing Process

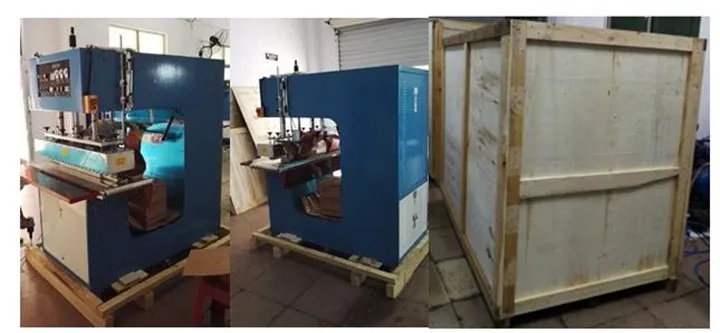

Delivery Setup

Related Equipment

Related Welding Machine 1
Related Welding Machine 2

Frequently Asked Questions

What materials can this high-frequency machine weld?
It is specifically designed for PVC and PU technical textiles, including membranes, tarpaulins, tents, and pool liners.
How does the anti-spark system protect the machine?
It uses a high-sensitivity NL-5557 system that instantly cuts off the high-frequency power when sparks are detected, preventing damage to the mold and material.
Is the voltage compatible with my country's power grid?
The standard voltage is 3P AC 380V/220V/440V at 50Hz-60Hz, but it can be customized according to your specific local requirements.
Can I adjust the welding time for different thicknesses?
Yes, the welding time is fully adjustable from 0.01 to 9.99 seconds, allowing for precision across various material densities.
What is the advantage of the laser scan system?
The laser scan system provides a visual guide for the operator to ensure perfect alignment and precise positioning of the welding seam.
How is the equipment packaged for international shipping?
The machine is securely packed in a robust wood case to ensure protection during transport and logistics.
