Product Description

Basic Information
Model: 500 Tons
Certification: CE, ISO
Condition: New
Automatic Grade: Automatic
Structure: Plate Vulcanizing
Operating System: PLC Automatic Control
Safety: Emergency Stop & Safety Light Grid
Plate Size: 1200×1200mm
Plate Spacing: 300mm
Total Pressure: 3.50mn
Power Supply: Three-Phase
Production Capacity: 300 Sets/Year
Product Description
The core purpose of the injection vulcanizing machine is to integrate the "injection molding vulcanization curing" process of rubber and other elastic materials. It accurately injects the material into the mold and promotes shaping through heating and pressure.
💡 Primary Applications:
  • Automotive seals (door seals, O-rings), shock absorbers, and pipeline joints.
  • Waterproof sealing sleeves and insulating layers for the electronic industry.
  • Medical rubber accessories (syringe pistons, infusion tube seals) complying with medical standards.
  • Valve seals, hydraulic system seals, and wear-resistant rollers for industrial equipment.
Machine Features & Technology

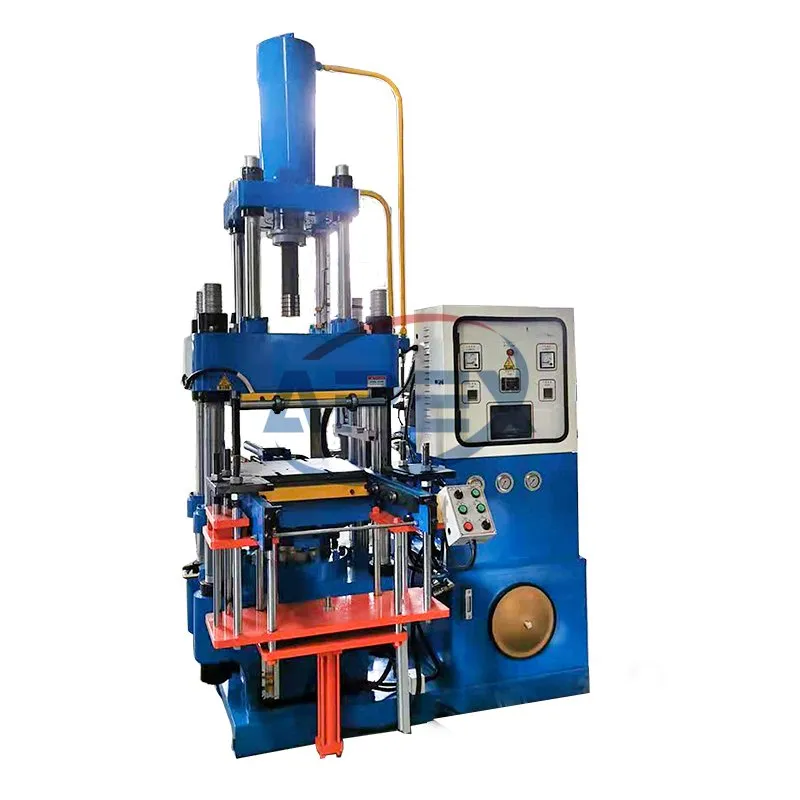

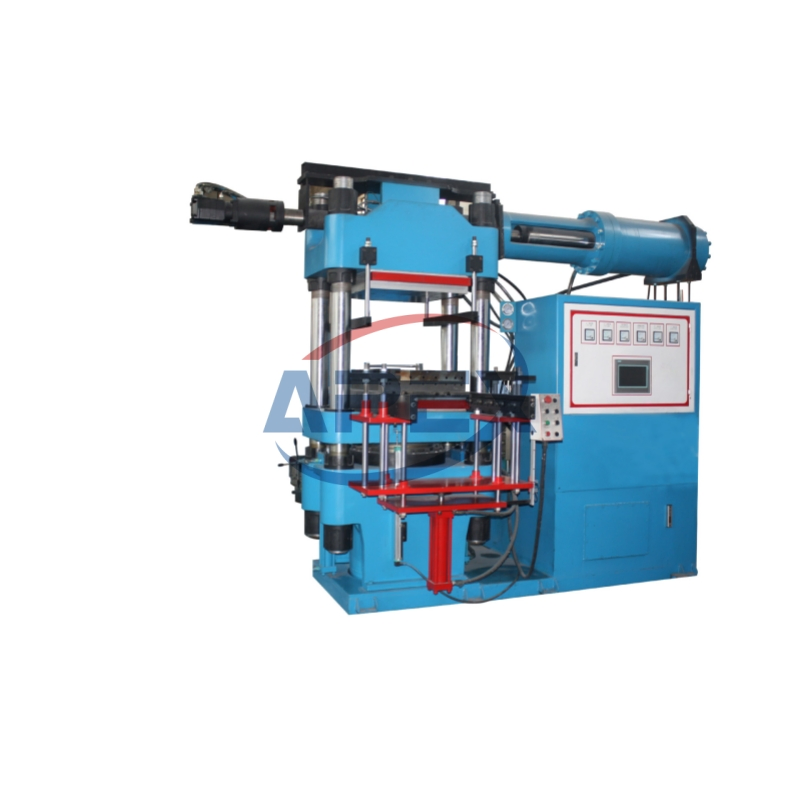

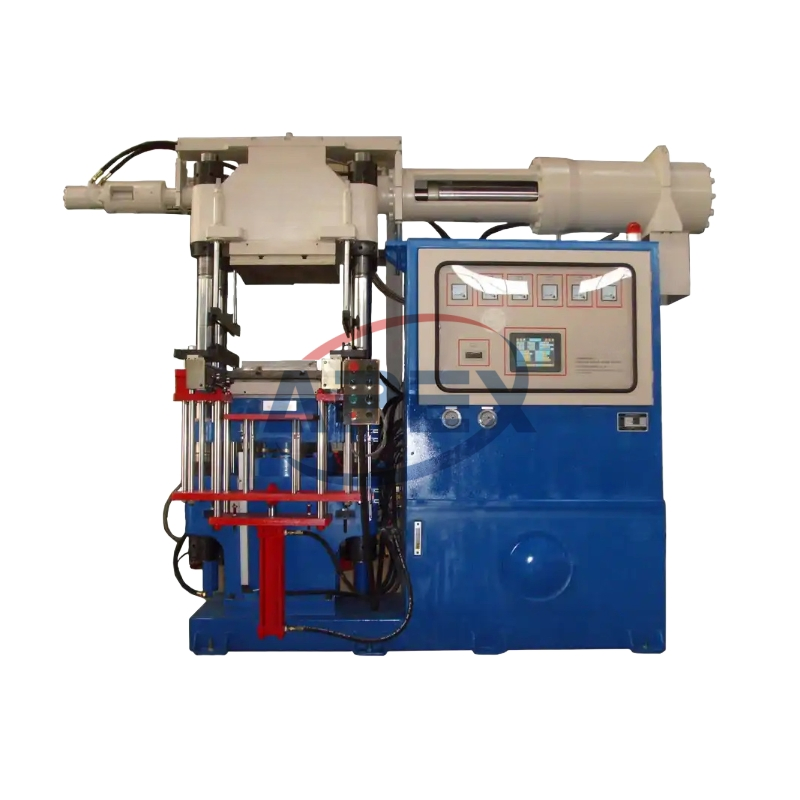

Rubber Vertical Injection Molding Machine
Core Advantages
  • Consistent backpressure during measurement for high injection accuracy.
  • High-definition touch screen with Siemens editable operating system.
  • Double proportional oil system for stability and low failure rates.
  • Four-stage injection speed and three-stage holding pressure controls.
Technical Specifications (Standard Models)
Model 200T 300T 400T 500T
Injection Volume2500400050005000
Clamping Force200300400500
Heating Plate (mm)560X600700X700800X800800X800
Opening Stroke (mm)500550600600
Total Power (kw)32404848
Whole Weight (t)7.59.51216
Advanced Mechanical Design

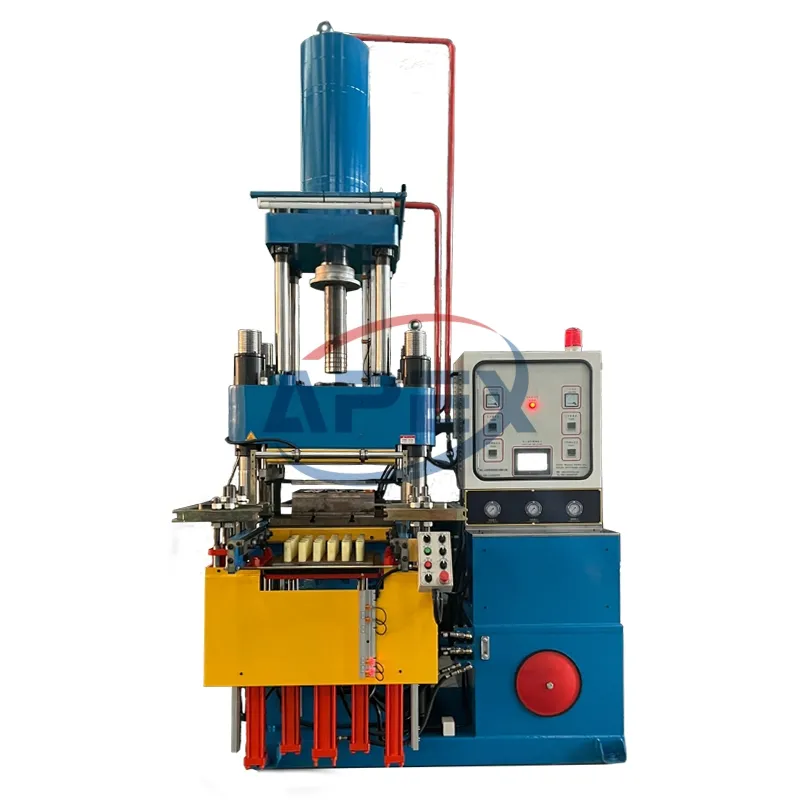

Internal Structure

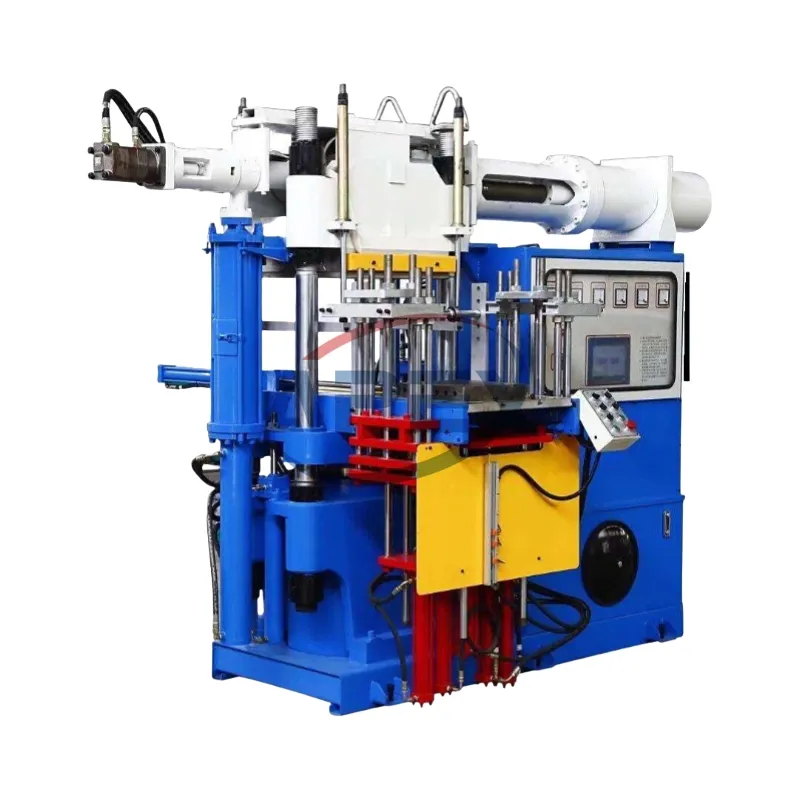

Injection Device
  • Super Large Capacity: Automatically selectable feeding barrel saving time and material.
  • Easy Maintenance: Injection plunger can be moved outside for rapid replacement.
  • Uniform Heating: Zone-controlled hot plates with full safety baffles.
  • Stable Lifting: Synchronous lifting mold mechanism for reliable operation.
Extended Range Specifications (B Series)
Model 200B 300B 500B 800B 1200B
Injection Volume25003000150002800028000
Clamping Force2003005008001200
Min. Mould (mm)6060110200200
Total Power (kw)304060100120
Whole Weight (t)7.59.5404050
Premium Configuration & Materials
Component Name Material/Brand Performance Features
Main Machine BodyFCD50 Ductile IronHigh tensile strength via aging passivation
Main Cylinder AxisCR White Cast IronPrecision within ±0.02mm after grinding
Hydraulic SealsNOK (Japan)High temperature and wear resistance
MotorTatung MotorDirect drive with flexible coupling
Control SystemMiRLE MicrocomputerHigh speed PID temperature control module
Gear PumpHigh Pressure GearLow noise and anti-pollution property
Machine Elevations

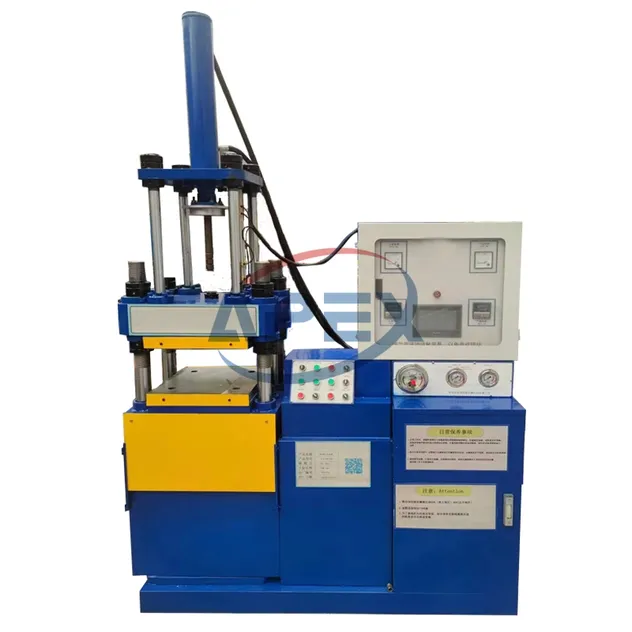

Front Elevation

Front Elevation

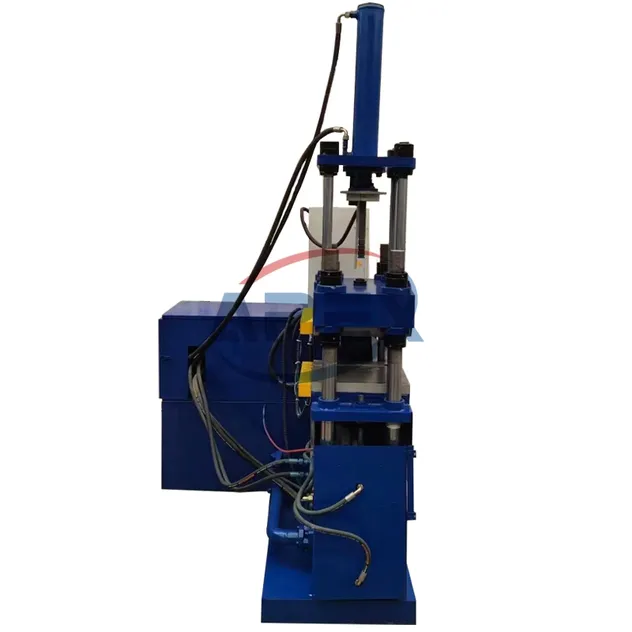

After View

After View

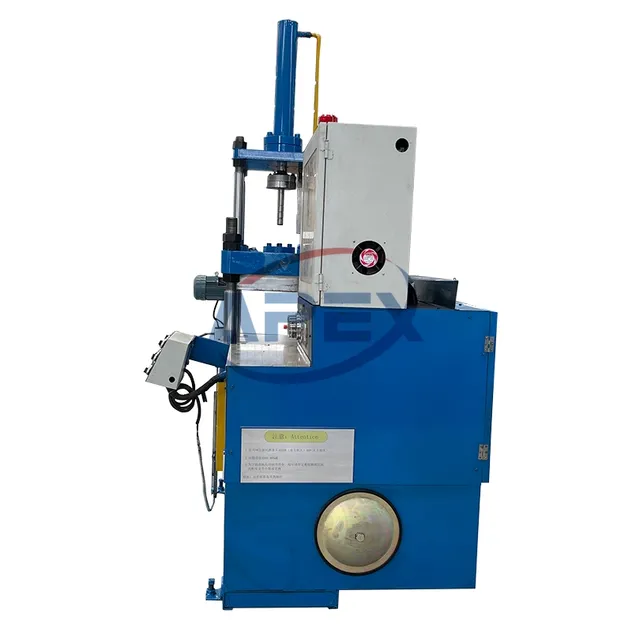

Side Elevation

Side Elevation

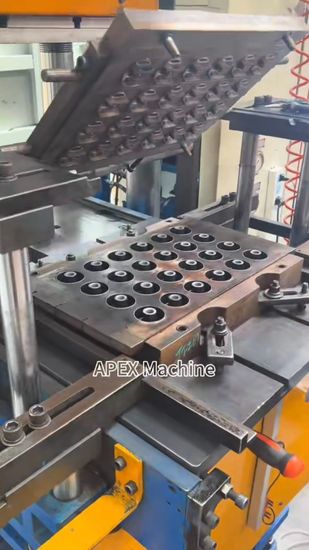

Operation Demonstration
Industry Expertise
Manufacturing Facility
Specializing in high-quality rubber machinery for over 30 years since 1994. With advanced R&D capabilities and a scientific management system, we design and manufacture a variety of non-standard rubber machines to meet specific customer requirements globally. Our engineers possess over 10 years of experience ensuring expert technical support.
Frequently Asked Questions
1. What materials are suitable for this injection vulcanizing machine?
The machine is specifically designed for rubber and other elastic materials, including automotive seals, O-rings, and industrial rubber rollers.
2. Does the machine support custom configurations?
Yes, we provide complete solutions and can design non-standard rubber machines based on your specific requirements and factory conditions.
3. What is the typical delivery timeframe?
Standard machines can often be delivered within 10-30 days, while custom projects typically range from 20-70 days.
4. How do you ensure the quality of the equipment?
We hold ISO certification for our quality management systems and utilize premium components such as Siemens PLC systems and Japanese NOK oil seals.
5. What kind of after-sales support is provided?
We offer professional oversea services, including installation assistance, operator training, and long-term technical support with low-cost spare parts.
6. What safety measures are integrated into the machine?
The equipment is equipped with emergency stop buttons, safety light grids, and fully enclosed safety baffles to ensure high operational safety levels.
