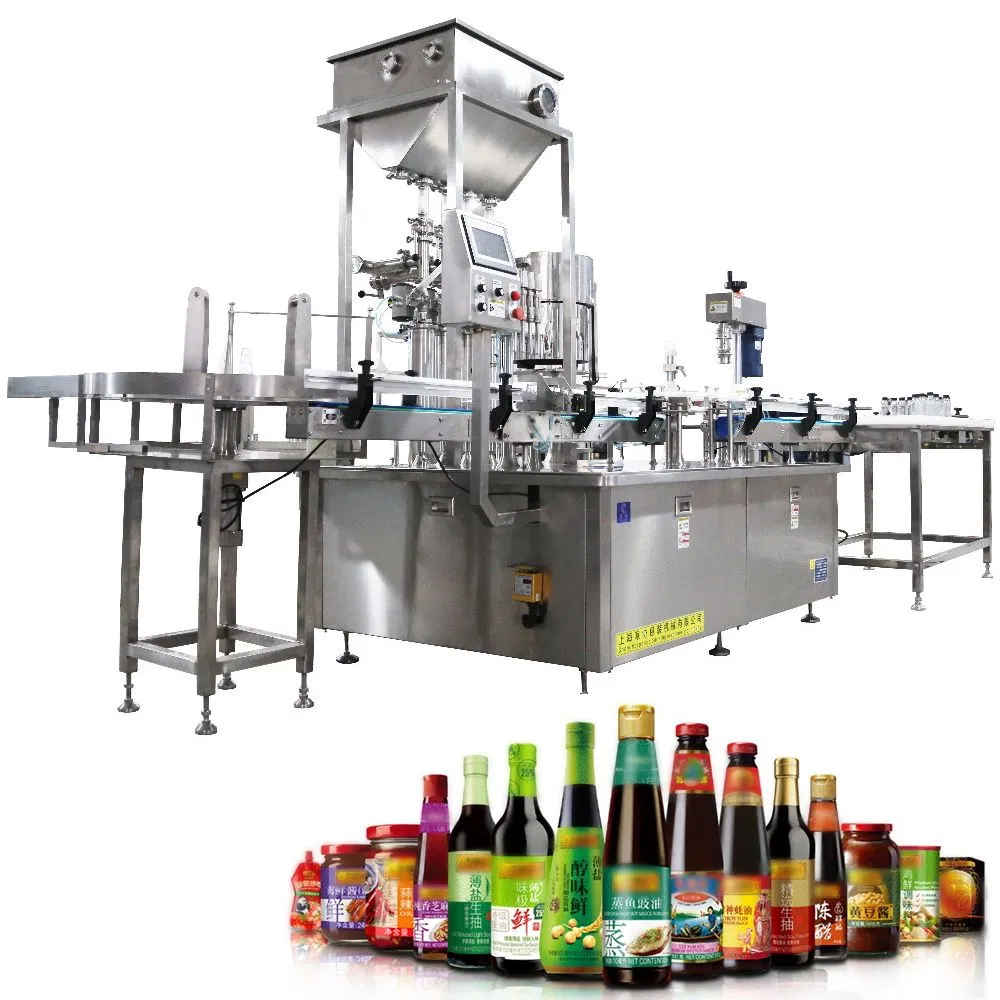

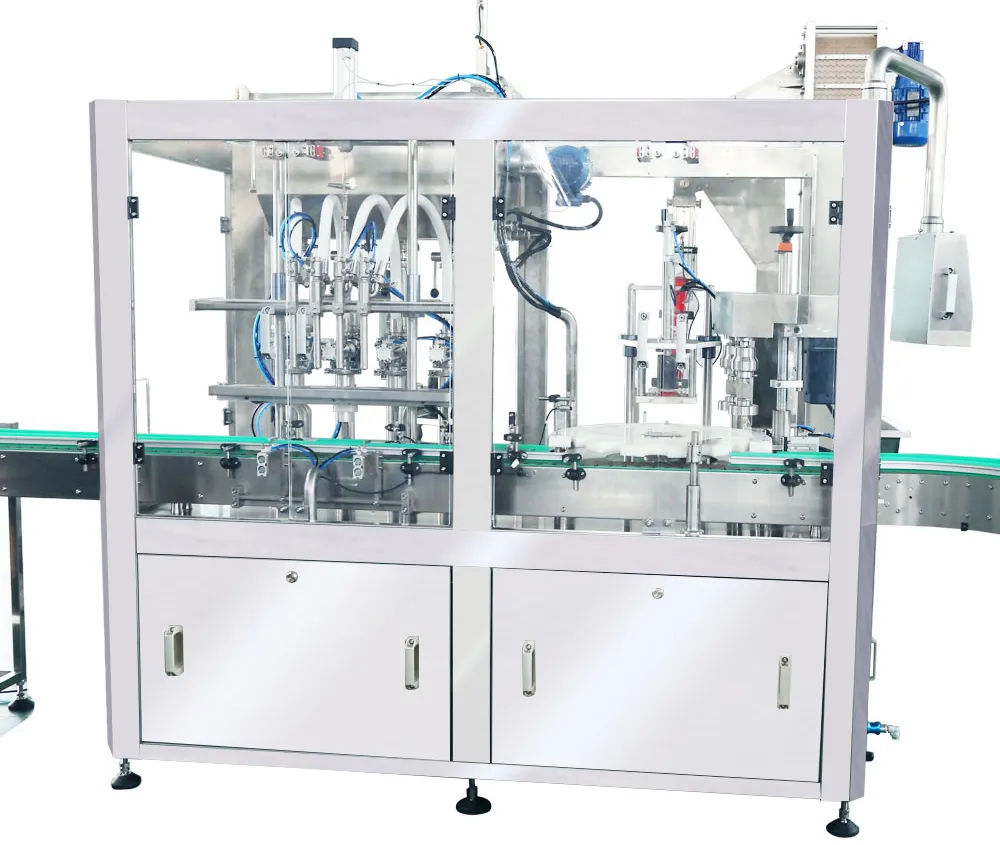

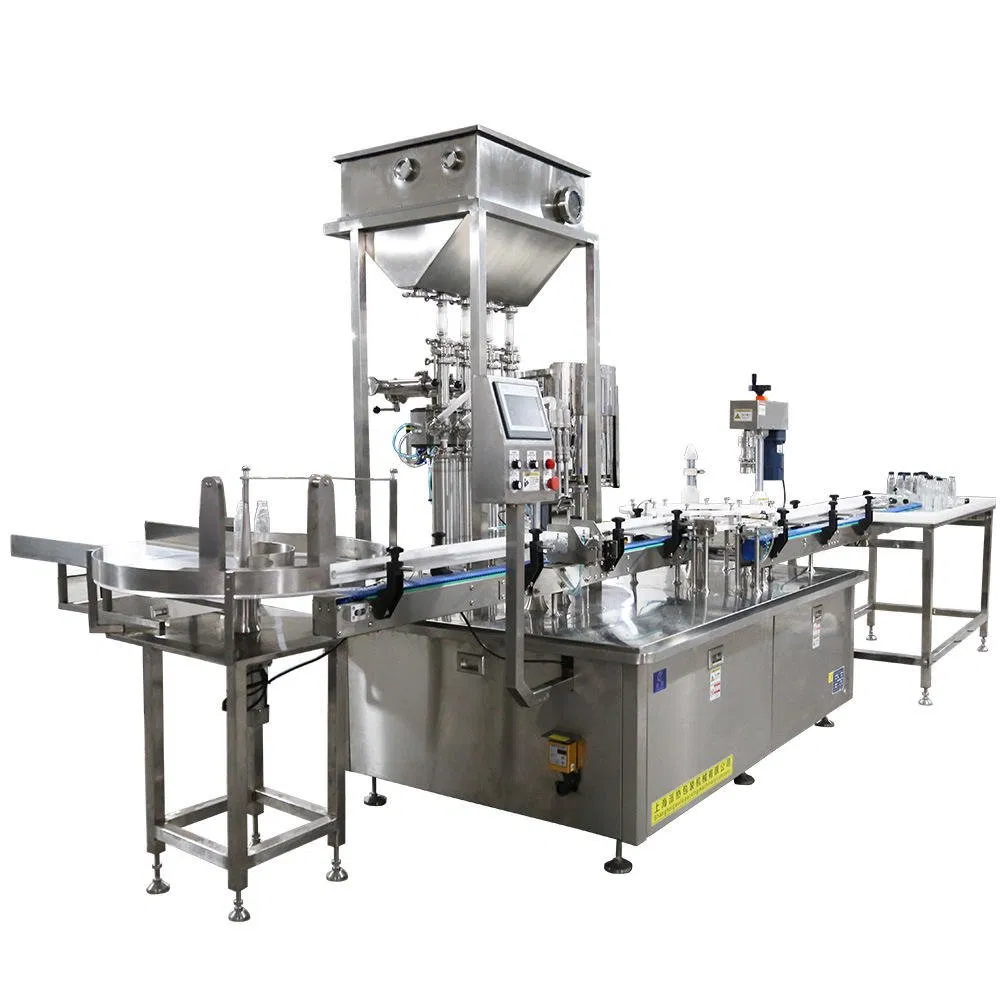

Automatic Intelligent GlobeFiller Liquid Sauce Glass Bottle Tinplate PET Filling and Sealing Machine

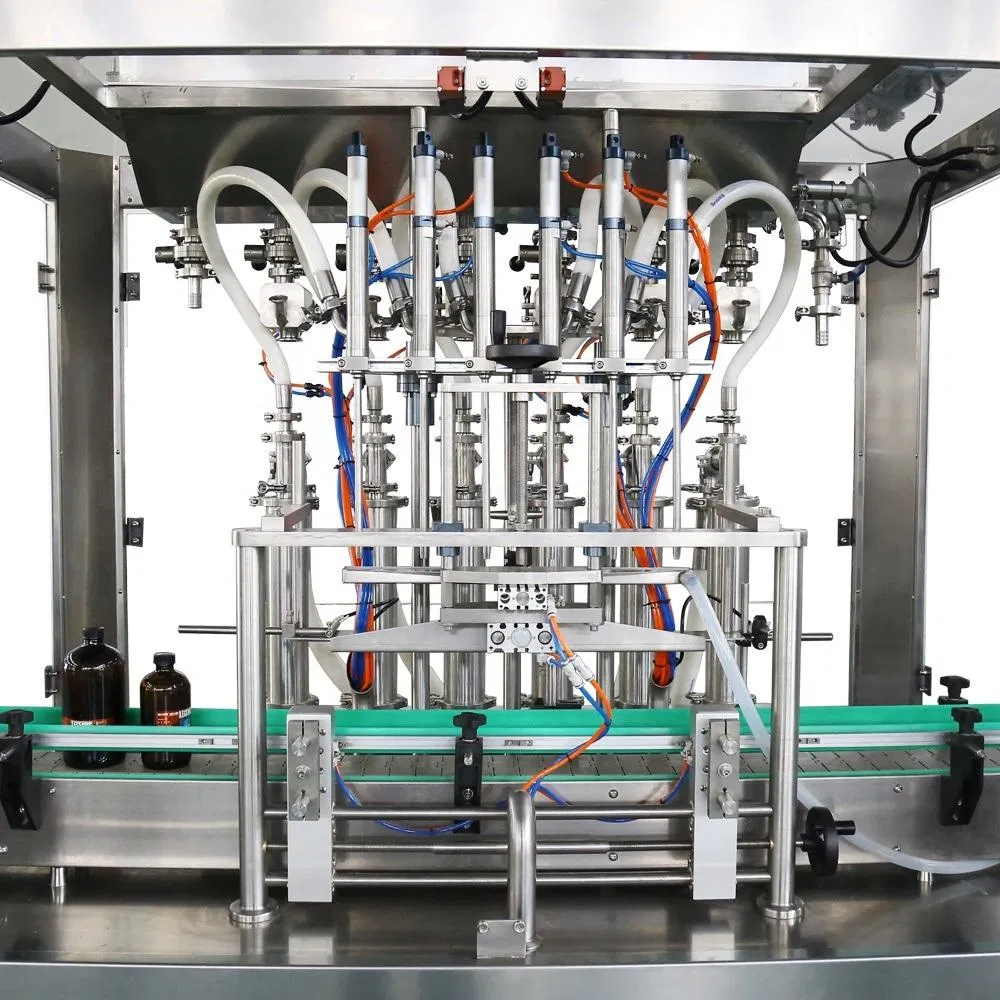

This machine adopts a piston pump and rotary valve, making it exceptionally suitable for filling various thick and sticky materials across multiple industries.
| Model | PX-BFC850 | Type | Piston Filling Machine |
|---|---|---|---|
| Automatic Grade | Automatic | Material Type | Liquid / Thick Sauce |
| Filling Valve Head | Multi-Head (4-18 heads) | Driving | Servo Driving |
| Filling Principle | Pressure | Structure | Linear |
| Packaging | Bottle (Glass/PET/Metal) | Capacity | 2500-3000 bph |
| Material | Stainless Steel SUS304 and SUS316L | ||||
| Filling Heads | 4 | 6 | 8 | 10 | 12 |
| Filling Range | 10-100ml / 50-500ml / 100-1000ml / 500-5000ml (Tailor-made up to 6000ml) | ||||
| Speed (bottles/h) | 2000-2500 | 2500-3000 | 3000-3500 | 3500-4000 | 4000-4500 |
| Filling Precision | ±0.5-1% | ||||
| Power Supply | 220/380V 50/60Hz 1.5Kw (Customizable per country) | ||||

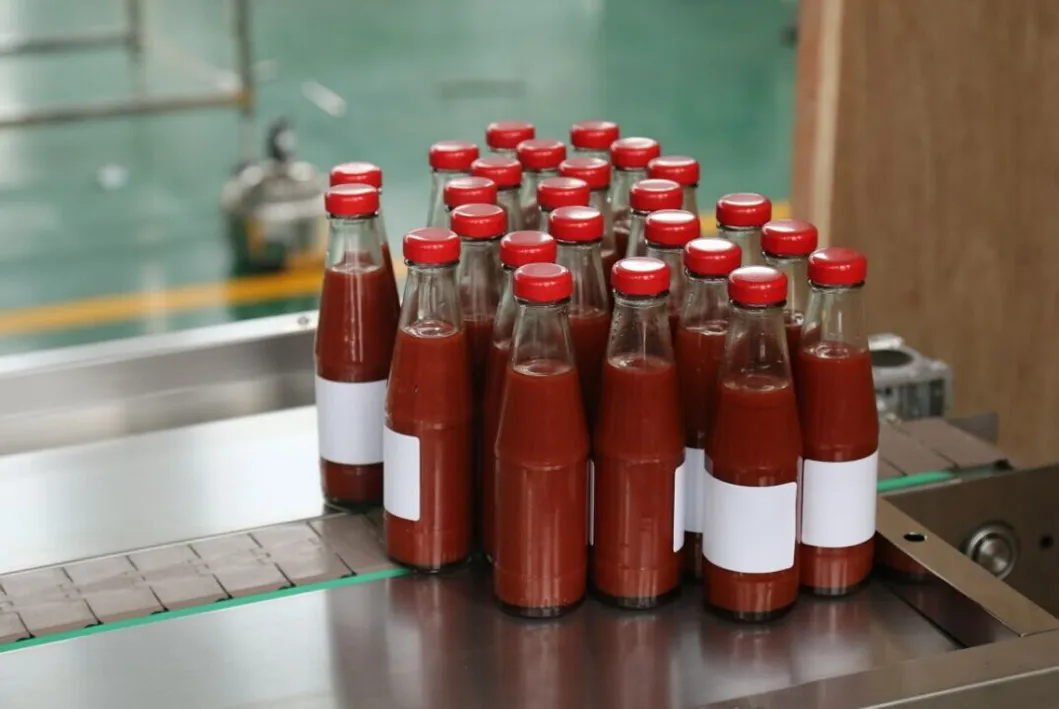

Bottle Feeding & Collecting: Automatic feeding with customized turntable diameter for variable speed adjustment.

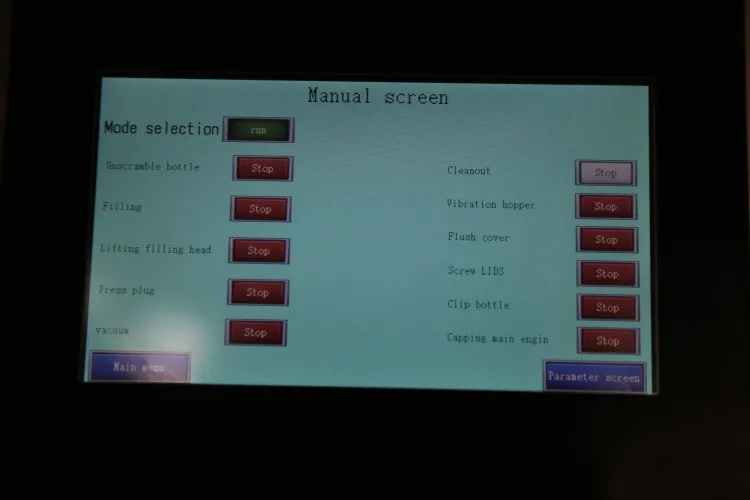

Control Panel: User-friendly touch screen with bilingual interface (English/Chinese).

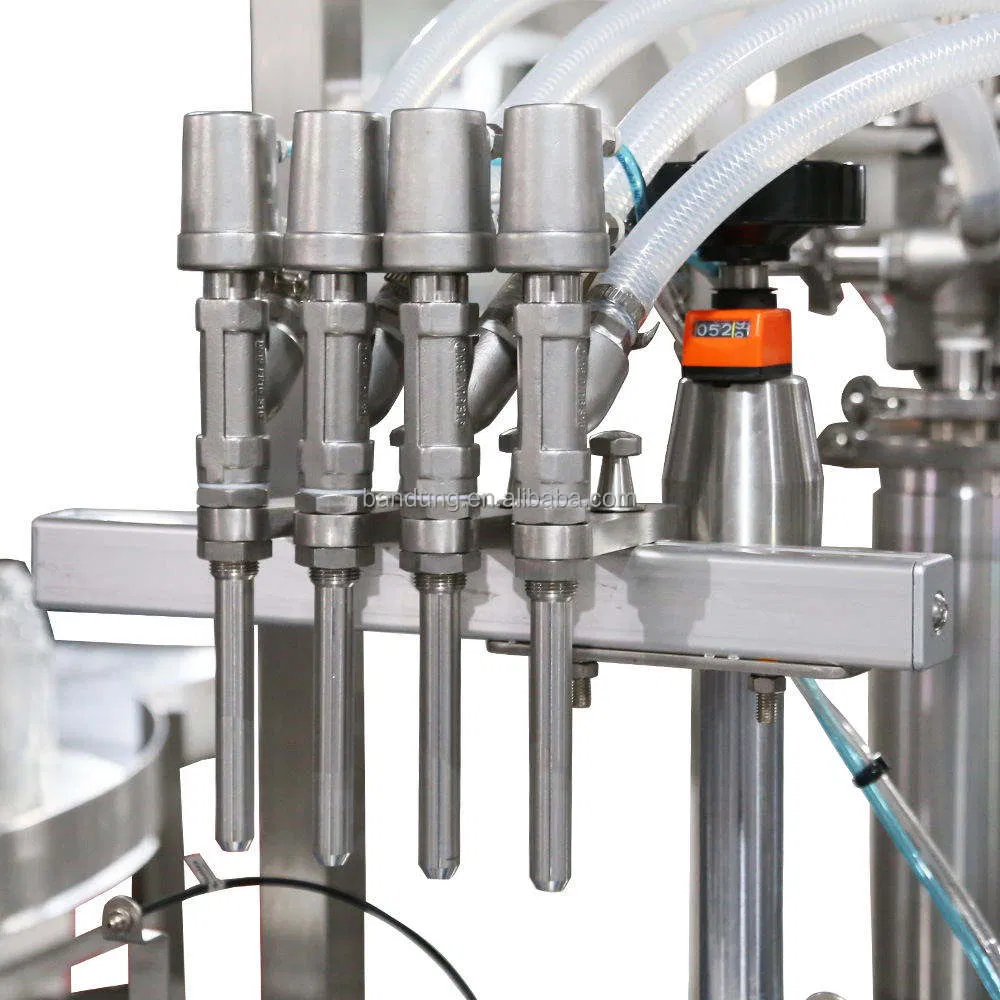

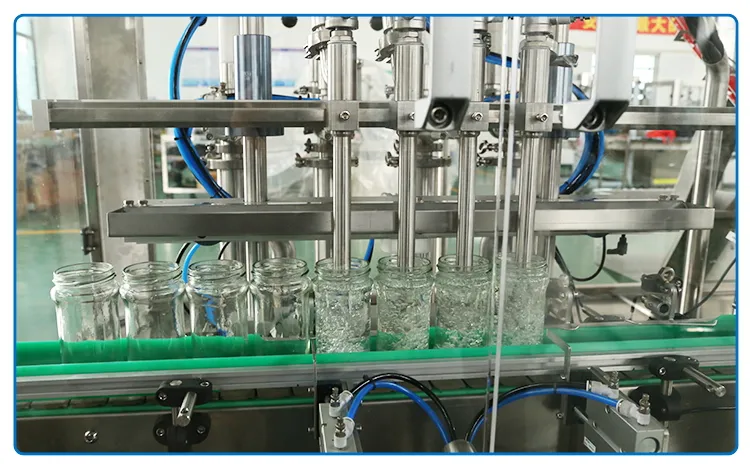

Anti-drip Filling Nozzle: Made of 316L stainless steel for accurate, health-safe filling without waste.

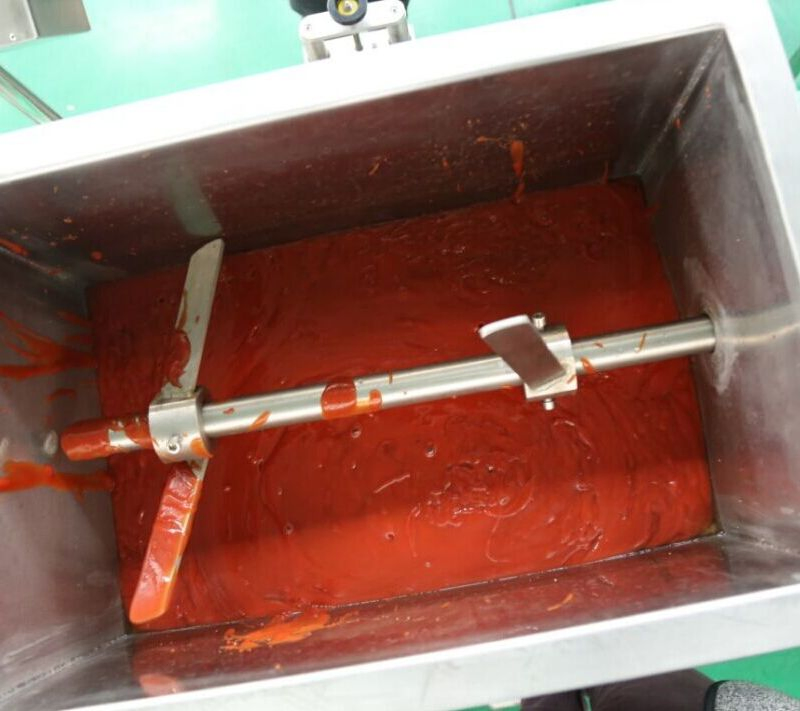

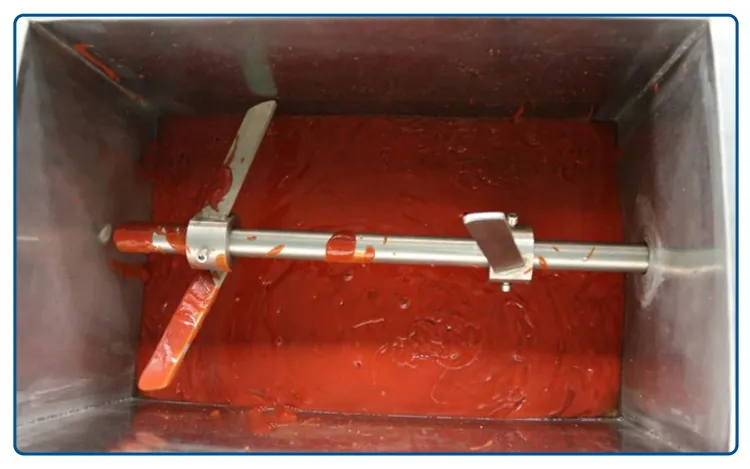

Storage Hopper: Includes an agitator to stir materials evenly and ensure high filling precision.

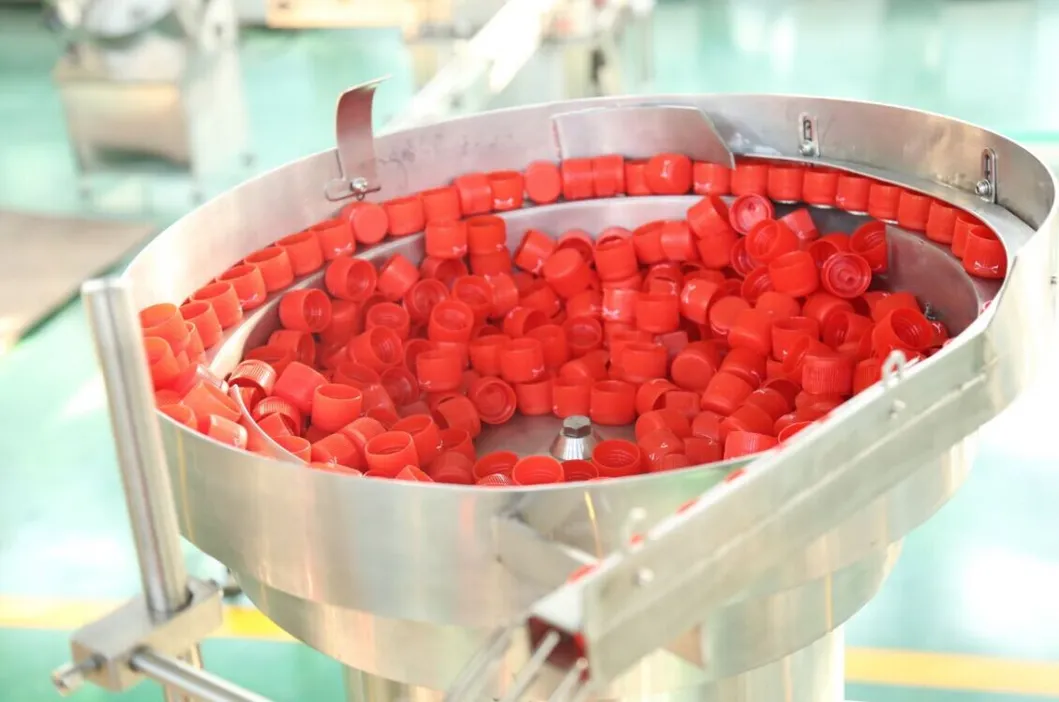

Cap Vibrator: High-speed automatic assembling equipment for series cap sorting.

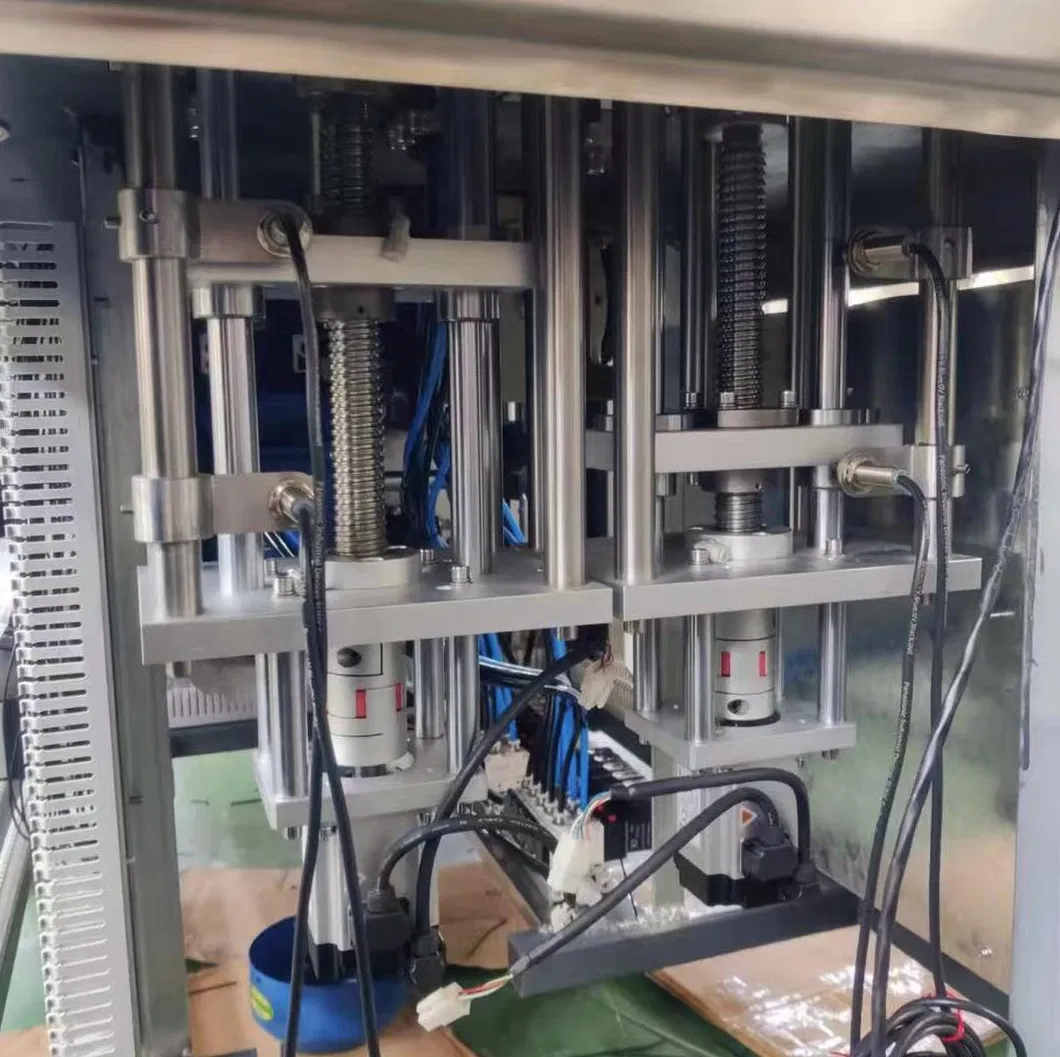

Servo Motor Drive: Provides superior precision control and easy volume changes via HMI adjustment.
This production line is ideally suited for filling and capping semi-liquid products with or without small particles, such as:
Global standard compatibility (UK, US, EU plugs available).

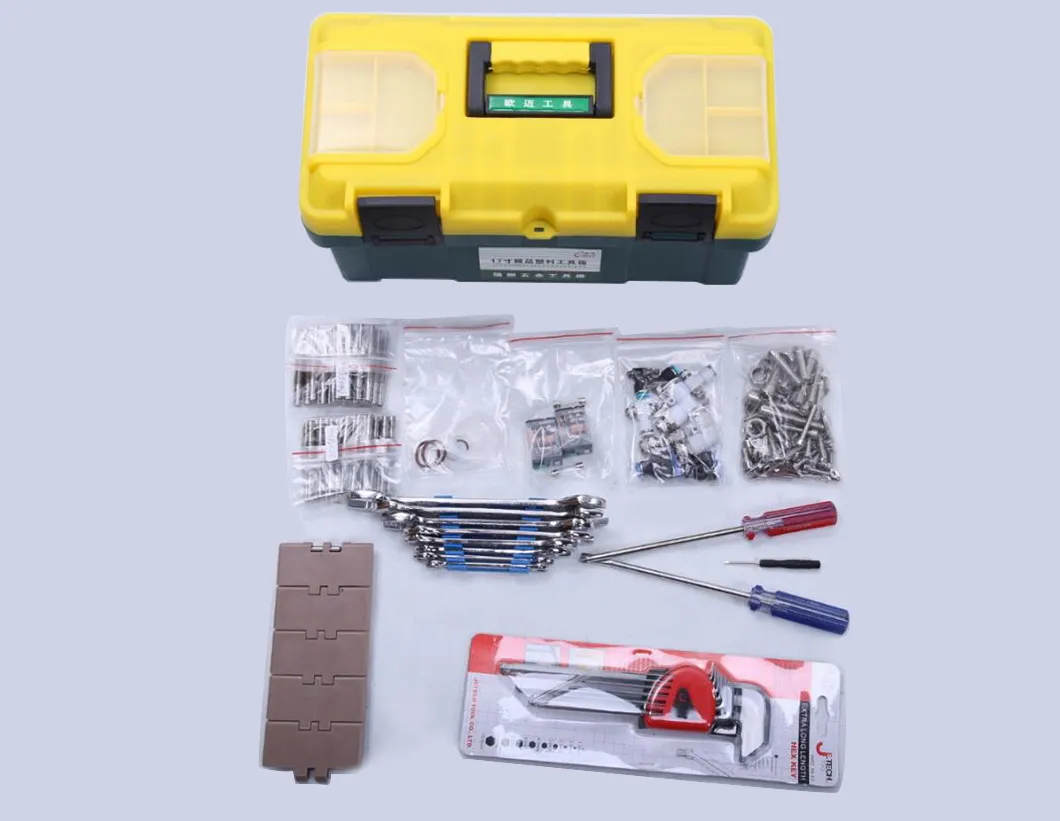

Complimentary installation kit provided with every machine.
