| Model NO. | PX-BFC850 |
| Type | Piston Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Valve Head | Multi-Head |
| Dosing Device | Plunger |
| Driving | Servo Driving |
| Production Capacity | 2500-3000bph |
| Package size | 800.00cm * 600.00cm * 350.00cm |
| Gross Weight | 600.000kg |

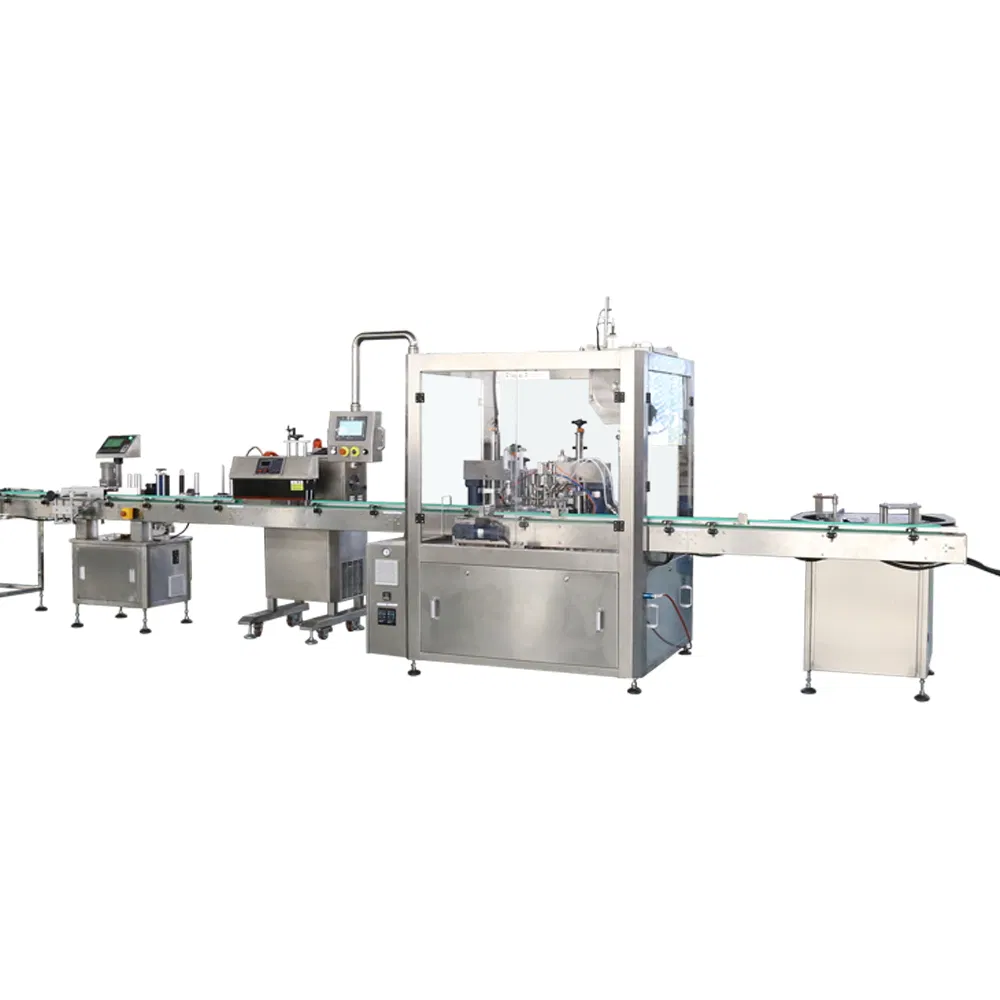

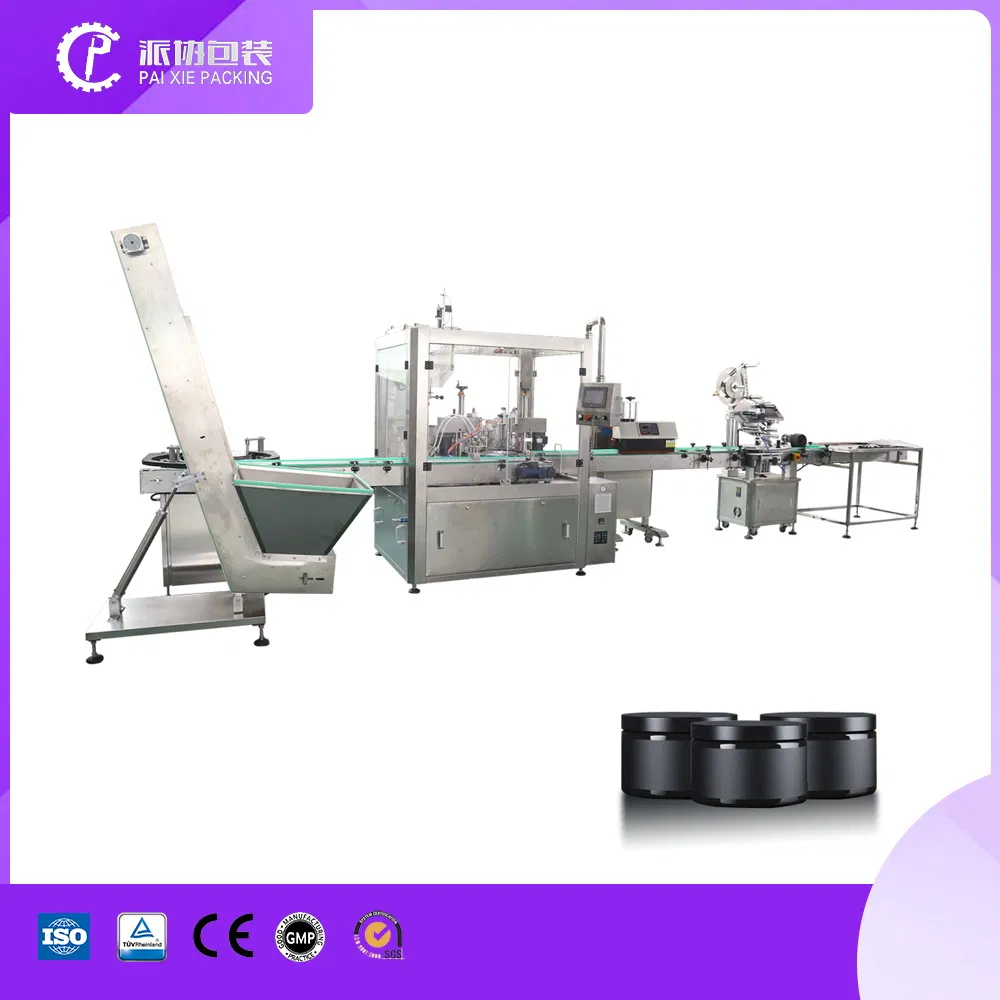

Introduction:

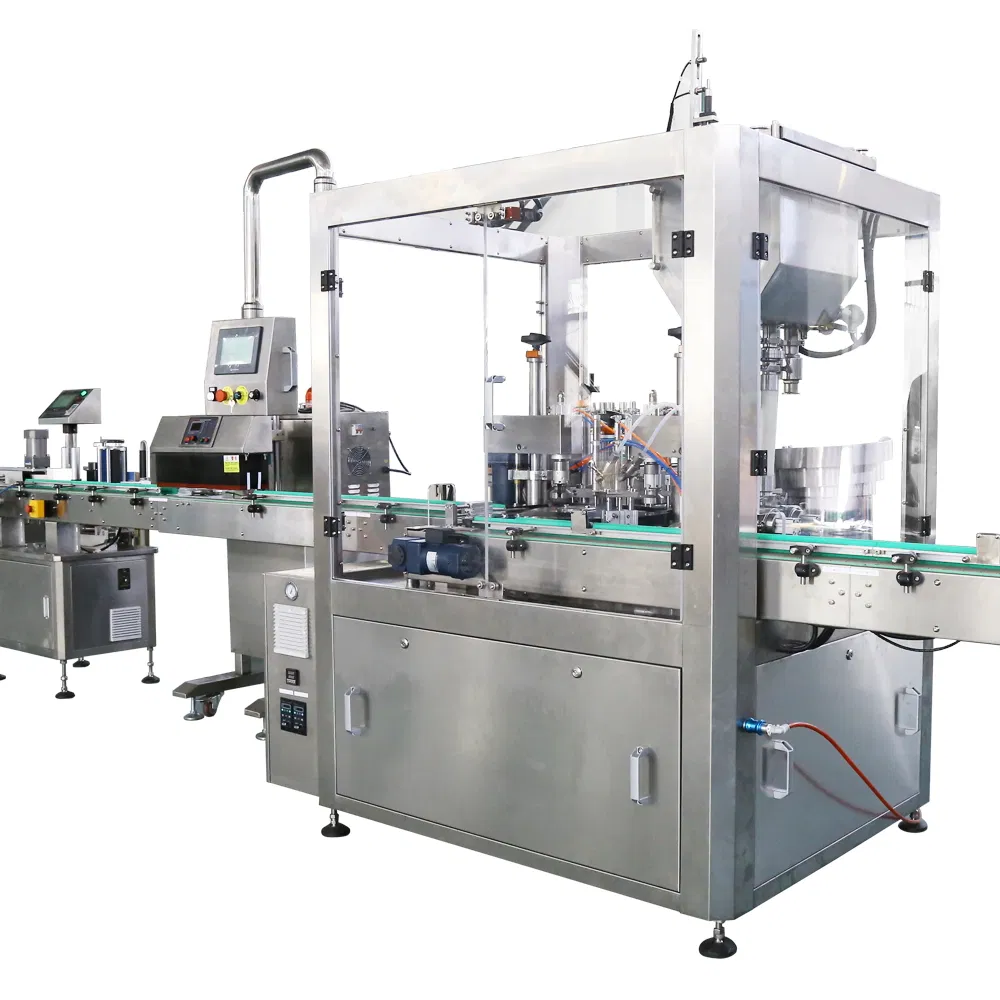

This machine adopts a high-precision piston pump and rotary valve, making it ideal for filling a wide variety of thick and sticky materials across multiple industries:
Customizable configuration: Available with 4, 6, 8, 10, 12, 16, or 18 filling heads based on your capacity requirements.

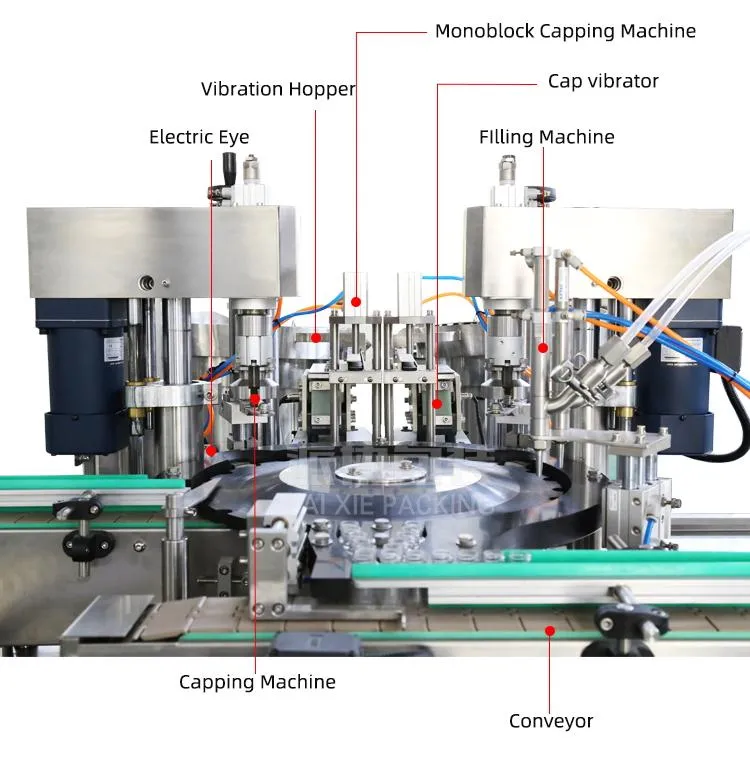

Key Features:
| Technical Specifications | |
|---|---|
| Model | PX-BFC850 |
| Filling Range | 10-100ml to 500-5000ml (Tailor-made) |
| Filling Speed | 2000-4000 bottles/hour (based on 100ml) |
| Filling Precision | ±0.5-1% |
| Material | SUS304 and SUS316L |
| Voltage | 220/380V 50/60Hz (Customizable) |
| Air Pressure | 0.4-0.8Mpa |
| Dimensions | 2000*650*1600 mm |

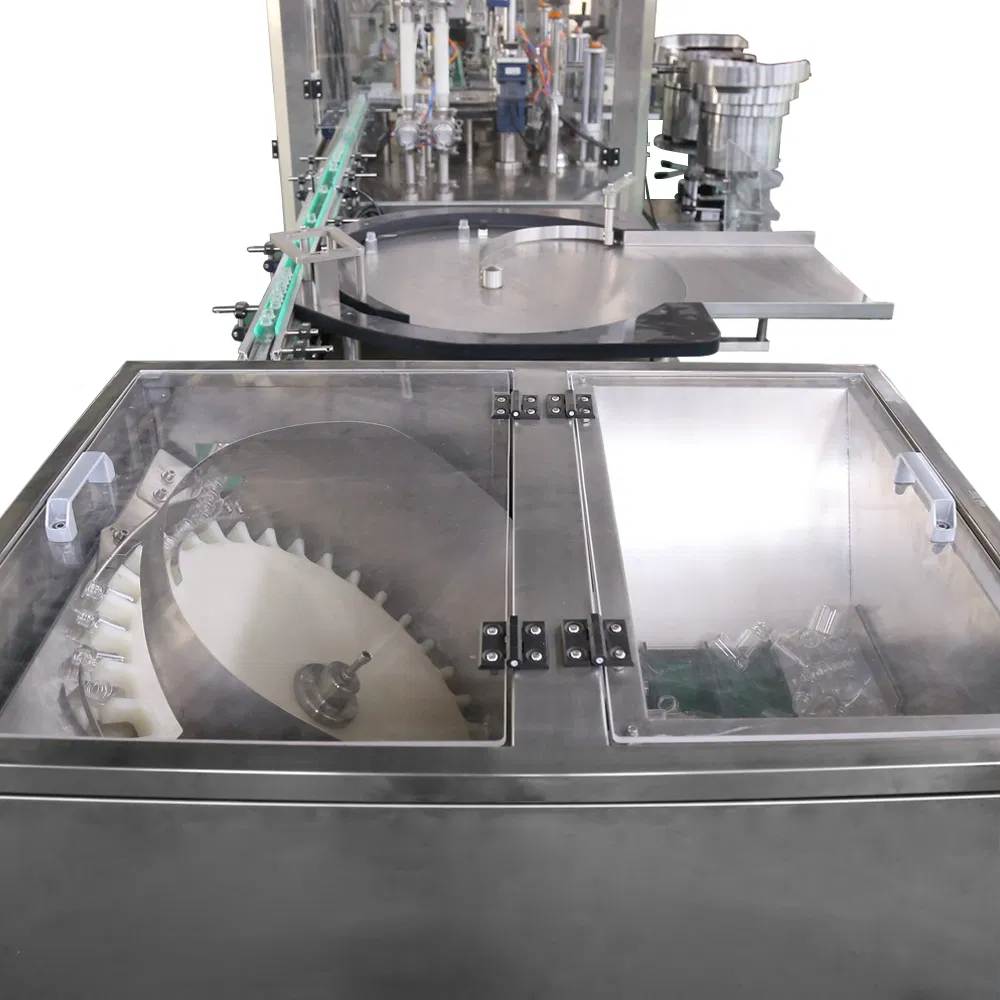

Bottle Feeding: Automatic empty bottle entry with customized turntable size and variable speed adjustment.

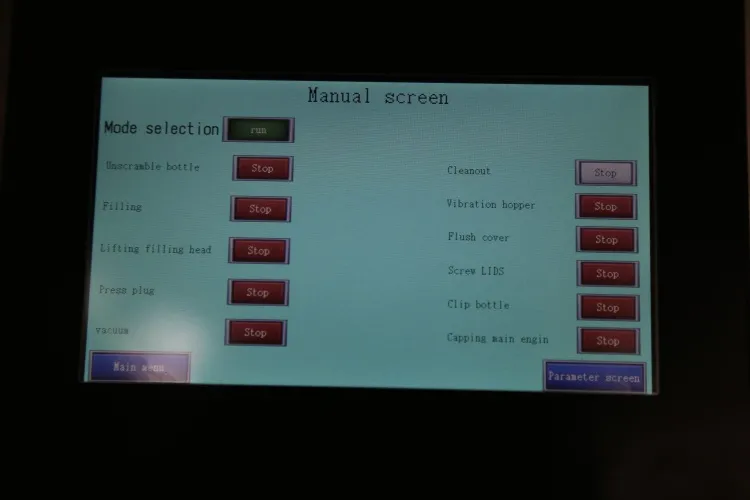

Control Panel: Bilingual (English/Chinese) touch screen interface for easy visual operation.

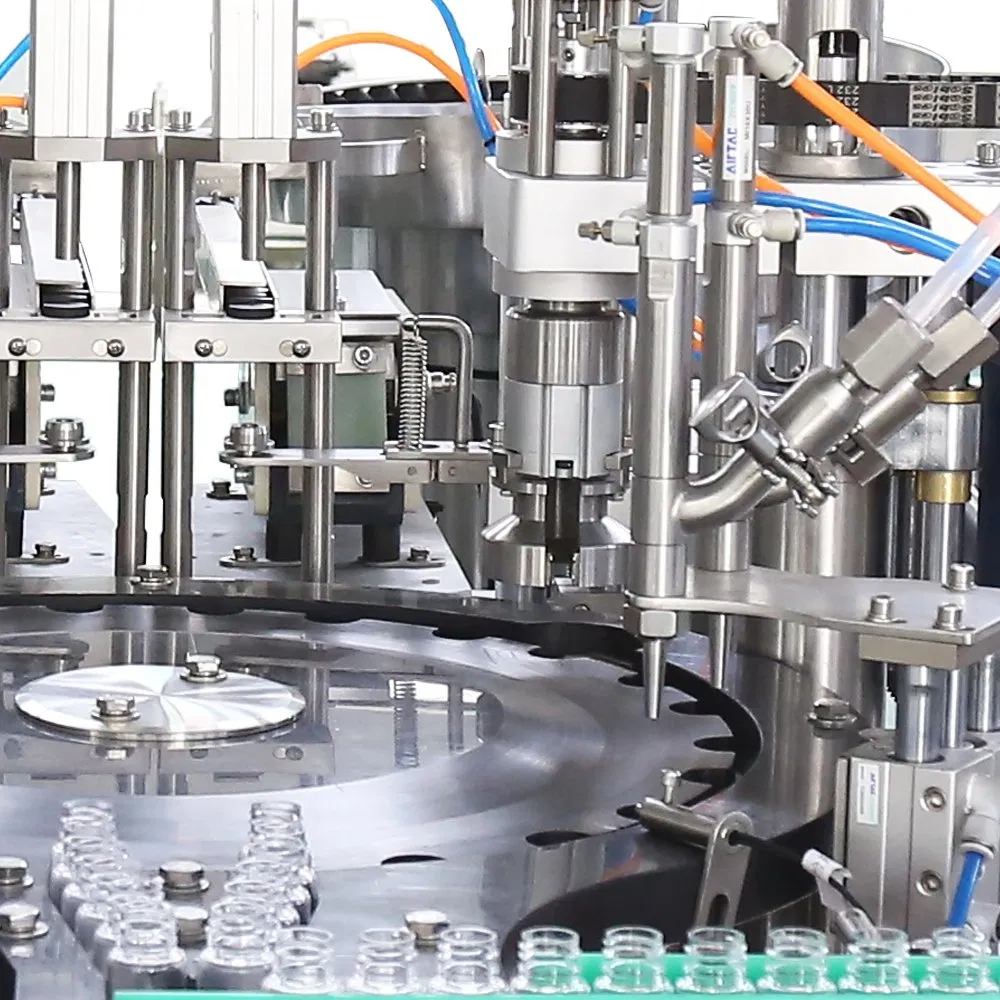

Anti-drip Nozzle: Made of 316L stainless steel with a smooth seal for sanitary and accurate filling.
Material Hopper: Large capacity storage with optional mixing capabilities.

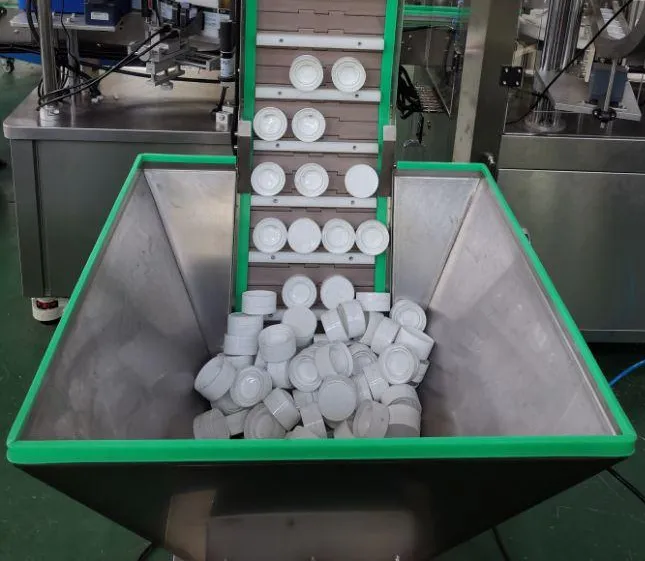

Cap Vibrator: Automates cap assortment for high-speed production lines.

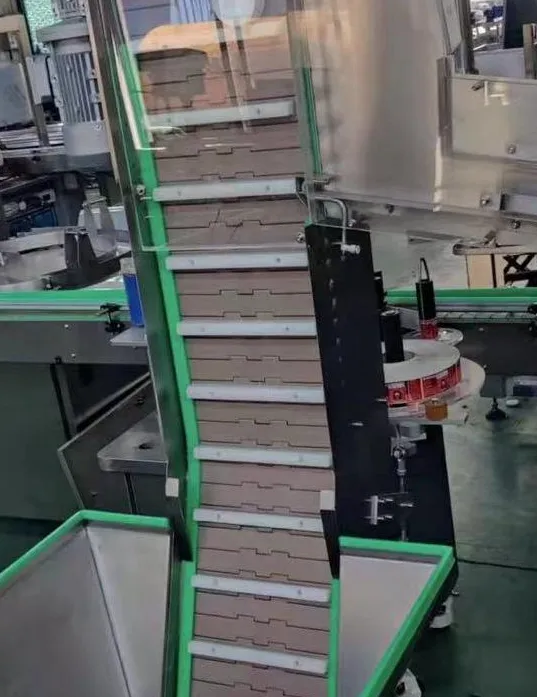

Lifting Mechanism: Simple operation for adding caps with automatic sensors for full lids.

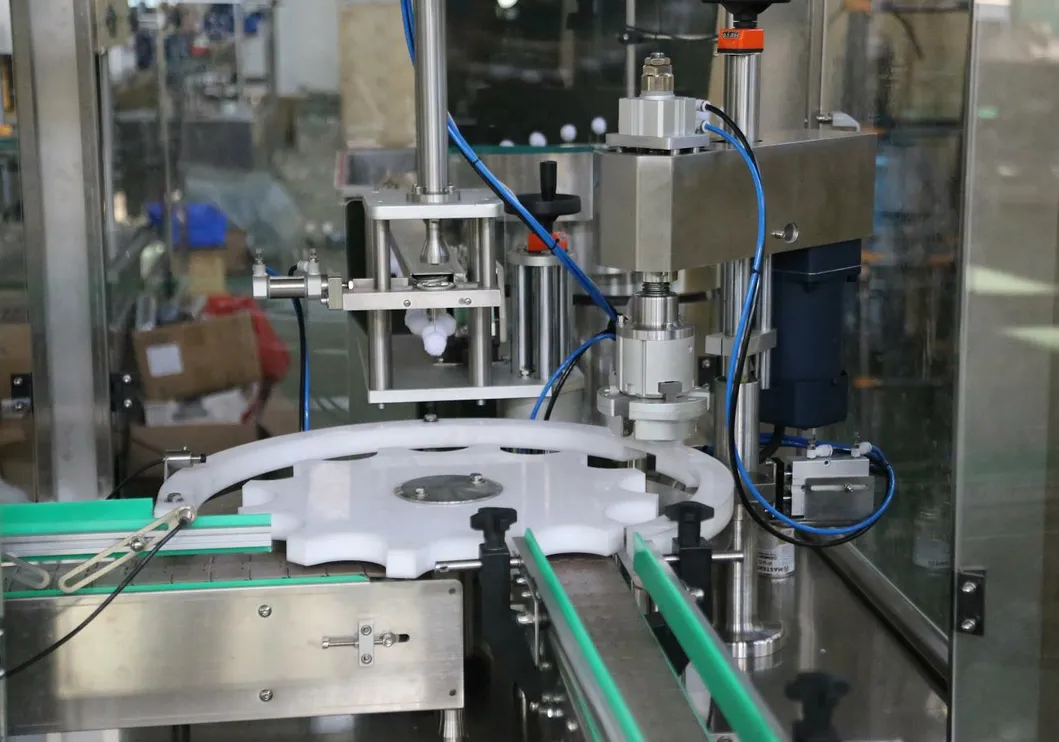

Capping Station: Automatically tightens screw caps on various bottle types with high stability.

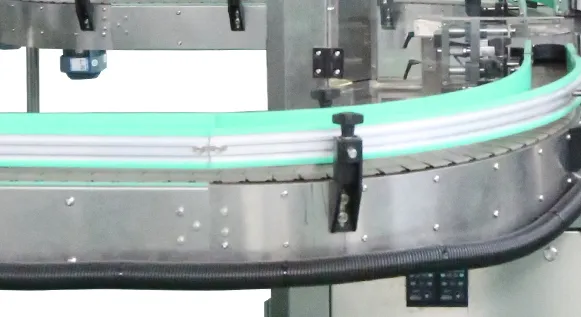

Conveyor Belt: Strong chain plate structure ensures bottles remain upright at high speeds.

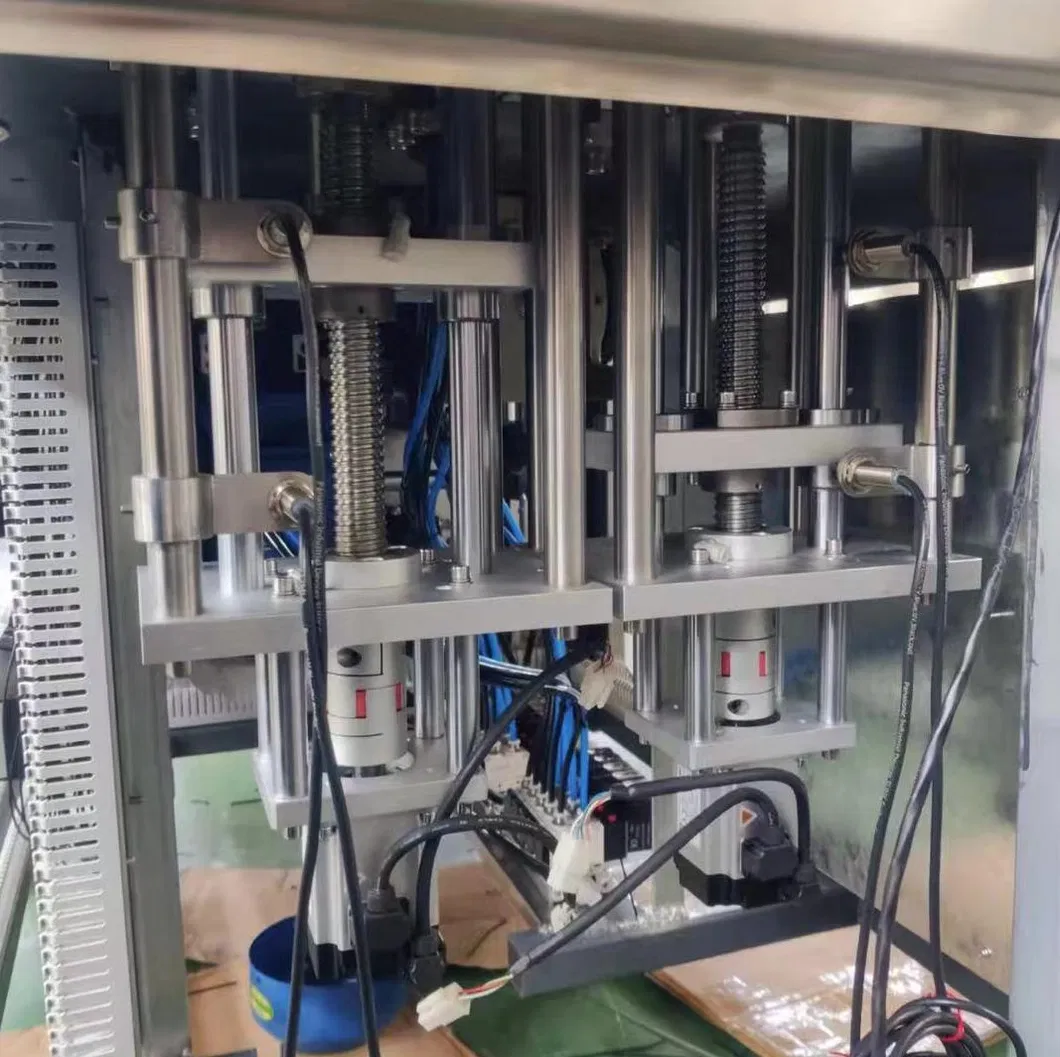

Servo Motor: Precision volume adjustment through the HMI interface, replacing traditional air driving.
We provide comprehensive solutions tailored to your production needs. All machines are equipped with standard plugs (UK, US, EU) as requested before shipping.
With over 10 years of experience, we specialize in designing custom packing machines for the food, chemical, and pharmaceutical industries, ensuring efficient and perfect packaging results.
