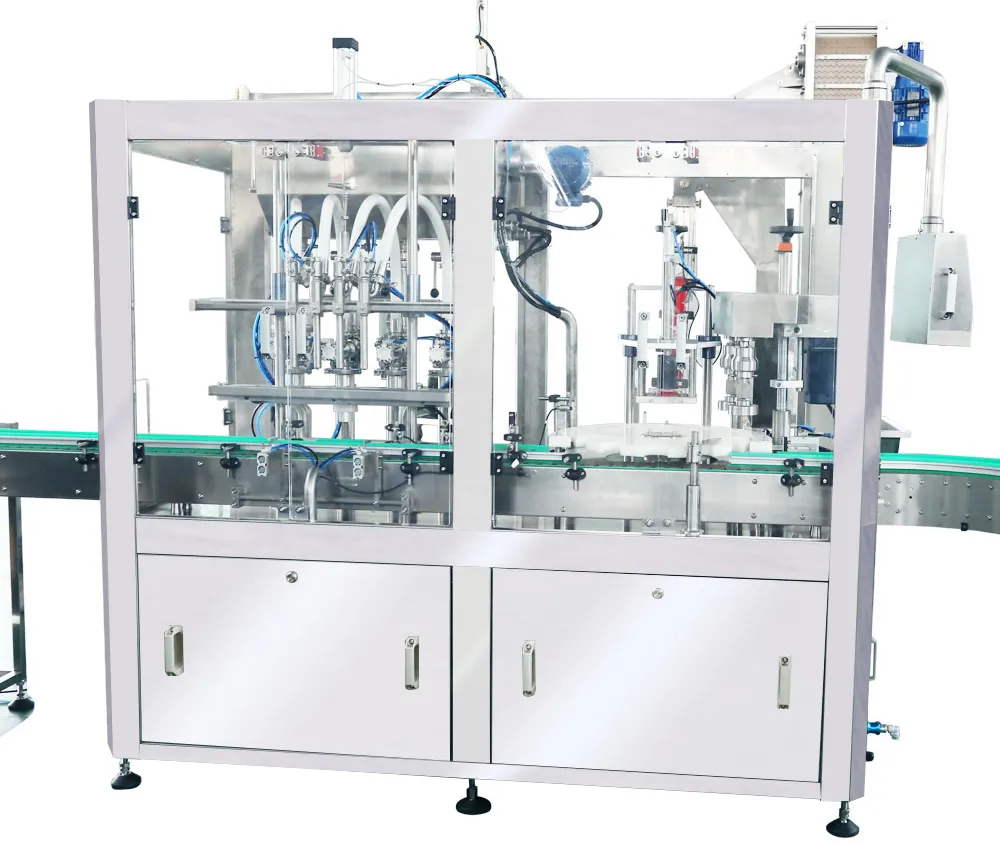

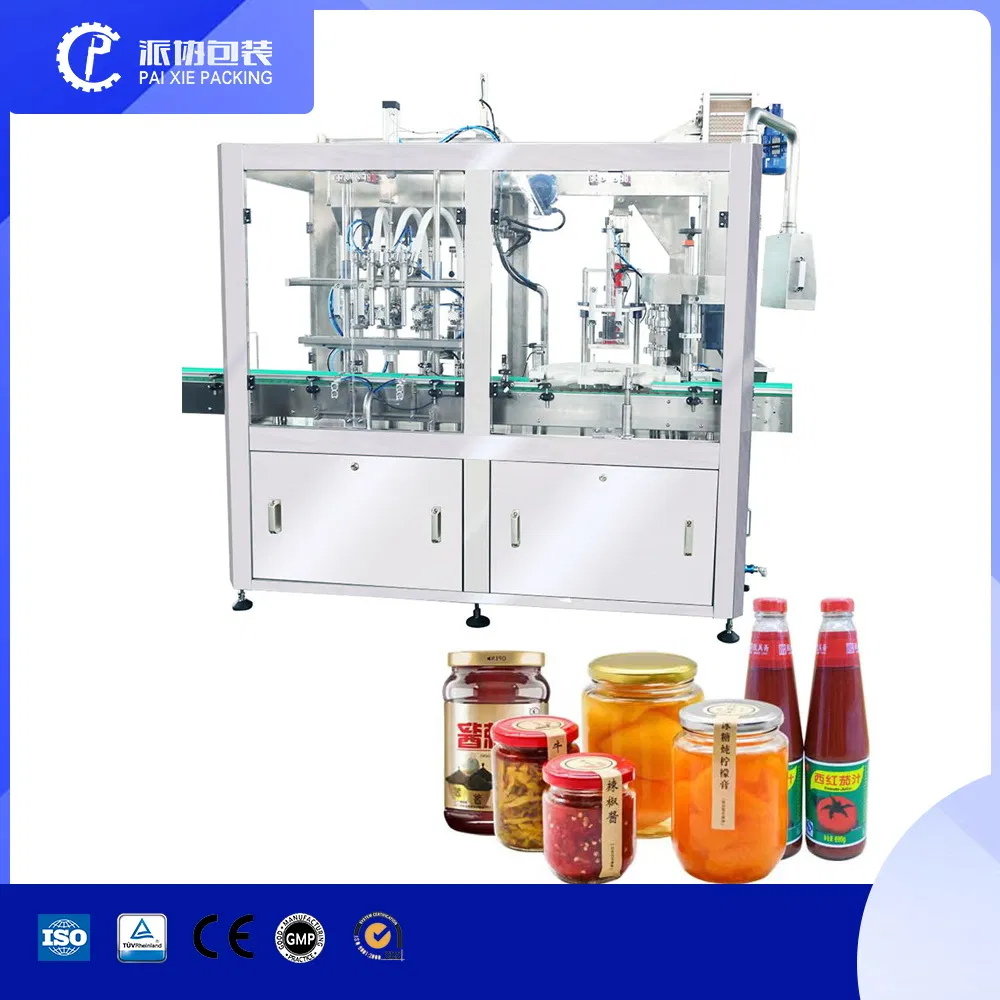

Solution for fully automatic intelligent and precise liquid sauce filling and sealing production line
Introduction:

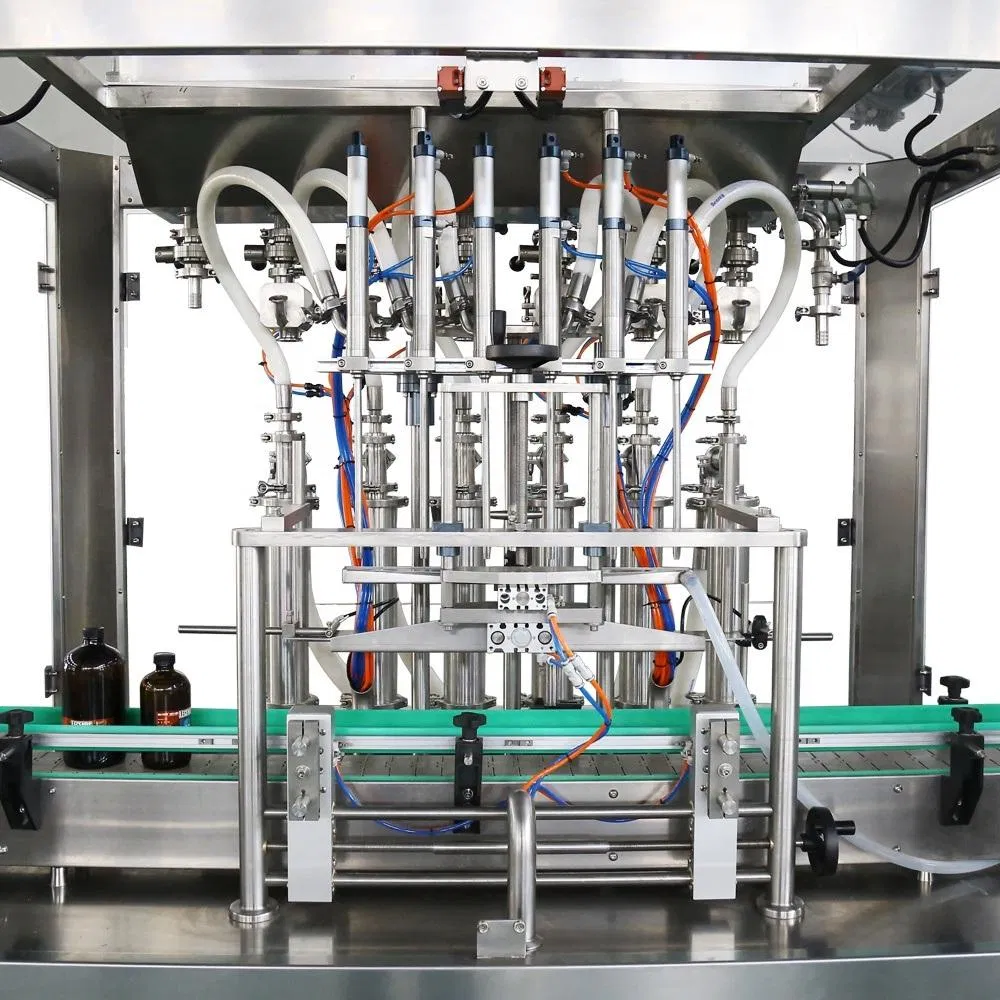

This machine adopts piston pump and rotary valve, suitable for filling all kinds of thick & sticky material:

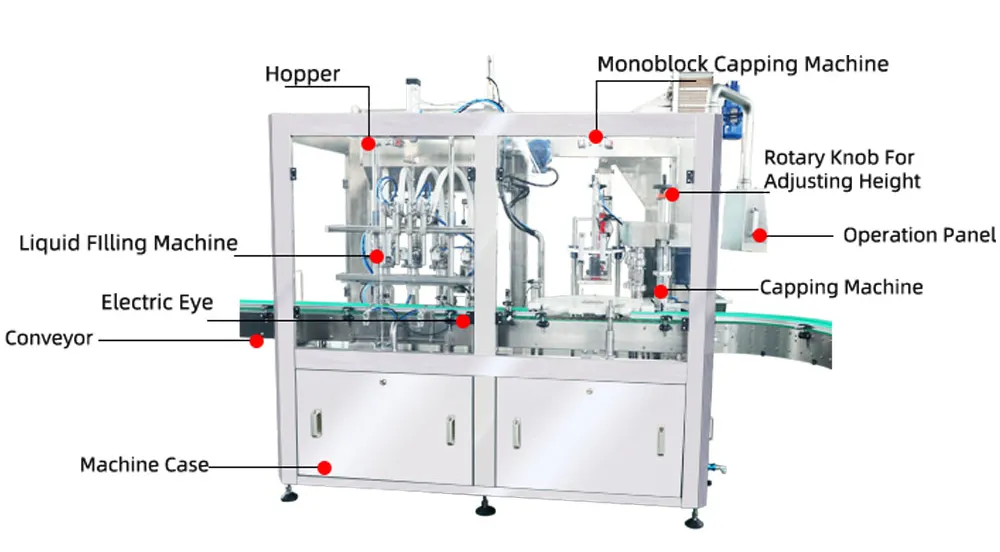

The machine can be configured with 4 to 18 filling heads according to the specific capacity requirements.
High degree of automation, easy operation, and stable performance to effectively save costs and improve efficiency.
Each machine has an independent operating system and numerical control display to adjust various parameters.
This packaging production line adopts international new process design and meets strict GMP standards.
| Parameter | Specifications | ||||
|---|---|---|---|---|---|
| Material | SUS304 and SUS316L | ||||
| Filling Heads | 4 | 6 | 8 | 10 | 12 |
| Filling Range | 10-100ml / 50-500ml / 100-1000ml / up to 5000ml | ||||
| Filling Speed (500ml) | 2000-2500 bph | 2500-3000 bph | 3000-3500 bph | 3500-4000 bph | 4000-4500 bph |
| Filling Precision | ±0.5-1% | ||||
| Power | 220/380V 50/60Hz 1.5Kw (Customizable) | ||||

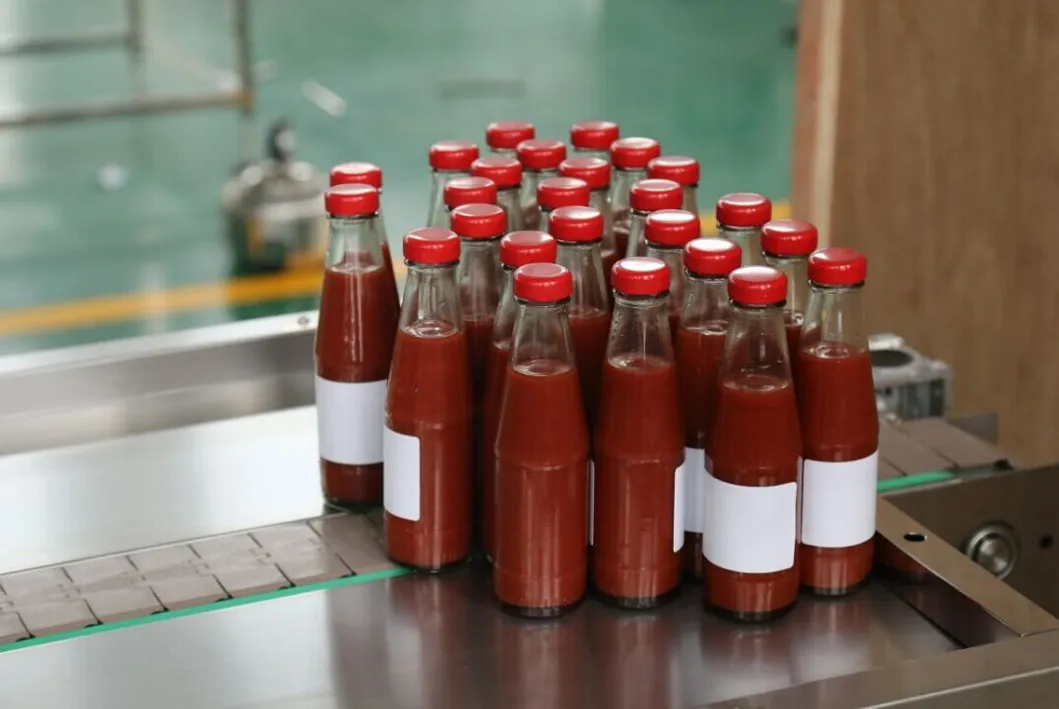

Bottle Feeding & Collecting
Automatic empty bottle entry with variable speed adjustment.

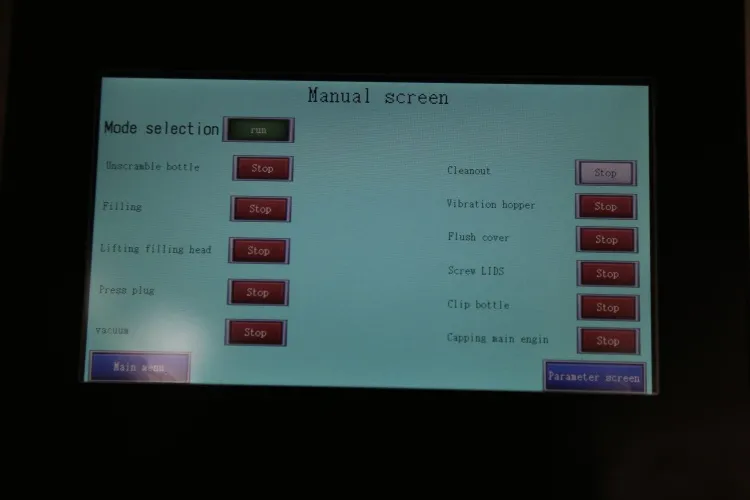

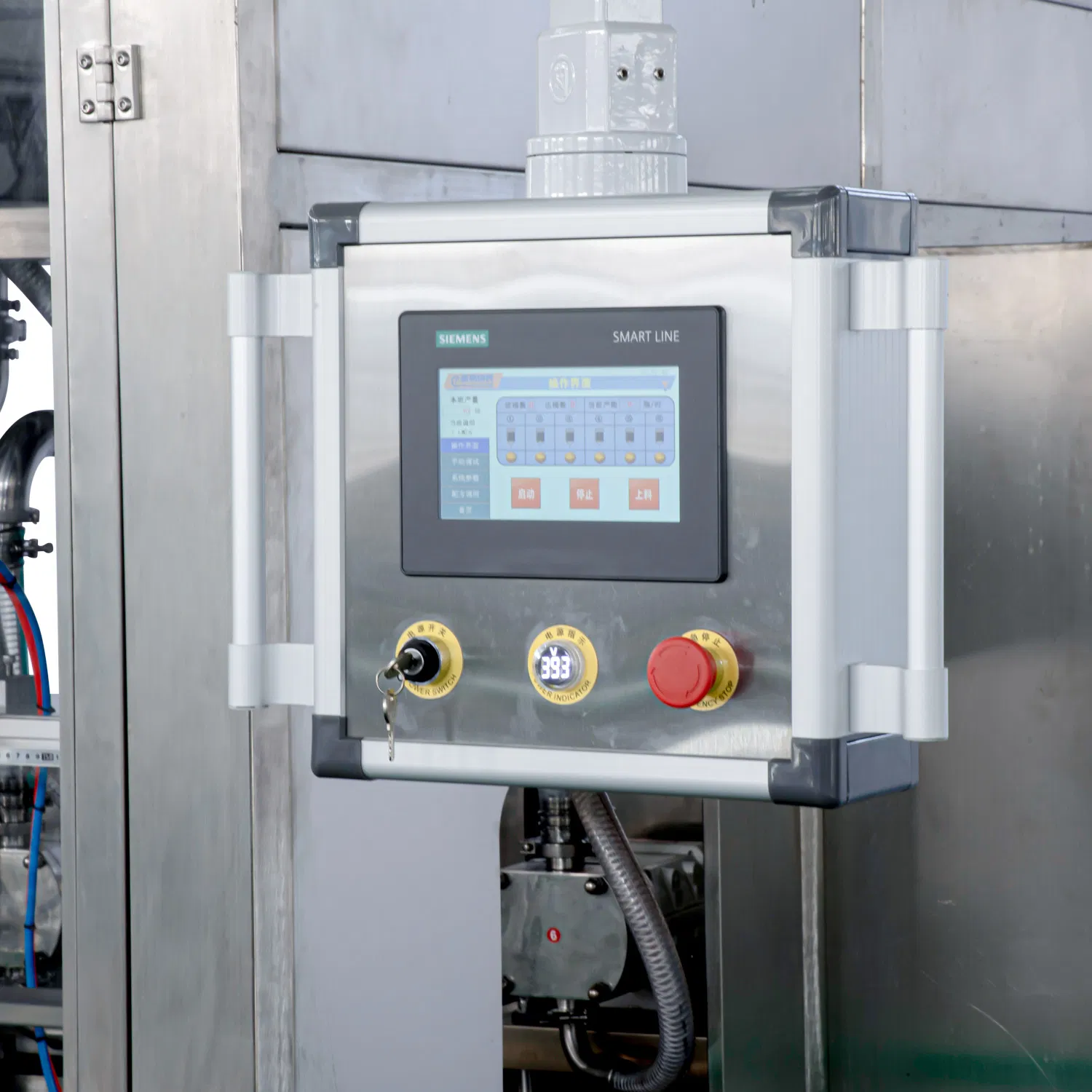

Control Panel
Touch screen interface, bilingual English/Chinese operation.

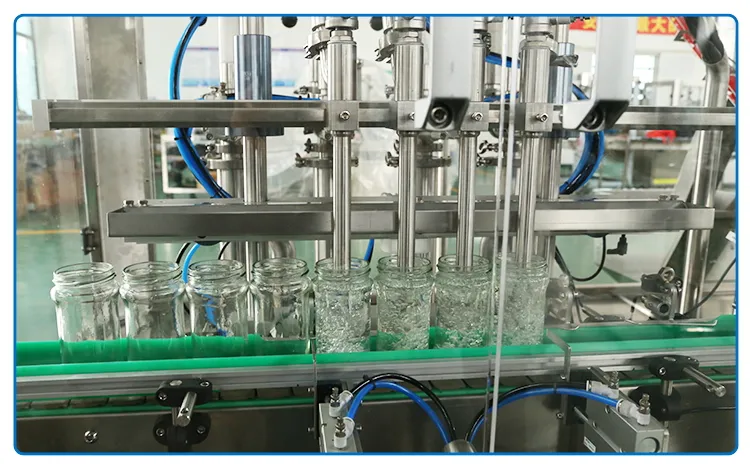

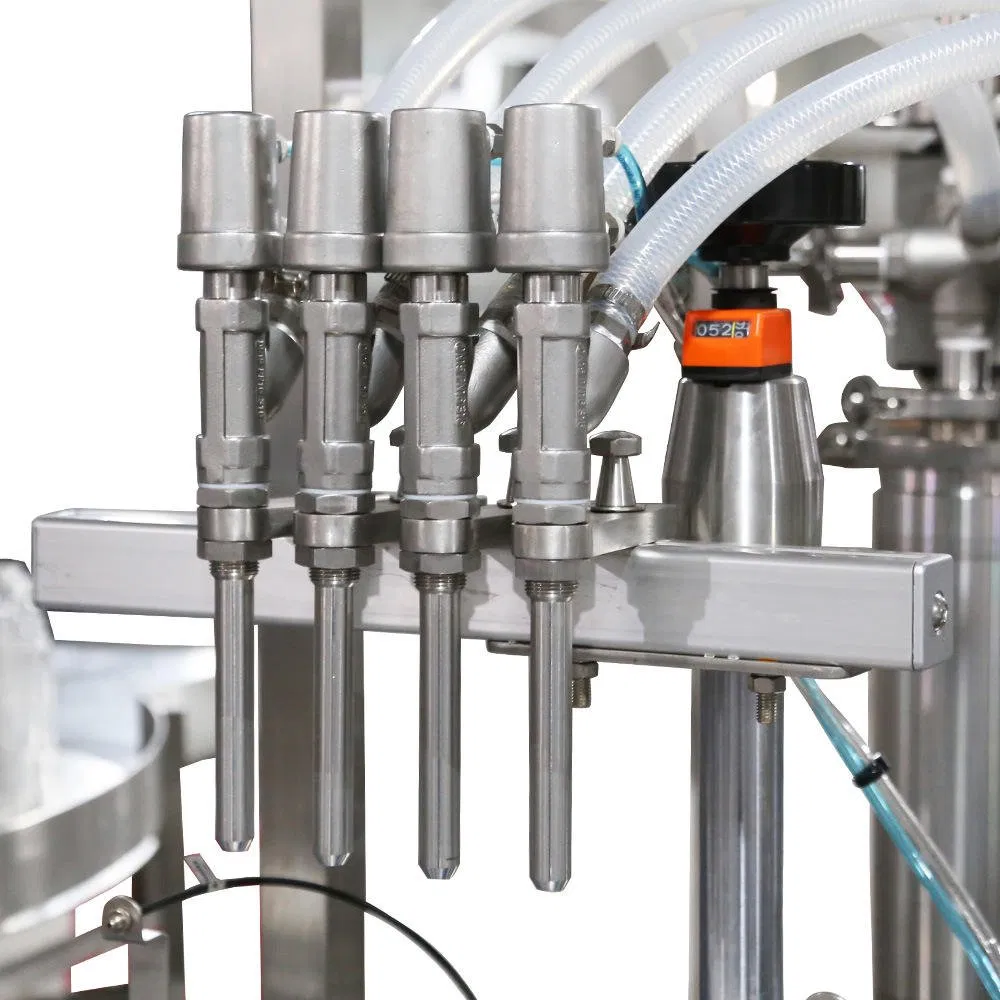

Anti-drip filling nozzle
Made of 316L stainless steel with smooth seal for accuracy.

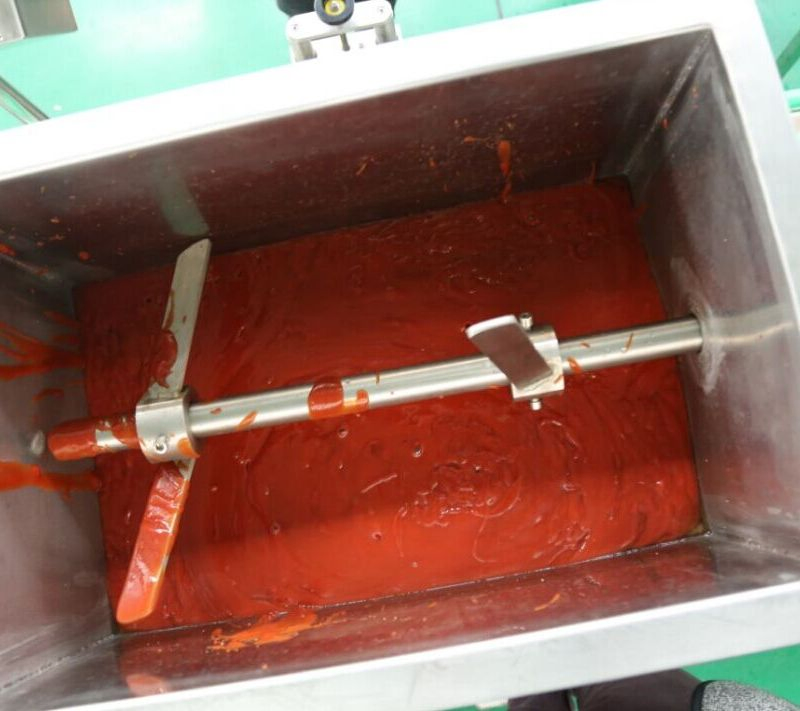

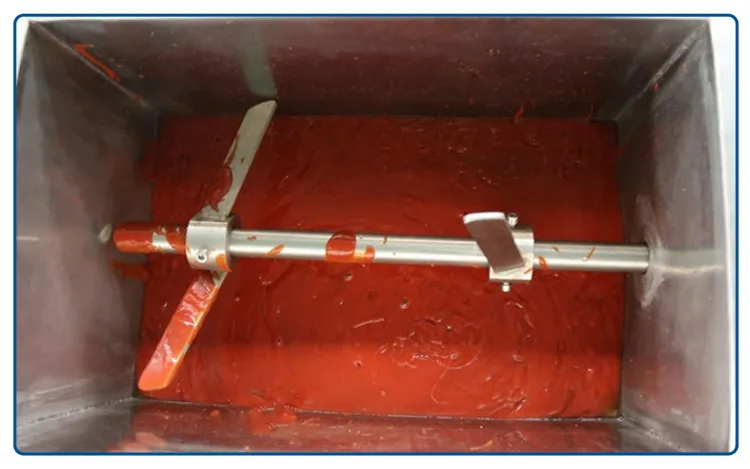

Material Hopper
Equipped with agitator for even stirring and high precision.

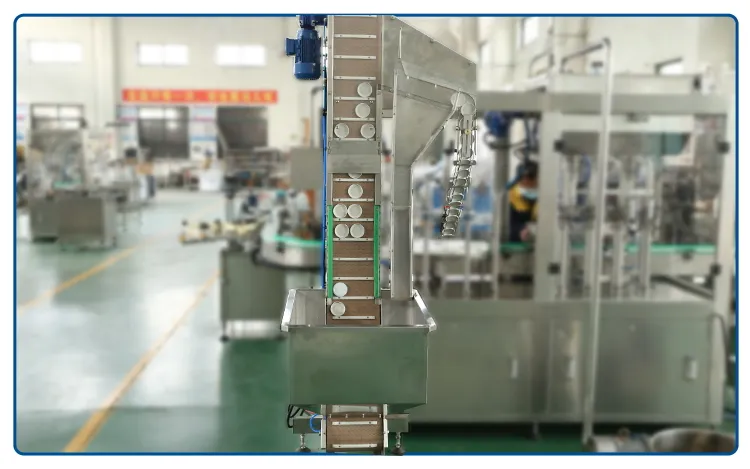

Cap Hopper & Vibrator
Large capacity for automatic replenishment during high-speed capping.

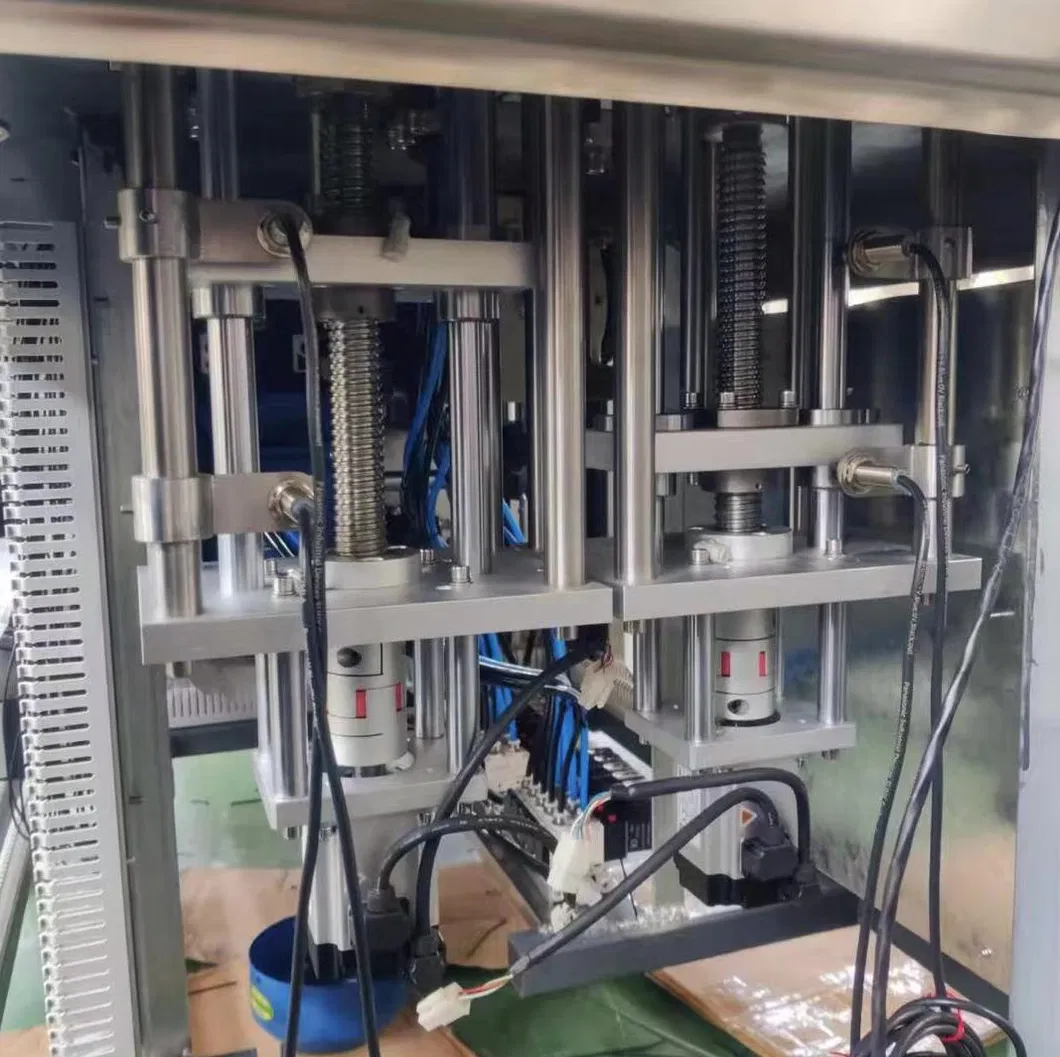

Servo Motor Driving
Precision control for volume changes via HMI adjustment.
This production line is suitable for filling and capping semi-liquid products: sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.
Customization: We offer tailor-made products and standard plugs (US, UK, EU) to suit international requirements.
Complete Solutions: We manufacture a full range of packing machines including filling, sealing, capping, and labeling systems.
