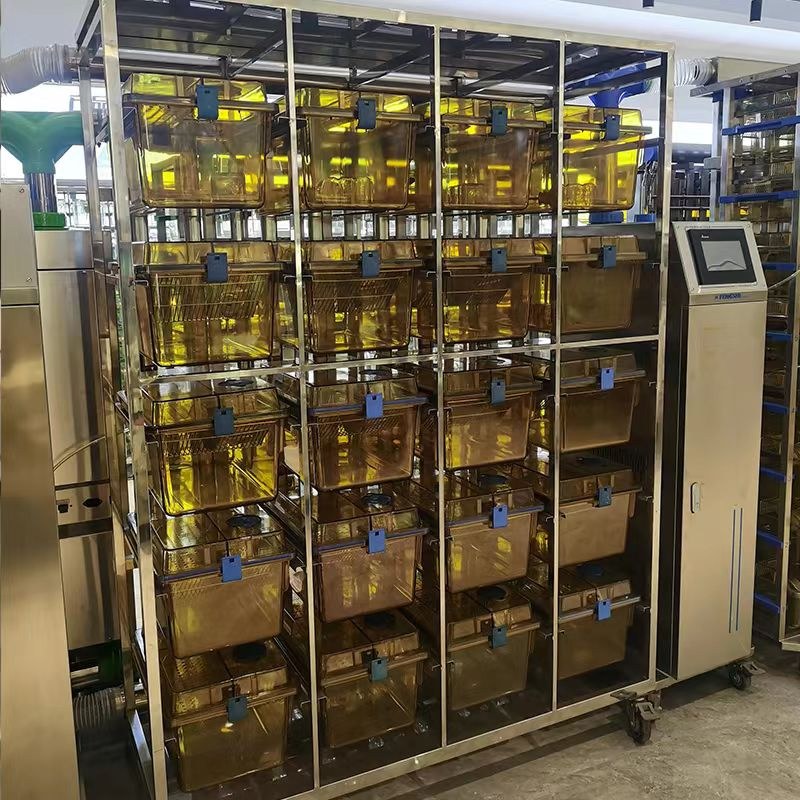

Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
1 / 5
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage
Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage

Lab Rodent Animal Bereeding Ivc System Equipment Rat Mouse Breeding Rack with Individual Ventilated Cage

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.

Usage
Reproduction Apparatus
Application
Mice Rats
Power Source
Electric
HVAC Type
Air Duct
Epidemic Prev.
No
Computerized
Computerized
Certification
ISO9001:2008, CE
Condition
New
Warranty
1 Year
Structure
Desktop
Material
Metal + PSU
Cage Size
Size in List
Package
Wooden Pallet
Specification
XL
Capacity
200 Sets/Month

Product Description

Project: Individually ventilated cage system for keeping laboratory mice or rats, including cage, shelf, air handling device, water bottle, filter top, cage holder and other accessories.

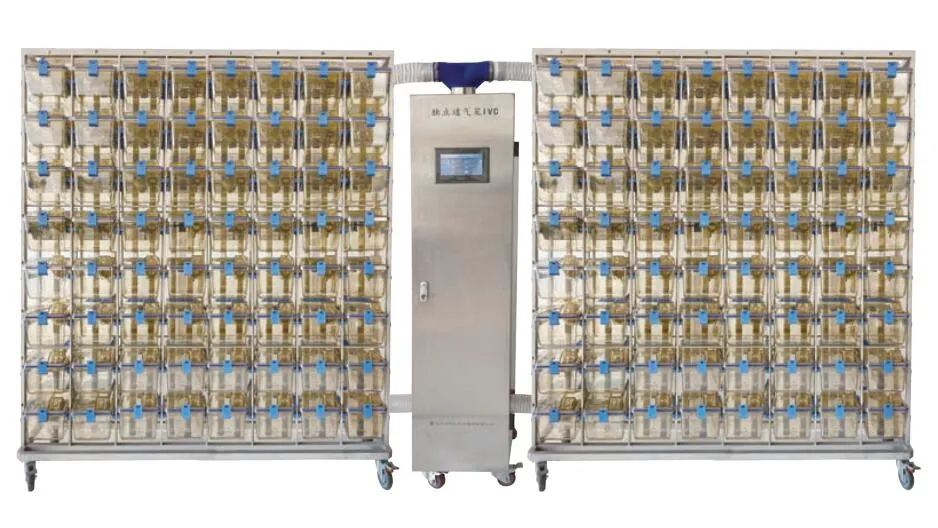

IVC System Overview
1

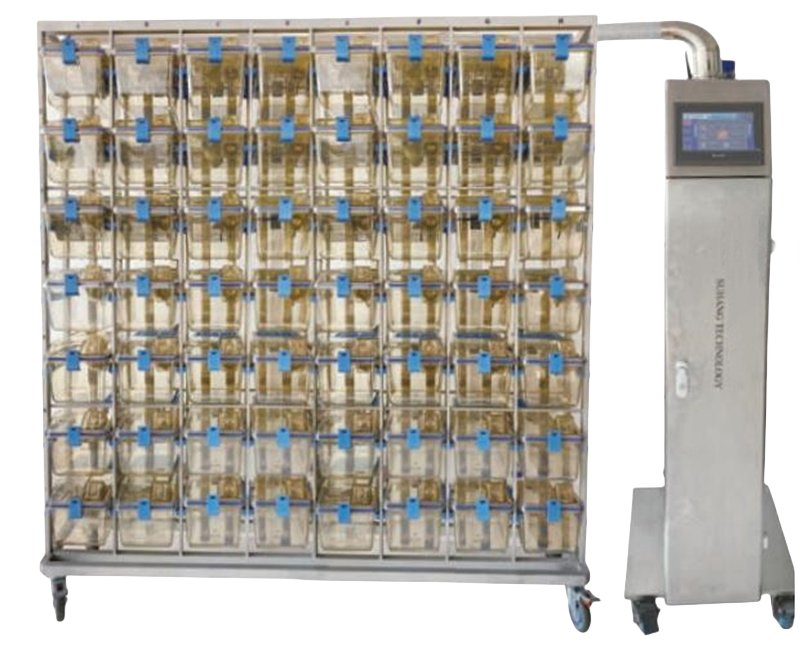

System Composition: Composed of three parts: main engine, ventilation cage frame and sealed cage box. The indoor air is passed through the air supply filtration system into each individual sealed cage box on the air duct cage rack.
2
SPF Environment: Provides SPF animals with uniform, low-flow clean air. Exhaust gas is filtered to the outdoor, keeping low ammonia concentration and humidity, preventing cross-infection and ensuring safety for laboratory workers.
3
HEPA Filtration: Host high efficiency filter efficiency ≥99.995% (0.3μm). Equipped with 36v/48v lithium battery to maintain power for more than 8 hours during failures.

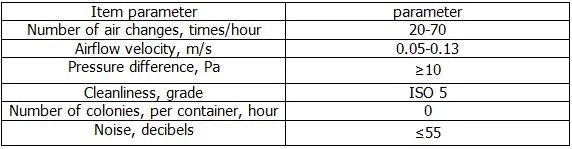

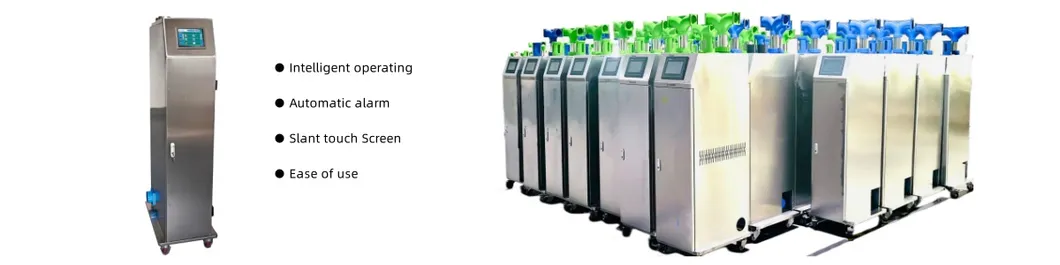

Main Parameter Banner Parameter Details
4

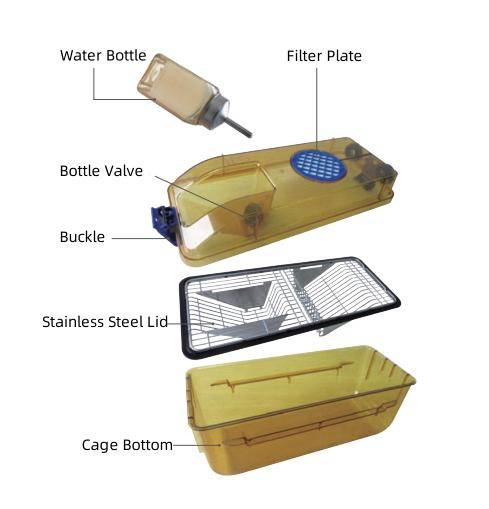

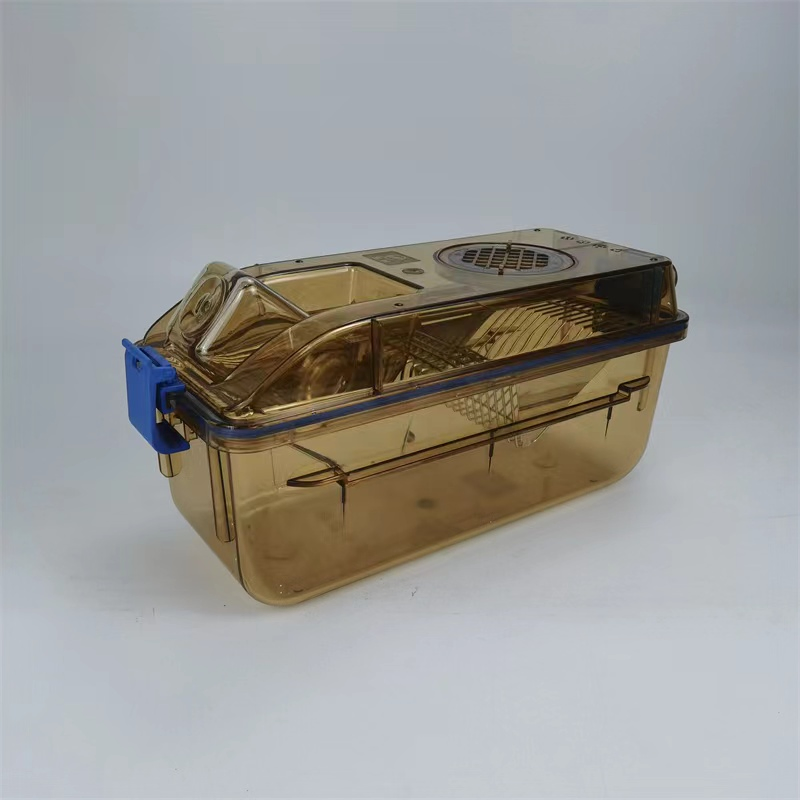

High-Quality Materials: Cages are made of PPSU plastic (high temperature resistance 180ºC, 135ºC autoclaving >500 times) or PC. Frames and wire caps are made of 304 grade stainless steel with polished or matt treatment.

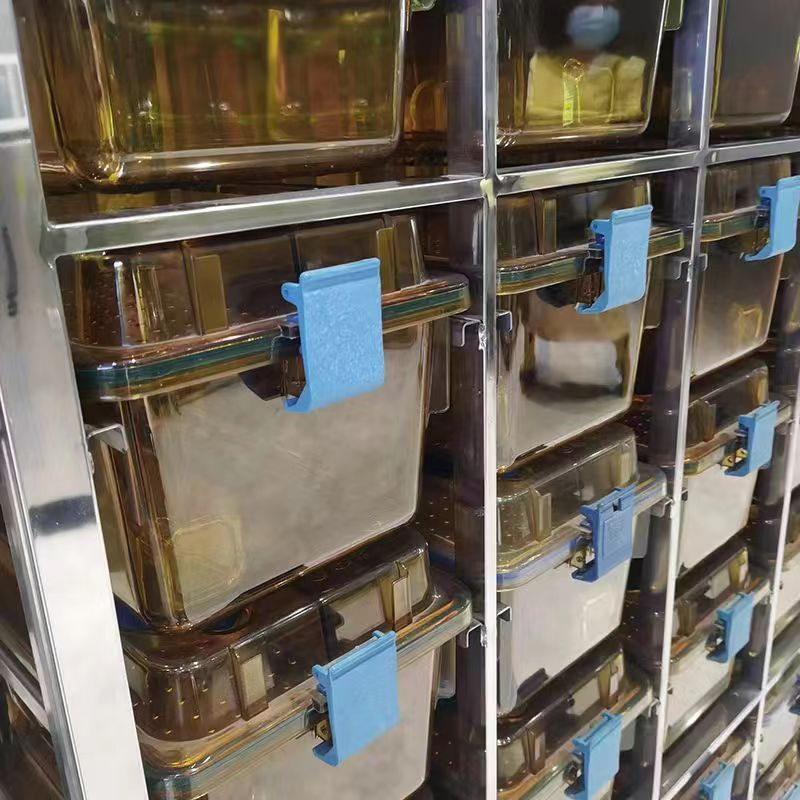

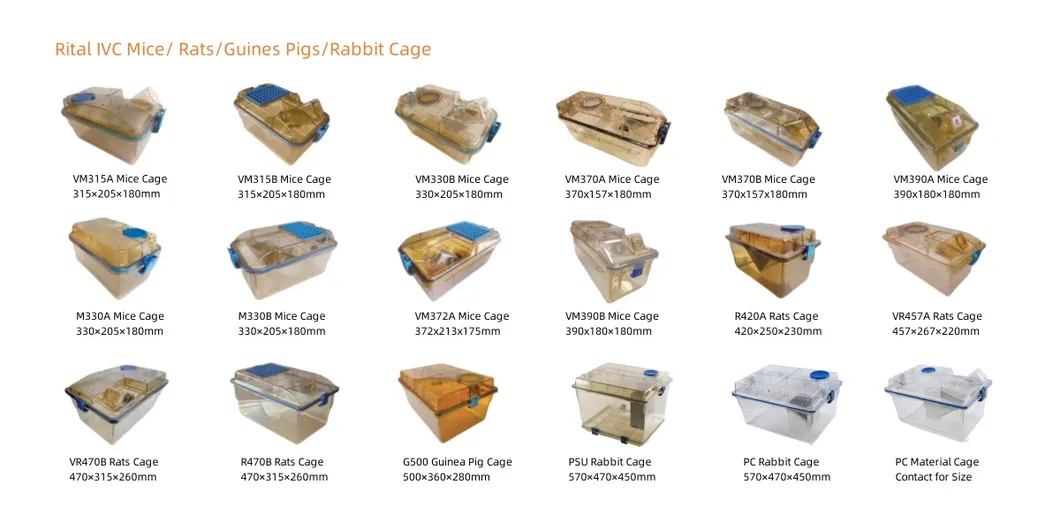

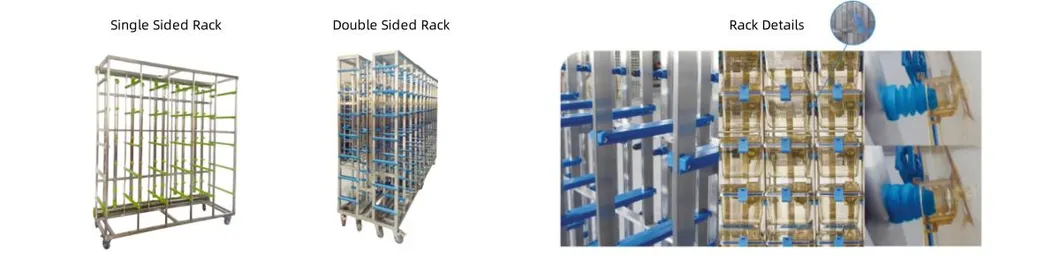

Cage Size List Rack and Cages Stainless Steel Frame
5
Ergonomic Design: Features an external water bottle (250ml-500ml) that can be replaced without removing the cage. Includes a cage locking system, display unit for speed/temp/humidity, and an alarm system for unit failure or filter blockage.
6
Silent Operation: Independent tower-type air handling unit with no vibration transfer. Noise and vibration levels are kept < 50 decibels to minimize animal stress.

Frequently Asked Questions

Q1: What is the filtration efficiency of the IVC system? A: The system uses high-efficiency HEPA filters with a filtration efficiency of ≥99.995% for particle sizes of 0.3μm.
Q2: How long can the system run during a power failure? A: The integrated 36v/48v lithium battery provides emergency power to the IVC equipment for more than 8 hours.
Q3: What materials are used for the animal cages? A: The cages are primarily made of Polysulfone (PPSU) plastic, which is resistant to 180ºC and can be autoclaved 500+ times. Polycarbonate (PC) options are also available.
Q4: Can the water bottles be changed without disturbing the animals? A: Yes, the external water bottle design allows for replacement without removing the cage from the rack, reducing the cage opening frequency.
Q5: How does the system monitor the environment? A: The system features a display unit that monitors air supply/exhaust speed, temperature, humidity, and air pressure, supported by an alarm system for any parameter deviations.
Q6: Is the system noisy for the laboratory animals? A: No, the independent air handling unit is designed to transfer no vibration, and noise levels are kept below 50 decibels for the comfort of the animals.
