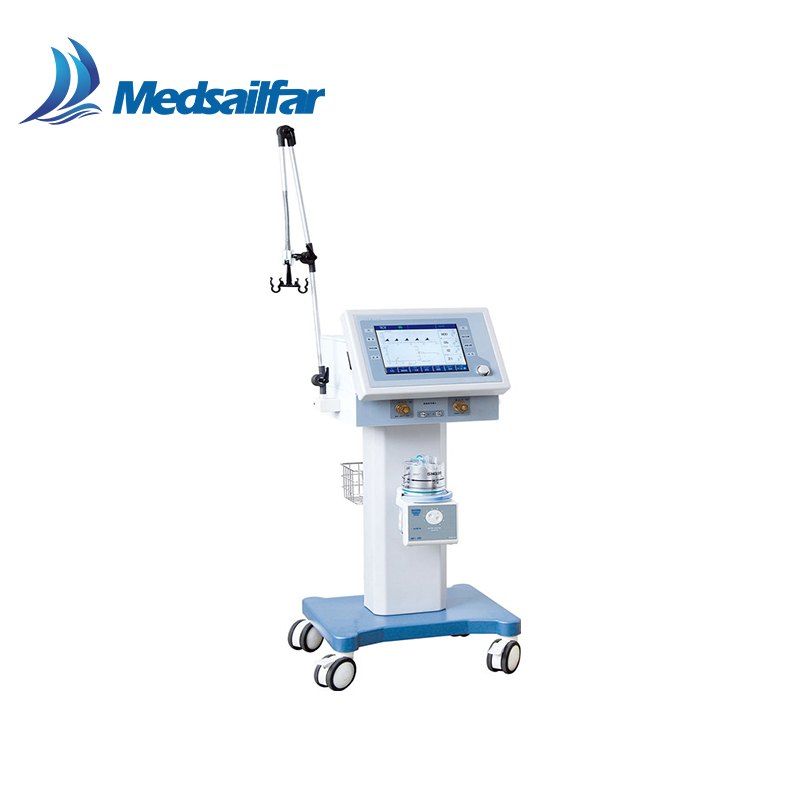

Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
1 / 5
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital
Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital

Medsailfar Msf4190 Vet Ambulance Medical Veterinary Ventilator for Hospital

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Overview & Basic Info

Model NO.MSF4190
TypeVentilator
ColorWhite, Grey, or Customized Color
AC Power100V-240V, 50Hz/60Hz, ≤50va
MaterialABS
Warranty2 Years
Ventilation ModeSippv, Ippv, Simv, Psimv, Psv, CPAP, Pcv, Manual
Max Minute Volume≥ 18L
Back-up Power SupplyAt least 30 Min
Tidal VolumeAdjustable Range: 20-1500ml, Display Range: 0-2000
Respiratory Frequency1-99bpm
Peep0-10CMH2o
OriginChina
P

Detailed Photos

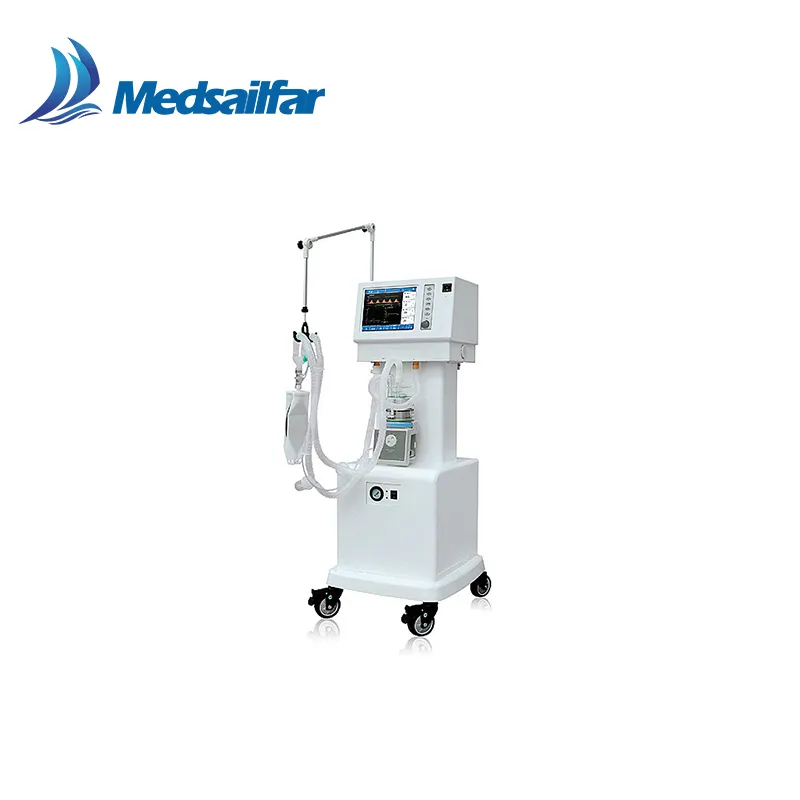

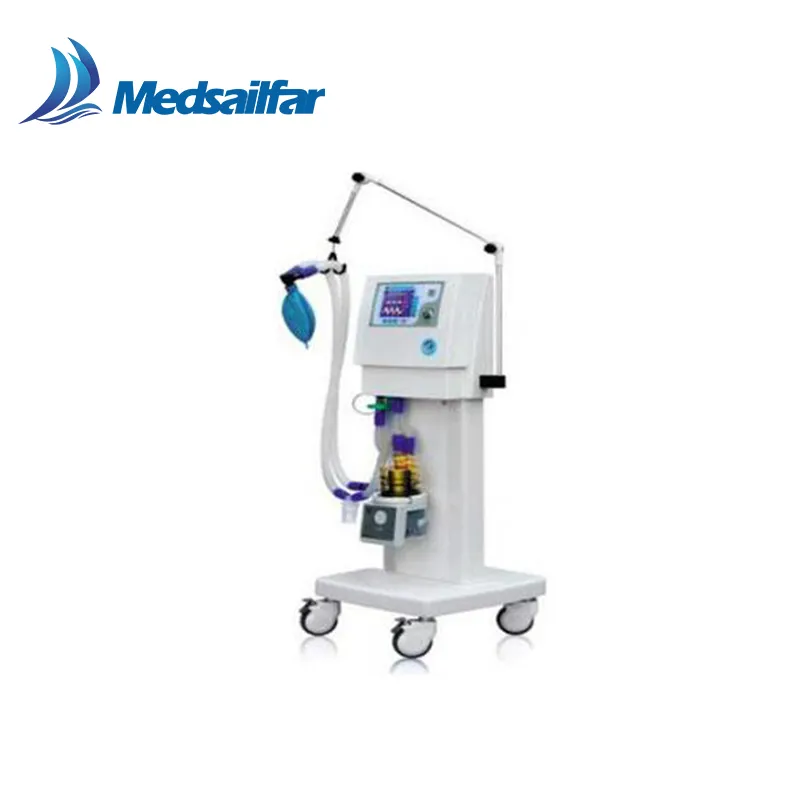

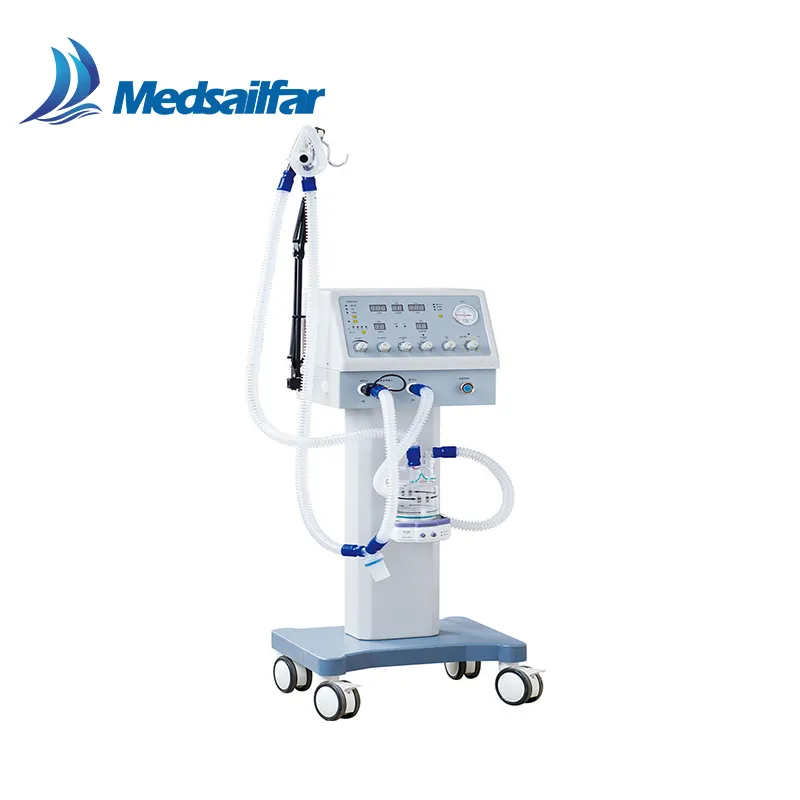

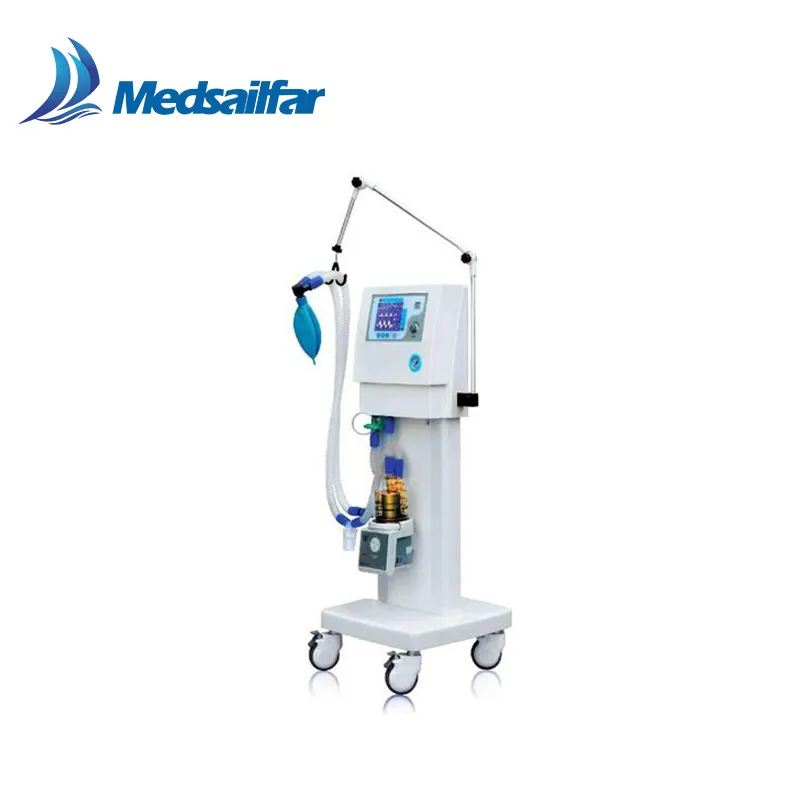

Ambulance Medical Veterinary Ventilator
Ambulance Medical Veterinary Ventilator
Ambulance Medical Veterinary Ventilator
Ambulance Medical Veterinary Ventilator
D

Product Description

In modern clinical medicine, ventilators have been widely used as an effective means of artificial replacement of autonomous ventilation function for respiratory failure caused by various reasons, anesthesia respiratory management during major surgery, respiratory support therapy, and emergency resuscitation. They play a very important role in the field of modern medicine. A ventilator is a crucial medical device that can prevent and treat respiratory failure, reduce complications, and save and prolong lives.

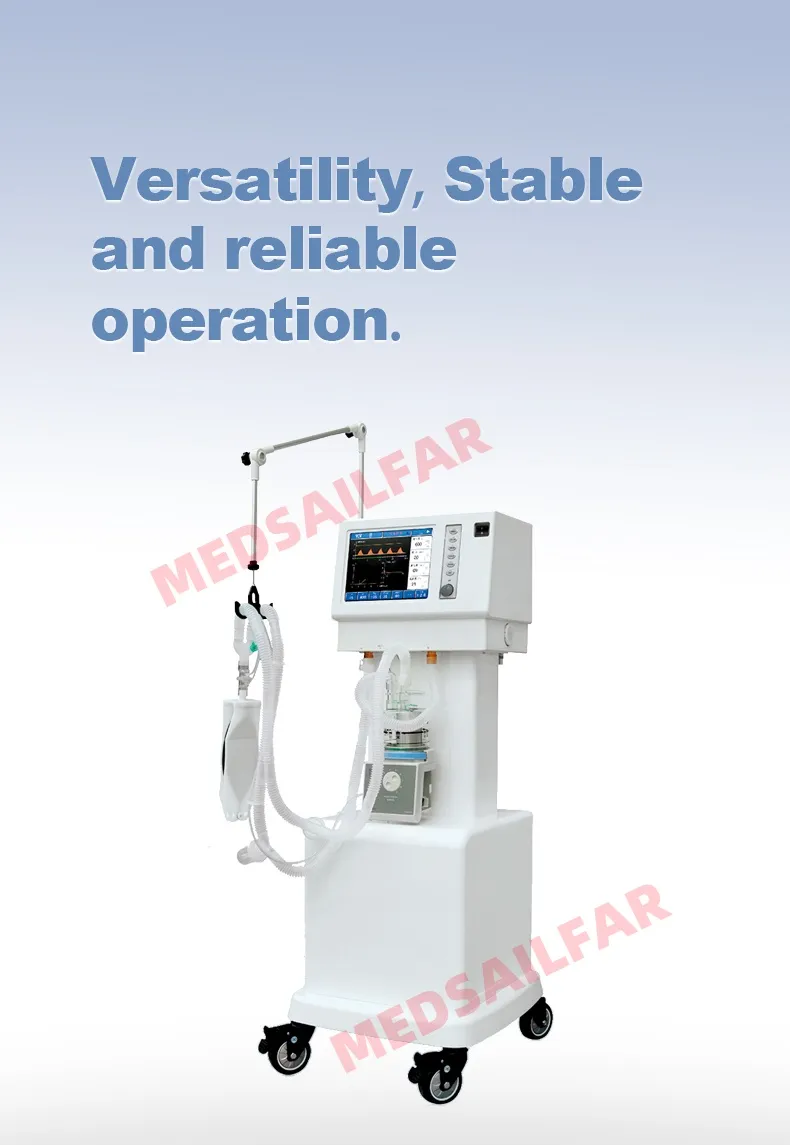

Ventilator Clinical Application

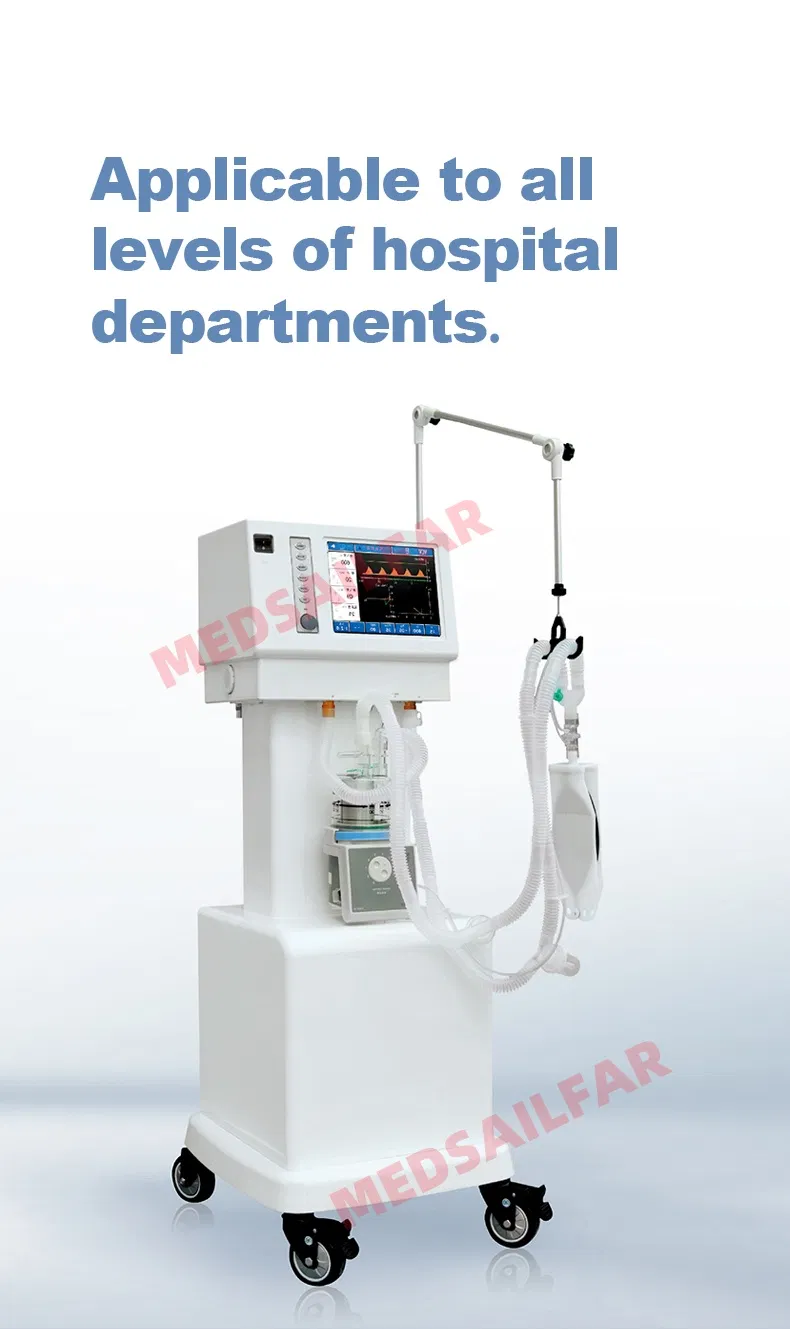

Ventilator Interface Details

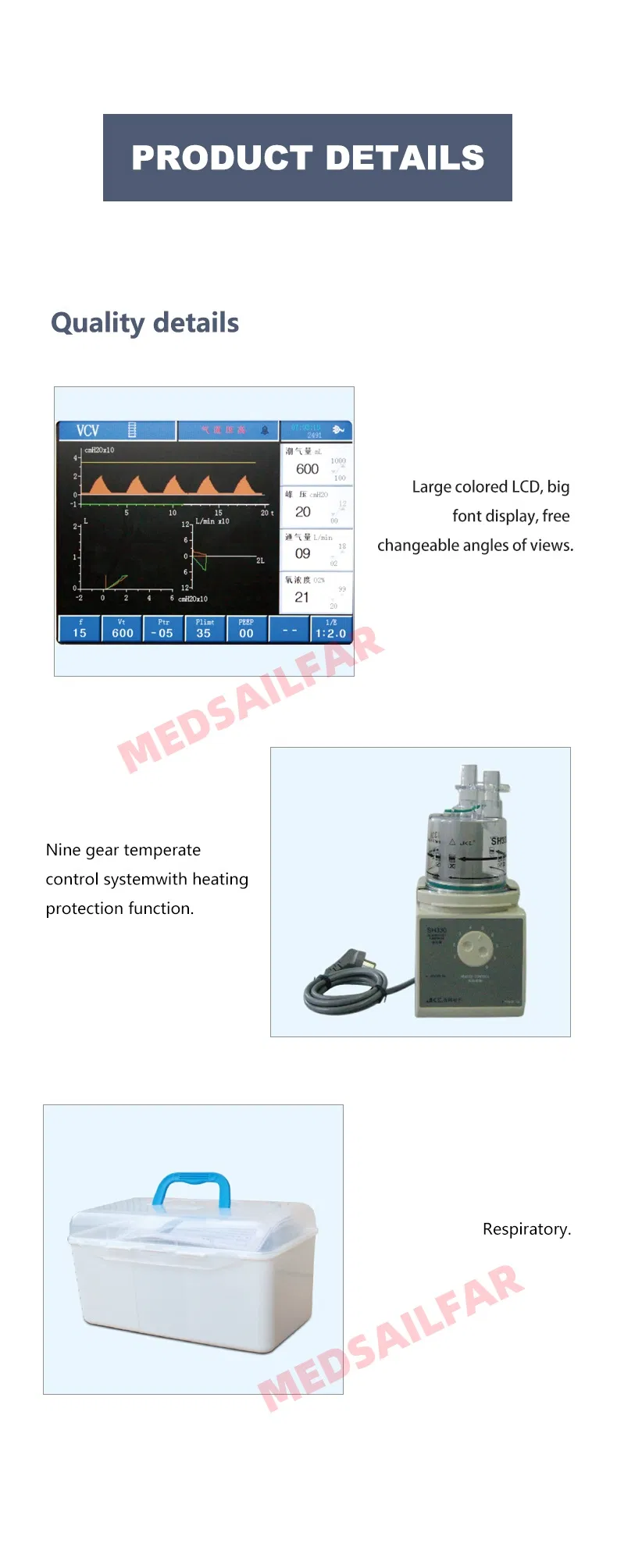

Ventilator Full Features
S

Technical Specifications

Display10.4 inch high visibility color TFT display
I:E Ratio4:1-1:4
SIMV Frequency1-20bpm
Pressure Trigger-10-10cmH2O
Trigger Sensitivity1-20L/m
Inspiratory PlateauAdjustable from 0-50% of inspiratory time
Oxygen Concentration21-100%(with air compressor) 45-100%(without air compressor)
Gas Supply280~600 kPa medical grade oxygen and compressed air
Pressure Limit1.0kPa~6.0kPa
Airway Pressure AlarmUpper Limit: 0.1~6kPa, Lower Limit: 0~5kPa
A

Capabilities & Related

Factory Capabilities
Advantages
Related Equipment
?

Frequently Asked Questions

Where can we view the physical products?
You can see our real products in international exhibitions such as the Canton Fair, Arab Health, and various overseas medical shows.
Which regions are these medical products exported to?
The equipment has been exported to more than 150 countries, with major markets in the Middle East, Southeast Asia, Africa, South America, and Europe. All products are CE certified.
What are the standard price terms?
We support multiple trade terms including FOB, CIF, CNF, DDP, DDU, and CIP.
What payment methods are accepted?
Accepted methods include T/T, L/C, Western Union, and Money Gram.
Do you provide technical support and training?
Yes, free training is provided at our facility. For on-site training in your country, technical support and engineers can be arranged upon request.
What are the available shipping modes?
Goods can be shipped via courier (TNT, DHL, FEDEX, EMS), by air freight, or by sea depending on your requirements.
