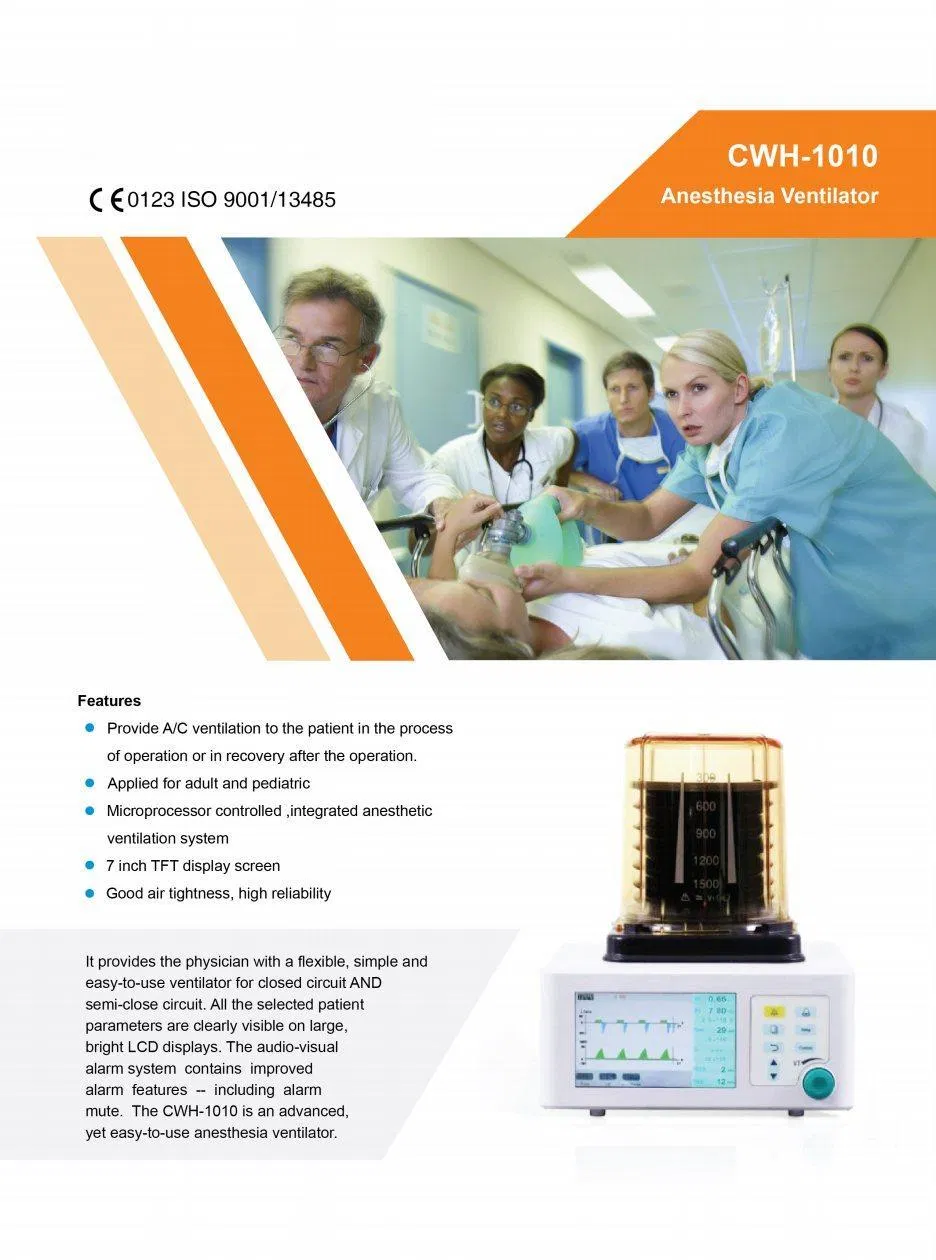

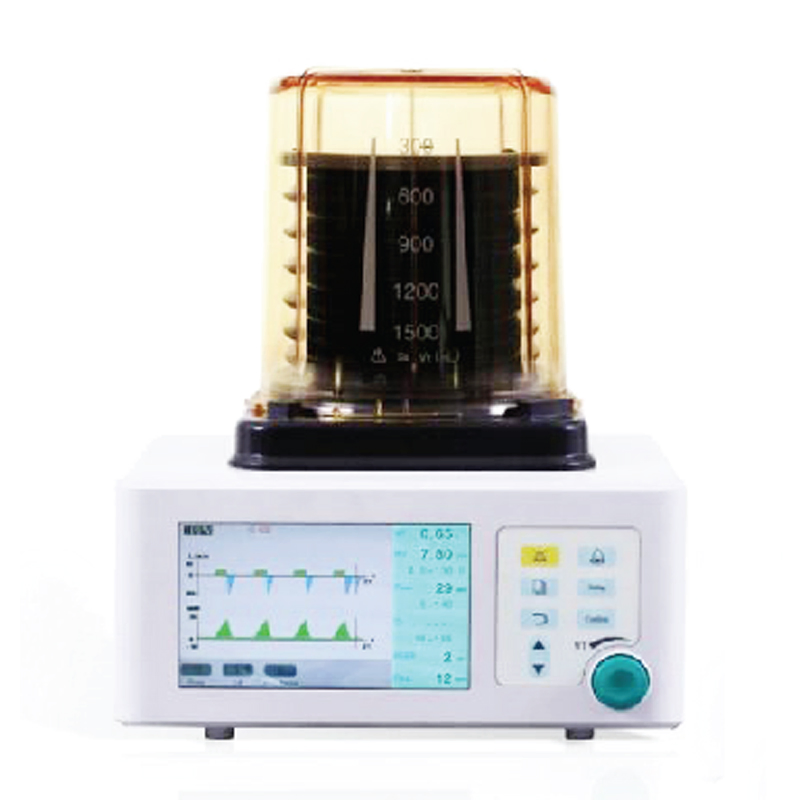

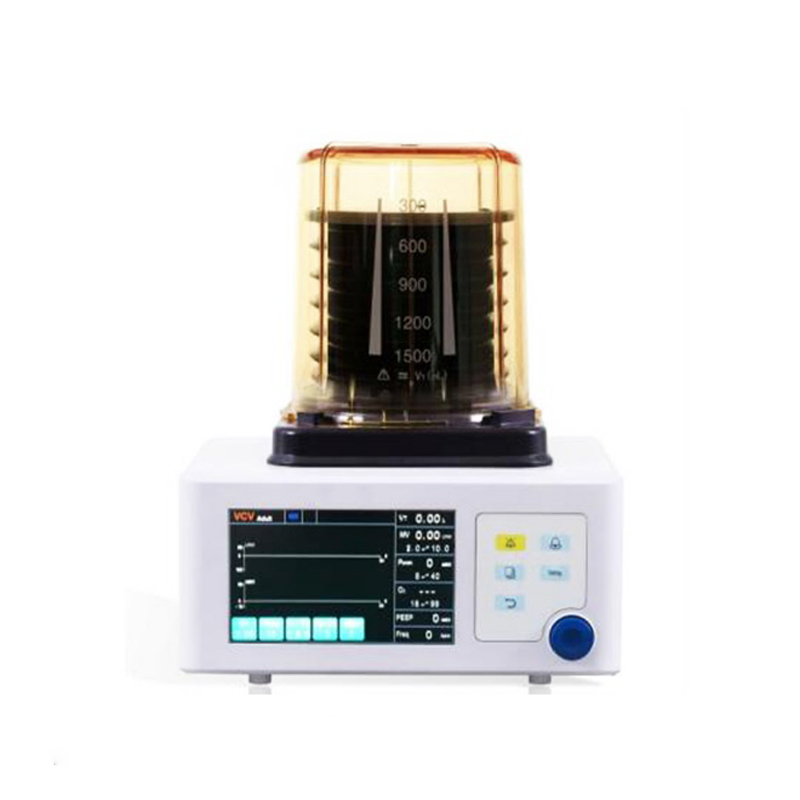

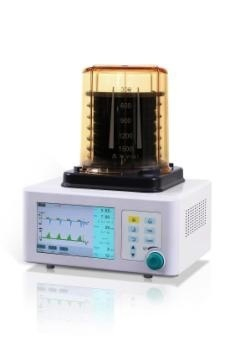

CWH-1010 Anesthesia Ventilator

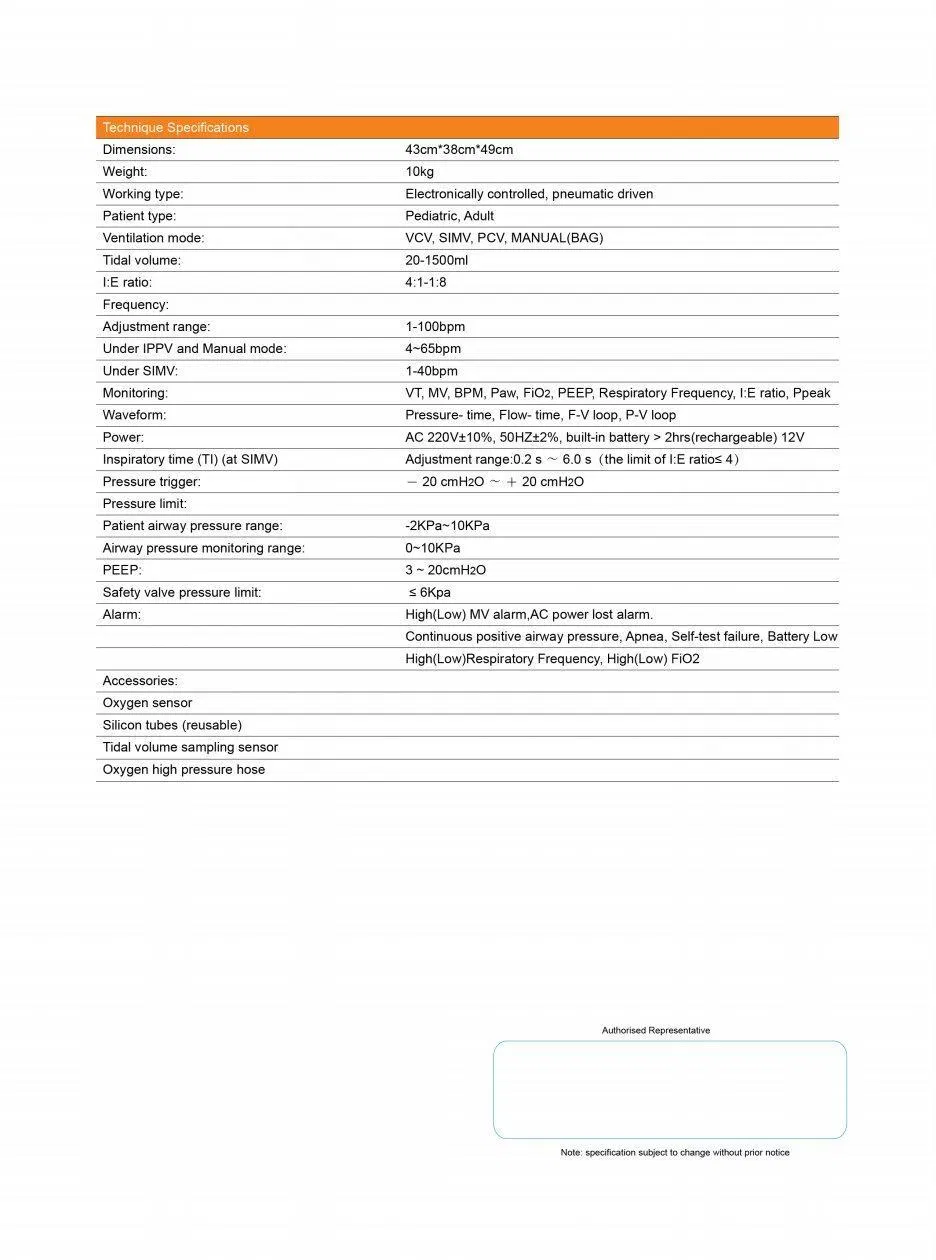

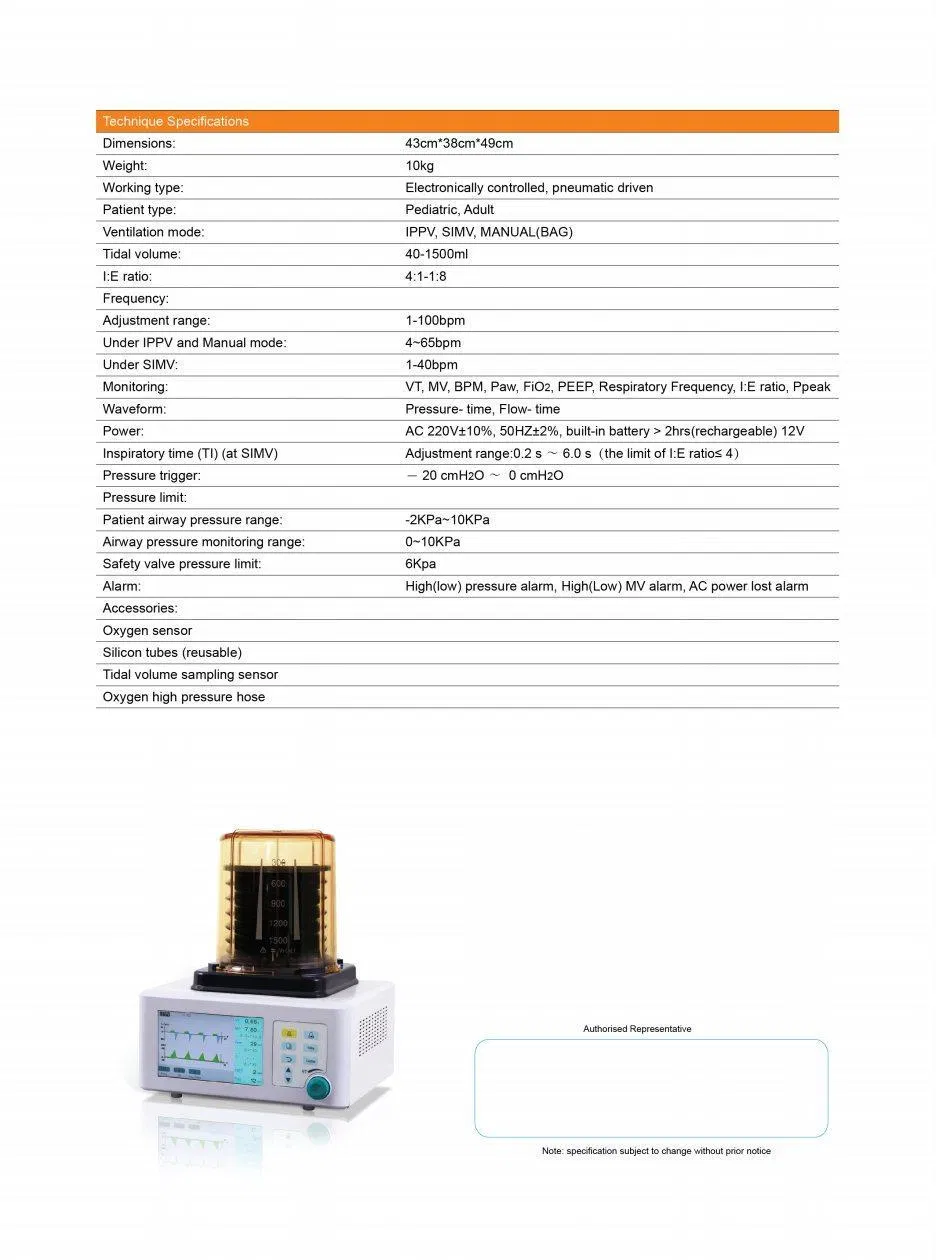

⚙️ Main Specifications
✔ Electronically controlled, pneumatic driven
✔ Patient spectrum: pediatric to bariatric
✔ Ventilation mode: IPPV, SIMV, MANUAL(BAG)
✔ Tidal volume: Adjustment range 0-1500ml
✔ I:E ratio: 4:1-1:8
✔ Frequency range: 1-100bpm
✔ IPPV and Manual mode: 4~65bpm
✔ SIMV mode: 1-40bpm
✔ Monitoring: VT, MV, BPM, Paw, FiO2, PEEP

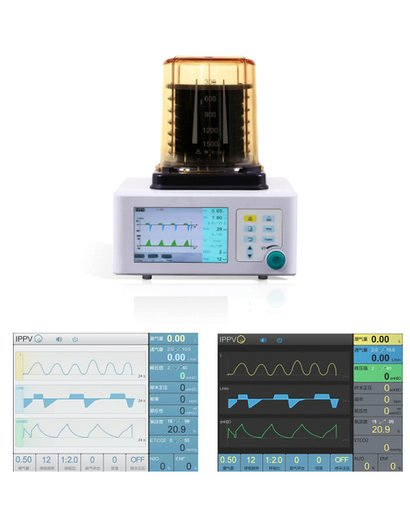

✔ Waveforms: Pressure-time, Flow-time
✔ Power: AC 220V, built-in battery > 2hrs
✔ Inspiratory time (TI): 0.2s - 6.0s
✔ Pressure trigger: -20 cmH2O ~ + 20 cmH2O
✔ Safety valve pressure limit: 6Kpa
✔ Alarms: High/Low pressure, MV, AC power loss
❓ Frequently Asked Questions
Which animals can use the CWH-1010 Anesthesia Ventilator?
The CWH-1010 is versatile and designed for veterinary use on a wide range of animals, including cats, dogs, sheep, and horses.
What ventilation modes does this equipment support?
It supports three main ventilation modes: IPPV (Intermittent Positive Pressure Ventilation), SIMV (Synchronized Intermittent Mandatory Ventilation), and MANUAL (Bag) mode.
Does the ventilator have a backup battery for power emergencies?
Yes, it features a built-in rechargeable 12V battery that provides more than 2 hours of operation in case of AC power loss.
What is the tidal volume adjustment range?
The tidal volume can be adjusted from 0 to 1500ml, making it suitable for patients ranging from pediatric to bariatric sizes.
How does the alarm system ensure patient safety?
The device includes multiple safety alarms, such as High/Low airway pressure alarms, High/Low Minute Volume (MV) alarms, and an AC power loss alarm to ensure continuous monitoring.
What parameters can be monitored on the display?
Real-time monitoring includes Tidal Volume (VT), Minute Volume (MV), Breaths Per Minute (BPM), Airway Pressure (Paw), FiO2, PEEP, I:E ratio, and peak pressure (Ppeak), along with pressure-time and flow-time waveforms.
