Basic Information & Logistics
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
20.000kg
Product Overview

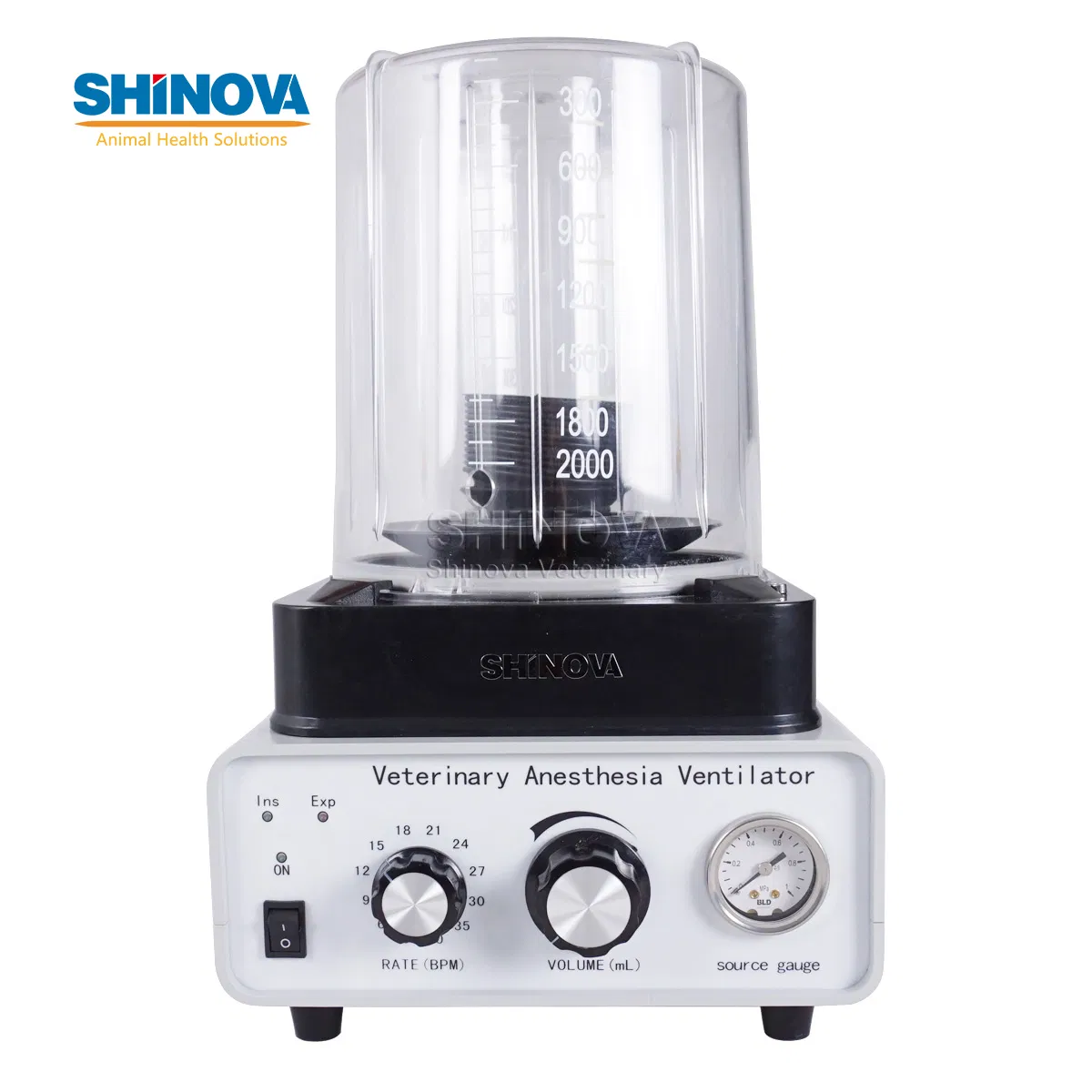

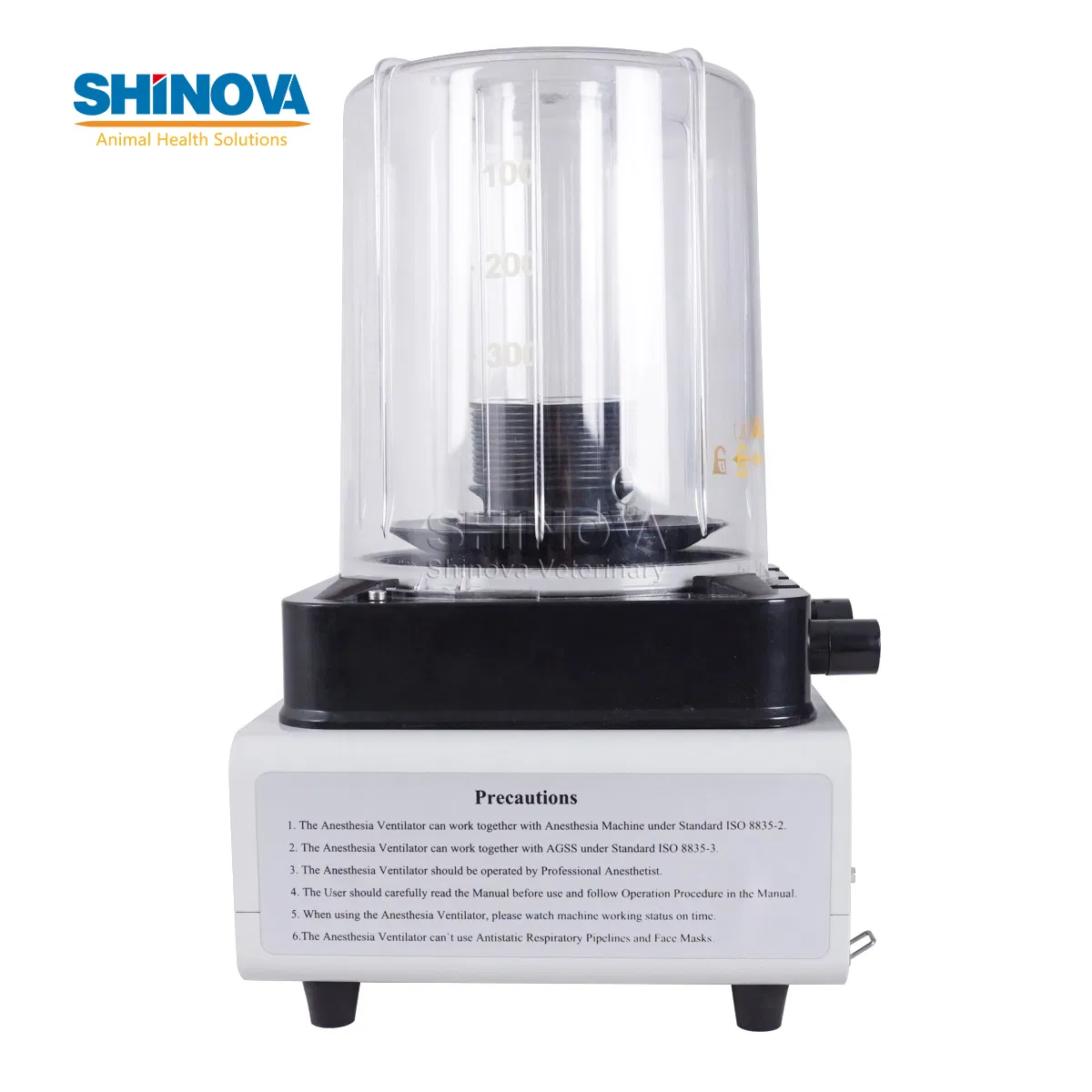

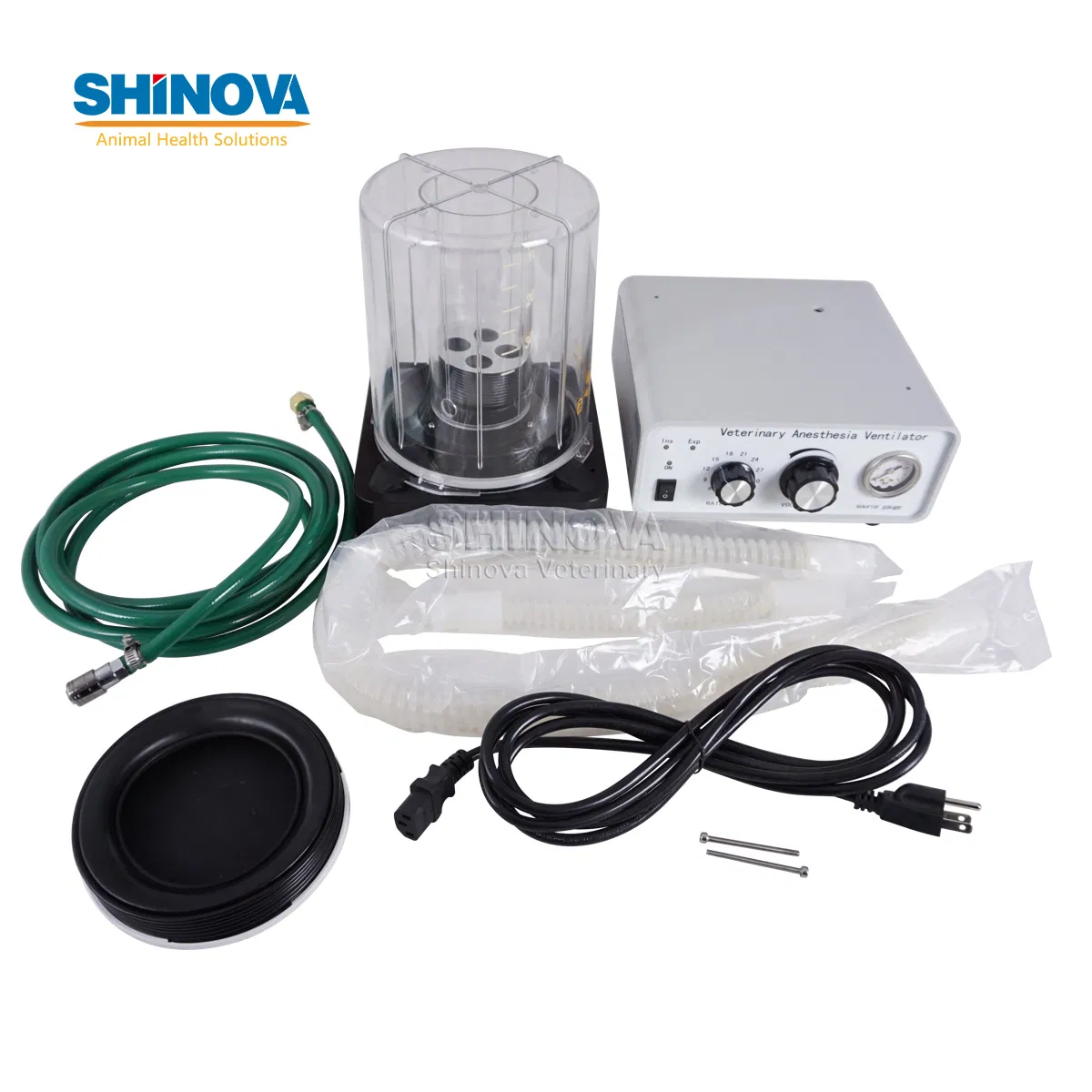

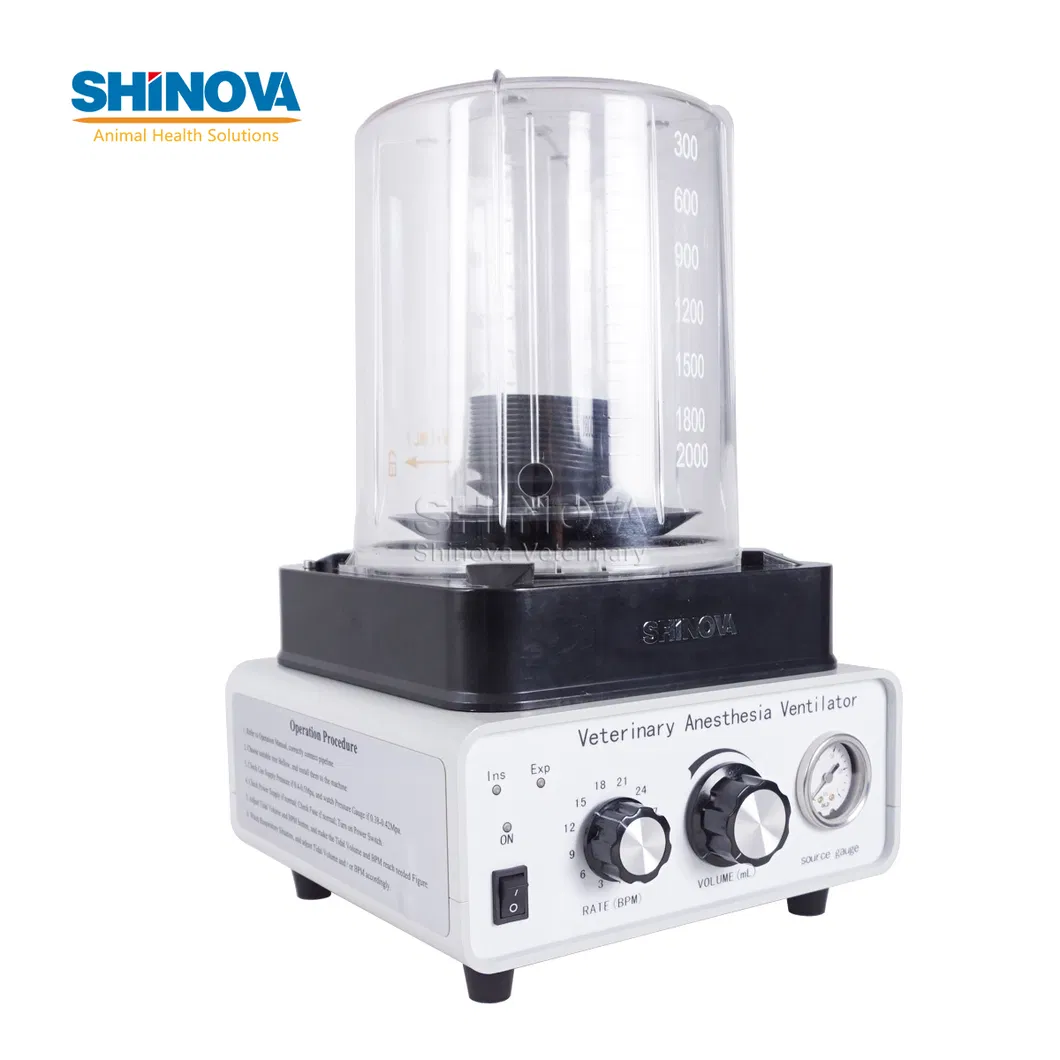

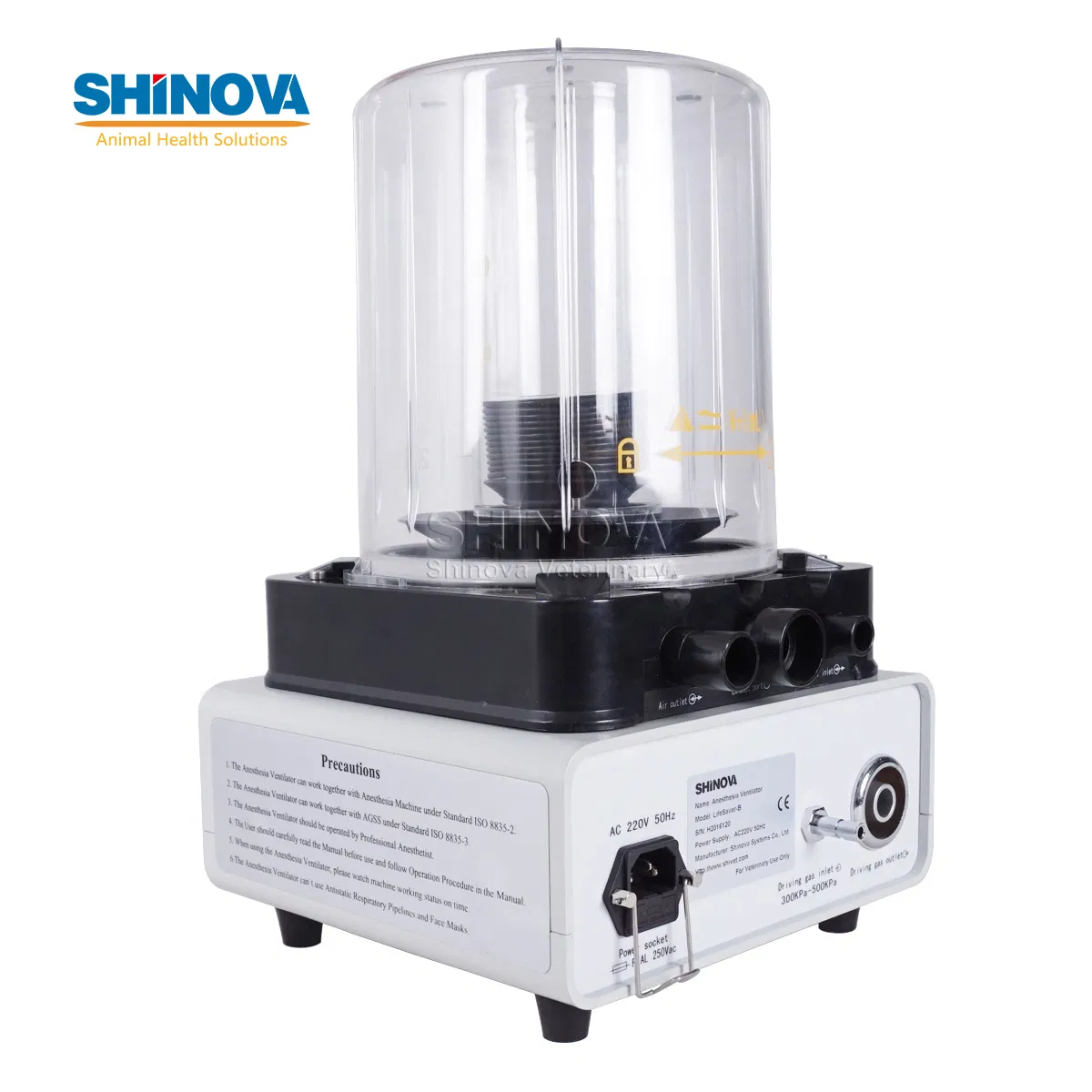

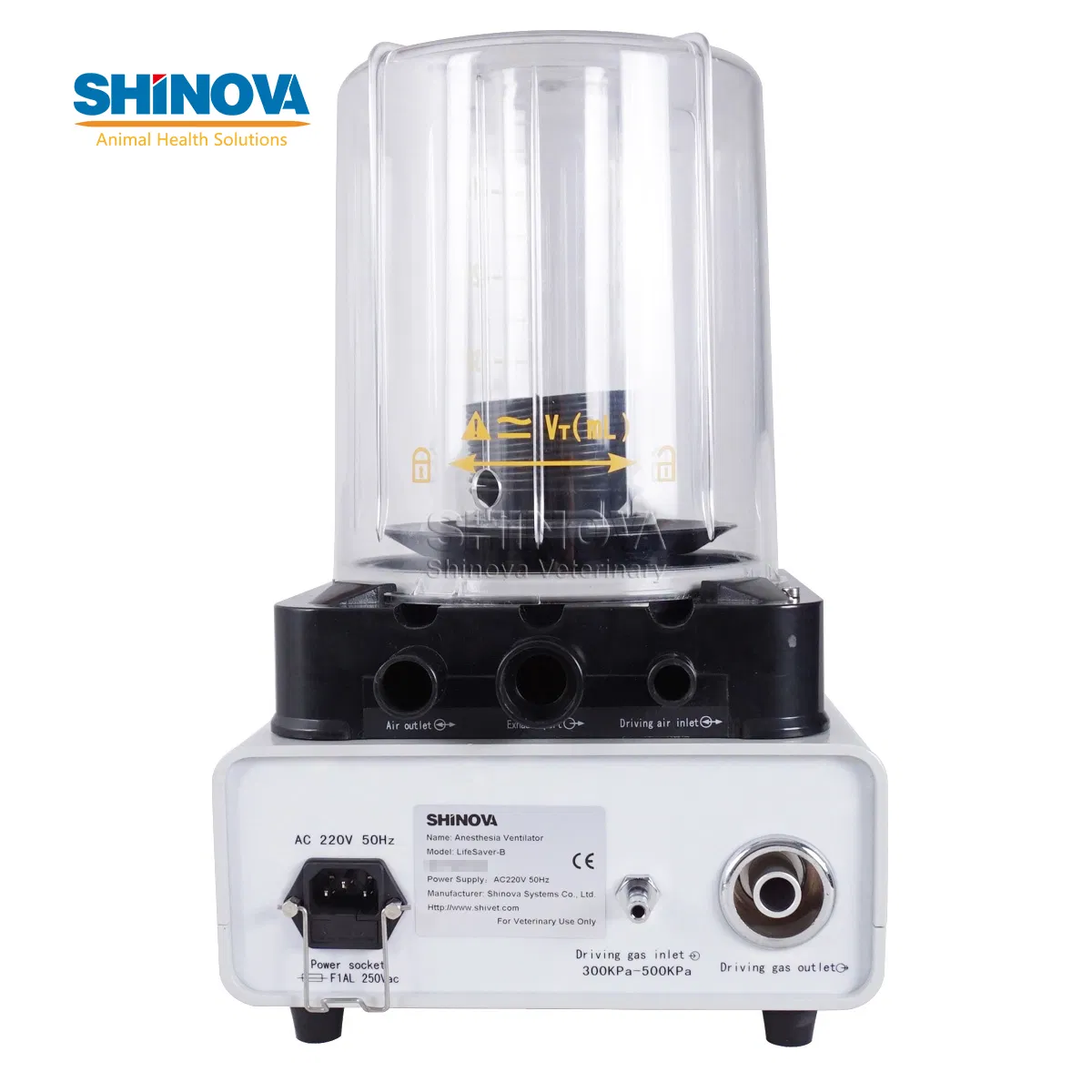

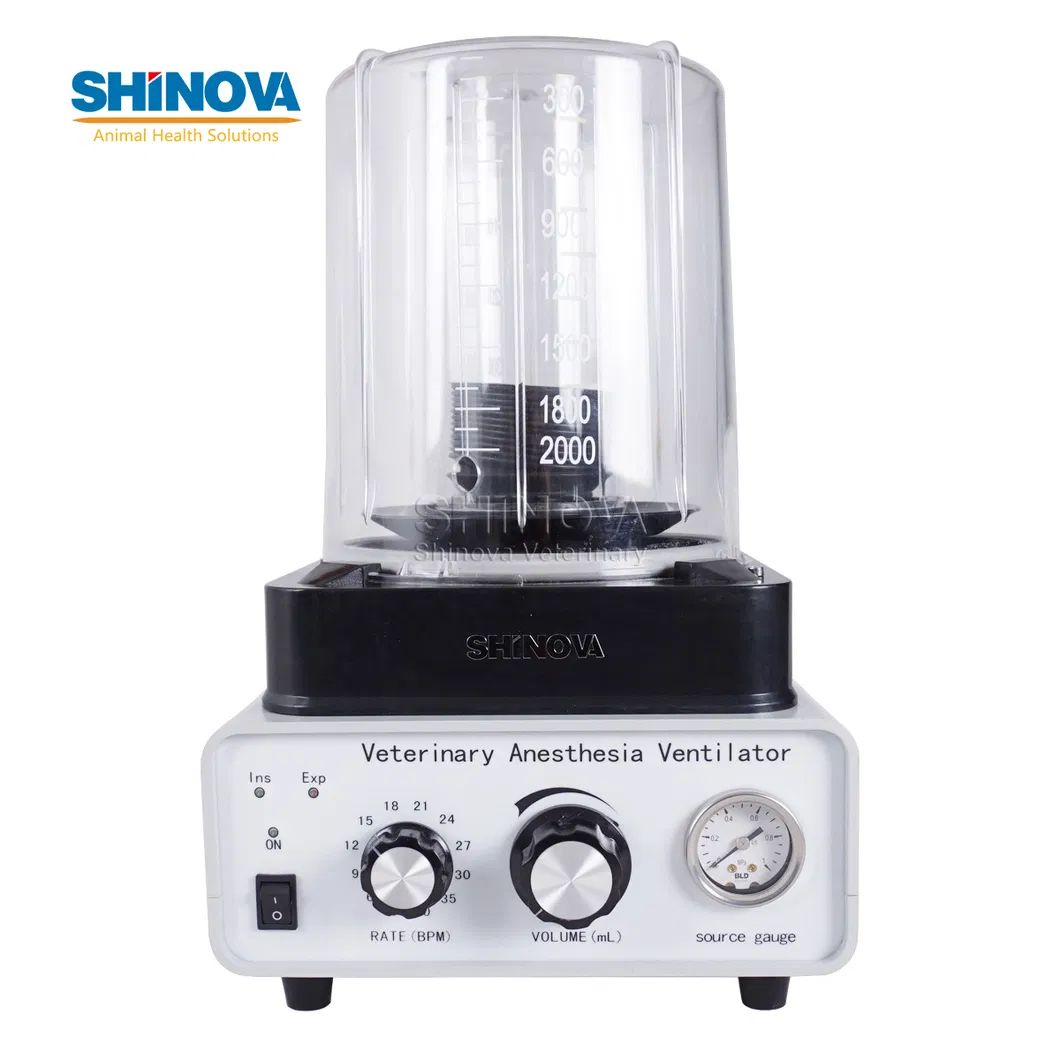

Vet Anesthesia Ventilator (LifeSaver-B)
Model: LifeSaver-B
Key Features
◈
Alloy metal stents with advanced spray technology for superior durability.
◈
Stainless steel pressure monitoring gauge (Range: 0-1 MPs, 0.05 readable scale).
◈
New generation veterinary anesthesia ventilator architecture and design.
◈
Professional operation with automatic parameter setting capabilities.
◈
Power supply rejection grid anti-jamming technology for stable performance.
◈
Excellent mobility, successfully passed rigorous vibration testing.
◈
International standard interface, compatible with various anesthesia machines.
Technical Specifications
| Driven Mode |
Pneumatically driven electronically controlled |
| Respiration Mode |
IPPV, Manual |
| Tidal Volume |
50 ~ 1600ml |
| I:E Ratio |
1:2 |
| Respiration Frequency |
3-40 bpm |
| Small Animal Bellows |
0 ~ 300ml |
| Big Animal Bellows |
300 ~ 1600ml |
| Airway Pressure |
-20 ~ 100 H2O |
| Gas Source Gauge |
0 ~ 1Mpa (O2) |
| Monitoring Indicators |
Inspiratory, Expiratory, Power indicator |
Detailed Diagrams
Frequently Asked Questions
1. What is the drive mechanism for the LifeSaver-B ventilator?
The LifeSaver-B is a pneumatically driven and electronically controlled ventilator, ensuring precise respiration management for veterinary patients.
2. Can this ventilator be used for both small and large animals?
Yes, it features exchangeable bellows: a small animal bellows (0-300ml) and a big animal bellows (300-1600ml), making it suitable for a wide range of animal sizes.
3. Is the LifeSaver-B compatible with different anesthesia machines?
The device is designed with an international standard interface, allowing it to be seamlessly integrated with any standard veterinary anesthesia machine.
4. What safety monitoring features are included?
It includes a stainless steel airway pressure monitoring gauge, along with dedicated indicators for inspiratory phase, expiratory phase, and power status.
5. How does the device handle electrical interference in a clinical environment?
It adopts advanced power supply rejection grid anti-jamming technology to ensure stable and consistent performance even in busy clinical settings.
6. What is the tidal volume range of this model?
The LifeSaver-B supports a broad tidal volume range from 50ml up to 1600ml, adjustable based on the specific needs of the patient.
