Product Description

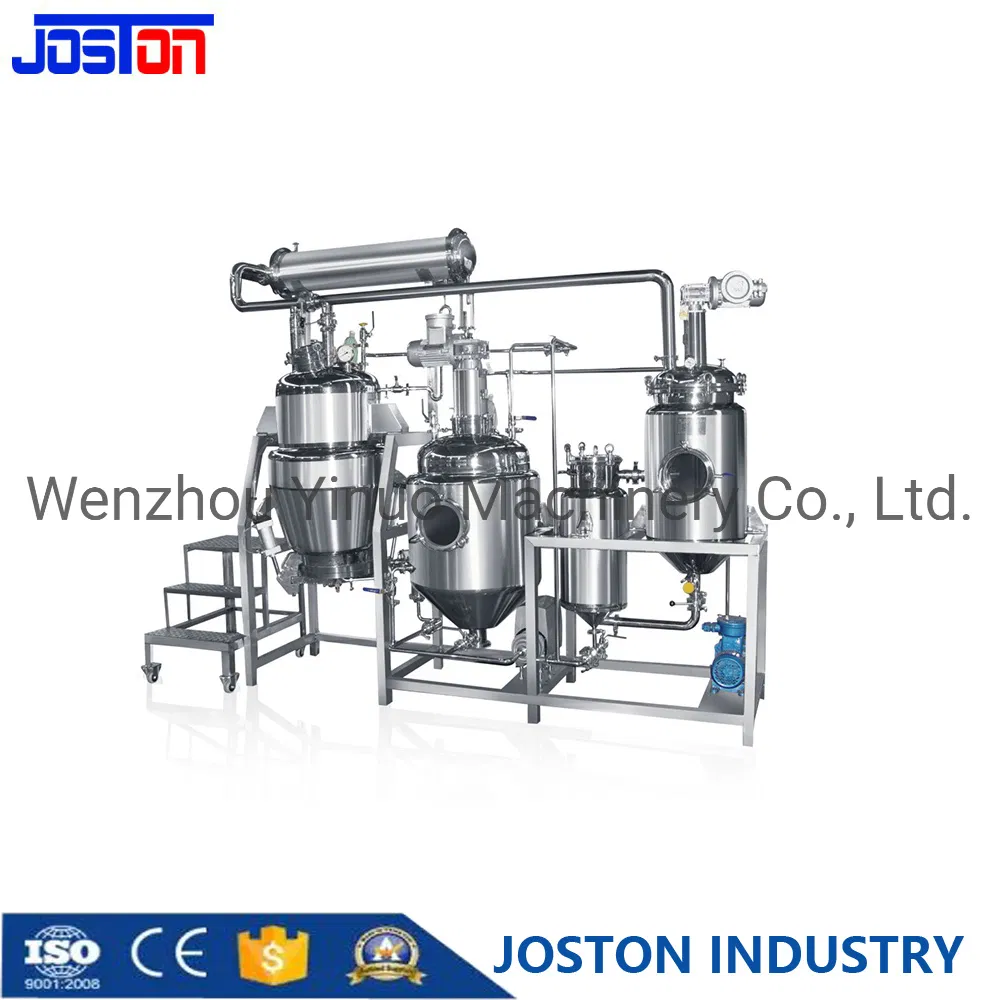

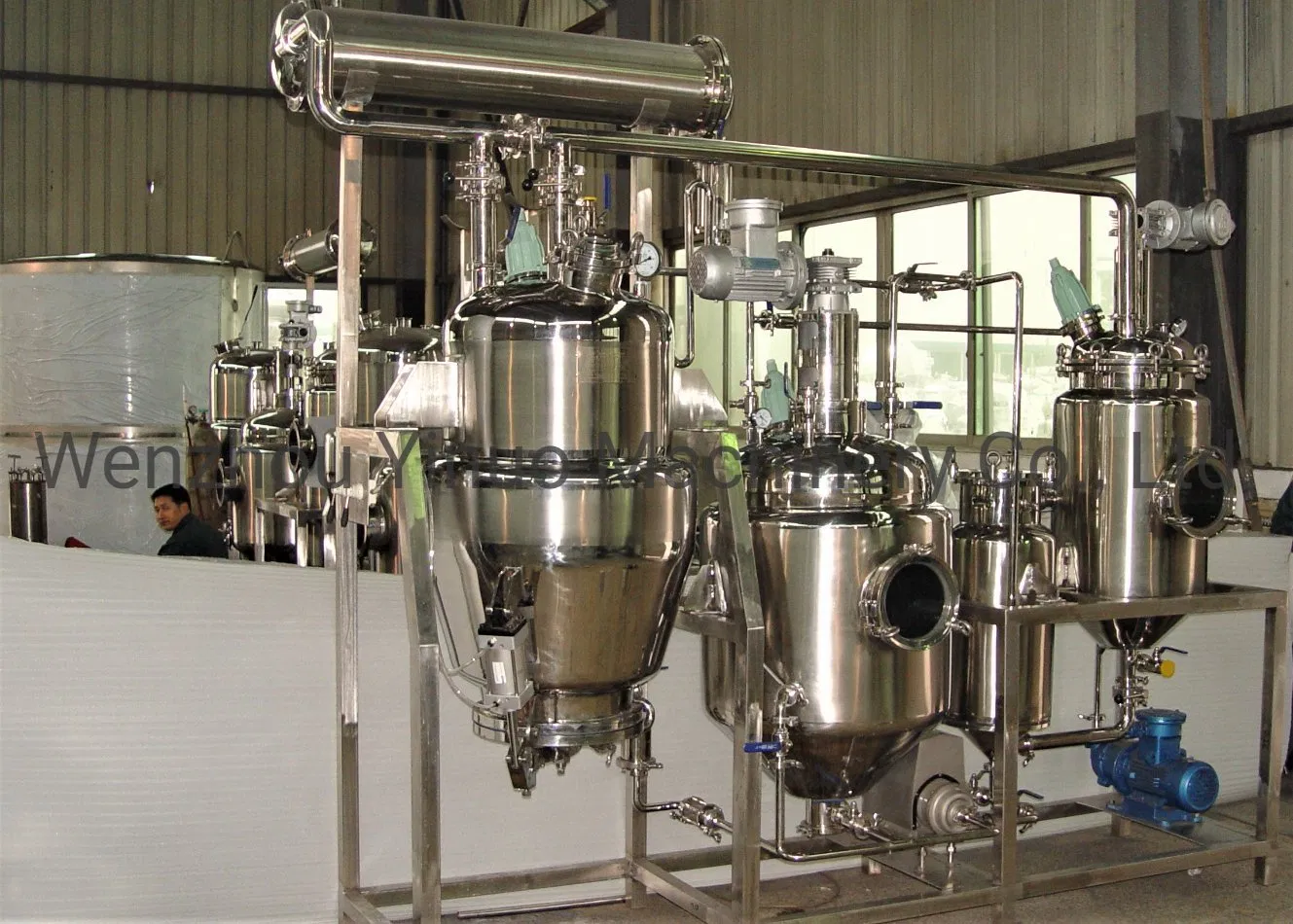

Multifunctional Laboratory Small Scale Mini Herbal Extraction Equipment provides complete extractor and concentrator functions for various raw materials including herbal leaves, roots, wood, seeds, fruits, flowers, seafood, animal bones, and natural products. It is ideally suited for laboratories, universities, research units, and pharmaceutical pilot plants to develop new medicines and production processes.
Main Features
- Compliance: Built with SS304 and SS316L to meet GMP and FDA requirements; excellent anti-corrosion for various solvents.
- Versatile Scale: Tank volumes range from 50L to 500L, perfect for different pilot scale operations.
- Flexible Heating: Supports steam heating, electrical heating, and thermal oil heating for user convenience.
- Complete System: A turnkey solution including transfer pumps, vacuum pumps, and integrated utilities.
- Plug & Play: Entire system is mounted on a stainless steel platform with finished internal piping.
- Advanced Control: Choice of manual or HMI/PLC operation with PID temperature control and viscosity monitoring.
Working Methods & Composition

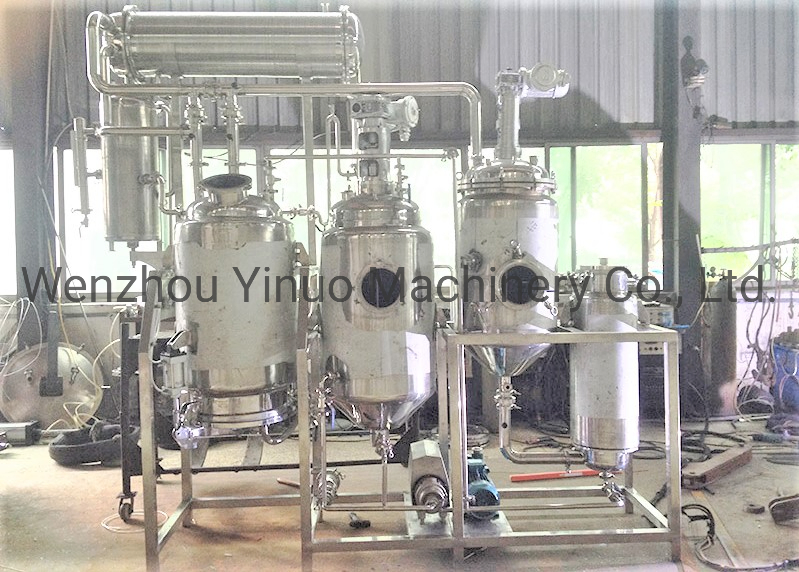

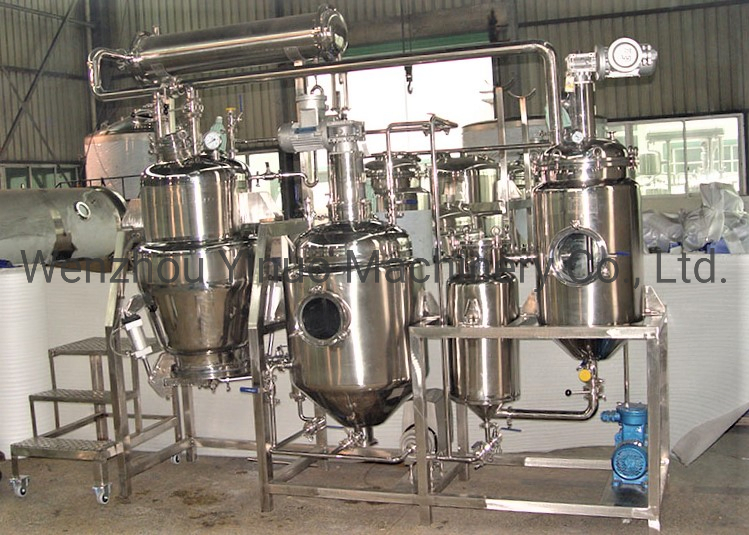

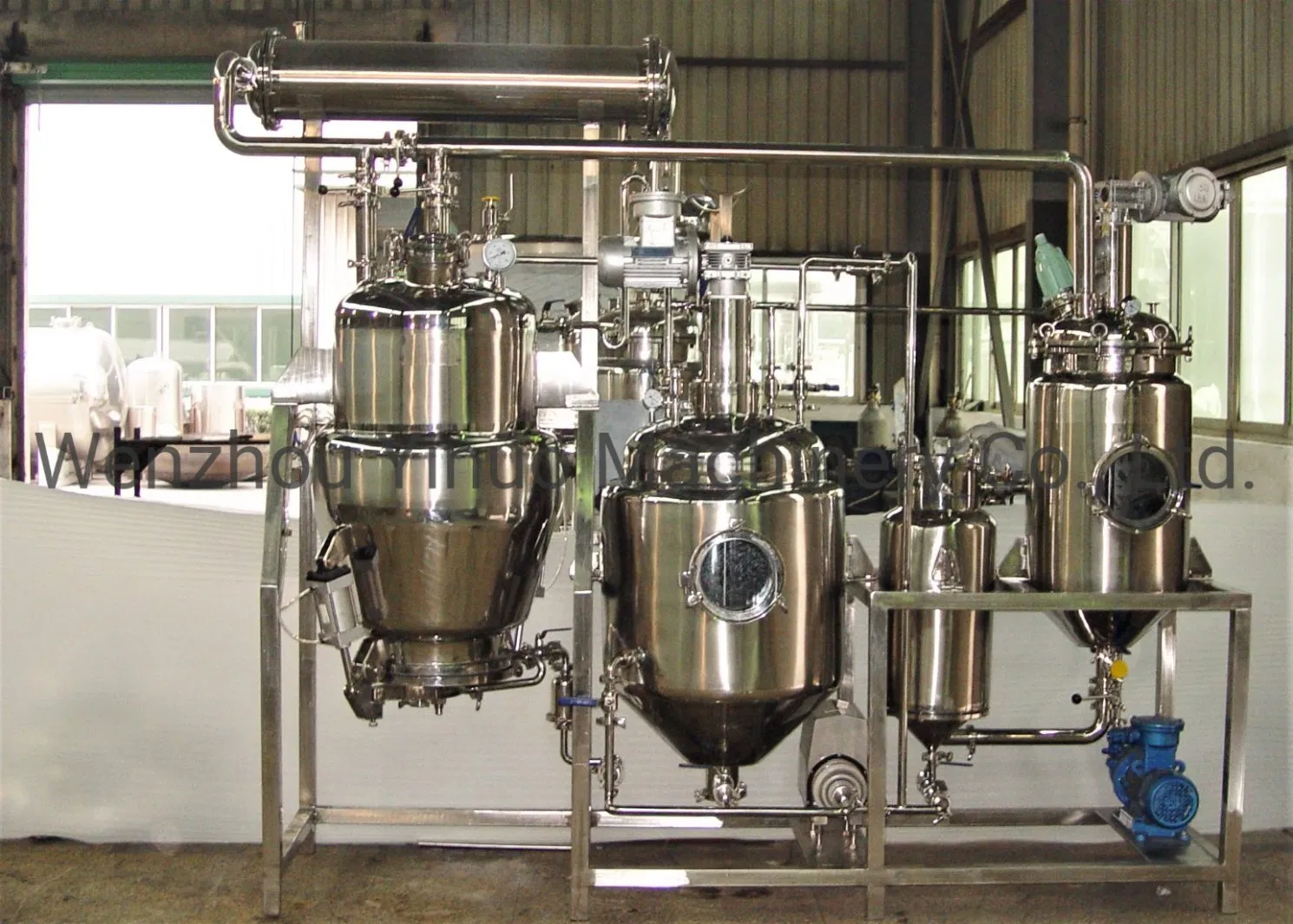

This equipment supports aromatic oil steam distillation, water-based extraction, solvent-based extraction, sollhex extraction, thermal-reflux extraction, sediment purification, and solvent recovery. The system primarily consists of an extractor tank, condenser, oil/water separator, multifunctional tank, single-effect evaporator, transfer pump, vacuum pump, and control panel.
Frequently Asked Questions
What materials are used for the extraction equipment?
The equipment is manufactured using high-quality SS304 and SS316L stainless steel, ensuring compliance with GMP and FDA standards while providing excellent corrosion resistance.
What is the processing capacity of these units?
Our laboratory and pilot scale units range from 50L to 500L, allowing for flexible development from small-scale testing to pre-commercial pilot runs.
Can this system handle different solvents?
Yes, the multifunctional design allows for water-based extraction, solvent-based extraction (like ethanol), and essential oil steam distillation.
Are there multiple heating options available?
The system is highly adaptable and can be configured for steam heating, electrical heating, or thermal oil heating depending on your facility's utilities.
Is the extraction process automated?
We offer both manual and HMI/PLC control options. The PLC system includes PID temperature control, extraction timing, and foam destruction for precise operation.
Does the system require complex onsite assembly?
No, the entire unit is skid-mounted on a stainless steel platform with all internal piping completed at our plant, making it a "plug-and-play" solution.
