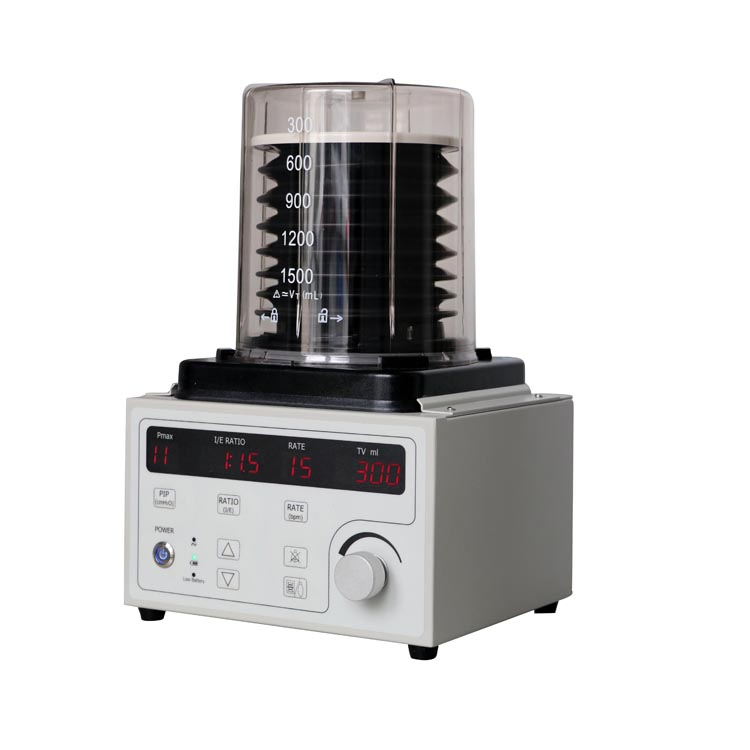

Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal

1 / 5

Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal

Customization:	Available
Type:	Operation Apparatus
Syringe:	No

Send Inquiry

Product Description

Overview & Basic Info

Model: MSLBC267

Blood Sampling: No

Breathing Pattern: Manual Mode

Package: Standard Export Package

Capacity: 500 PCS/Month

Product Description

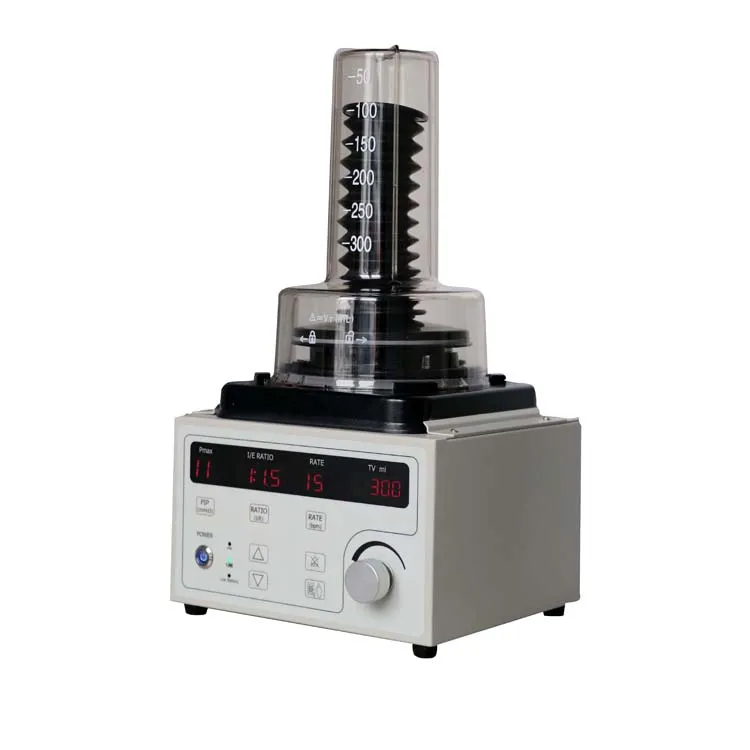

Portable Veterinary Anesthesia Ventilator

Designed specifically for both large and small animal anesthesia, this ventilator is ideal for veterinary hospitals, research institutes, university laboratories, and animal clinics.

Compact design to save valuable clinic space.

Lightweight and portable, reducing hospital operational costs.

Features IPPV mode for automatic breathing, ensuring animal comfort.

Includes specialized bellows for both large and small animals.

High-precision gas source pipeline ensures zero leakage.

LCD digital display for monitoring essential parameters.

Simple key interface for easy parameter setting and operation.

Built-in battery provides over 1 hour of backup power.

Compatible with various brands of veterinary anesthesia machines.

Product Parameters

Operating Mode	Pneumatically driven and electrically controlled
Display	LCD digital display
Animal Bellow	Big animal: 300-2000ML (optional); Small animal: 0-300ML
Monitoring	Tidal volume, breathing rate, I:E ratio, Peak airway pressure
TV Range	0-300ml, 300-1600ml
Breathing Rate	4~60bpm
I:E Ratio	1:1~1:4 adjustable
Upper Pressure	2~6kpa
Lower Pressure	0.6~2kpa
Alarm System	Battery low, Power failure, Airway pressure high/low
PIP Scope	5-60kpa
Configuration	Main unit, bellows, foldable bag, bellow cover, medical pipelines, O2 pipeline, power cable, flow sensor

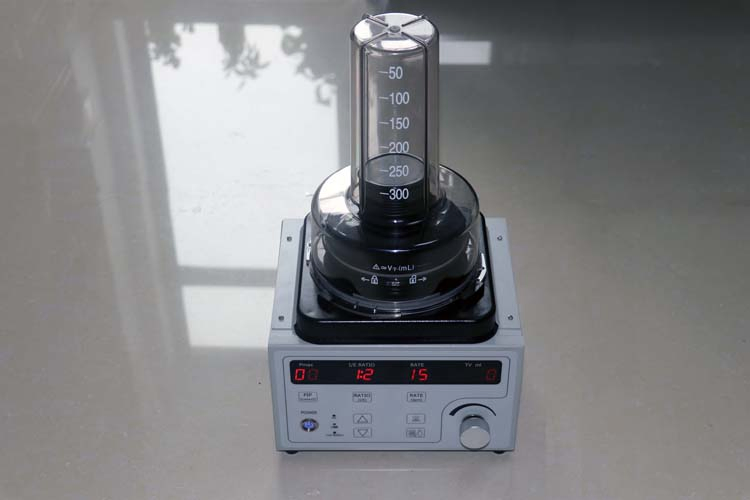

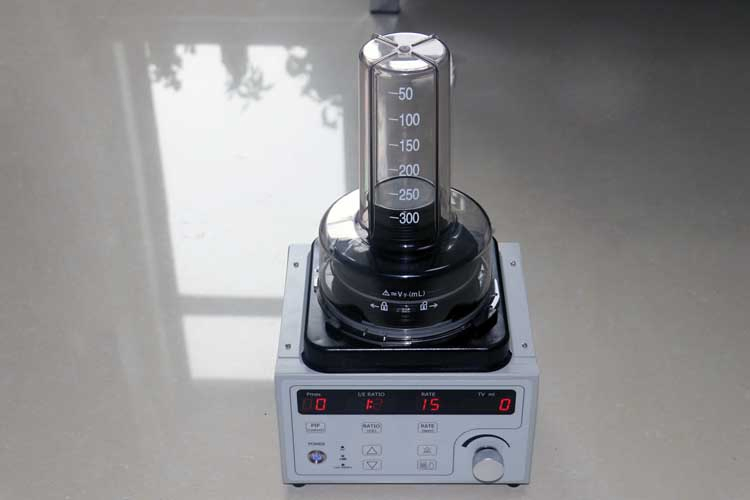

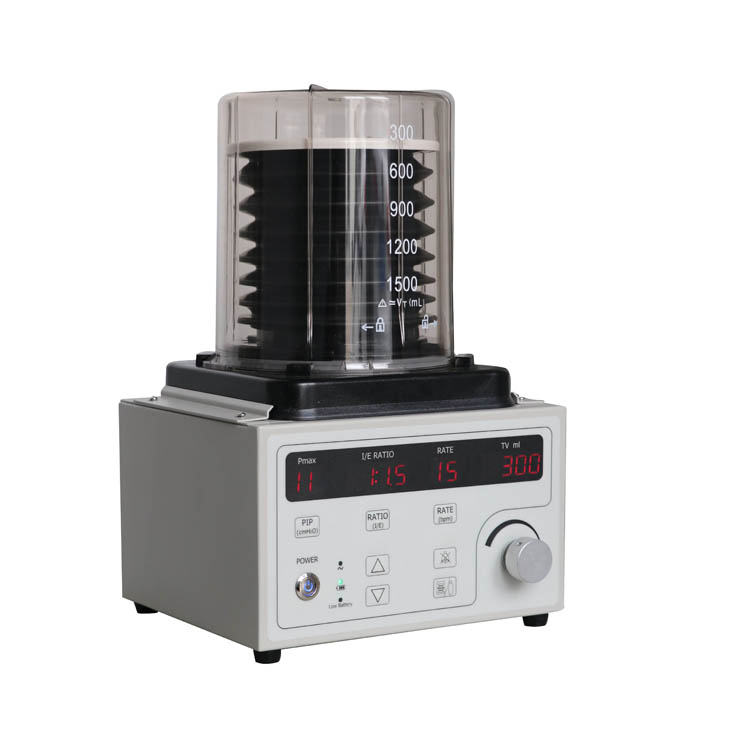

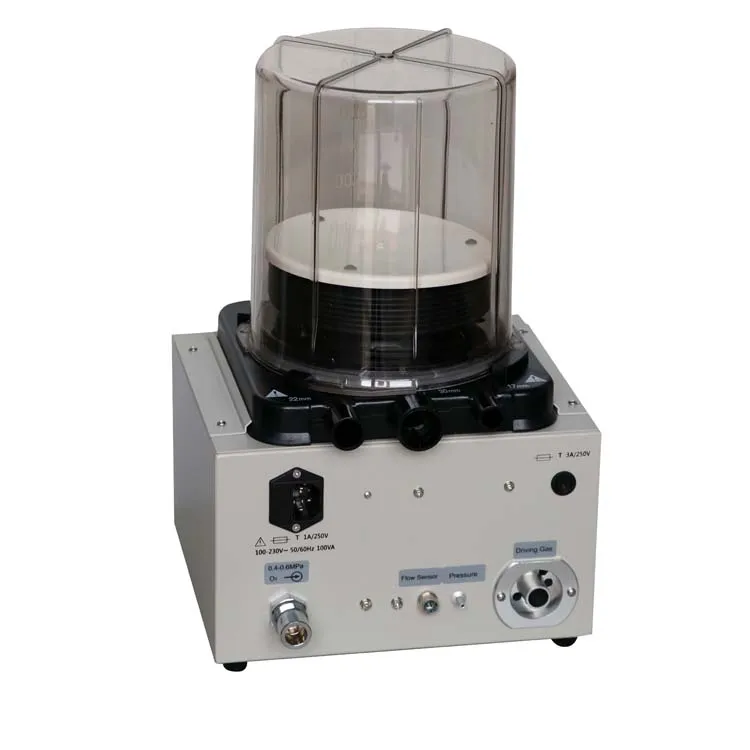

Detailed Photos

Facility & Quality Control

Frequently Asked Questions

1. Can this ventilator be used for both large and small animals? Yes, it comes with interchangeable bellows specifically designed for both large (300-2000ML) and small (0-300ML) animal use.

2. Does the machine support automatic breathing modes? Yes, it features the IPPV (Intermittent Positive Pressure Ventilation) mode to achieve automatic breathing, ensuring maximum comfort for the animal.

3. What happens if there is a power failure during surgery? The unit has a built-in battery that allows it to continue operating for more than one hour in case of a power outage.

4. Is this ventilator compatible with my existing anesthesia machine? This ventilator is designed to be compatible with various brands of veterinary anesthesia machines.

5. How are the vital parameters monitored? The machine features an LCD digital display that monitors tidal volume, breathing rate, I:E ratio, and peak airway pressure in real-time.

6. Are there alarms for safety monitoring? Yes, the system includes multiple safety alarms for low battery, power failure, and high or low airway pressure.
