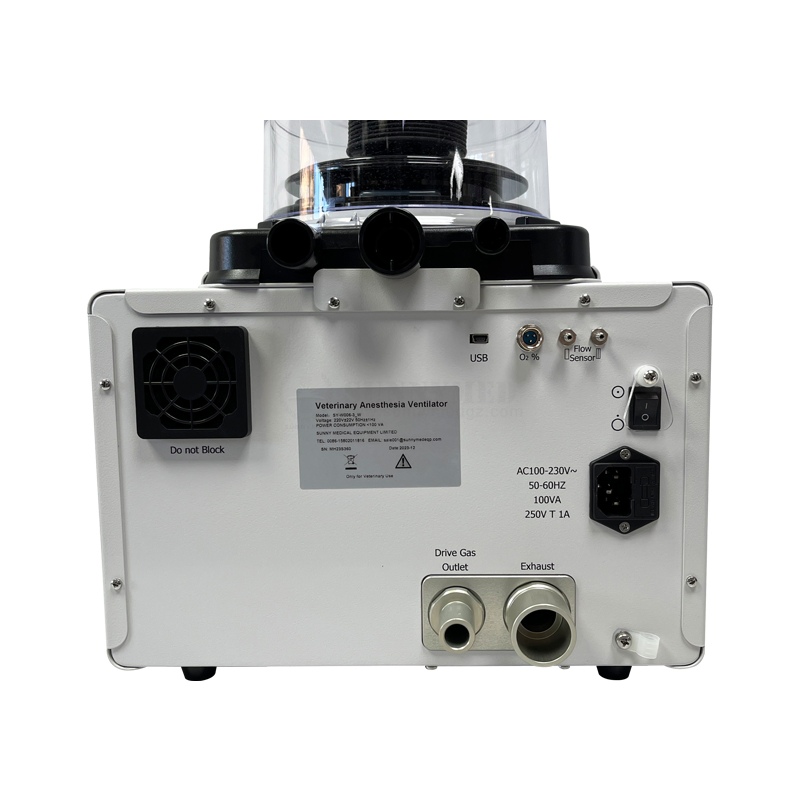

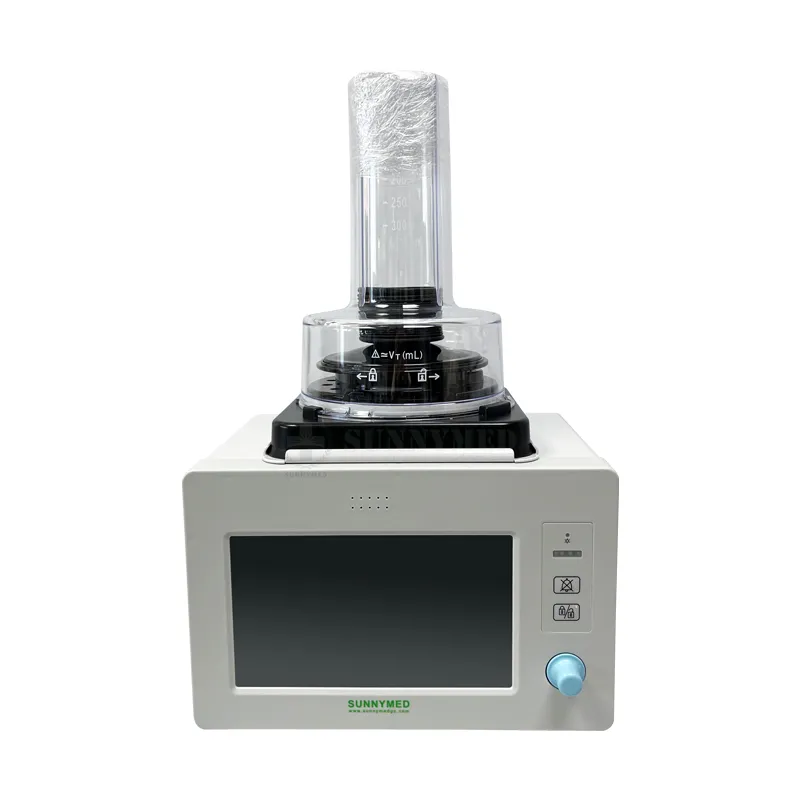

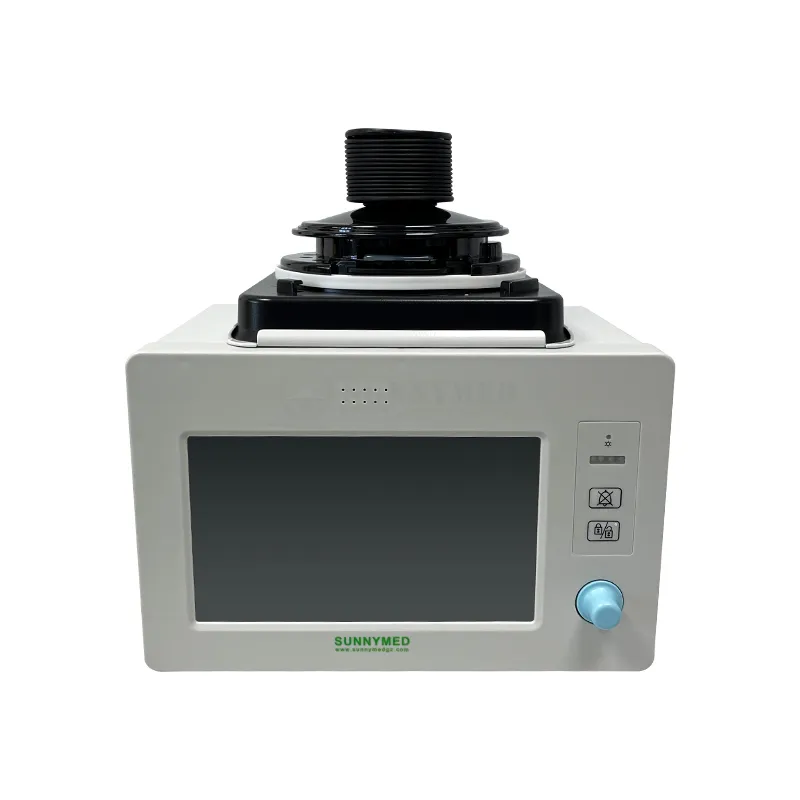

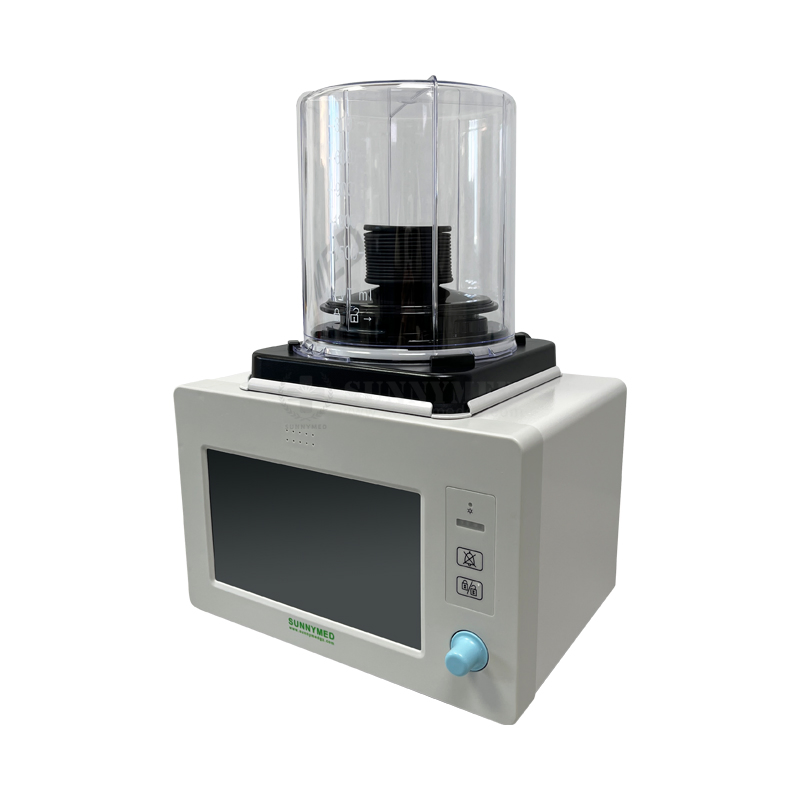

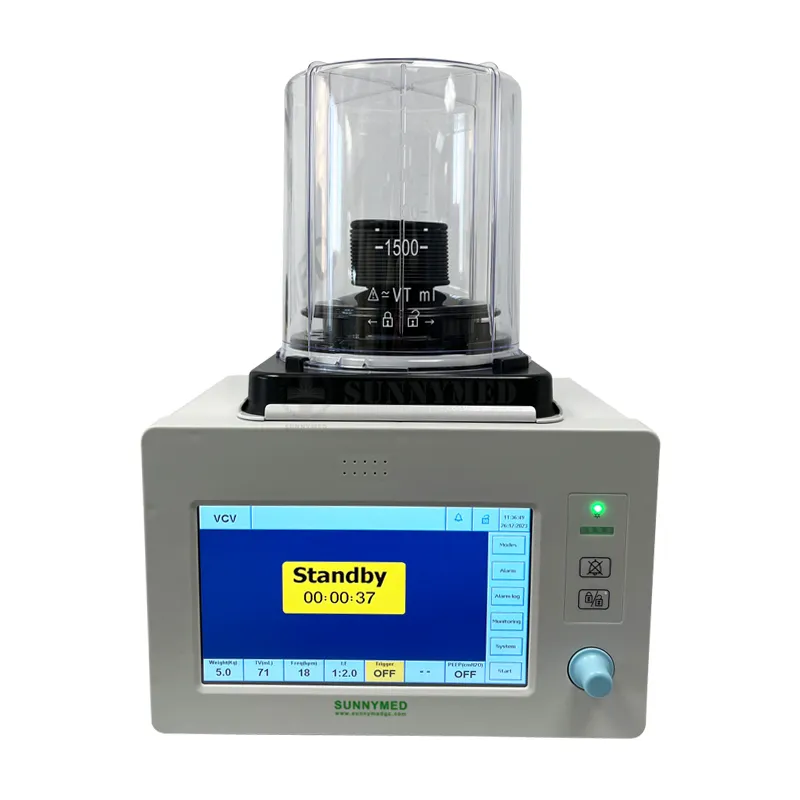

SY-W006-3_W Veterinary Clinic Portable Veterinary Anesthesia Ventilator
✔
Specially designed for animal anesthesia ventilation; widely applicable in vet hospitals, animal R&D institutes, universities, laboratories, clinics, and zoos.
✔
Compatible with any brand of anesthesia machine; compact and space-saving design.
✔
Lightweight and easy to move; features automatic parameter calculation based on weight.
✔
Includes PCV mode for automatic breathing to ensure animal comfort.
✔

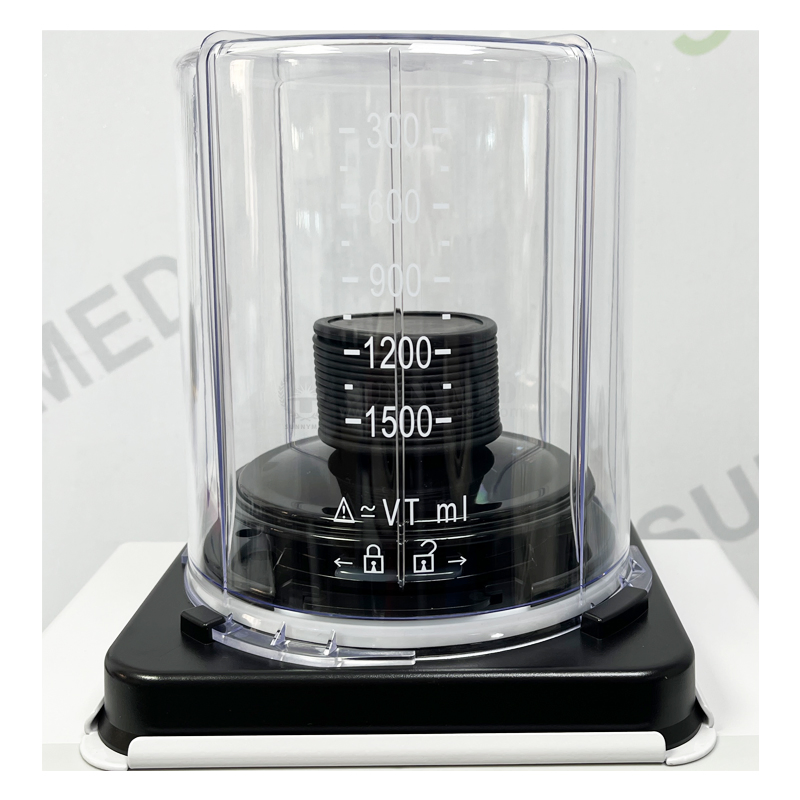

Equipped with both large and small animal bellows specifically for veterinary use.
✔
High-precision gas source pipeline ensures zero leakage.
✔

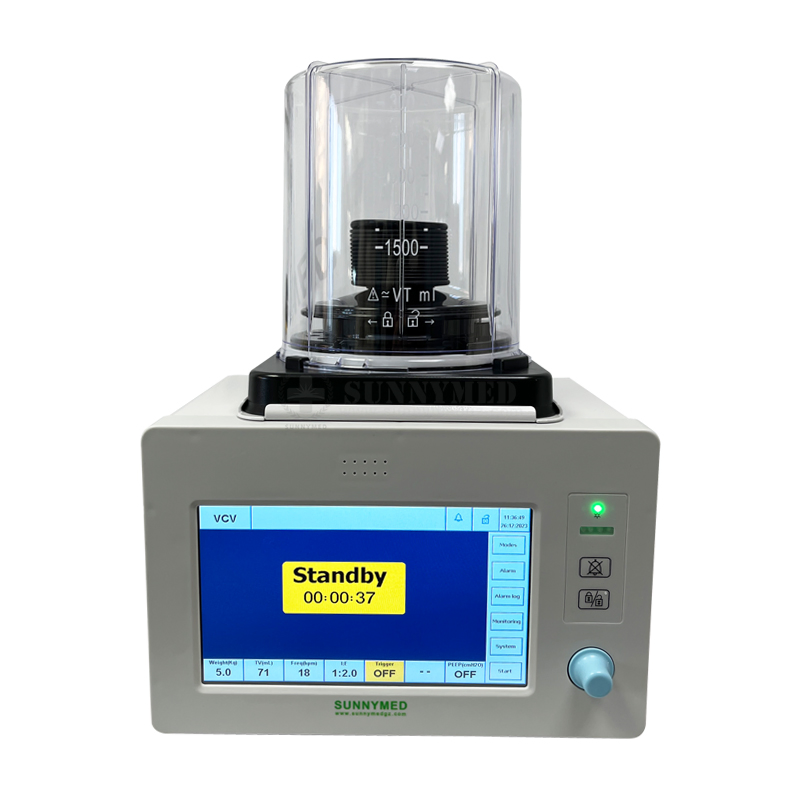

HD TFT Touch screen with simple touch-key parameter setting.
✔
Built-in battery provides over two hours of operation during power failure.
| Display: 9" TFT, with touch screen. |
| Drive Gas: Gas type O2 or Air. |
| Inlet Pressure: 280-600 kPa. |
| Max Flow: ≤ 120 L / min. |
| Operating Modes: VCV, PCV, SIMV-VC, SIMV-PC, PSV, Manual/SPONT. (Optional: SIMV-PRVC, PRVC) |
| Waveforms: Pressure, Flow-rate, Volume; Loops: PV loop, PF loop, FV loop. |
| Battery: Li-ion, work time more than 2 hours. |

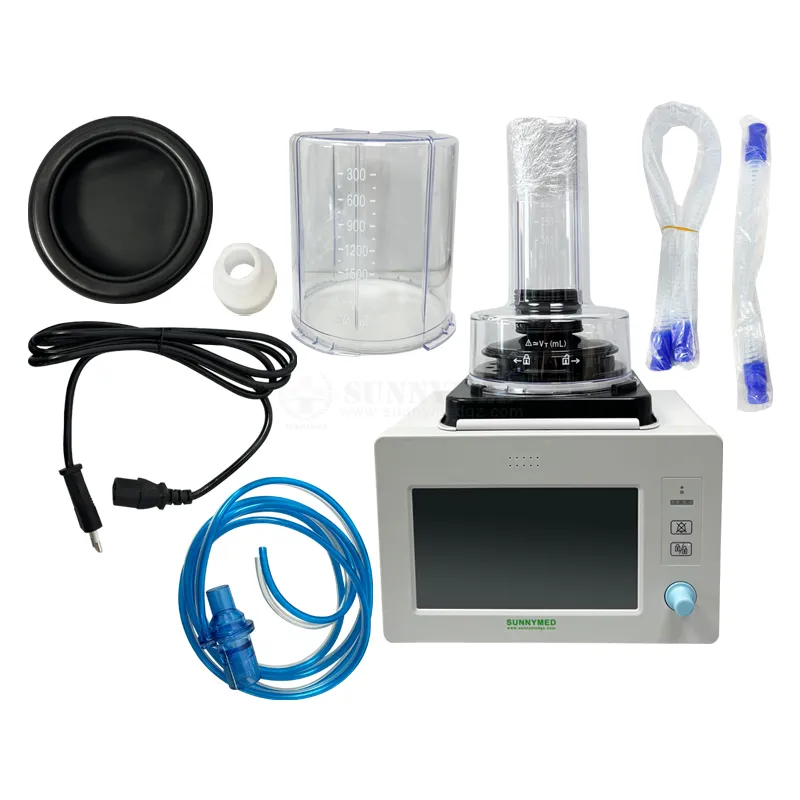

| Configuration: Main unit, bellows (0-300ml), foldable bag, bellow cover, medical corrugated pipelines, O2 supply pipeline, power cable, flow sensor. (Optional: 300-2000ml bellow). |
Frequently Asked Questions
Q1: Which types of animals can use this anesthesia ventilator?
A: It is designed for a wide range of animals. It comes with both small (0-300ml) and large (300-2000ml) bellows to accommodate different sizes.
Q2: Can this ventilator be used with my existing anesthesia machine?
A: Yes, it is designed to be compatible with any brand of veterinary anesthesia machine.
Q3: How long can the battery last during a power outage?
A: The built-in Li-ion battery can support continuous operation for more than 2 hours.
Q4: Is the operation interface easy to use for new staff?
A: Absolutely. It features a 9-inch HD TFT touch screen with an intuitive interface for easy parameter settings.
Q5: What are the main breathing modes available?
A: The standard modes include VCV, PCV, SIMV-VC, SIMV-PC, PSV, and Manual/SPONT.
Q6: Does it calculate parameters automatically?
A: Yes, it can automatically calculate various parameters based on the animal's weight.
