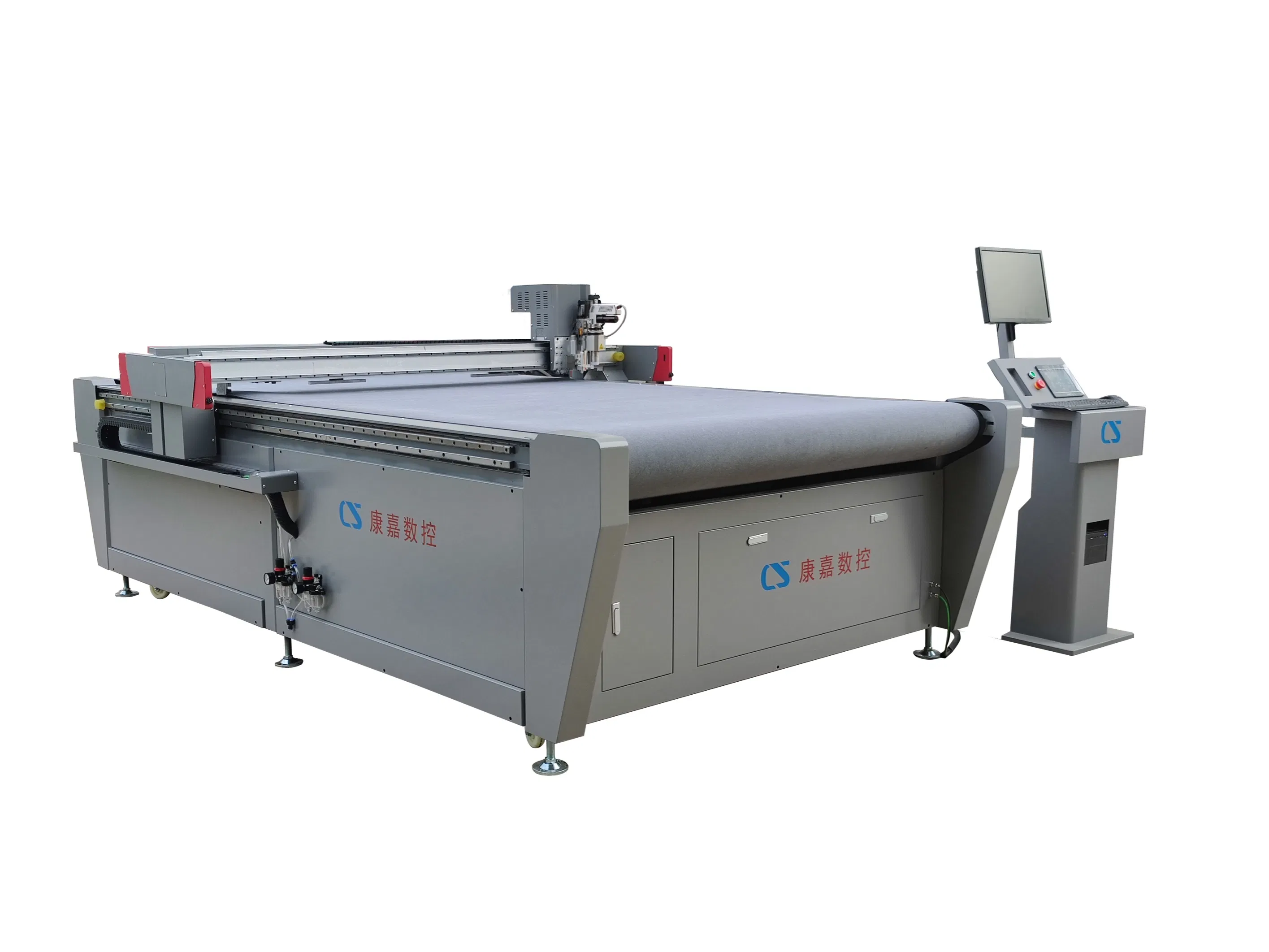

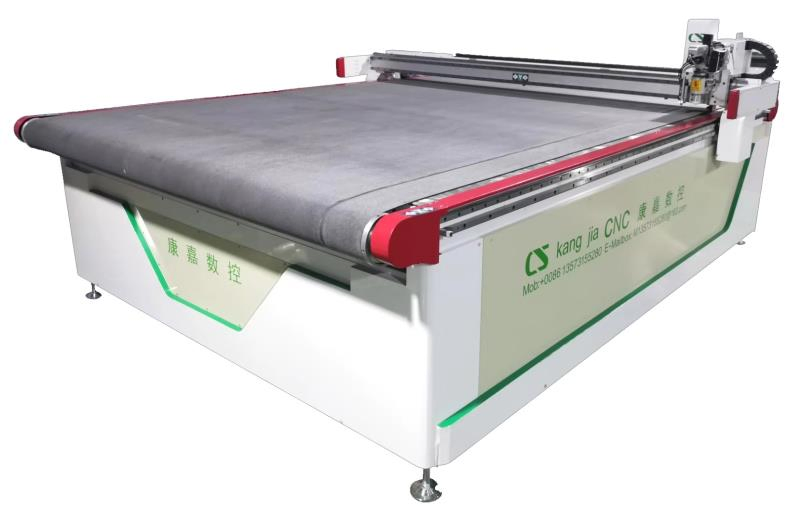

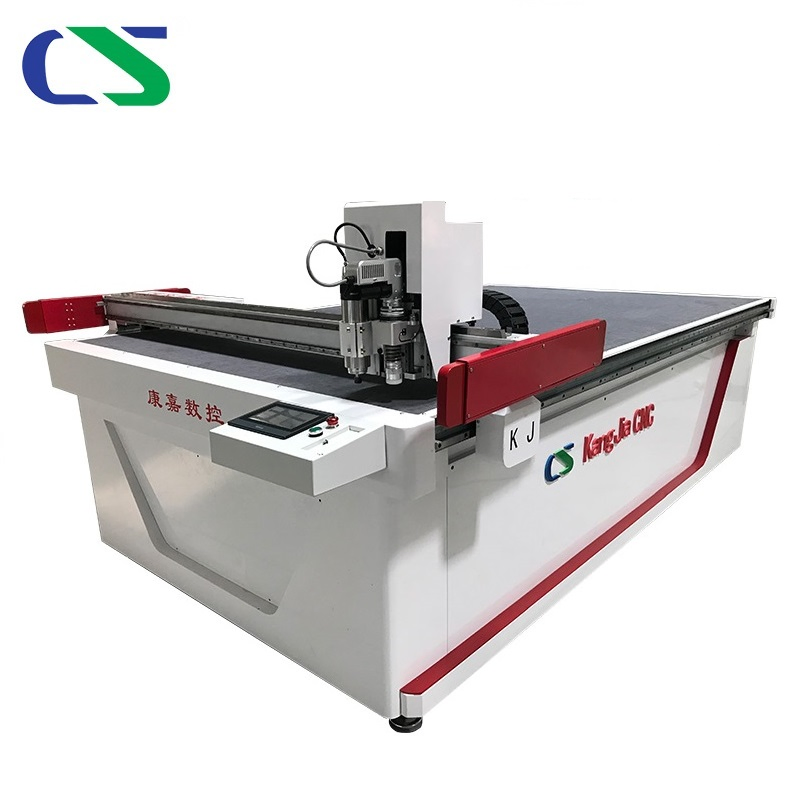

Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
1 / 5
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife
Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife

Shoe Upper Hole Pet Acoustic Board Cutting Machine with Oscillating Knife

Customization: Available
Warranty: 1-year
Certification: CE, ISO 9001:2000, ISO 9001:2008
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
KJ1625/1615/1630
Condition
New
Control
Automatic
Application
Paper, Plastic, Leather, Fabric
Power Source
Electric
Layout
Horizontal
Voltage
110/220/380V
Power
9-11kw
Cutting Speed
1500mm/S
Cutting Thickness
50mm
Safety Device
Infrared Radiation/Anti-Collision/Emergency Stop
Transport Package
Wooden Box
Specification
1600*2500mm
Trademark
kangjia
Origin
China
Production Capacity
100 Unit / Month
⚙️ Product Description

Production: Shoe Upper Hole PET Acoustic Board Cutting Machine With Oscillating Knife

Shoe Upper Hole Pet Acoustic Board Cutting Machine

Features of Oscillating Knife Cutting Machine:

  • It can automatically discharge and cut the entire sheet (eliminating tedious manual unloading).
  • Vacuum suction function prevents material movement and improves output quality.
  • Easy installation and operation, reducing labor intensity and increasing efficiency.

Quick Specs:
Voltage 110-380v | Power 9-11kw | Materials Flexible materials | Fixing Vacuum absorption | Motor Servo motor

📋 Technical Data
Model1625/1630/1830/2030 optional
Working area1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm
Rated power7-11KW
Fixed modeFlat table /auto feeding table optional

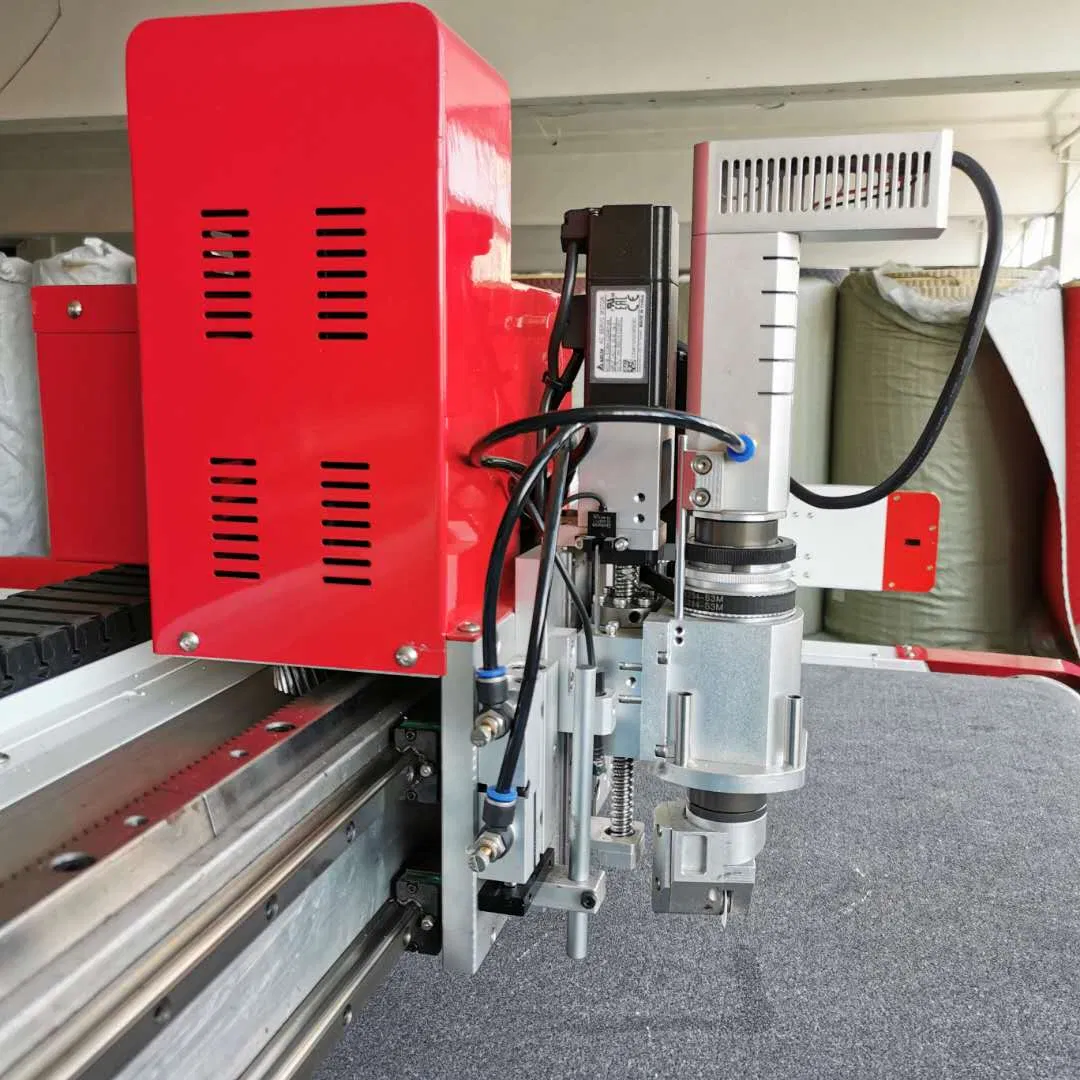

Multifunctional headsVibration knife, Circular knife, V-cut, Marking pen, Punching roller, Milling knife, Drag knife, Pneumatic knife
Safety deviceInfrared sensors, mechanical safety device, Intelligent anti-collision
Translational velocity800-1500mm/s
Cutting speedMax. 1500mm/s
Cutting thickness≤ 60mm
Repated accuracy≤ 0.1mm
Control systemLCD touch screen (custom made)

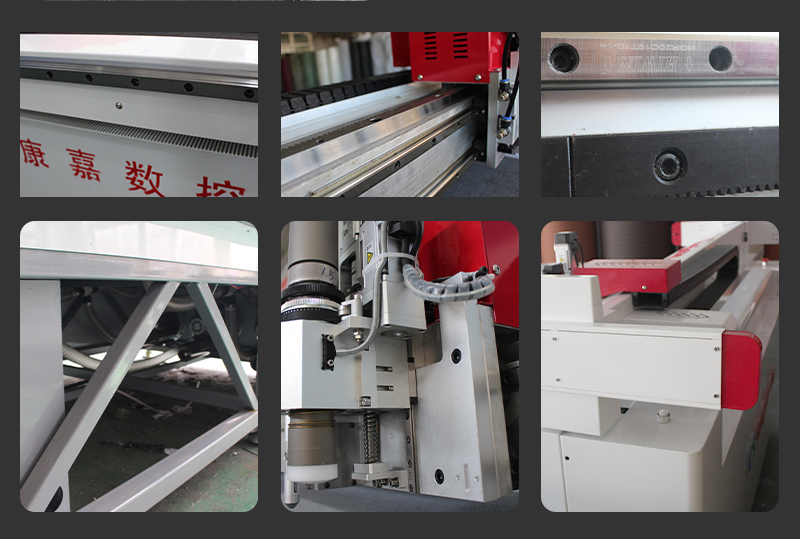

💎 Core Features & Advantages
  • Heavy duty machine body: Thick steel tube welding structure (>3.0 tons) for high accuracy.
  • Heat Treatment: Machine base processed by precise milling and stress relieved to ensure no deformation.
  • Precision Drilling: CNC center used for installing gear racks and guiding rails.
  • Laser Calibration: Advanced laser interferometer used to measure accuracy.
  • Auto Tool Changer: Linear system, 8/10pcs tools station, changes within 2 seconds.
  • CCD Positioning: Equipped with a CCD system to cut printed images accurately.
✂️ Application Materials

The oscillating knife cutting machine is widely used for packaging protection, advertising displays, thermal insulation, and model making. It can cut:

Leather Fabric/Textiles EVA Foam Cardboard PVC/Rubber KT Board

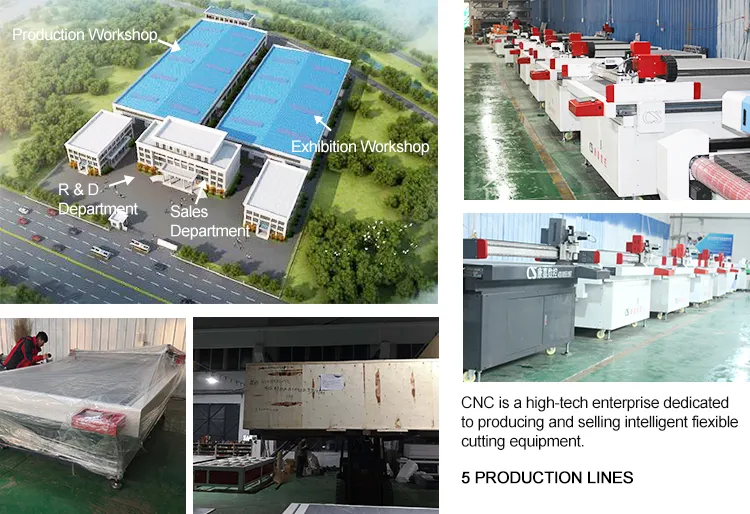

📸 Factory & Exhibition
📦 Packing and Delivery

Delivery Time: 3-20 days after confirming order, based on production season and quantity.

🛠️ After-Sales Service
  • 12 months quality guarantee (6 months for knives).
  • Free training courses at our plant.
  • Consumable parts provided at agency price.
  • 24 hours online service and free technical support.
  • On-site installation and adjustment available if necessary.
❓ Frequently Asked Questions
Q1: How can I choose a suitable Knife cutting machine?
A: Please provide info on your material type (rolled or sheet, breathable or not), the largest size of your material, thickness, and if you need extra functions like punching or CCD scanning.
Q2: Can you design a machine based on my requirements?
A: Of course, we provide professional suggestions and discuss details to ensure the machine matches your specific requests with the best cost performance.
Q3: What should I do if the machine has problems in the future?
A: We supply online/phone technical support and door-to-door service. Contact us immediately if anything is unclear or not working well.
Q4: What is the warranty policy?
A: The standard warranty is 18 months. Main parts are free of charge (excluding consumables) if problems occur due to quality issues during this period. We also provide life-long after-sales service.
Q5: If I am a beginner, how can I operate the machine?
A: We provide face-to-face training, operating videos, user manuals, and phone support. It is very easy to learn; most people master it within one day.
Q6: What materials can I cut with the oscillating knife?
A: You can cut a wide range of materials including medium density foam, rubber, card, fabrics, textiles, Correx, and fibreboard.
