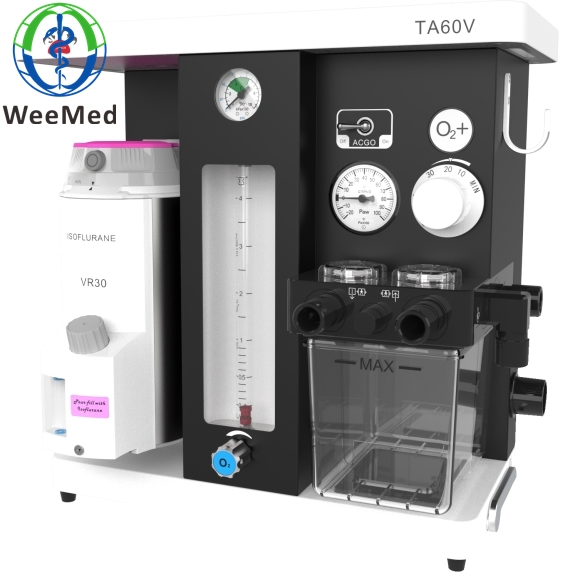

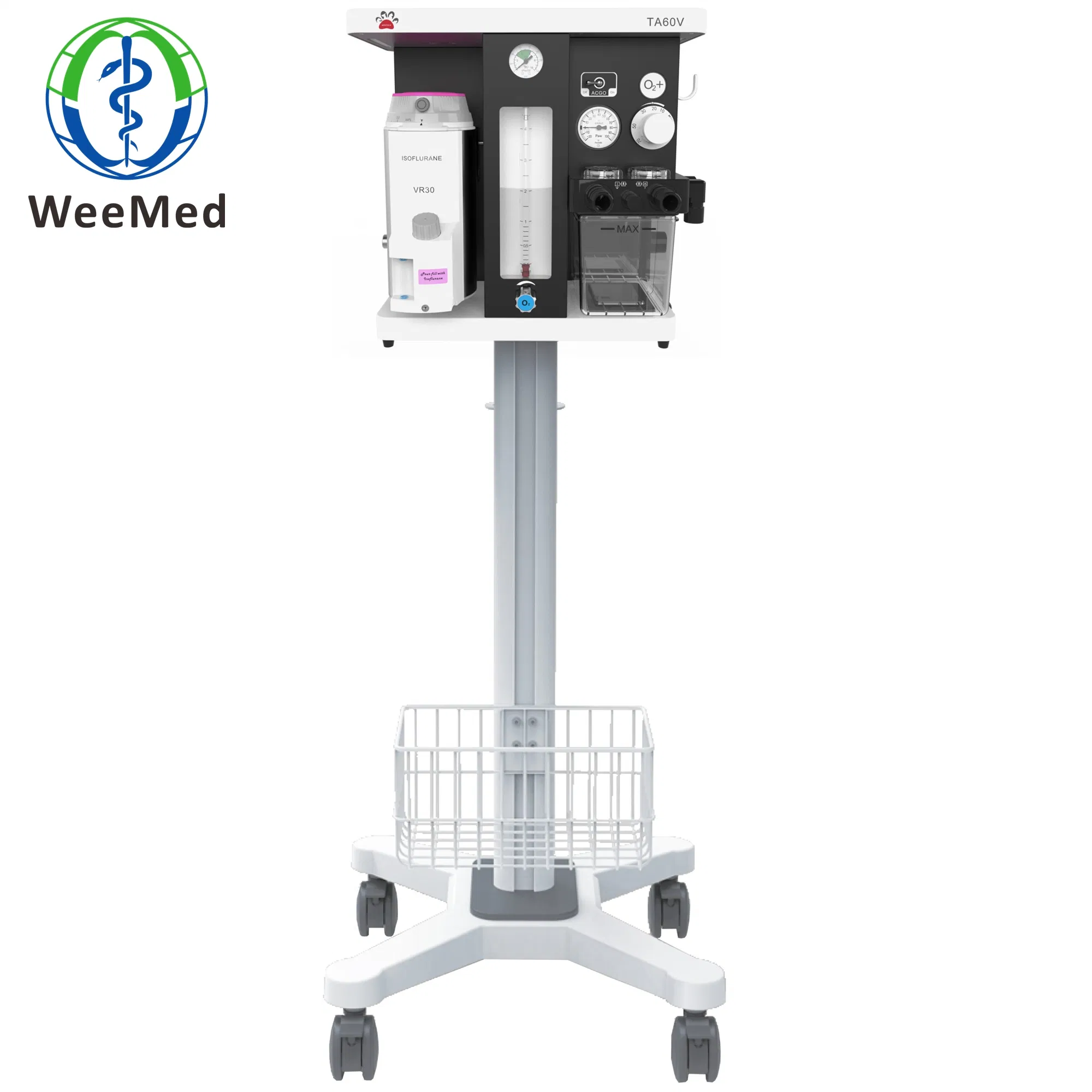

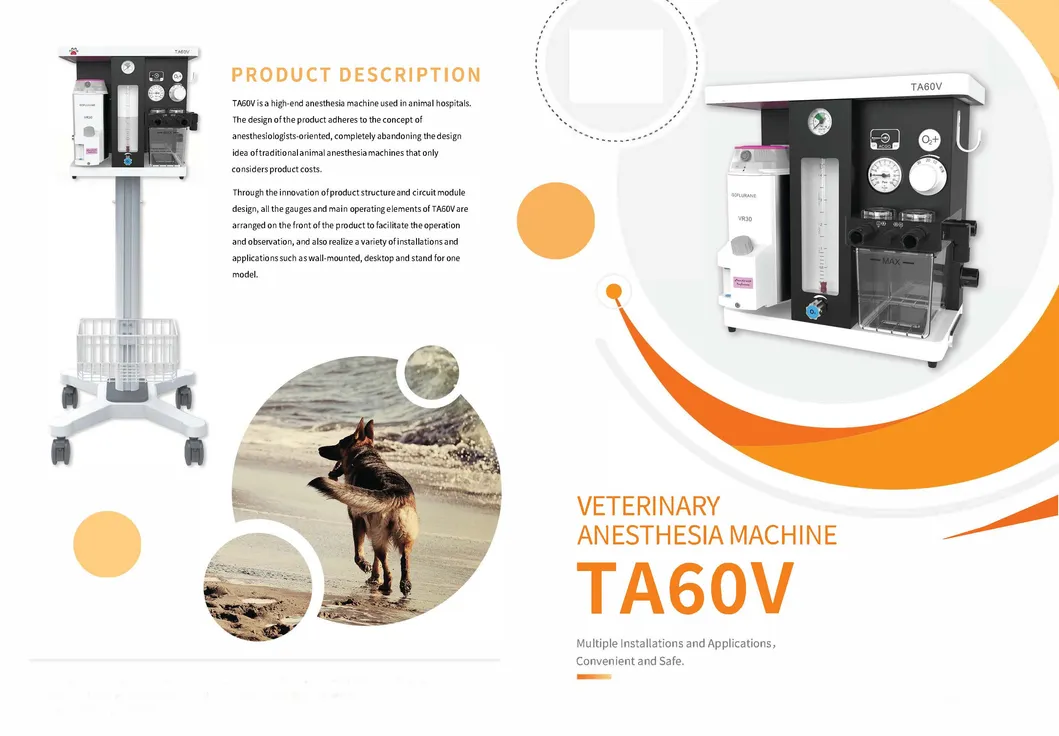

TA60V is a high-end anesthesia machine used in animal hospitals. The design of the product adheres to the concept of anesthesiologists-oriented, completely abandoning the design idea of traditional animal anesthesia machines that only considers product costs.

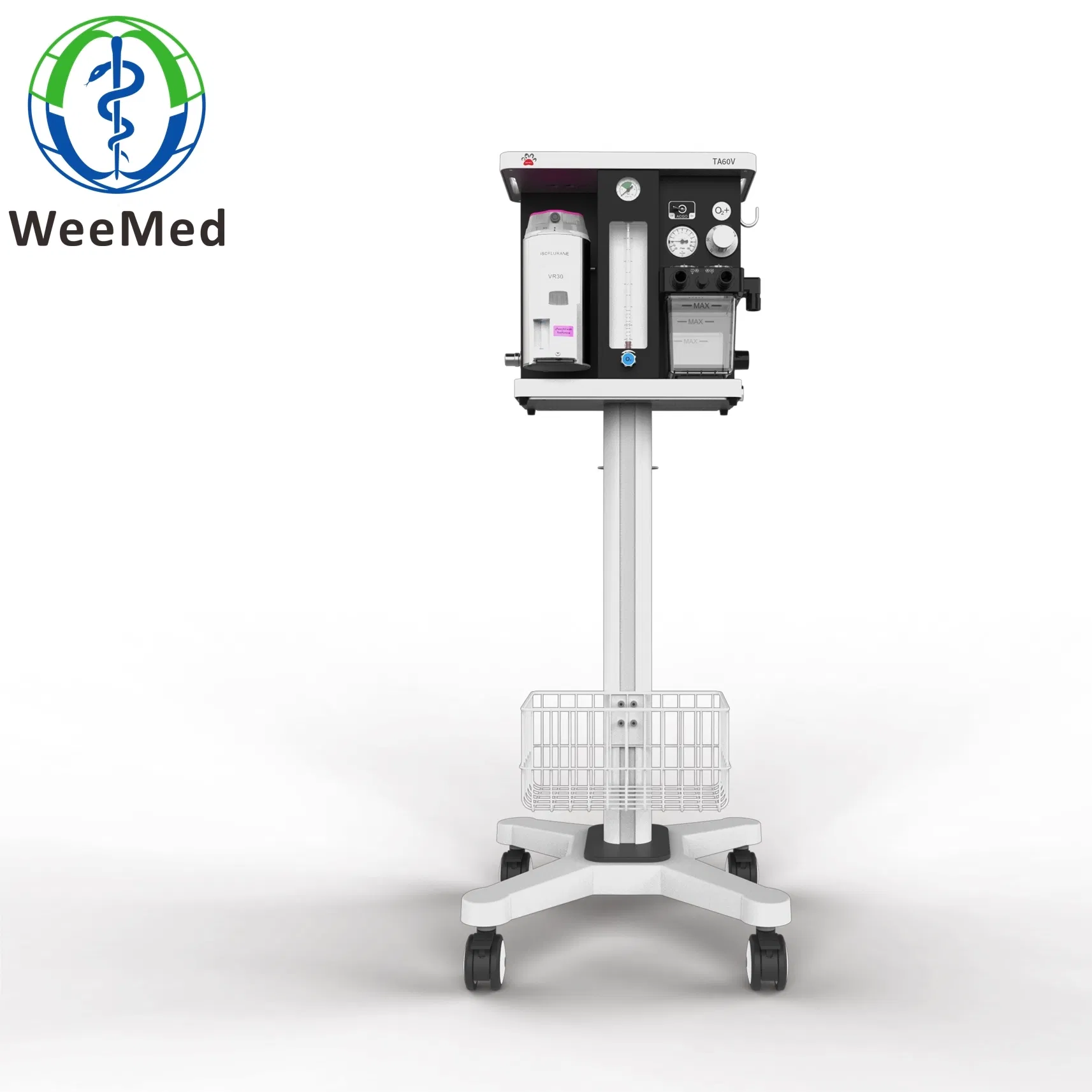

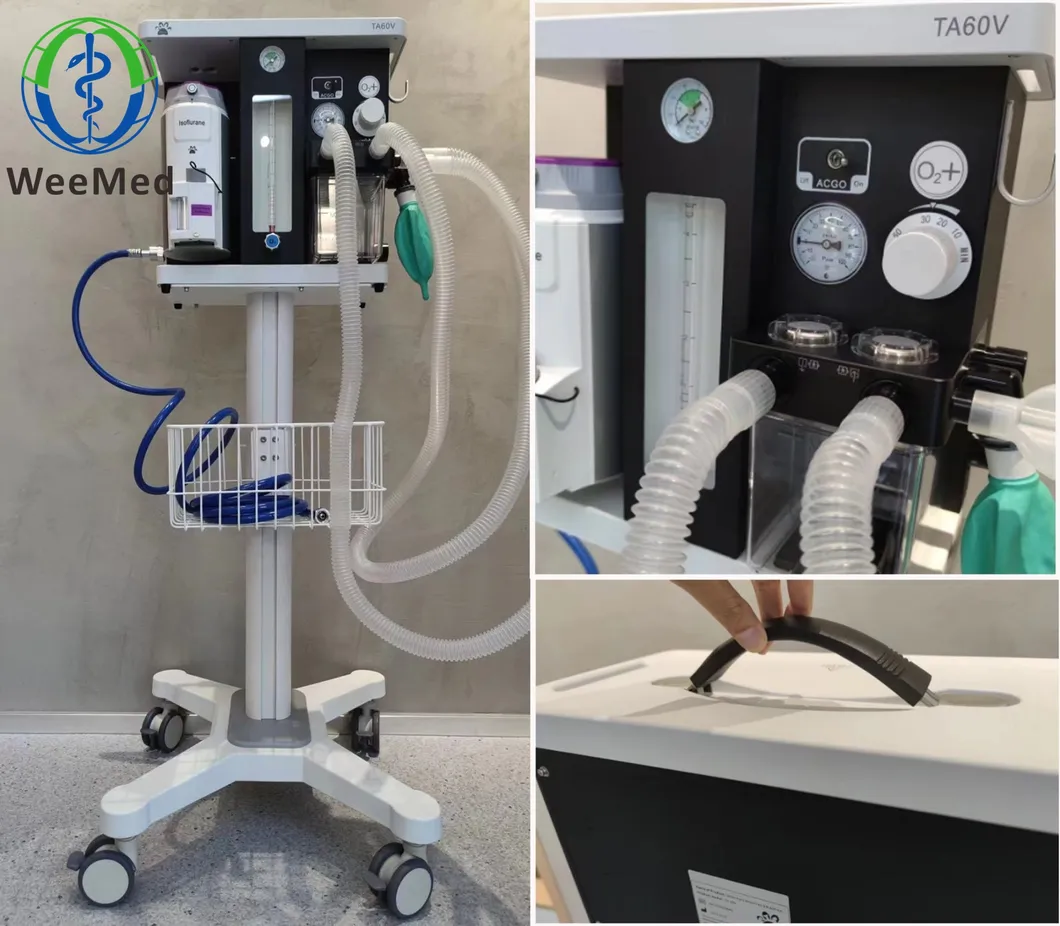

Through the innovation of product structure and circuit module design, all the gauges and main operating elements of TA60V are arranged on the front of the product to facilitate the operation and observation, and also realize a variety of installations and applications such as wall-mounted, desktop and stand for one model.
| Ventilation modes | IPPV; A/C; SIMV; |
| Flow meter | O2(0-5L/min) |
| Rapid oxygen supply | 35L/min-75L/min |
| Tidal volume (Vt) | 0, 20 mL ~ 1500 mL |
| Frequency (Freq) | 1bpm ~ 100 bpm |
| I/E Ratio | 2:1 ~ 1:6 |
| Pressure trigger sensitivity | -20 cmH2O ~ 0 cmH2O |
| Flow trigger sensitivity | 0.5 L/min ~ 30 L/min |
| SIGH | 0(off), 1/100 ~ 5/100 |
| Apnea Ventilation | OFF, 5 s ~ 60 s |
| Pressure Limit | 20 cmH2O ~ 100 cmH2O |
| Monitoring: Frequency | 0 /min ~ 100 /min |
| Monitoring: Tidal volume | 0 mL ~ 2000 mL |
| Monitoring: MV | 0 L/min ~ 100 L/min |
| Graphical display | P-T (pressure-time), F-T (flow-time) |
| AC power failure alarm | Power failure or no connection |
| Internal battery low voltage | <11.3±0.3V |
| No tidal volume | ≤5Ml within 6s |
| Oxygen concentration alarm | High: 19%-100%, Low: 18%-99% |
| Airway pressure alarm | High: 20-100cmH2O, Low: 0-20cmH2O |
| Suffocation warning | 5s-60s no spontaneous ventilation |
| Maximum limited pressure | <12.5 kPa |
