Basic Information
Application

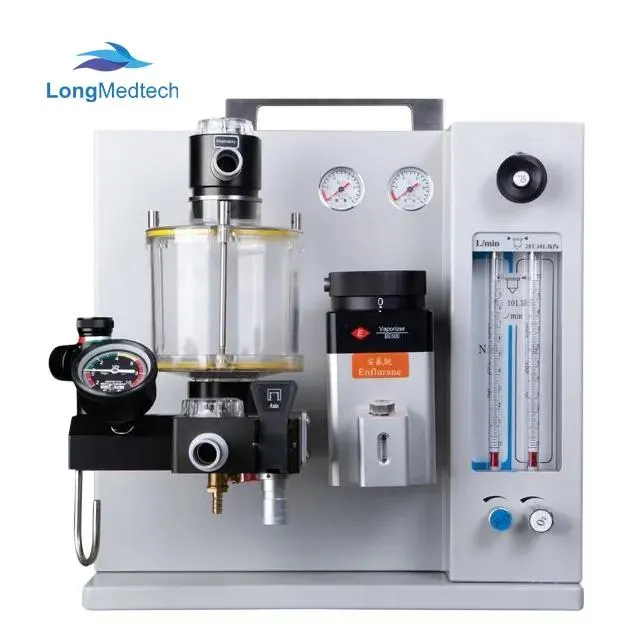

Veterinary Anesthesia Machine
Breathing Pattern
Veterinary Anesthesia
Dimension
L450*W405*H330mm
Production Capacity
10,000,000 Units
Product Description
⚙️
Working Principle: Pneumatic air control ensures stable performance and reliable operation.
🎨
APL Valve Regulation: Features a manual control range of 0.2kPa-6.0kPa with intuitive color marking. Green indicates low pressure, red indicates high pressure, and yellow represents the middle value.
🛠️
Compact Design: Designed for flexible movement and convenience. It offers complete functions while remaining safe and highly efficient for medical environments.
Technical Specifications
| Pipeline Gas |
O2, N2O |
| Safety Valve Discharge Pressure |
≤600kPa |
| Pressure at Pipe Inlet |
280kPa-600kPa |
| O2 Range |
0~10L/min |
| N2O Range |
0~10L/min |
| Absorbent Capacity |
750ml |
| APL Valve Range |
0.2kPa-6kPa |
Frequently Asked Questions
What is the main application of the LVP-500?
The LVP-500 is specifically designed as a Veterinary Anesthesia Machine, suitable for small to medium animal surgical procedures.
How does the APL valve color coding help during surgery?
The APL valve uses color marks for quick pressure identification: Green for low pressure, Red for high pressure, and Yellow for median values, ensuring safe manual adjustment.
What gases can be used with this flowmeter?
The device features dual flowmeters for both Oxygen (O2) and Nitrous Oxide (N2O), both ranging from 0 to 10L/min.
Is the machine portable for clinic use?
Yes, it features a compact structure design (L450*W405*H330mm) and weighs 22kg, making it flexible and easy to move within a medical facility.
What is the capacity of the absorbent in the respiratory system?
The respiratory system is equipped with a 750ml absorbent capacity to ensure efficient gas filtration during anesthesia.
What is the pressure limit for the pipeline gas supply?
The pressure at the pipe inlet should be maintained between 280kPa and 600kPa, with a safety valve discharge pressure of ≤600kPa.
