📋 Basic Specifications
Breathing Pattern
Manual Mode
Flow Meter
Oxygen Two Tube: 0.1~1L/min, 1~10L/min
Ventilation Mode
Closed, Half-Closed, Half-Open
Production Capacity
900PCS/Month
⭐ Key Features

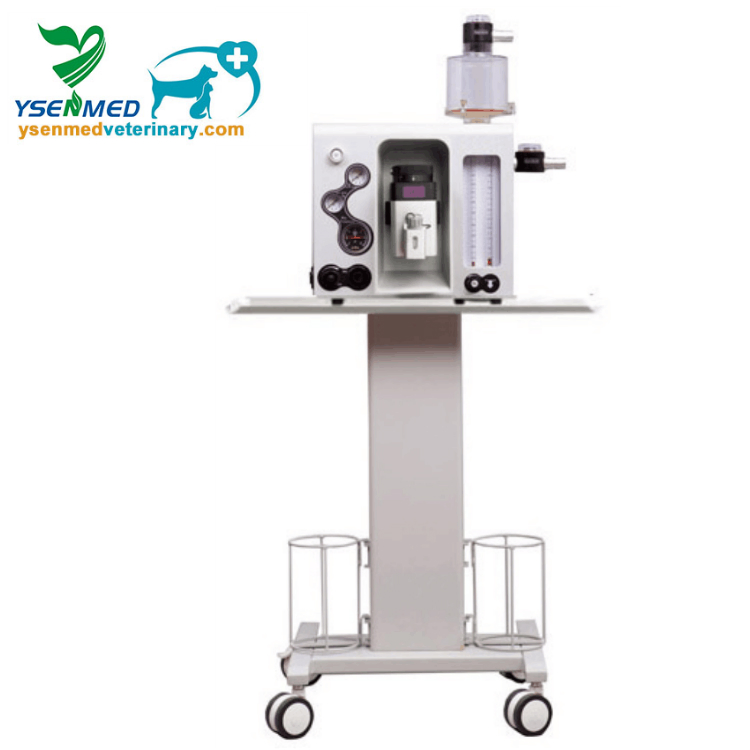

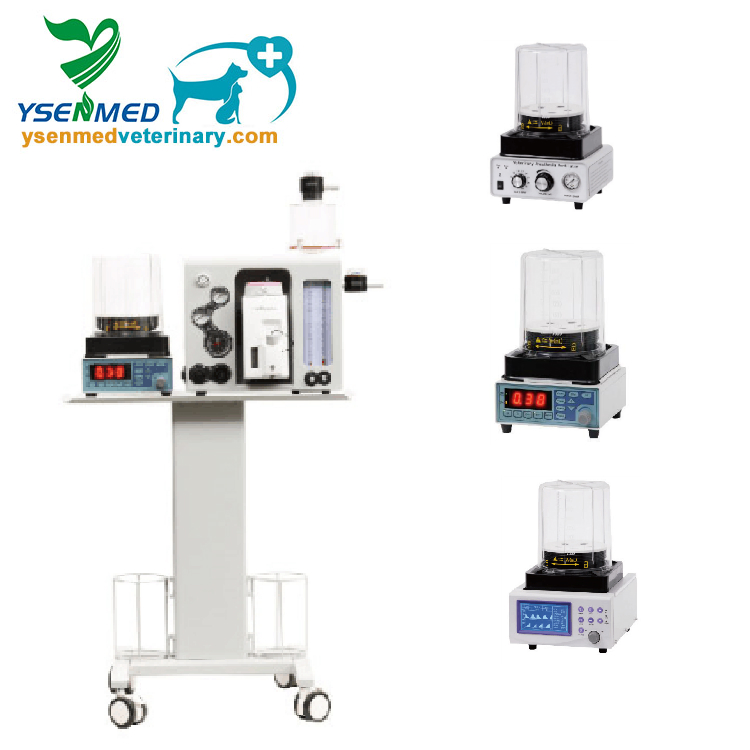

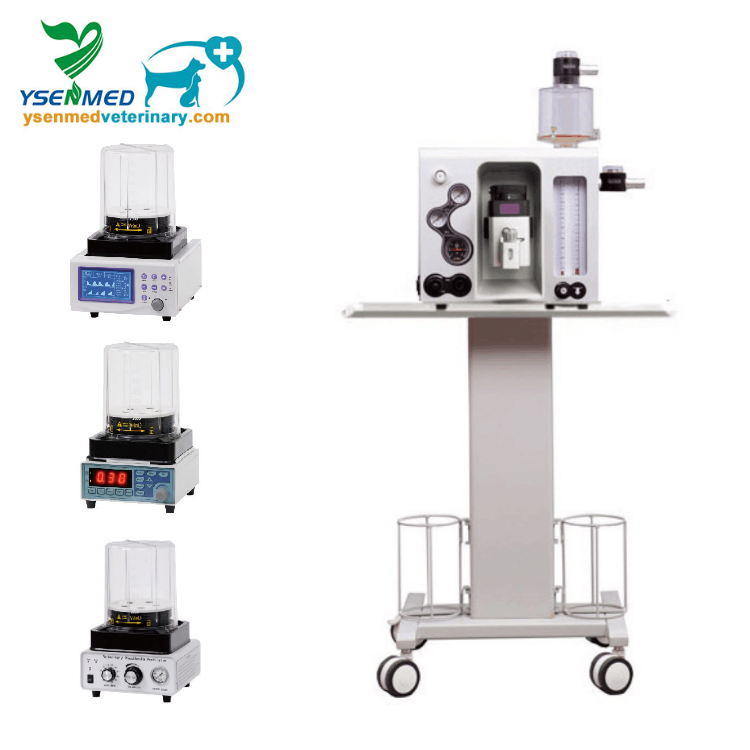

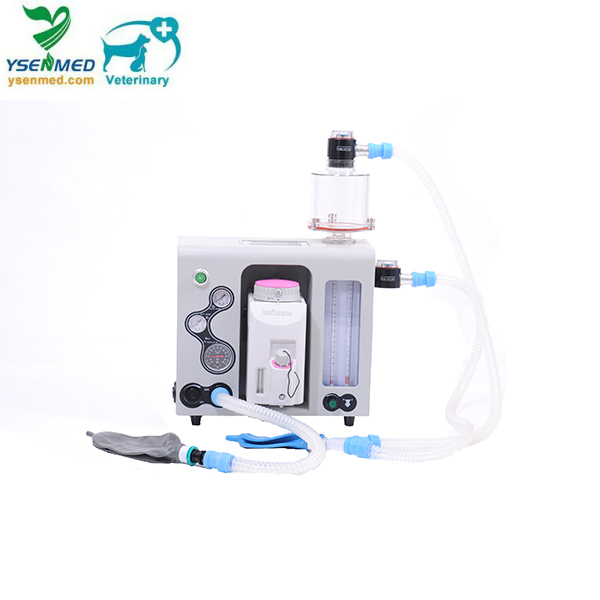

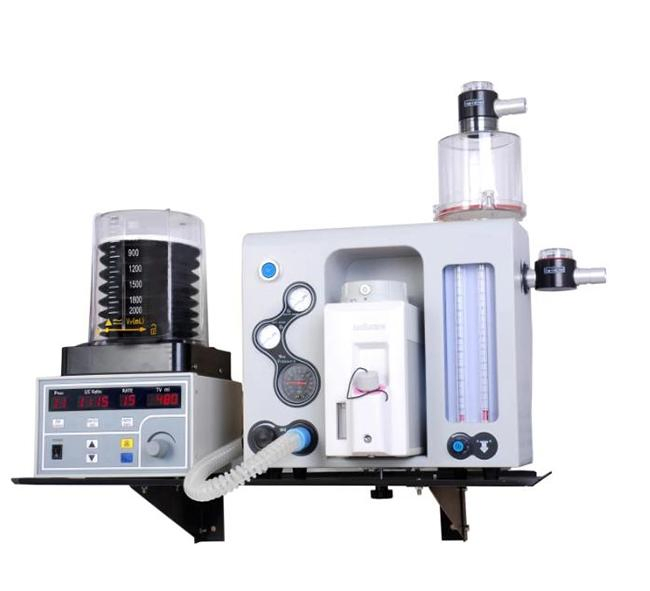

Animal Anesthesia Machine with Ventilator (YSAV600MV): A CE approved portable solution designed for professional veterinary use, combining compact portability with high-precision anesthesia delivery.
- Compact light-weight and portable design; can be used with a trolley or pull-rod case.
- Specifically designed to accommodate low flow requirements.
- Airtight breathing circuit design ensures stable gas anesthesia and saves gas consumption.
- External and reusable soda lime canister for easy monitoring and replacement.
- Equipped with Oxygen flush function and APL pressure reducing valve for animal safety.
- Visible inspiration and expiration valves for real-time monitoring.
- Advanced polyester medical material rack with high strength and light weight.
- Selectatec-bar and quick change vaporizer mounting device.
📊 Technical Specifications
| Application | Adult and pediatric animals (over 3kg) |
| Ventilation Mode | Closed, half-closed, half-open |
| Monitoring | Airway pressure, respiratory mode |
| Gauges | Three gauges (Oxygen source, Oxygen working, Airway pressure) |
| I:E & BPM | Adjustable based on clinical operation |
| Vaporizer Range | Isoflurane 0.2-5%, Sevoflurane 0.2-8%, Halothane 0.2-5% |
| Dimensions | 86 * 51 * 38 CM |
🧪 Precision Vaporizer System
The latest innovative design ensures accurate delivery under varying conditions of flow rate, pressure, and temperature. Features include:
- Automatic temperature-compensating delivery.
- Safety lock device to prevent accidental volatile gas release.
- Large view window for drug usage observation.
- Large filling volume: ~340ml with dry wick.

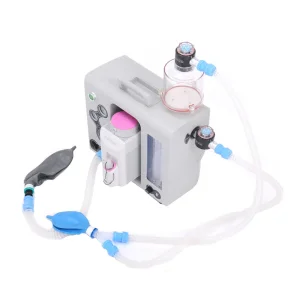

📸 Product Details Gallery
Frequently Asked Questions
What types of animals is this anesthesia machine suitable for?
The YSAV600MV is designed for both adult and pediatric animals weighing over 3kg.
What ventilation modes are supported by this device?
It supports three ventilation modes: Closed, Half-Closed, and Half-Open, providing flexibility for various clinical scenarios.
Does the vaporizer maintain accuracy in different environments?
Yes, the vaporizer features an automatic temperature-compensating system to ensure stable and accurate delivery regardless of flow rate or temperature changes.
How portable is the YSAV600MV model?
The machine is highly portable with a net weight of 26kg. It can be transported via a pull-rod case, placed on a table, or mounted on a dedicated trolley.
What safety mechanisms are included to protect animals?
It includes an APL pressure reducing valve to prevent airway pressure injuries and a safety lock on the vaporizer to prevent accidental anesthetic release.
Is the breathing circuit easy to maintain?
Yes, all components are designed to be easily disassembled and reassembled, making cleaning and maintenance convenient for medical staff.
