Basic Information
Transport Package
Standard Export Package
Production Capacity
500 units/Month
Product Description

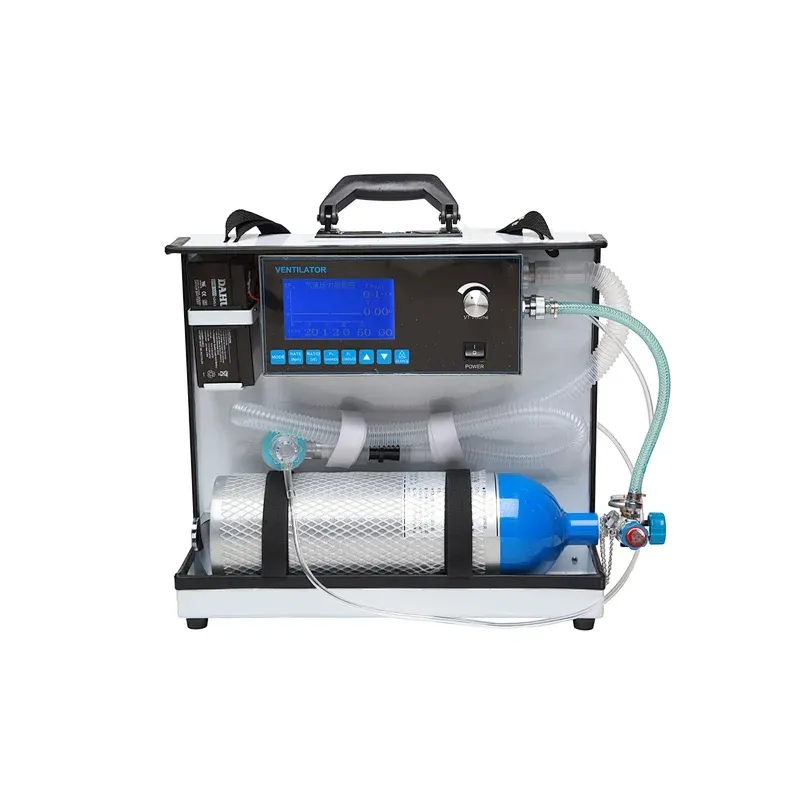

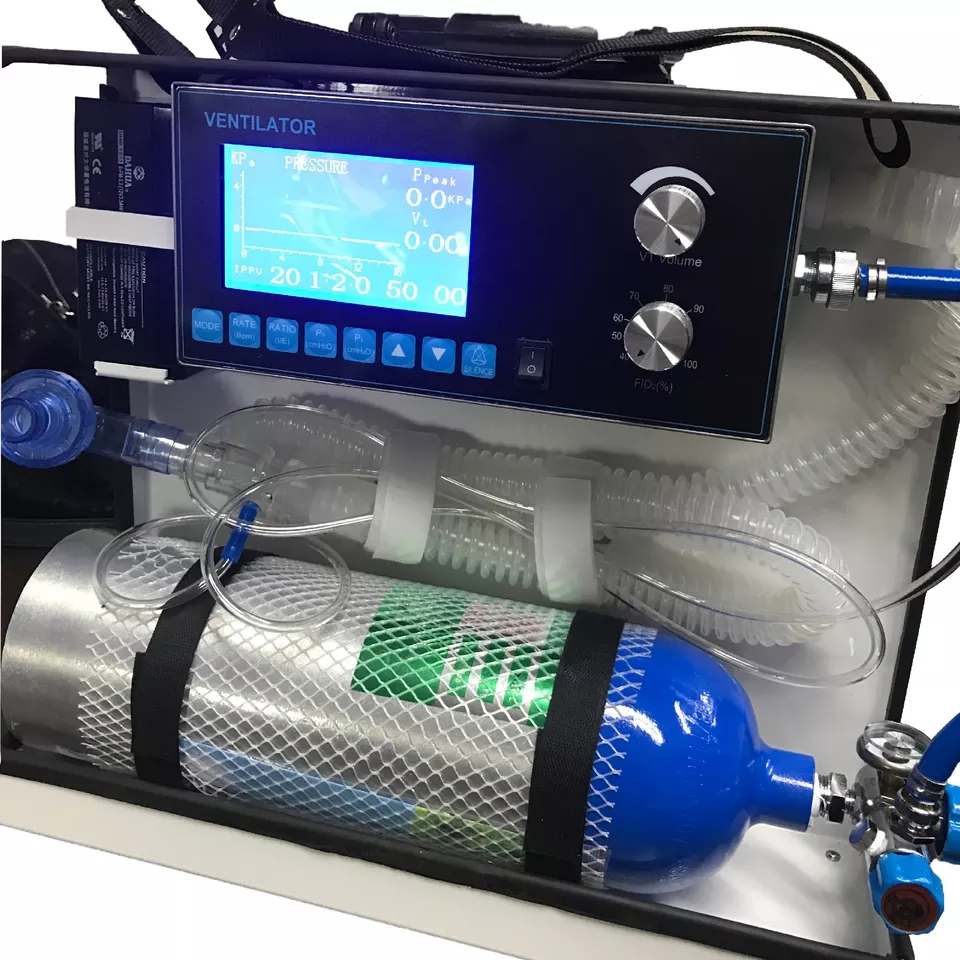

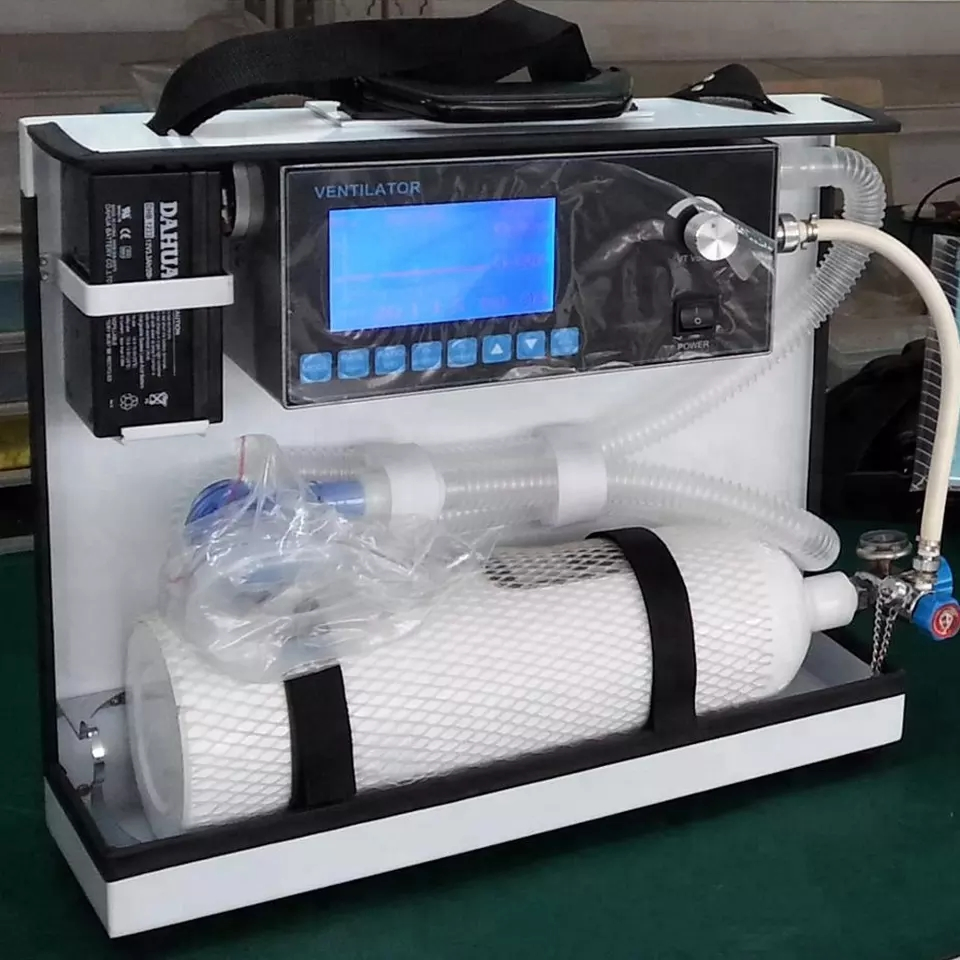

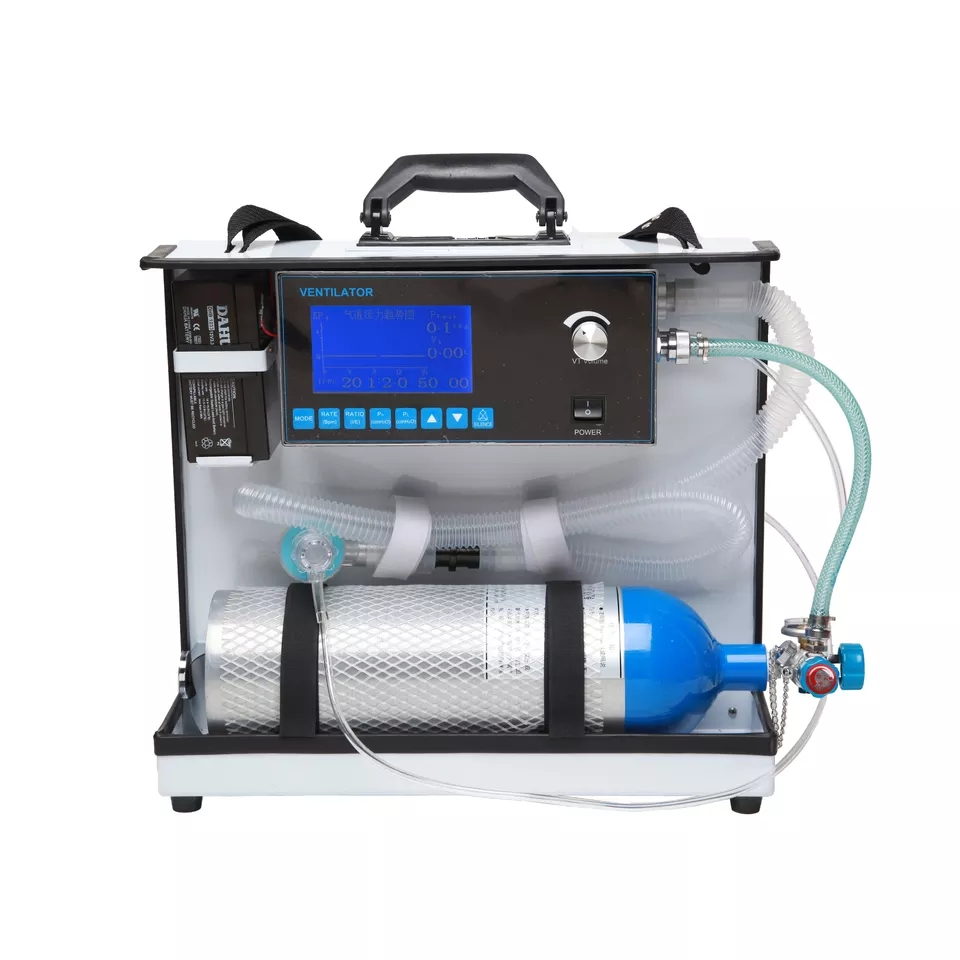

Veterinary Hospital Equipment Portable Medical Surgical Anesthesia Operating Machine
Model: CCV-550P
Technical Specification
✓
Ventilation Modes: A/C, SIMV, PSV, PCV
🔔
Pressure upper limit (Ph) alarm: 2-- 6kPa, sound and light alarm.
🔔
Pressure lower limit (PI) alarm: 0.6 -- 2kPa, sound and light alarm
⚙️
Trigger(Pt): -0.3kpa
⏱️
SIMV Frequency: 2~30 times/minute
📊
I/E Ratio: 1:0.1~1:3
🔇
Quiet sound alarm: ≤ 2min
🌊
Tidal volume (Vt): 0 -- 2000ml
🫁
Breathing frequency (f): 4 to 60 times/minute
Comprehensive Veterinary Medical Equipment
| X-Ray Room |
X-ray machine, processor, X-ray film, cassette, intensifying screen, lead clothing (glove, glasses, cap, apron, collar) |
| Ultrasound |
B/W 2D ultrasound, 2/3/4D color ultrasound |
| Laboratory Room |
Chemistry analyzer, hematology analyzer, microplate ELISA reader, microplate washer, centrifuge, pipette, water bath, urine analyzer |
| Operation Room |
Patient monitor, ECG, oxygen generator, operating lamp, operation table, medical drill and saw, ventilator, anesthesia machine, infusion pump, oxygen supply cage, bath tub, electric suction device, autoclave sterilizer |
Frequently Asked Questions
❓ What are the available ventilation modes for this anesthesia machine?
The CCV-550P supports multiple ventilation modes including A/C, SIMV, PSV, and PCV, providing flexibility for different surgical requirements.
❓ What safety alarm systems are integrated into the device?
The machine features both sound and light alarms for pressure upper limit (2--6kPa) and pressure lower limit (0.6--2kPa) to ensure patient safety.
❓ What is the tidal volume range for the CCV-550P?
This model offers a wide tidal volume (Vt) range from 0ml to 2000ml, making it suitable for a variety of veterinary patients.
❓ What is the standard warranty period?
The product comes with a standard 1-year warranty covering manufacturing defects and performance reliability.
❓ Can this machine be used in a portable medical environment?
Yes, the CCV-550P is specifically designed as a portable medical surgical anesthesia machine, ideal for veterinary hospital environments where space and mobility are key.
❓ What is the breathing frequency range of the device?
The machine supports a breathing frequency (f) of 4 to 60 times per minute, adjustable according to the specific clinical needs.
