Customization: Available
Transport Package: Wooden Box
Specification: 33.66X29.21X20 cm
Send Inquiry

Product Description

Basic Specification
Model NO. PA-900B ADV EXT
Trademark OEM
Display 10.4 inch high visibility color TFT display
Ventilation Mode A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL
Minute Volume ≥ 18L
Back-up Power Supply At least 4 hours
Tidal Volume Adjustable range: 20-1500ml, Display range: 0-2000ml
Respiratory Rate 1-99bpm
I:E Ratio 4:1 - 1:4
PEEP 0-10cm H2O
Oxygen Concentration 21-100%
Gas Supply Requirement 280~600 kPa medical grade oxygen and compressed air

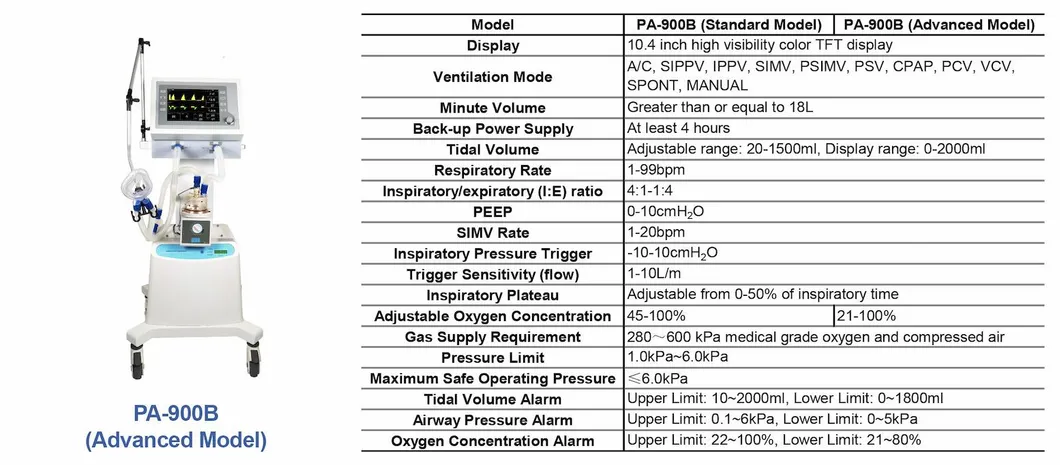

Medical Ventilator Overview
Product Common Features
Operation

Pneumatically driven & electronically controlled; closed, semi-closed, and semi-open modes. Ideal for emergency clinical resuscitation and respiratory therapy.

Monitoring

Equipped with a built-in 10.4 inch color TFT fully adjustable display. Shows Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume waveforms simultaneously.

Safety Alarms

Audible and visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, and power failure. Includes alarm history query.

Sensors

Features built-in dual electronic flow sensors and dual respiratory modules for stable and reliable gas flow measurement.

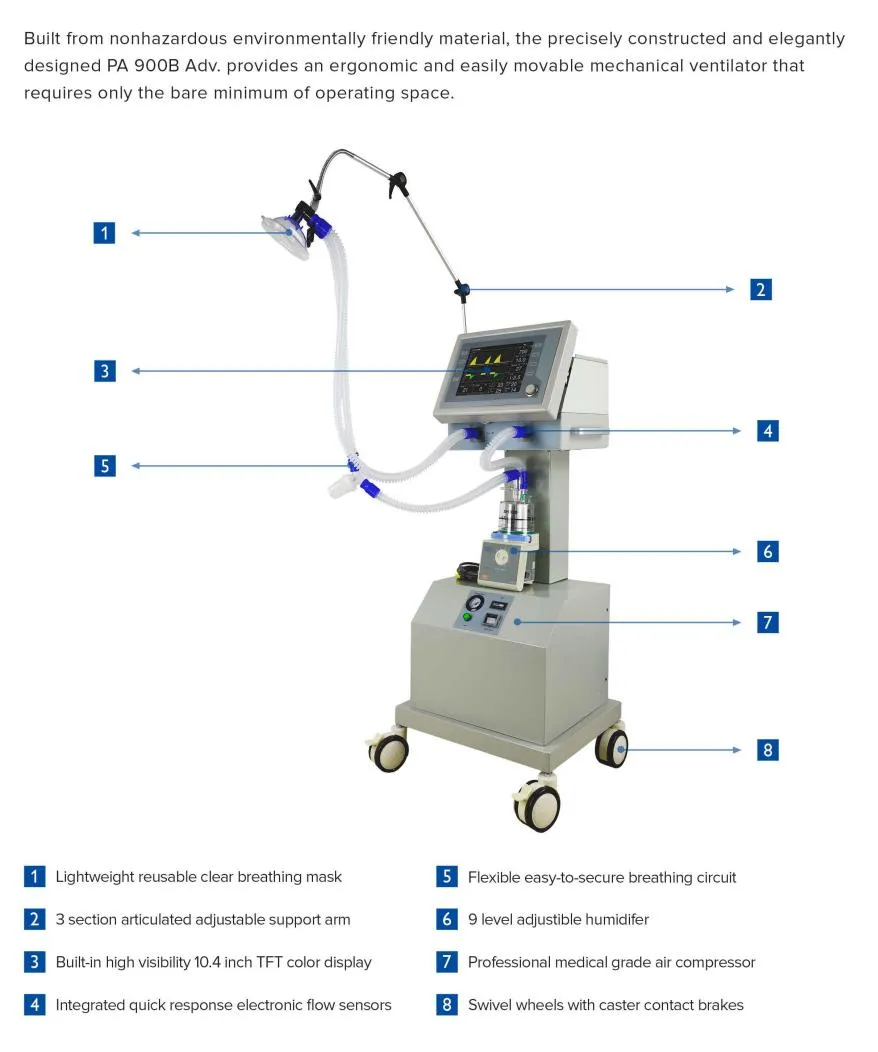

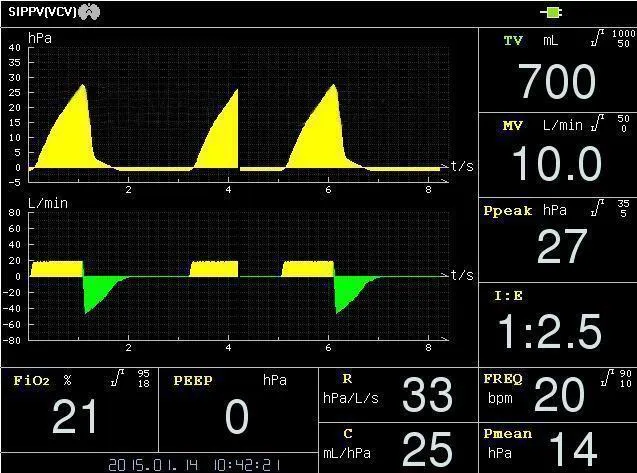

Ventilator Display and Waveforms

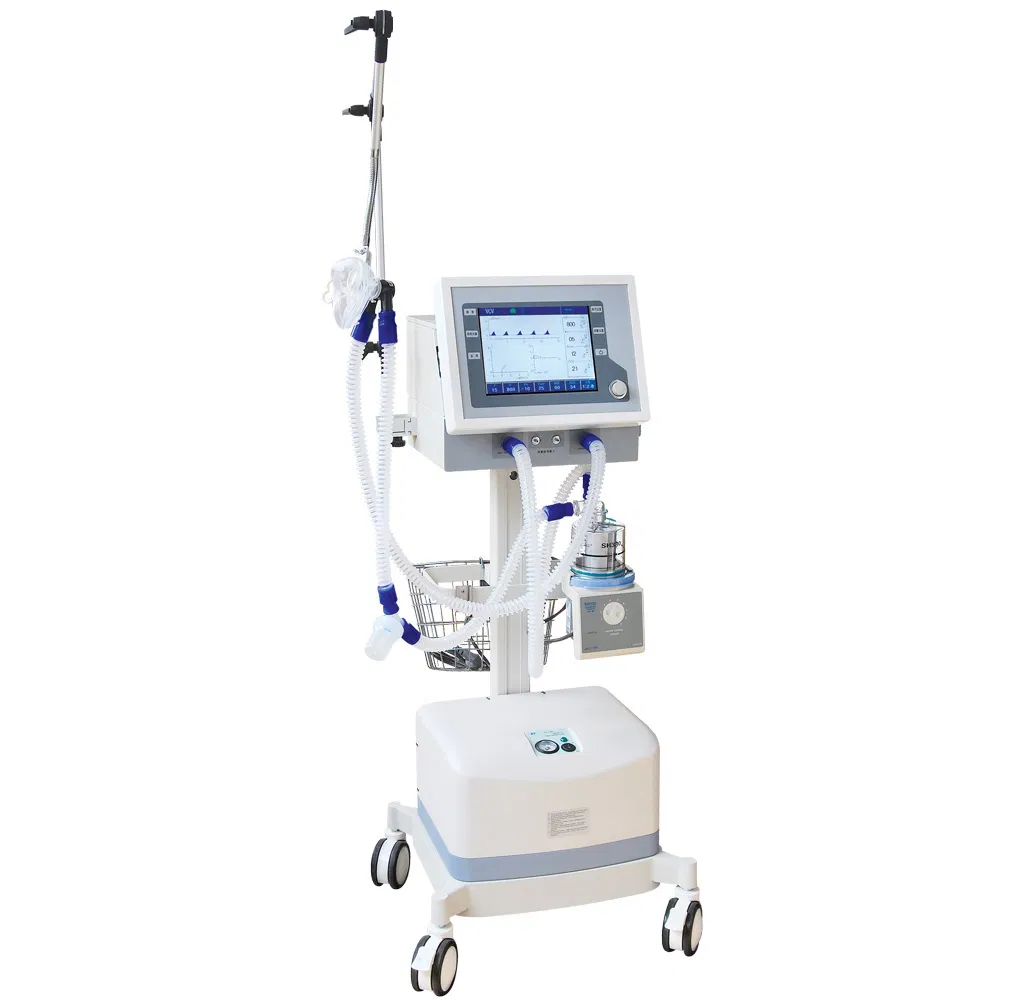

Ventilator Details
Advanced Performance
  • Trigger Types: Supports both Pressure trigger and Flow trigger (1.0 ~ 10.0 L/min).
  • Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths.
  • Humidifier: 9 Level adjustable humidifier for patient comfort.
  • Airway Pressure: Adjustable limits from 0.1~6kPa with high safety operating precision.
  • Screen Flexibility: 10.4" LCD screen can be rotated freely with a screen lock function.

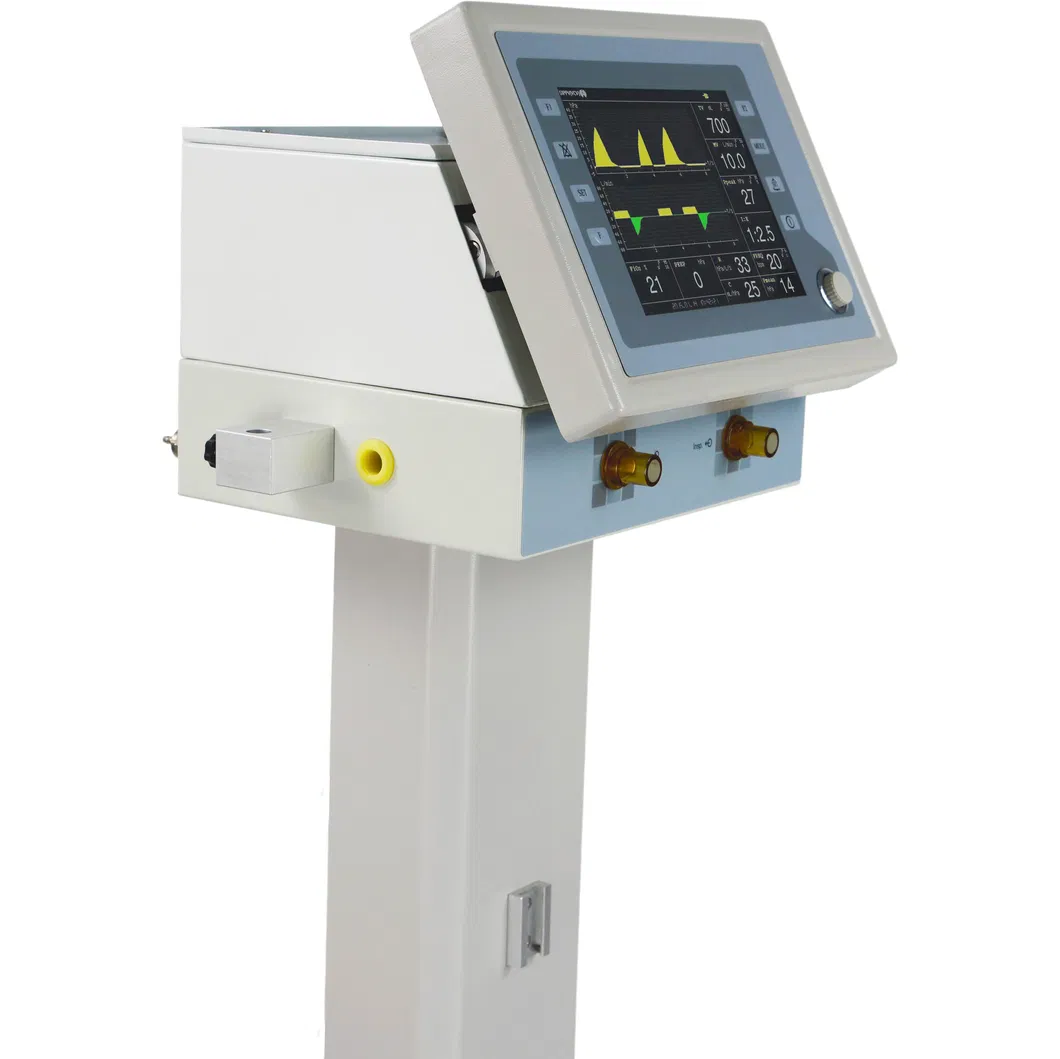

Ventilator Component 1

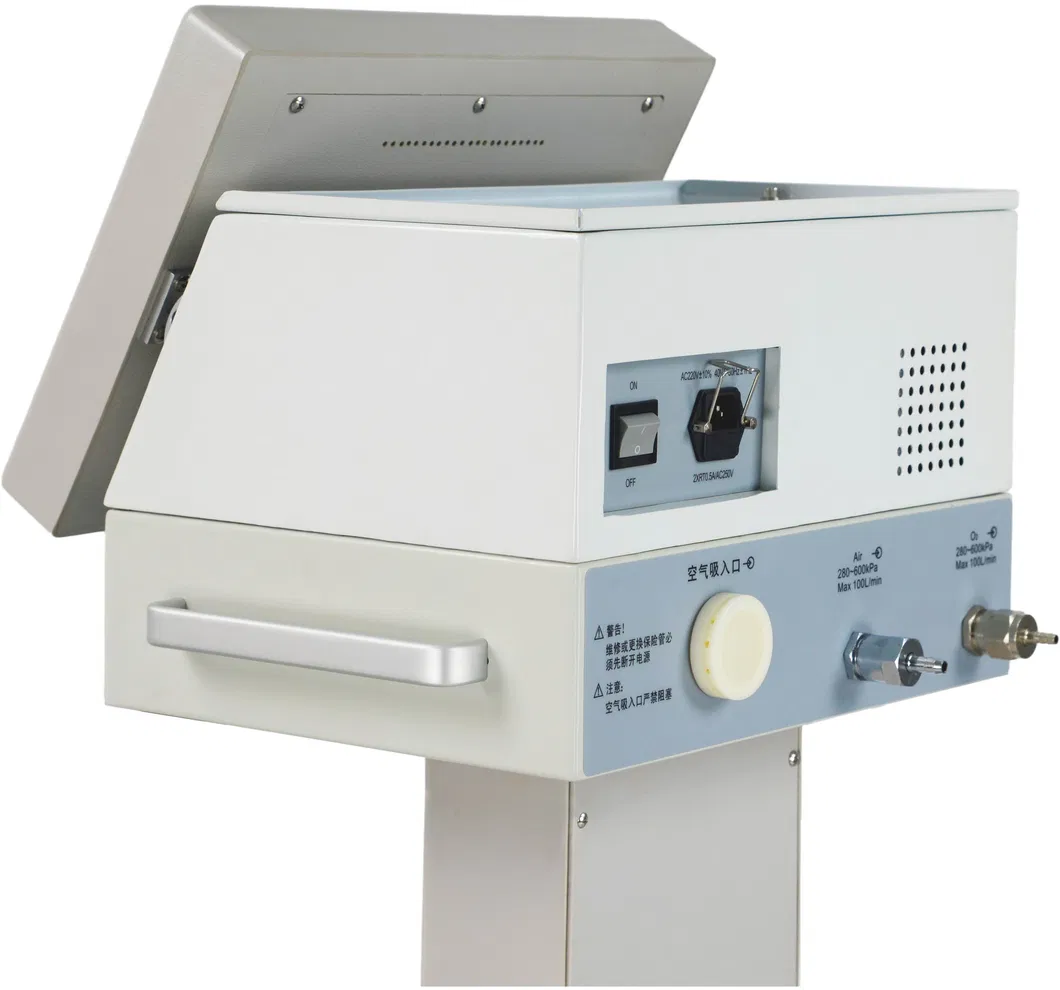

Ventilator Component 2

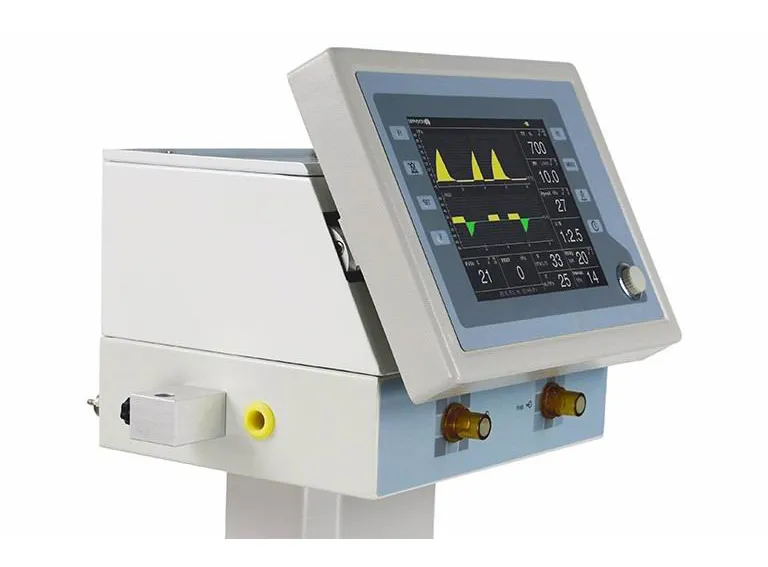

Ventilator Component 3
Ventilator Component 4

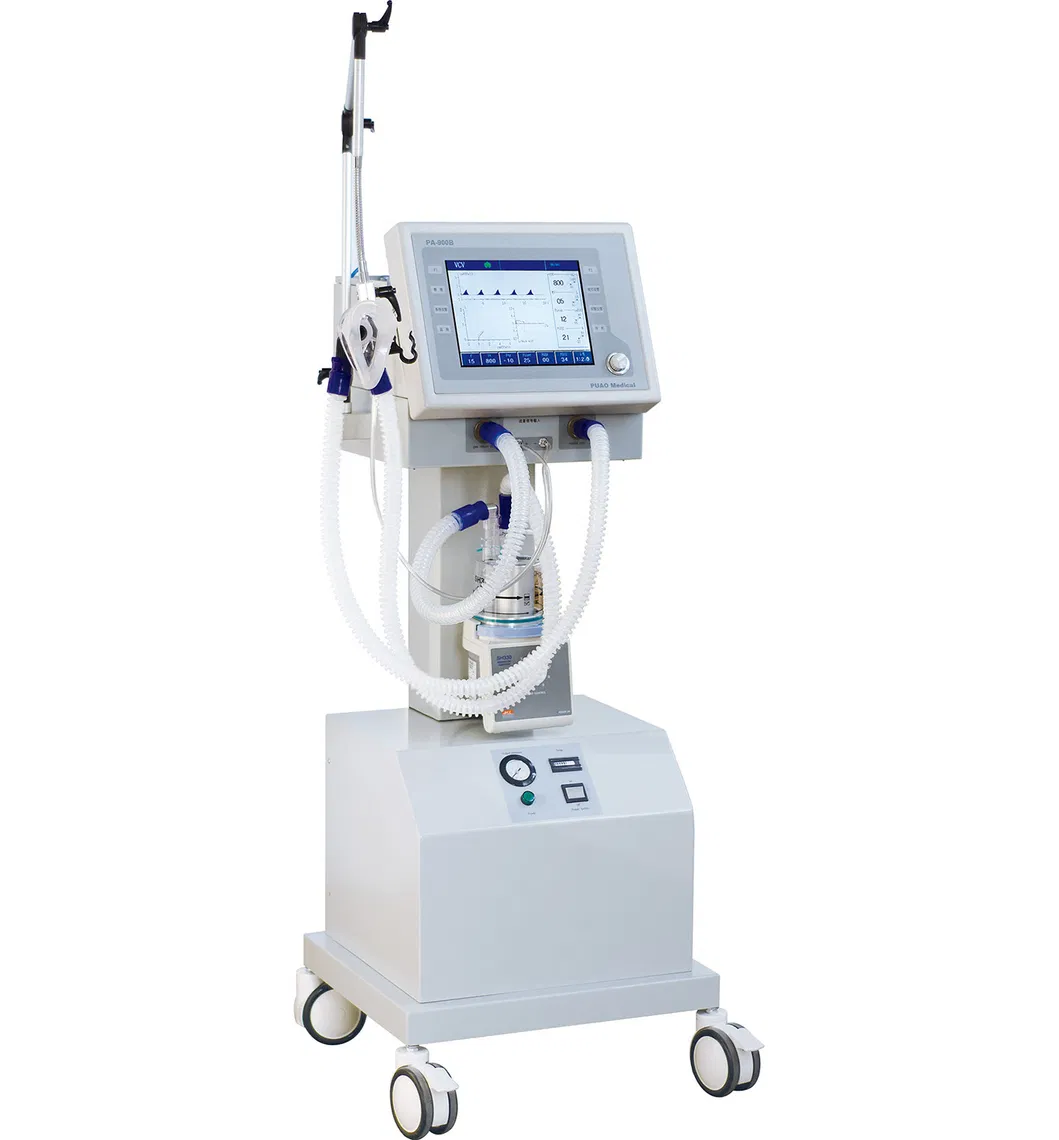

Ventilator Full Unit
Medical Grade Air Compressor

The Advanced Model is equipped with a professional medical-grade air compressor tailored for long clinical operation and low noise requirements.

  • Power: 220VAC±10%, 50±1Hz, 700VA.
  • Output Gas Pressure: 0.4MPa±20%.
  • Continuous Output Flow: ≥ 20L/min.
  • Instantaneous Output Flow: ≥ 60L/min.
Frequently Asked Questions
What is the display capability of the PA-900B ventilator?
The ventilator features a 10.4-inch color TFT display that can show various waveforms including Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume simultaneously.
How long does the battery last during a power outage?
The built-in back-up power supply provides at least 4 hours of operation, ensuring safety during AC power outages.
What range of tidal volume can be adjusted?
The adjustable tidal volume range is from 20ml to 1500ml, with a display range reaching up to 2000ml, making it suitable for a wide range of patients.
Does this model include an integrated humidifier?
Yes, it features a 9-level adjustable humidifier to precisely control the moisture level for respiratory therapy.
What ventilation modes are supported by this device?
It supports multiple modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, and SPONT MANUAL.
Is the air compressor included in the Advanced Model?
Yes, the Advanced Model specifically includes a professional medical-grade air compressor designed for low noise and long-term clinical use.
