Basic Information
Scope of Application
Animal / Veterinary
O2 Sensor Failure
Fio2 <15% Vol
Operating Mode
VCV, PCV, SPONT, Manual, Demo
Battery Type
Li-ion, > 2 Hours Work Time
Production Capacity
5,000 Sets/Year
Product Description

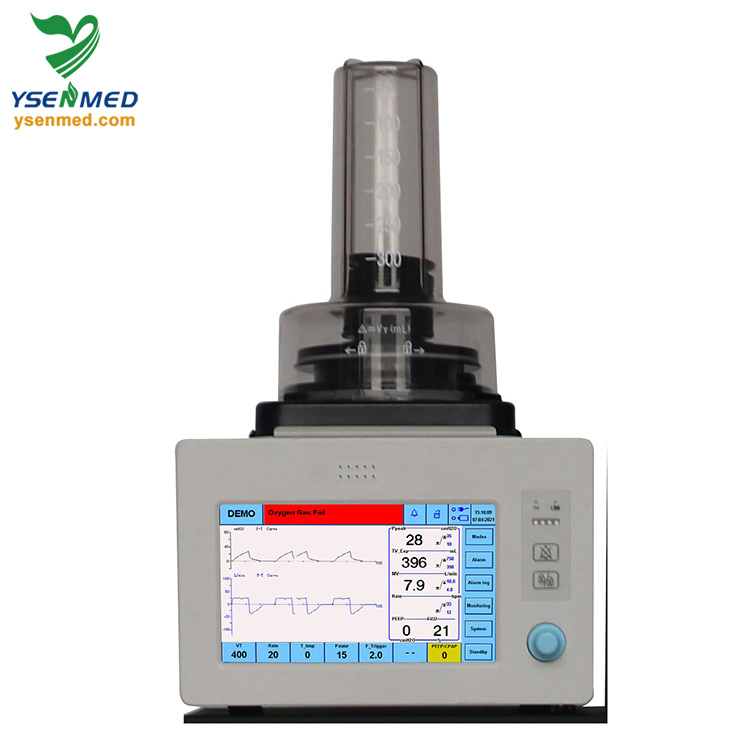

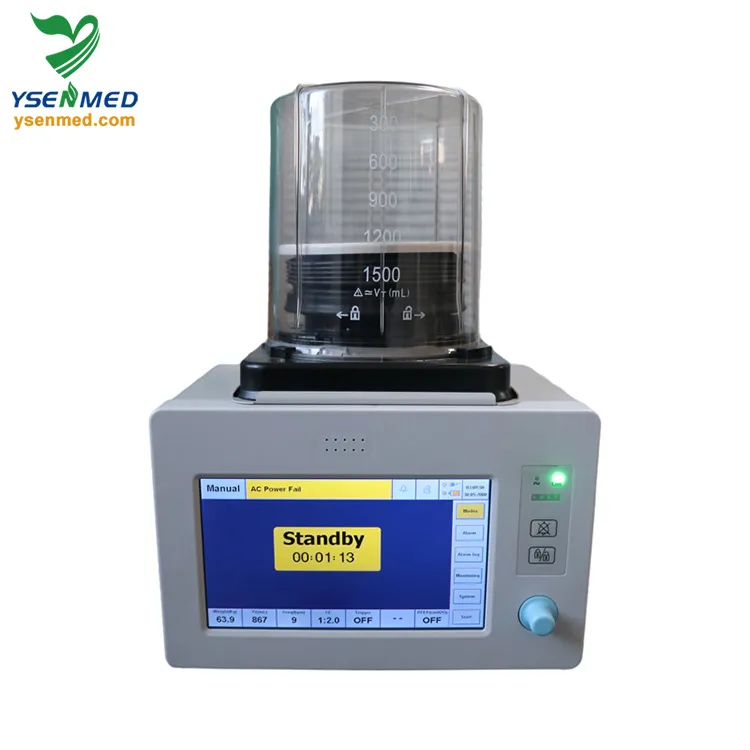

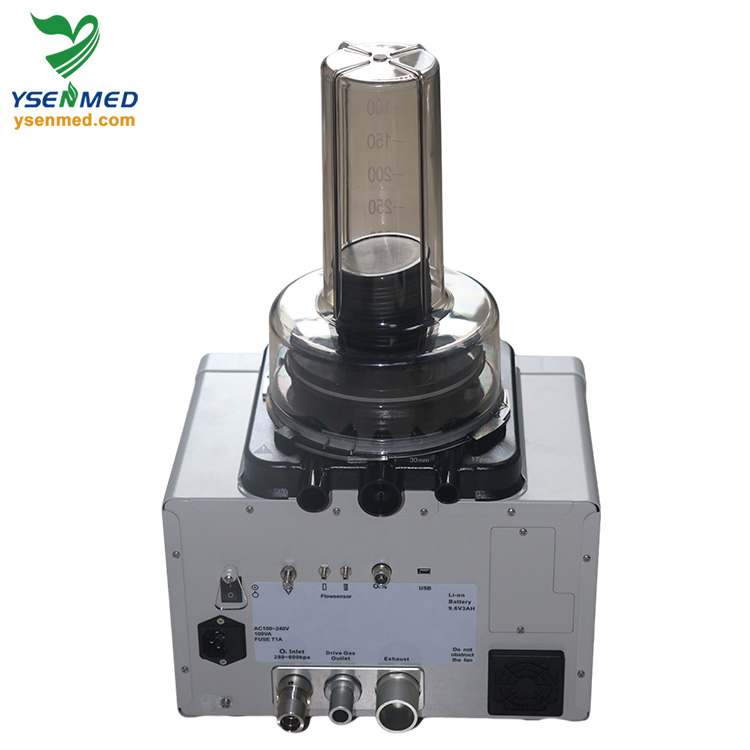

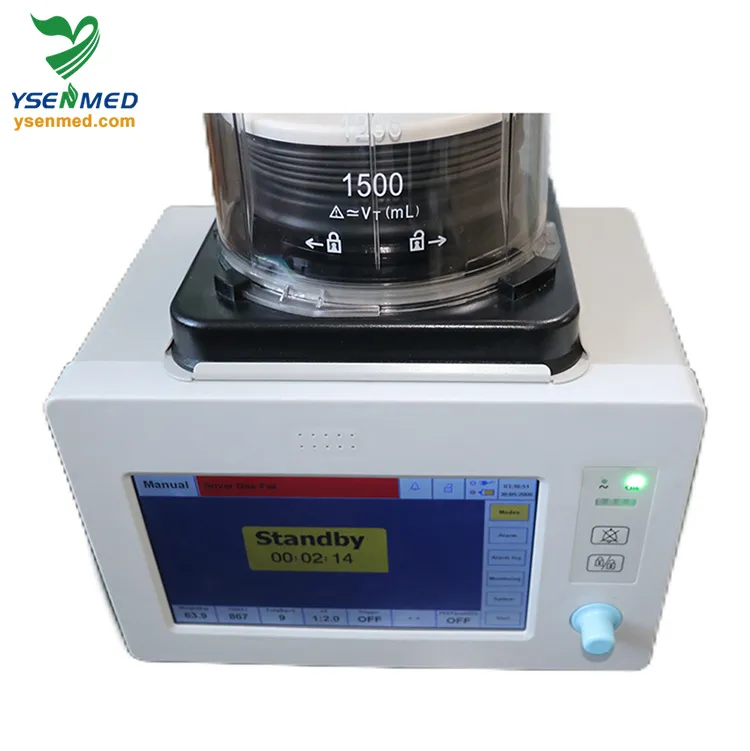

YSAV-R80V Veterinary Anesthesia Ventilator
Specially designed for animal anesthesia, this ventilator is widely applicable in vet hospitals, animal R&D institutes, university laboratories, and animal clinics. It is compatible with any brand of anesthesia machine.
Key Features
- Compact design to save space.
- Lightweight and easy to move.
- Automatic calculation by weight for parameters.
- PCV mode for enhanced animal comfort.
- Includes both big and small animal bellows.
- High-precision gas source pipeline with zero leakage.
- 9-inch HD TFT Touch screen for simple operation.
- Built-in battery for 2+ hours of emergency use.
Technical Specifications
| System Description |
| Display | 9 inch TFT, with touch screen |

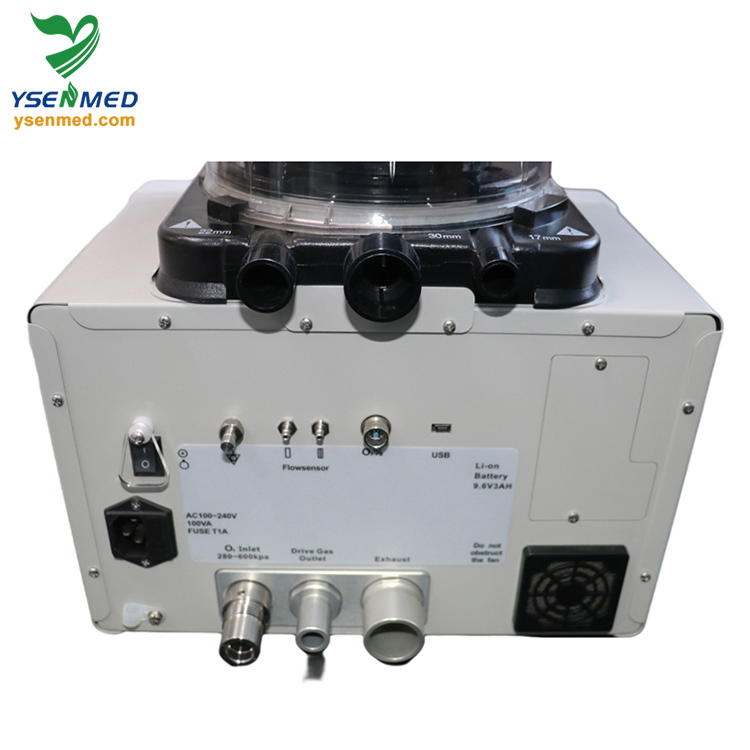

| Drive Gas | O2 or Air (Inlet: 280-600 kPa) |
| Max Flow | ≤ 120 L / min |
| Operating Modes | VCV, PCV, SPONT, Manual, Demo |
| Waveforms | Pressure, Flow-rate, Volume / PV, PF, FV loops |
| Safety Pressure | System pressure < 6 KPa |
| Parameter Setting Range |
| Tidal Volume | 20 - 1500ml |
| Respiratory Rate | 1 ~ 100 bpm |
| Inspiratory Time | 0.1 ~ 10.0 s |
| PEEP | OFF, 3 ~ 20 cmH2O |
| Pressure Control | 5 ~ 60 cmH2O |
| Flow Trigger | 0.5 ~ 20L/min |
One-Stop Solution Equipment
Comprehensive equipment solutions for animal operation rooms:
Anesthesia Machine
Operating Lamp
Operation Table
Patient Monitor
Oxygen Generator
Autoclave Sterilizer
Frequently Asked Questions
1. What types of animals can use the YSAV-R80V ventilator?
The ventilator is specifically designed for veterinary use and includes both large and small animal bellows, allowing it to support a wide range of animal weights and sizes.
2. Does it work during a power outage?
Yes, it features a built-in Li-ion battery that provides more than 2 hours of operating time in case of AC power failure.
3. Is this ventilator compatible with other anesthesia machines?
Absolutely. The YSAV-R80V is designed to be compatible with various brands of veterinary anesthesia machines.
4. How user-friendly is the interface?
It features a 9-inch HD TFT touch screen that allows for easy parameter settings and clear monitoring of waveforms and loops.
5. What breathing modes are available?
The system supports multiple modes including VCV (Volume Control Ventilation), PCV (Pressure Control Ventilation), SPONT, Manual, and Demo modes.
6. What are the key safety features?
It includes multiple alarms for O2 sensor failure, gas deficiency, apnea, high/low airway pressure, and a safety system to ensure pressure does not exceed 6 KPa.
