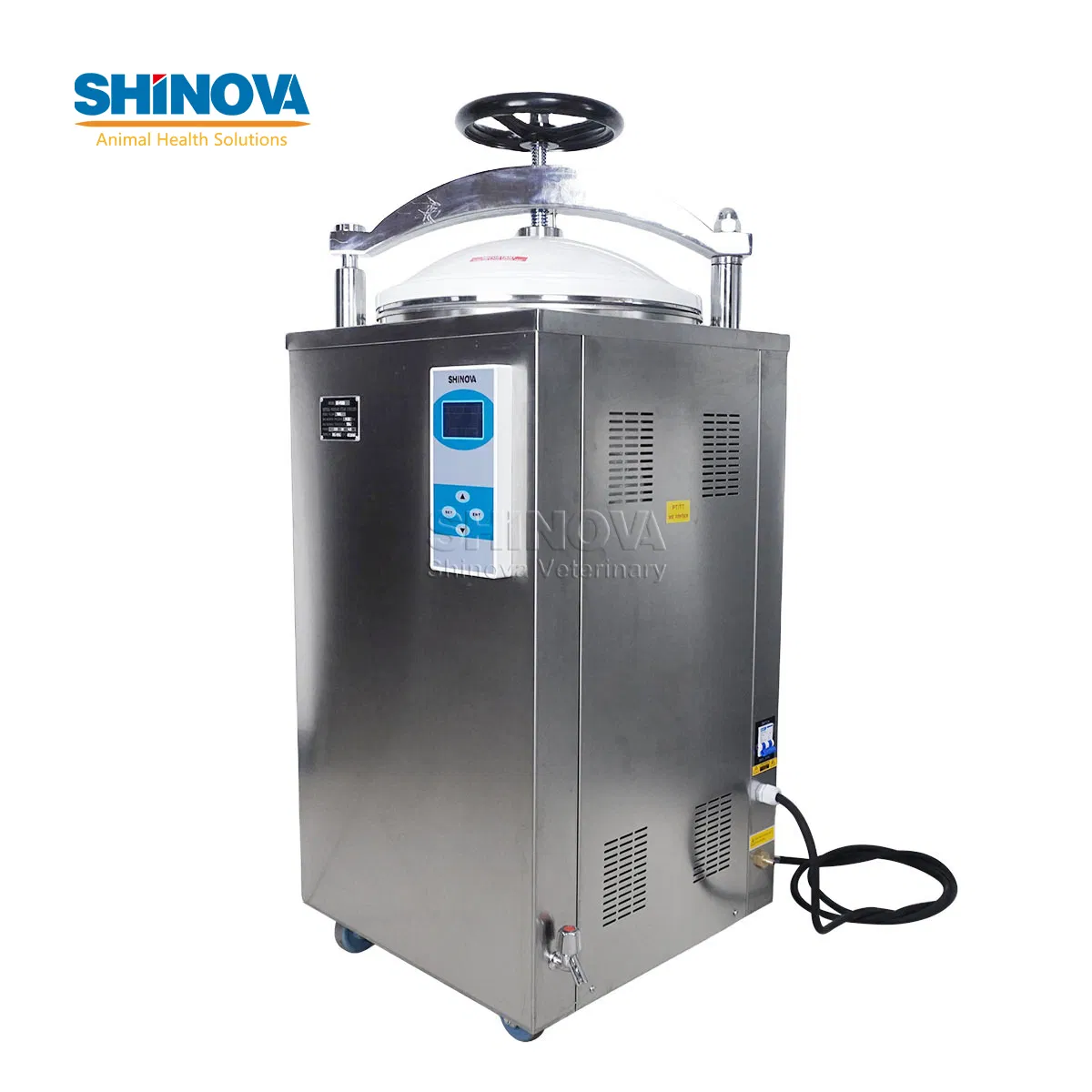

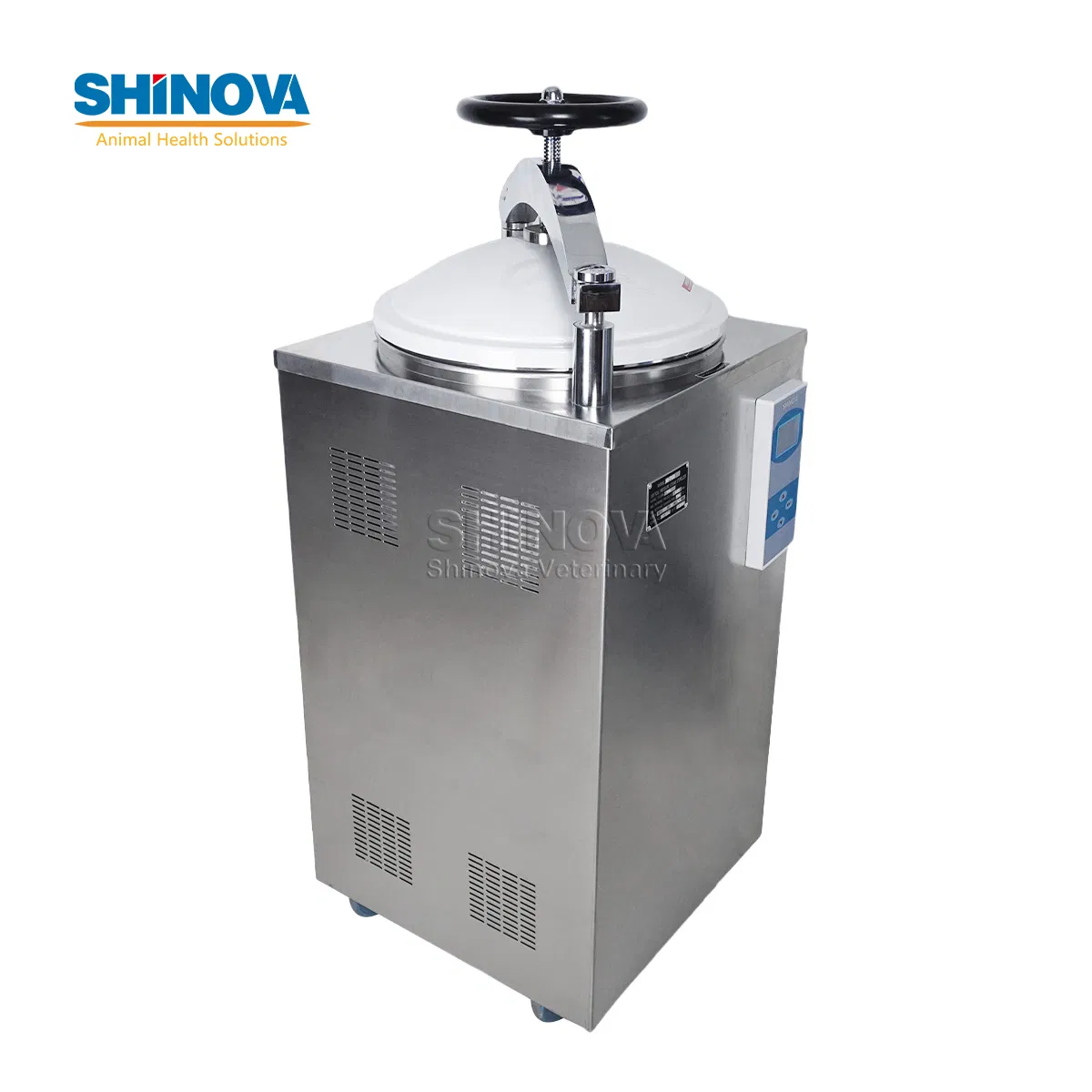

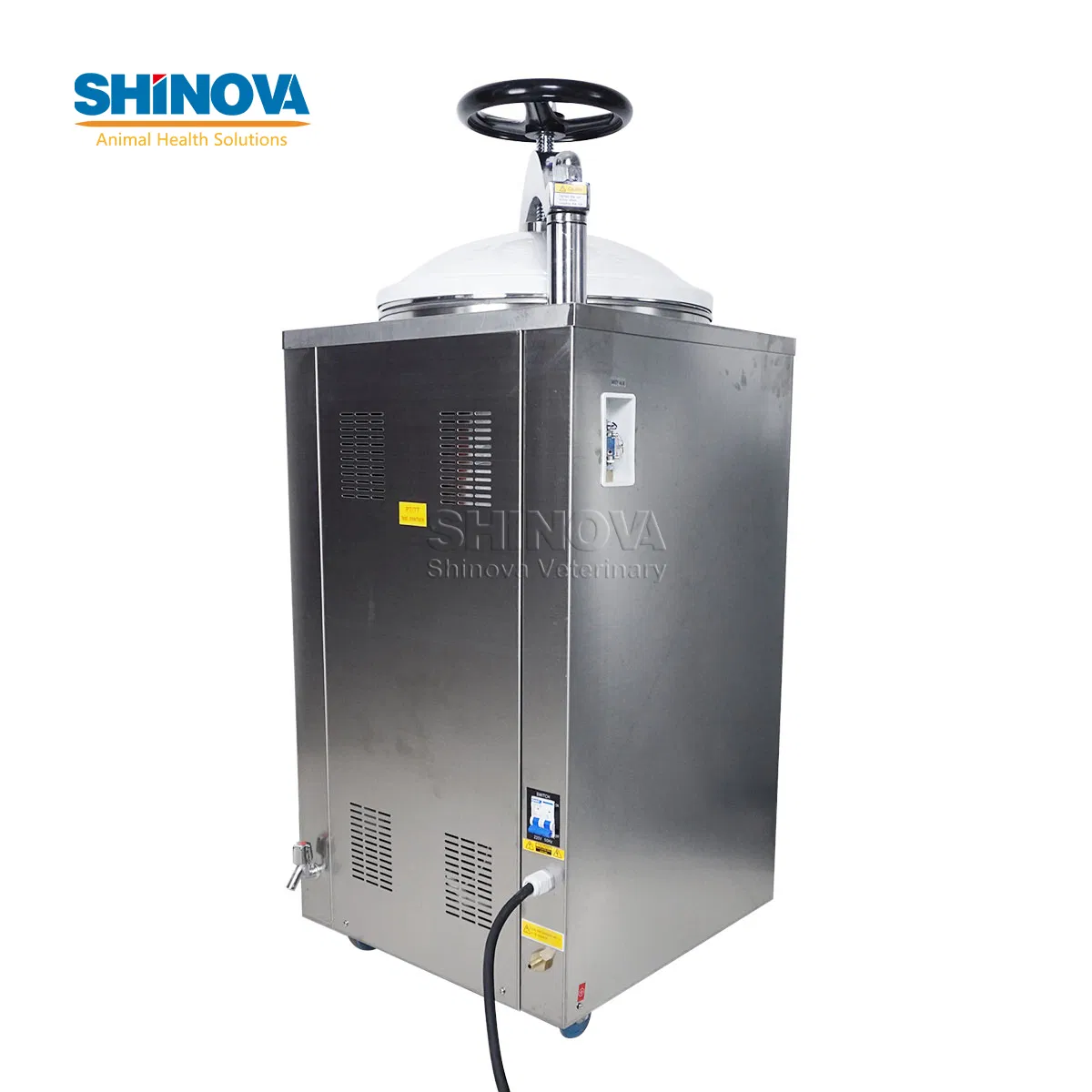

100L Vertical Steam Autoclave/Veterinary Vertical Sterilizer (MS-V100D)

1 / 5

100L Vertical Steam Autoclave/Veterinary Vertical Sterilizer (MS-V100D)

Customization:	Available
Type:	Vertical Steam Autoclave
Transport Package:	by Air or by Sea

Send Inquiry

Product Description

📋 Basic Information

Model NO.MS-V100D

Specification59*59*111

OriginChina

HS Code8419200000

Package Size1.00cm * 1.00cm * 1.00cm

Gross Weight1.000kg

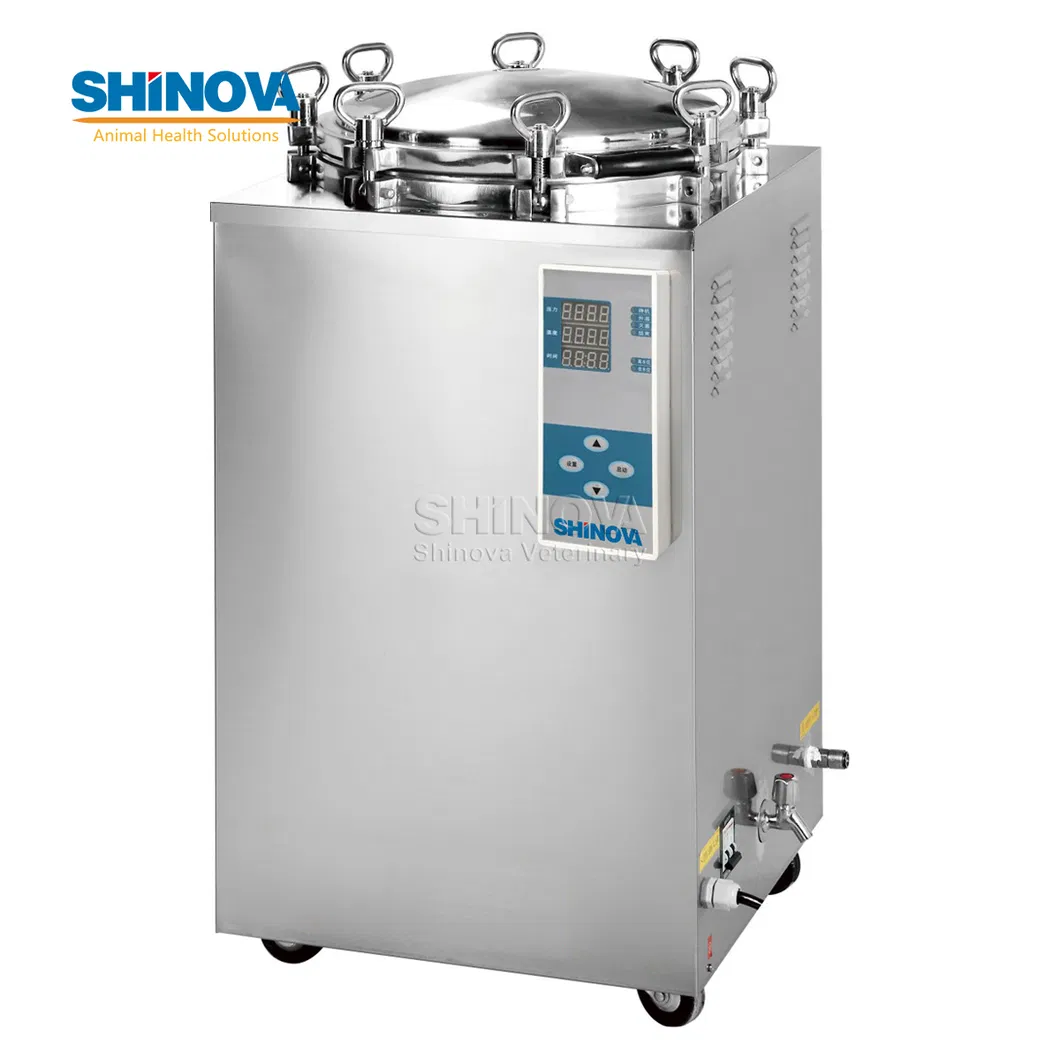

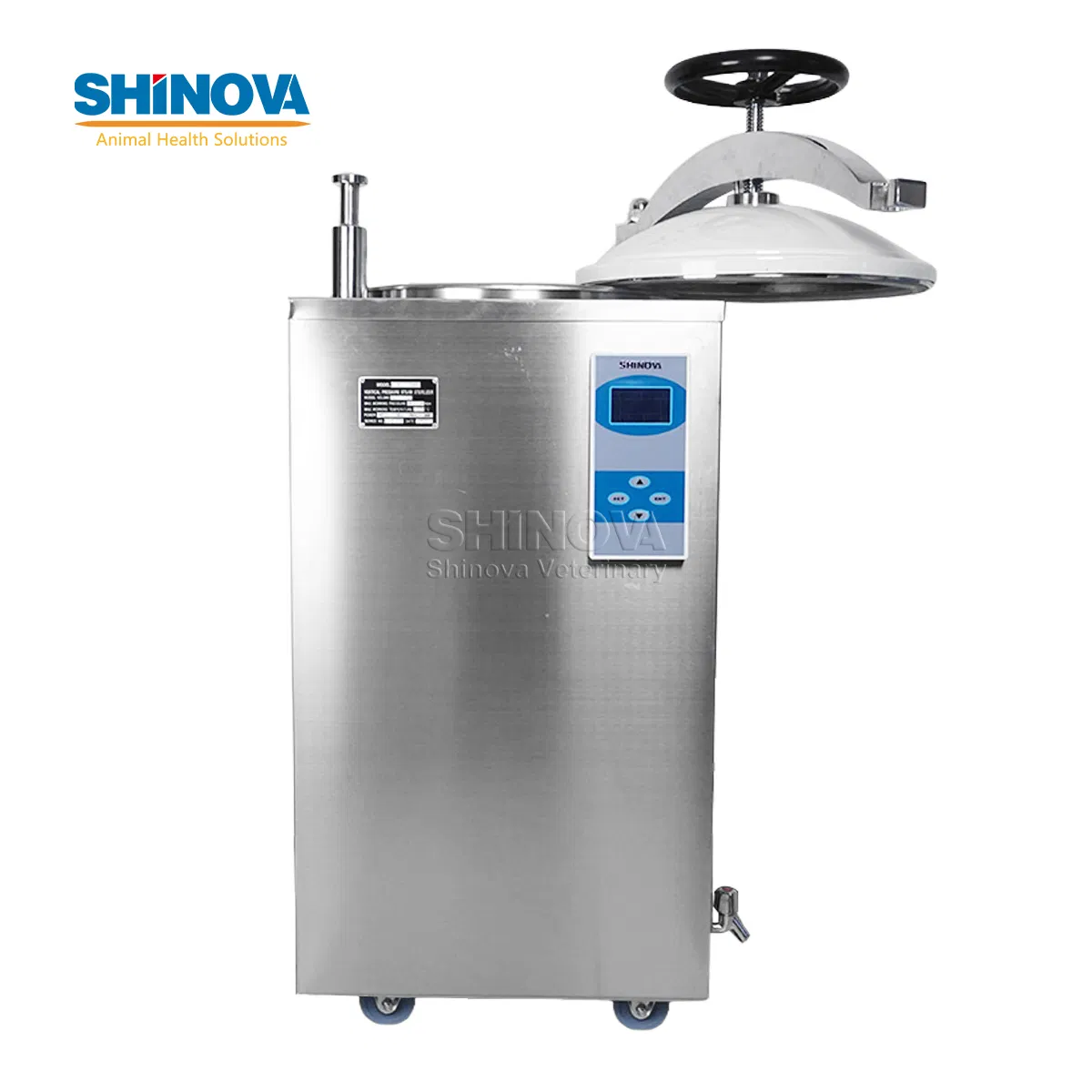

🛡️ Vertical Pressure Steam Sterilizer

Digital Display Automation | Model: MS-V100D

Key Characteristics:

Fully stainless steel structure for maximum durability.

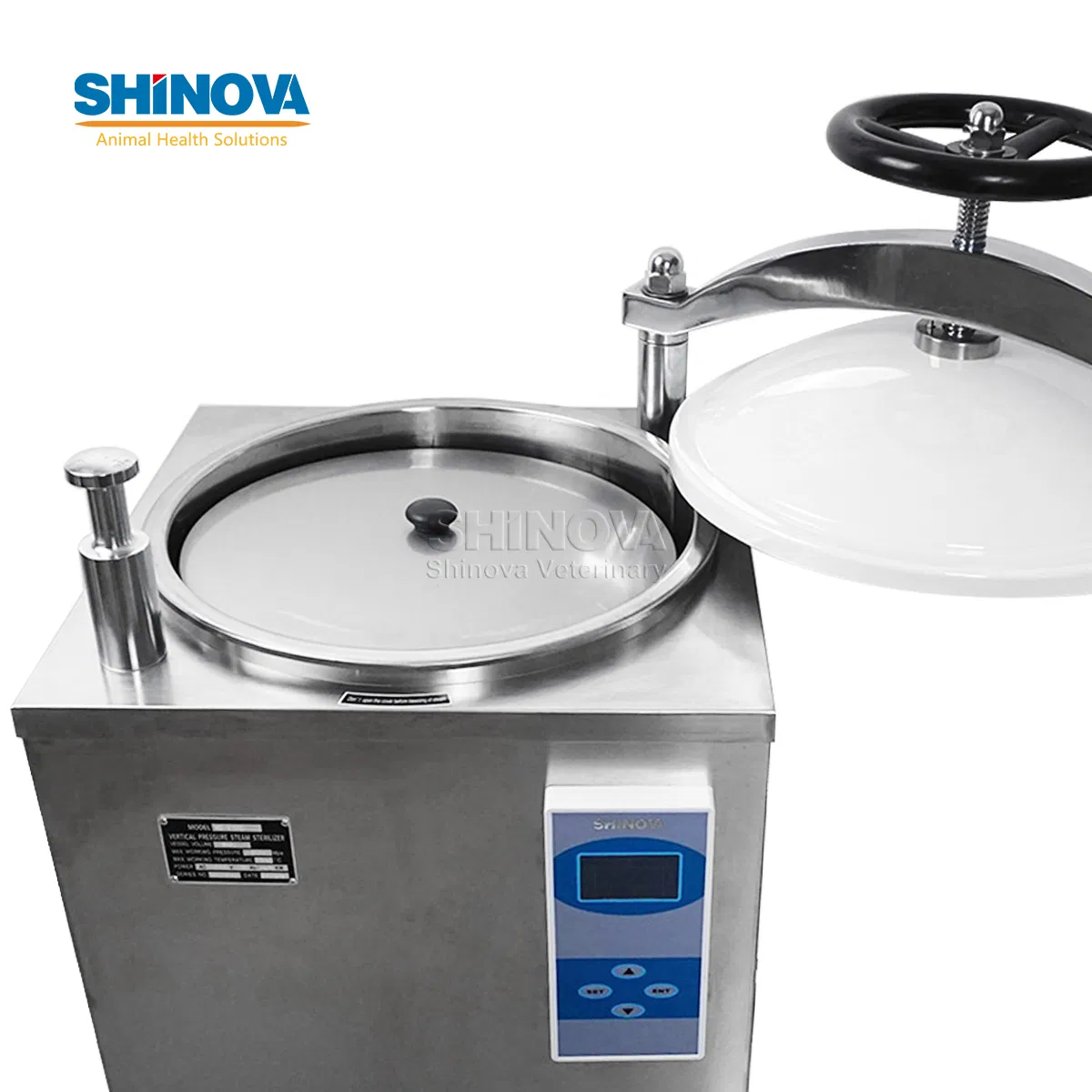

Digital display of working status with touch key operation.
Auto discharge of cool air and automatic steam discharging after sterilization.
Automatic shut off with beep reminding after the cycle is complete.
Easy to operate, safe, and highly reliable design.
Equipped with two stainless steel sterilizing baskets.
Optional drying system available according to customer requests.

📊 Technical Specifications

Model technical data	MS-V35D	MS-V50D	MS-V75D	MS-V100D
Chamber volume	35L(φ 318× 450)mm	50L(φ 340× 550)mm	75L(φ 400× 600)mm	100L(φ 440× 650)mm
Working pressure	0.22MPa
Working temperature	134º C
Max working pressure	0.23 Mpa
Heat average	≤ ± 1º C
Timer	0 - 99min or 0 - 99hour 59min
Adjustment range	105 - 134º C
Power	2.5Kw/AC220V 50Hz	3Kw/AC220V 50Hz	4.5KW AC220V 50Hz
Overall dimension	480×460×850mm	520×520×980mm	560×560×980mm	590×590×1080mm
Transport dimension	570×550×970mm	590×590×1110mm	650×630×1150mm	680×650×1220mm
G.W/N.W	56Kg/ 42Kg	68Kg/50Kg	90Kg/70Kg	105Kg/85Kg

🌐 Professional Solutions & Services

A professional pet healthcare service provider and smart device manufacturer dedicated to providing leading veterinary products and solutions for animal hospitals and clinics globally.

Service Scope:

Veterinary Equipment: Diagnostic equipment, fast-test reagents, anesthesia surgical tools, and grooming instruments.
Planning Solutions: Design, construction, and decoration solutions for new departments or hospitals.
Software Cloud Services: Hospital Information Management Systems (SaaS), Laboratory LIS, and Cloud services.

Market Insights:

Focusing on global markets including the USA (99 billion USD pet care market size) and China (206.5 billion CNY market size), providing services to renowned animal hospitals, universities, and research centers worldwide.

🖼️ Product Showcase

❓ Frequently Asked Questions

Q1: What is the main material used in this autoclave? The sterilizer features a fully stainless steel structure for high durability and hygiene standards.

Q2: How does the sterilization cycle end? The system automatically shuts off after sterilization and includes a beep reminder to alert the operator.

Q3: Can I customize the drying system? Yes, the drying system is optional and can be equipped according to specific customer requirements.

Q4: What is the maximum working temperature of the MS-V100D? The maximum working temperature is 134º C, with a working pressure of approximately 0.22MPa to 0.23MPa.

Q5: Are the sterilizing baskets included in the package? Yes, each unit comes equipped with two high-quality stainless steel sterilizing baskets.

Q6: What volumes are available for the vertical autoclave series? The series offers four capacity options: 35L, 50L, 75L, and 100L to suit different clinical needs.
