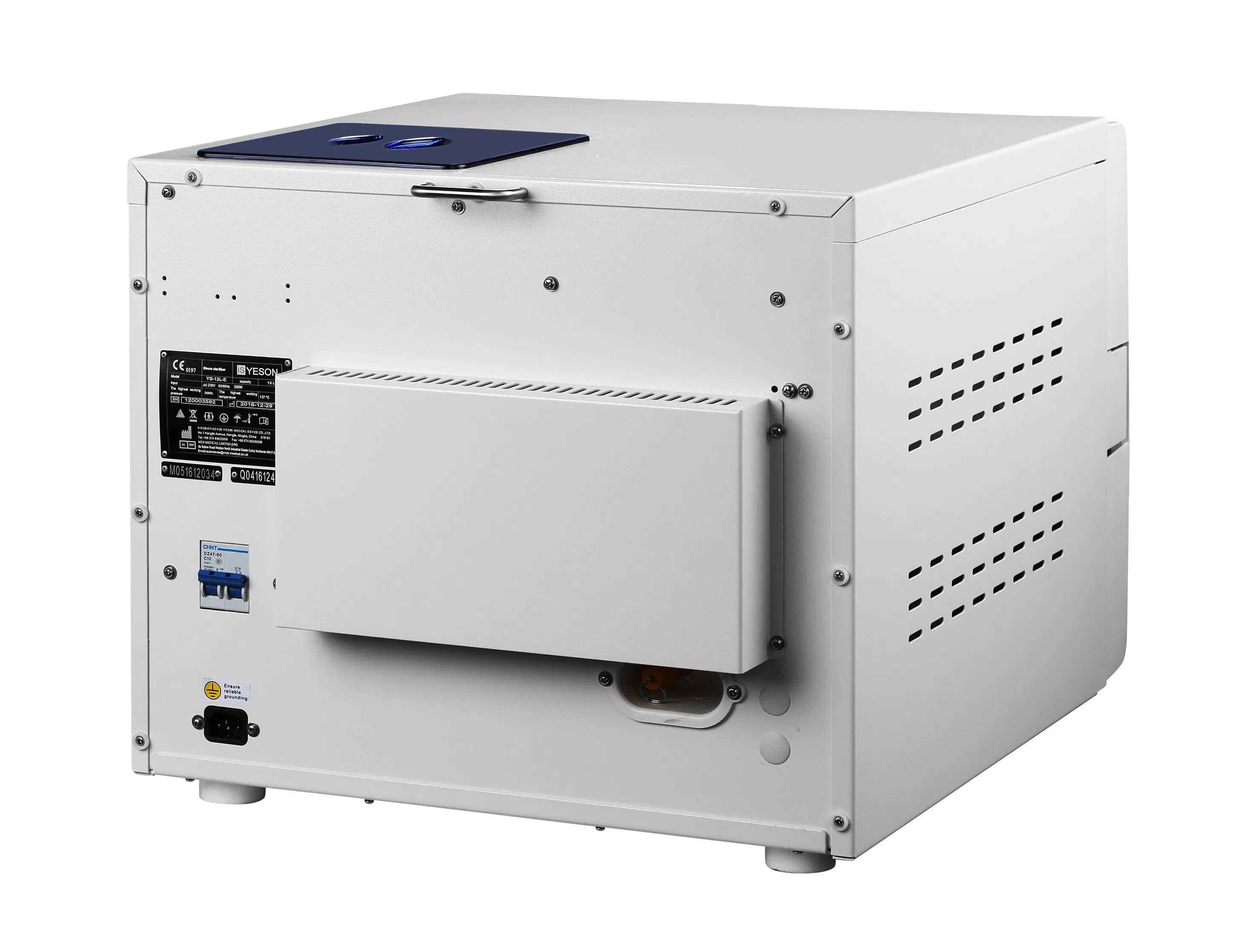

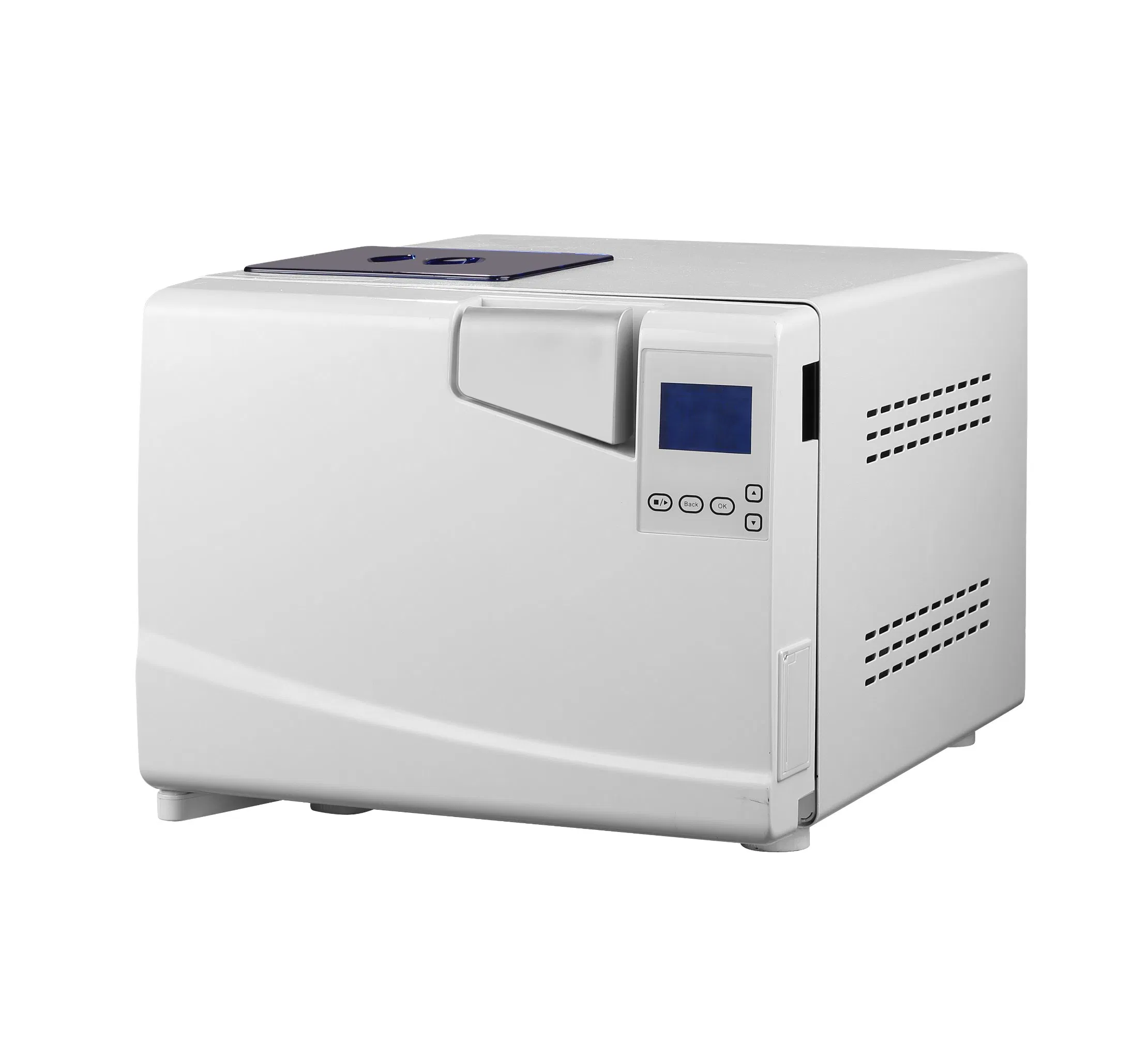

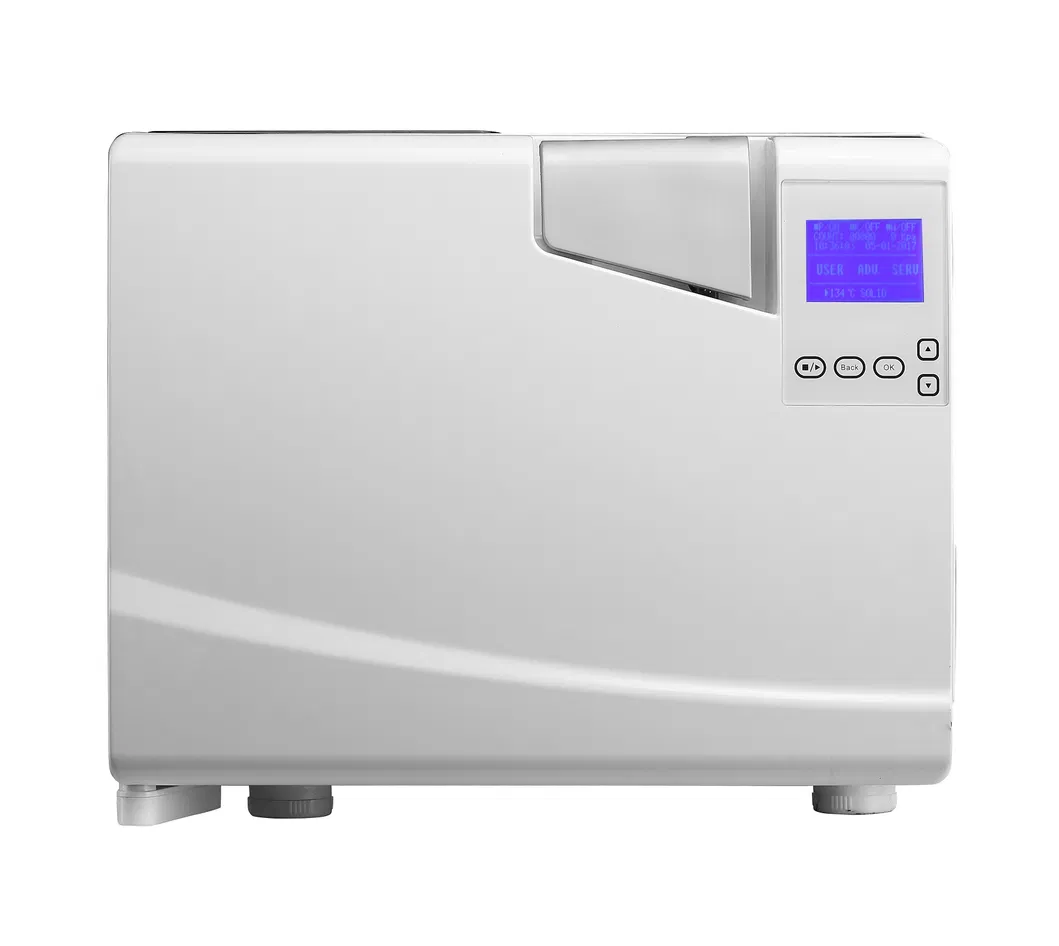

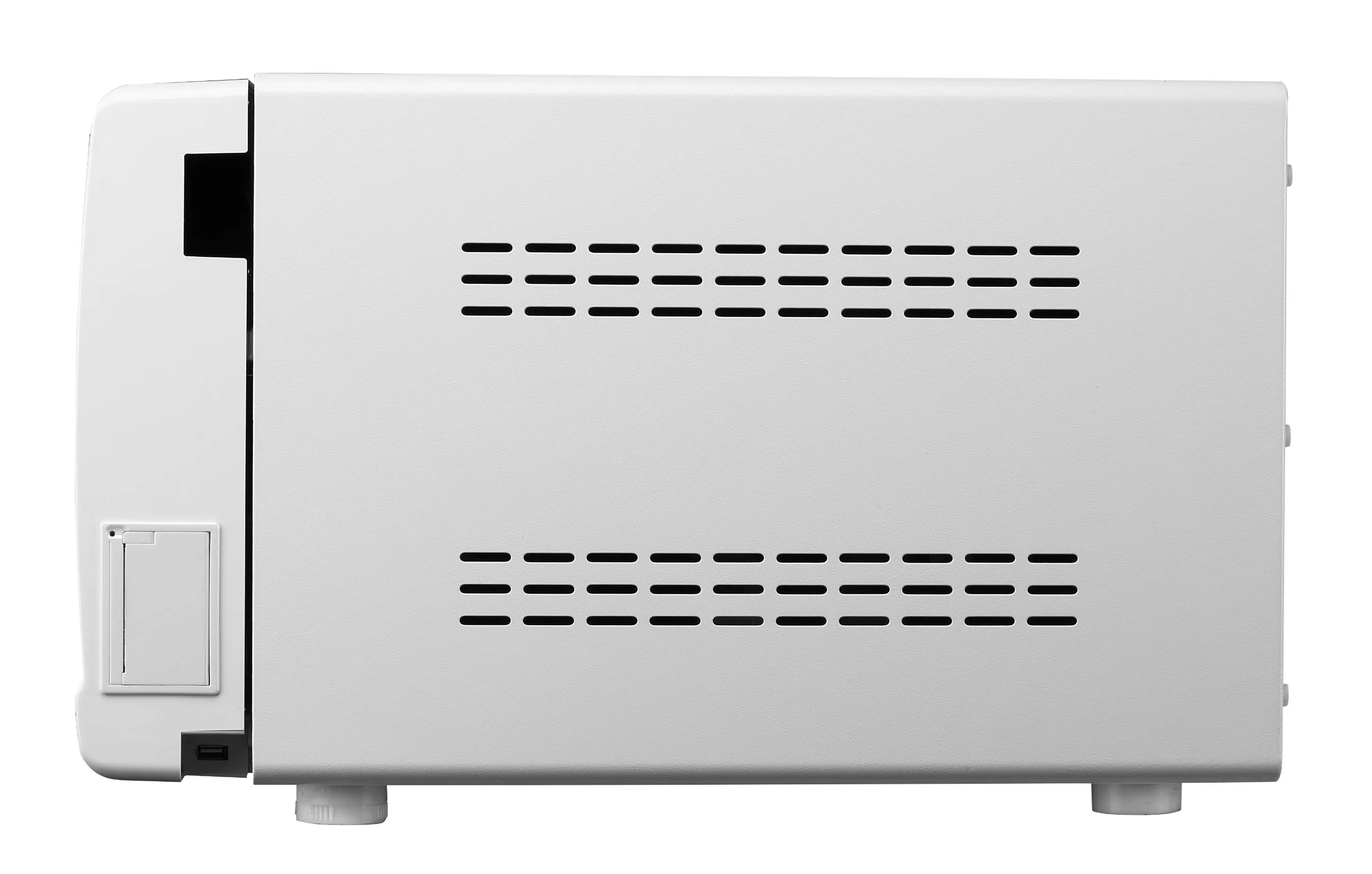

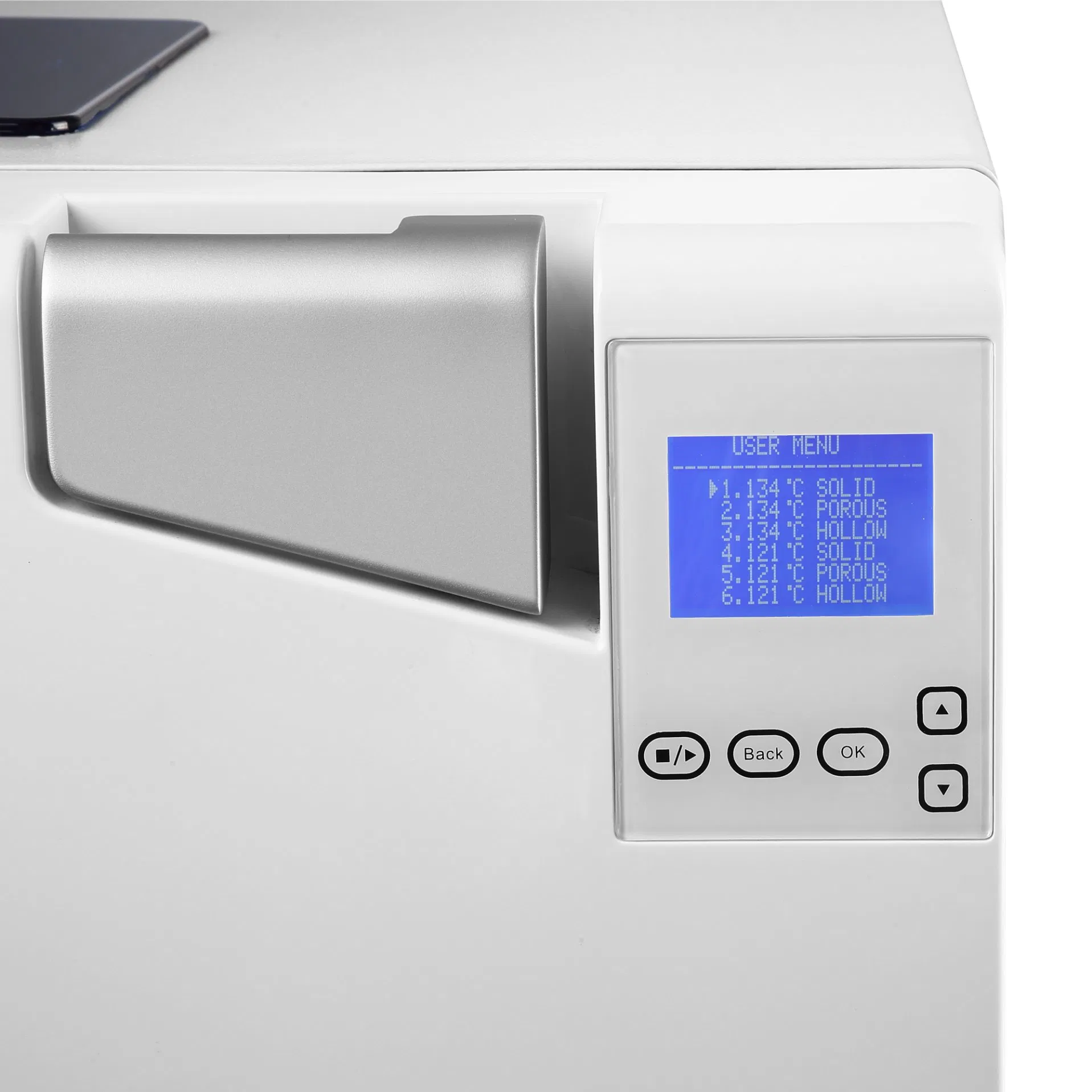

PRO Series 8L, Class B Autoclave
A sterilizer designed for precision and professional efficiency.
Top performance Class B sterilization cycle including drying in just 20 minutes.
Optimized for use in small disinfection-room spaces without compromising capacity.
Internal integration saves space and provides instant data logging.
Full compliance with European medical sterilization standards.

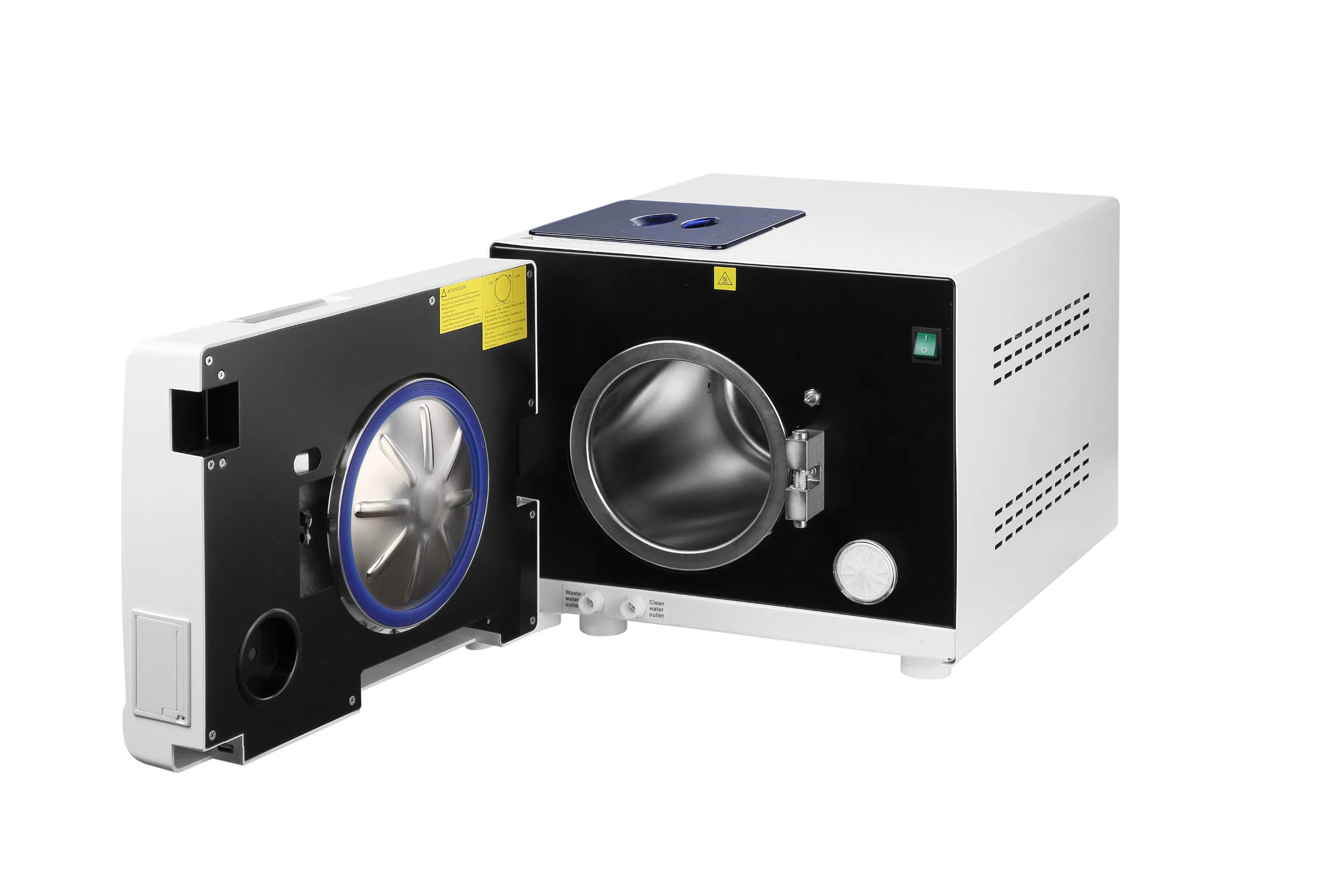

Independent hidden waste water tank prevents cross-infection; open-top fresh water tank for easy cleaning.
Electronic and mechanical locker system ensures maximum safety during operation.
| Parameter | Specifications |
|---|---|
| Power supply | 230V/50Hz/1500W |
| Clean water tank | 2.5L |
| Waste water tank | 2.0L |
| Chamber size | ø170X320mm |
| Capacity | 8L |
| Product size (W*D*H) | 436X629X355mm |
| Net weight | 45Kg |
| Material of chamber | Stainless steel 304 |
| Process | Vacuum Times | Sterilizing Time | Temperature | Pressure | Dry Time |
|---|---|---|---|---|---|
| 121ºC/SOLID | 1 * | 20min * | 121ºC | 110kPa | 3 * |
| 121ºC/POROUS | 3 * | 20min * | 121ºC | 110kPa | 7 * |
| 134ºC/SOLID | 1 * | 4min * | 134ºC | 210kPa | 3 * |
| 134ºC/POROUS | 3 * | 4min * | 134ºC | 210kPa | 7 * |
| B-D TEST | 3 | 4min | 134ºC | 210kPa | 7 |
| VACUUM TEST | - | - | - | -80kPa | - |
| PRIONEN | 3 | 19min | 135ºC | 210kPa | 10 |
* Parameters can be adjusted manually.
