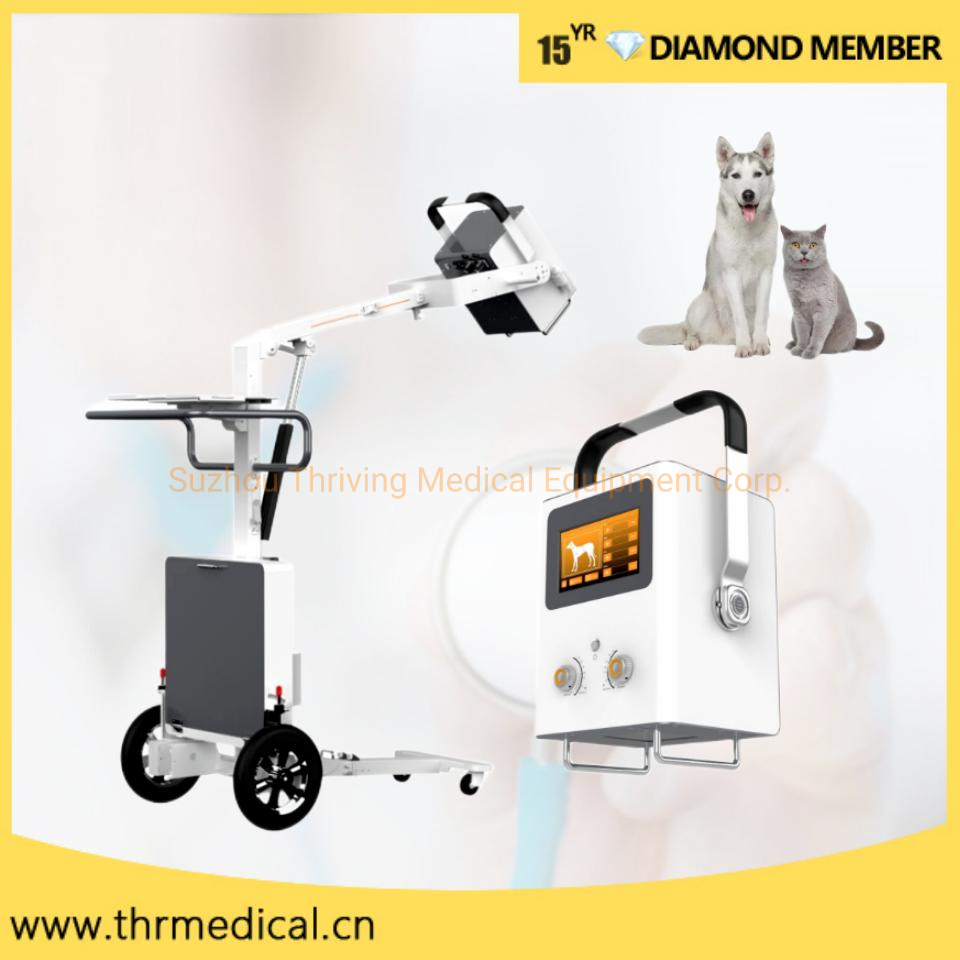

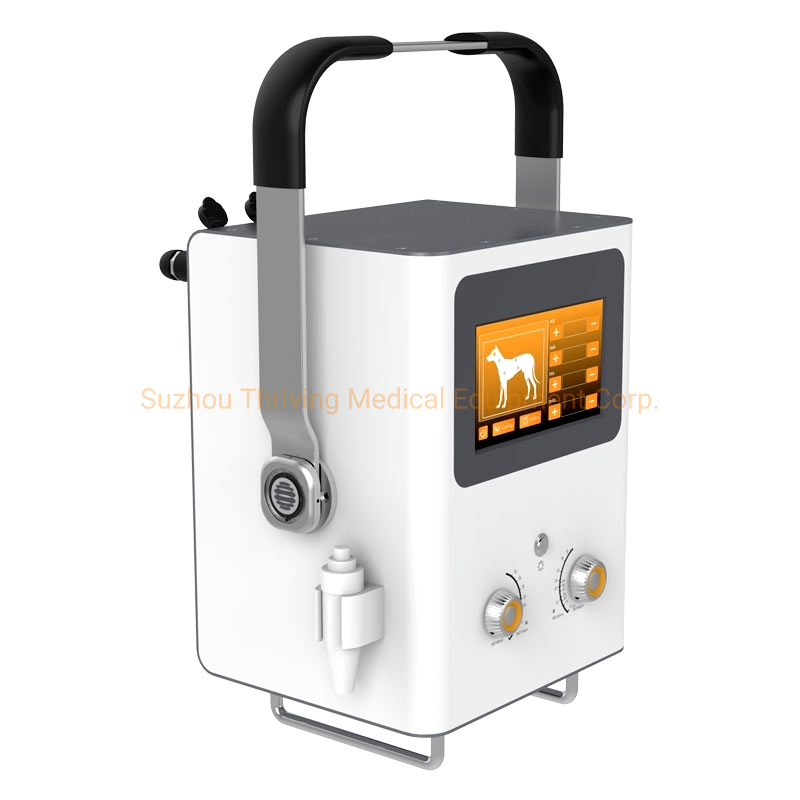

2022 Veterinary Medical Portable 8kw X-ray Machine Radiology Equipment Hospital Mobile Dr System

1 / 5

2022 Veterinary Medical Portable 8kw X-ray Machine Radiology Equipment Hospital Mobile Dr System

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

📋

Overview

Model NO.SONTU60

CertificationCE, ISO13485

GroupVeterinary

Display7-Inch Touch-Screen

X Ray Tube0.6mm-1.5mm(76hu 8.0kw)

BatteryTake 200 Images

Working Frequency100kHz

Mas Range0.1-250mas

Package Size320mm * 285mm * 400mm

Weight18KG

📦

Product Description

Cheap!! It's on sale these days!

⚡

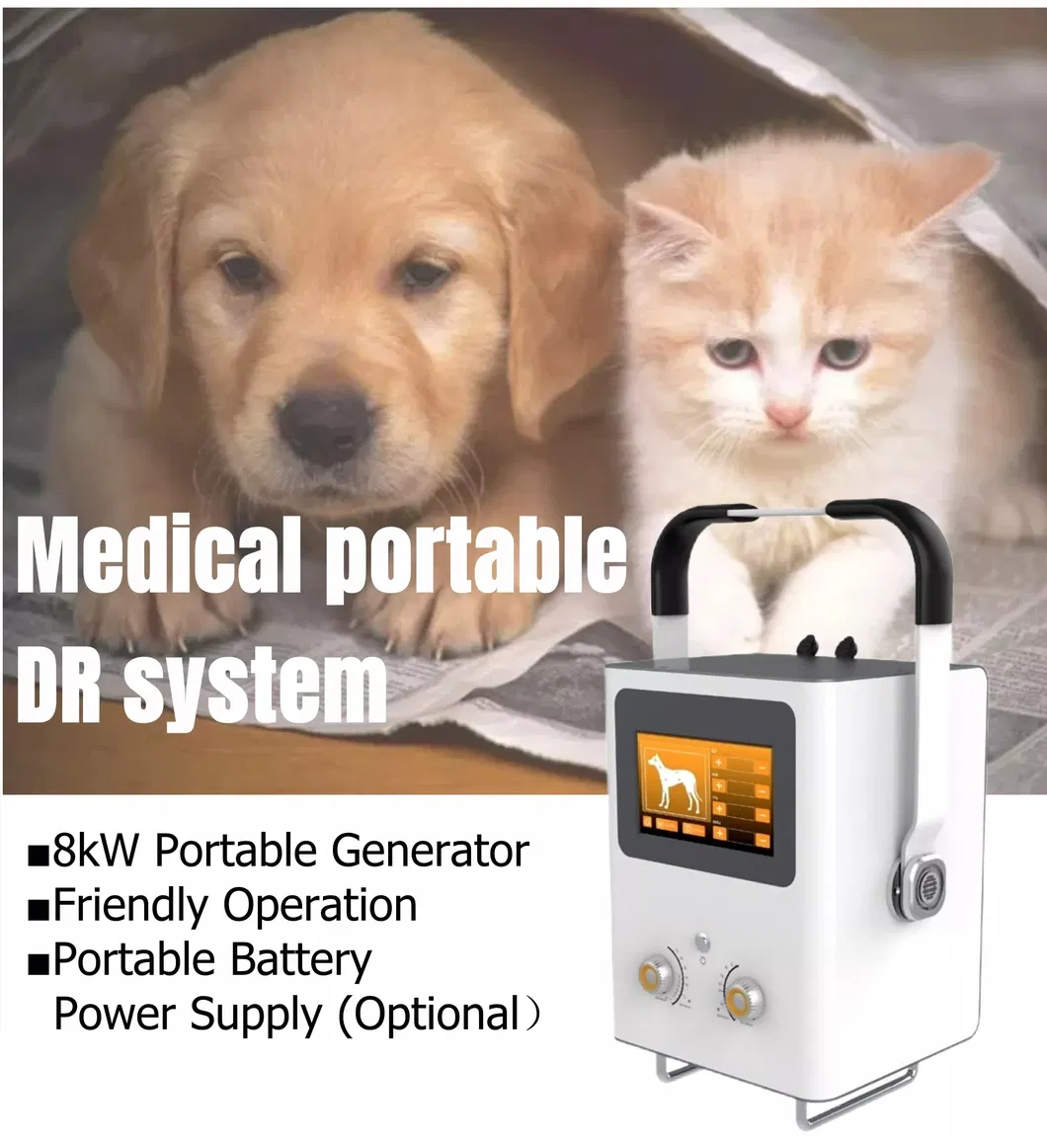

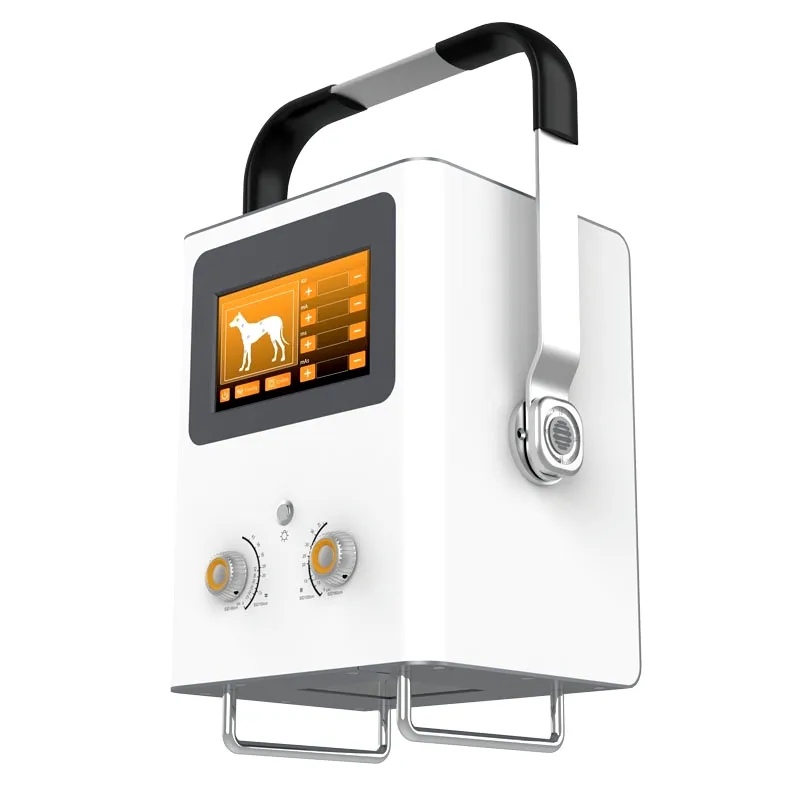

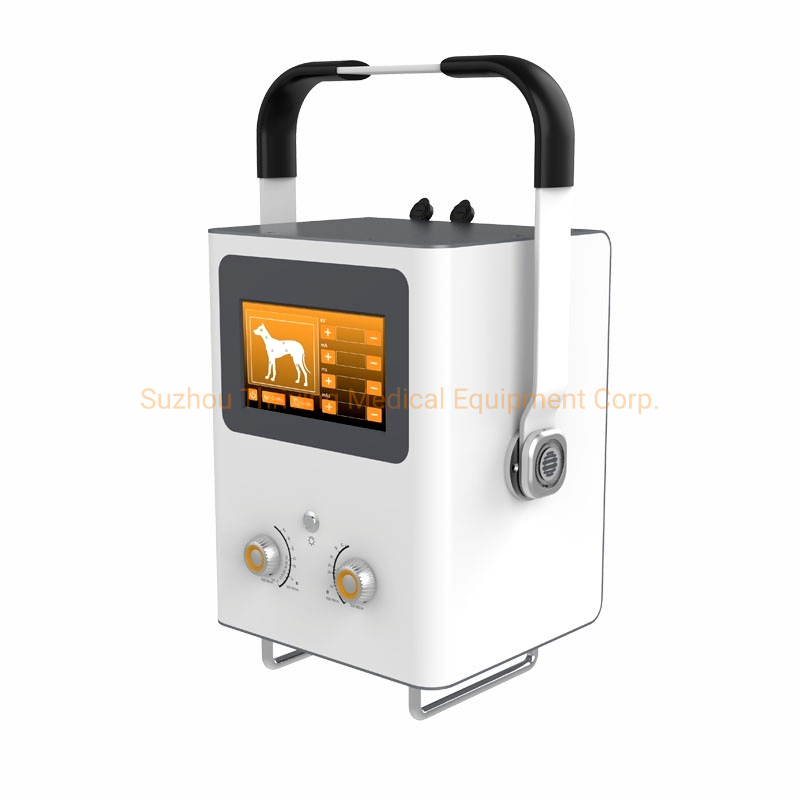

8kW Portable Generator
7 inch touch screen with parameter setting, easy to operate.

🔋

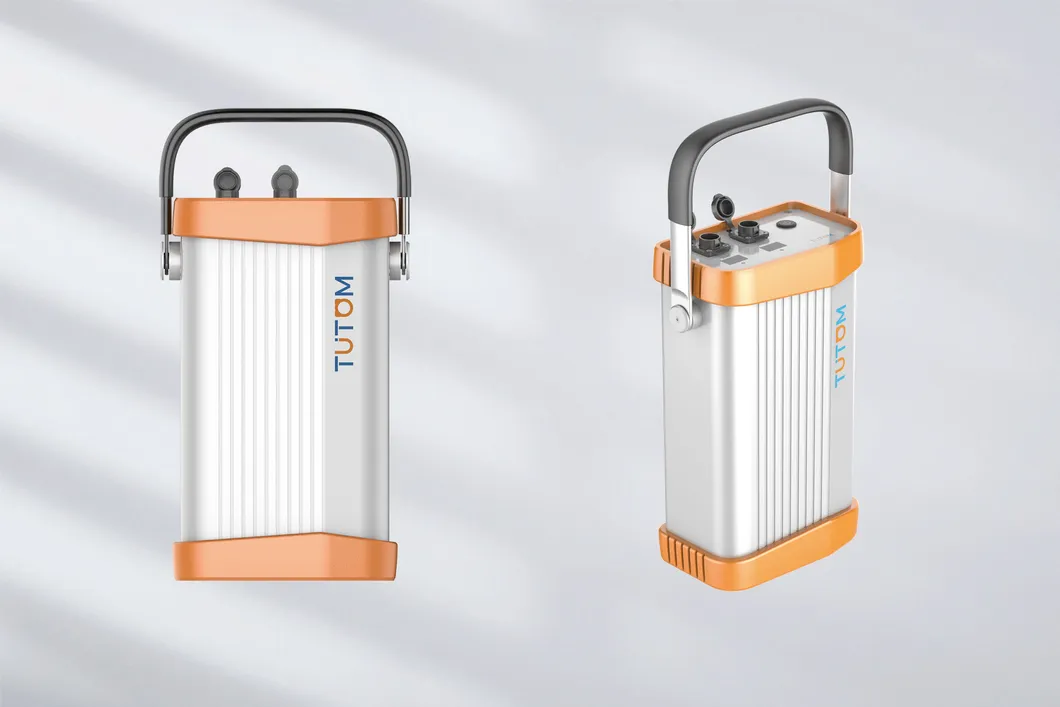

Portable Battery Power Supply (Optional)
The fully charge battery can take 200 images. Support 110V and 220V charging, light weight and large capacity.

🛠️

Technical Specification

Power	8KW
kVp Voltage	40-120kV (Increasing rate 1kV)
mAp Current Gears	5.0 / 6.3 / 8 / 10 / 12.5 / 16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 / 100 / 125 / 150
Exposure time	3.2ms~10s
mAs range	0.1-250mAs
Working Frequency	100kHz
X Ray Tube	0.6mm-1.5mm (76HU 8.0kW)
APR	59 Programs
Power source	220VAC-240VAC / Battery (Optional)
Weight	18KG
Dimension	320mm * 285mm * 400mm

🏢

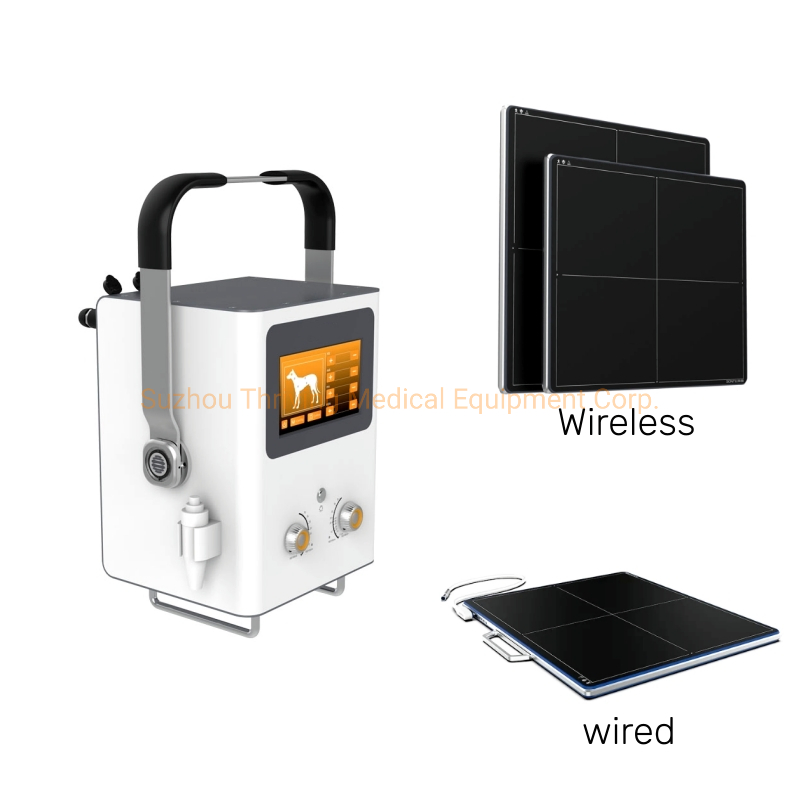

Equipment Overview

Frequently Asked Questions

Q1: What is the maximum power output of this portable X-ray machine? A: The machine features an 8kW high-frequency generator, providing powerful and stable radiation for veterinary imaging.

Q2: How many images can the optional battery take on a full charge? A: When equipped with the optional battery, the system can take up to 200 images on a single full charge, supporting both 110V and 220V charging.

Q3: Is the interface user-friendly for veterinary staff? A: Yes, it is equipped with a 7-inch touch-screen interface that allows for easy parameter settings and operation.

Q4: Does the system include pre-set examination programs? A: Yes, it includes 59 APR (Anatomical Programmed Radiography) programs to streamline the workflow for different animal types and parts.

Q5: What is the weight and portability of the unit? A: The unit weighs 18KG and comes with a portable stand, making it easy to move within a clinic or transport for field use.

Q6: What certifications does this equipment have? A: The SONTU60 is fully certified with CE and ISO13485 standards, ensuring compliance with international medical equipment quality requirements.
