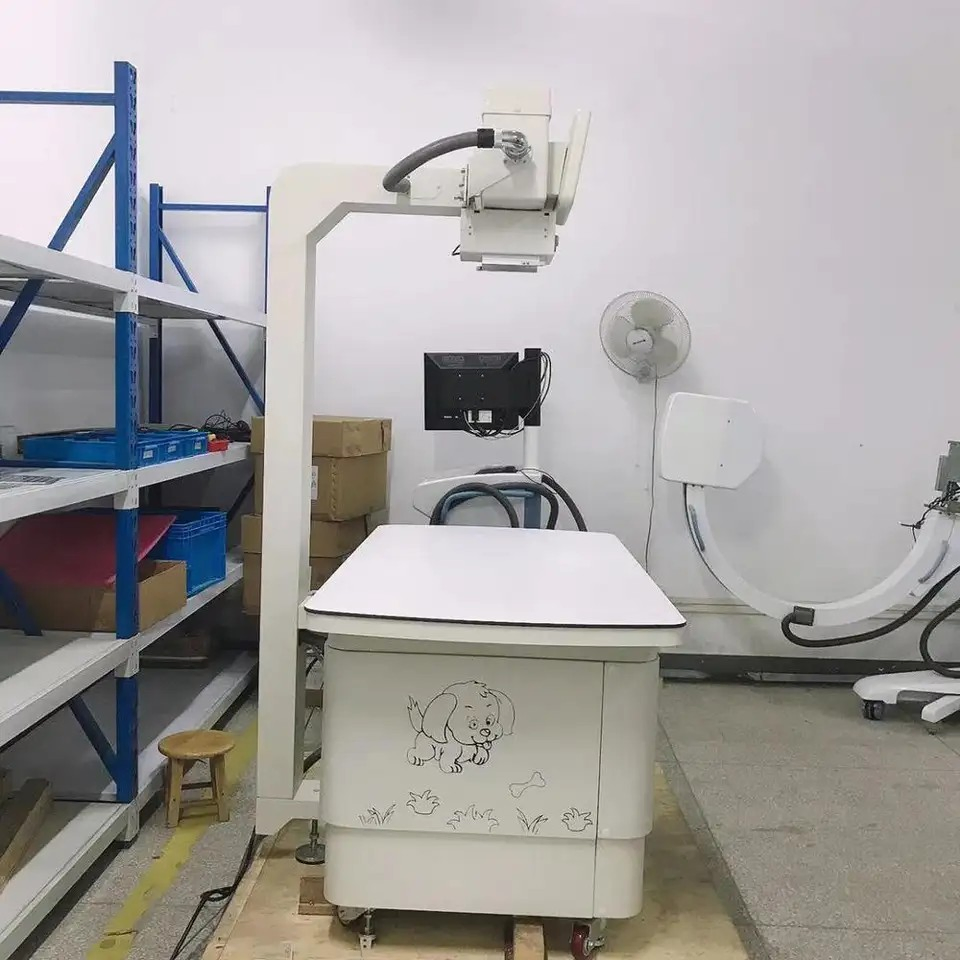

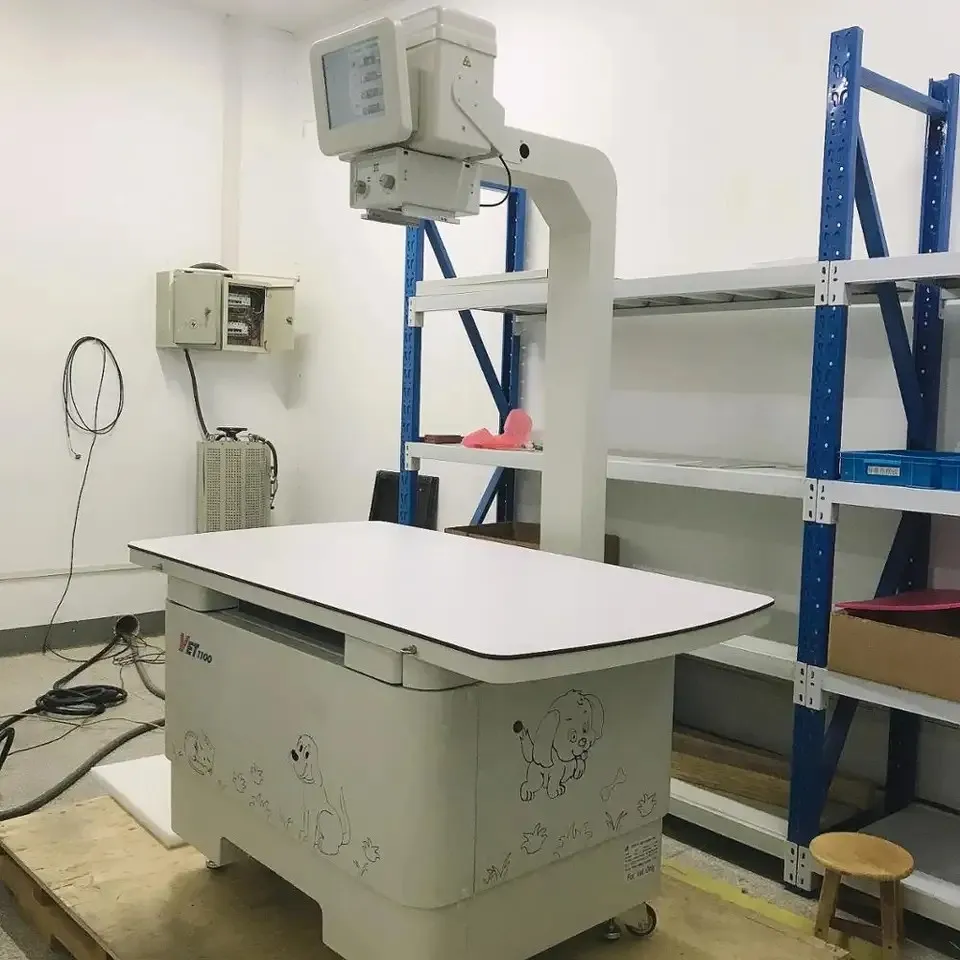

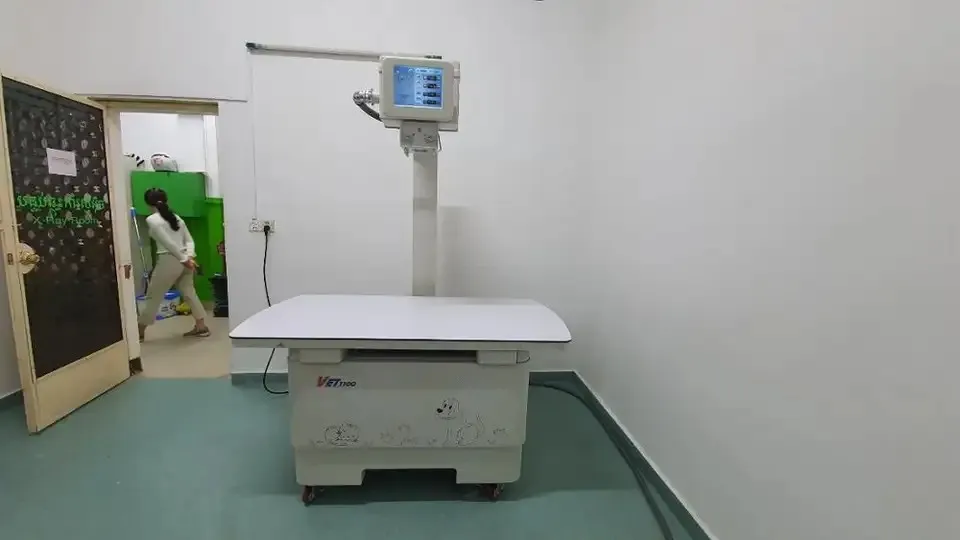

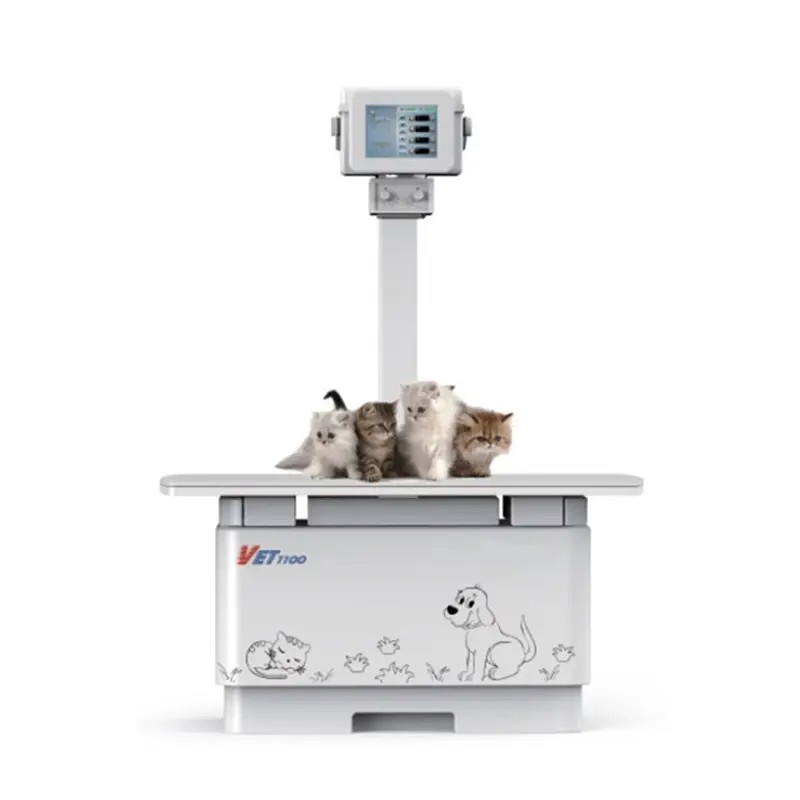

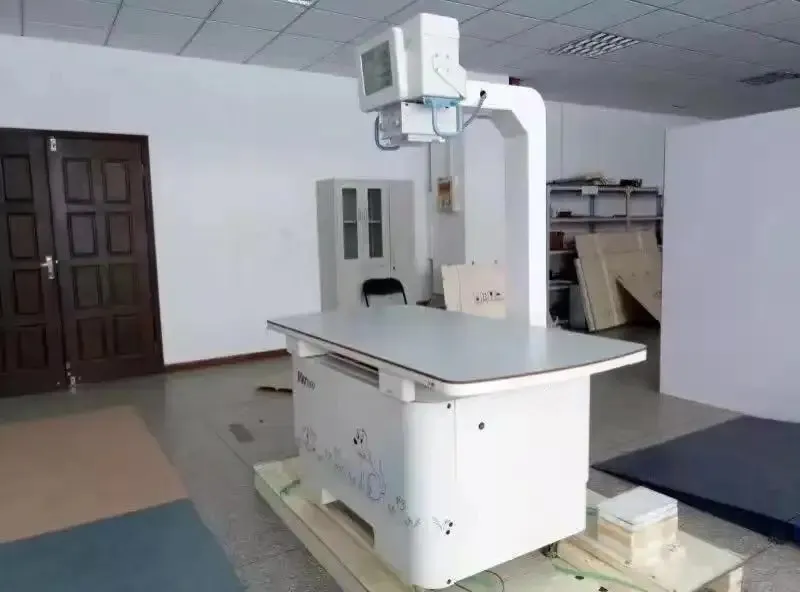

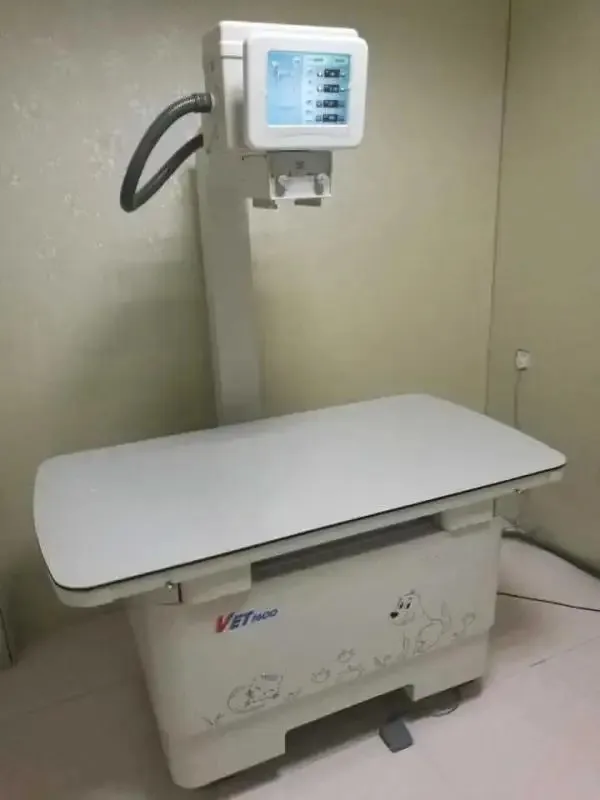

The JRVET1100 is a specialized high-frequency digital X-ray radiography system designed for veterinary use. It provides high-quality diagnostic imaging for pet hospitals and clinics, catering to animals of all body types.

1. Technical Parameters

• Power Output: 4.5KW with ≥40kHz main inverter frequency.
• X-ray Tube: XD6C-0.55, 4/125.
• Voltage/Current: 40kV~120kV / 20mA~100mA.
• Power Supply: 220V, single phase.
• Exposure Control: Wire control and remote control options.
• Interface: Professional touch screen console.

2. Digital Imaging System

• Flat Panel Detector: 1717M (A-si type).
• Pixel Resolution: 3.6lp/mm with 139um pixel pitch.
• Matrix: 3072 x 3072 pixel matrix, 14-bit A/D conversion.
• Size: Large 17" x 17" valid imaging area.

3. Mechanism Parameters

• Table Dimensions: Length 1520mm ±5%.
• Machine Height: 1900mm ±5%.
• Table Movement: 400mm horizontal and 200mm transverse adjustment.

4. Key Features

• High-frequency inverter technology for fine, stable, and clear image contrast.
• Microcomputer real-time control for precise dose accuracy and repeatability.
• True color display with multiple preset radiography programs.
• Mono-block X-ray generator to minimize radiation exposure for operators and environment.
• Full safety protection: overvoltage, overcurrent, and overheating protection.
• Supports barcode scanners for efficient patient information input.
• DICOM 3.0 standard support for professional image processing and report output.
