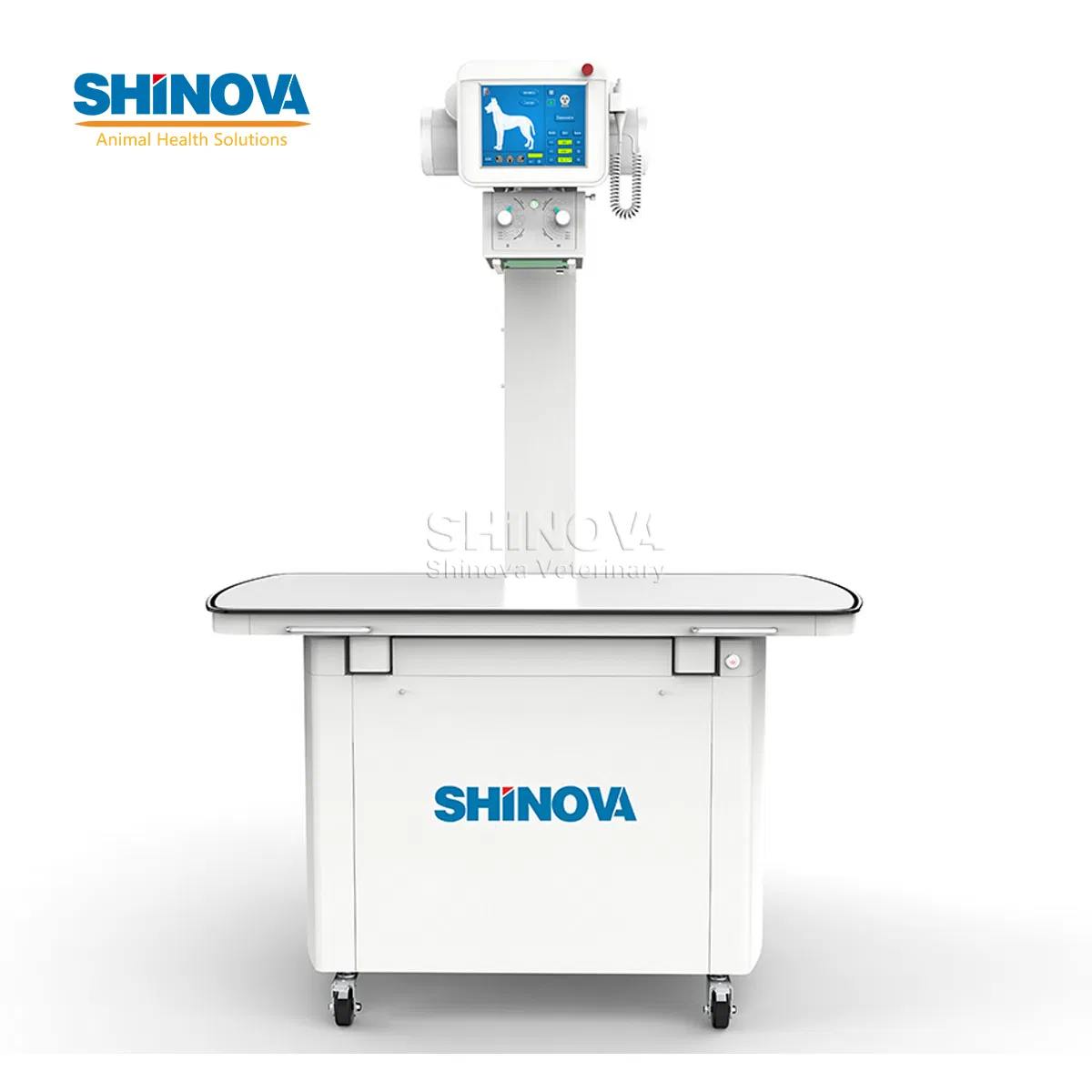

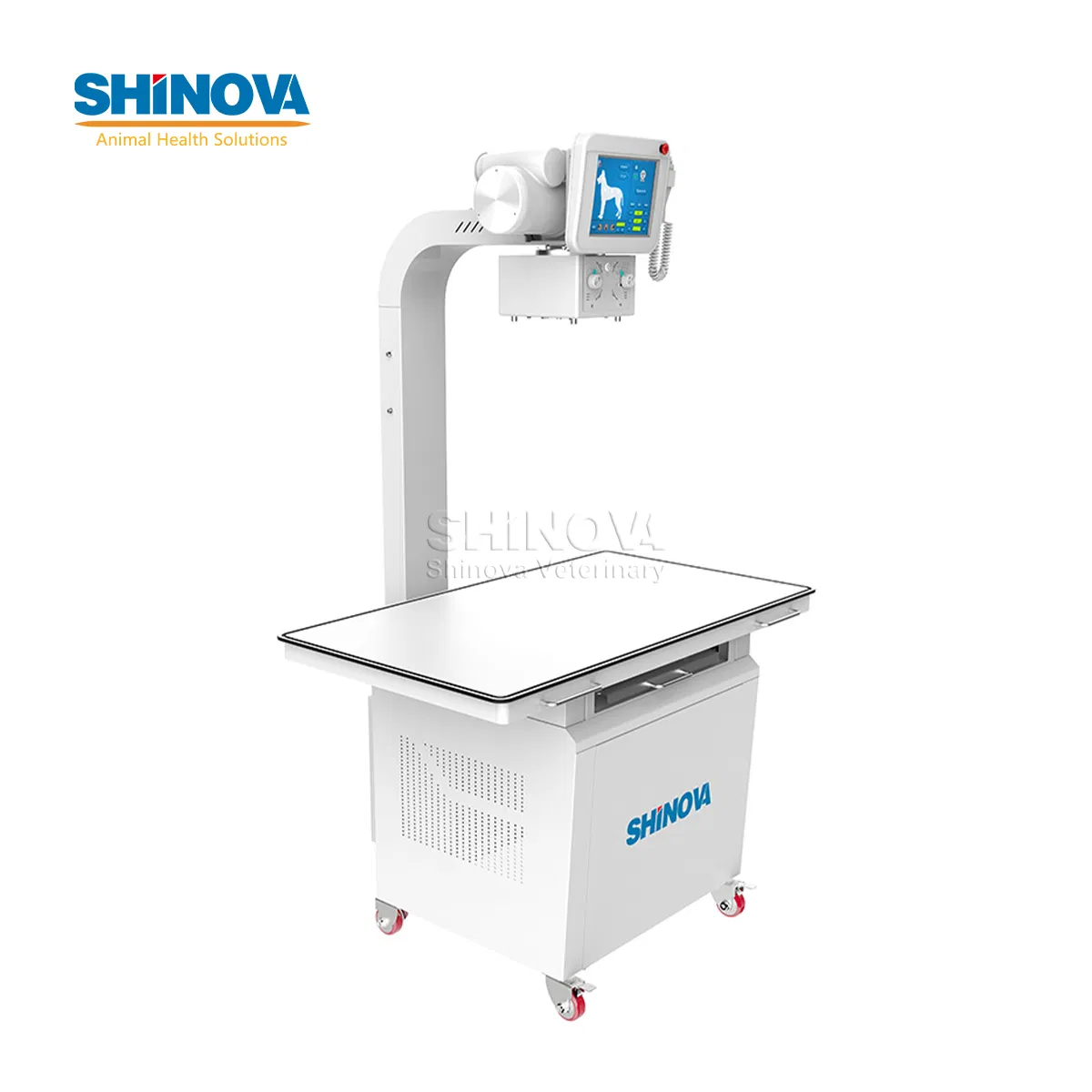

200mA Veterinary Digital X-ray Machine (Model: DR-200)
| Maximum output power | 20kW |
| Range of tube current | 16~200mA |
| Inverter frequency | ≥30kHz |
| Tube voltage range | 40kv~125kv |
| Exposure time range | 0.0025s~6.4s |
| mAs range | 0.5mAs~320mAs |
| Input voltage | AC 220V±22V |
| Features | Capacity lock, fault diagnosis, self-protection |
| Max. Tube voltage | 125kV |
| Focus | Small: 1.0mm / Large: 2.0mm |
| Anode input power | Small: 20kW / Large: 40kW |
| Anode speed | 2800 R/M |
| Target angle | 17.5° |
| Size (L*W*H) | 1220mm*700mm*830mm |
| Bearing weight | 150kg |
| Movement | With wheels, Four-way tabletop movement |
| Positioning | Soundless manual brakes |
| Material | CSI |
| Scanning Area | 17*17 inch |
| A/D Conversion | 16 Bit |
| Pixel Matrix | 3328(h)*3328(v) (11 million pixels) |
| Pixel Size | 127μm |
| Image Preview | ≤ 2s |
| CPU / Memory | ≥2.8GHz / 4GB |
| Storage | 500GB |
| Monitor | 19″ Medical LCD |
| Functions | Zoom, Brightness/Contrast adjust, Rotation, Rollovers |
| Connectivity | Dicom 3.0, 100M Network interface |
A: The HF generator (≥30kHz) provides more stable X-ray output with lower radiation doses, ensuring higher quality imaging and increased safety for animals.
A: The system features a rapid image preview time of not more than 2 seconds, allowing for immediate assessment during clinical procedures.
A: Yes, the table is designed with a high bearing weight capacity of 150kg and features a four-way floating tabletop for easy positioning of various animal sizes.
A: Yes, the imaging workstation is fully compatible with Dicom 3.0 standards for seamless image transmission, query, and editing.
A: The DR-200 includes automatic overload protection for kV, mA, exposure time, and temperature, along with built-in fault diagnosis and self-protection functions.
A: The Flat Panel Detector offers a 3328x3328 pixel matrix (approximately 11 million pixels) with a 127μm pixel size for high-resolution diagnostic clarity.
