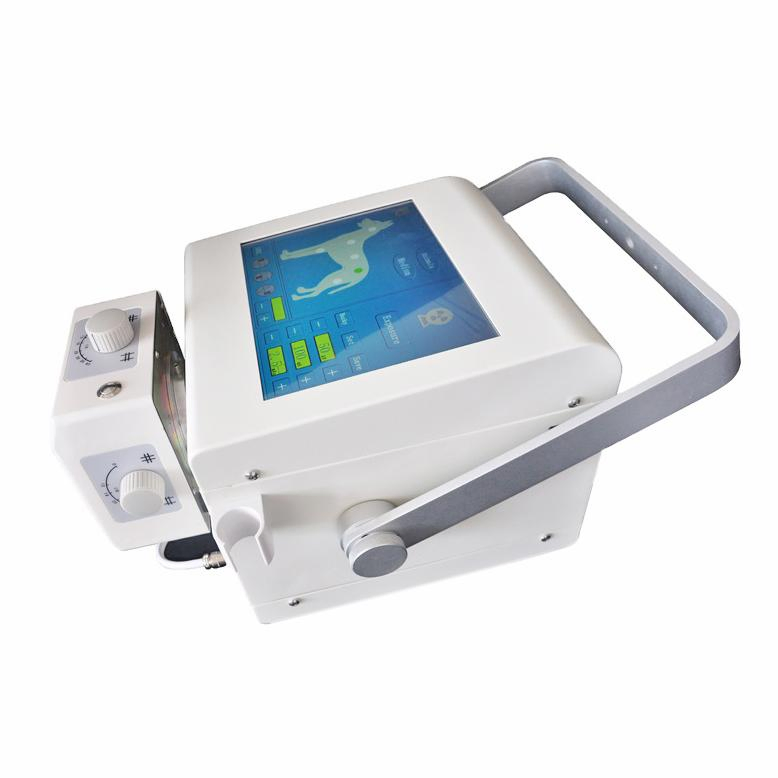

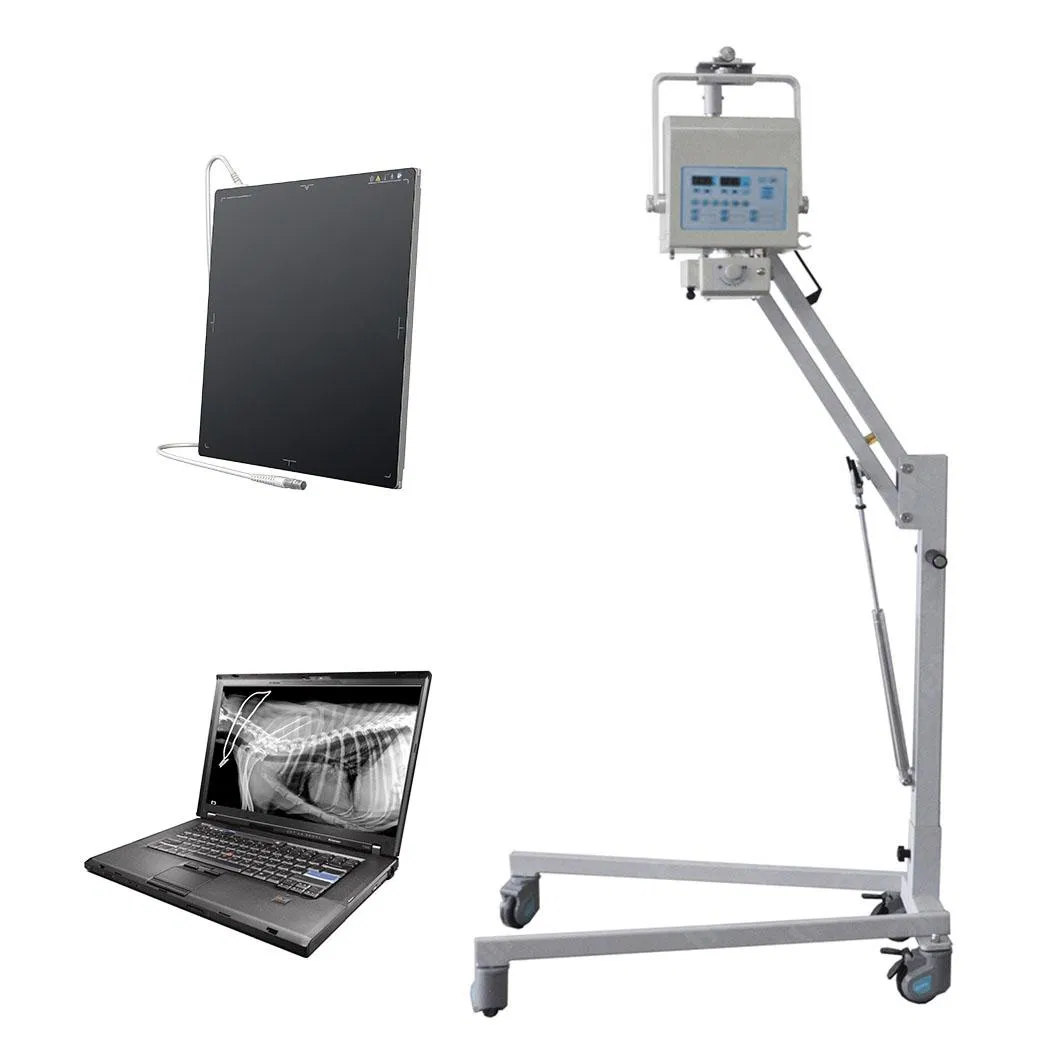

8kw 160mA Portable Digital Mobile X Ray Diagnosis Equipment for Human or Veterinary

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

Model NO.: WMDR-001
Transport Package: Paper Box
Origin: China
Production Capacity: 50000PCS/Year
📸

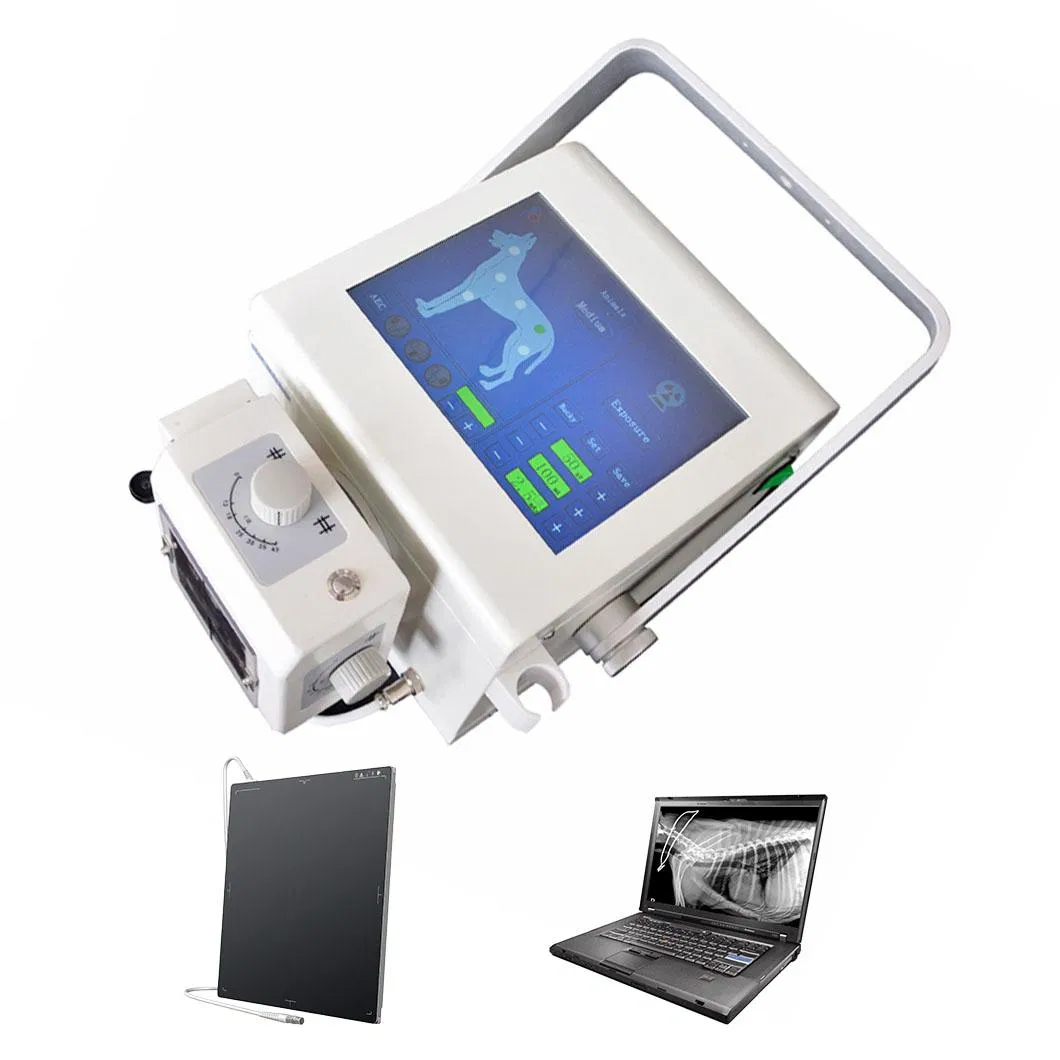

Product Gallery

🛠️

Technical Description

Product Description
ModelDR-M100A & DR-M100AV
Input powerVoltage: AC220V±22V Frequency: 50/60Hz±1Hz
Maximum output power5kW
Nominal powerAC 220V, 50Hz
kV adjusting range40kV~110kV, Continuous adjustment step 1 kV
mA adjusting range20mA~100mA
mAs adjusting range0.2mAs~200mAs, shifted adjustment.
s adjusting range10~4000ms
X-ray tubeFocus: 0.5/1.6mm; Anode heat capacity: 240kHU
Flat Panel Detector17X17inch; Scintillator: CsI Direct Deposit; Pixel Pitch: 139; Limit resolution: Max.3.6LP/mm; Pixels: 3072*3072
Laptop ConfigurationCPU: Intel Core i5; Memory: 4GB; Screen: 14 inch
X-ray machine size290×265×230mm
Weight19kg

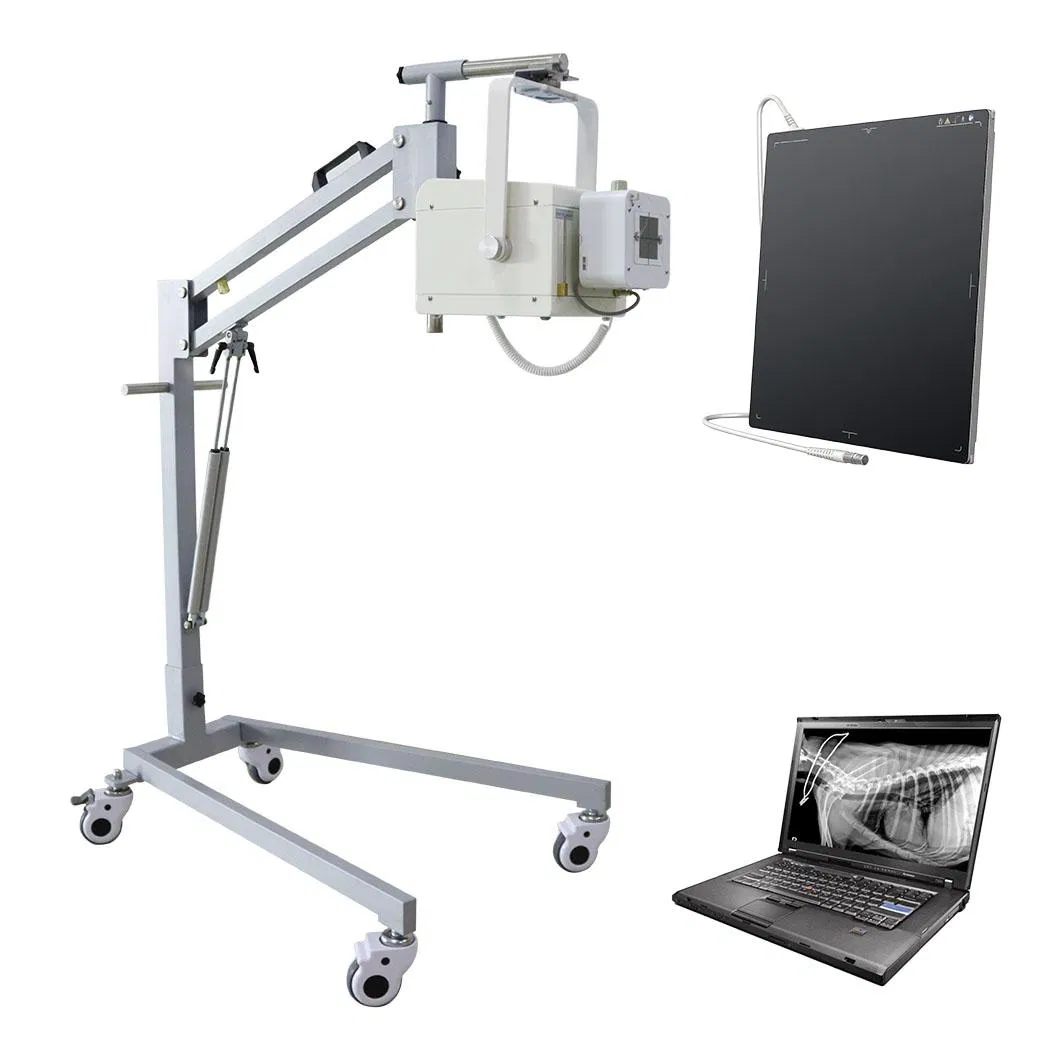

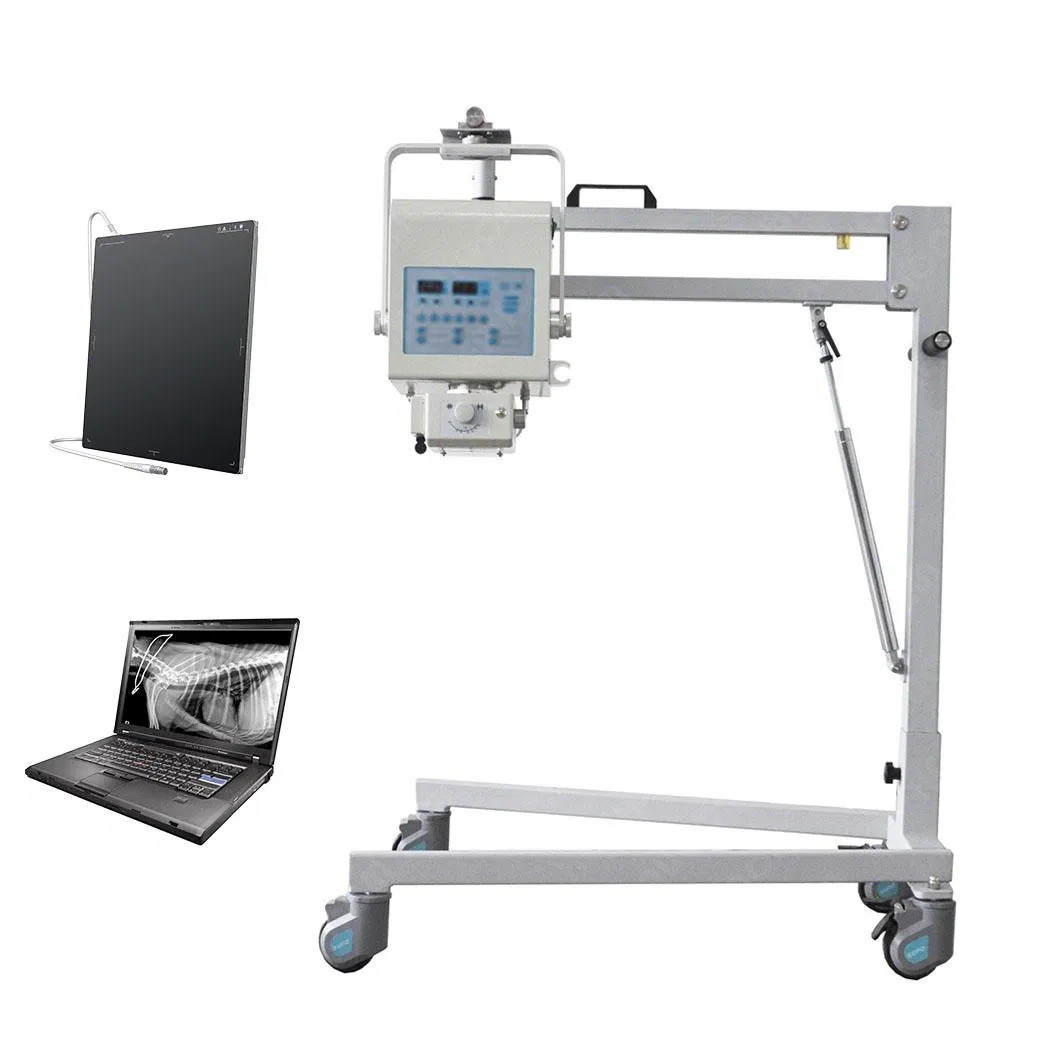

Standard ConfigurationHand switch, remote control, detector, computer & LCD, suitcase, moveable stand

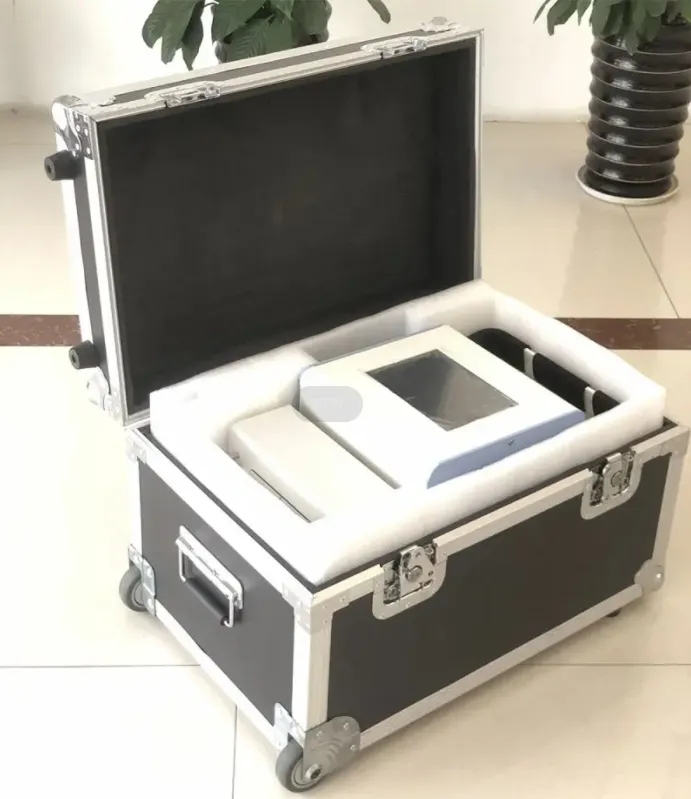

Device Focus
📜

Quality Assurance & Certificates

Certificates
🏭

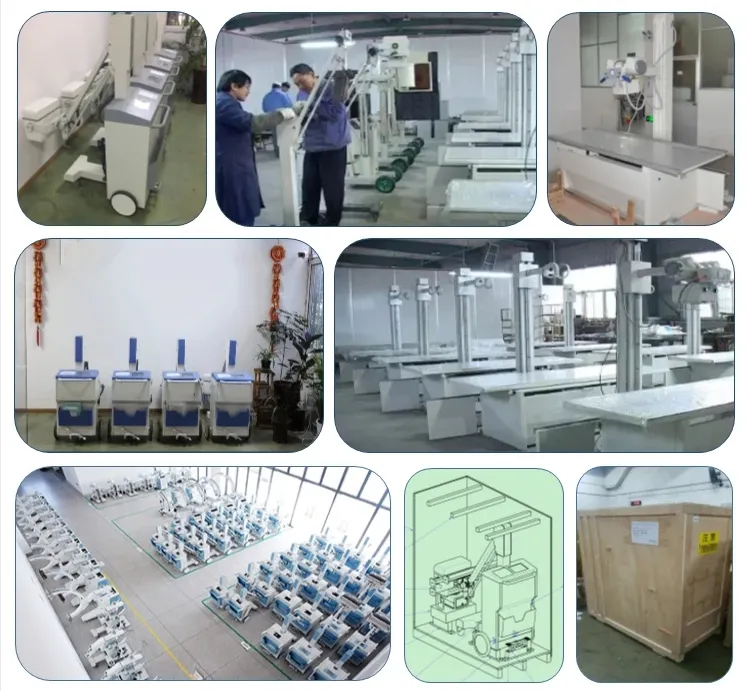

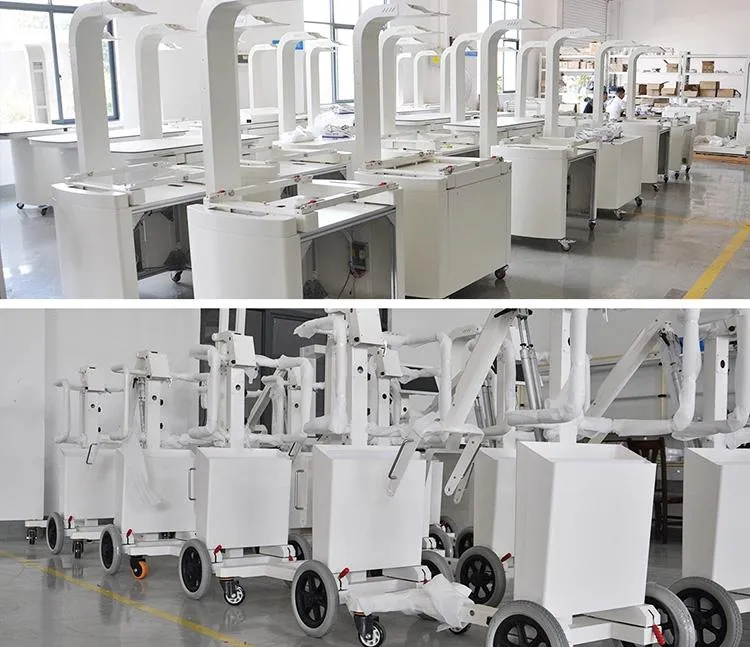

Production Environment

Founded in 2010, after several years' development, the company is today one of the professional suppliers of medical equipment and veterinary equipment. The full range of products includes infusion & syringe pumps, Ultrasound, Anesthesia Machines, Ventilators, Patient monitors, Blood pressure monitors, Stainless steel cages and so on. Familiar with high-quality standards in this area from the beginning, the company has been working with a quality management system according to ISO for years. Quality always is the first concern. Today, products are shipped all over the world, including Europe, Middle East, Africa, South America, and Asia.
🤝

Exhibition & Global Reach

💬

Customer Feedback

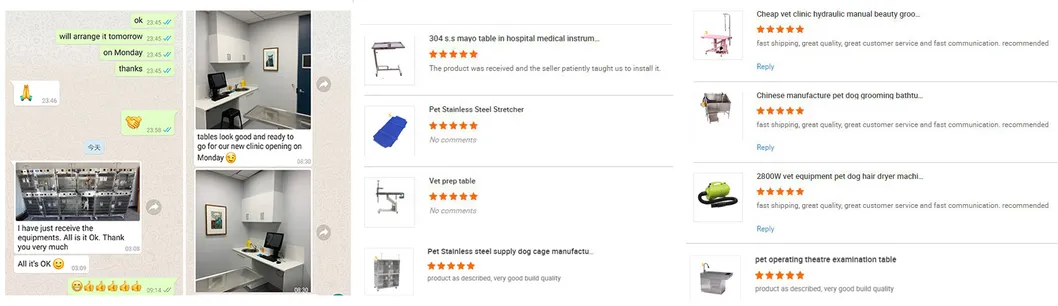

Feedback 1

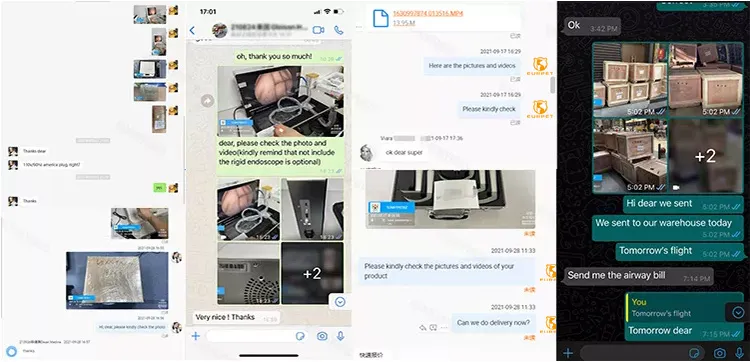

Feedback 2

Related Products

Related Item 1

Frequently Asked Questions

Is this equipment suitable for both humans and animals?
Yes, the DR-M100A and DR-M100AV models are designed for both human medical diagnosis and veterinary applications.
How portable is the X-ray machine?
The main unit weighs only 19kg and has compact dimensions of 290×265×230mm, making it highly portable and suitable for mobile use.
What is the resolution of the digital detector?
The 17x17 inch wire flat panel detector features a pixel pitch of 139μm and a limit resolution of up to 3.6 LP/mm for high-quality imaging.
What kind of computer is included in the standard package?
The standard configuration includes a high-performance laptop with an Intel Core i5 processor and 4GB of memory.
Can I adjust the radiation dose?
Yes, the kV range is adjustable from 40kV to 110kV in 1kV steps, and the mA range is adjustable from 20mA to 100mA for precise dose control.
What are the power supply requirements?
The device operates on a standard AC 220V±22V power supply with a frequency of 50/60Hz±1Hz.
