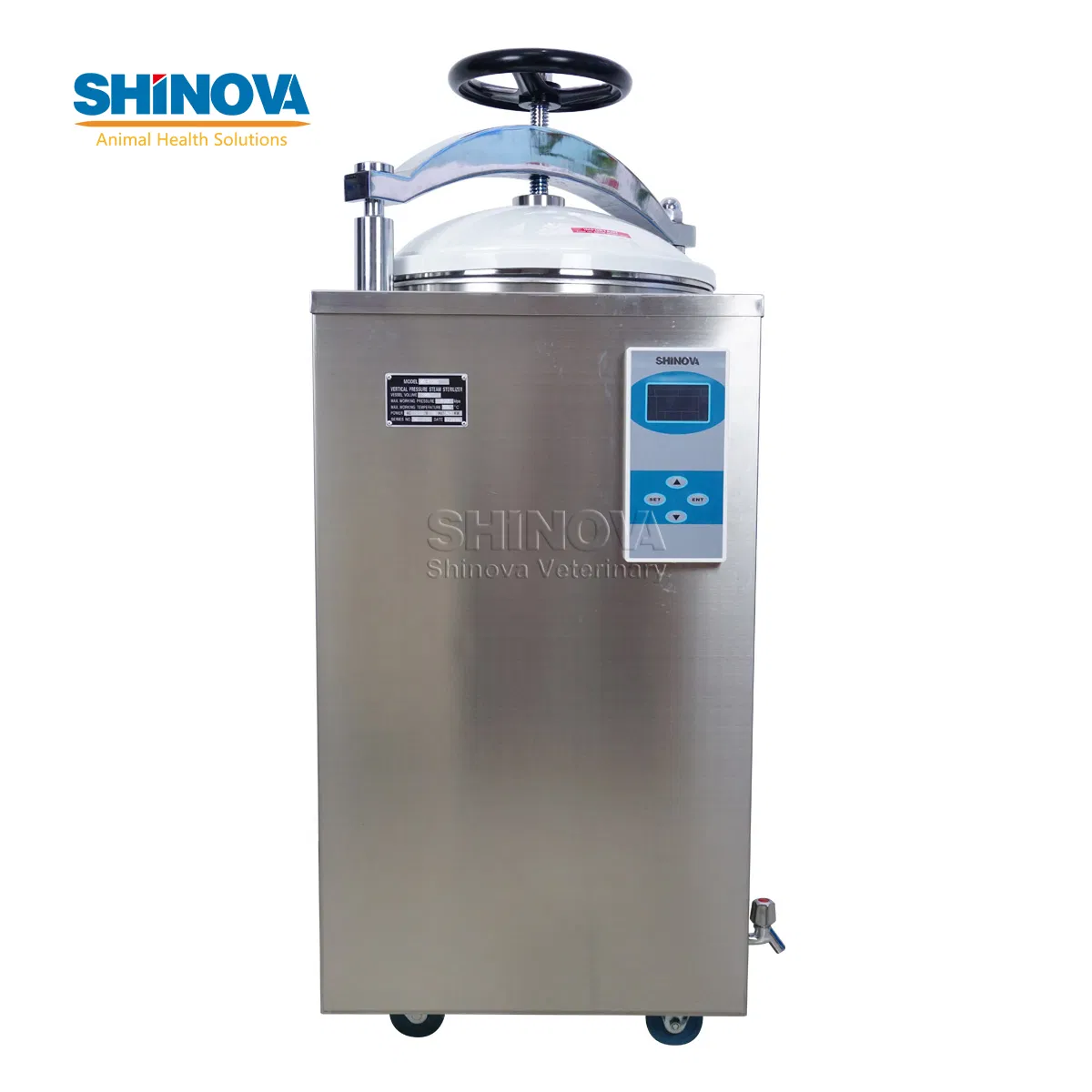

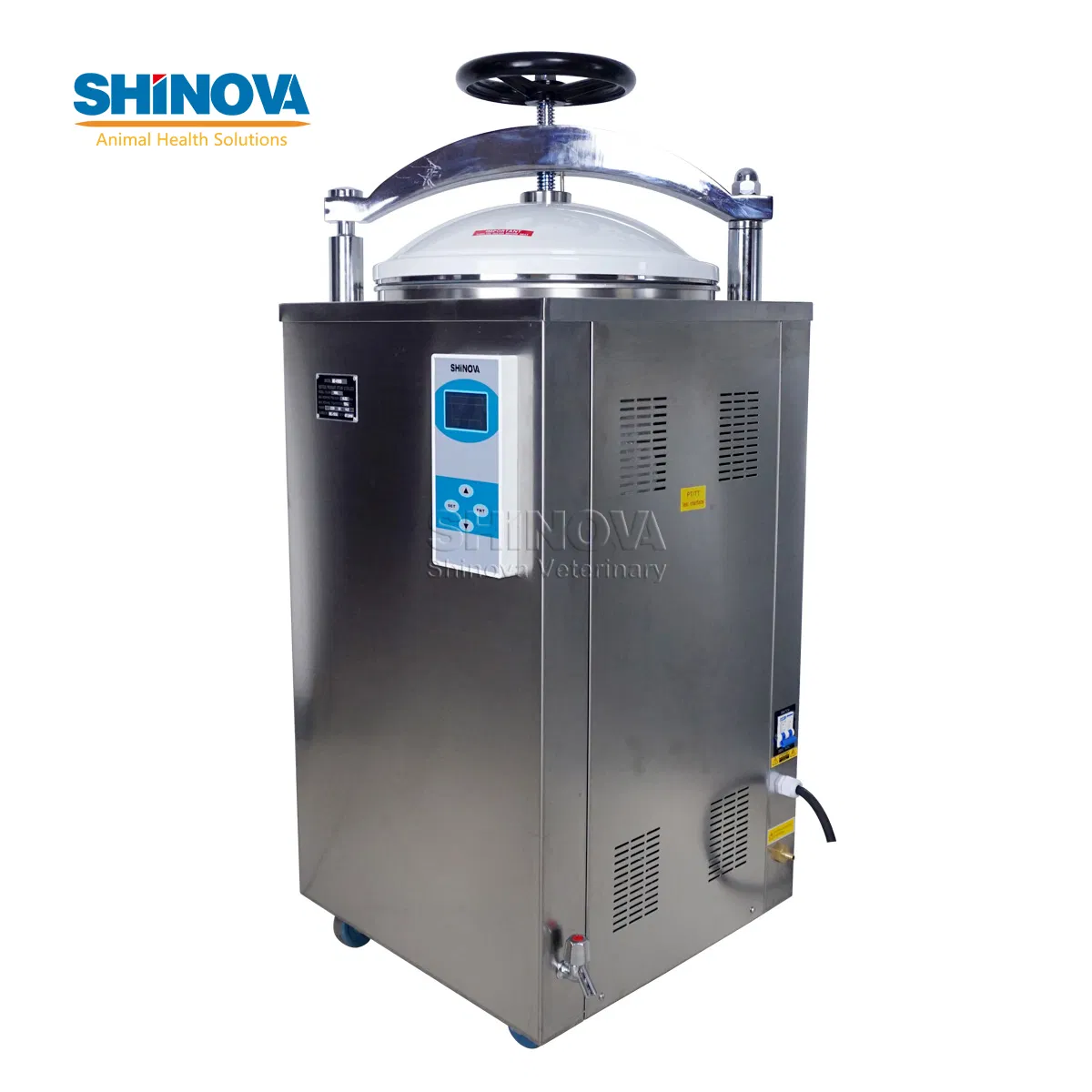

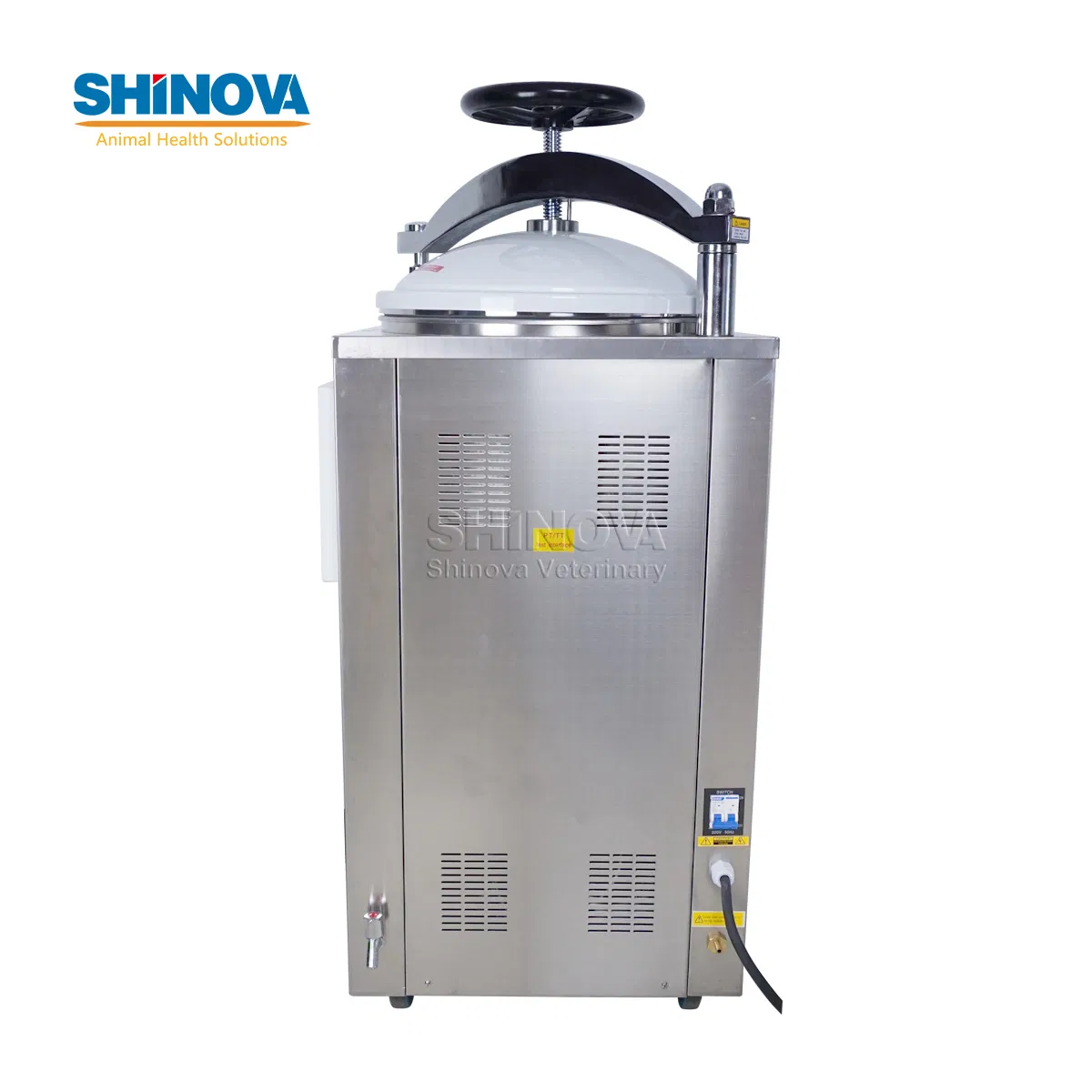

35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
1 / 5
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD
35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD

35L Vertical Steam Autoclave/Veterinary Vertical Sterilizer Ms-V35HD

Customization: Available
Theory: Pressure Steam
Type: Pressure Steam Sterilization Equipments
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
MS-V35HD
Chamber Volume
35L(φ 440× 650) mm
Working Pressure
0.22MPa
Working Temperature
134ºC
Temperature Range
105-134ºC
Timer Range
0 ~ 99min / 0 ~ 99h 59min
Transport Package
Carton
Production Capacity
5000PCS/Year
Vertical Steam Autoclave
Autoclave Details
Automatic Sterilizer
★

Key Characteristics

High-quality stainless steel material for durability.

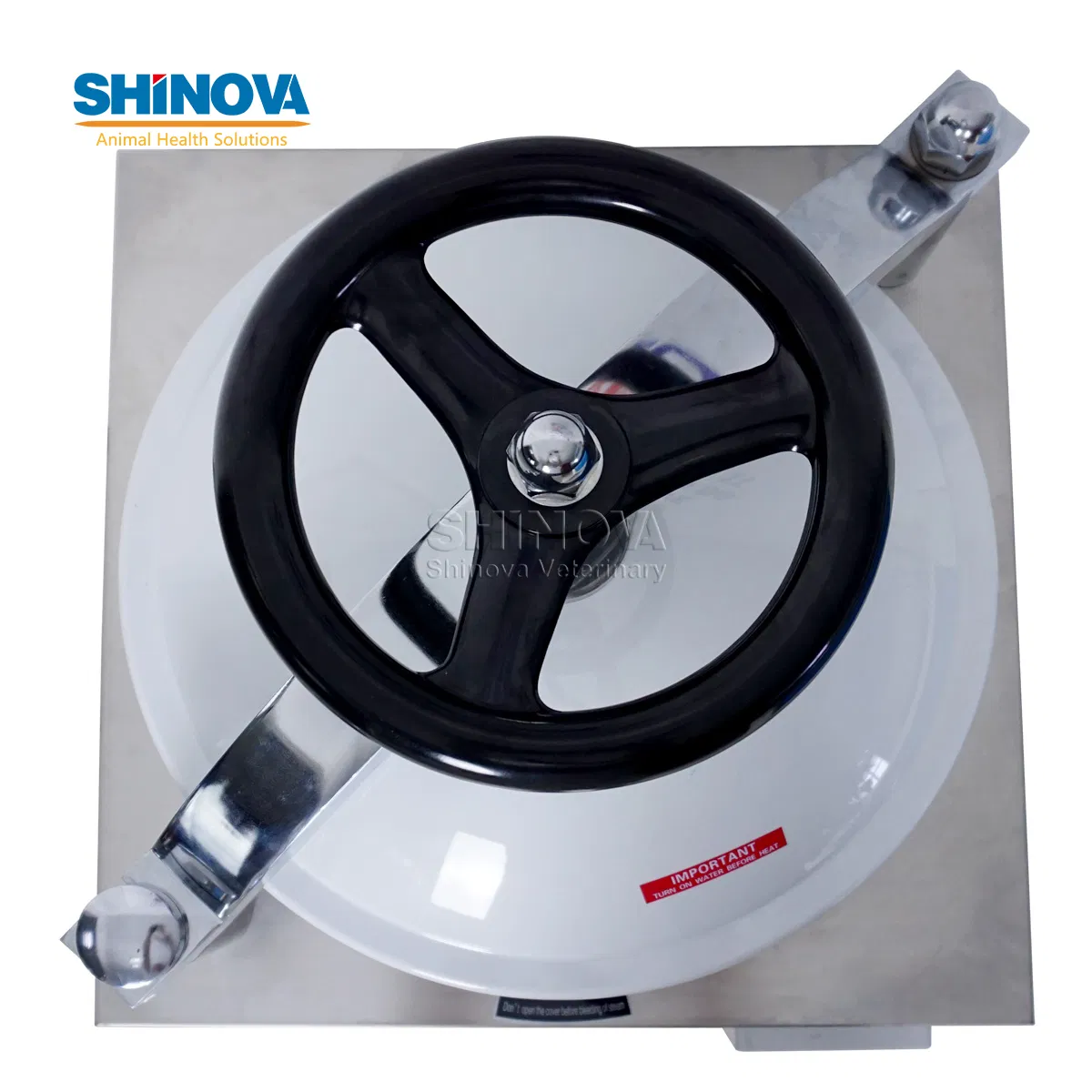

Translational handwheel for easy door structure opening.
Safety interlock device for maximum operation security.
Digital display of working status with sensitive touch buttons.
Dual protection: Over-temperature and over-pressure functions.
Automatic discharge of cold air and steam after sterilization.
Water level control protection system.
Self-inflating type seal for leak-proof operation.
Automatic buzzer reminder at the end of sterilization.
Equipped with double-layer stainless steel baskets.
Internal Structure
Control Panel
⚙

Technical Parameters Comparison

Technical Parameters MS-V35HD MS-V50HD MS-V75HD MS-V100HD
Chamber Volume 35L (Φ318×450)mm 50L (Φ340×550)mm 75L (Φ400×600)mm 100L (Φ440×650)mm
Working Pressure 0.22MPa
Operating Temp 134 ºC
Thermal Uniformity ≤ ± 1 ºC
Power Supply 2.5Kw / AC220V 3Kw / AC220V 4.5Kw / AC220V
Dimensions (mm) 450×450×1010 510×470×1130 560×560×1120 540×560×1250
GW / NW 72Kg / 56Kg 88Kg / 68Kg 100Kg / 80Kg 110Kg / 85Kg

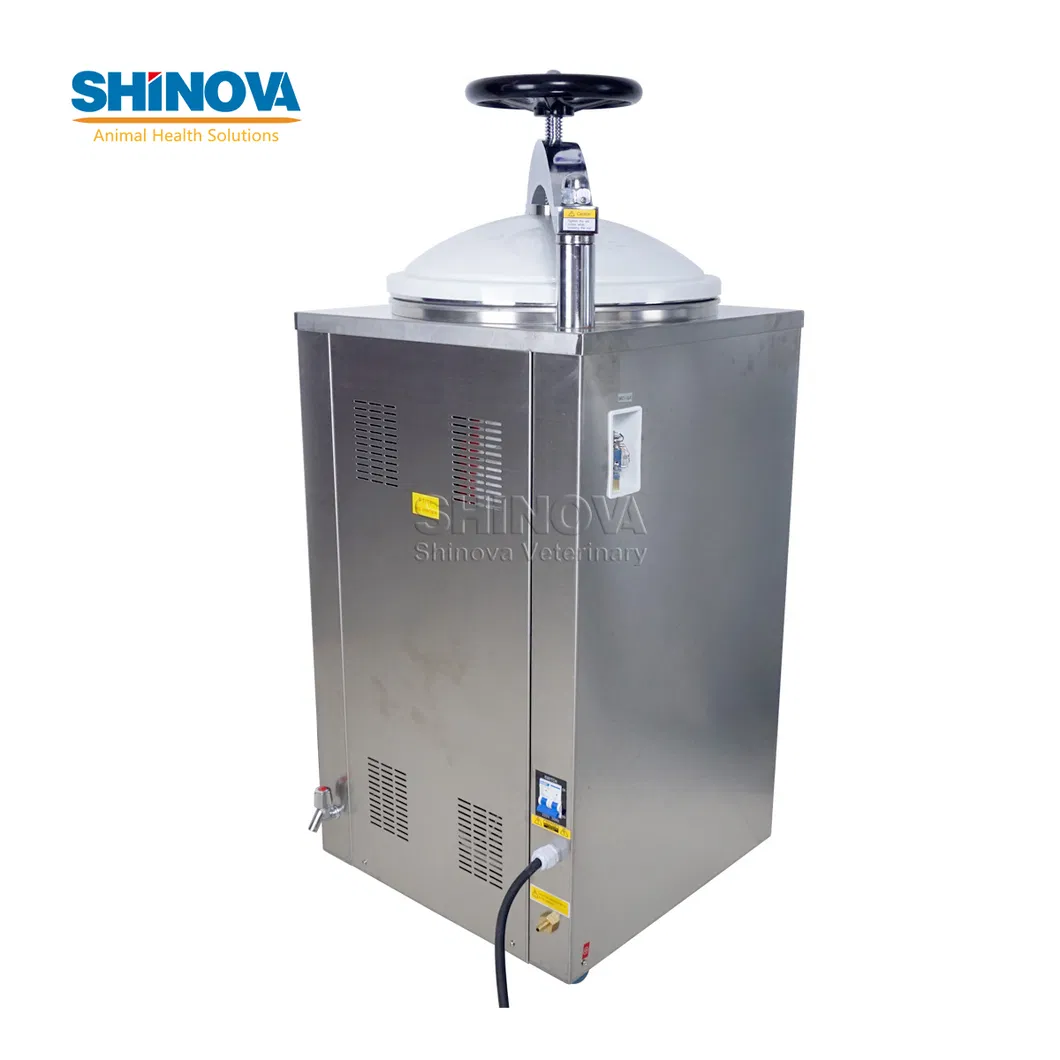

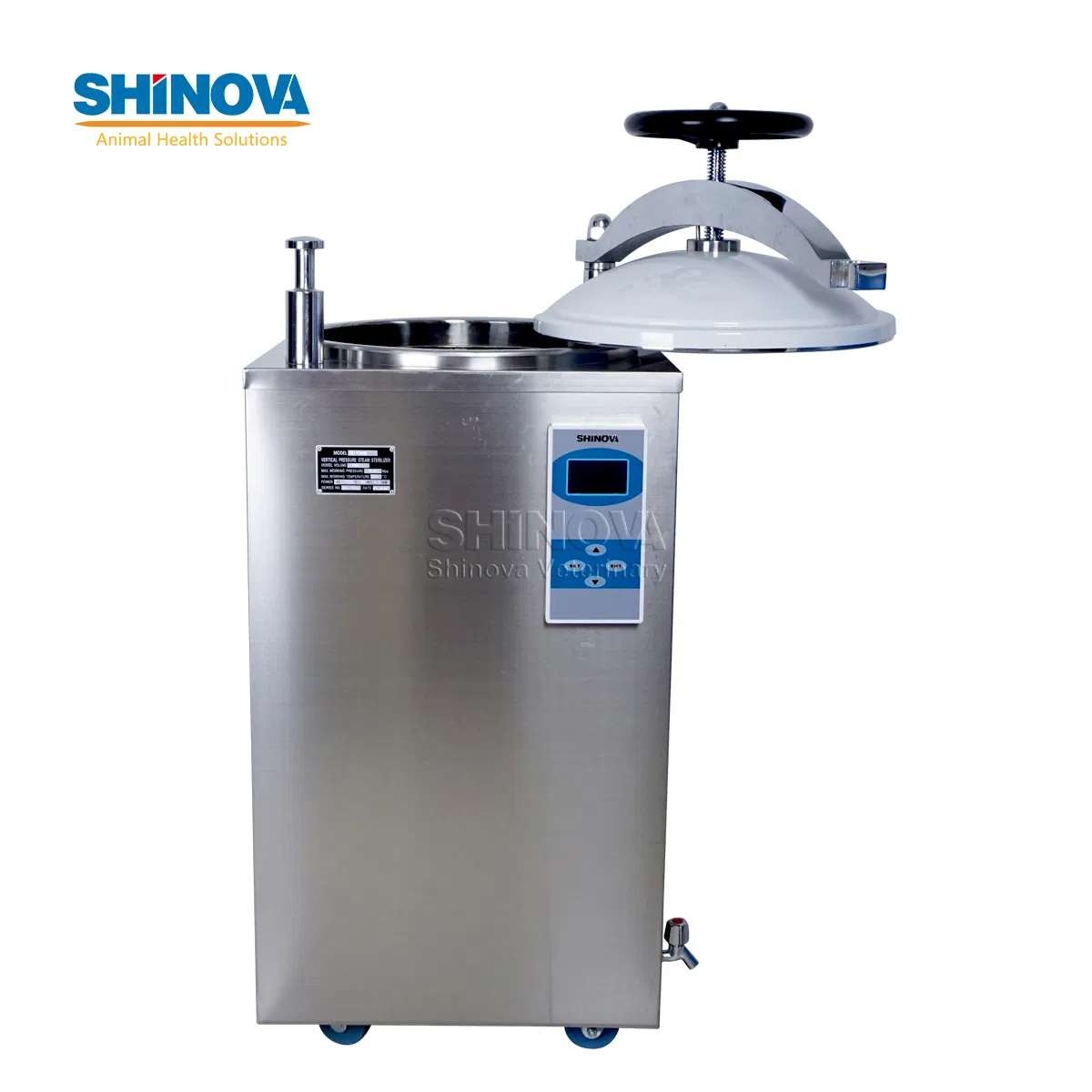

Product View

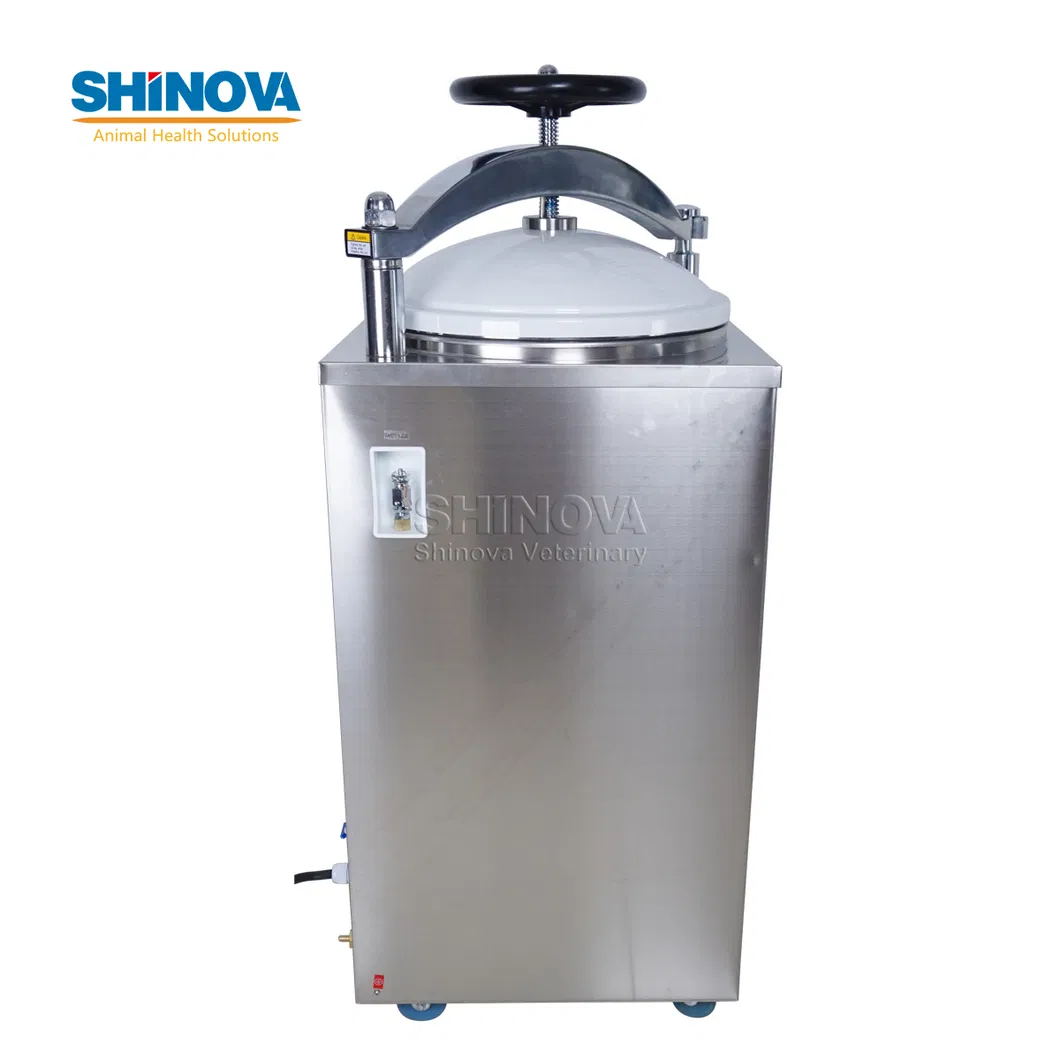

Product Side

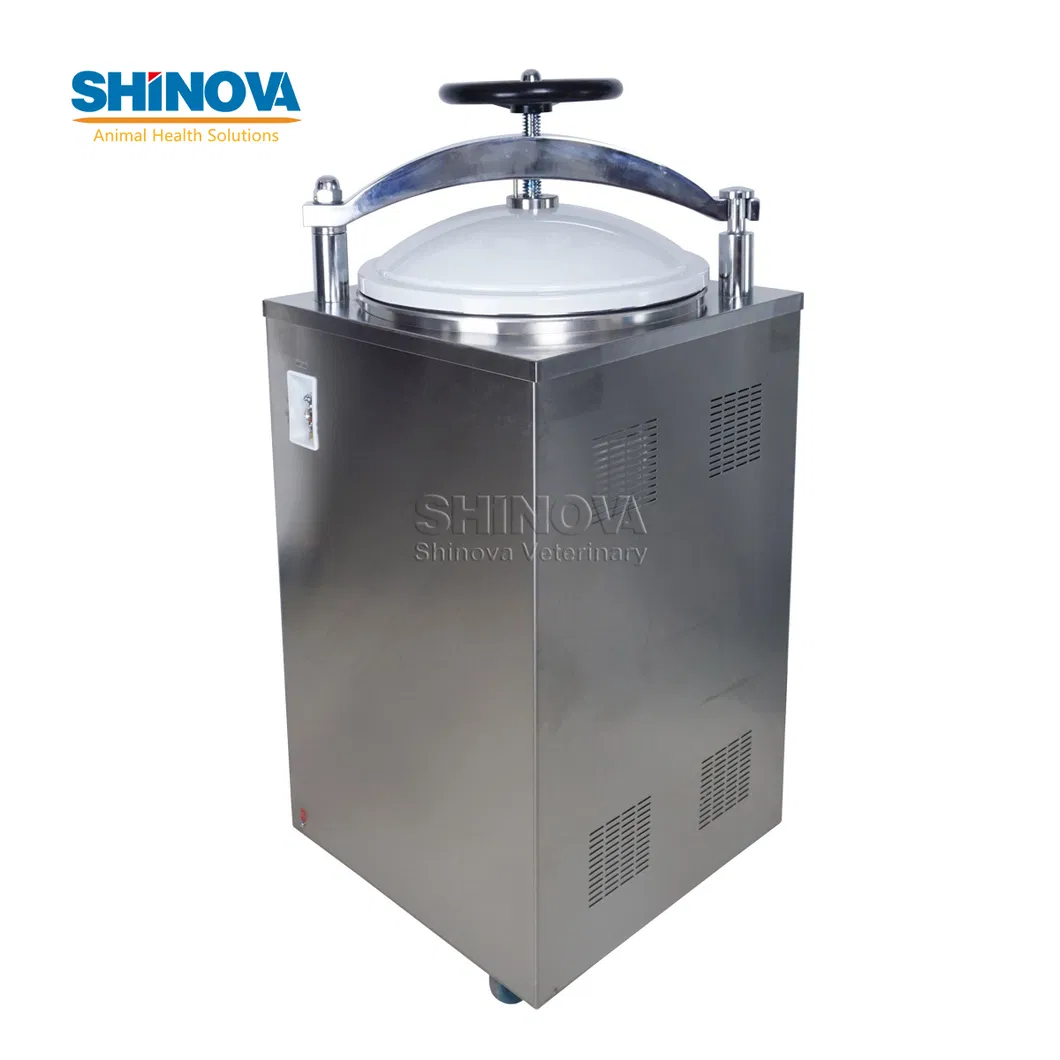

Internal Parts
⚒

Manufacturing & Quality Control

Manufacturing
Workshop
Production Line
Testing
Assembly
Warehouse
?

Frequently Asked Questions

What is the maximum sterilization temperature of this autoclave?
The MS-VHD series has a rated operating temperature of 134ºC, with an adjustable range between 105ºC and 134ºC to suit different sterilization needs.
How does the safety interlock system work?
The unit is equipped with a safety interlock device that prevents the door from being opened while the chamber is under pressure, ensuring operator safety.
Is the operation fully automatic?
Yes, it features a digital display and touch buttons. The sterilization process is controlled automatically, including cold air discharge and a buzzer reminder at the end.
What materials are used for the sterilization chamber?
The chamber and the included baskets are made of high-quality stainless steel, which is corrosion-resistant and easy to clean.
Does this model include a drying system?
The standard MS-VHD series focuses on steam sterilization, but a drying system is available as an optional feature depending on your requirements.
What is the capacity range for this series?
This series offers various capacities to meet different facility sizes, including 35L, 50L, 75L, and 100L options.
