5.6kw X-ray Machine with Iray Detector Portable Radiology Equipment for Veterinary &Human

1 / 5

5.6kw X-ray Machine with Iray Detector Portable Radiology Equipment for Veterinary &Human

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model No.	D05	Certification	CE, FDA, ISO13485
Power Output	5.6kW	Power Supply	AC220V / AC110V
Scope of Use	Human & Veterinary	kV Range	40-110kV
Frequency	≥40kHz	Focus Size	0.6 mm / 1.8 mm
mAs Range	0.2-200mAs	Capacity	1000 Units/Month

Product Description

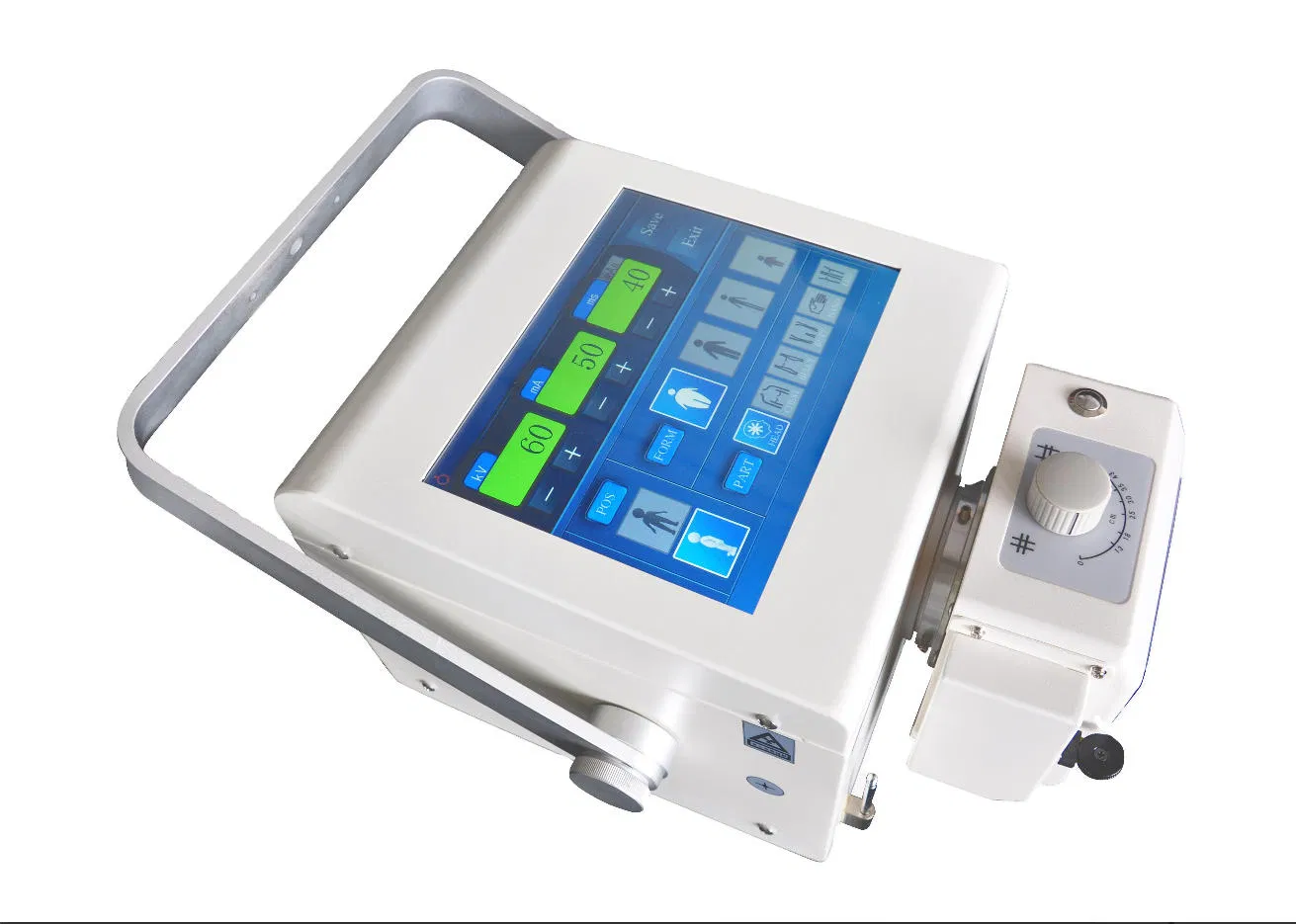

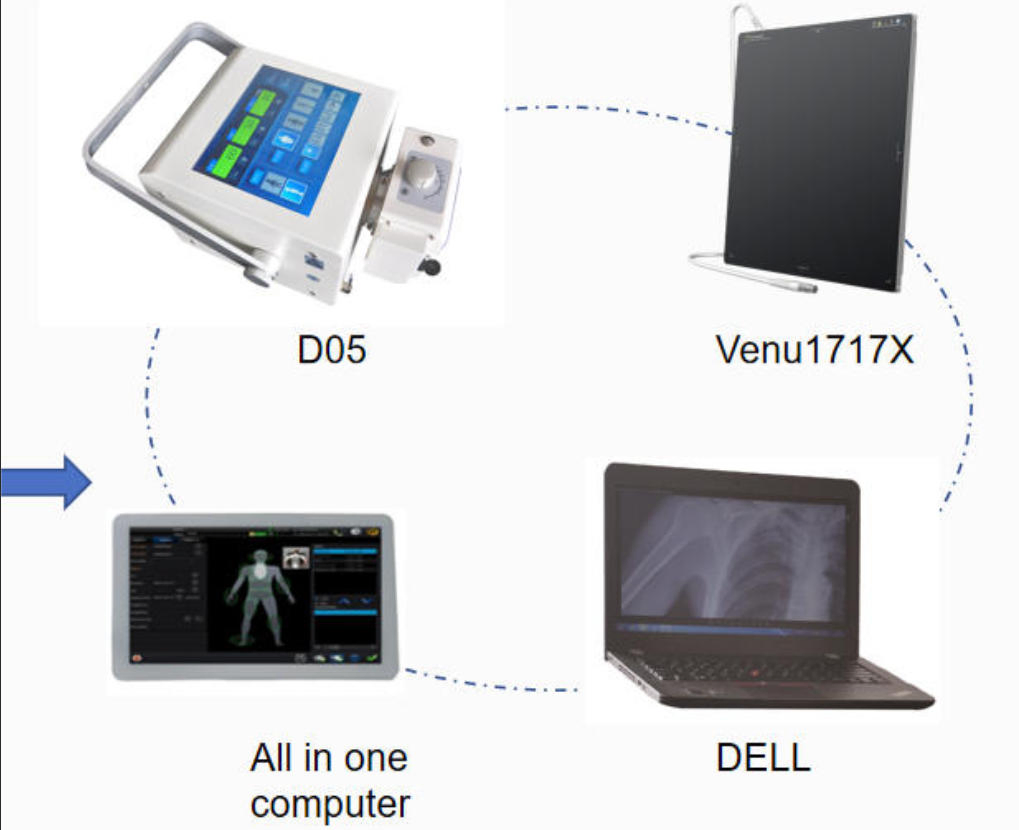

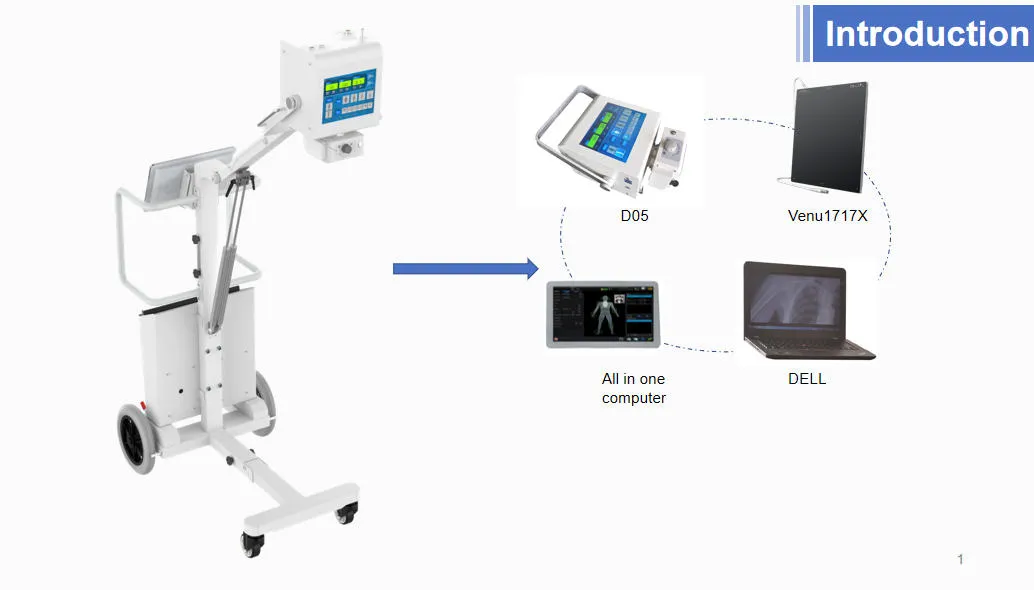

D05DR System: A comprehensive portable radiology solution including the X-RAY Machine, High-performance Detector, Professional Software, Laptop, and Adjustable Bracket.

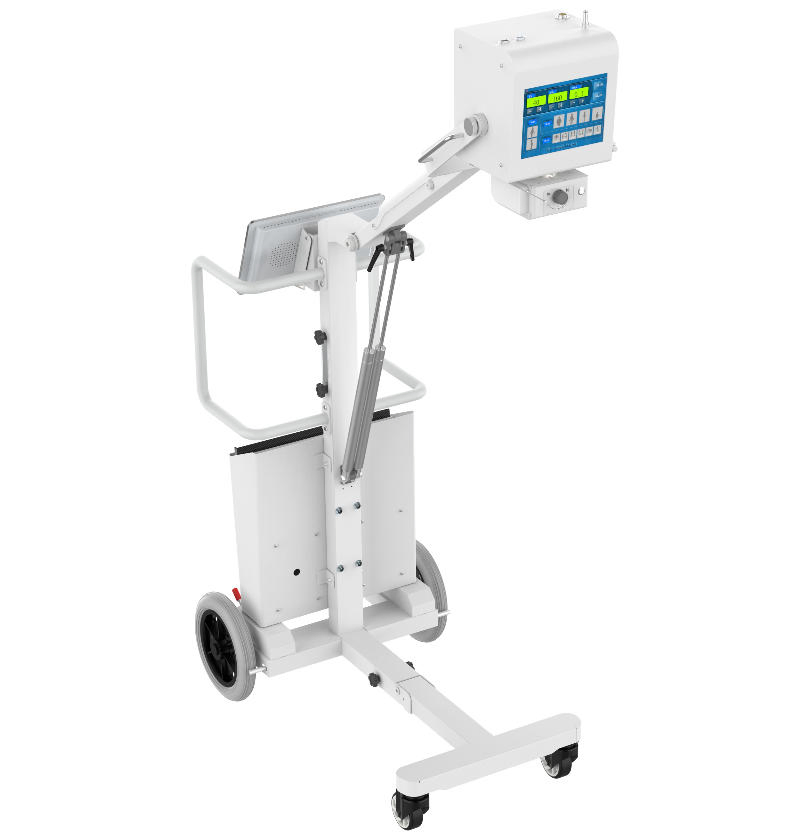

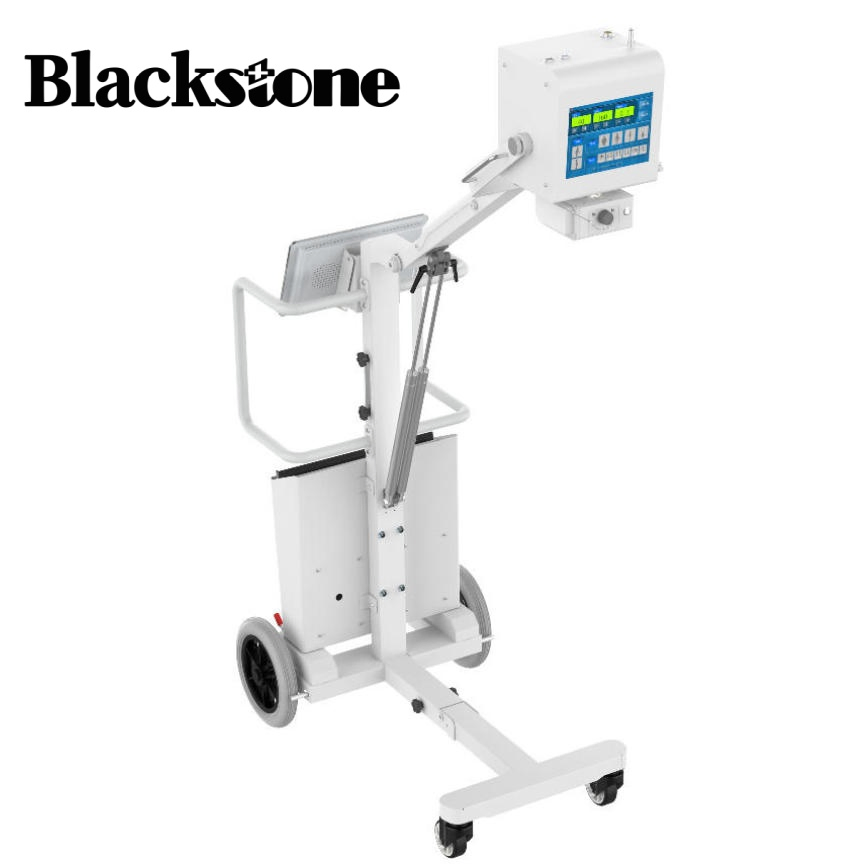

The 5.6kW Mobile Medical X-ray with DR (Digital Radiography) Panel is a high-power, portable imaging system. Designed for mobility, it allows for easy transport within hospital wards, ambulances, or emergency field sites. The integrated DR panel enables immediate digital image acquisition, eliminating the need for traditional film processing.

Digital Detector System

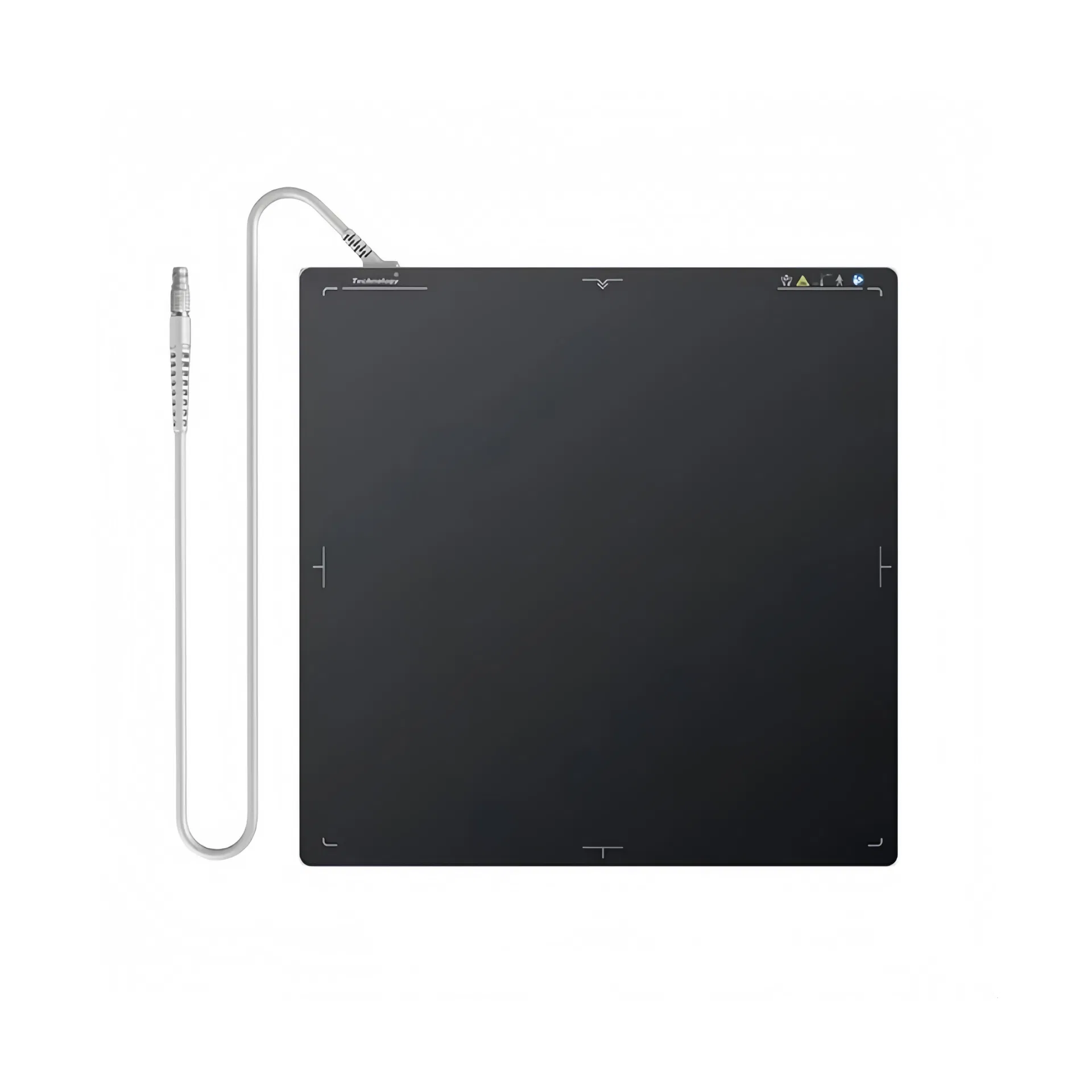

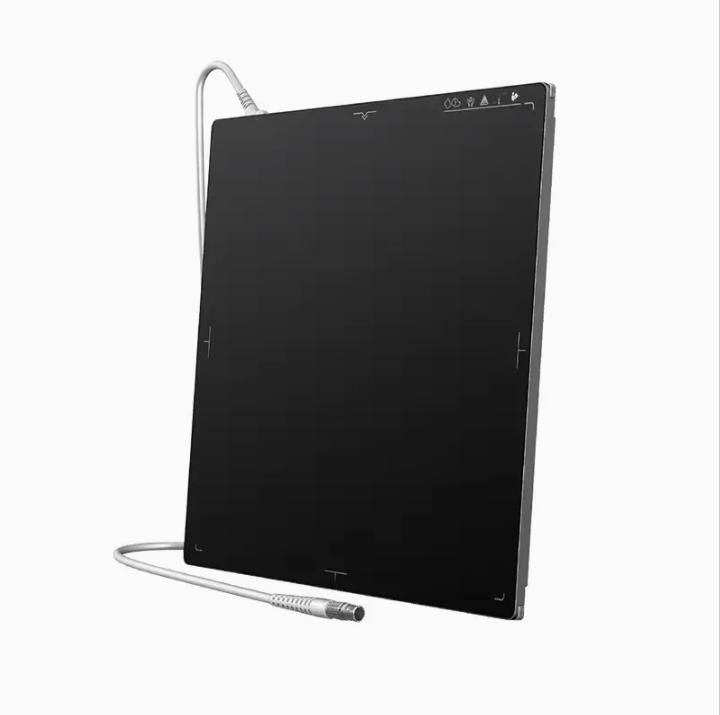

Flat Panel Detector
Model: Venu1717X
Active Area: 427mm x 427mm
Pixel Pitch: 139um
Resolution: Min. 3.4 lp/mm

Acquisition Station
Display: 18.5-inch Interface
Functions: DICOM 3.0, Image Pre-processing, Post-processing, Zoom, Brightness/Contrast Adjustment, and Manual/Auto Transmission.

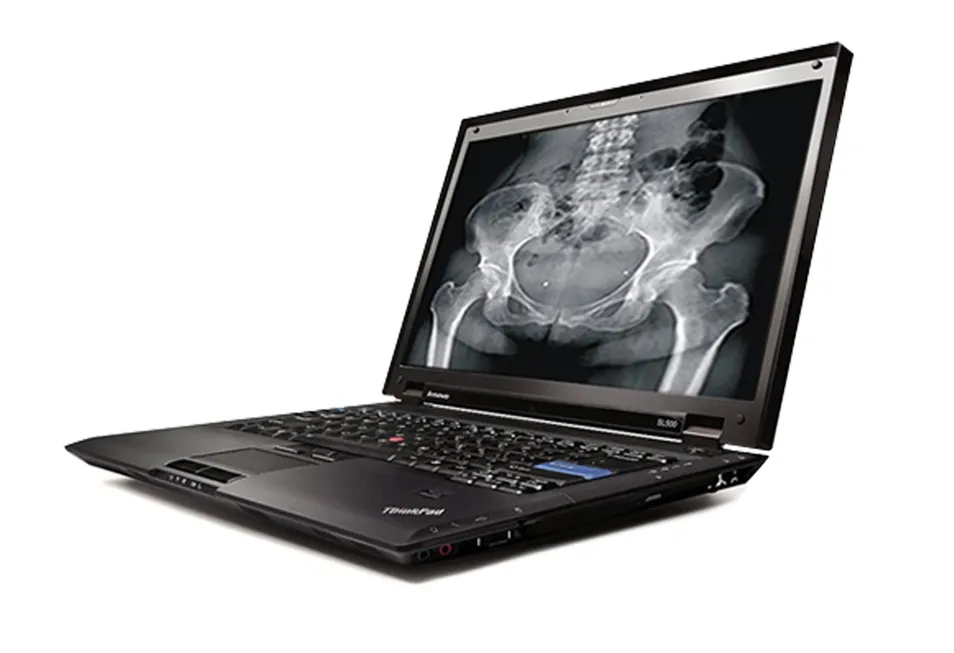

Control & Imaging Workstation

The system utilizes a high-spec laptop for seamless operation:

• Processor: Intel Core i5 Series
• Memory: 32GB RAM for rapid image processing
• Storage: 512GB SSD
• Monitor: 15.6-inch High-resolution display

Global Applications

Ideal for disaster relief, sports medicine, mobile clinics, and remote veterinary services.

Frequently Asked Questions

How does it differ from a stationary X-ray machine?

The primary difference is mobility. Unlike fixed units, this system can be wheeled directly to patient locations like ICUs, operating rooms, or field emergency sites. While compact, the 5.6kW power is optimized for most routine clinical examinations with digital quality.

What are the key components of the D05DR system?

The system consists of a 5.6kW X-ray generator, a mobile cart for easy transport, a high-sensitivity Digital Radiography (DR) flat panel detector, and a dedicated imaging workstation laptop with specialized software.

Can this machine be used for both humans and animals?

Yes, the system is versatile and designed with software presets suitable for both human medical diagnostics and veterinary applications, making it ideal for mixed-use clinics or emergency services.

How long does it take to see the X-ray image?

Thanks to the DR flat panel detector and Gigabit Ethernet transfer, images are acquired and displayed on the workstation monitor almost instantaneously, significantly faster than traditional film or CR systems.

Is the system compatible with standard power outlets?

Yes, the machine is designed to be compatible with standard AC 220V (±10%) or AC 110V (±10%) outlets, allowing it to function in various facility environments without special electrical modifications.

What imaging processing features are included?

The software includes full DICOM 3.0 support, real-time storage, image magnification, brightness and contrast adjustment, rotation, clipping, and the ability to query, print, or export images for further consultation.
