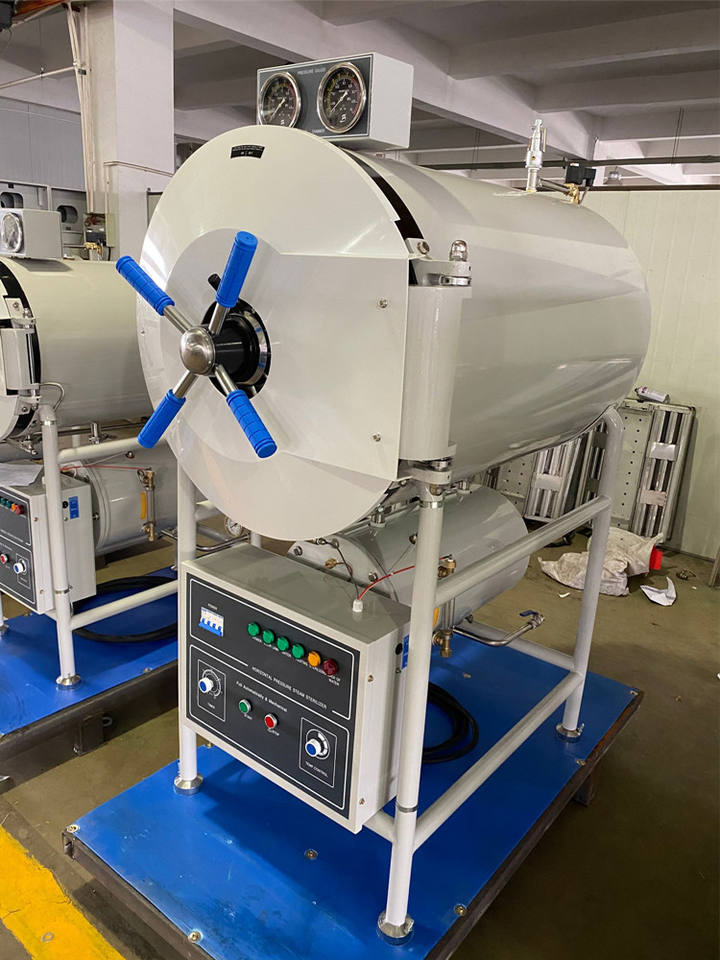

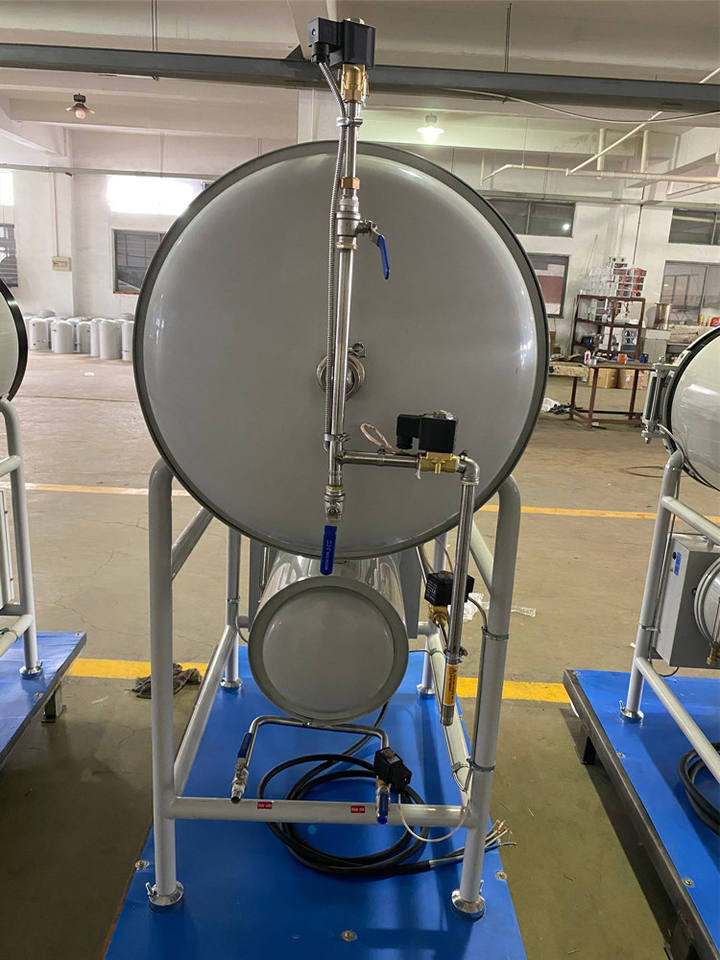

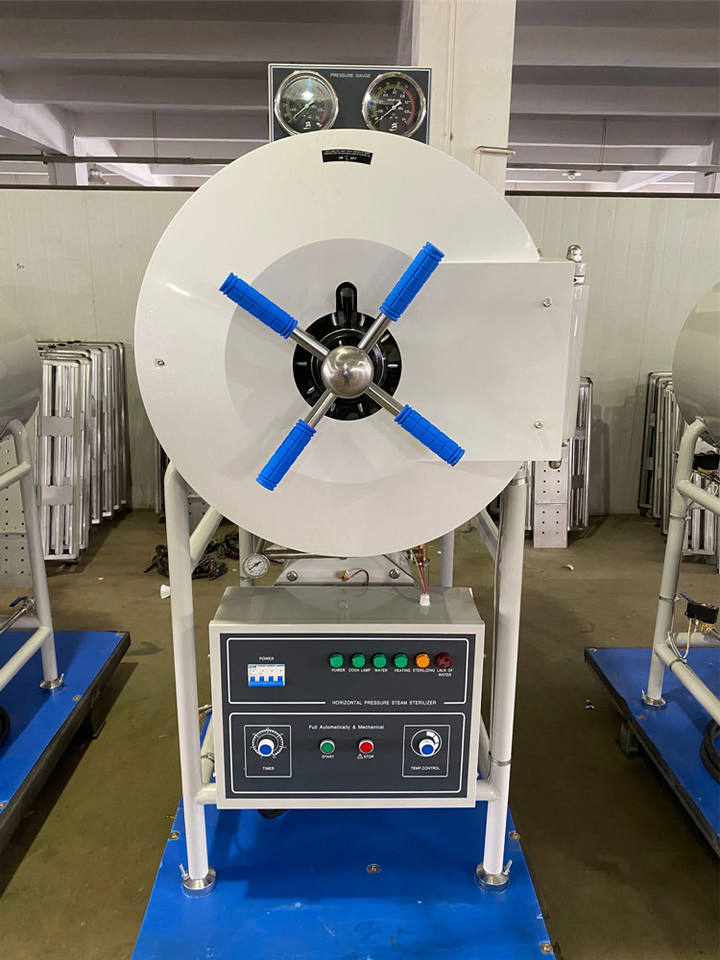

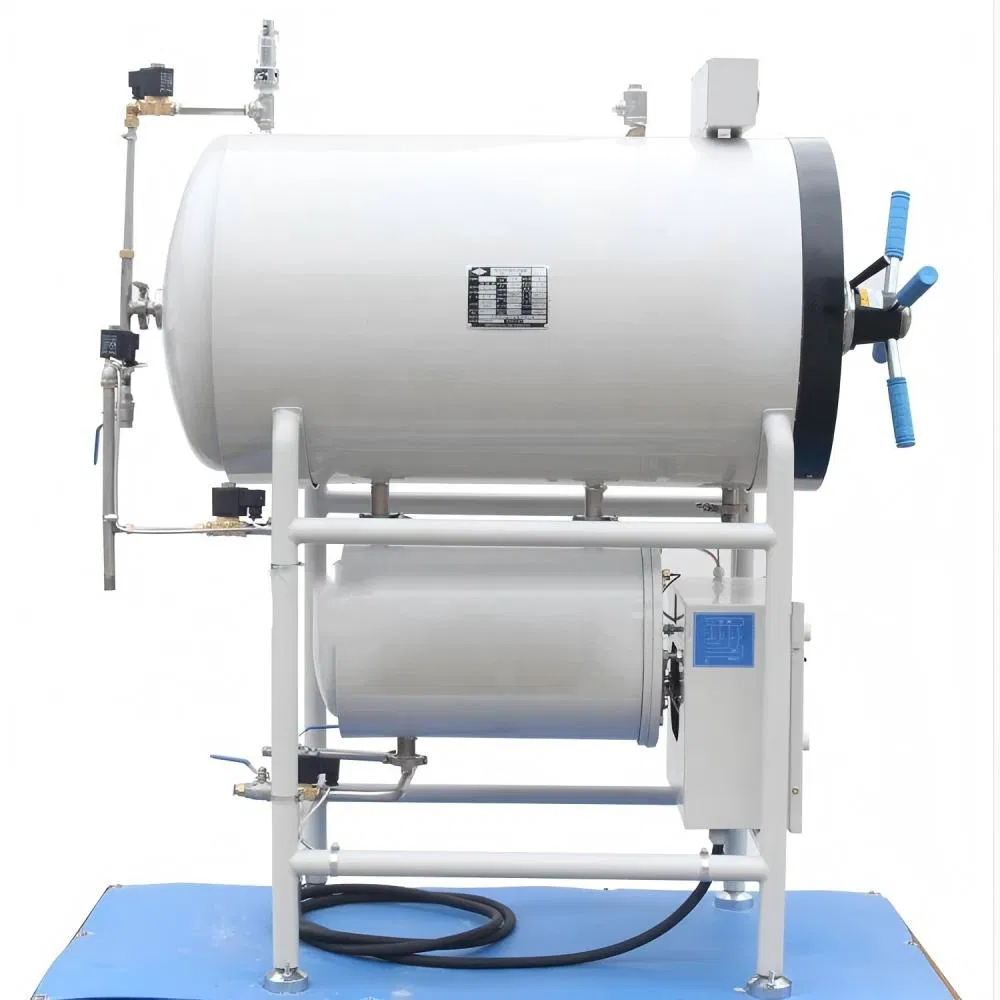

Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
1 / 5
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications
Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications

Ha-Bc Horizontal Autoclave for Hospitals, Clinics, Tattoo, Podiatry, Dentistry, Funeral Homes, and Veterinary Applications

Customization: Available
Instrument Classification: Class II
Working Pressure: 0.22 MPa Autoclave 200 Liters
Send Inquiry

Product Description

Basic Information
Model NO.
HA-BC200
Working Temp.
134℃
Heat Average
≤±2℃
Volume
150L - 500L Horizontal
Power
18kw / 380V 50Hz
Sterilization Time
0-60 Min
Drying Time
0-60 Min
Application
Hospital, Laboratory, Pharmaceutical
Technical Specifications
Horizontal Autoclave Series Specifications
Model Data HA-BC150 HA-BC200 HA-BC280 HA-BC400 HA-BC500
Sterilizing Volume 150L
φ440×1000mm		 200L
φ515×1000mm		 280L
φ600×1000mm		 400L
Φ700×1100mm		 500L
Φ700×1300mm
Working Pressure 0.22MPa
Max Temperature 134ºC (Range: 105ºC - 134ºC)
Timer / Drying 0-60 min
Power 9KW/380V 12KW/380V 18KW/380V
G.W/N.W (KG) 320/240 350/260 465/365 530/420 580/470
Product Features

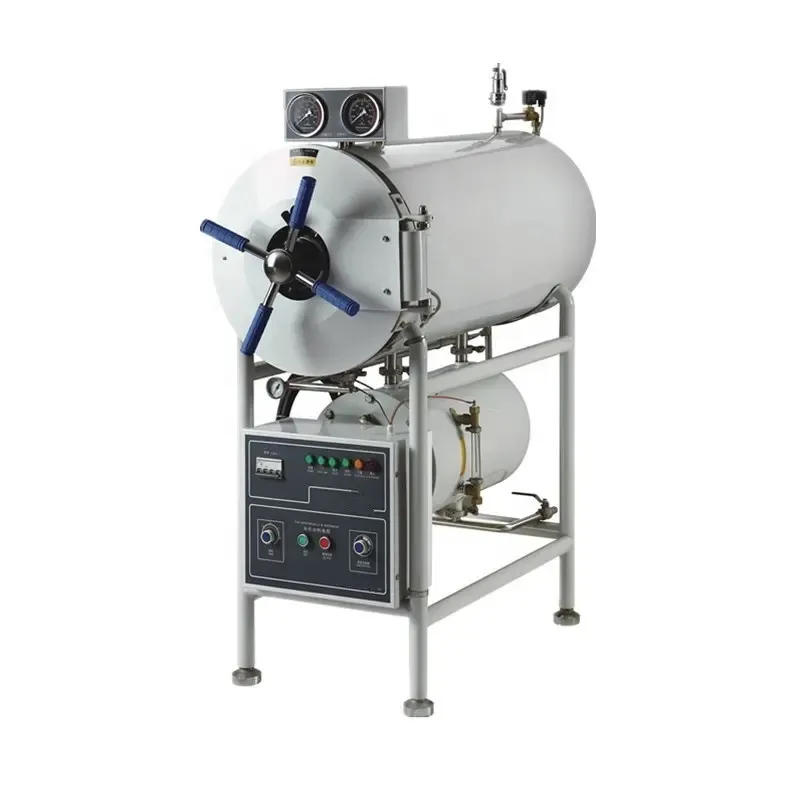

Automatic Autoclave
  • Automatic Control: The sterilizing course is automatically controlled and easy to operate.
  • Drying Function: Includes a built-in drying function suitable for medical dressing.
  • Safety Protection: Equipped with over-temperature and over-pressure auto-protect devices.
Safety Interlock: The door opening mechanism cannot be operated until the chamber pressure is reduced to 0.027MPa. The machine will not start if the door is not securely closed.
Auto Water Cut-off: Power will be cut-off automatically with an alarm if the machine lacks water.
Product Details & Applications

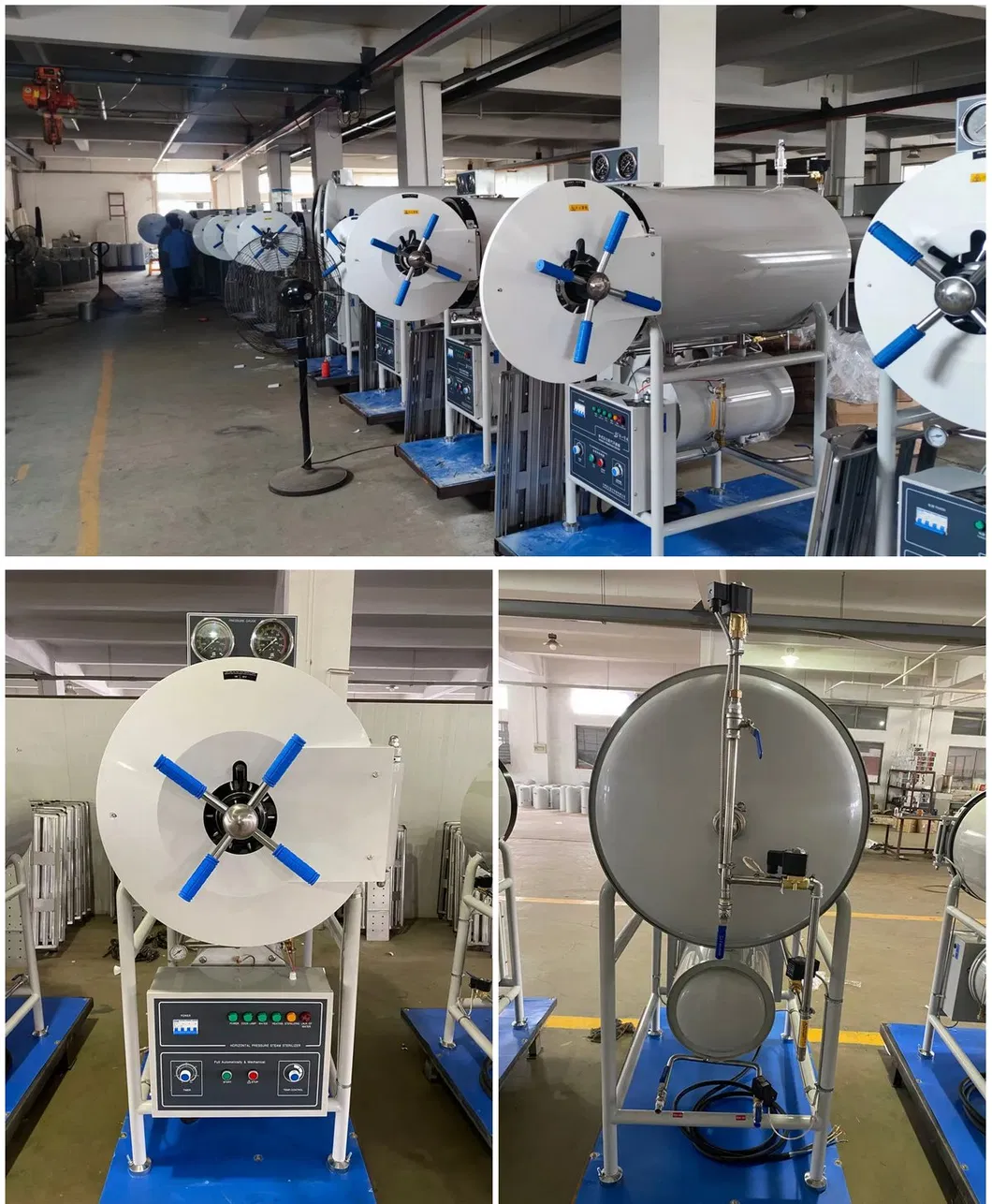

Autoclave Structure

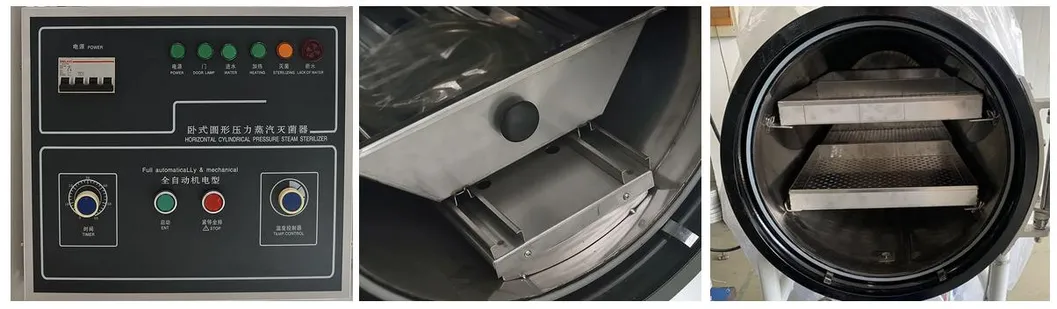

Autoclave Control Panel
Application Fields

Sterilization Objects: Surgical instruments, medical equipment, fabric glass, culture media, medical waste, and mushroom cultivation bags.

Professional Manufacturer

We have more than 10 years of experience since 2012. As a professional sterilization equipment manufacturer and leading supplier, we engage in offering our customers one-stop service for medical sterilizers, supplying competitive prices and quality products to over 1000 hospitals, clinics, research institutions, and universities.

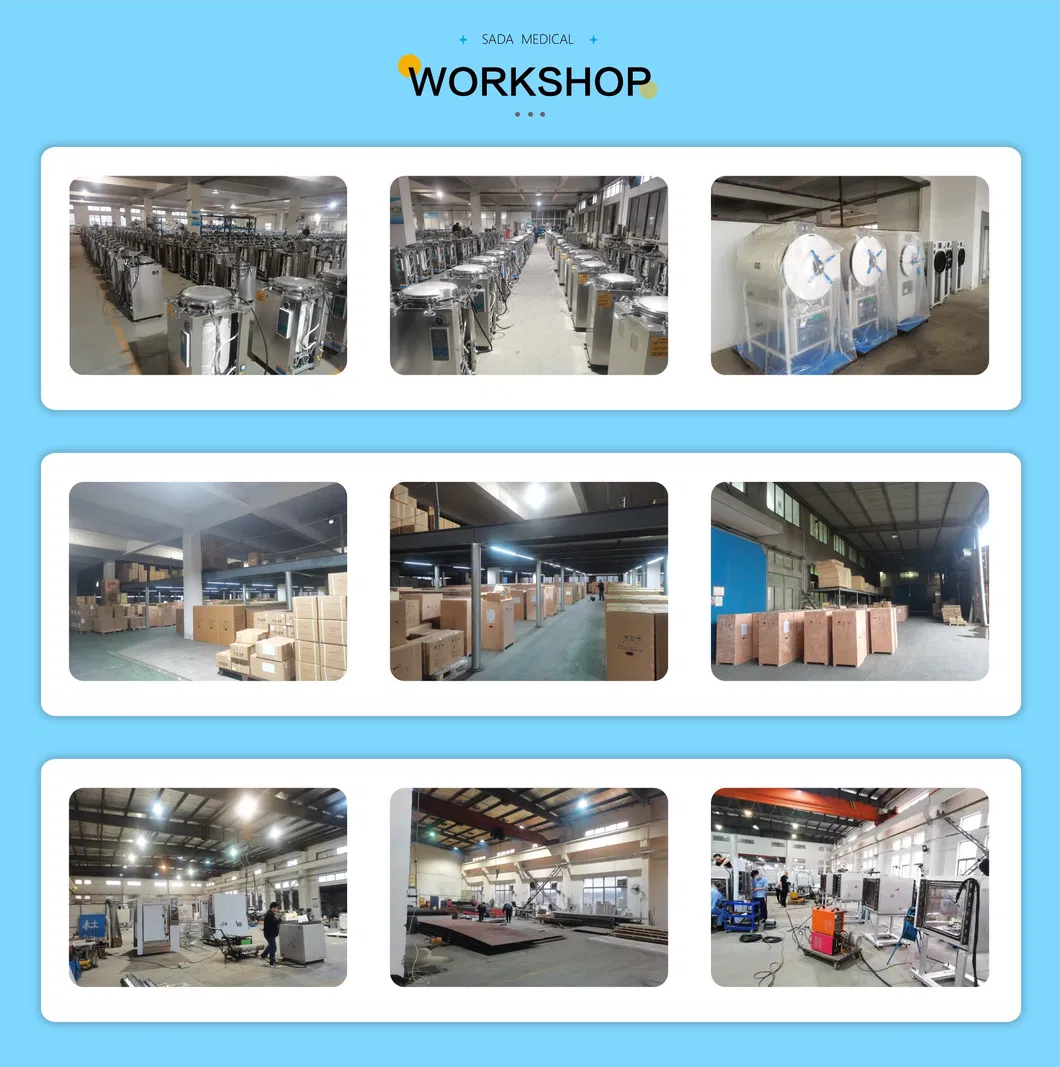

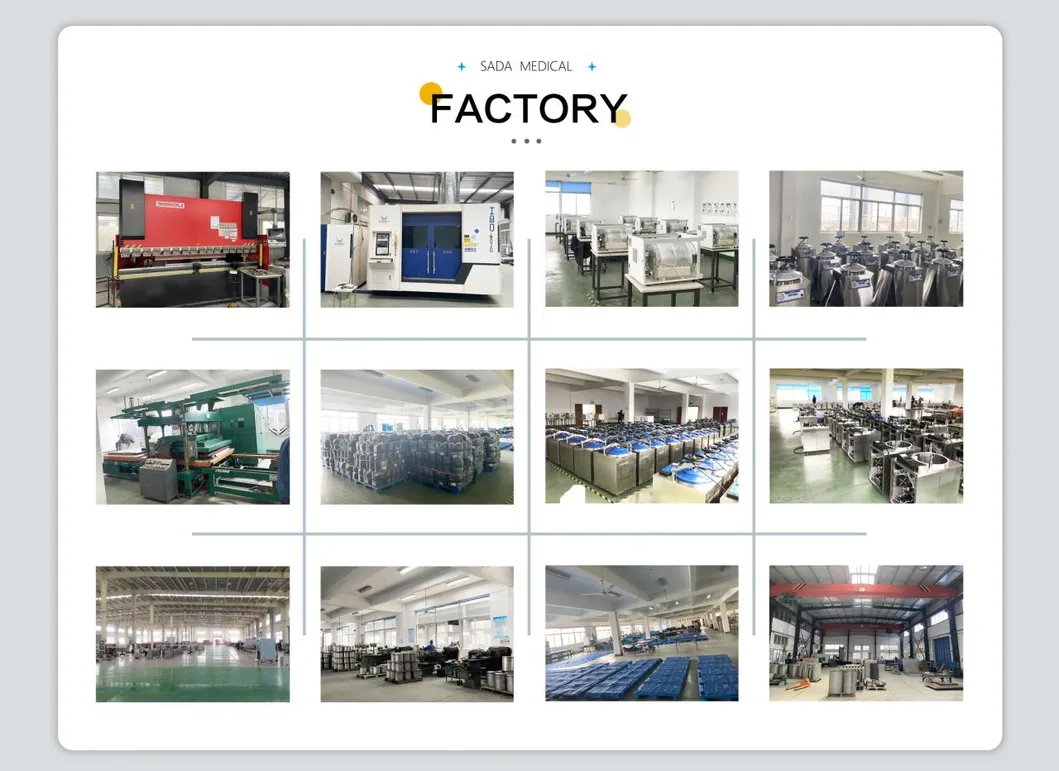

Production Facility
Quality Control
Certifications
Manufacturing Detail
Warehouse

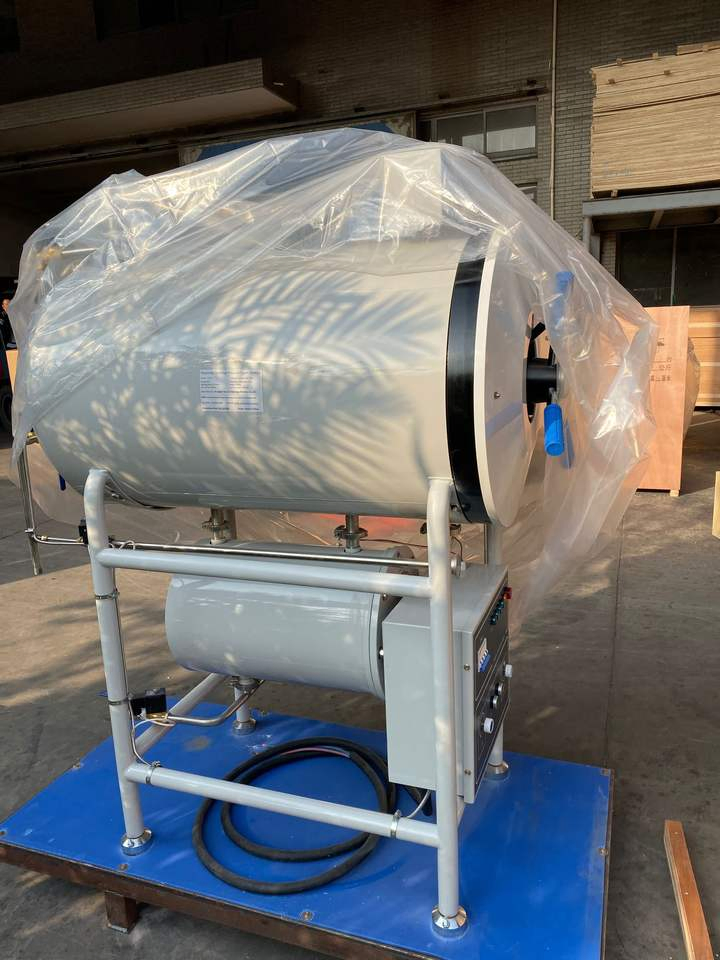

Shipping Preparation
Frequently Asked Questions
1. What is the warranty for your products?
We offer a 2-year warranty and lifetime service support for all our sterilization equipment.
2. How do you provide after-sales technical support?
We provide support via operating manuals and videos. For hardware issues during the warranty period, we provide spare parts free of charge or repair the unit freely.
3. What are the delivery options and timeframes?
We ship via Express (7-10 days), Air Freight (3-10 days), or Sea Freight (10-45 days depending on the destination port).
4. Can the autoclave be customized?
Yes, we offer customization options for control panels and voltage requirements to suit specific regional standards.
5. What is the standard lead time for production?
Portable types take 5-10 days; Tabletop and Vertical types 10-25 days; Horizontal medium types 10-20 days; and large industrial types 30-35 days.
6. What payment methods are accepted?
We accept Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal.
