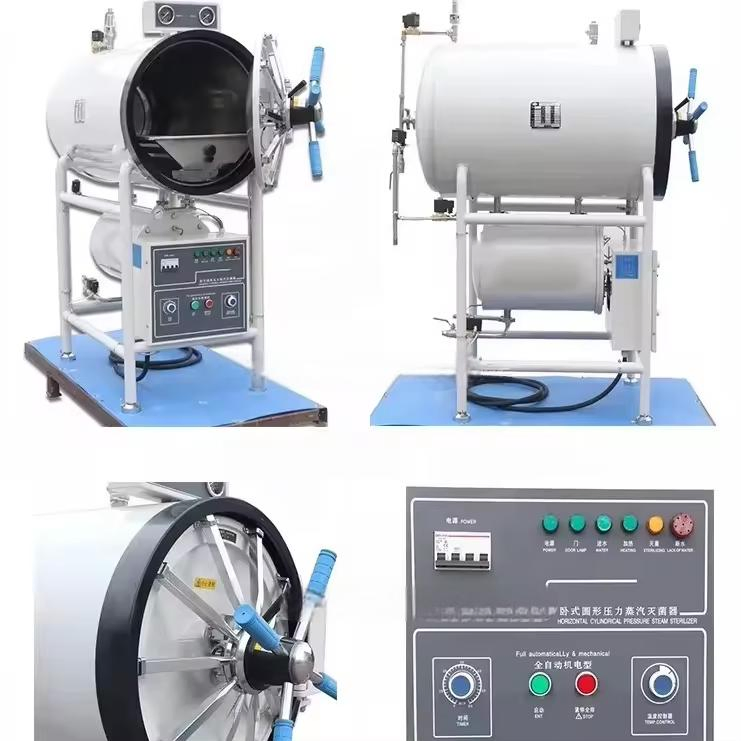

Ha-Bc Horizontal Steam Autoclave for Hospitals, Clinics, Laboratories, and Veterinary Instrument Sterilization

Customization: Available
Temperature Range: 40-134 Degree C
Designed Pressure: 0.22MPa

Product Description

i

Overview

Model NO.
HA-BC
Application
Hospital, Laboratory, Pharmaceutical, Clinic
Sterilization Objects
Liquid, Dressings, Surgical Instruments, Food
Material of Case
Carbon Steel
Time for Sterilization
0-66min
Transport Package
Wooden Case
Specification
150L, 200L, 280L, 400, 500L
HS Code
84192000
Production Capacity
20000-85000PCS/Year

Product Description

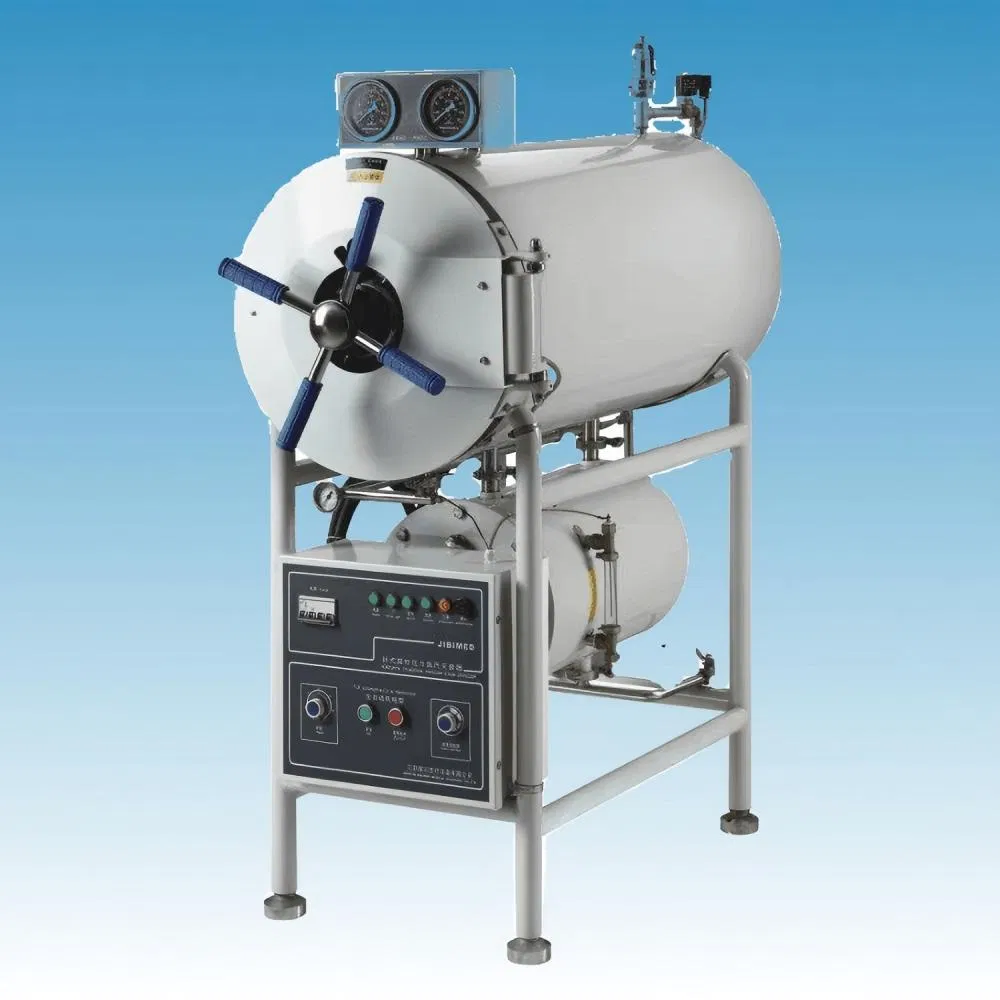

HA-BC Horizontal Autoclave Machine Steam Sterilizer

The horizontal autoclave adopts an advanced gravity exchange method to effectively release cold air from the chamber, ensuring impeccable and dependable sterilization. The intelligent control system seamlessly adjusts the steam inlet and outlet in response to the chamber's temperature during sterilization. This state-of-the-art unit serves as an ideal solution for clinics, scientific research institutes, and various organizations requiring the sterilization of surgical instruments, fabric, glassware, and culture media.

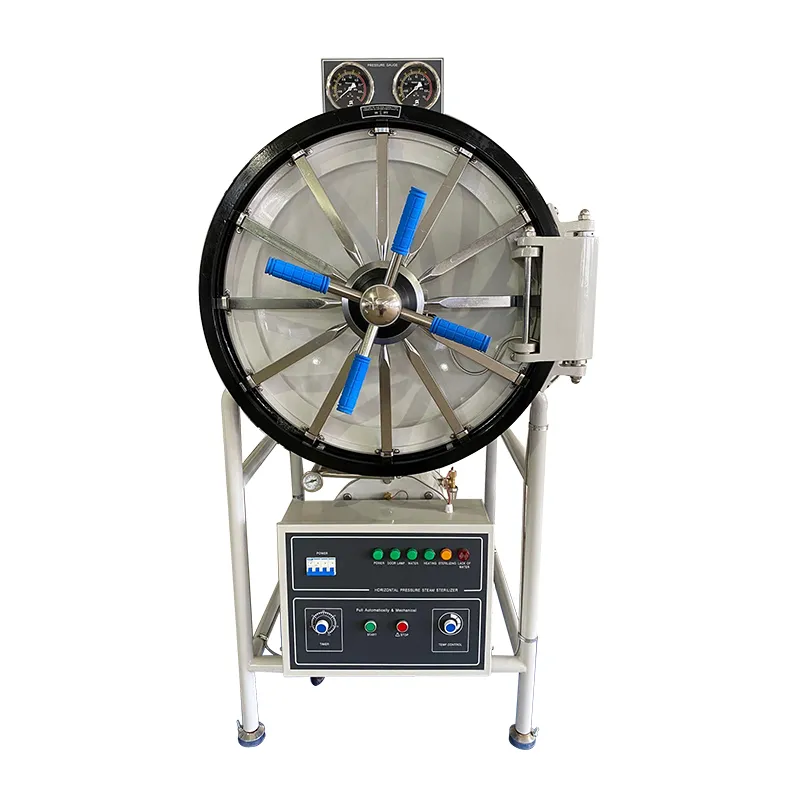

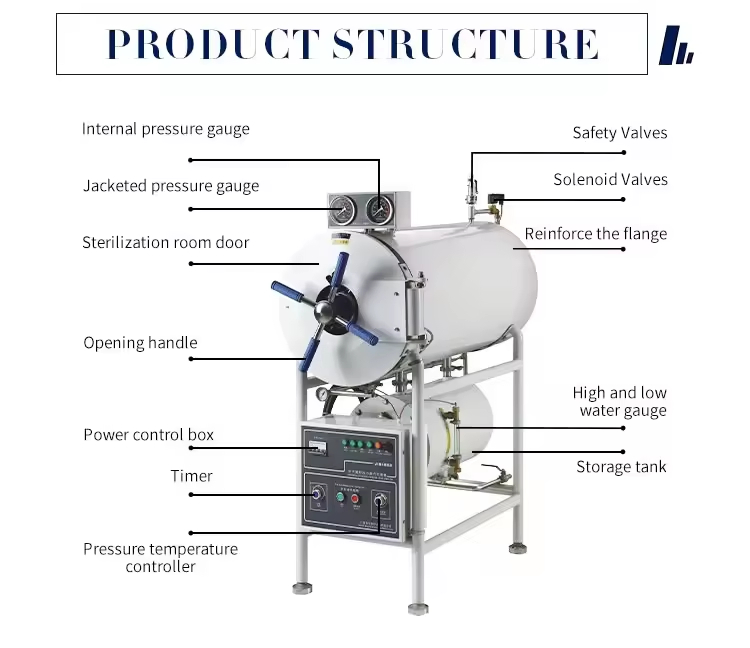

Horizontal Autoclave 1

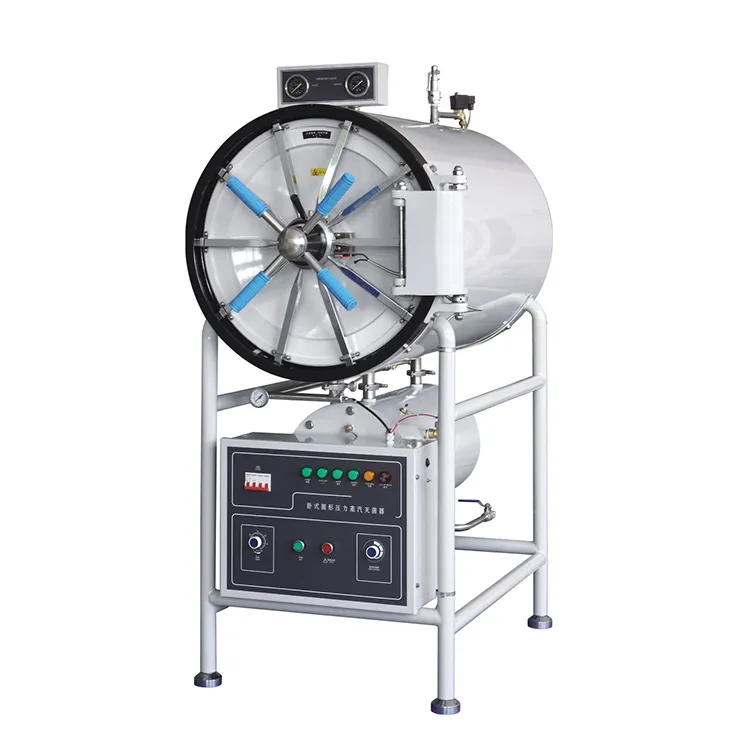

Horizontal Autoclave 2

Key Features

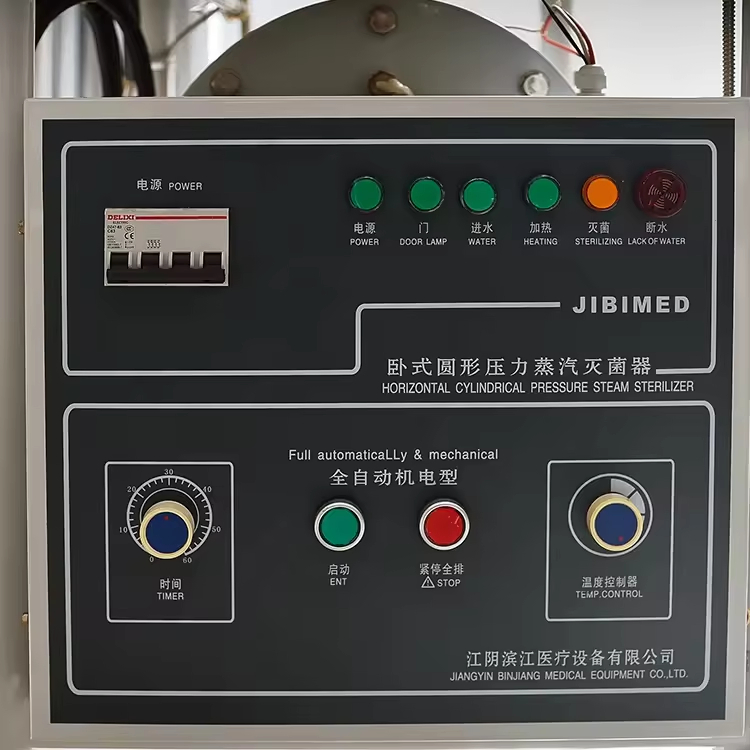

  • Fully automated sterilization process control, ensuring user-friendly operation.
  • Equipped with a drying function, perfect for medical dressing drying requirements.
  • Offers automatic protection against over-temperature and over-pressure scenarios.

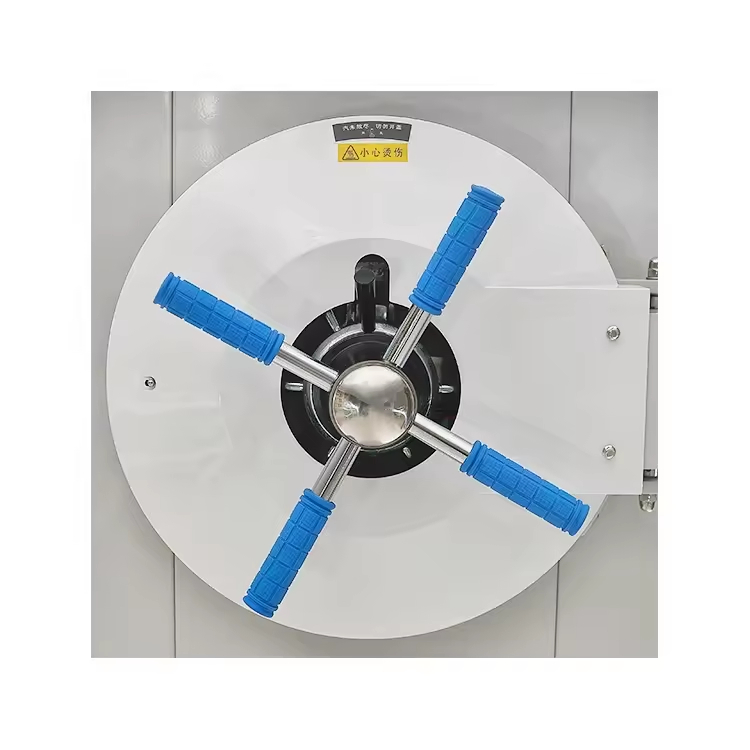

  • The door remains securely locked until the chamber's pressure diminishes to zero (0.27MPa).
  • Safety valve activates automatically when internal pressure exceeds 0.24MPa.
  • Automatic power disconnect and alert in event of water shortage.
  • Chamber crafted from premium stainless steel for durability and hygiene.
Model HA-BC150 HA-BC200 HA-BC280 HA-BC400 HA-BC500
Volume 150L 200L 280L 400L 500L
Chamber Size Ф440*1000mm Ф515*1000mm Ф600*1000mm Ф700*1100mm Ф700*1300mm
Working Pressure 0.22Mpa
Working Temp 134ºC
Power 9kw 9kw 12kw 18kw 18kw
Dimension (mm) 1400x600x1300 1400x670x1650 1400x770x1780 1430x880x1830 1800x900x1820
📷

Detailed Photos

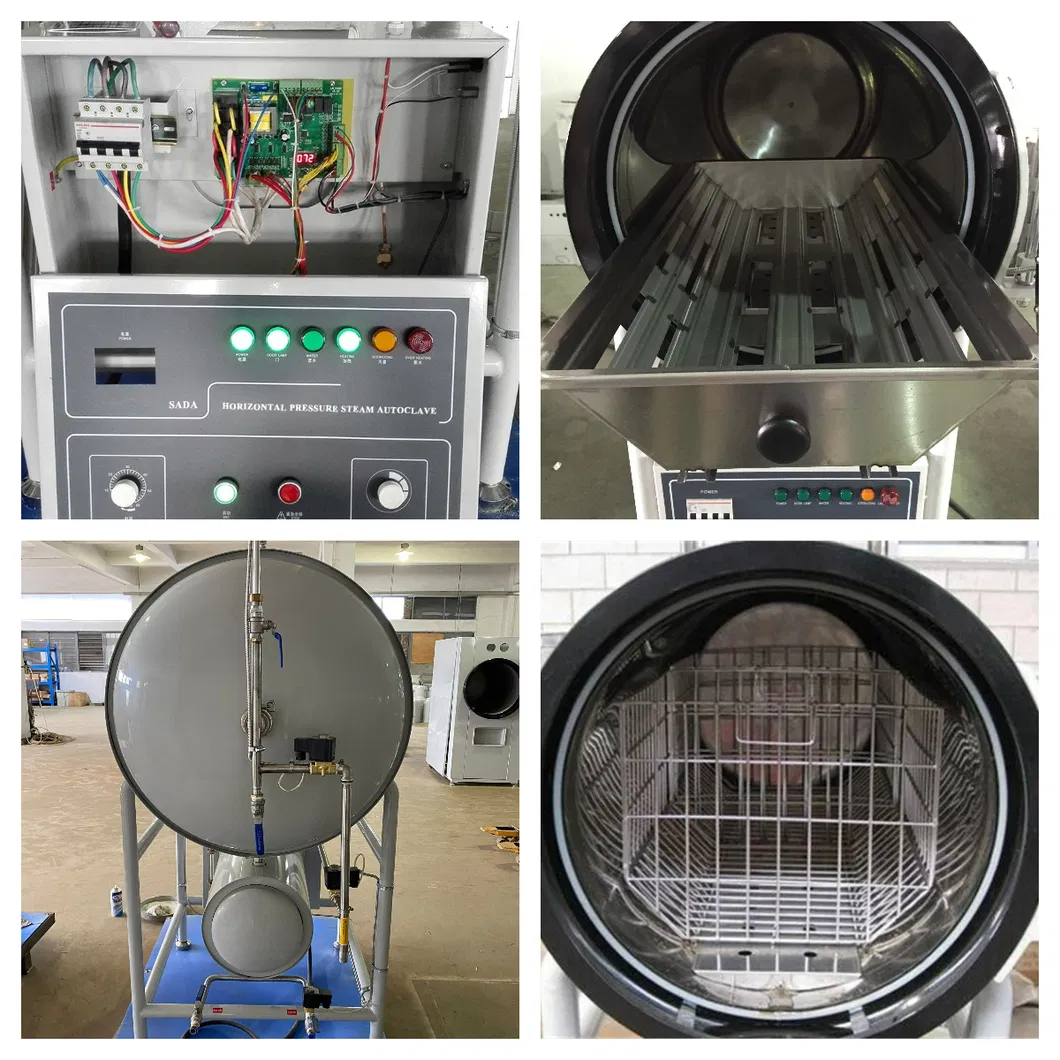

Detailed View
📦

Packaging & Shipping

Packaging
📜

Certifications

Certificate 1
Certificate 2
🏢

Professional Profile

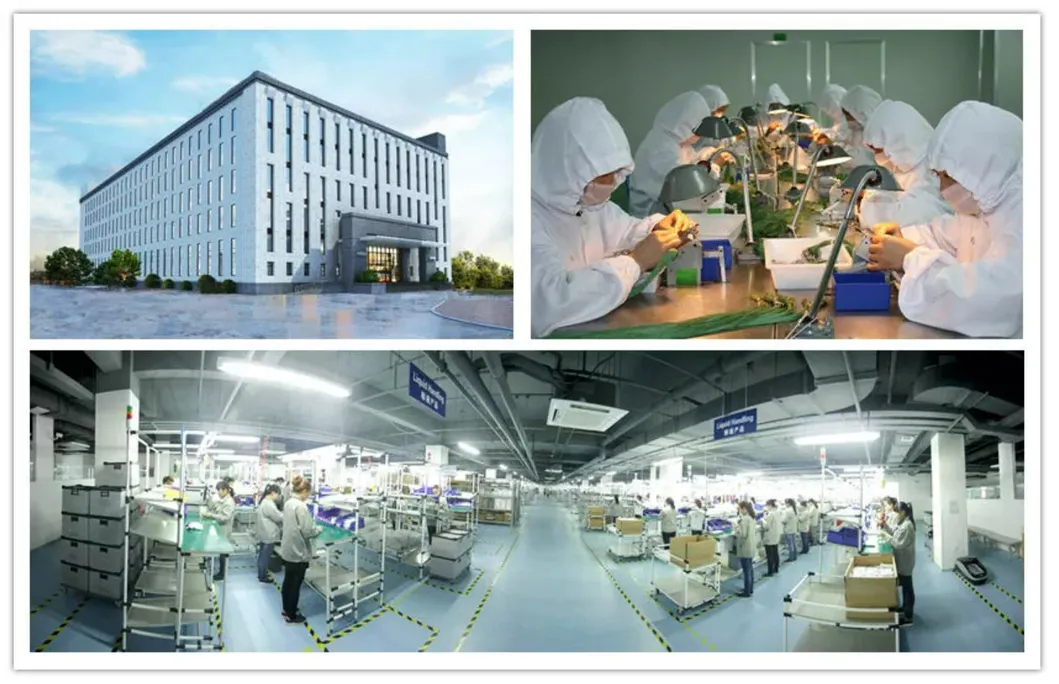

Factory Overview

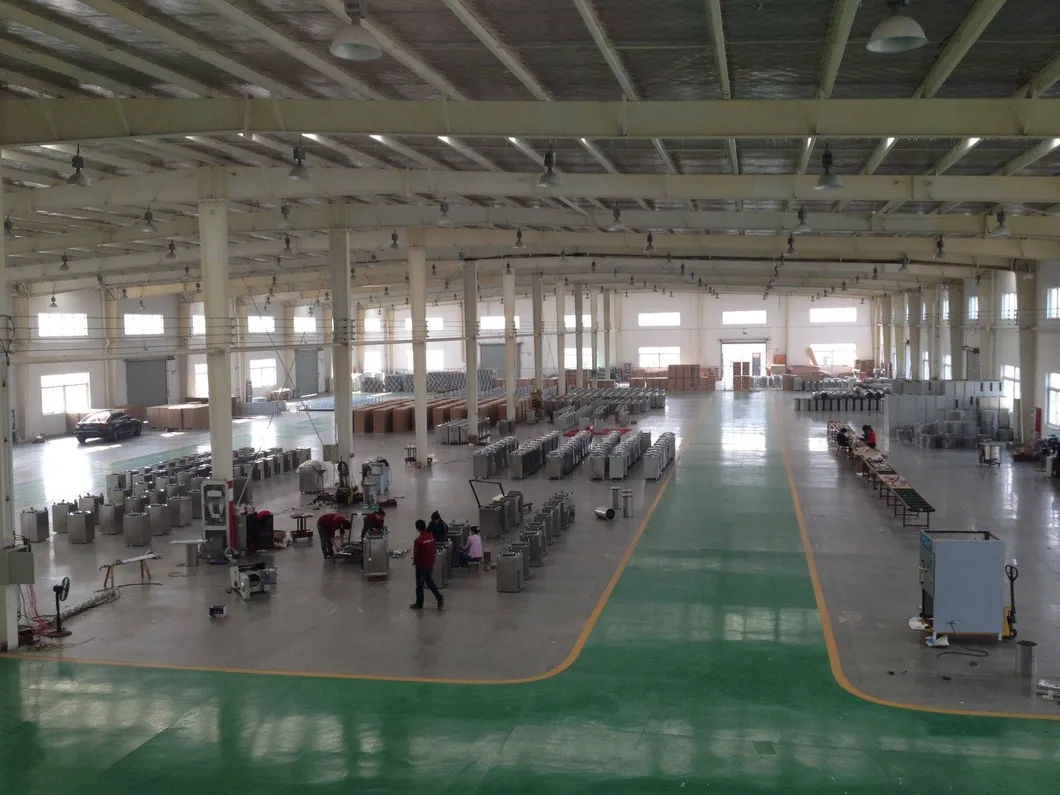

Production Line

With over a decade of expertise since 2012, we are a renowned and professional sterilization equipment manufacturer and leading supplier. We have been dedicated to providing clients with all-inclusive services in medical sterilizers, offering competitive pricing and exceptional products to over 1,000 hospitals, clinics, research institutions, and universities globally.

Our primary markets span Southeast Asia, South America, Africa, Western Europe, and America. We assure safe transit and superior quality, offering a 2-year warranty and online training for all medical devices. We also provide OEM/ODM services backed by a robust technical R&D and sales team.

?

Frequently Asked Questions

What is the warranty for your sterilization products?
We provide a comprehensive 2-year warranty along with lifetime technical service support for all our equipment.
How do you handle after-sales technical support?
We offer support via detailed operating manuals and videos. Our engineers provide prompt responses via email or phone. If hardware issues occur during the warranty period, spare parts are provided free of charge.
What are the typical delivery times for different models?
Portable types: 5-10 days; Vertical and Table-top models: 10-25 days; Horizontal medium types: 10-20 days; Large-scale units: 30-35 days.
Do you offer customization for different power requirements?
Yes, we can customize the control panels and voltage specifications to meet the local requirements of your facility.
What shipping methods are available for international orders?
We offer multiple shipping options including Express (7-10 days), Air Freight (3-10 days), and Sea Freight (10-45 days depending on the destination port).
What are the accepted payment terms?
Our standard terms include Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal.
