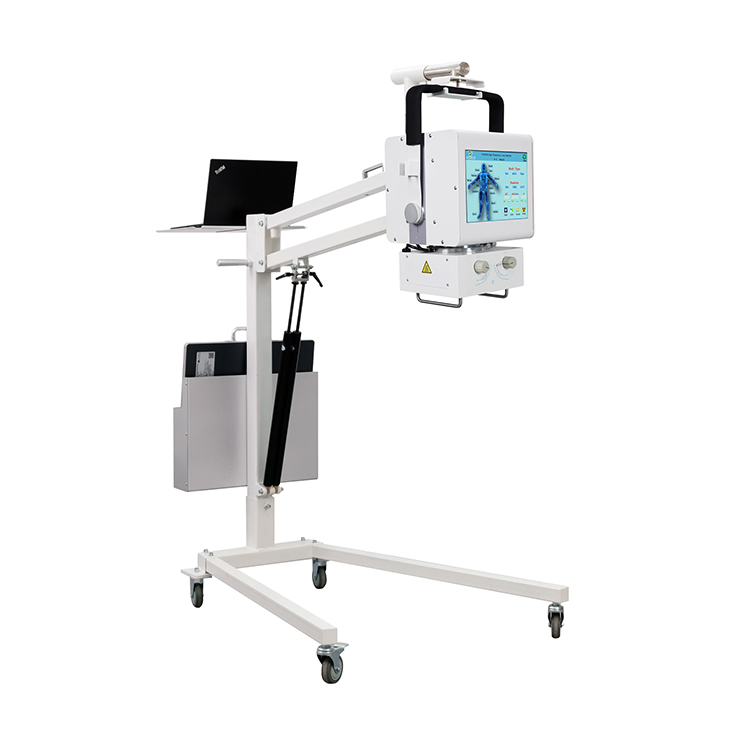

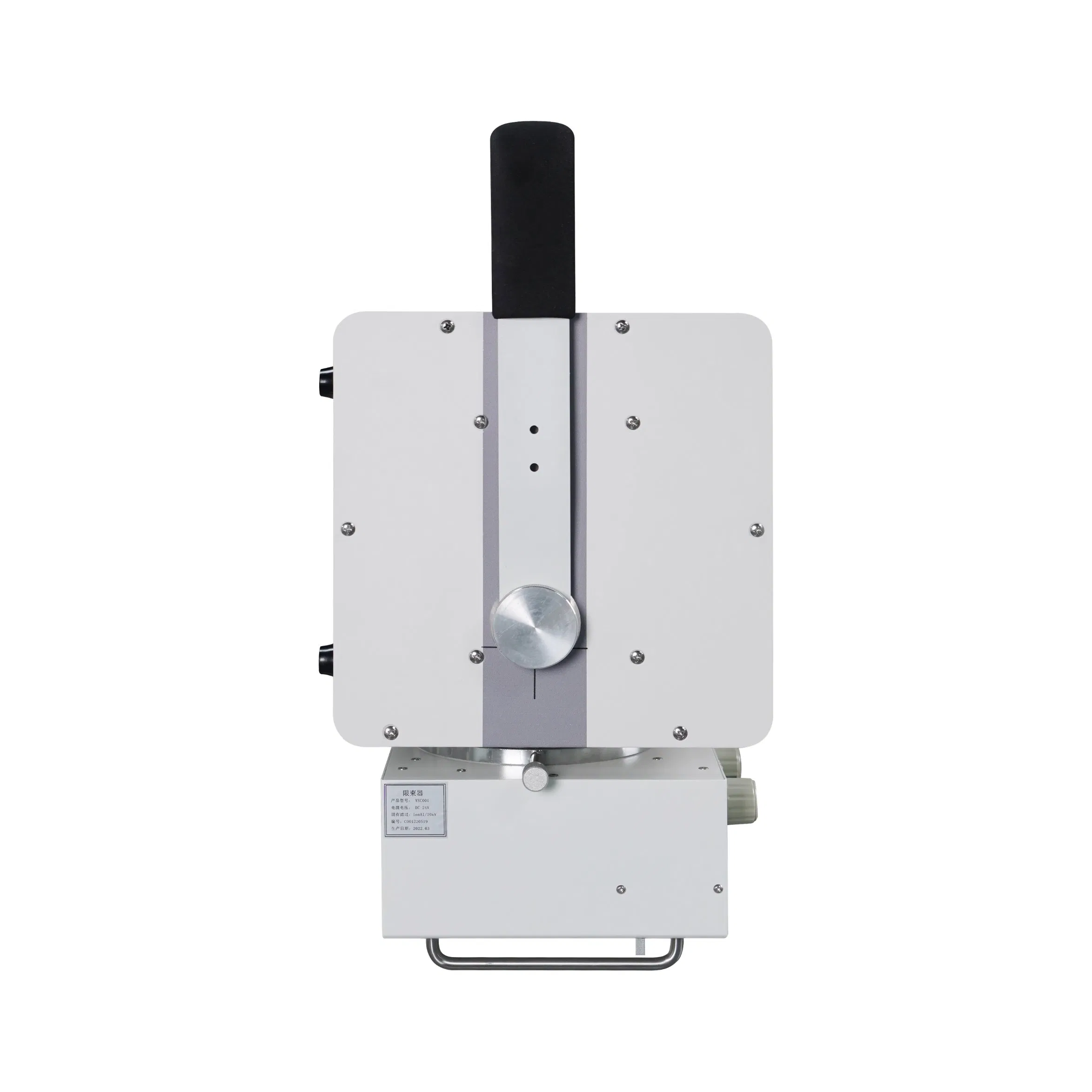

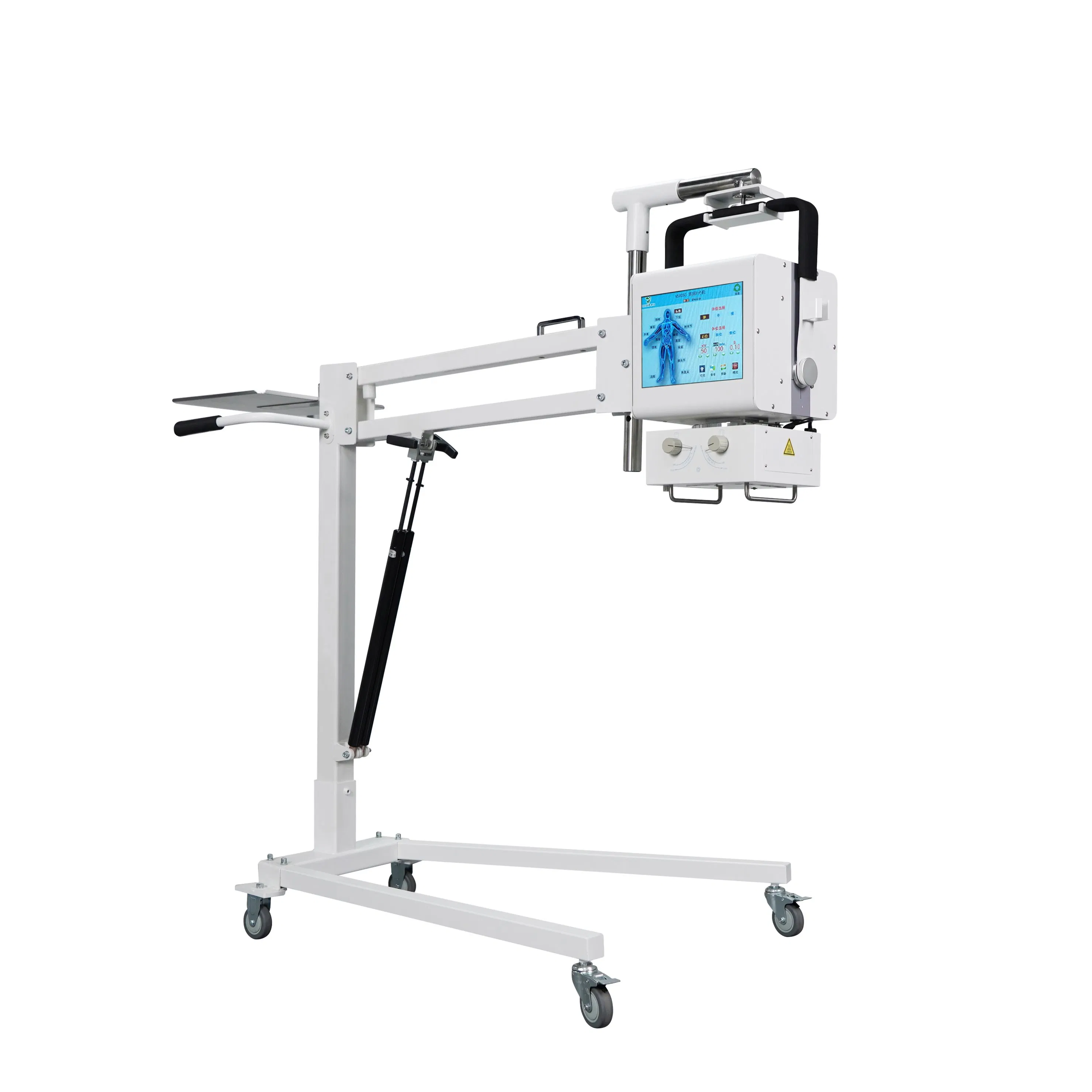

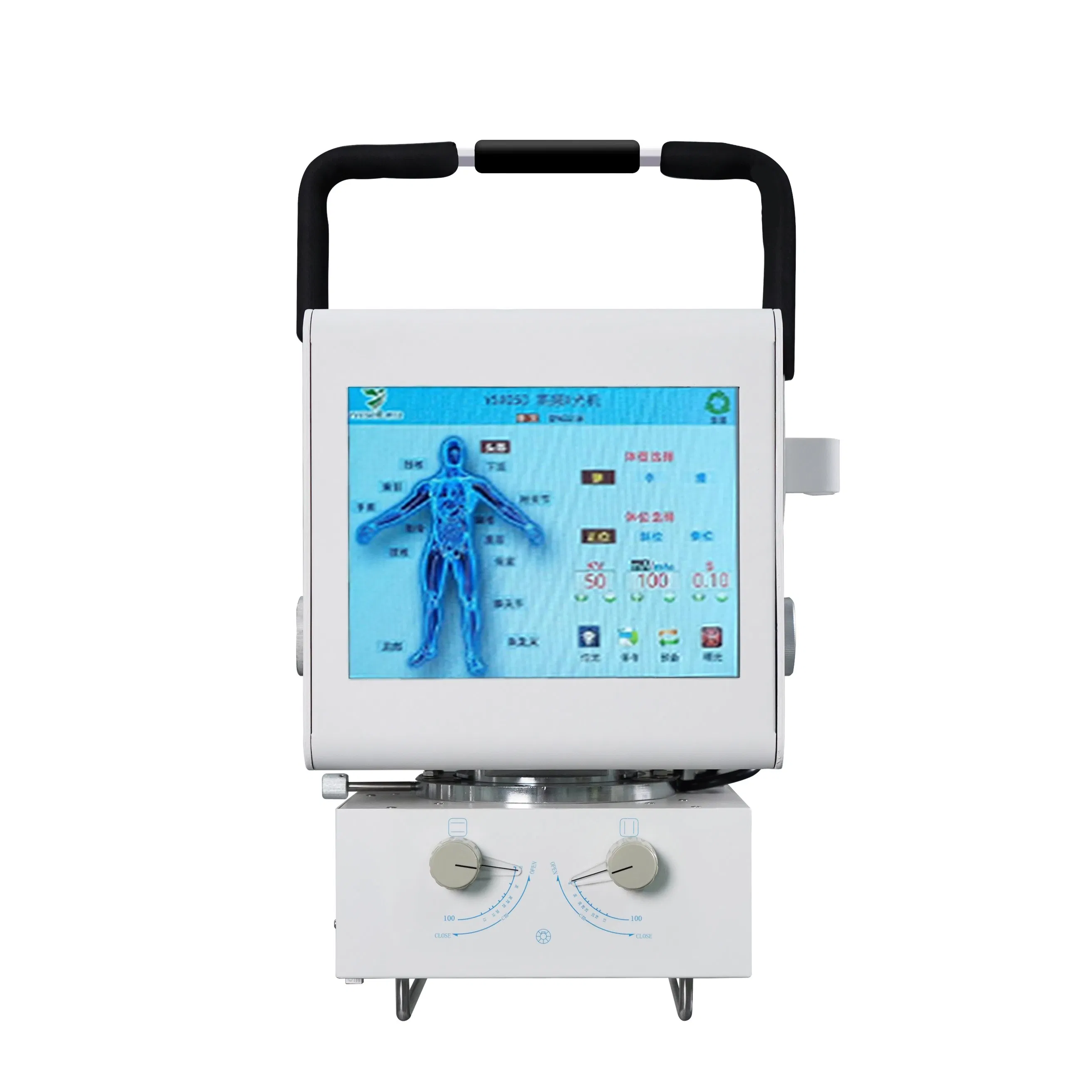

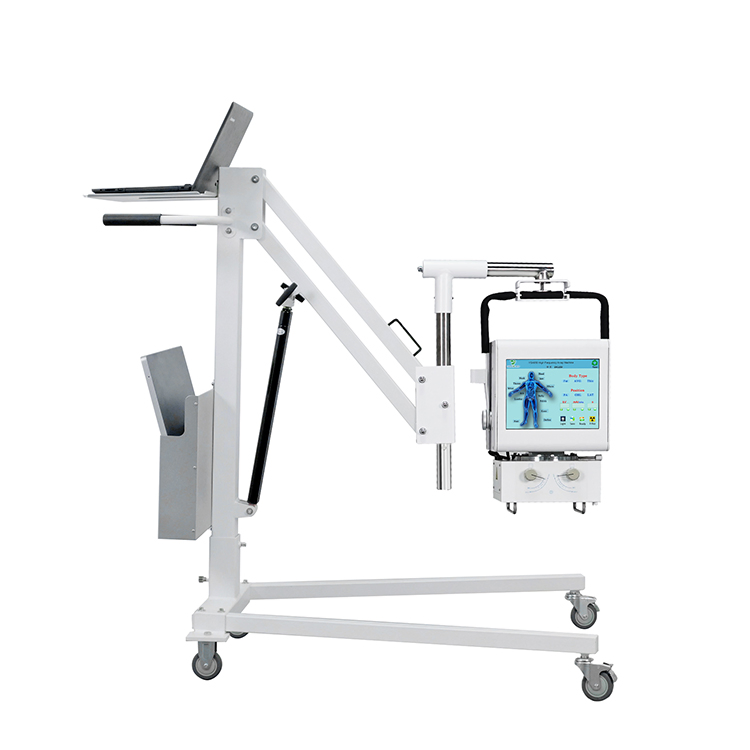

Medical Equipment 5kw Portable Digital X-ray Veterinary Device
Medical Equipment 5kw Portable Digital X-ray Veterinary Device
Medical Equipment 5kw Portable Digital X-ray Veterinary Device
Medical Equipment 5kw Portable Digital X-ray Veterinary Device
Medical Equipment 5kw Portable Digital X-ray Veterinary Device
1 / 5
Medical Equipment 5kw Portable Digital X-ray Veterinary Device
Medical Equipment 5kw Portable Digital X-ray Veterinary Device
Medical Equipment 5kw Portable Digital X-ray Veterinary Device
Medical Equipment 5kw Portable Digital X-ray Veterinary Device
Medical Equipment 5kw Portable Digital X-ray Veterinary Device

Medical Equipment 5kw Portable Digital X-ray Veterinary Device

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

✓

Core Specifications

Model YSX050-C
Power Output 5kW
Frequency 30kHz
Mobility Portable Unit
Certification ISO13485
Application Radiography Department / Medical Imaging
Warranty 1 Year
Input Voltage 220V ±10% (50Hz)
Exposure Time 0.01~6.3s
Detector Size 14*17 / 17*17 Inch
Focus Size 0.6*0.6mm / 1.8*1.8mm (Dual Focus)
mA Range 32-100 mA
kV Range 40-110KV (1KV steps)
Workstation Intel i5, 8G RAM, 128G SSD + 1TB HDD, Win10/7
★

Product Presentation

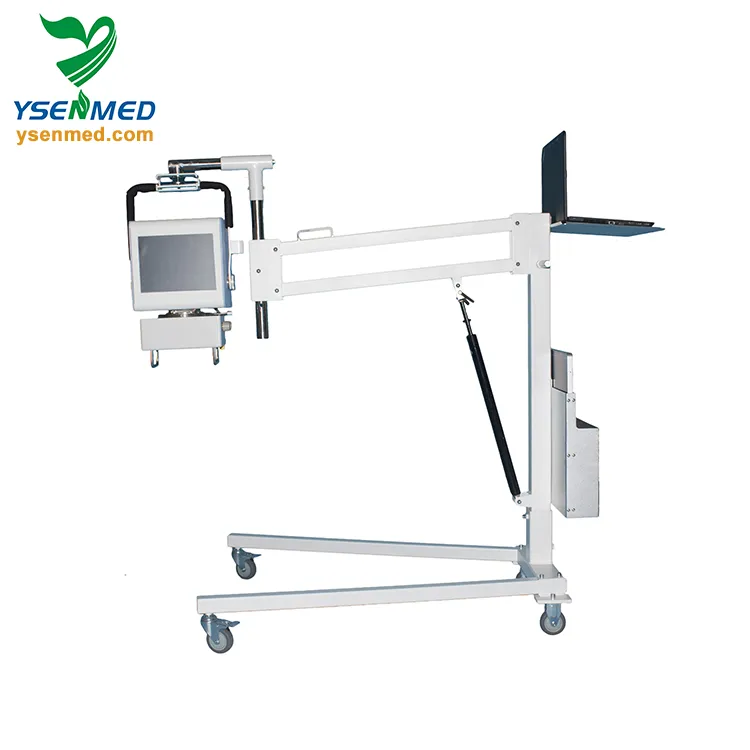

Portable X-ray Equipment
X-ray Detail 1
X-ray Detail 2
X-ray Detail 3

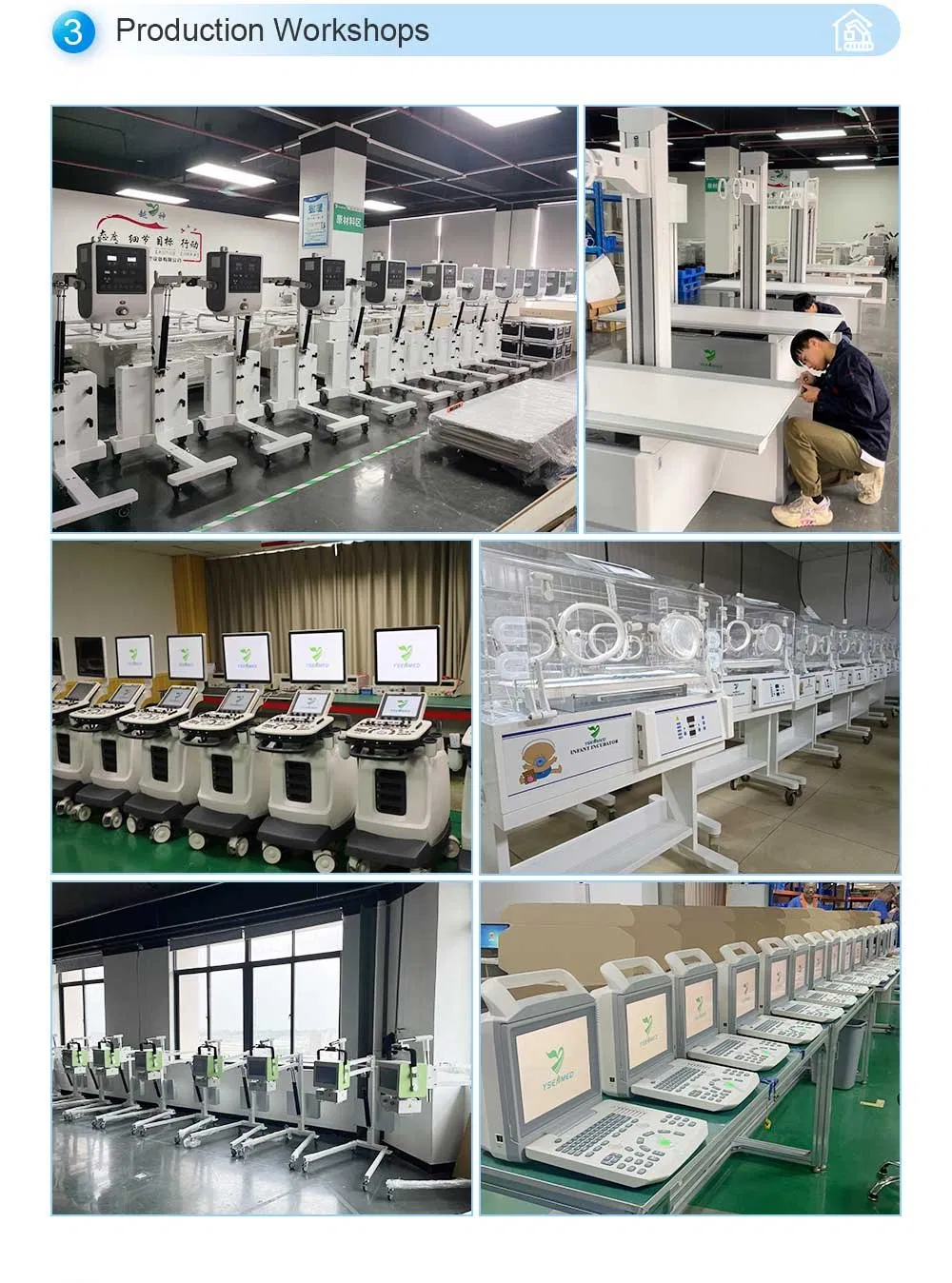

X-ray Detail 4
X-ray Detail 5
X-ray Detail 6
X-ray Detail 7
X-ray Detail 8
?

Frequently Asked Questions

What are the primary applications for the YSX050-C portable X-ray unit?
It is designed for radiography departments and versatile medical imaging needs, offering high-quality diagnostic capabilities in a portable format.
What is the power requirement for this equipment?
The system operates on a single-phase 220V/50HZ power supply. It requires a wire diameter of >4mm² and an internal resistance of <0.5Ω.
Does the system come with diagnostic software?
Yes, it includes professional medical diagnostic software pre-installed on a high-performance workstation featuring an Intel i5 processor.
What is the resolution of the digital detector?
The system features a high-resolution detector with a 140um pixel pitch and a spatial resolution of 3.6lp/mm for clear clinical imaging.
What kind of X-ray tube focus does this model use?
It utilizes a dual-focus system (0.6*0.6mm and 1.8*1.8mm) to balance high resolution for fine details and durability for larger exposures.
How is the equipment packaged for international shipping?
The unit is securely packed in a standard export wooden case to ensure maximum protection during transit.
