Basic Specifications
Application
Clinical / Veterinary
Material
Medical Grade Plastic
Certification
CE, ISO13485
Infusion Rate
0.1-1200ml/H

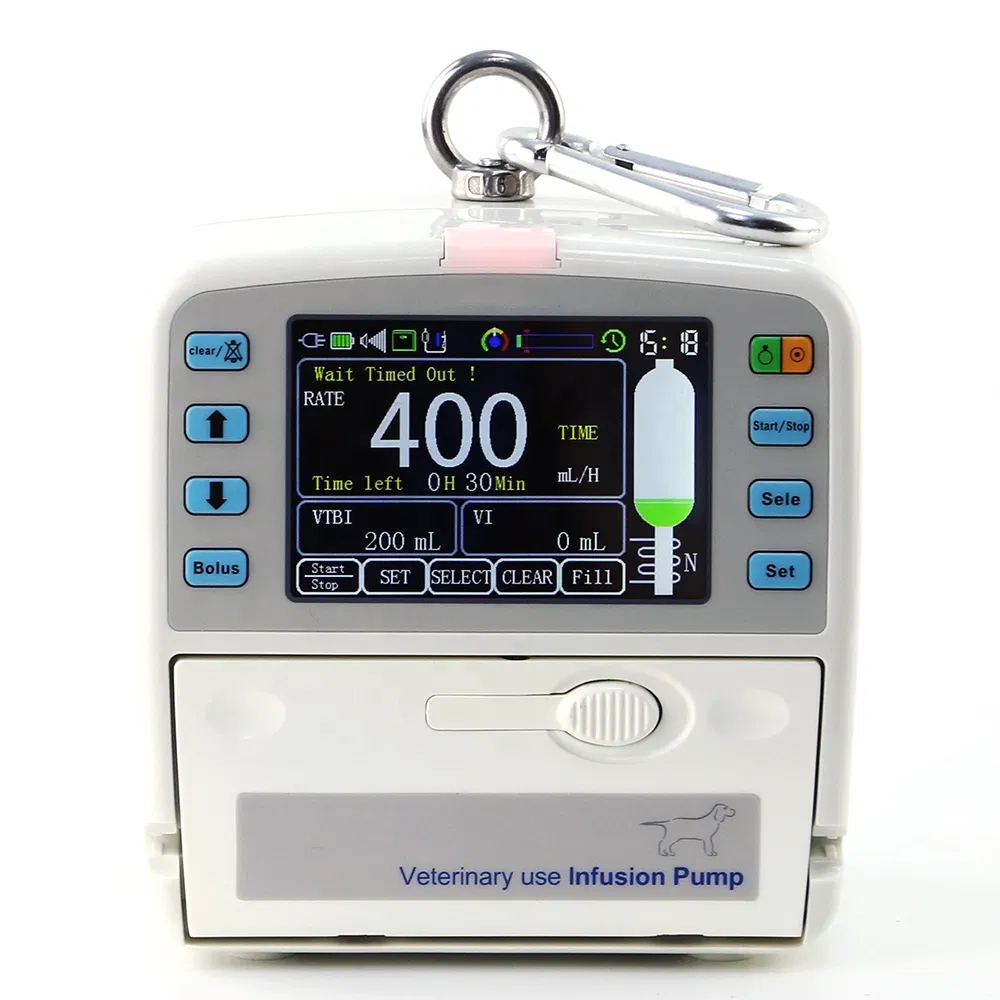

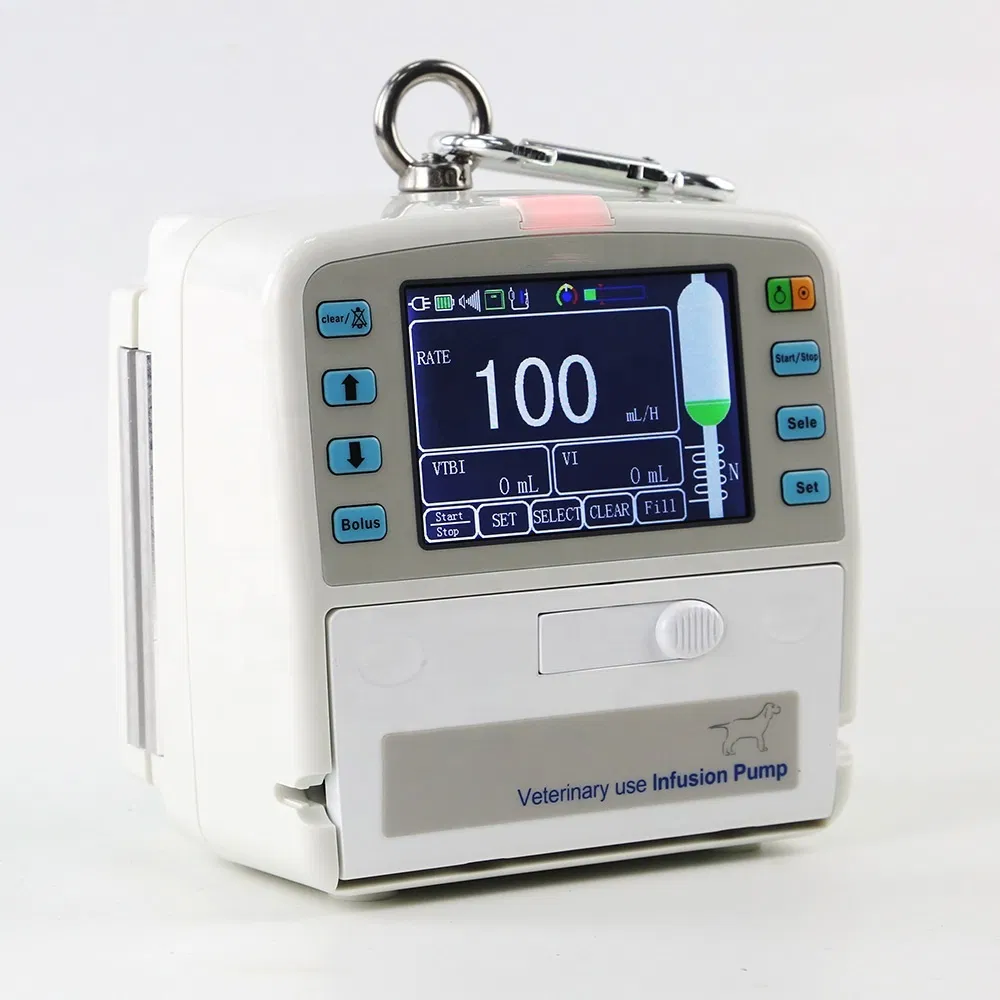

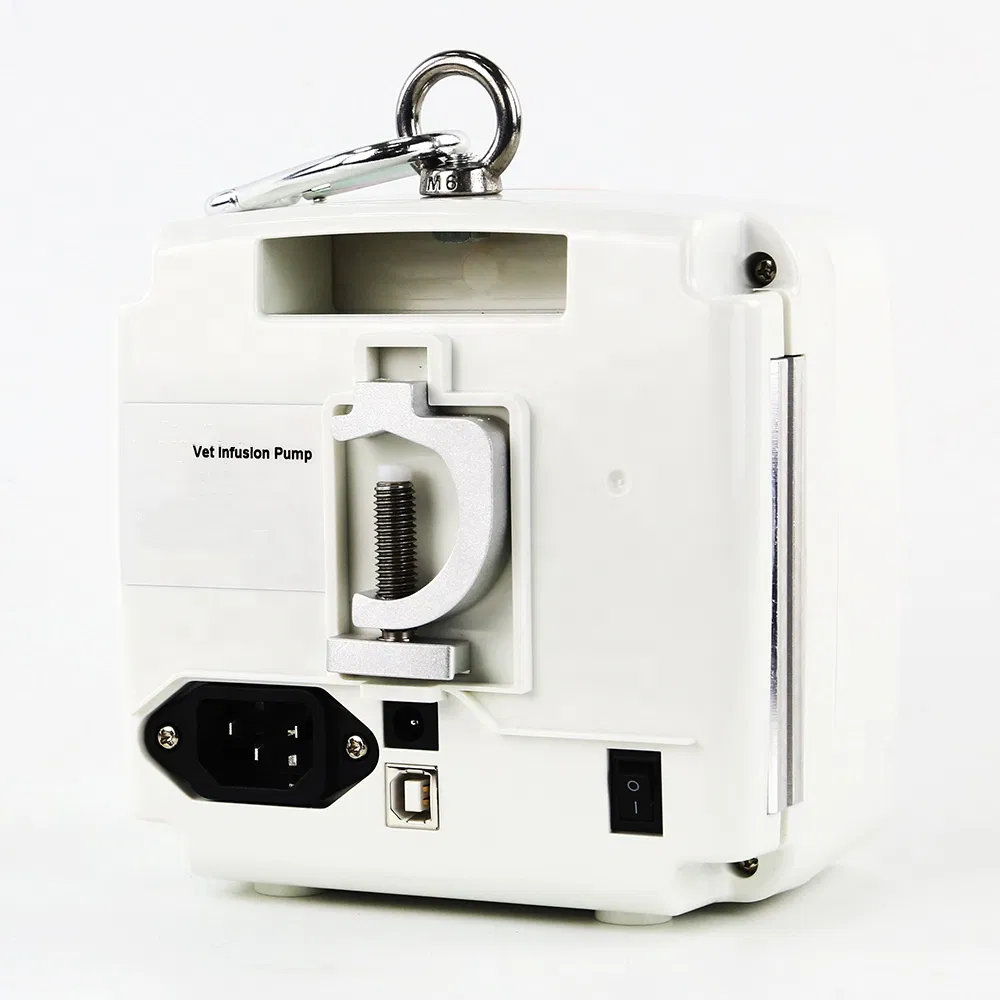

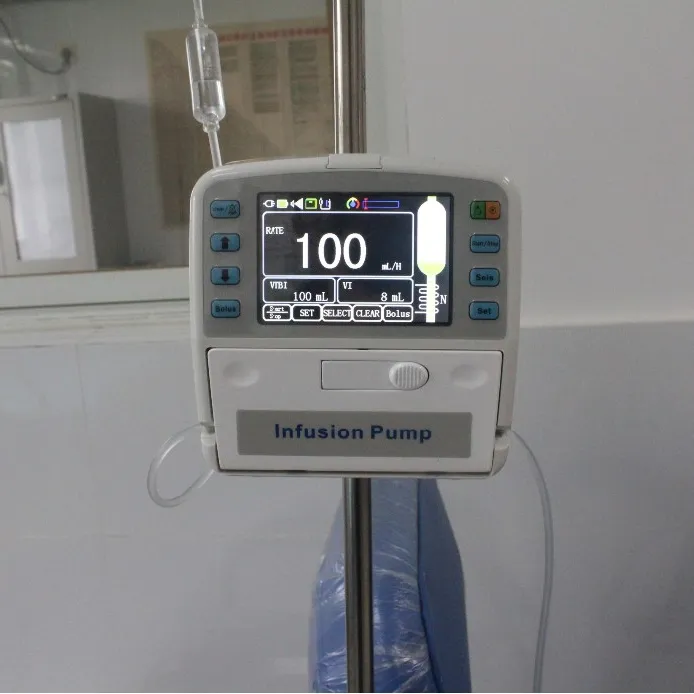

Product Presentation

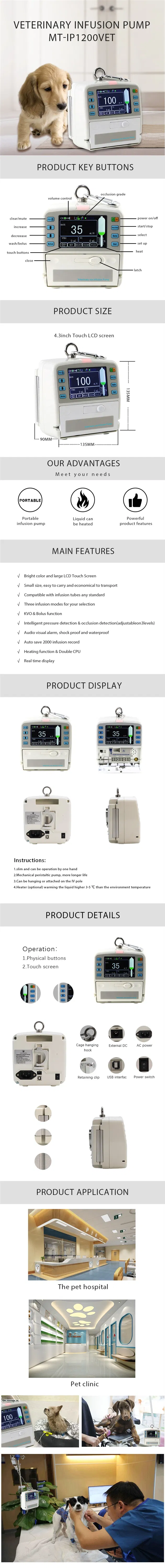

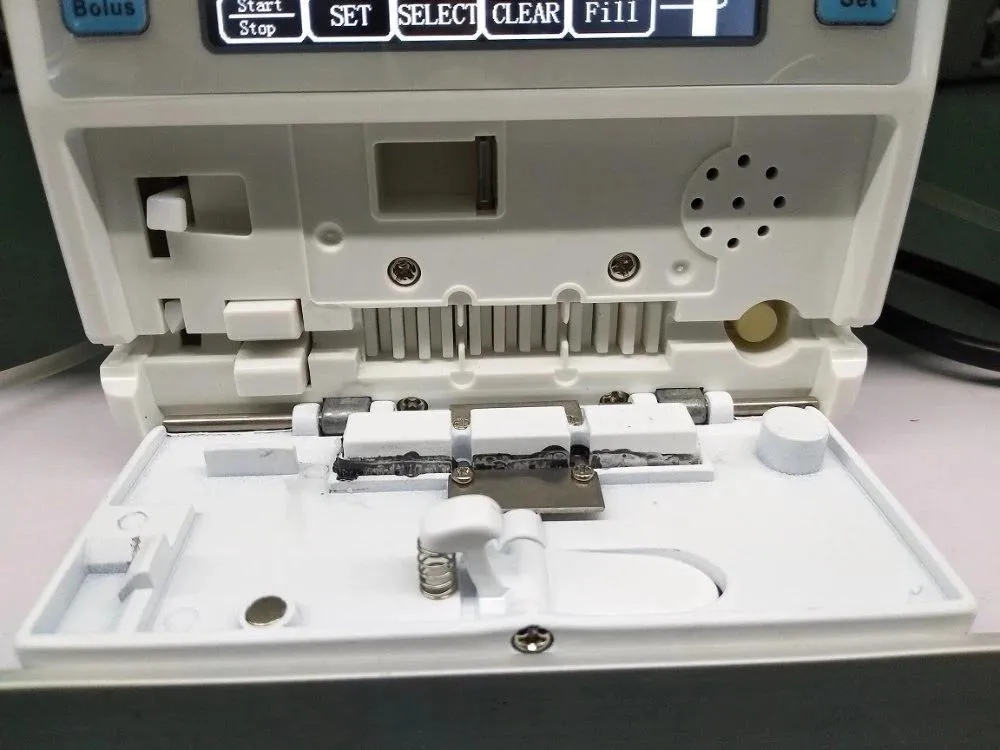

Detailed Description

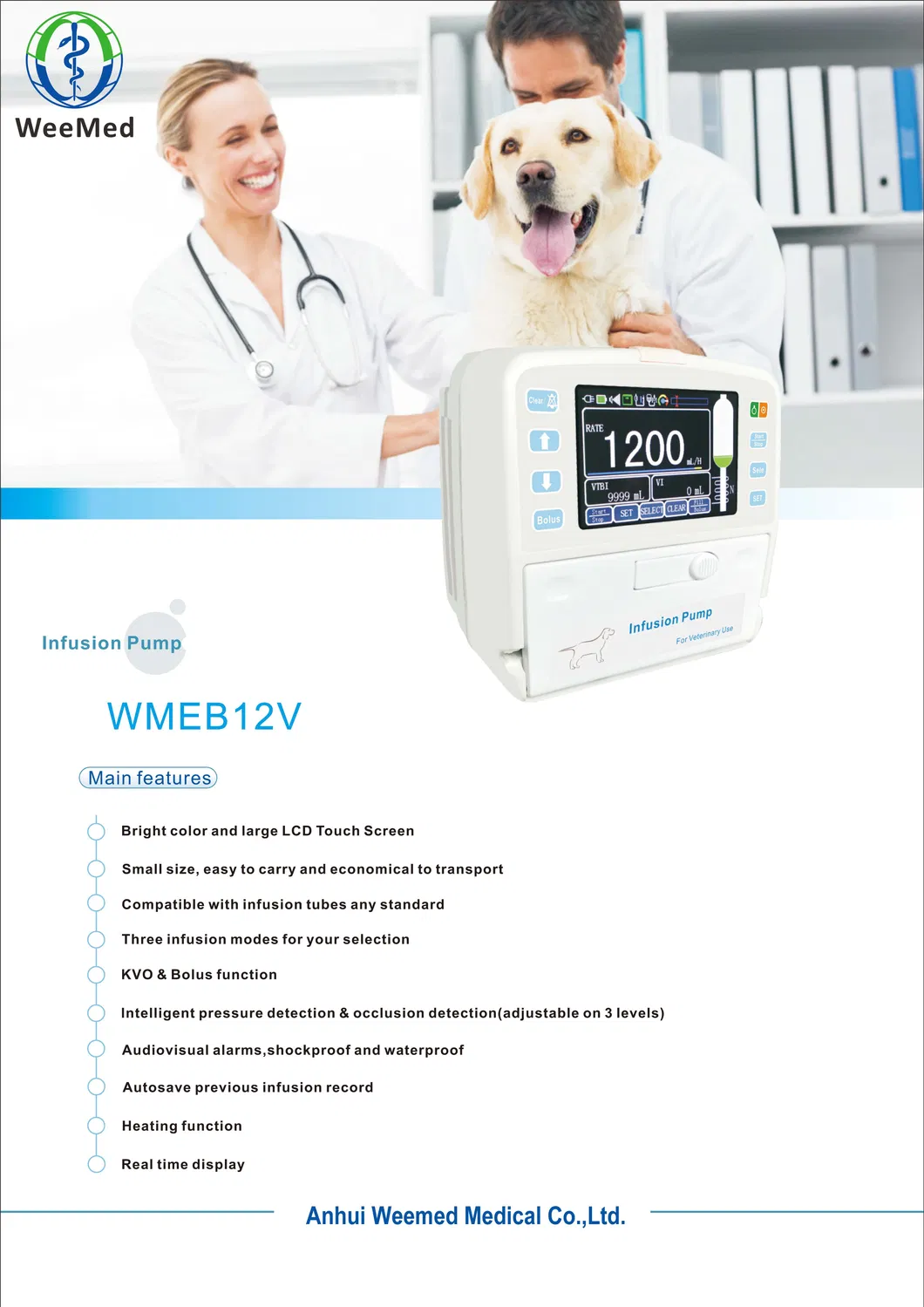

Core Features

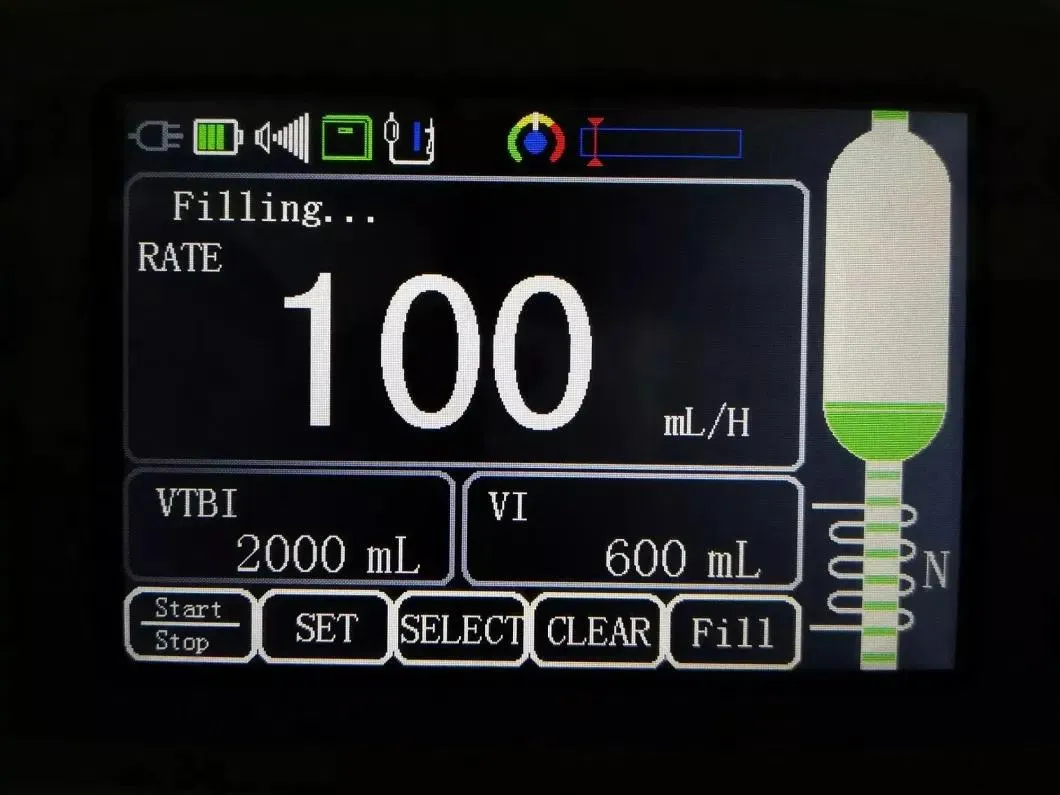

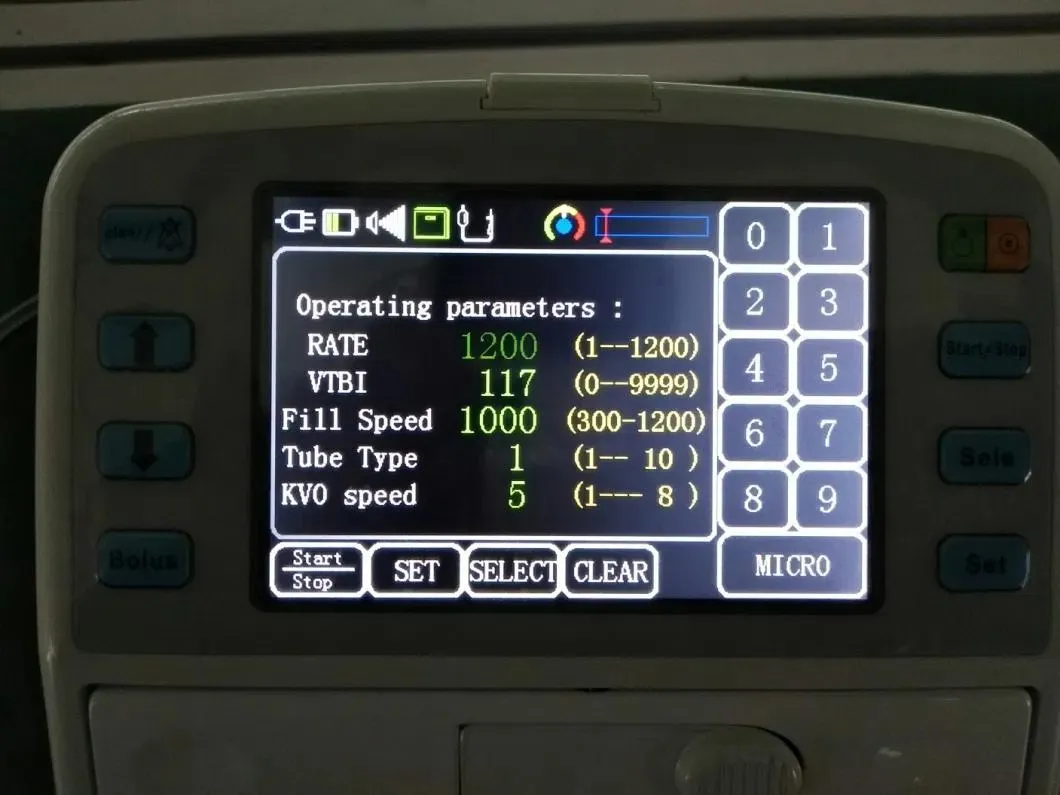

✔ Bright color and large LCD Touch Screen
✔ Heating Function & Double CPU for safety
✔ Small size and lightweight, easy to carry
✔ Compatible with all brands of infusion tubes
✔ Three infusion modes: Rate, Drip, and Micro mode
✔ KVO & Bolus Function integrated
✔ Intelligent pressure & occlusion detection (3 adjustable levels)
✔ Audio & Visual alarms, shockproof and waterproof design
✔ Auto-save of up to 2000 infusion records

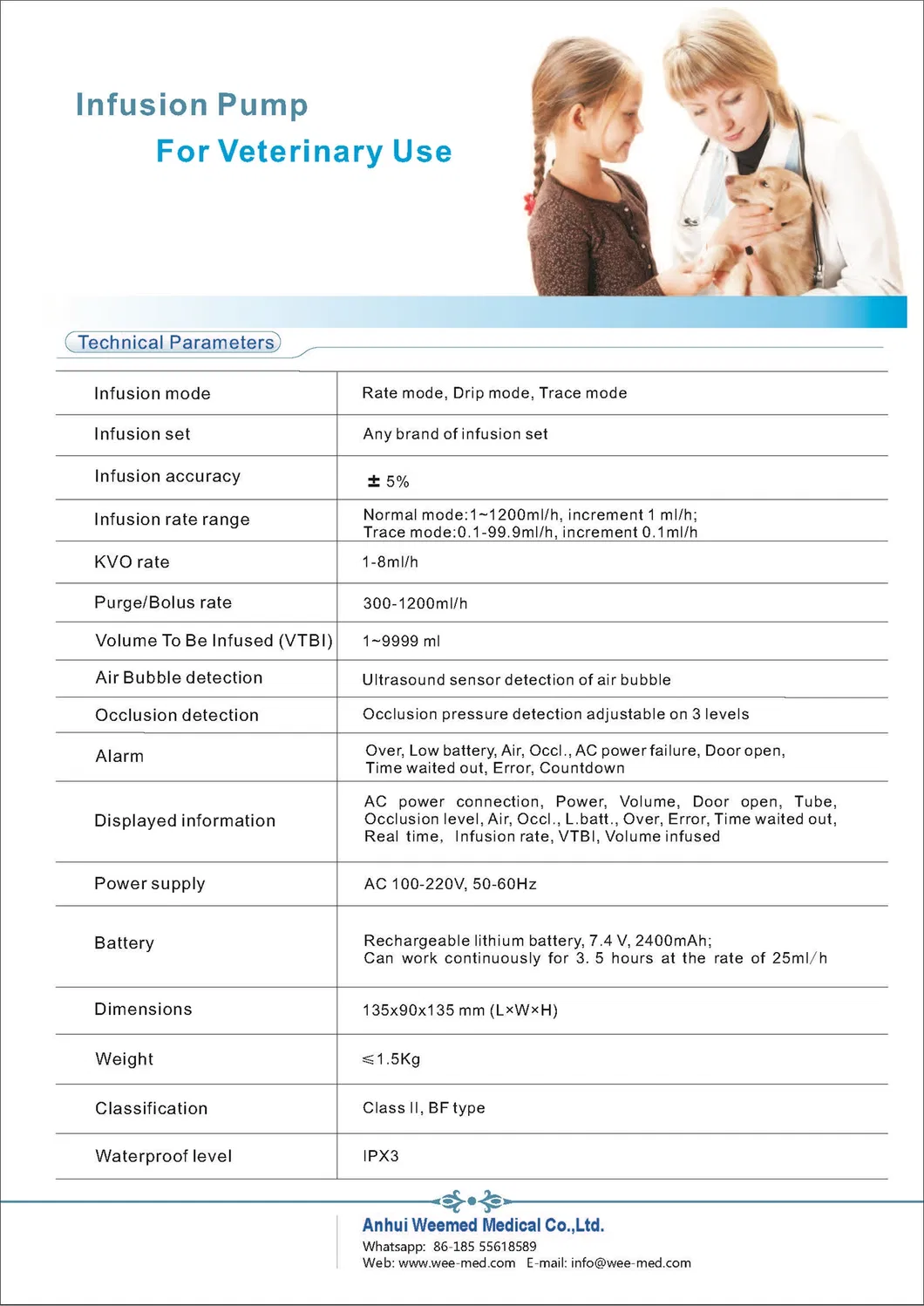

Technical Parameters
| Specification |
Details |
| Infusion mode | Rate mode, Drip mode, Micro mode |
| Infusion set compatibility | Any brand of infusion set |
| Infusion accuracy | ±5% |
| Infusion rate range | Normal: 1~1200ml/h; Trace: 0.1-99.9ml/h |
| KVO rate | 1-8ml/h |
| Purge/Bolus rate | 300-1200ml/h |
| Air Bubble detection | Ultrasound sensor detection |
| Battery | Rechargeable lithium battery, 7.4 V, 2400mAh (3.5h operation at 25ml/h) |
| Dimensions | 35x90x135 mm |
| Waterproof level | IPX3 |

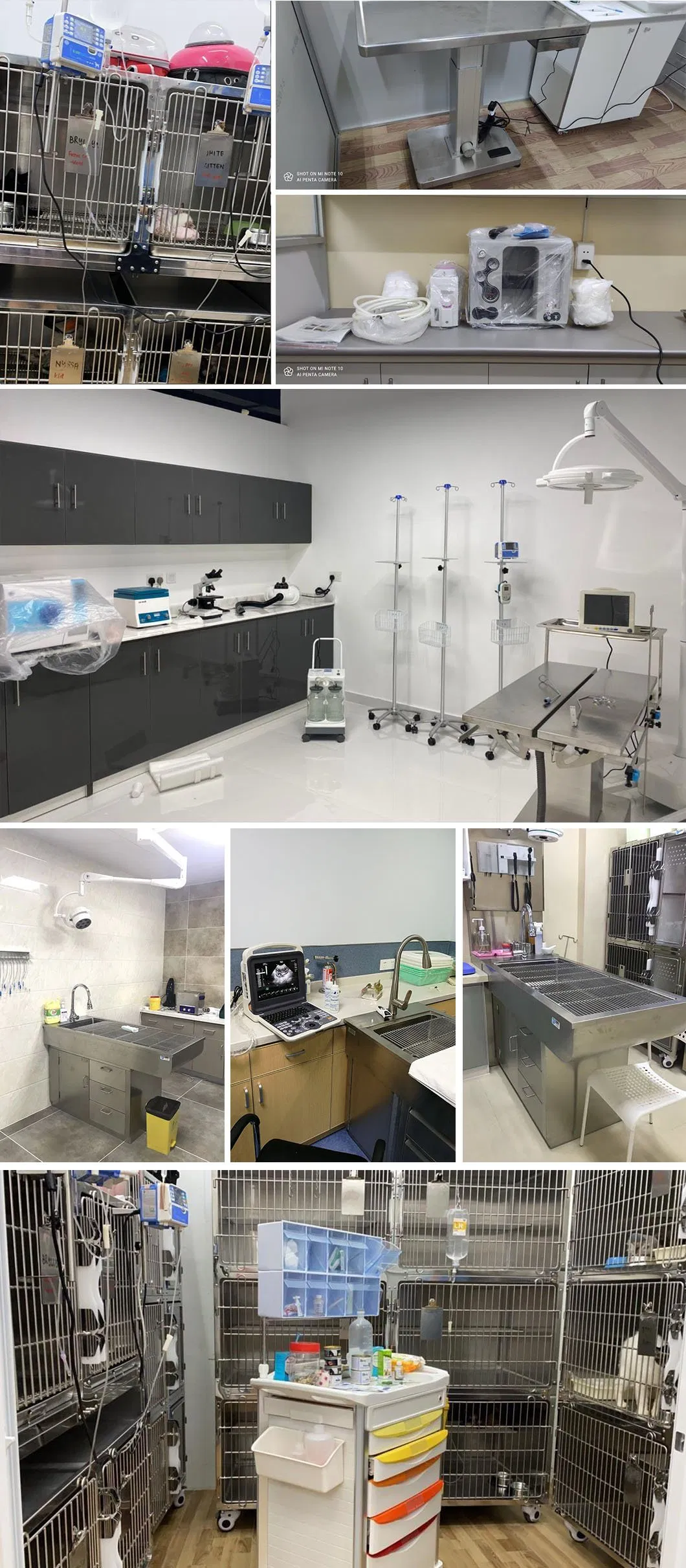

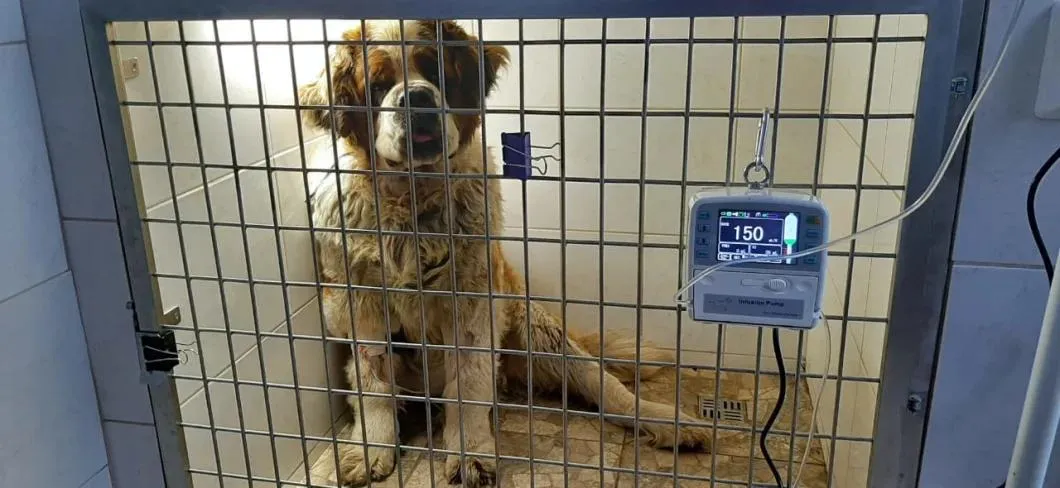

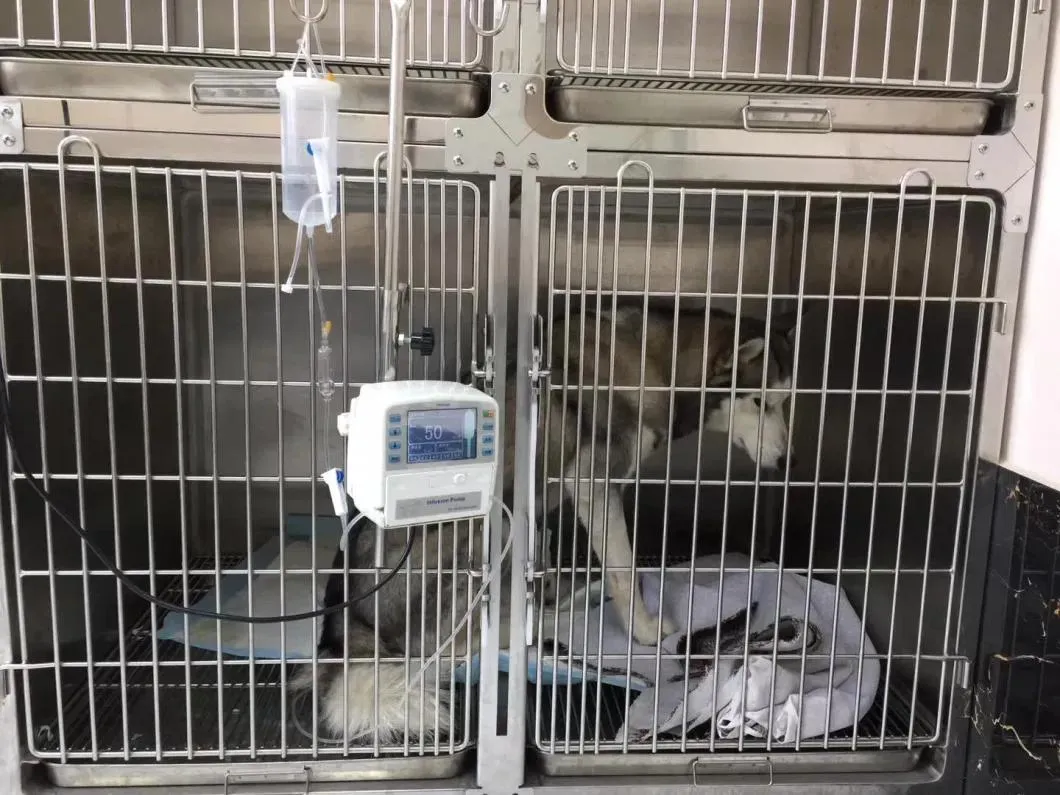

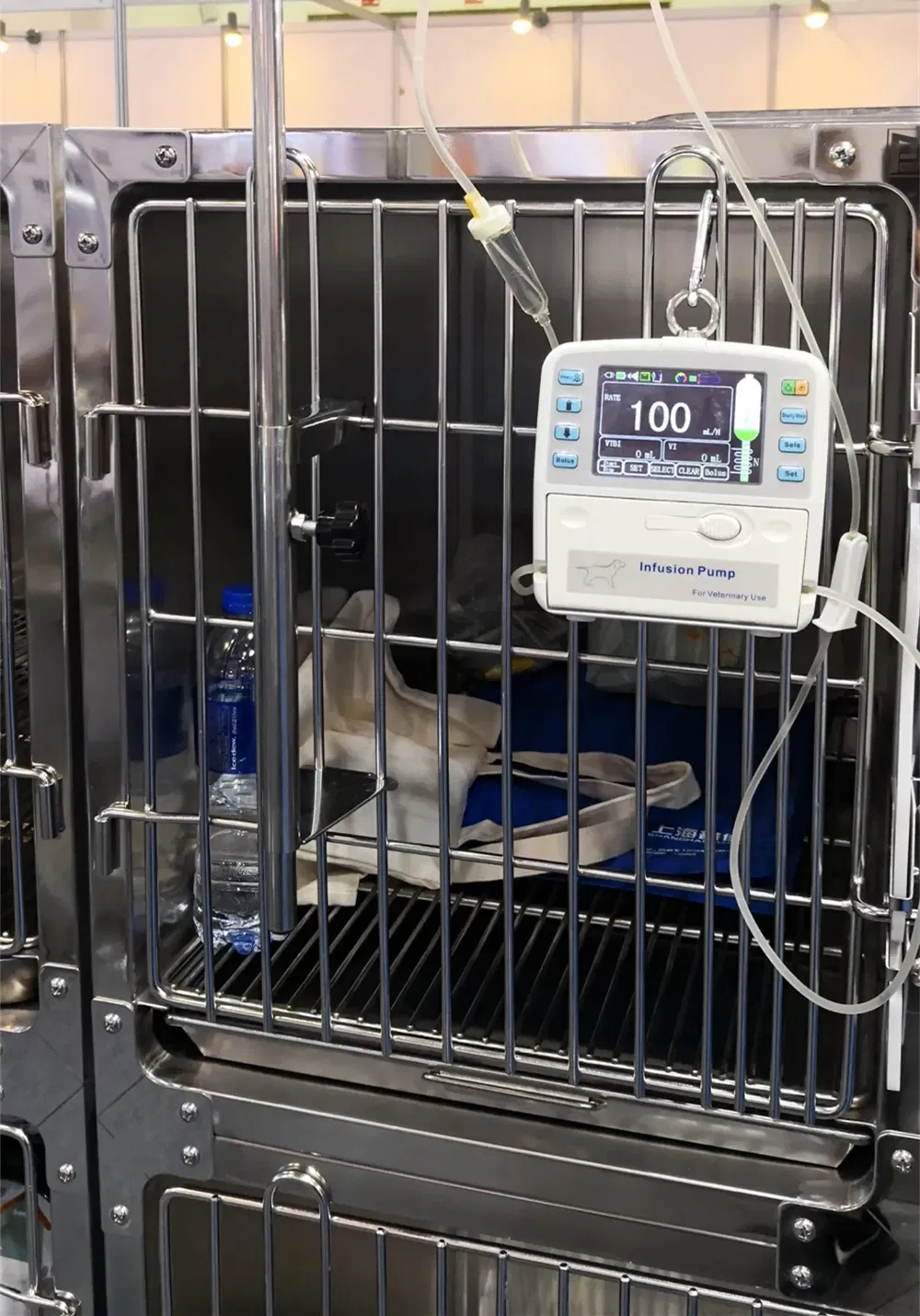

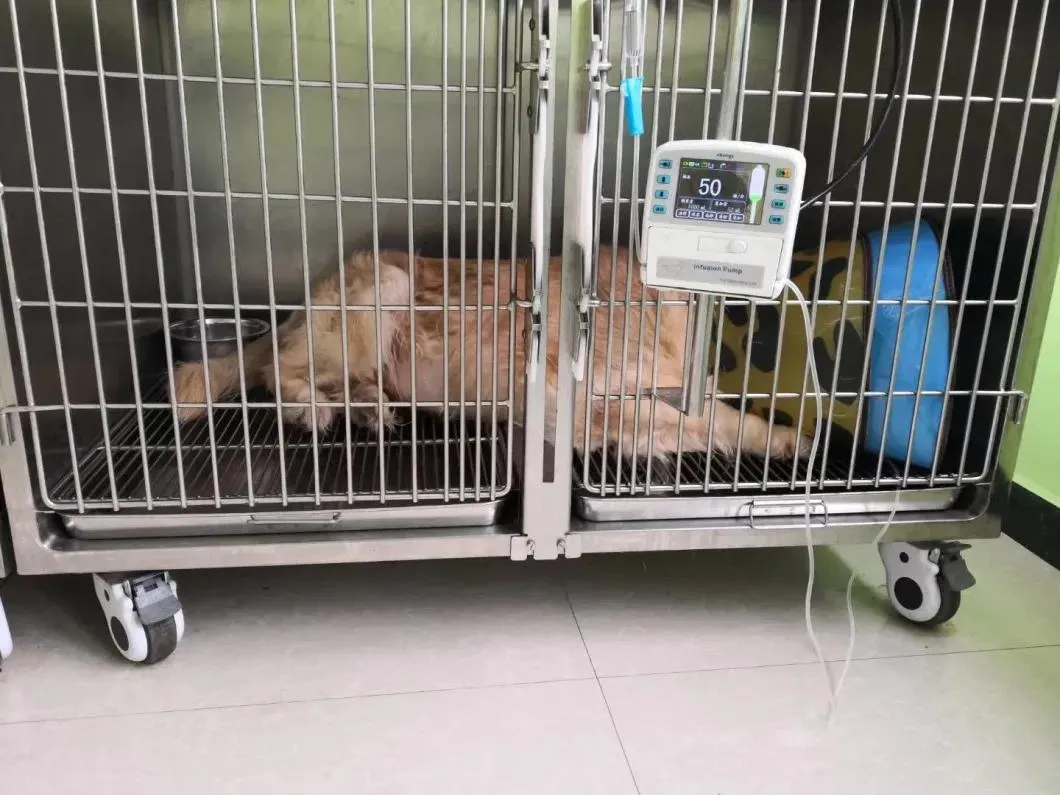

Packaging & Clinical Application
Quality & Certifications

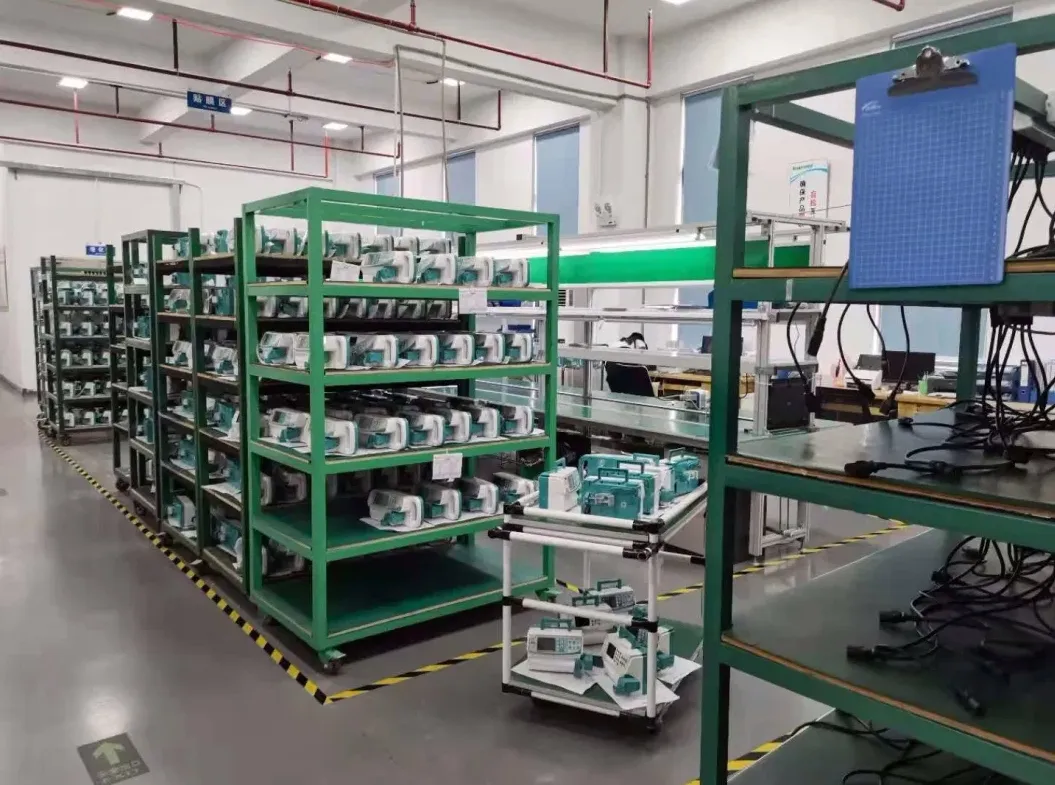

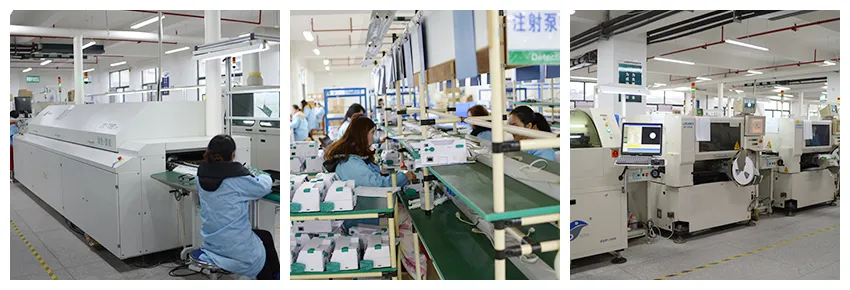

Operating under a professional quality management system according to ISO standards, our manufacturing focus is always on high-quality standards. Our range of medical and veterinary equipment, including infusion and syringe pumps, anesthesia machines, and patient monitors, is trusted worldwide across Europe, the Middle East, Africa, South America, and Asia.
Customer Feedback & Related Products
Frequently Asked Questions (FAQ)
What is the infusion accuracy of the WMB12V pump?
The WMB12V animal infusion pump offers a high infusion accuracy of ±5%.
Is this pump compatible with different brands of infusion sets?
Yes, it is designed to be compatible with all major brands of infusion tubes and sets.
How long can the pump operate on battery power?
The built-in rechargeable lithium battery allows the pump to work continuously for up to 3.5 hours at a rate of 25ml/h.
Does the pump have a heating function?
Yes, the WMB12V features a heating function and double CPU to ensure consistent performance and safety during clinical use.
What safety alarms are included?
The device includes multiple audio and visual alarms for situations such as air bubbles, occlusion, low battery, door open, and AC power failure.
What are the available infusion modes?
The pump supports three main infusion modes: Rate mode, Drip mode, and Micro mode, catering to different clinical needs.
