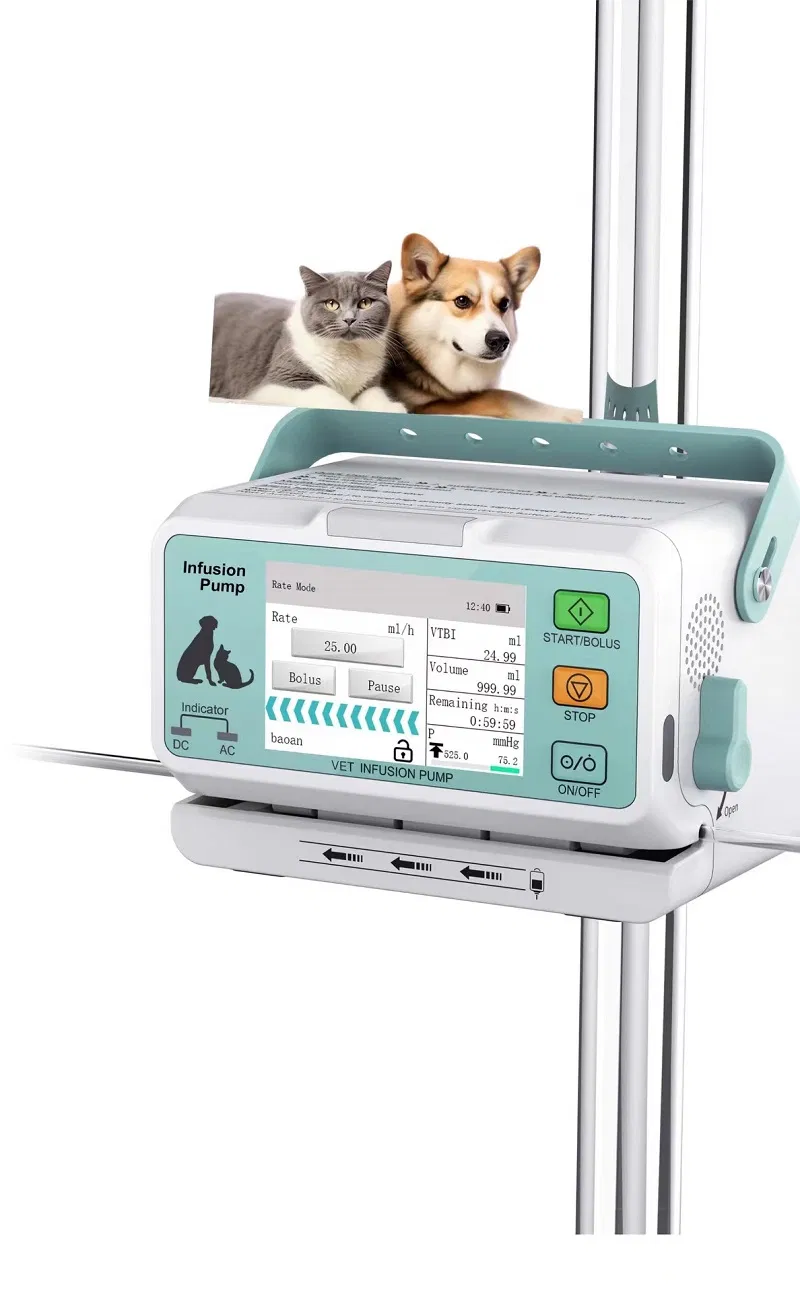

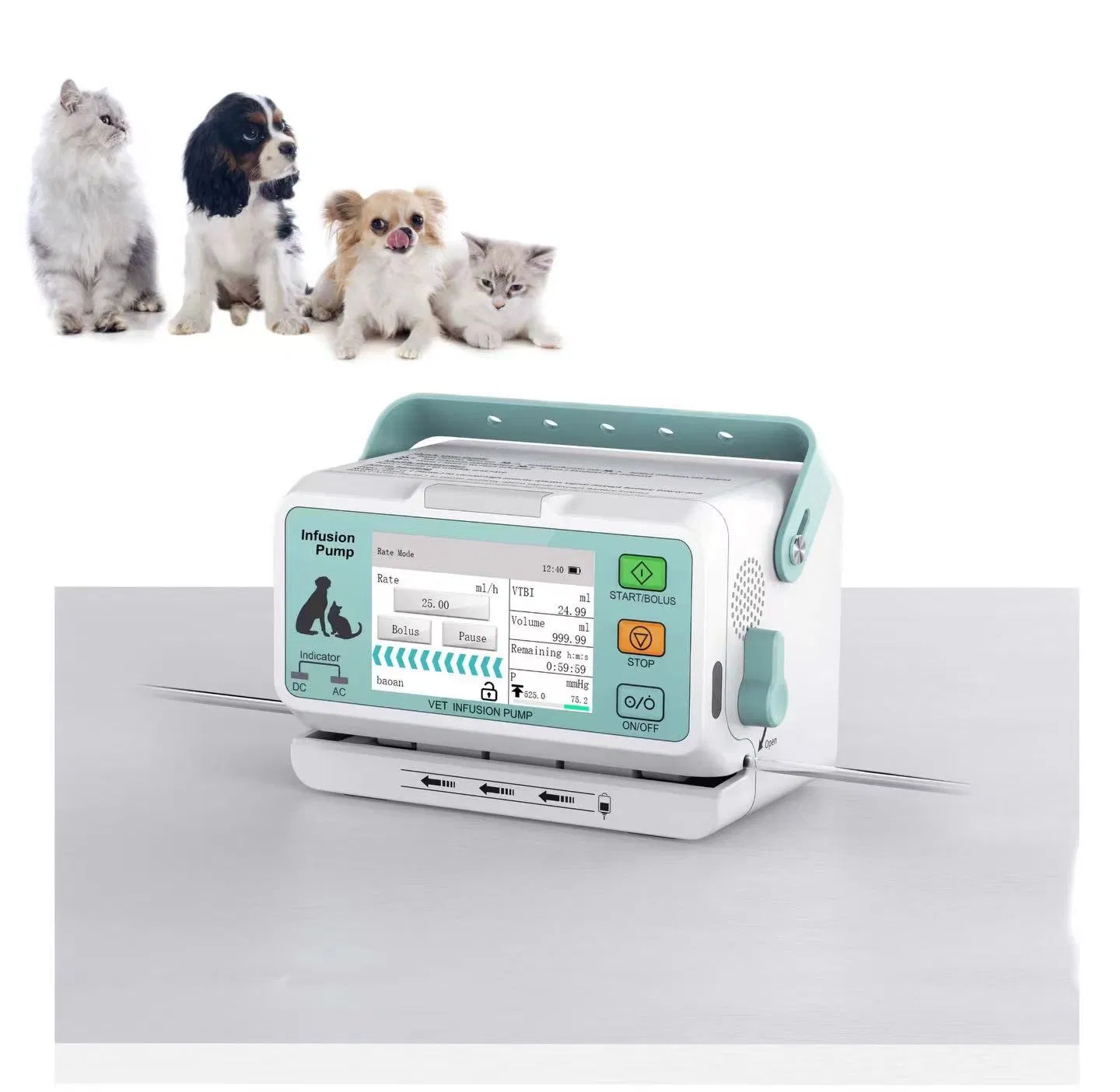

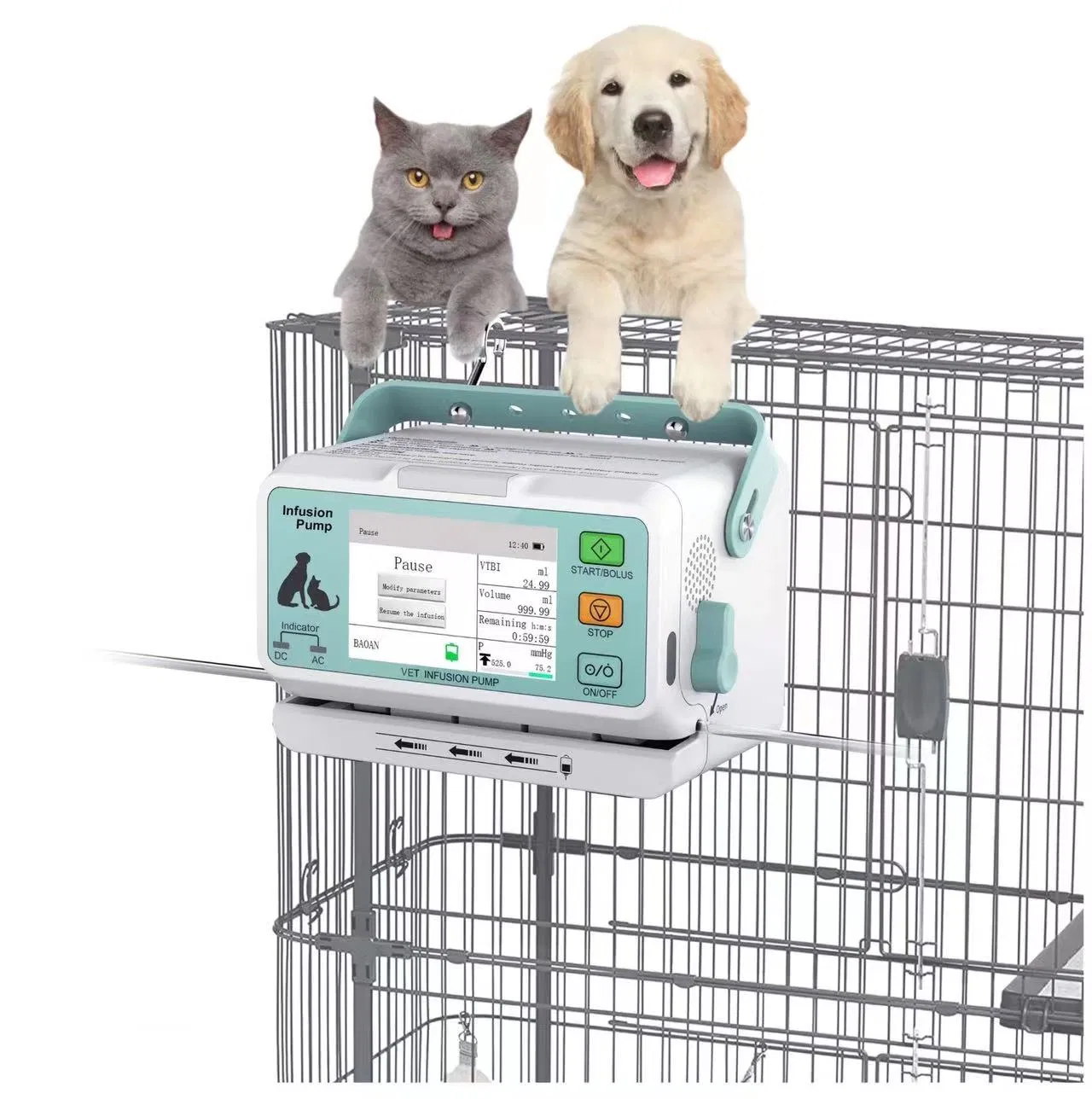

Vet Infusion Pump Veterinary Equipment ICU Infusion Pump Hospital Medical Vet Infusion Pump for Animal Pet

i

Basic Information

Model NO.V10A

Power100~240V

Battery3000mAh, Working 8 Hours Above in 25ml/H Speed

Double CPUIP34 waterproof / Dustproof/Shockproof

PackageWooden Package for Export

SpecificationL165 × W103 × H100mm

OriginChina

HS Code9018909911

★

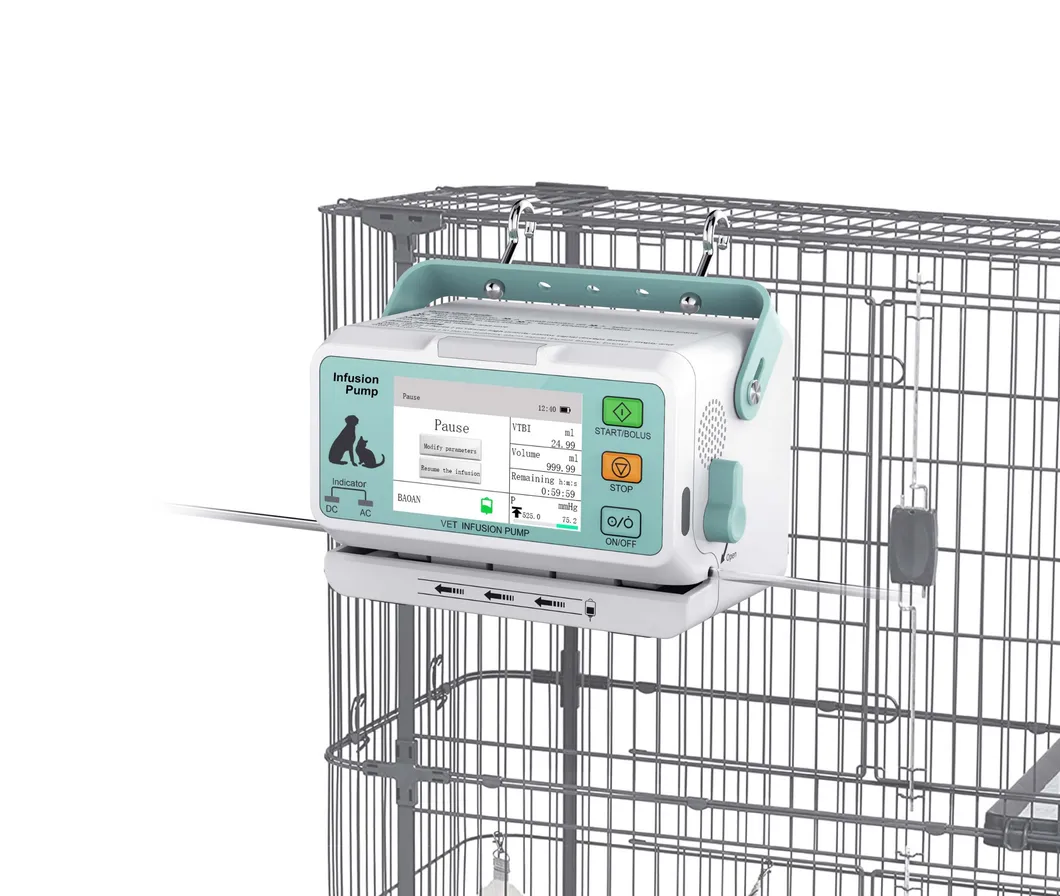

VET Infusion Pump Veterinary Equipment ICU Infusion Pump

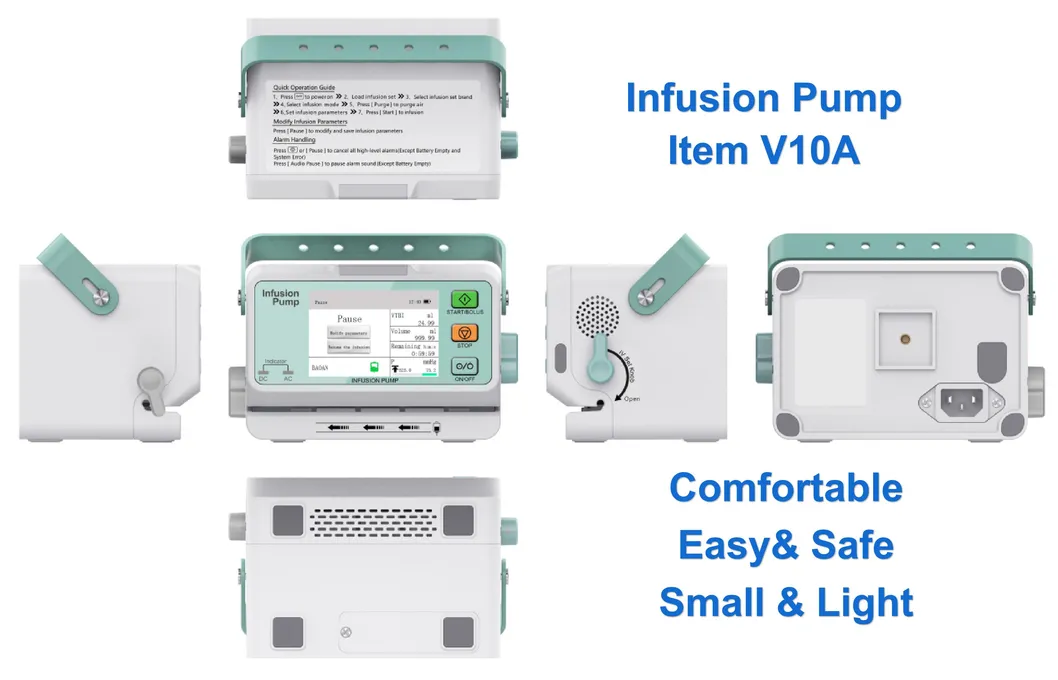

Model: V10A

Core Advantages:

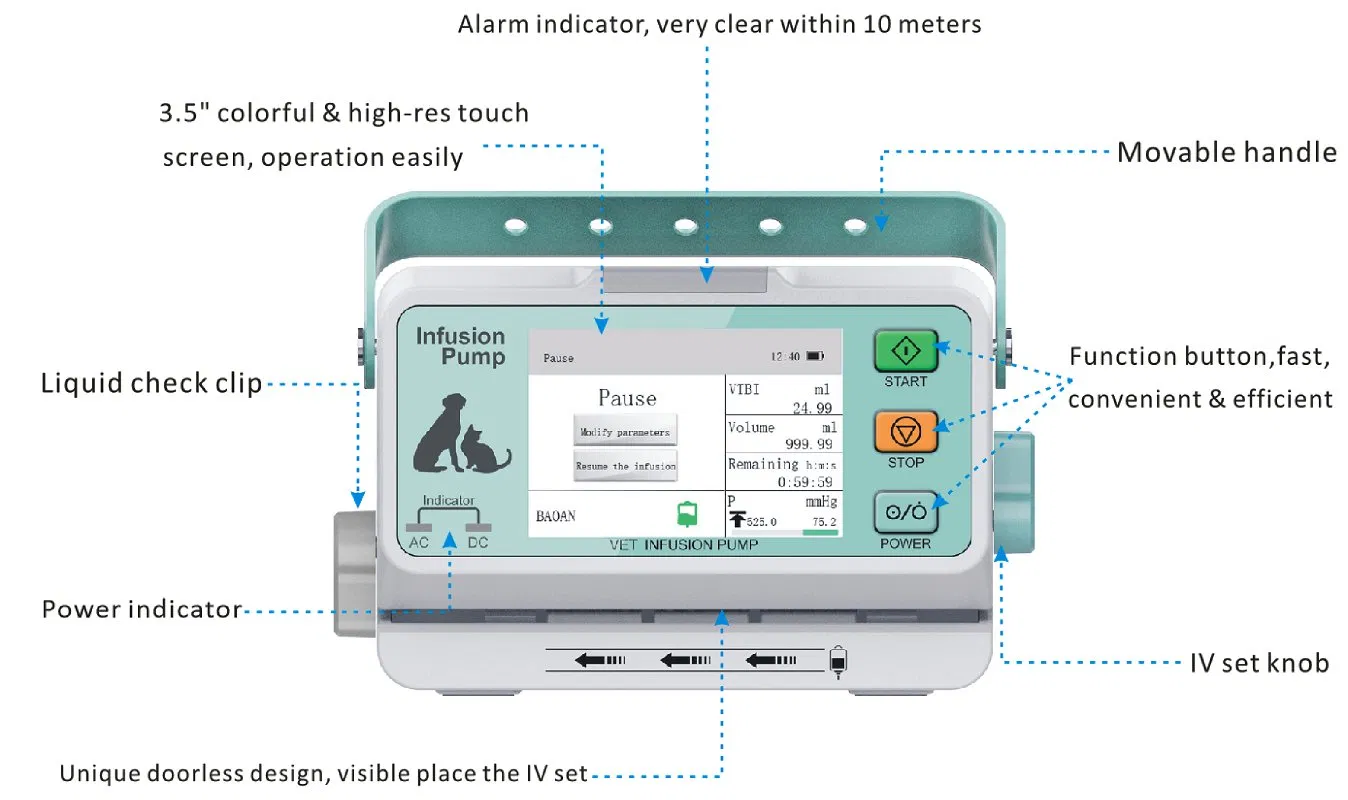

3.5" colorful touch screen, easy to operate with human-computer interface.
Unique doorless design, visible place the IV set directly, dual CPU control.
IP34 dustproof and waterproof design. AC/DC power, 2900 mAh Larger battery, long working time 8-10 hours.
Reduce the bubbles error alarm because horizontal place the IV set design.
Very Light weight only 1.3 KG, small and exquisite, convenient to carry and transport.
DPS dynamic pressure monitoring, real-time display of the current pressure value.
German high-end medical grade motor driver chip with unique patented silent technology (12dB).
New independent 3 stage peristaltic device design for improved infusion accuracy.
Multi-languages support (Chinese / English / Spanish / Portuguese) with voice broadcast.
Self-define IV set brand name (30pcs) and 34 units Drug library.

📷

📋

Model	V10A
Screen	3.5" touch screen
Size / Weight	L165 × W103 × H100mm / 1.3kg
Power Supply	AC 100~240V / External DC 12V~15V
Battery Performance	3000mAh, >8 hours at 25ml/h speed
Flow Rate Range	0.1~1200.00ml/h (increment 0.01ml/h)
VTBI / Time	0.0-9999.99ml / 1s-99h59min
Accuracy	±5% (with calibrated IV set)
Bolus / Purge Rate	0.1~1200ml/h, Automatic/Manual available
Bubble Detection	Adjustable 50/100/250/500/800 μl (Ultrasonic)
History Record	2000+ entries
Alarms	Air in Line, Occlusion, Time Near End, Low Battery, System Error, KVO Finished, VTBI Completed, No AC Power, etc.
