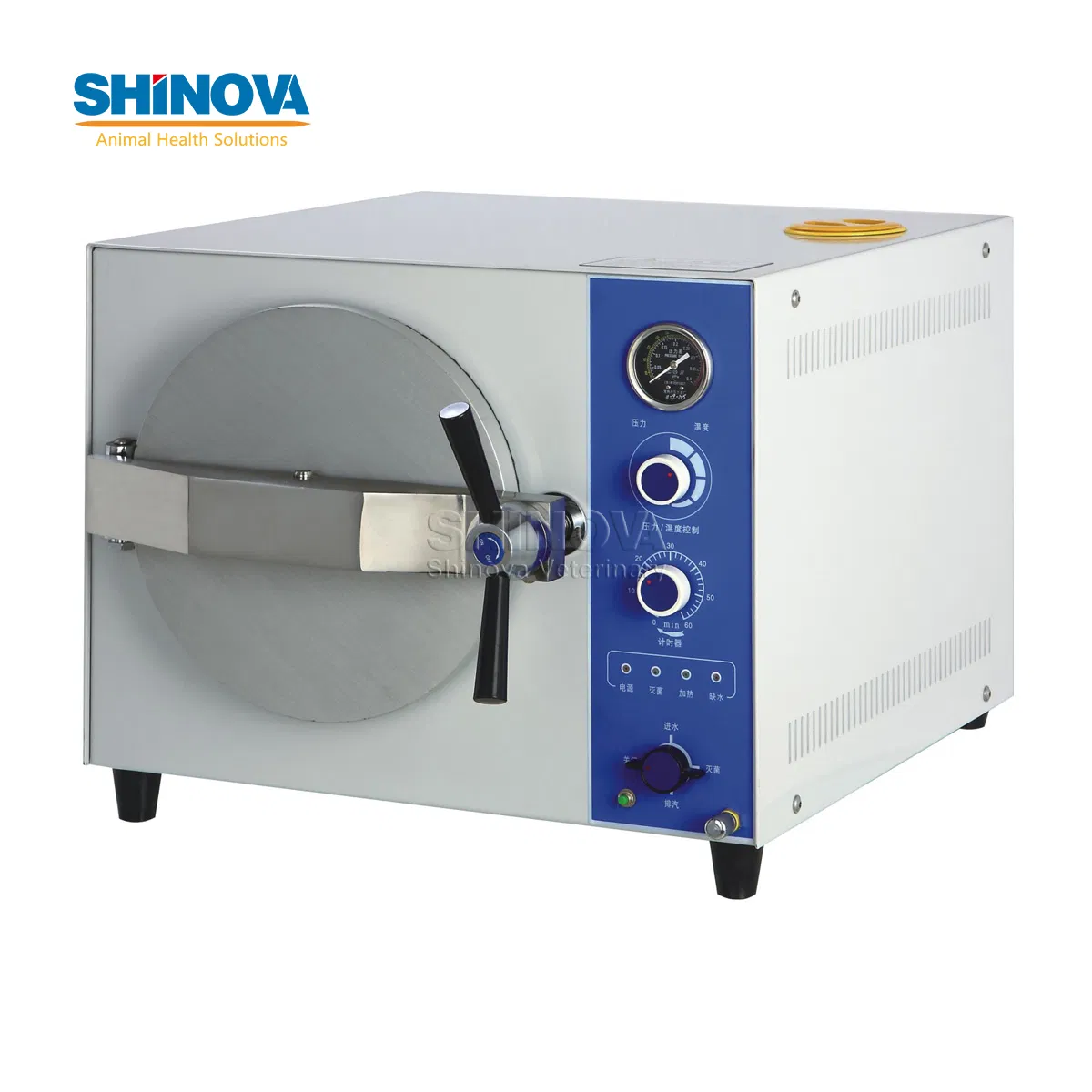

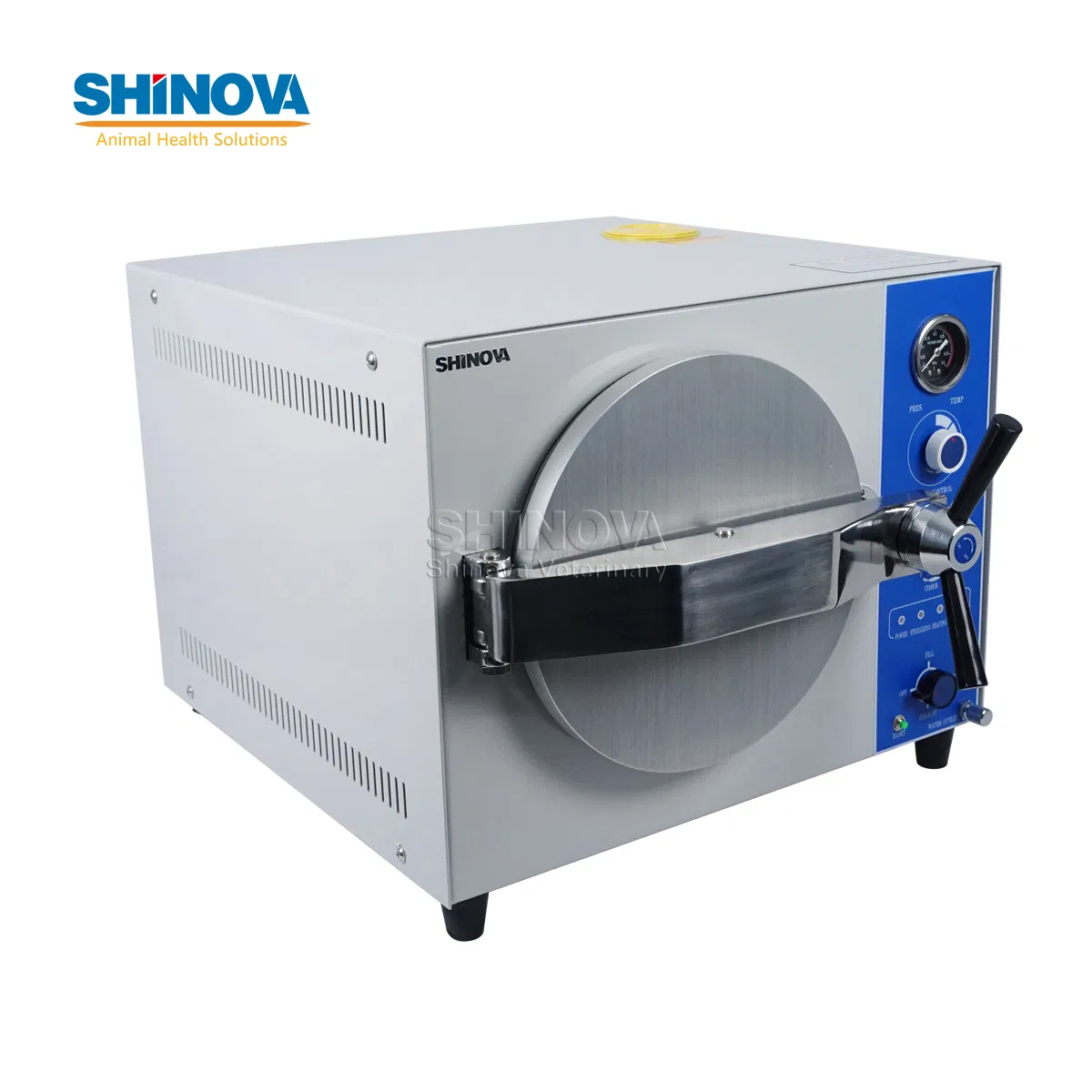

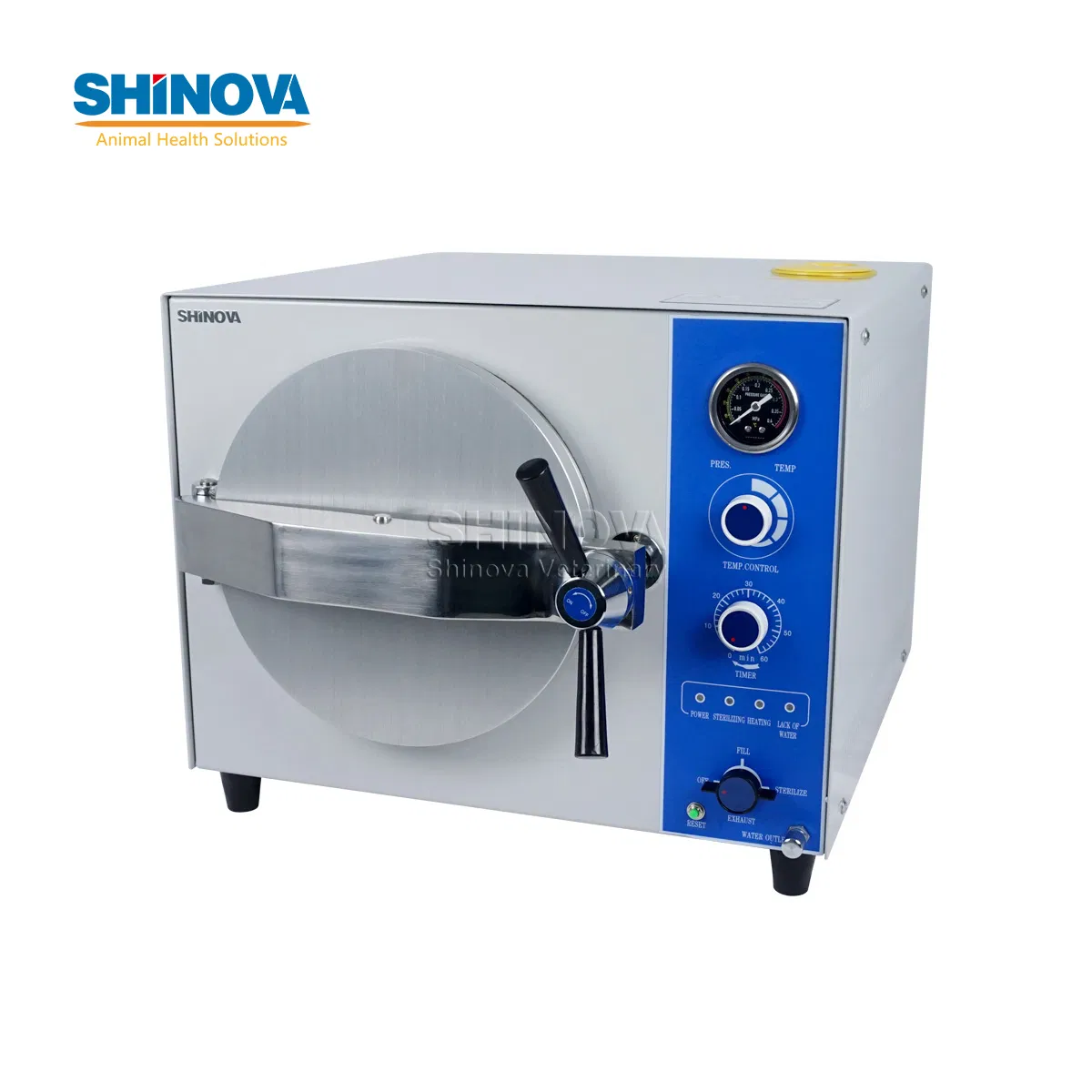

Veterinary Medical Equipment 20L Tabletop Steam Autoclave (MS-TB20J)

Customization: Available
Transport Package: by Air or by Sea
Specification: 70*58*50 0.203

Product Description

📋

Basic Information & Logistics

Model NO.
MS-TB20J
Origin
China
HS Code
8419200000
Package Size
1.00cm * 1.00cm * 1.00cm
Gross Weight
20.000kg
🛠️

Tabletop Steam Autoclave / Sterilizer

Model: MS-TB20J

Tabletop Steam Autoclave

Key Features & Descriptions:

  • Indicator light indicates working state for easy monitoring.
  • Rapid sterilization cycle within 4~6 minutes.
  • Fully adjustable sterilizing temperature and time presets.
  • Steam-water inner circulation system: ensures no steam discharge, keeping the environment clean and dry.
  • Automatic protection against over-temperature and over-pressure.
  • Safety protection mechanism for water shortage.
  • Automatic cool air exhaust system.

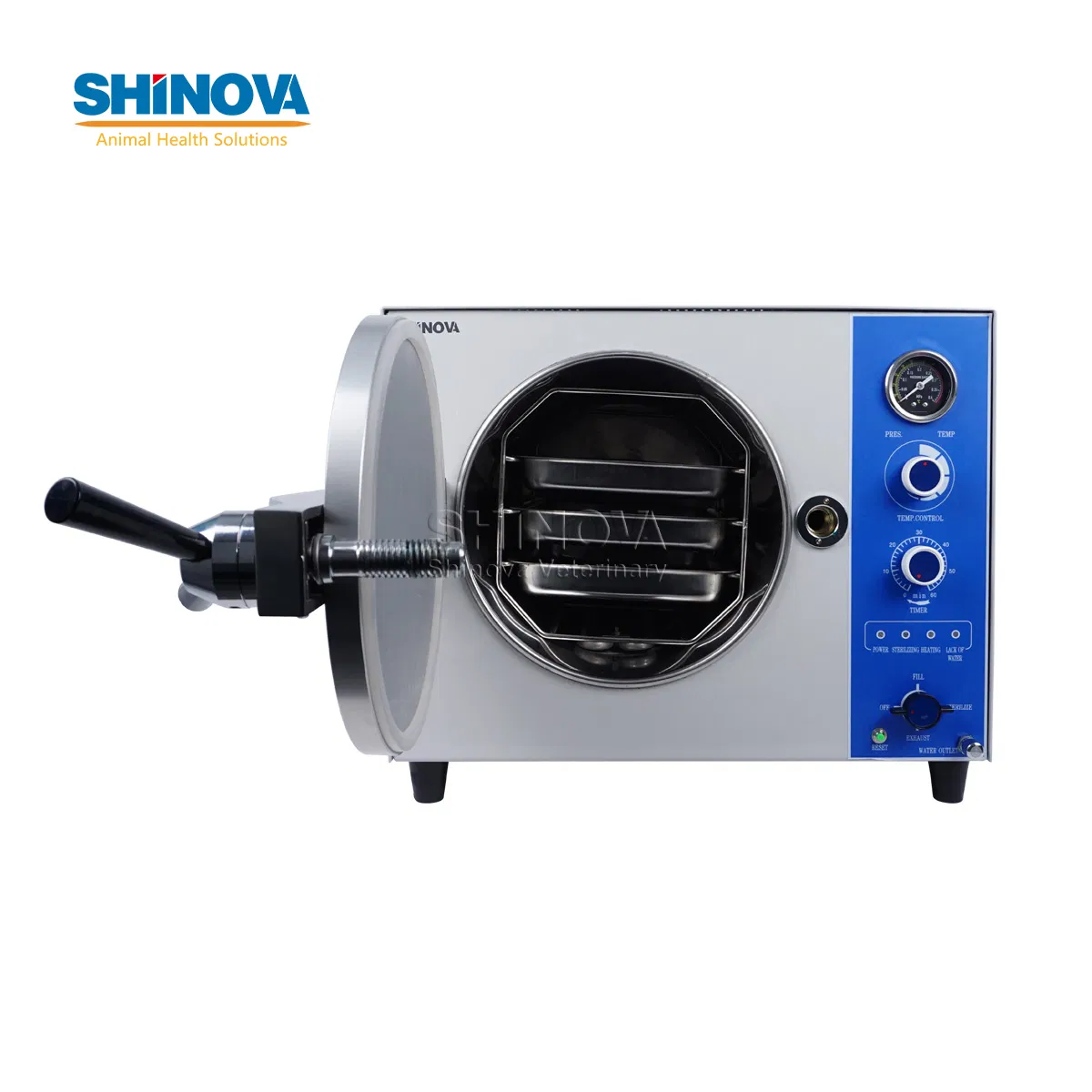

  • Equipped with three high-quality stainless steel sterilizing plates.
  • Sterilizer chamber constructed from durable stainless steel.
  • Auto shut-off feature with an audible beep reminder after sterilization completion.
📊

Technical Specifications

MODEL MS-TB20J MS-TB24J
Sterilizing chamber volume 20L(φ250×420 mm) 24L(φ250×520 mm)
Maximum working pressure 0.22Mpa
Maximum working temperature 134ºC
Adjustment of temperature 105-134ºC
Timer 0-60 min
Chamber temperature equality ≤ ± 1ºC
Source power 1.5KW/AC 220V 50Hz (AC110V 60HZ)
Sterilizing plate size 340×200×30 mm (3 pieces) 400×200×30 mm (3 pieces)
Dimension 480×480×384 mm 580×480×384 mm
Package dimension 700×580×500 mm 800×580×500 mm
🏢

Professional Veterinary Solutions

We are a professional veterinary equipment manufacturer and veterinary solutions provider primarily serving animal hospitals and clinics. With leading research, design, and service capabilities, we focus on providing advanced techniques for veterinarians to solve diagnostic and treatment challenges.

Our Mission: To keep pets healthy and happy by improving their life quality and creating long-term value for customers.

What We Provide:

  • Accurate diagnostic equipment and fast-test reagent kits.
  • Reliable anesthesia, surgical, and treatment equipment.
  • Design and planning solutions for new animal hospitals or departments.
  • Cloud-based Software Services: Hospital Management Systems (SaaS) and Laboratory Systems (LIS).

Market Presence: We focus on developed markets in the USA and Europe, as well as the rapidly growing China market. Our customers include world-renowned animal hospitals, university medical centres, and leading veterinary groups globally.

🖼️

Product Gallery

Frequently Asked Questions

How long does the sterilization process take?
The rapid sterilization cycle typically takes between 4 to 6 minutes for efficient turnaround.
What is the maximum working temperature and pressure?
The equipment can reach a maximum temperature of 134ºC and a maximum working pressure of 0.22Mpa.
Is the environment safe from steam discharge?
Yes, it features a steam-water inner circulation system that ensures no steam is discharged, keeping the surrounding area dry and clean.
What safety features are included?
The unit includes automatic protection against over-temperature and over-pressure, as well as a safety cutoff for water shortages.
What material is the sterilizing chamber made of?
The chamber and the included sterilizing plates are all made of high-quality, durable stainless steel.
Does the machine alert the user when finished?
Yes, the system will automatically shut off and emit a beep reminder once the sterilization process is complete.
